Equipment ↠ Case ↠ Excavators ↠ 2005 Case CX240

2005 Case CX240 For Sale in Ocana, Esp

Name: 2005 Case CX240
Brand: Case
SKU: 88539146
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-10

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

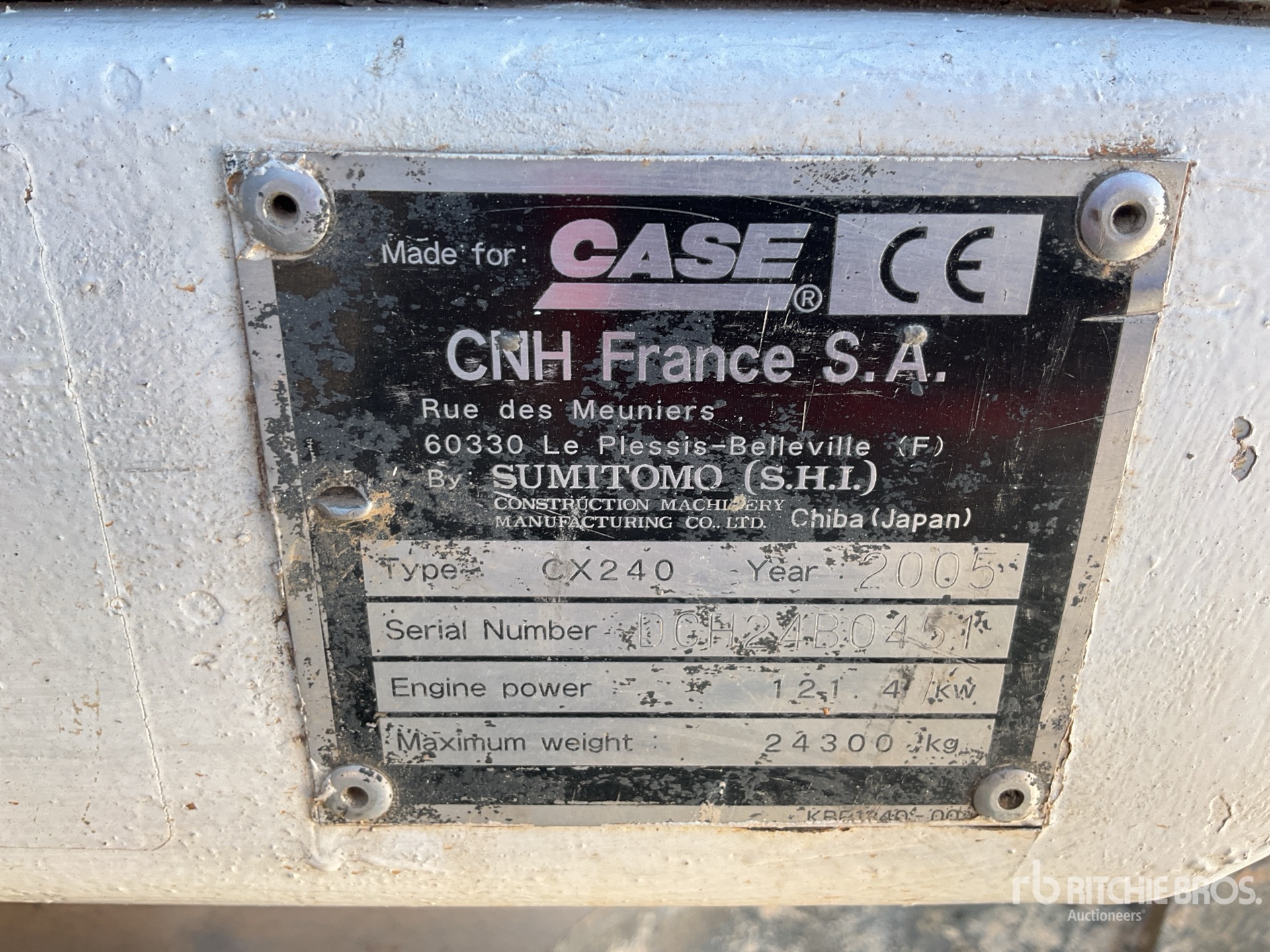

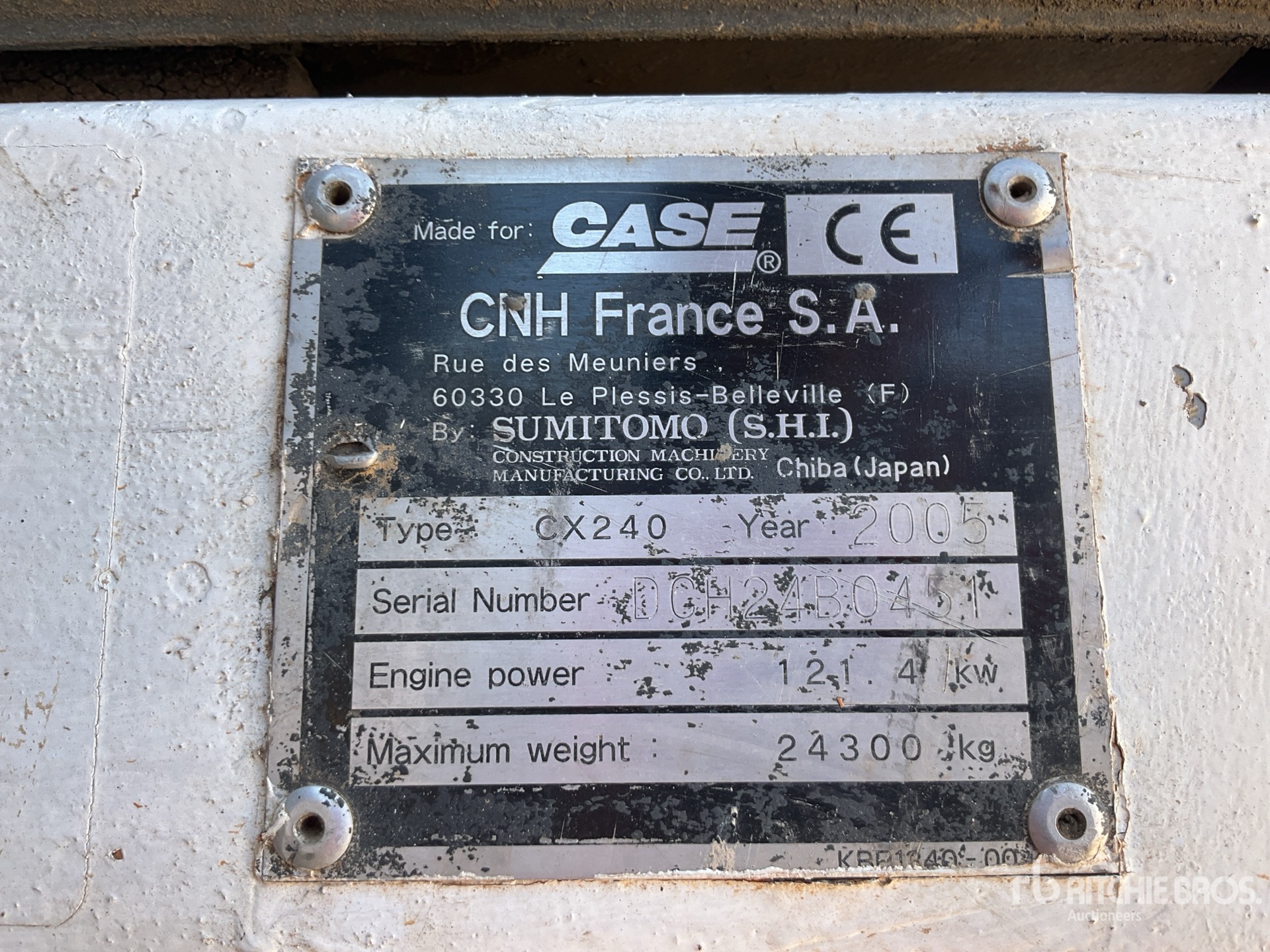

Serial Number:	DCH24B0451
Machine Location:	OCANA, ESP

Description:

US EPA Label, 600 mm Triple Grouser Track Shoes, unit without boom, stick & bucket** Closing Time: 2026-06-10 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	33 ft (10 m)
Max Digging Depth	24 ft (7 m)
Max Loading Height	3 ft (1 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Digging Depth	22 ft (7 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	33 ft (10 m)
Boom/Stick Excavator Option 2
Max Cutting Height	32 ft (10 m)
Max Digging Depth	23 ft (7 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	34 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	33 ft (10 m)
Bucket
Maximum Bucket Capacity	2 cu yd (2 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Digging Depth	24 ft (7 m)
Digging Reach	24 ft (7 m)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	10 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	359 cu in (5,883 cu cm)
Engine Model	6TAA-5904
Gross Power	180 hp (134 kw)
Max Torque	461 lbs ft (625 nm)
Net Power	173 hp (129 kw)
Power Measured @	2,150 rpm
Torque Measured @	1,400 rpm
Operating Specifications
Alternator Supplied Amperage	45 amps
Cooling System Fluid Capacity	7 gal (27 l)
Engine Oil Capacity	6 gal (24 l)
Fuel Capacity	90 gal (340 l)
Hydraulic Pump Flow Capacity	56 gpm (212 lpm)
Hydraulic System Fluid Capacity	60 gal (225 l)
Hydraulic System Relief Valve Pressure	4,975 psi
Operating Voltage	24 volts
Operating Weight	53,240 lbs (24,149 kg)
Swing Drive Fluid Capacity	2 gal (6 l)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Drawbar Pull	43,006 lbs (19,507 kg)
Ground Pressure	5 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	51
Number of Track Rollers per Side	9
Shoe Size	32 in (80 cm)
