Equipment ↠ Case ↠ Excavators ↠ 2011 Case CX470B

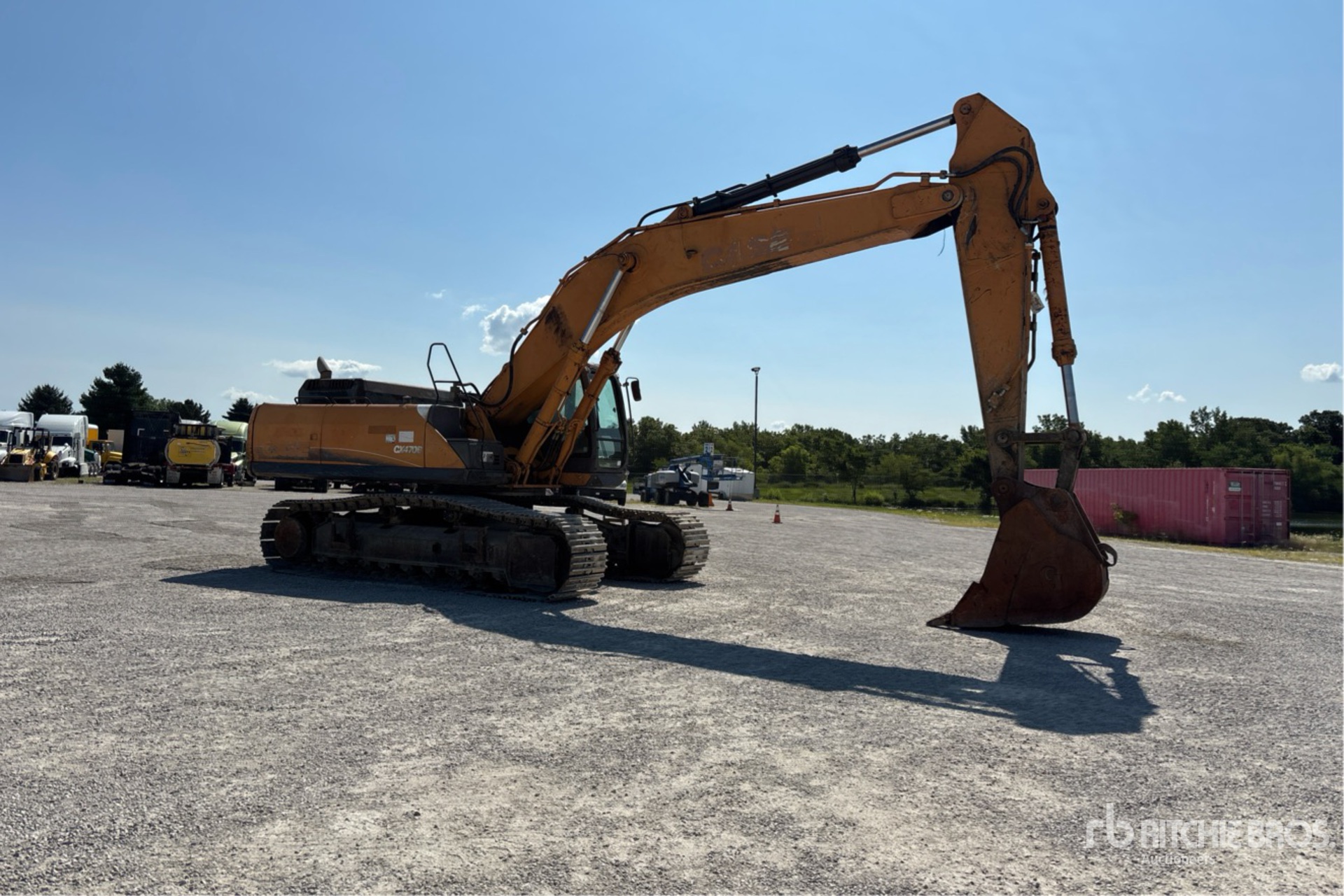

2011 Case CX470B For Sale in Chicago, Il

Name: 2011 Case CX470B
Brand: Case
SKU: 88824447
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-06 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

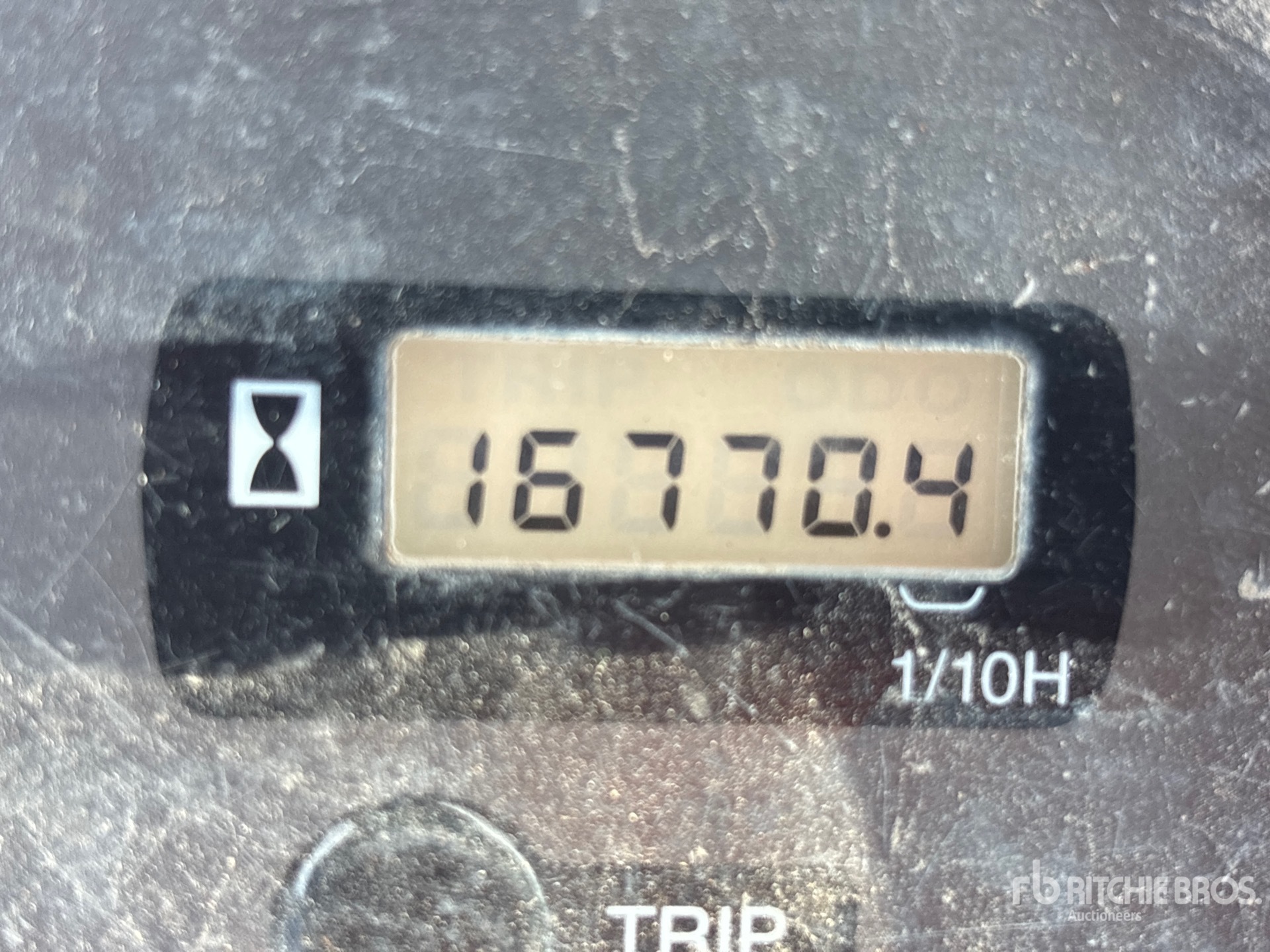

Hours:	16770
Serial Number:	DAC470K5NBSAS1211
Machine Location:	CHICAGO, IL

Description:

Located in Lane 21 Spot 75, Air Conditioner, Control Pattern Changer, Cab Riser, 14 ft 6 in Stick, Auxiliary Hydraulic Plumbing, 30 in Triple Grouser Track Shoes, 43 in Digging Bucket Closing Time: 2026-08-06 08:55:15 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	37 ft (11 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	26 ft (8 m)
Max Reach Along Ground	41 ft (12 m)
Max Vertical Wall Digging Depth	24 ft (7 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	40 ft (12 m)
Boom/Stick Excavator Option 2
Max Cutting Height	37 ft (11 m)
Max Digging Depth	25 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	39 ft (12 m)
Max Vertical Wall Digging Depth	22 ft (7 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	39 ft (12 m)
Boom/Stick Excavator Option 3
Max Cutting Height	36 ft (11 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	41 ft (13 m)
Bucket
Maximum Bucket Capacity	4 cu yd (3 cu m)
Minimum Bucket Capacity	2 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	11 ft (3 m)
Length of Track on Ground	15 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	12 ft (4 m)
Width to Outside of Tracks	12 ft (4 m)
Engine
Aspiration	turbocharged
Displacement	600 cu in (9,832 cu cm)
Engine Model	AH-6UZ1XYSS Tier III certified
Max Torque	1,058 lbs ft (1,434 nm)
Net Power	362 hp (270 kw)
Power Measured @	1,950 rpm
Torque Measured @	1,500 rpm
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	10 gal (38 l)
Engine Oil Capacity	10 gal (36 l)
Fuel Capacity	172 gal (650 l)
Hydraulic Pump Flow Capacity	190 gpm (720 lpm)
Hydraulic System Fluid Capacity	122 gal (460 l)
Hydraulic System Relief Valve Pressure	4,554 psi
Operating Voltage	24 volts
Operating Weight	103,800 lbs (47,083 kg)
Swing Drive Fluid Capacity	3 gal (11 l)
Swing Mechanism
Swing Speed	9 rpm
Undercarriage
Drawbar Pull	76,660 lbs (34,772 kg)
Ground Pressure	8 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	50
Number of Track Rollers per Side	9
Shoe Size	36 in (90 cm)
Track Gauge	9 ft (3 m)
