Equipment ↠ Case ↠ Mini Excavators ↠ 2017 Case CX17C

2017 Case CX17C For Sale in Fort Worth, Tx

Name: 2017 Case CX17C
Brand: Case
SKU: 88599324
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

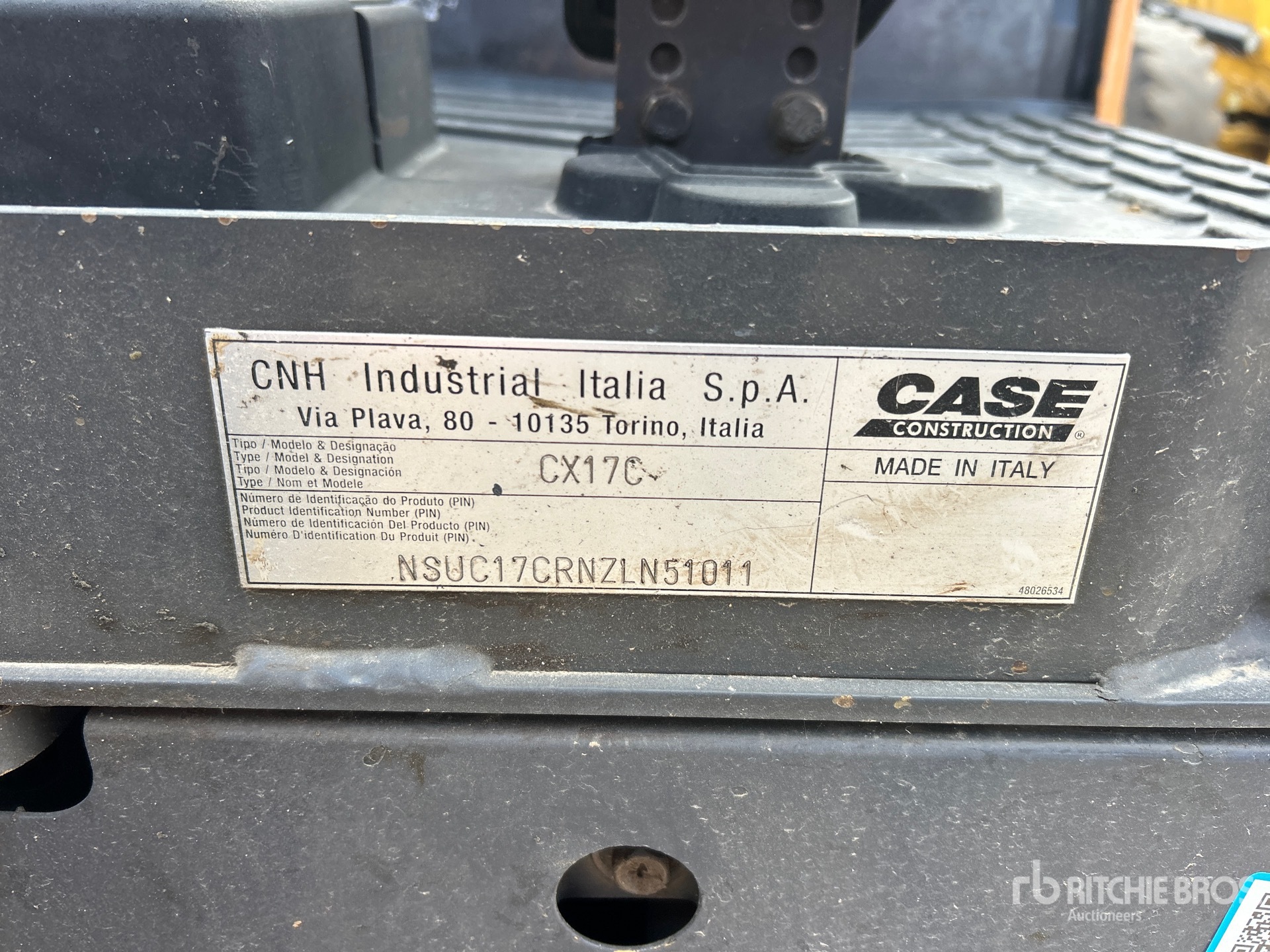

Serial Number:	NSUC17CRNZLN51011
Machine Location:	FORT WORTH, TX

Description:

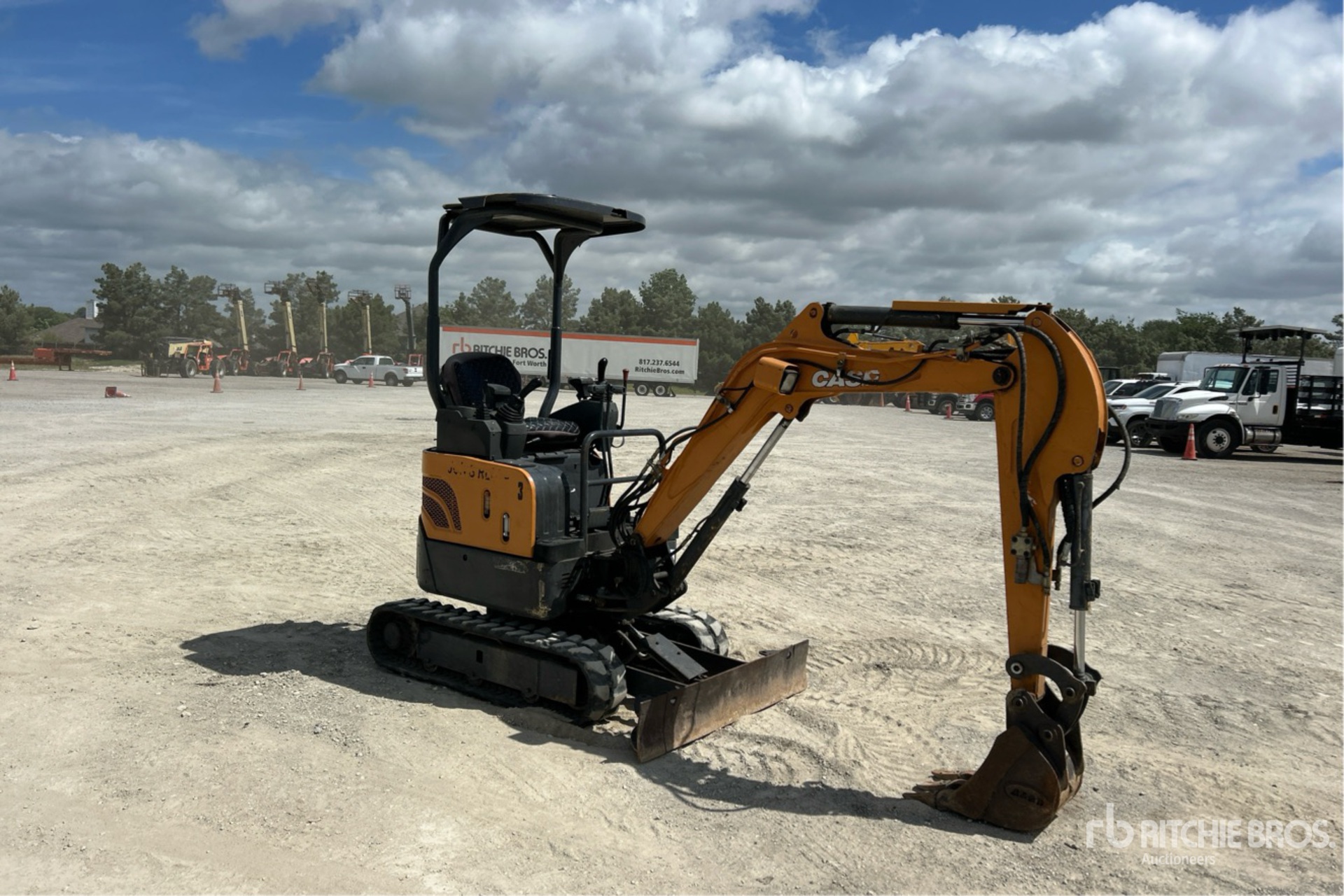

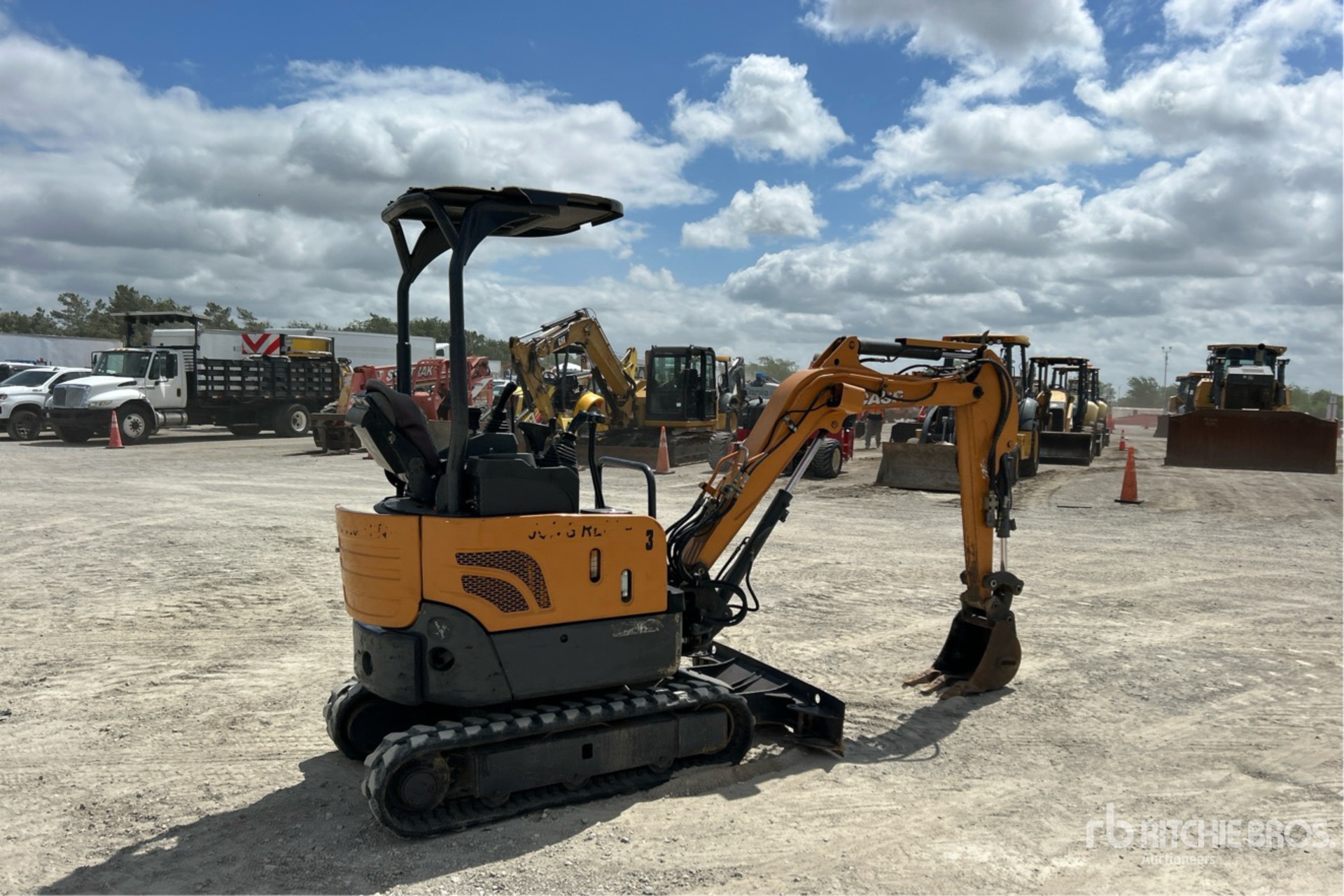

Located in Lane 61 Spot 11, Tier 4, 2017 US EPA Label, Swing Boom, 3 ft 8 in Stick, Auxiliary Hydraulic Plumbing, Stick Check Valve, Backfill Blade, 9 in Rubber Tracks, Expandable Width Tracks, 12 in Digging Bucket Closing Time: 2026-06-17 12:48:18 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case CX17C is a compact mini excavator designed for small-scale excavation, landscaping, utility, and site preparation work. It is part of Case Construction Equipment's mini excavator lineup and is suited for operation in confined spaces where maneuverability is important. The CX17C typically features a zero-tail-swing design, hydraulic controls, and a compact undercarriage for improved access and transport. Mini excavators in this class are commonly used for trenching, grading, digging, and material handling. The Case CX17C is intended for contractors, rental fleets, and property maintenance applications requiring a small excavator with practical digging capability and easy operation.

Boom
Arm Length	5 ft (2 m)
Boom Length	3 ft (1 m)
Boom/Stick Excavator Option 1
Max Cutting Height	12 ft (4 m)
Max Digging Depth	7 ft (2 m)
Max Loading Height	9 ft (3 m)
Max Reach Along Ground	13 ft (4 m)
Max Vertical Wall Digging Depth	4 ft (1 m)
Max.Dumping Height	9 ft (3 m)
Shipping Height of Unit	8 ft (2 m)
Shipping Length of Unit	12 ft (4 m)
Boom/Stick Excavator Option 2
Max Cutting Height	12 ft (4 m)
Max Digging Depth	8 ft (2 m)
Max Loading Height	9 ft (3 m)
Max Reach Along Ground	13 ft (4 m)
Max Vertical Wall Digging Depth	5 ft (1 m)
Max.Dumping Height	9 ft (3 m)
Shipping Height of Unit	8 ft (2 m)
Shipping Length of Unit	12 ft (4 m)
Capacities
Engine oil w/ filter change	1 gal (4 l)
Fuel Tank	5 gal (20 l)
Hydraulic Tank	6 gal (23 l)
Radiator	1 gal (4 l)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	8 ft (2 m)
Length of Track on Ground	5 ft (2 m)
Tail Swing Radius	2 ft (1 m)
Width to Outside of Tracks	4 ft (1 m)
Drive System
Gradeability	30 degrees
Ground pressure	4 psi
Max drawbar pull	3,125 lbs (1,417 kg)
Maximum traction force	3,300 lbs (1,497 kg)
Electrical System
Alternator	40 amp
Battery	1 x 12 V x 45 Ah
Voltage	12 V
Engine
Cooling system	Water-cooled
Displacement	55 cu in (898 cu cm)
Emissions level	Tier 4 Final
Engine Model	Kubota D902
Fuel	Diesel
Fuel injection	Mechanical
Gross Power	17 hp (13 kw)
Max speed	3 mph (4 kph)
Max Torque	40 lbs ft (54 nm)
Net Power	16 hp (12 kw)
Number of Cylinders	3
Power Measured @	2,300 rpm
Torque Measured @	1,900 rpm
Hydraulic System
Main pump - Maximum flow	10 gpm (38 lpm)
Relief pressure	2420 psi 170 bar
Lift System
Bucket Breakout Force	3,485 lbs (1,581 kg)
Lift over end Max. reach - lbs	816 lbs (370 kg)
Lift over side Max. reach	397 lbs (180 kg)
Operating Specifications
Operating Weight	3,913 lbs (1,775 kg)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Number of Track Rollers per Side	3
