2022 Case CX26C For Sale in Chicago, Il

Name: 2022 Case CX26C
Brand: Case
SKU: 88676567
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-06 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

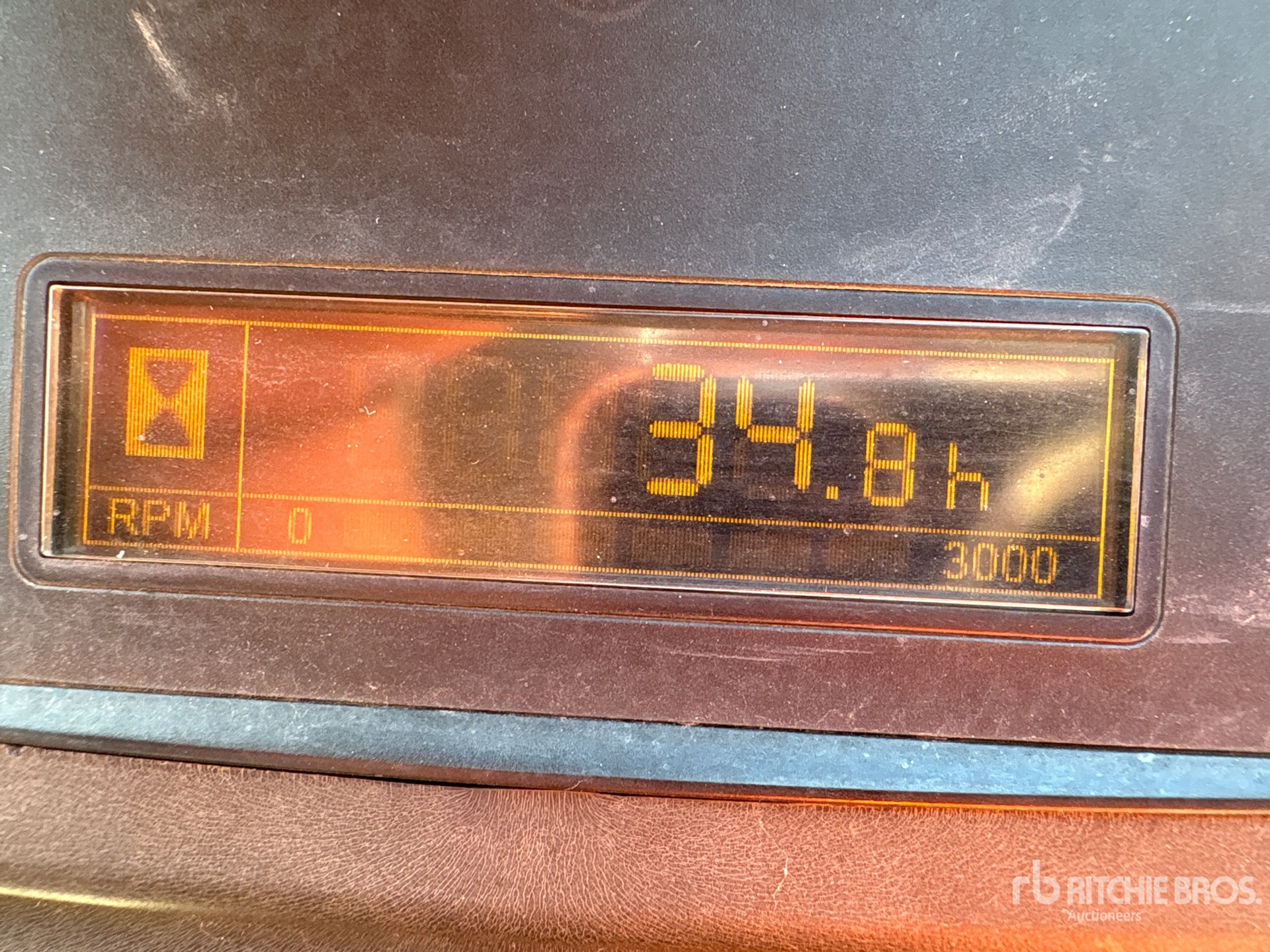

Hours:	34

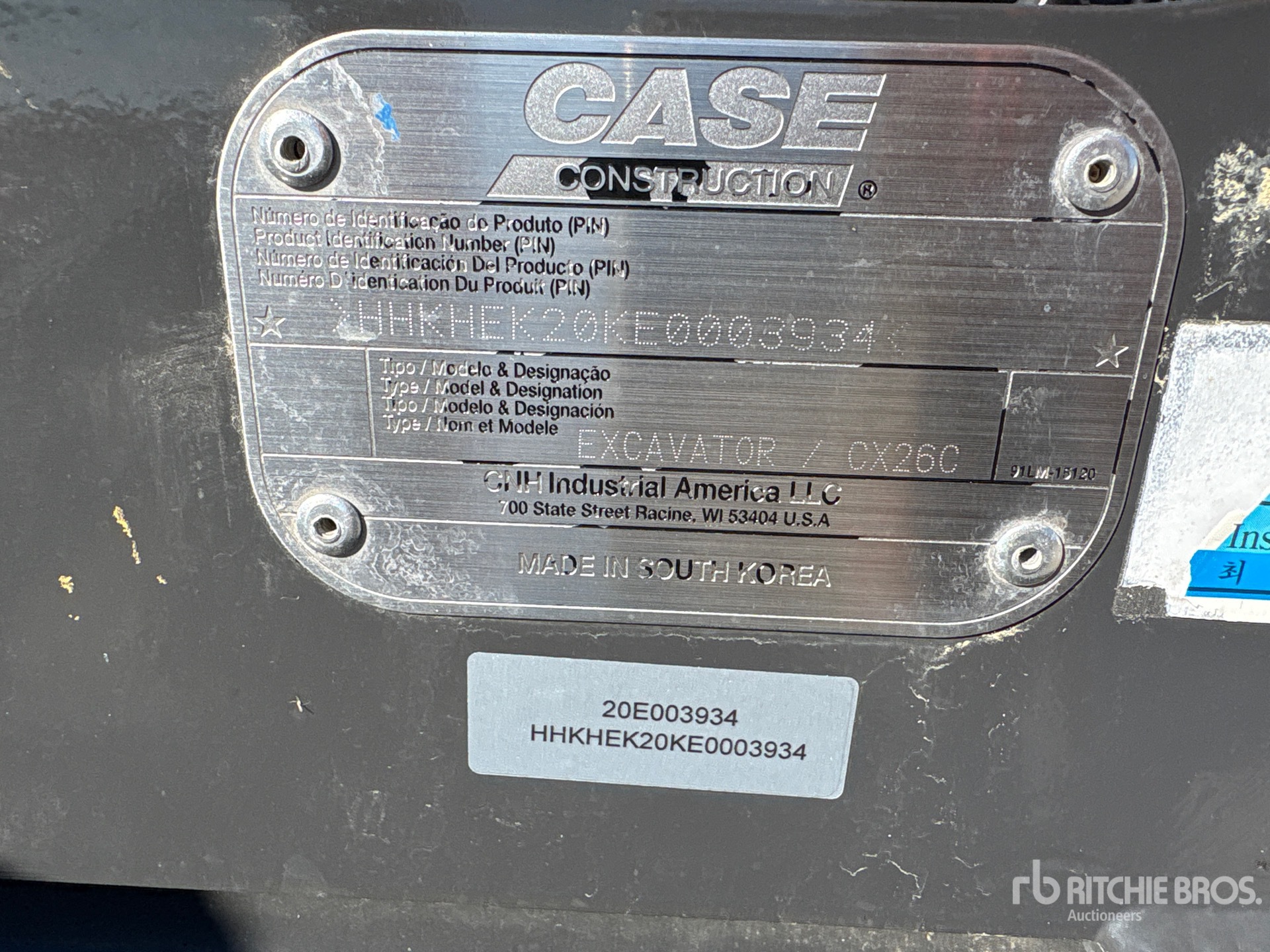

Serial Number:	HHKHEK20KE0003934
Machine Location:	CHICAGO, IL

Description:

Swing Boom, 55 in Stick, Backfill Blade, 10 in Rubber Tracks, Manual Quick Coupler, 12 in Digging Bucket, Equipment-from-Southeastern-Equipment-Company Closing Time: 2026-08-06 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case CX26C is a compact mini excavator designed for utility work, landscaping, site preparation, and light construction applications. It features a zero tail swing design for improved maneuverability in confined spaces, a dig depth suited to small-scale excavation tasks, and responsive hydraulic controls for precise operation. The CX26C is typically used on residential and commercial job sites where access is limited and ground disturbance must be minimized. As part of Case's mini excavator lineup, it is built for transportability, efficient operation, and compatibility with common attachments used in trenching, grading, and material handling.

Boom
Arm Length	7 ft (2 m)
Boom Length	4 ft (1 m)
Boom/Stick Excavator Option 1
Max Cutting Height	14 ft (4 m)
Max Digging Depth	8 ft (2 m)
Max Loading Height	10 ft (3 m)
Max Reach Along Ground	14 ft (4 m)
Max Vertical Wall Digging Depth	5 ft (1 m)
Max.Dumping Height	10 ft (3 m)
Shipping Height of Unit	8 ft (3 m)
Shipping Length of Unit	13 ft (4 m)
Boom/Stick Excavator Option 2
Max Cutting Height	14 ft (4 m)
Max Digging Depth	9 ft (3 m)
Max Loading Height	10 ft (3 m)
Max Reach Along Ground	15 ft (5 m)
Max Vertical Wall Digging Depth	5 ft (2 m)
Shipping Height of Unit	8 ft (3 m)
Shipping Length of Unit	13 ft (4 m)
Capacities
Engine oil w/ filter change	2 gal (6 l)
Fuel Tank	8 gal (30 l)
Hydraulic Tank	15 gal (55 l)
Radiator	1 gal (5 l)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	8 ft (3 m)
Length of Track on Ground	5 ft (1 m)
Tail Swing Radius	3 ft (1 m)
Width to Outside of Tracks	5 ft (2 m)
Drive System
Gradeability	30 degrees
Ground pressure	5 psi
Max drawbar pull	3,125 lbs (1,417 kg)
Maximum traction force	3,300 lbs (1,497 kg)
Electrical System
Alternator	40 amp
Battery	1 x 12 V x 58 Ah
Voltage	12 V
Engine
Cooling system	Water-cooled
Displacement	77 cu in (1,262 cu cm)
Emissions level	Tier 4 Final
Engine Model	Kubota D1305
Fuel	Diesel
Fuel injection	Mechanical
Gross Power	25 hp (18 kw)
Max speed	3 mph (4 kph)
Max Torque	60 lbs ft (81 nm)
Net Power	23 hp (17 kw)
Number of Cylinders	3
Power Measured @	2,300 rpm
Torque Measured @	1,600 rpm
General Specifications
Digging Depth ft. (m) (Since 2025)	8.7 (2.6)
Digging Reach ft. (m) (Since 2025)	14.9 (4.5)
Engine hp (kW) (Since 2025)	24.8 (18.5)
Operating Weight lbs. (kg) (Since 2025)	5,520 (2,505)
Hydraulic System
Main pump - Maximum flow	15 gpm (55 lpm)
Relief pressure	3130 psi 220 bar
Lift System
Bucket Breakout Force	4,744 lbs (2,152 kg)
Lift over end Max. reach - lbs	1,698 lbs (770 kg)
Lift over side Max. reach	463 lbs (210 kg)
Operating Specifications
Operating Weight	5,853 lbs (2,655 kg)
Swing Mechanism
Swing Speed	9 rpm
Undercarriage
Number of Track Rollers per Side	3
