Equipment ↠ Case ↠ Mini Excavators ↠ 2008 Case CX36B

2008 Case CX36B For Sale in Chehalis, Wa

Name: 2008 Case CX36B
Brand: Case
SKU: 88900538
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-01 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

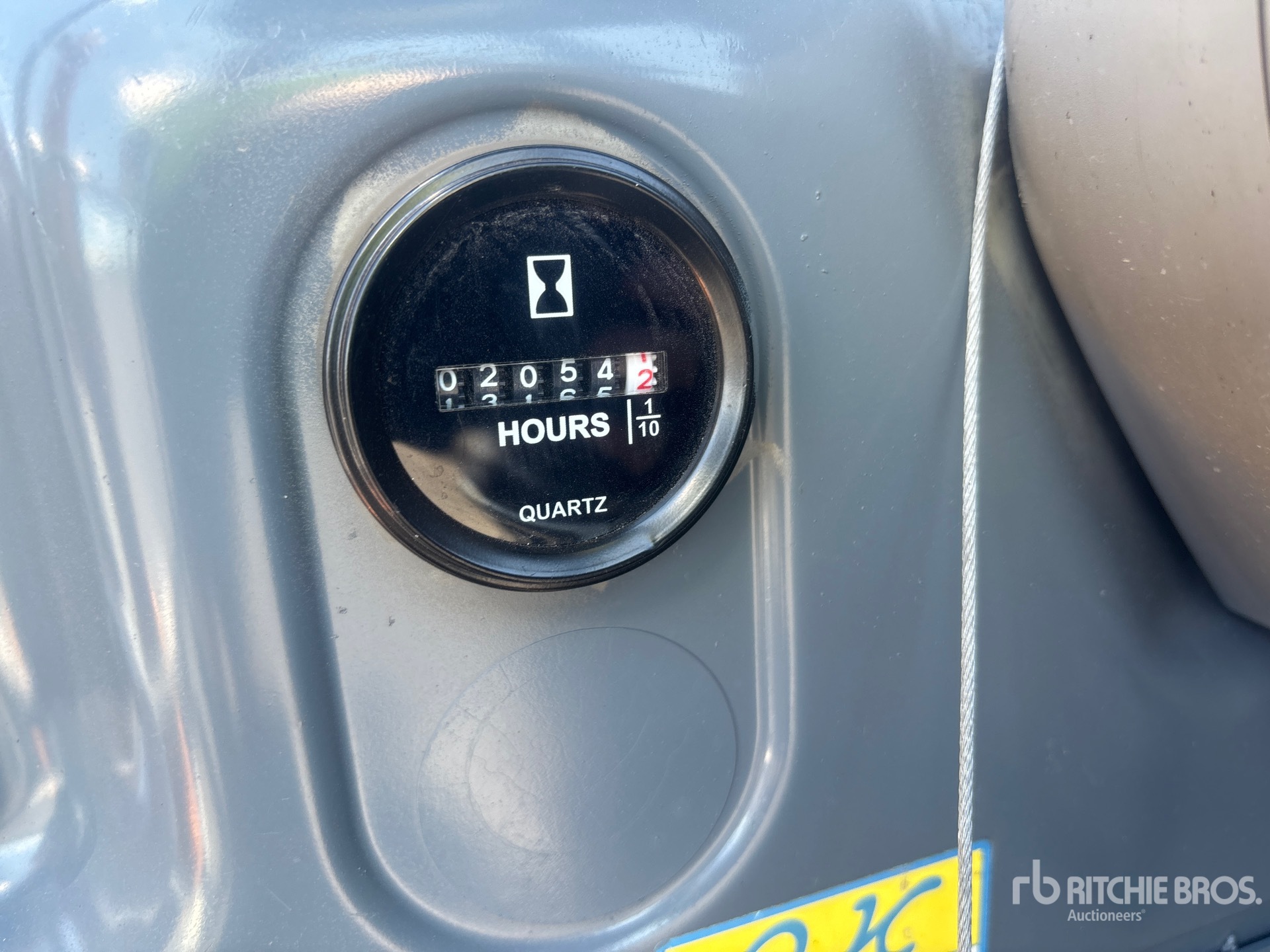

Hours:	2054

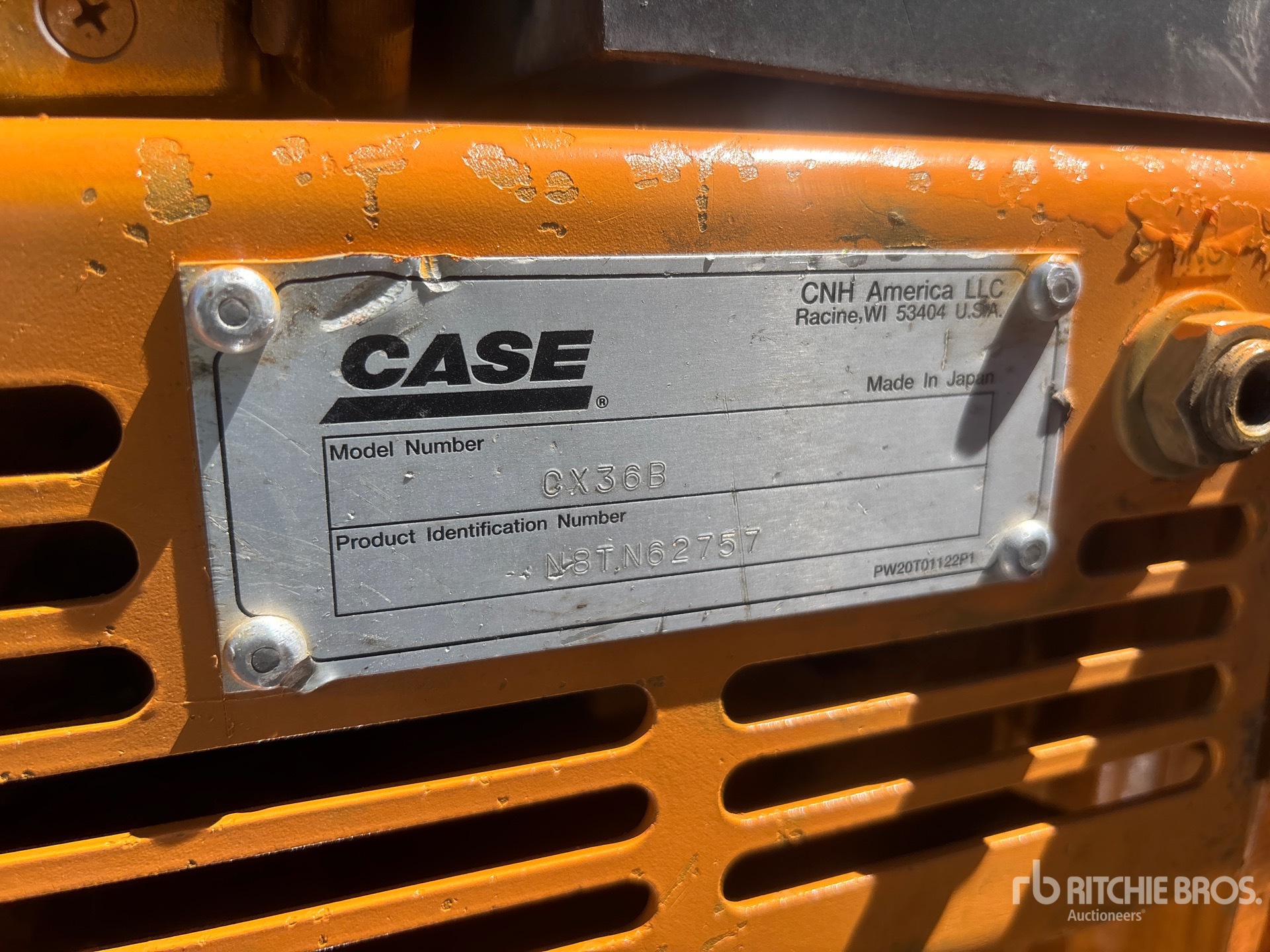

Serial Number:	N8TN62757
Machine Location:	CHEHALIS, WA

Description:

2008 US EPA Label, Swing Boom, 5 ft Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, 12 in Rubber Tracks, Manual Quick Coupler, 46 in Bucket, Hydraulic Thumb Closing Time: 2026-09-02 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom
Arm Length	4 ft (1 m)
Boom Length	8 ft (3 m)
Boom/Stick Excavator Option 1
Max Cutting Height	16 ft (5 m)
Max Digging Depth	10 ft (3 m)
Max Loading Height	12 ft (4 m)
Max Reach Along Ground	17 ft (5 m)
Max Vertical Wall Digging Depth	8 ft (2 m)
Shipping Height of Unit	9 ft (3 m)
Shipping Length of Unit	9 ft (3 m)
Bucket
Maximum Bucket Capacity	0 cu yd (0 cu m)
Minimum Bucket Capacity	0 cu yd (0 cu m)
Reference Bucket Capacity	0 cu yd (0 cu m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	6 ft (2 m)
Removal Counterweight Clearance	2 ft (1 m)
Tail Swing Radius	3 ft (1 m)
Width to Outside of Tracks	6 ft (2 m)
Engine
Displacement	100 cu in (1,639 cu cm)
Emissions level	Tier 4
Engine Model	Yanmar 3TNV88-BPYB
Max Torque	73 lbs ft (98 nm)
Net Power	28 hp (21 kw)
Number of Cylinders	3
Power Measured @	2,400 rpm
Torque Measured @	1,440 rpm
Lift System
Bucket Breakout Force	6,227 lbs (2,825 kg)
Lift over end Max. reach - lbs	1,962 lbs (890 kg)
Lift over side Max. reach	904 lbs (410 kg)
Operating Specifications
Alternator Supplied Amperage	24 amps
Cooling System Fluid Capacity	1 gal (5 l)
Engine Oil Capacity	2 gal (7 l)
Fuel Capacity	10 gal (38 l)
Hydraulic Pump Flow Capacity	20 gpm (76 lpm)
Hydraulic System Fluid Capacity	13 gal (48 l)
Hydraulic System Relief Valve Pressure	3,336 psi
Operating Voltage	12 volts
Operating Weight	7,958 lbs (3,610 kg)
Swing Mechanism
Swing Speed	9 rpm
Undercarriage
Drawbar Pull	8,655 lbs (3,926 kg)
Ground Pressure	5 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	1
Number of Track Rollers per Side	4
Shoe Size	12 in (30 cm)
