Equipment ↠ Case ↠ Mini Excavators ↠ Case CX57C

Case CX57C For Sale in Pelzer, SC

Name: Case CX57C
Brand: Case
SKU: 88592883
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-06-18 Click here to place a bid

Jeff Martin Auctioneers, Inc

Jeff Martin Auctioneers, Inc Dealer Info

Jeff Martin Auctioneers, Inc Website

Click here to email Jeff Martin Auctioneers, Inc.

Click for Phone Number

Machine Info:

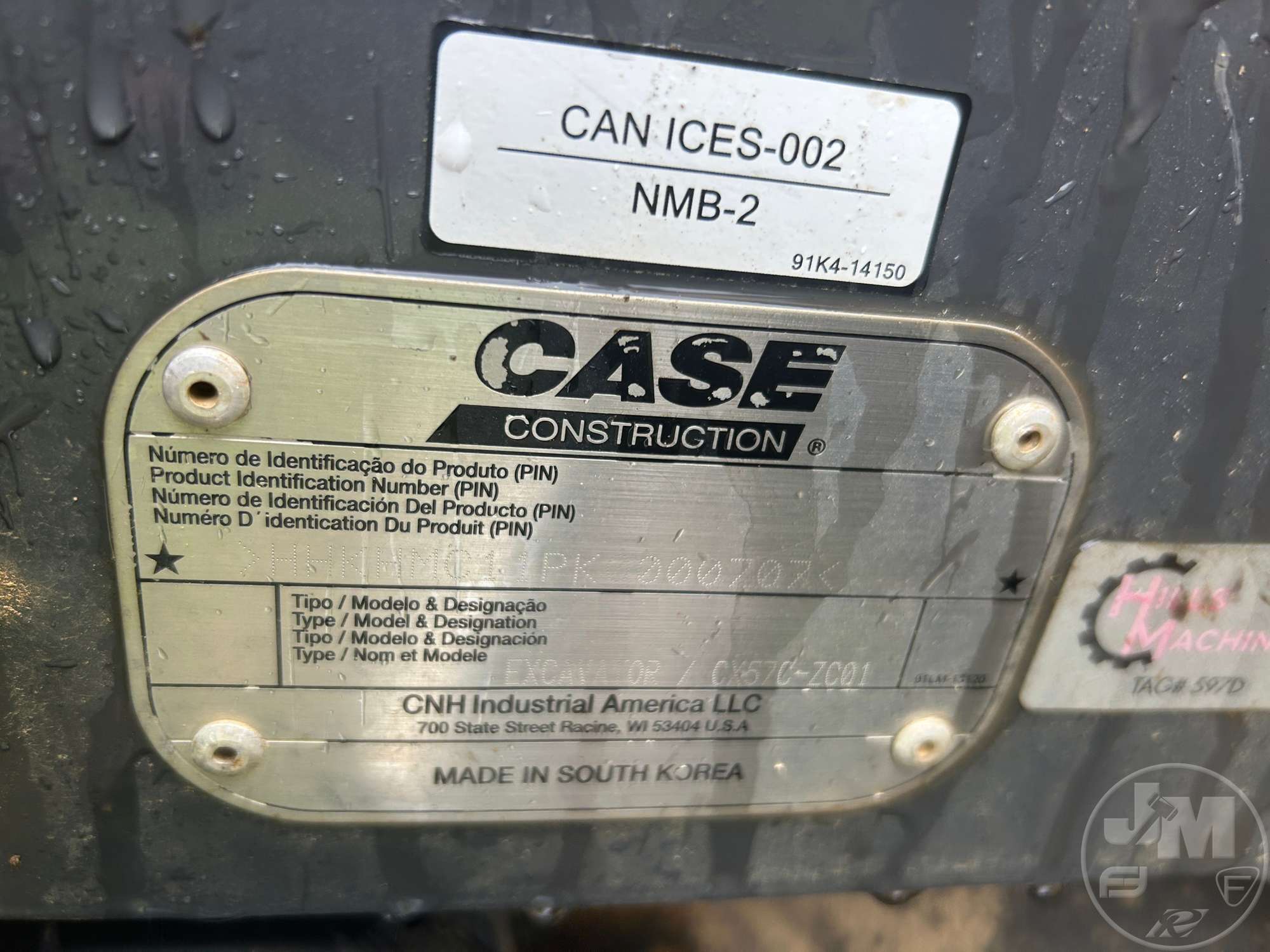

Serial Number:	HHKHMC11PK0000707
Machine Location:	PELZER, SC
More Information:	https://www.jeffmartinauctioneers.com/auctions/1243/lot/332059-CASE-CX57C-MINI-EXCAVATOR-SN%3A-HHKHMC11PK0000707

Description:

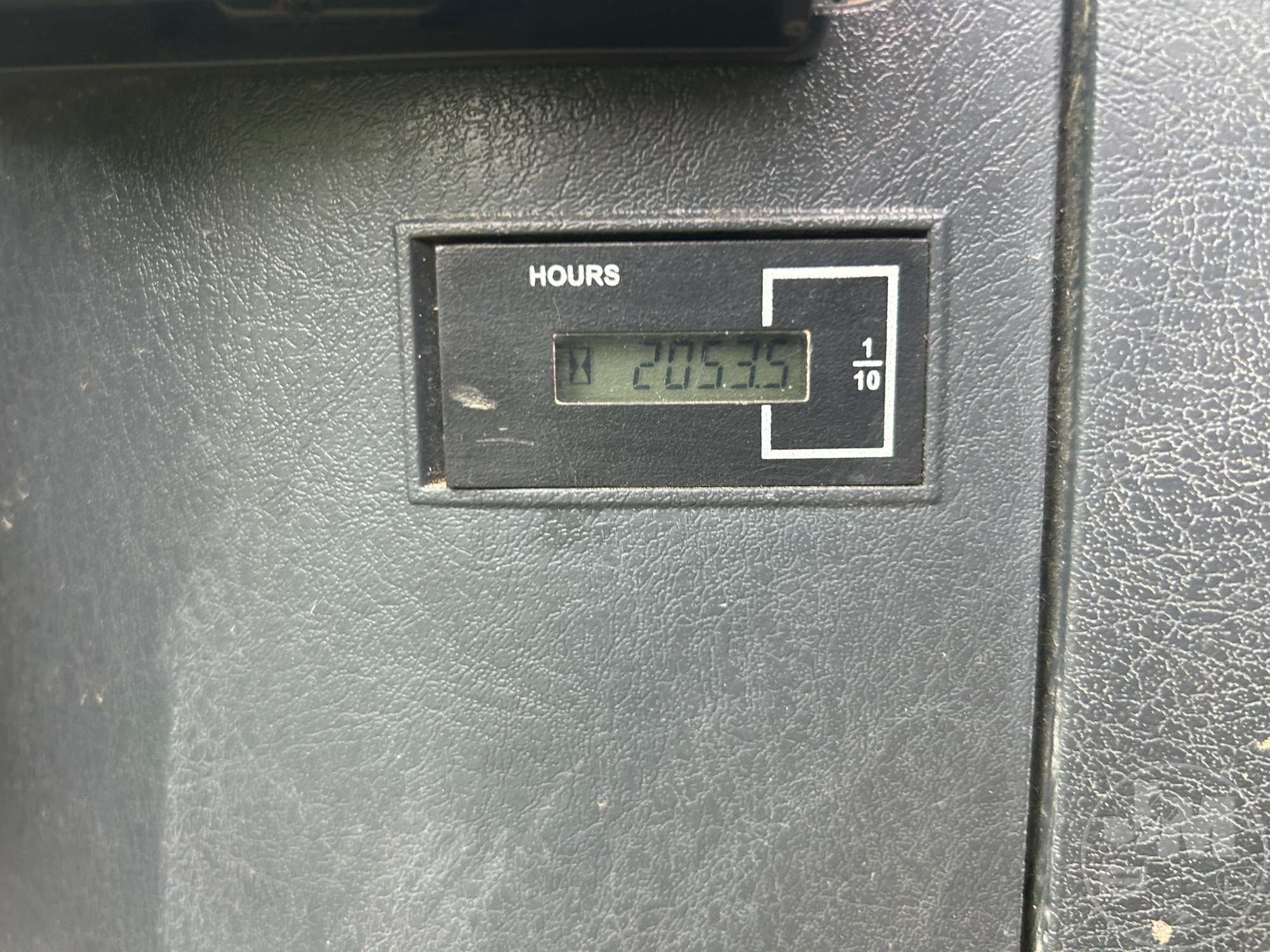

CASE MINI EXCAVATOR, CAB, HOUR METER READS: 2053

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case CX57C is a compact mini excavator designed for utility, landscaping, site preparation, and light construction work. It is part of Case's C Series and is built for maneuverability in confined spaces while providing digging performance suitable for small to medium job sites. The CX57C typically features a zero-tail-swing design, hydraulic controls, and a comfortable operator station. Common applications include trenching, grading, material handling, and foundation work. As a mini excavator, it is used where access is limited and precise control is required. Specifications may vary by configuration, attachment, and market.

Boom
Arm Length	9 ft (3 m)
Boom Length	5 ft (2 m)
Boom/Stick Excavator Option 1
Max Cutting Height	19 ft (6 m)
Max Digging Depth	13 ft (4 m)
Max Loading Height	13 ft (4 m)
Max Reach Along Ground	20 ft (6 m)
Max Vertical Wall Digging Depth	11 ft (3 m)
Max.Dumping Height	13 ft (4 m)
Shipping Height of Unit	8 ft (3 m)
Shipping Length of Unit	19 ft (6 m)
Boom/Stick Excavator Option 2
Max Cutting Height	20 ft (6 m)
Max Digging Depth	13 ft (4 m)
Max Loading Height	14 ft (4 m)
Max Reach Along Ground	21 ft (6 m)
Max Vertical Wall Digging Depth	11 ft (3 m)
Shipping Height of Unit	8 ft (3 m)
Shipping Length of Unit	19 ft (6 m)
Capacities
Engine oil w/ filter change	3 gal (12 l)
Fuel Tank	32 gal (120 l)
Hydraulic Tank	32 gal (120 l)
Radiator	3 gal (10 l)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	8 ft (3 m)
Length of Track on Ground	7 ft (2 m)
Tail Swing Radius	6 ft (2 m)
Width to Outside of Tracks	6 ft (2 m)
Drive System
Gradeability	35 degrees
Ground pressure	5 psi
Max drawbar pull	11,668 lbs (5,292 kg)
Maximum traction force	11,680 lbs (5,298 kg)
Electrical System
Alternator	60 amp
Battery	1 x 12 V x 100 Ah
Voltage	12 V
Engine
Cooling system	Water-cooled
Displacement	203 cu in (3,327 cu cm)
Emissions level	Tier 4 Final
Engine Model	Yanmar 4TNV98C
Fuel	Diesel
Fuel injection	Electronic common rail
Gross Power	67 hp (50 kw)
Max speed	3 mph (4 kph)
Max Torque	174 lbs ft (236 nm)
Net Power	65 hp (49 kw)
Number of Cylinders	4
Power Measured @	2,400 rpm
Torque Measured @	1,550 rpm
Hydraulic System
Main pump - Maximum flow	31 gpm (116 lpm)
Relief pressure	3130 psi 220 bar
Lift System
Bucket Breakout Force	9,532 lbs (4,324 kg)
Lift over end Max. reach - lbs	2,822 lbs (1,280 kg)
Lift over side Max. reach	1,257 lbs (570 kg)
Operating Specifications
Operating Weight	12,269 lbs (5,565 kg)
Swing Mechanism
Swing Speed	9 rpm
Undercarriage
Number of Track Rollers per Side	5

Dealer Contact Info:

Jeff Martin Auctioneers, Inc

Jeff Martin Auctioneers, Inc Dealer Info

Jeff Martin Auctioneers, Inc Website

Email Jeff Martin Auctioneers, Inc.

Click for Phone Number
