Equipment ↠ Case ↠ Off-Highway Trucks ↠ 2005 Case 330B

2005 Case 330B For Sale in Saskatoon, Sk

Name: 2005 Case 330B
Brand: Case
SKU: 88458890
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-16 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

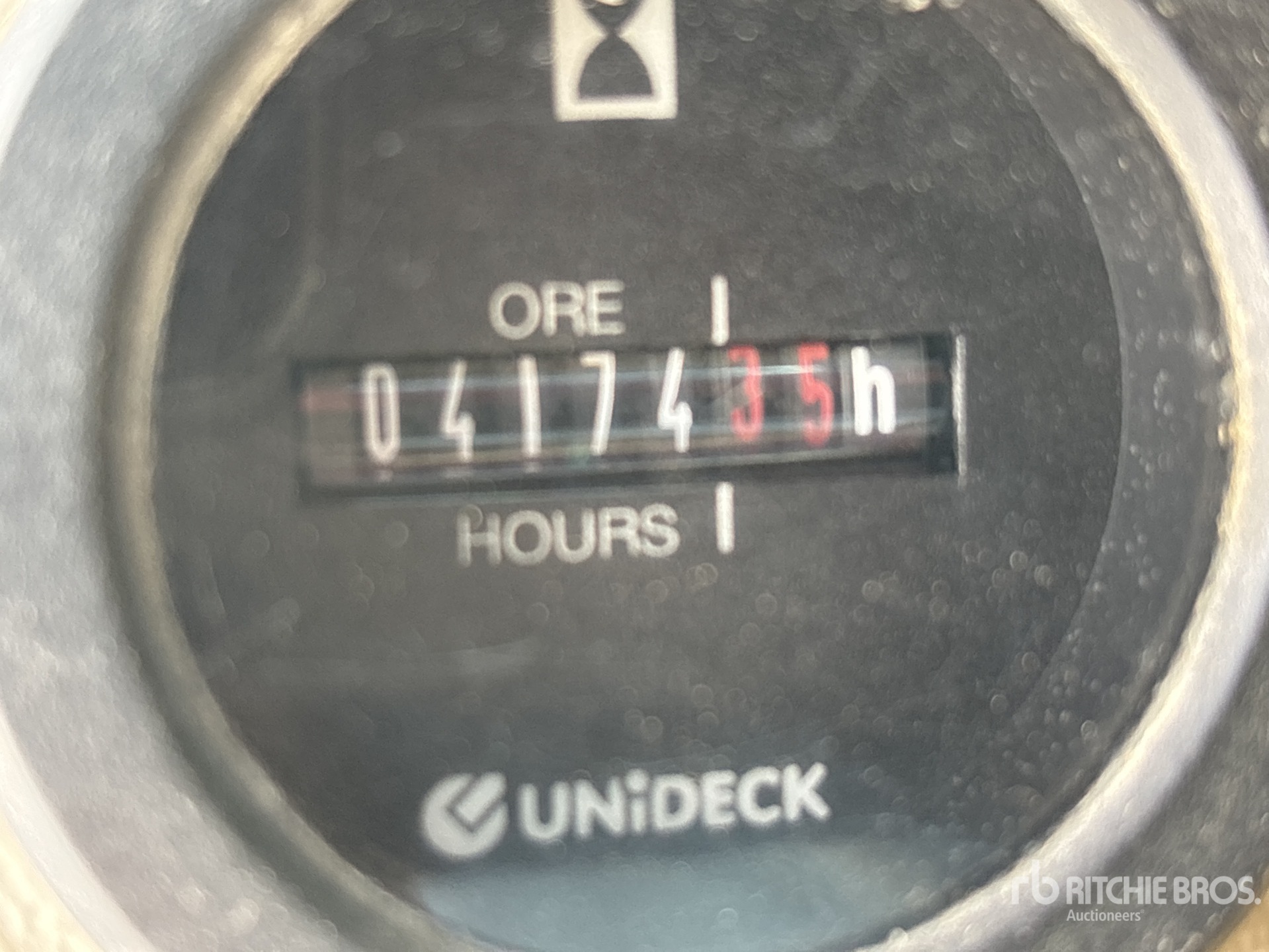

Hours:	4174

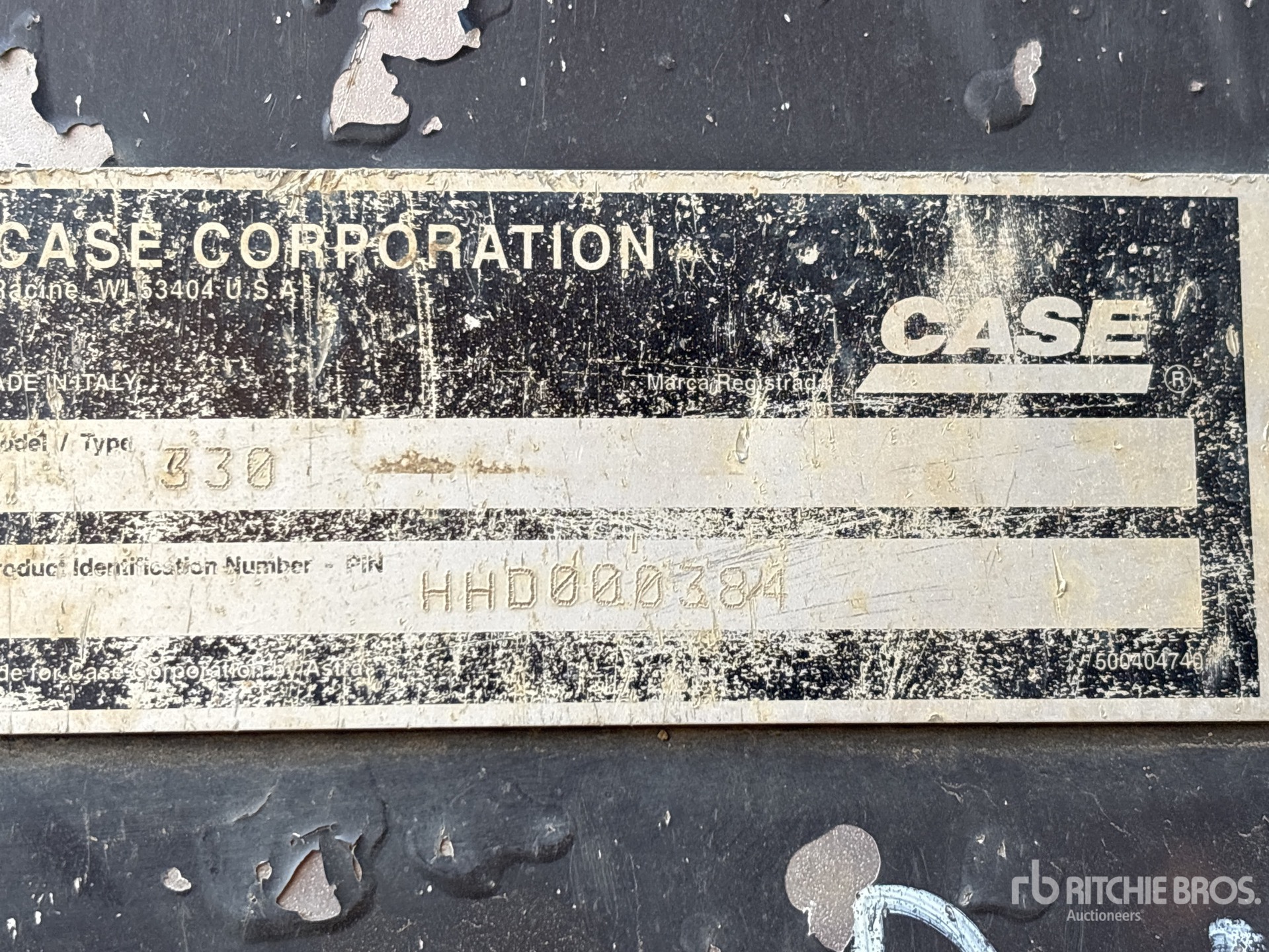

Serial Number:	HHD000384
Machine Location:	SASKATOON, SK

Description:

Air Conditioner, Retarder, 2005 US EPA Label, 23.5R25 Tires Selling offsite - Location: Kelvington, SK -, 52.174144, -103.589920 -, Removal deadline: July 2, 2026 - Buyer responsible for load out and all associated costs - Runs but does not move as per owner -, Please contact Justin Schmidt at 306.327.8330, Closing Time: 2026-06-17 02:04:10 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Articulating/Rigid
Articulating/Rigid	Articulated
Dimensions
Dump Ground Clearance	3 ft (1 m)
Dump Height	21 ft (6 m)
Ground Clearance	2 ft (0 m)
Overall Height	12 ft (4 m)
Overall Length	33 ft (10 m)
Overall Width	10 ft (3 m)
Wheelbase	19 ft (6 m)
DRIVE SYSTEM
Drive Config	6x6
Dump
Capacity - Heaped	23 cu yd (18 cu m)
Capacity - Struck	18 cu yd (14 cu m)
Dump Angle	68 degrees
Lower Time	13 seconds
Raise Time	13 seconds
Rated Payload	62,082 lbs (28,160 kg)
Engine
Aspiration	Turbocharged with Aftercooler
Bore	5 in (12 cm)
Displacement	64 cu in (1,050 cu cm)
Engine Model	Cat 3306TA
Gross Power	349 hp (260 kw)
Make	Case
Max Torque	1,217 lbs ft (1,650 nm)
Net Power	334 hp (249 kw)
Net Power - EEC 80/1269	221 hp (165 kw)
Net Power - ISO 9249	221 hp (165 kw)
Net Power - SAE J1349	219 hp (163 kw)
Number of Cylinders	6
Power Measured @	1,800 rpm
Stroke	6 in (15 cm)
Torque Measured @	1,140 rpm
Operating Specifications
Alternator Supplied Amperage	70 amps
Engine Oil Capacity	8 gal (30 l)
Fuel Capacity	100 gal (379 l)
Hydraulic System Fluid Capacity	58 gal (220 l)
Operating Voltage	24 volts
Tire Size	Tubeless 23.5 R25
Transmission Fluid Capacity	10 gal (38 l)
Service Refill Capacities
Cooling System	12 gal (45 l)
Final Drive - Each	4 gal (15 l)
Swing Drive	4 gal (15 l)
Standards
Brakes	SAE J1026 APR90
Transmission
Max Speed	29 mph (46 kph)
Number of Forward Gears	6
Number of Reverse Gears	3
Transmission Type	Powershift
Weights
Front Axle - empty	26,455 lbs (12,000 kg)
Operating Weight	111,840 lbs (50,730 kg)
Rear Axle - empty	23,303 lbs (10,570 kg)
Total Empty	49,758 lbs (22,570 kg)
Total Loaded	111,840 lbs (50,730 kg)
