Equipment ↠ Case ↠ Skid Steer Loaders ↠ 2016 Case SR210

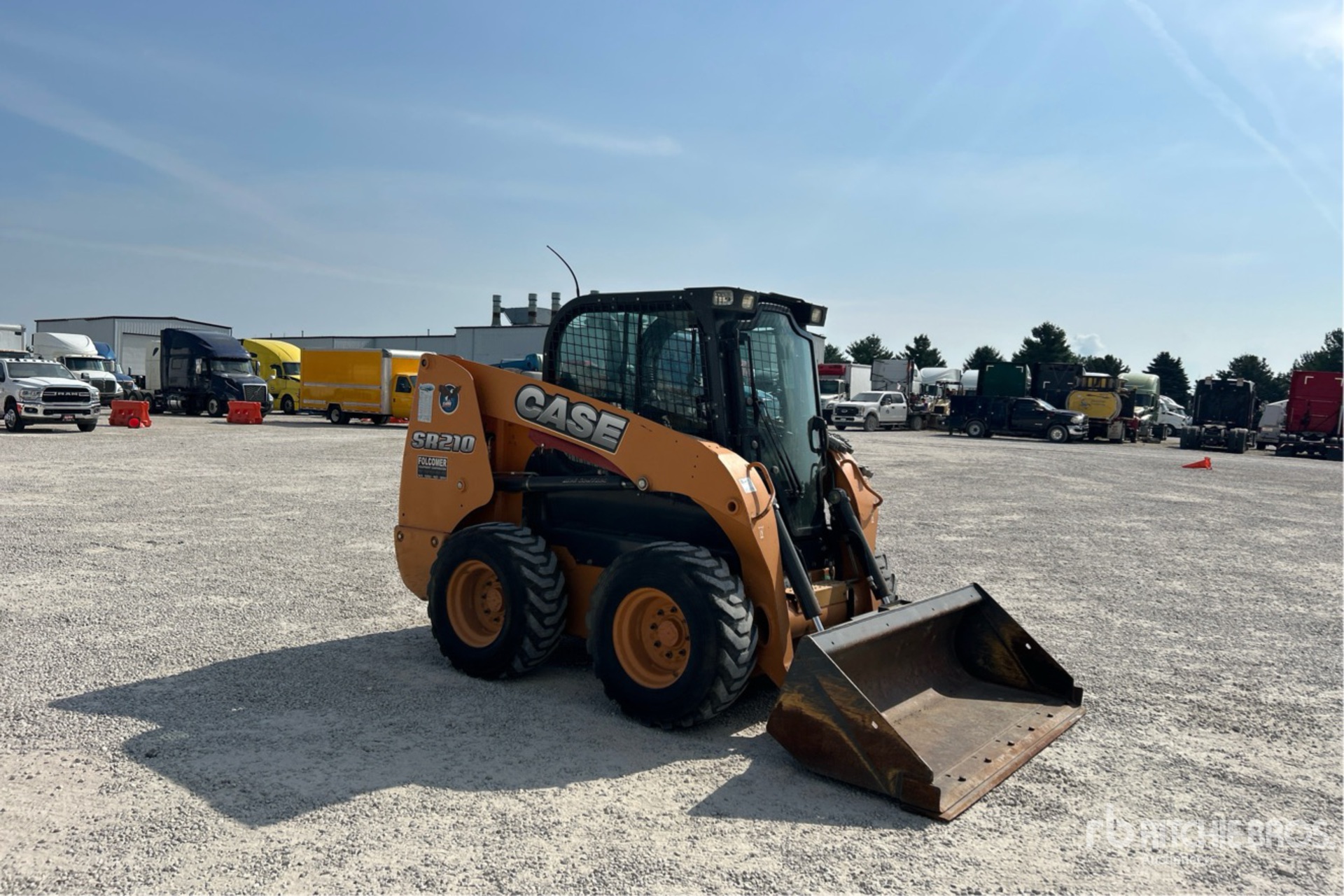

2016 Case SR210 For Sale in Chicago, Il

Name: 2016 Case SR210
Brand: Case
SKU: 88798218
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-06 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

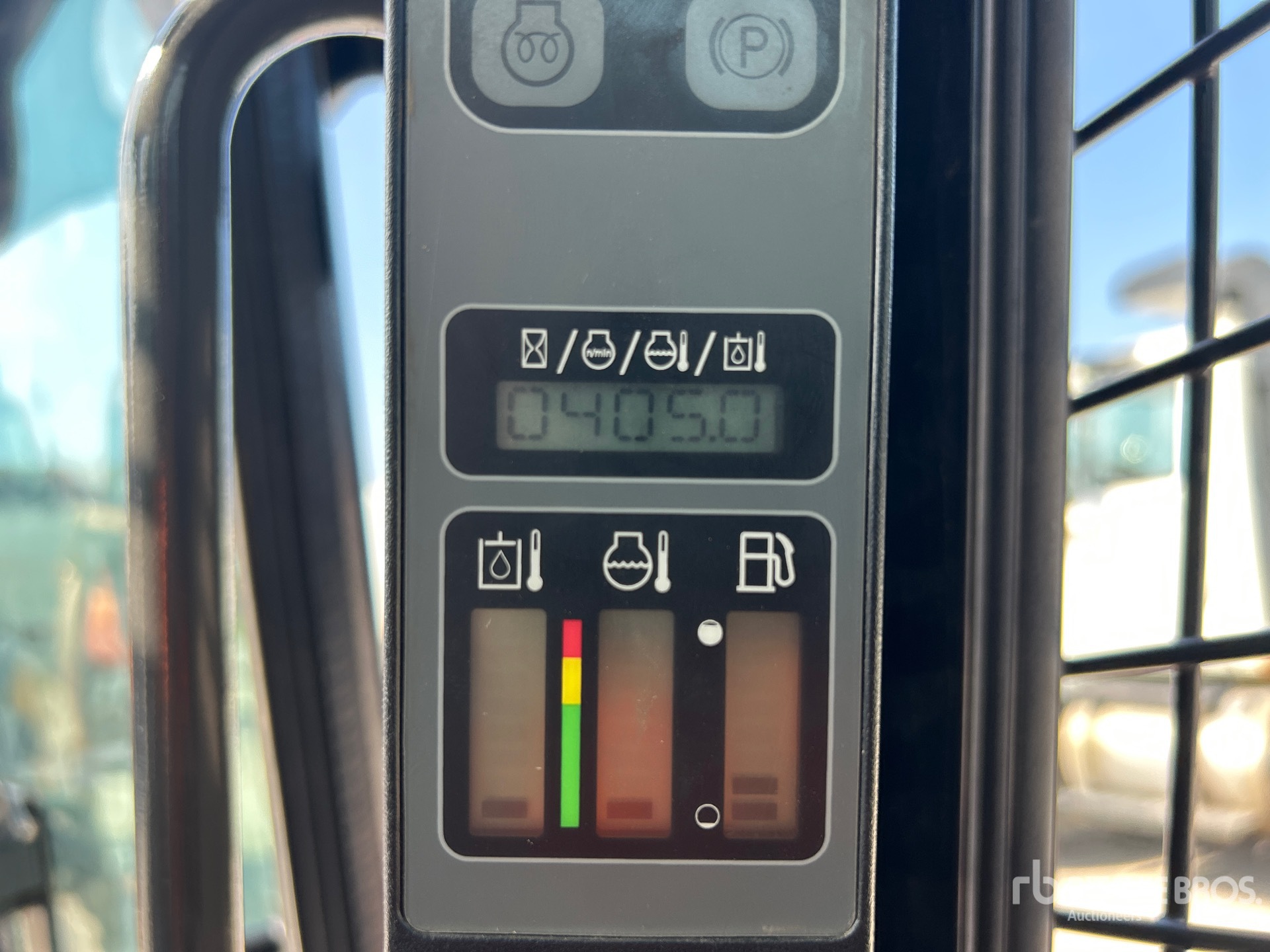

Hours:	405

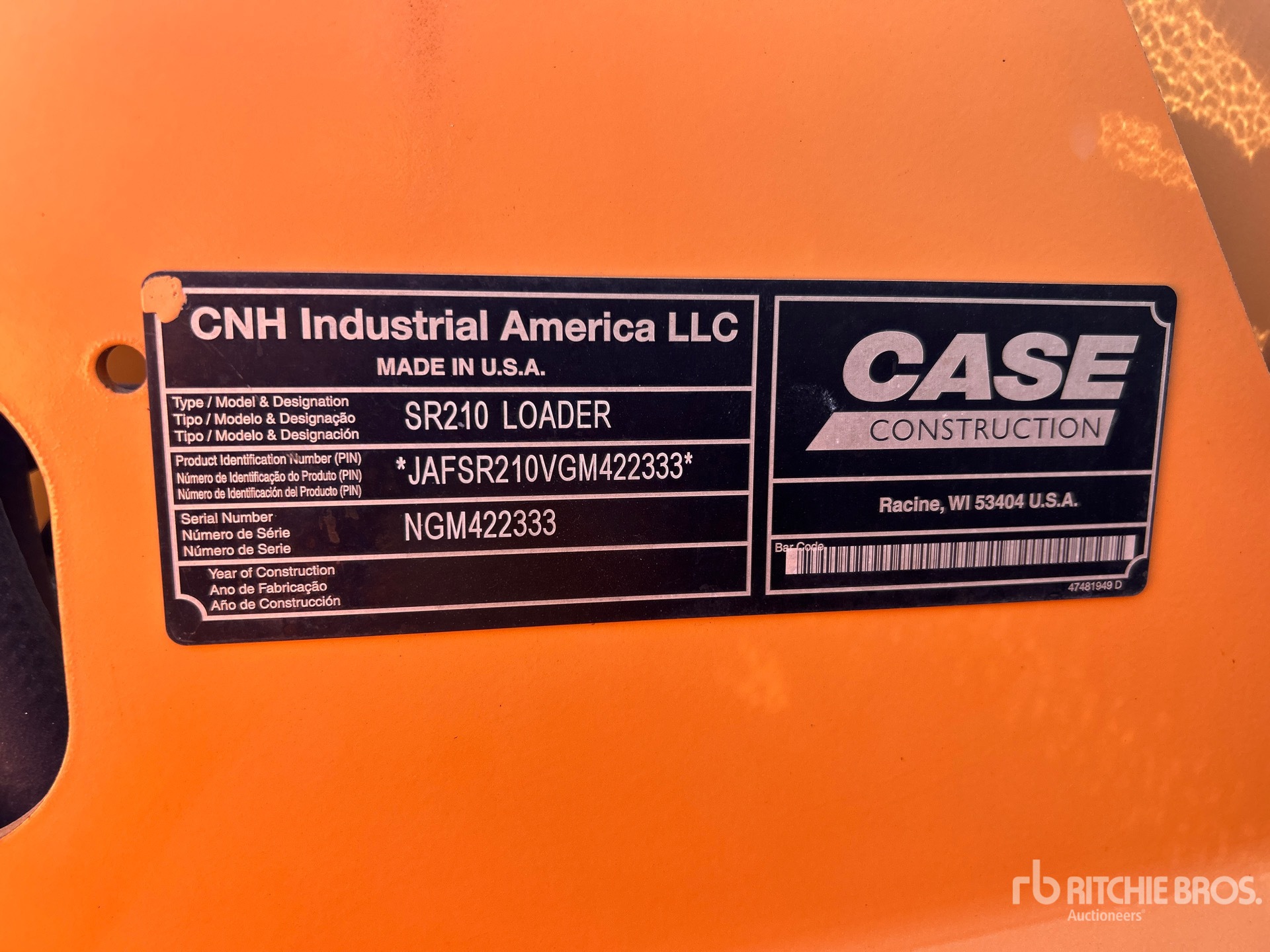

Serial Number:	JAFSR210VGM422333
Machine Location:	CHICAGO, IL

Description:

Located in Lane 8 Spot 4, Enclosed Cab, Air Conditioner, Ride Control, Joystick Steering, Hydraulic Coupler, 70 in Bucket Closing Time: 2026-08-06 08:17:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case SR210 is a skid steer loader designed for construction, landscaping, agriculture, and material handling applications. It is part of Case Construction Equipment's SR series and is known for its radial-lift design, which supports strong digging and grading performance. The SR210 typically features a compact frame, high maneuverability, and compatibility with a wide range of hydraulic attachments. Common uses include loading, site preparation, snow removal, and general utility work. The model is valued for its balance of operating capacity, visibility, and service access, making it a practical choice for operators needing a versatile skid steer loader.

Dimensions
Ground Clearance	8 in (20 cm)
Height - Top of ROPS/FOPS	79 in (200 cm)
Hinge pin height - fully raised	123 in (312 cm)
Length w/o Bucket	9 ft (3 m)
Length with Bucket	11 ft (3 m)
Wheelbase	4 ft (1 m)
Width Over Tires	6 ft (2 m)
Engine
Bore	4 in (10 cm)
Displacement	208 cu in (3,400 cu cm)
Engine Model	FPT F5H FL463 A*F001
Max Torque	232 lbs ft (314 nm)
Number of Cylinders	4
Power Measured @	2,500 rpm
Starter	4 hp (3 kw)
Stroke	4 in (11 cm)
Torque Measured @	1,400 rpm
General Specifications
ENGINE POWER HP (KW) (Since 2016)	74 (55)
ENGINE POWER HP (KW) (2017)	74 (55)
ENGINE POWER HP (KW) (2019)	74 (55)
ENGINE POWER HP (KW) (2020)	74 (55)
MODEL (Since 2016)	SR210
MODEL (2017)	SR210
MODEL (2019)	SR210
MODEL (2020)	SR210
OPERATING LOAD LBS. (KG) (Since 2016)	2,100 (953)
OPERATING LOAD LBS. (KG) (2017)	2,100 (953)
OPERATING LOAD LBS. (KG) (2019)	2,100 (953)
OPERATING WIDTH IN. (CM) (Since 2016)	69.1 (175.5)
OPERATING WIDTH IN. (CM) (2017)	69.1 (175.5)
OPERATING WIDTH IN. (CM) (2019)	69.1 (175.5)
OPERATING WIDTH IN. (CM) (2020)	69.1 (175.5)
RATED OPERATING CAPACITY LBS. (KG) (50%) (Since 2020)	2,100 (953)
Hydraulic System
3.6	3.6 sec seconds
Displacement-High-flow aux	1 cu in (15 cu cm)
Displacement-Standard aux	2 cu in (38 cu cm)
Dump Time	2 seconds
Lower Time	2 seconds
Pump Flow Capacity	24 gpm (92 lpm)
Pump Type	Gear
Relief Valve Pressure	3,050 psi
Loader
Operating Load Rating	2,100 lbs (953 kg)
Operating Width	70 in (178 cm)
Tipping load (ISO 14397)	4,200 lbs (1,905 kg)
Operating Specifications
Alternator Supplied Amperage	120 amps
Chain Box Fluid Capacity - each side	7 gal (26 l)
Engine Oil Fluid Capacity	3 gal (9 l)
Fuel Capacity	20 gal (74 l)
Hydraulic System Fluid Capacity	9 gal (33 l)
Max Speed	7 mph (11 kph)
Operating Voltage	12 volts
Operational Weight	6,967 lbs (3,160 kg)
Shipping Weight - Empty	6,669 lbs (3,025 kg)
