Case 721G For Sale in Fort Worth, Tx

Name: Case 721G
Brand: Case
SKU: 88540984
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-17

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

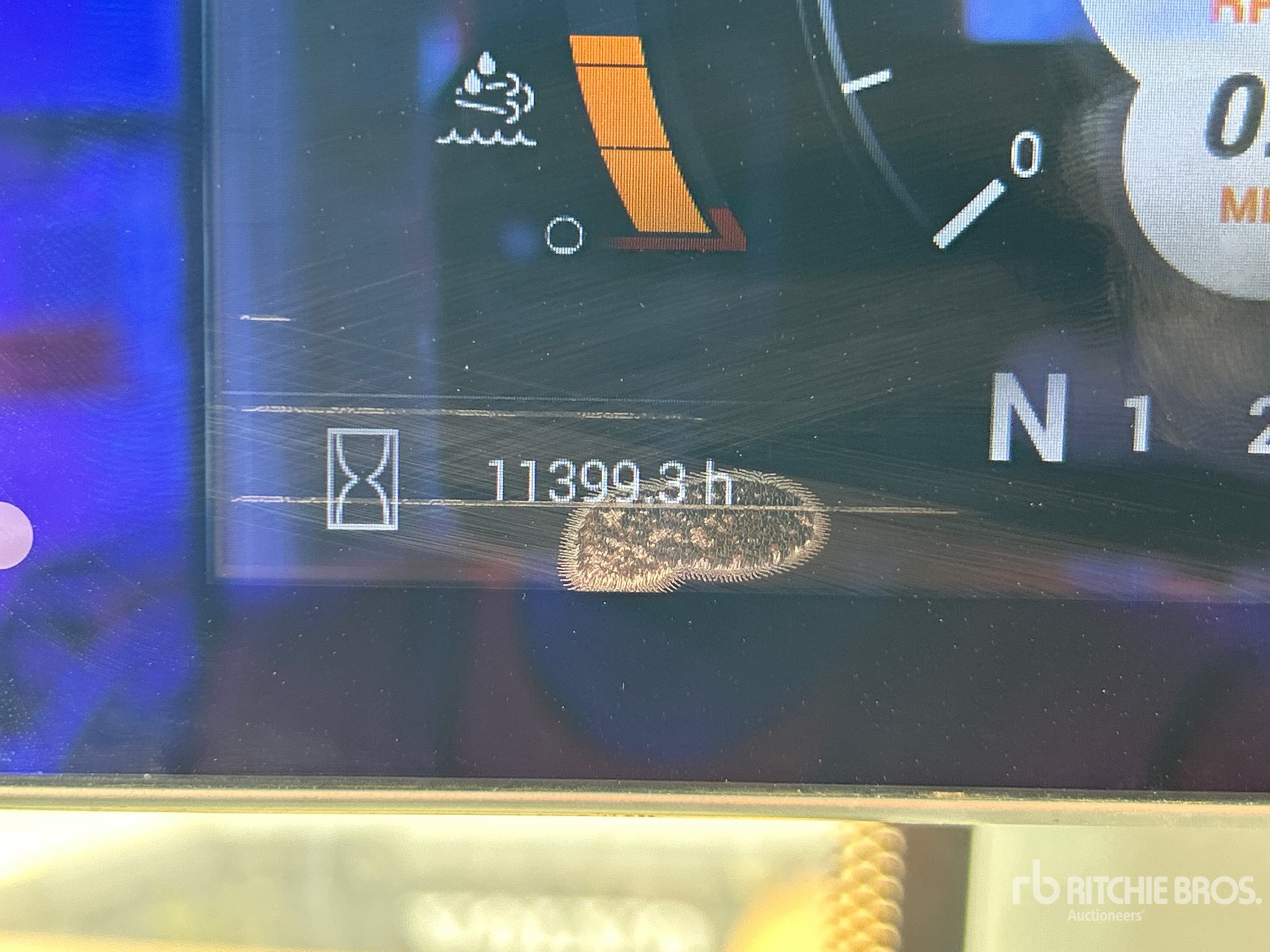

Hours:	11399

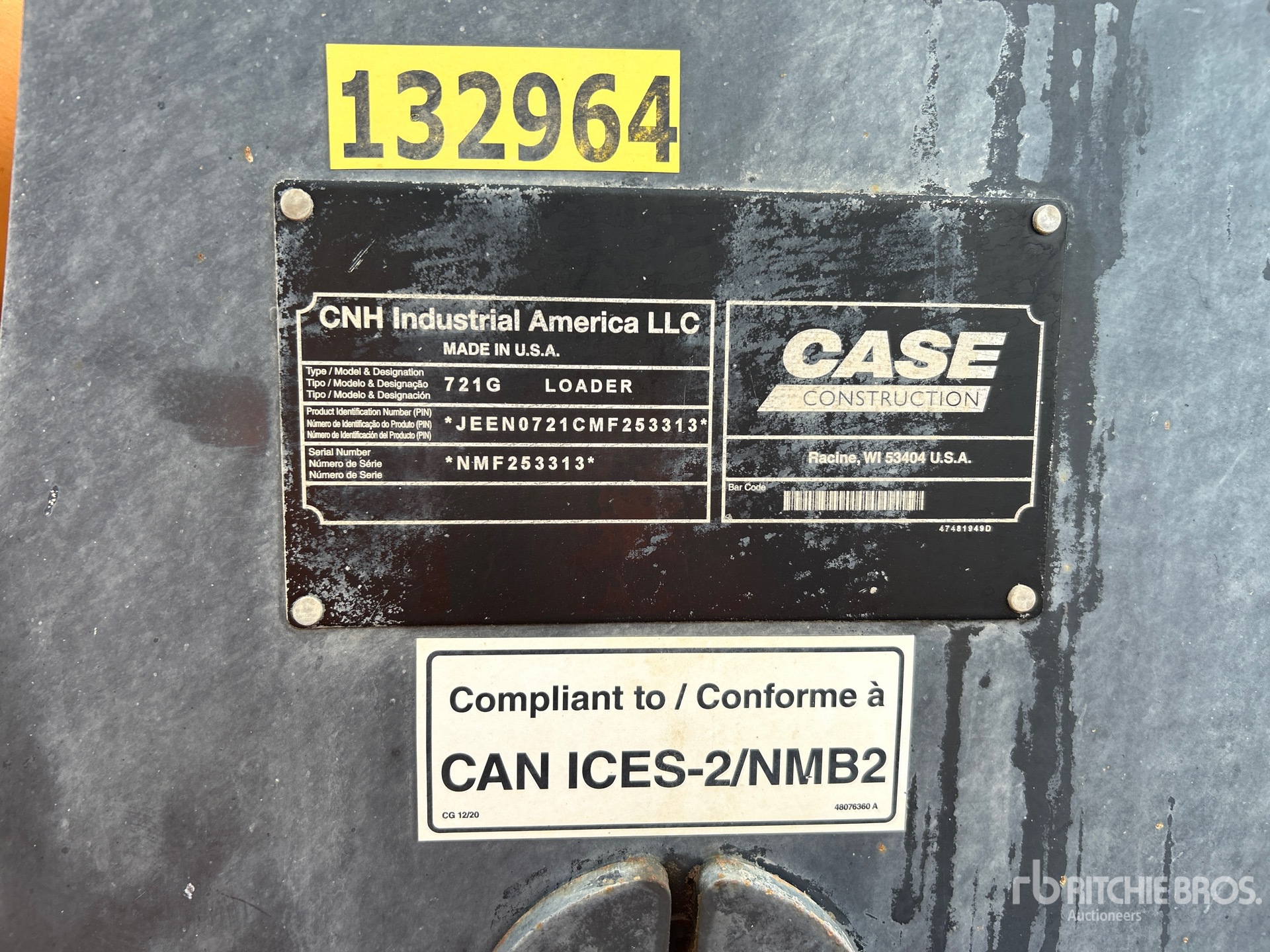

Serial Number:	JEEN0721CMF253313
Machine Location:	FORT WORTH, TX

Description:

Enclosed Cab, Air Conditioner, Rear View Camera, Air Ride Seat, Ride Control, Hydraulic Coupler, 2.5 cyd 97 in Bucket, 20.5R25 Tires Closing Time: 2026-06-17 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 721G is a wheel loader designed for material handling, aggregate, construction, and general earthmoving applications. It is part of Case Construction Equipment's G Series and is commonly used for loading trucks, stockpiling material, site preparation, and quarry work. The 721G typically features a diesel engine, hydrostatic or powershift drivetrain depending on configuration, articulated steering, and a front-mounted loader bucket with optional attachments. Key specifications often include operating weight, bucket capacity, breakout force, and lift height. The model is known for its balance of productivity, visibility, and service access in medium-duty wheel loader applications.

Brakes
Service brake	Wet Multi Disc
Bucket
Breakout Force	32,148 lbs (14,582 kg)
Bucket Capacity - heaped	3 cu yd (3 cu m)
Dump Clearance at Max Raise	9 ft (3 m)
Dimensions
Dump reach @ full height, 45 degrees dump	4 ft (1 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	25 ft (8 m)
Reach at Max Lift and Dump	6 ft (2 m)
Turning Radius Outside Tires	19 ft (6 m)
Wheelbase	11 ft (3 m)
Width Over Tires	8 ft (3 m)
Engine
Alternator	120 amps
Displacement	411 cu in (6,735 cu cm)
Emissions	Tier 4
Engine Model	FPT F4HFE613T
Gross Power	195 hp (145 kw)
Make	Case
Max Torque	701 lbs ft (950 nm)
Net Power	179 hp (133 kw)
Number of Cylinders	6
Rated engine speed	2,000 rpm
Torque Rise	37%
General Specifications
Bucket Capacity (Since 2017)	3 (2,29)
Bucket Capacity (2019)	3 (2,29)
Bucket Capacity (2020)	3 (2,29)
Bucket Capacity (2021)	3 (2,29)
Bucket Capacity (2022)	3 (2,29)
Bucket Capacity (2023)	3 (2,29)
Bucket Capacity (Since 2024)	3.5 (2.7)
Engine Power (Since 2017)	179 (133)
Engine Power (2019)	179 (133)
Engine Power (2020)	179 (133)
Engine Power (2021)	179 (133)
Engine Power (2022)	179 (133)
Engine Power (2023)	179 (133)
Engine Power (2024)	179 (133)
Engine type (Since 2017)	Case/FPT
Engine type (2019)	Case/FPT
Engine type (2020)	Case/FPT
Engine type (2021)	Case/FPT
Engine type (2022)	Case/FPT
Engine type (2023)	Case/FPT
Engine type (2024)	Case/FPT
Max Dump Height (Since 2017)	9.4 (2.9)
Max Dump Height (2019)	9.4 (2.9)
Max Dump Height (2020)	9.4 (2.9)
Max Dump Height (2021)	9.4 (2.9)
Max Dump Height (2022)	9.4 (2.9)
Max Dump Height (2023)	9.4 (2.9)
Max Dump Height (Since 2024)	9.8 (3)
Operating Weight (Since 2017)	32,492 (14,738)
Operating Weight (2019)	32,492 (14,738)
Operating Weight (2020)	32,492 (14,738)
Operating Weight (2021)	32,492 (14,738)
Operating Weight (2022)	32,492 (14,738)
Operating Weight (2023)	32,492 (14,738)
Operating Weight (Since 2024)	36,011 (16,334)
Hydraulic cycle times (unloaded)
Total cycle time	9 seconds
Hydraulic System
Maximum system pressure	3,625 psi
Pump Flow Capacity	32 gpm (120 lpm)
Pump Type	Piston
Steering pump type	Articulation
Operating Specifications
Cooling System Fluid Capacity	8 gal (29 l)
DEF tank capacity	16 gal (59 l)
Front Axle/Diff Fluid Capacity	9 gal (35 l)
Fuel Capacity	65 gal (246 l)
Operating Voltage	24 volts
Operating Weight	32,492 lbs (14,738 kg)
Rated Bucket Capacity	3 cu yd (2 cu m)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	9 gal (35 l)
Transmission Fluid Capacity	9 gal (34 l)
Performance
Tipping Load	23,651 lbs (10,728 kg)
Transmission
Differential lock	F: LSD / R: LSD
Max Speed - Forward	24 mph (38 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Powershift
Weights
Operational Weight	32,492 lbs (14,738 kg)
