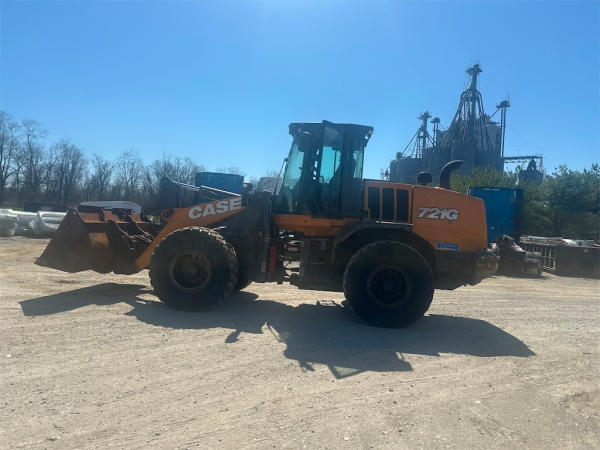

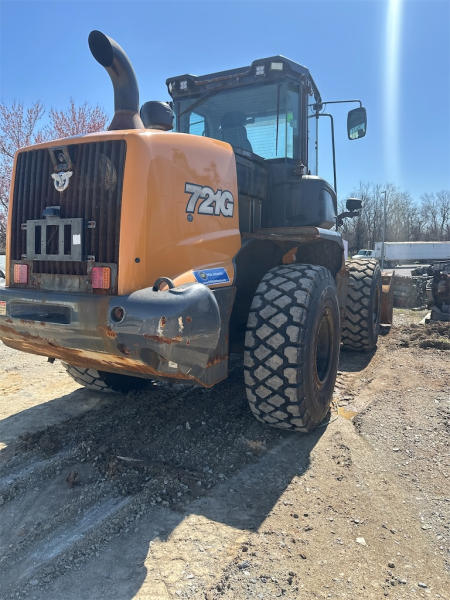

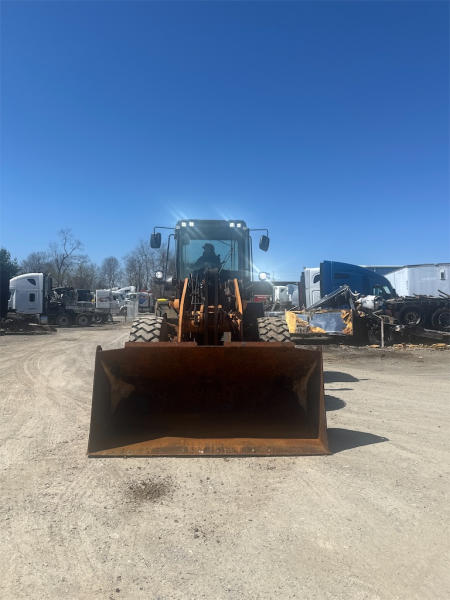

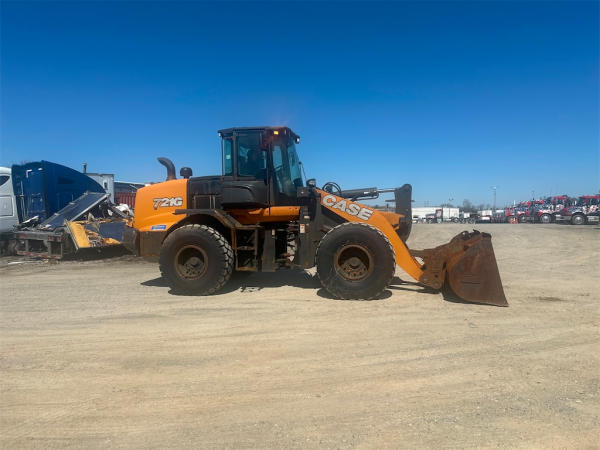

2022 Case 721G For Sale in Des Moines, IA

Name: 2022 Case 721G
Brand: Case
SKU: 88783390
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-07-29 Click here to place a bid

Housby Auction

Housby Auction Dealer Info

Housby Auction Website

Click here to email Housby Auction.

Click for Phone Number

Machine Info:

Serial Number:	NNF254989
Stock Number:	109236
Machine Location:	DES MOINES, IA

Description:

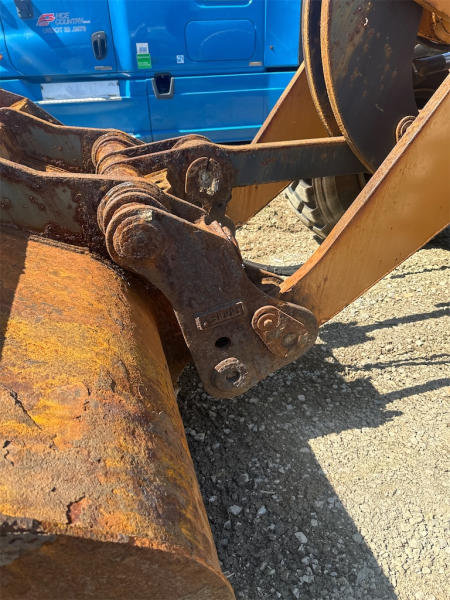

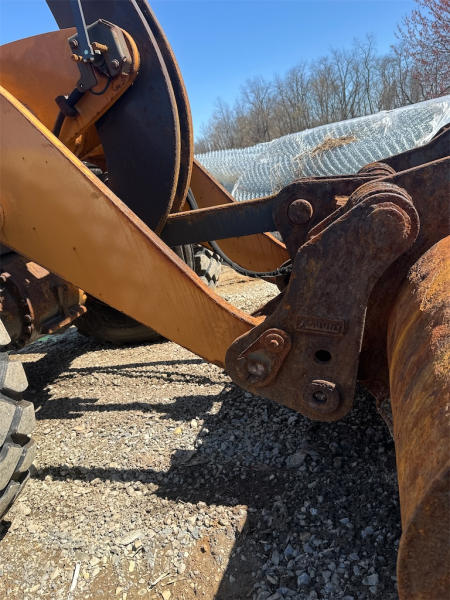

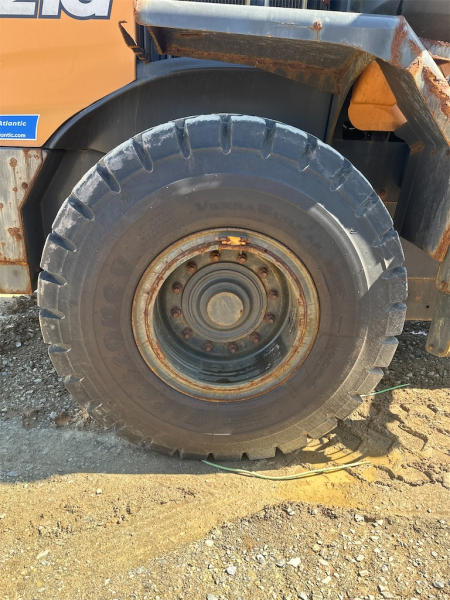

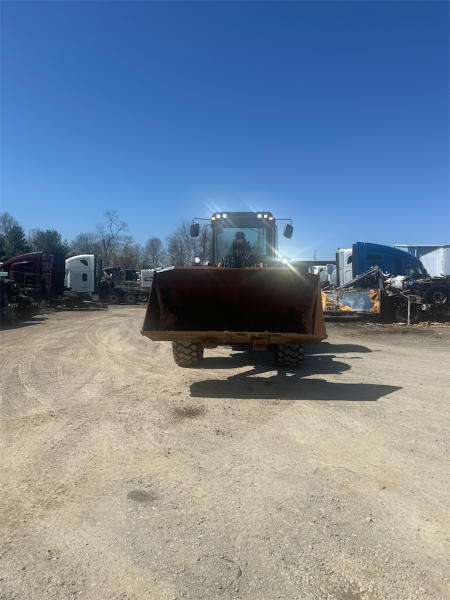

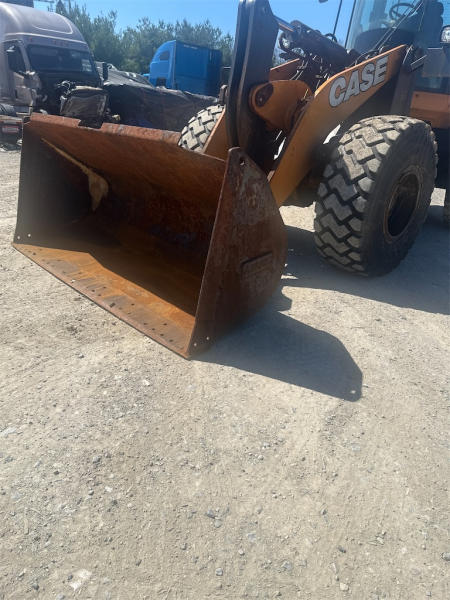

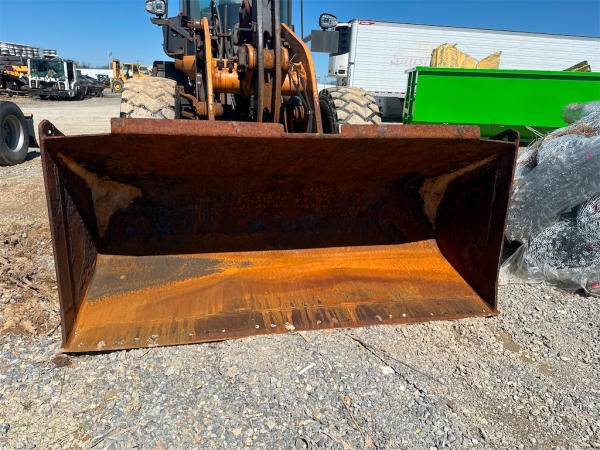

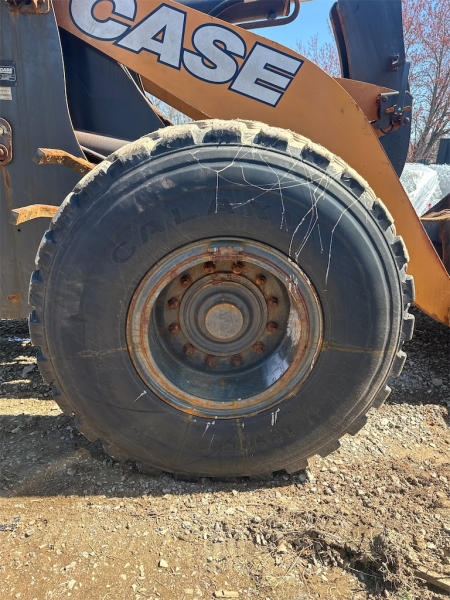

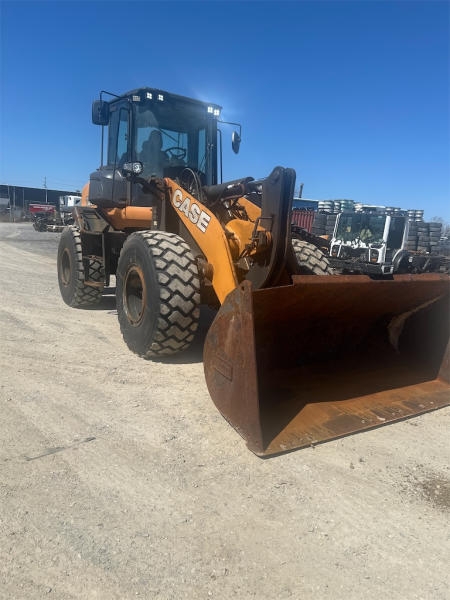

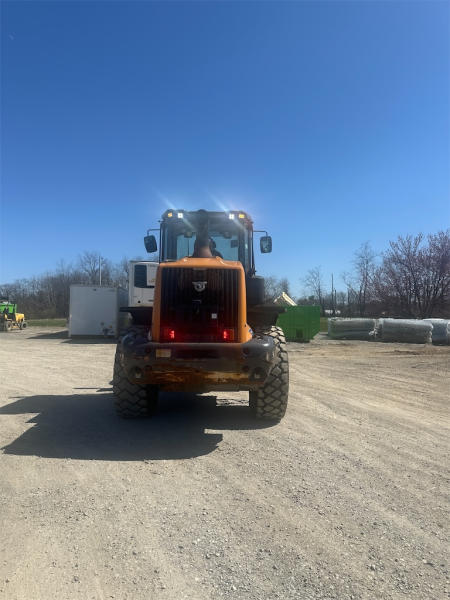

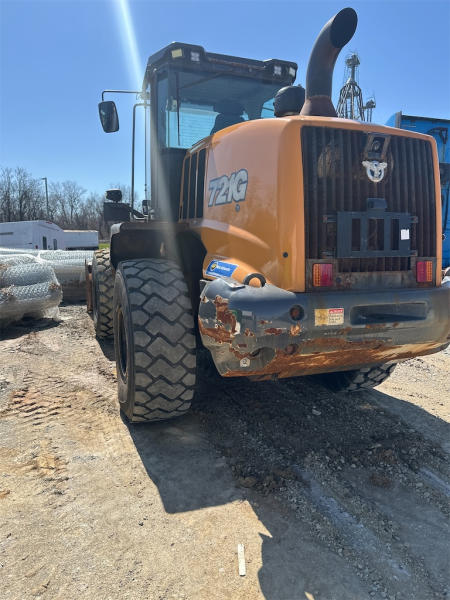

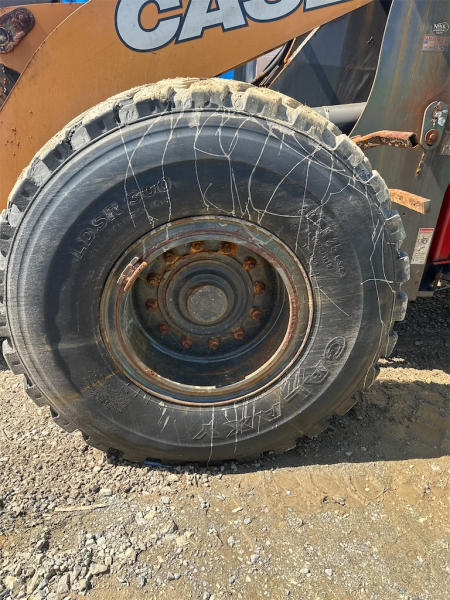

Showing: 2,731 Hours. NOT TITLED PER STATE REGULATIONS. STARTED ON SITE, FULL OPERATIONS NOT TESTED. Warning Lights Present; Rust Throughout. Location: Hagerstown, MD Serial: NNF254989 - For More Information contact: Nick Greiner at 515-720-0809

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 721G is a wheel loader designed for material handling, stockpiling, truck loading, and general construction site work. It is part of Case's G Series and is commonly used in aggregate yards, roadbuilding, agriculture, and industrial applications. The 721G features a diesel engine, articulated steering, hydraulic lift and bucket functions, and a cab configured for operator visibility and control. Typical wheel loader attachments and bucket options may be available depending on configuration. The model is used for moving soil, gravel, sand, and other bulk materials in demanding jobsite conditions. Specifications can vary by region, year, and equipment package.

Brakes
Service brake	Wet Multi Disc

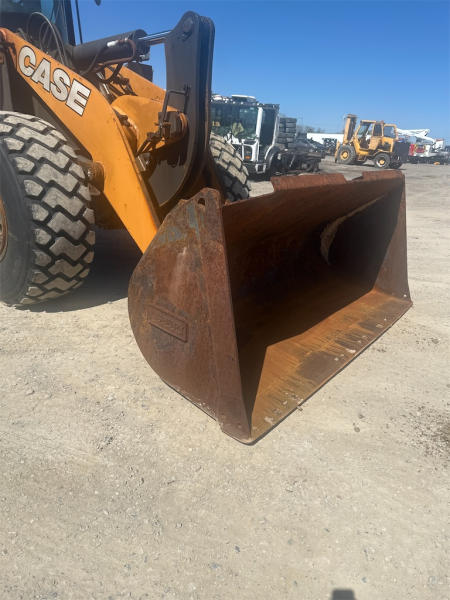

Bucket
Breakout Force	32,148 lbs (14,582 kg)
Bucket Capacity - heaped	3 cu yd (3 cu m)
Dump Clearance at Max Raise	9 ft (3 m)
Dimensions
Dump reach @ full height, 45 degrees dump	4 ft (1 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	25 ft (8 m)
Reach at Max Lift and Dump	6 ft (2 m)
Turning Radius Outside Tires	19 ft (6 m)
Wheelbase	11 ft (3 m)
Width Over Tires	8 ft (3 m)
Engine
Alternator	120 amps
Displacement	411 cu in (6,735 cu cm)
Emissions	Tier 4
Engine Model	FPT F4HFE613T
Gross Power	195 hp (145 kw)
Make	Case
Max Torque	701 lbs ft (950 nm)
Net Power	179 hp (133 kw)
Number of Cylinders	6
Rated engine speed	2,000 rpm
Torque Rise	37%
General Specifications
Bucket Capacity (Since 2017)	3 (2,29)
Bucket Capacity (2019)	3 (2,29)
Bucket Capacity (2020)	3 (2,29)
Bucket Capacity (2021)	3 (2,29)
Bucket Capacity (2022)	3 (2,29)
Bucket Capacity (2023)	3 (2,29)
Bucket Capacity (Since 2024)	3.5 (2.7)
Engine Power (Since 2017)	179 (133)
Engine Power (2019)	179 (133)
Engine Power (2020)	179 (133)
Engine Power (2021)	179 (133)
Engine Power (2022)	179 (133)
Engine Power (2023)	179 (133)
Engine Power (2024)	179 (133)
Engine type (Since 2017)	Case/FPT
Engine type (2019)	Case/FPT
Engine type (2020)	Case/FPT
Engine type (2021)	Case/FPT
Engine type (2022)	Case/FPT
Engine type (2023)	Case/FPT
Engine type (2024)	Case/FPT
Max Dump Height (Since 2017)	9.4 (2.9)
Max Dump Height (2019)	9.4 (2.9)
Max Dump Height (2020)	9.4 (2.9)
Max Dump Height (2021)	9.4 (2.9)
Max Dump Height (2022)	9.4 (2.9)
Max Dump Height (2023)	9.4 (2.9)
Max Dump Height (Since 2024)	9.8 (3)
Operating Weight (Since 2017)	32,492 (14,738)
Operating Weight (2019)	32,492 (14,738)
Operating Weight (2020)	32,492 (14,738)
Operating Weight (2021)	32,492 (14,738)
Operating Weight (2022)	32,492 (14,738)
Operating Weight (2023)	32,492 (14,738)
Operating Weight (Since 2024)	36,011 (16,334)
Hydraulic cycle times (unloaded)
Total cycle time	9 seconds
Hydraulic System
Maximum system pressure	3,625 psi
Pump Flow Capacity	32 gpm (120 lpm)
Pump Type	Piston
Steering pump type	Articulation
Operating Specifications
Cooling System Fluid Capacity	8 gal (29 l)
DEF tank capacity	16 gal (59 l)
Front Axle/Diff Fluid Capacity	9 gal (35 l)
Fuel Capacity	65 gal (246 l)
Operating Voltage	24 volts
Operating Weight	32,492 lbs (14,738 kg)
Rated Bucket Capacity	3 cu yd (2 cu m)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	9 gal (35 l)
Transmission Fluid Capacity	9 gal (34 l)
Performance
Tipping Load	23,651 lbs (10,728 kg)
Transmission
Differential lock	F: LSD / R: LSD
Max Speed - Forward	24 mph (38 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Powershift
Weights
Operational Weight	32,492 lbs (14,738 kg)
