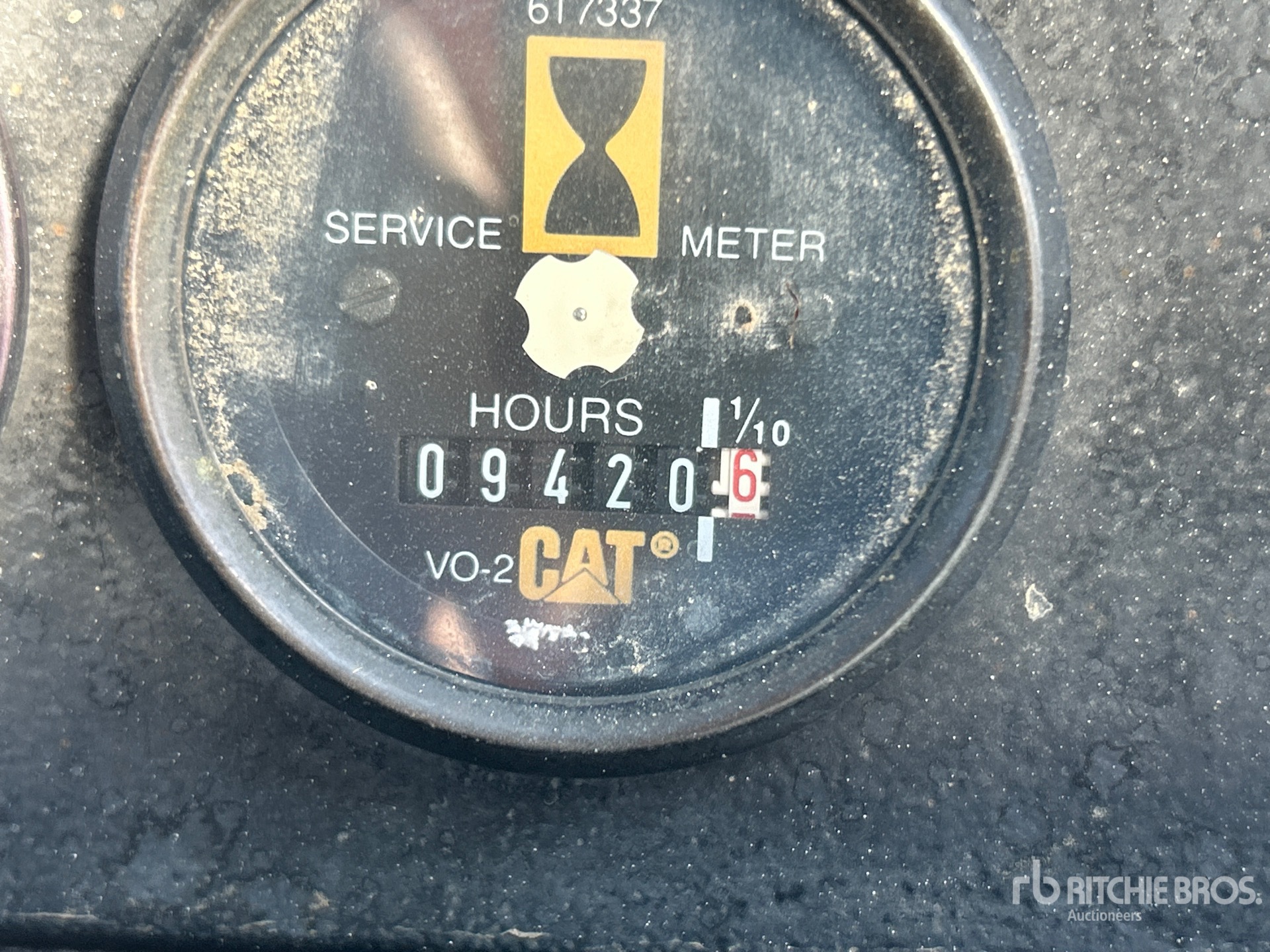

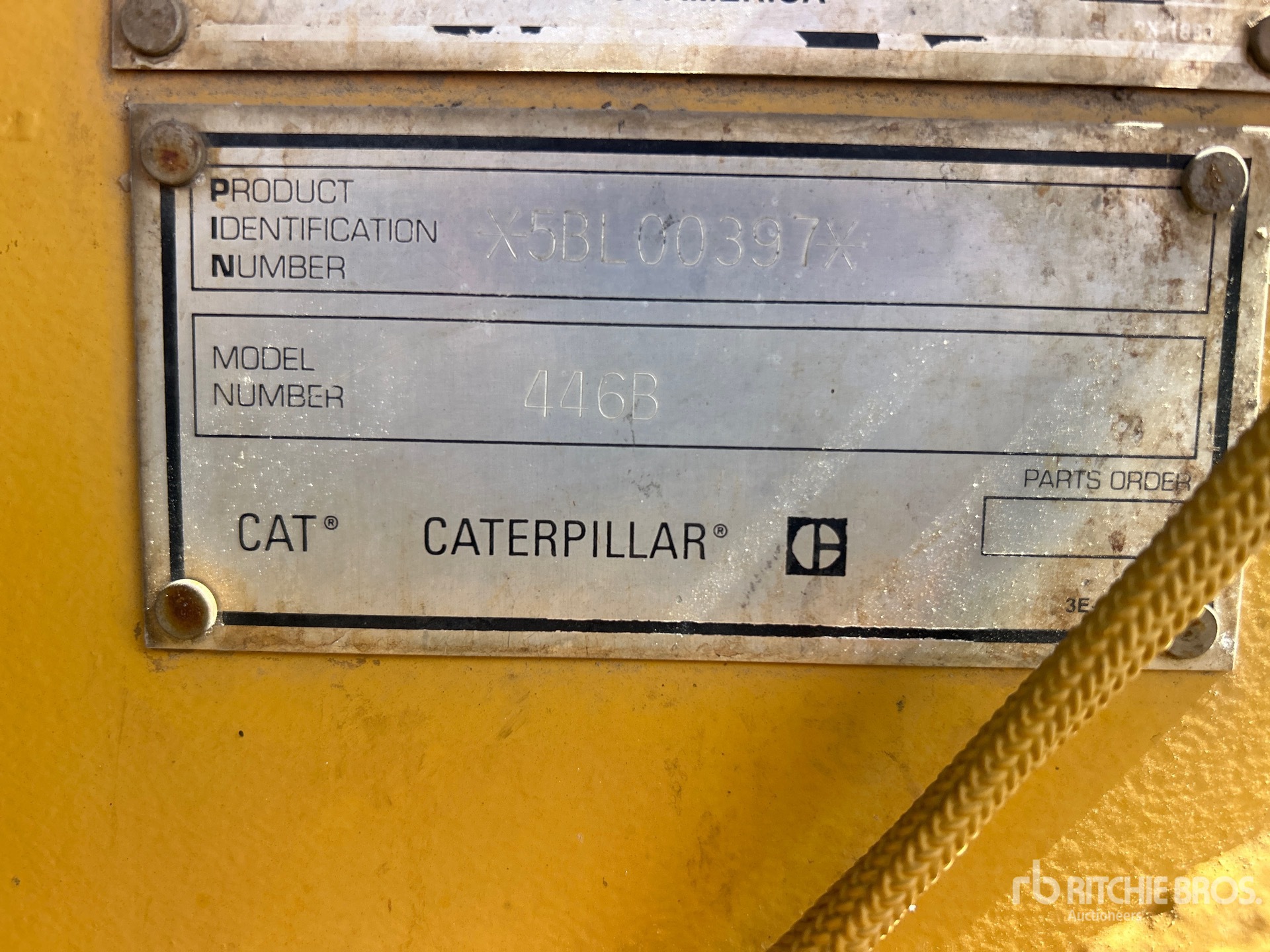

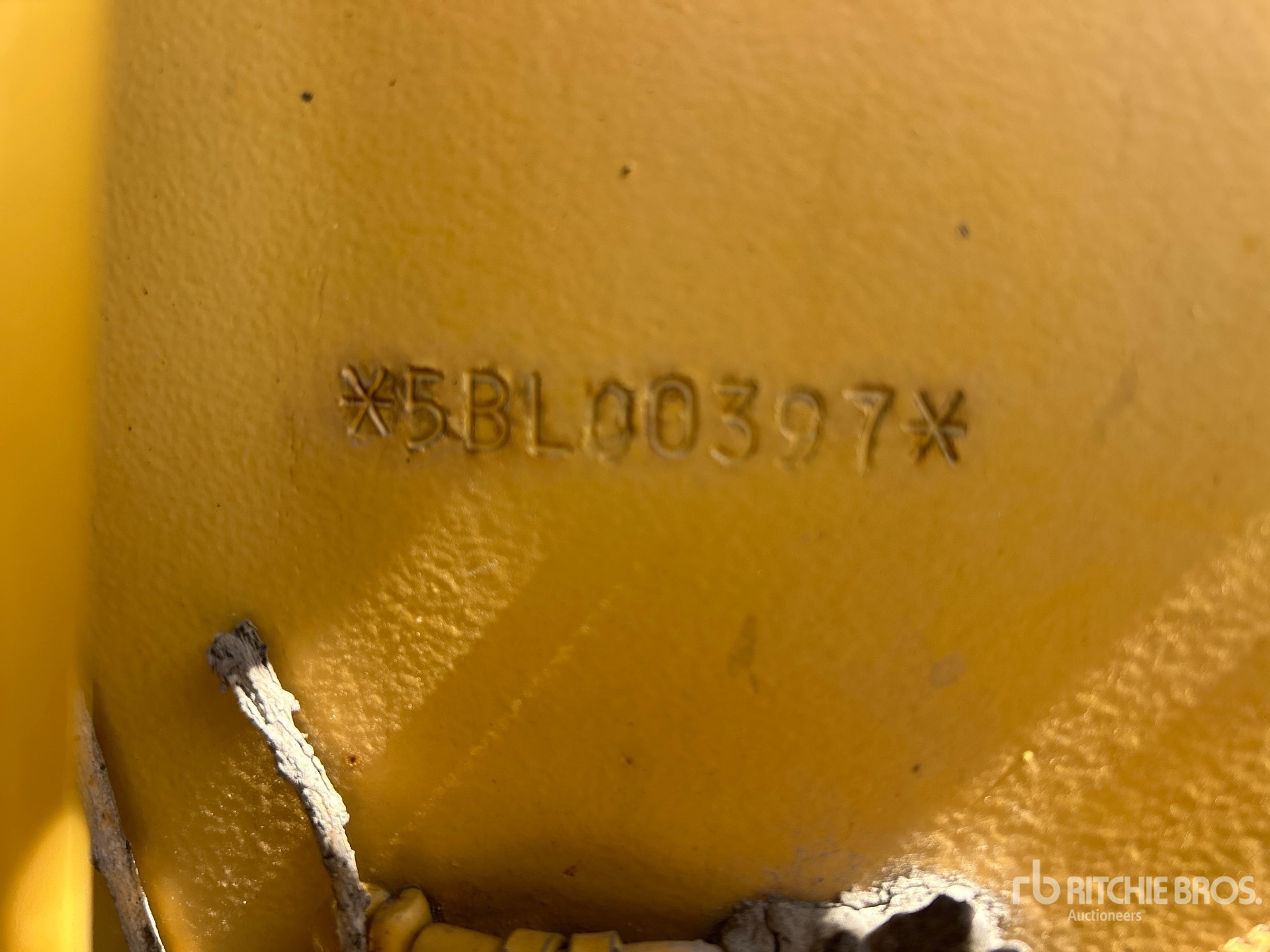

| Backhoe |
|
Bucket Dig Force |
15,200 lbs (6,895 kg)
|
|
Bucket Dig Force - Extended |
15,150 lbs (6,872 kg)
|
|
Bucket Rotation |
169 degrees |
|
Dig Depth |
17 ft (5 m)
|
|
Dig Depth - Extended |
22 ft (7 m)
|
|
E-Stick Extended (1) |
22 ft (7 m)
|
|
E-Stick Extended (2) |
26 ft (8 m)
|
|
E-Stick Extended (3) |
15,150 lbs (6,872 kg)
|
|
E-Stick Extended (4) |
7,830 lbs (3,552 kg)
|
|
E-Stick Extended (5) |
4,600 lbs (2,087 kg)
|
|
E-Stick Retracted (1) |
17 ft (5 m)
|
|
E-Stick Retracted (2) |
22 ft (7 m)
|
|
E-Stick Retracted (3) |
15,150 lbs (6,872 kg)
|
|
E-Stick Retracted (4) |
11,200 lbs (5,080 kg)
|
|
E-Stick Retracted (5) |
13,660 lbs (6,196 kg)
|
|
Load Height - Extended |
16 ft (5 m)
|
|
Loading Height |
14 ft (4 m)
|
|
Loading Reach |
7 ft (2 m)
|
|
Reach at Load Height - Extended |
11 ft (3 m)
|
|
Reach from Swing Pivot |
22 ft (7 m)
|
|
Reach From Swivel |
22 ft (7 m)
|
|
Reach From Swivel - Extended |
26 ft (8 m)
|
|
Stick Dig Force |
10,800 lbs (4,899 kg)
|
|
Stick Lift at 2440 mm (8 ft) |
13,540 lbs (6,142 kg)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height to Top of Suspended Cab |
9 ft (3 m)
|
|
Transport Length |
25 ft (8 m)
|
|
Transport Width |
8 ft (2 m)
|
|
Wheelbase |
7 ft (2 m)
|

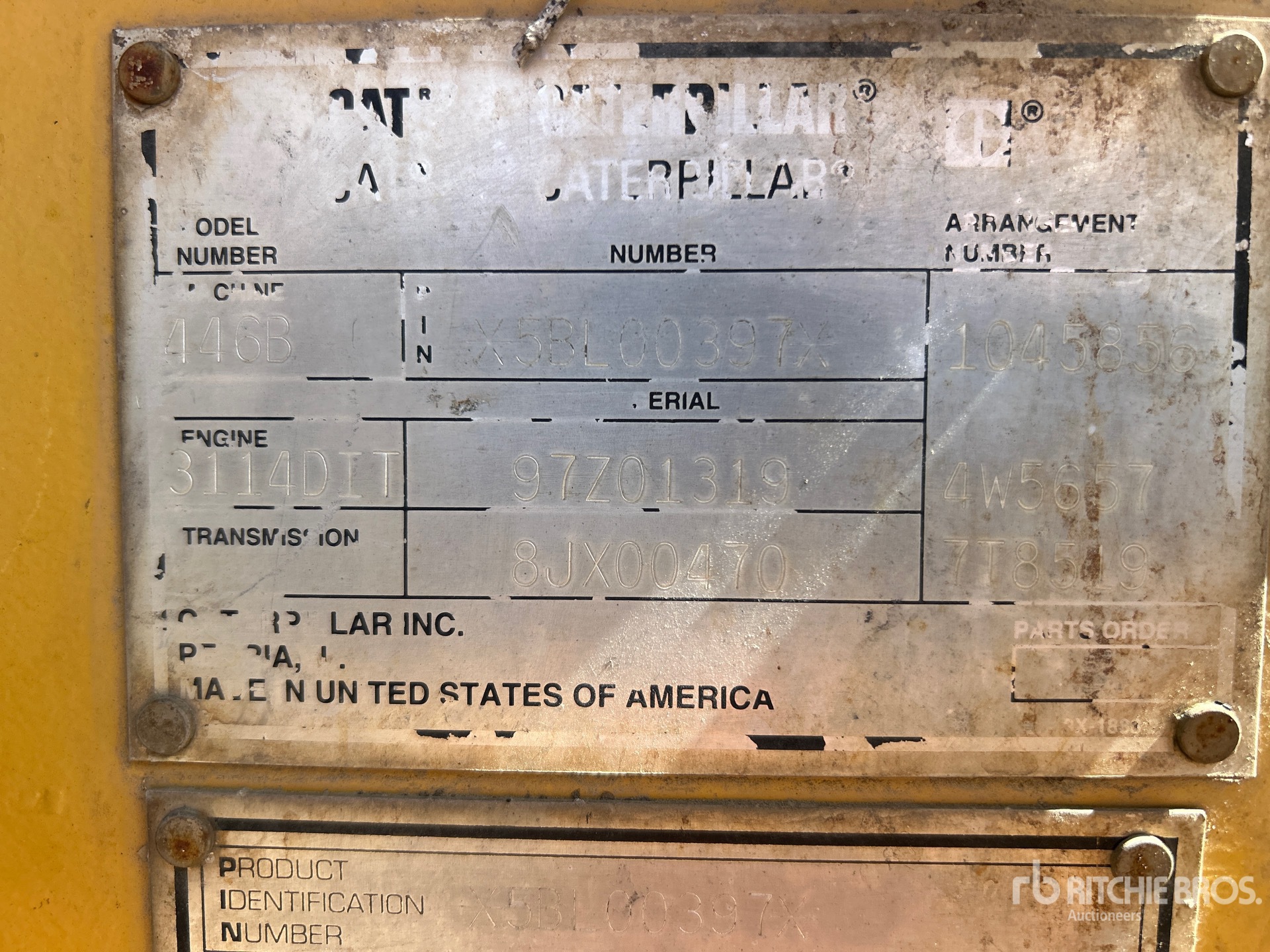

| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
268 cu in (4,392 cu cm)
|
|
Gross Power |
110 hp (82 kw)
|
|
Gross Power - SAE J1995 |
110 hp (82 kw)
|
|
Net Power |
102 hp (76 kw)
|
|
Net Power - SAE J1349 |
102 hp (76 kw)
|
|
Net Torque Rise - 1,400 rpm - Standard |
32.6% |
|
Number of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
4th Gear Fwd mph (kmh) (Since 2004)
|
20.5 (33) |
|
Breakout Force lbs (kgs) (Since 2004)
|
12,600 (5,715) |
|
Digging Depth ft (m) (Since 2004)
|
21.4 (6.6) |
|
Lift Capacity lbs (kgs) (Since 2004)
|
8,760 (3,973) |
|
Loading Height ft (m) (Since 2004)
|
16.1 (4.9) |
|
Operating Weight lbs (kg) (Since 2004)
|
19,600 (8,890) |
|
SAE Net hp (kW) (Since 2004)
|
102 (76) |
| Hydraulic System |
|
4WD Cylinder - Bore |
3 in (8 cm)
|
|
Brake System |
Fully enclosed hydraulic multiple disk |
|
Circuit Type |
Closed - center |
|
Power Steering |
Hydrostatic |
|
Pump Capacity at 2,200 rpm |
47 gpm (178 lpm)
|
|
Pump Flow Capacity |
47 gpm (178 lpm)
|
|
Relief Valve Pressure |
3,249 psi |
|
Steering Type |
Front Wheel |
| Loader |
|
Bucket Breakout Force |
12,589 lbs (5,710 kg)
|
|
Bucket Breakout Force - Single Tilt |
11,610 lbs (5,266 kg)
|
|
Bucket Capacity |
2 cu yd (1 cu m)
|
|
Bucket Capacity - General Purpose |
2 cu yd (1 cu m)
|
|
Bucket Width |
96 in (244 cm)
|
|
Bucket Width - General Purpose |
96 ft (29 m)
|
|
Clearance at Max Dump Height |
9 ft (3 m)
|
|
Dig Depth |
6 in (16 cm)
|
|
Dig Depth - Single Tilt |
6 in (16 cm)
|
|
Dump Height at Maximum Angle - Single Tilt |
9 ft (3 m)
|
|
Dump Reach at Maximum Angle - Single Tilt |
3 ft (1 m)
|
|
Lift Capacity at Full Height - Single Tilt |
8,610 lbs (3,905 kg)
|
|
Reach at Max Dump Height |
3 ft (1 m)
|
| Operating Specifications |
|
Fuel Capacity |
33 gal (125 l)
|
|
Operating Weight 4wd |
19,599 lbs (8,890 kg)
|
|
Tire Size Front - 2wd / 4wd |
14.5/75 x16.110PRF3 / 12.5x2010PRR4 |
|
Turning Circle - Outside - Front Wheels |
29 ft (9 m)
|
|
Turning Circle - Outside, Widest Loading Bucket |
37 ft (11 m)
|
|
Turning Radius |
19 ft (6 m)
|
| Power Train |
|
Forward - 2nd |
6 mph (9 kph)
|
|
Forward - 3rd |
7 mph (12 kph)
|
|
Forward - 4th |
12 mph (19 kph)
|
|
Reverse - 2nd |
7 mph (12 kph)
|
|
Reverse - 3rd |
13 mph (21 kph)
|
| Service Refill |
|
Cooling System - A/C |
8 gal (30 l)
|
|
Engine Oil - With Filter |
3 gal (11 l)
|
|
Front Axle (4WD) |
3 gal (9 l)
|
|
Front Axle - Planetaries |
0 gal (1 l)
|
|
Fuel Tank |
33 gal (125 l)
|
|
Hydraulic System |
41 gal (155 l)
|
|
Hydraulic Tank |
15 gal (57 l)
|
|
Rear Axle |
8 gal (31 l)
|
| Standards |
|
Cab - ROPS |
SAE J394 SAE J1040 Apr 88 ISO 3471 1986 |
|
Cab - Sound |
ANSI/SAE J1166 May 90 is 81 dB (A) |
|
Exterior Sound |
SAE J88 Jun 86 is 76dB (A) |
|
Front Axle (2WD) - Static |
21,230 lbs (9,630 kg)
|
|
Front Axle (4WD) - Static |
21,230 lbs (9,630 kg)
|
|
Rear Axle - Static |
20,194 lbs (9,160 kg)
|
| Tires |
|
Rear Tires Size |
21Lx2412PRR4 |
| Transmission |
|
Max Speed |
20 mph (32 kph)
|
|
Max Speed - Reverse |
13 mph (21 kph)
|
|
Number of Forward Gears |
4 |
|
Number of Reverse Gears |
3 |
|
Transmission Type |
auto-shift |
| Weights |
|
Counterweights - Option 1 |
35 lbs (16 kg)
|
|
Operating Weight - Maximum |
19,604 lbs (8,892 kg)
|
|
Operating Weight - Nominal |
19,603 lbs (8,892 kg)
|
