Equipment ↠ Caterpillar ↠ Crawler Dozers ↠ 2006 Caterpillar D3G

2006 Caterpillar D3G For Sale in Fort Worth, Tx

Name: 2006 Caterpillar D3G
Brand: Caterpillar
SKU: 88630521
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

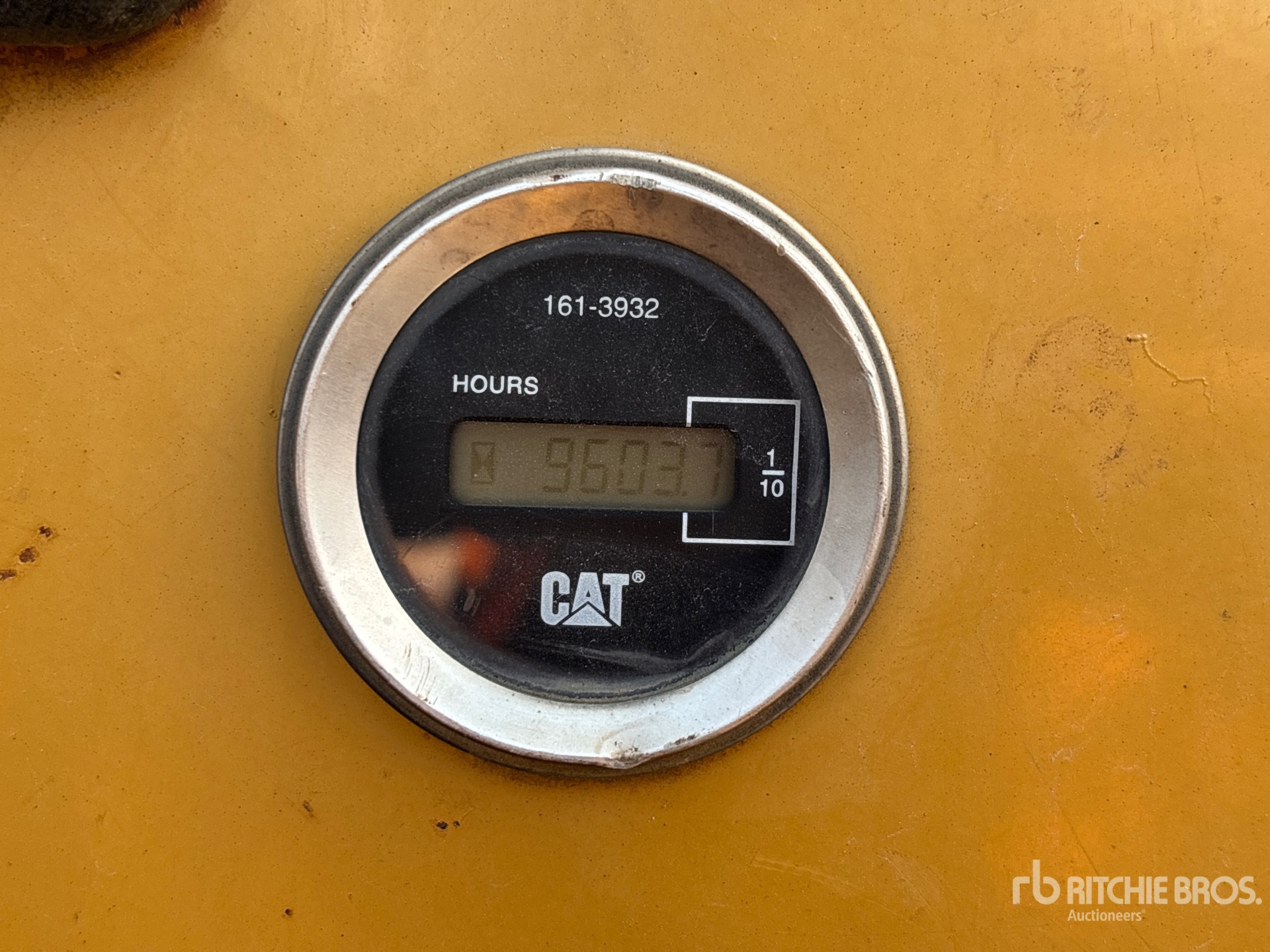

Hours:	9603

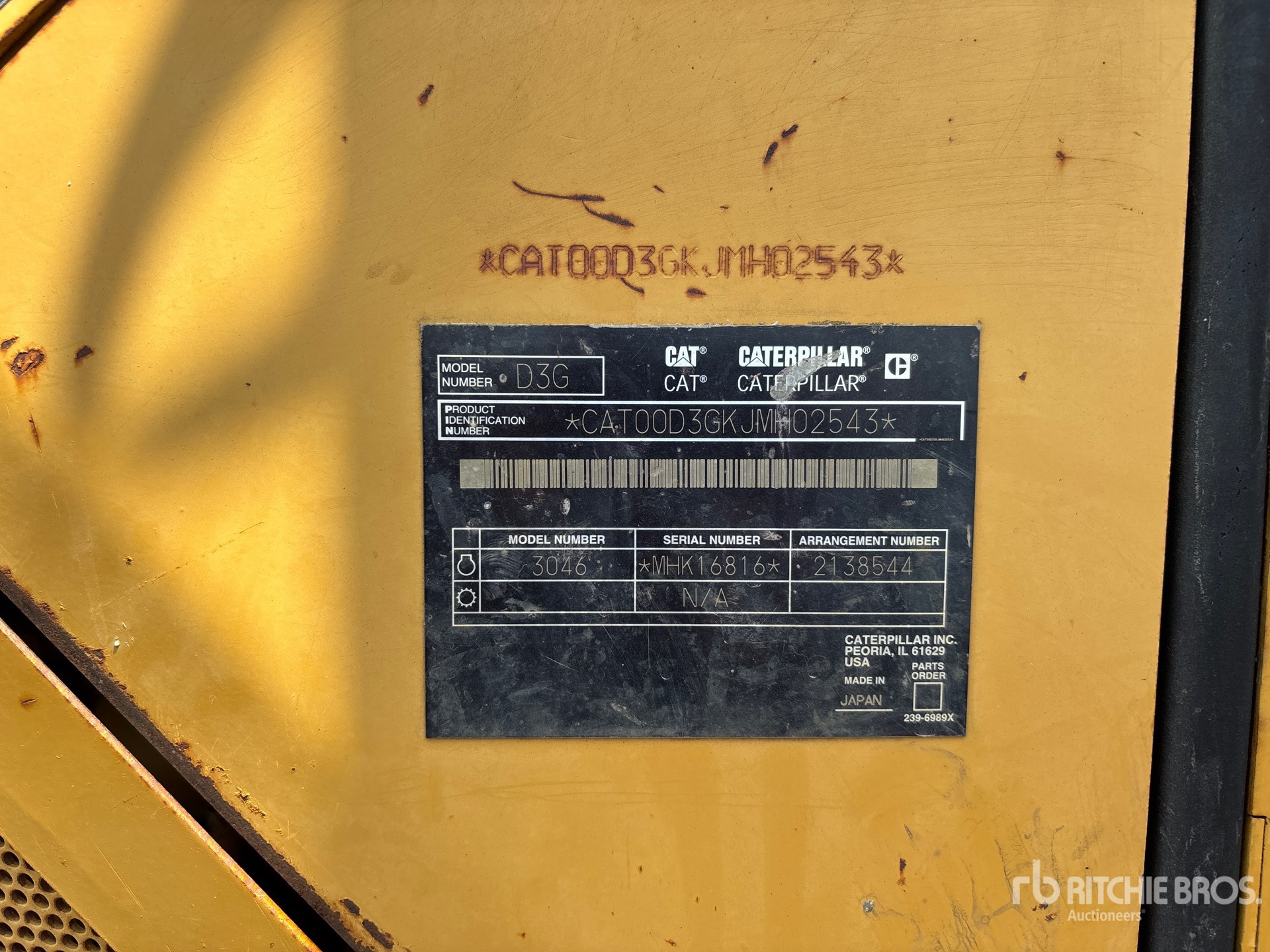

Serial Number:	CAT00D3GKJMH02543
Machine Location:	FORT WORTH, TX

Description:

Open Operator Station, 95 in Wide PAT Blade, 16 in Single Grouser Track Shoes, Rear Auxiliary Hydraulics Inoperable items must be removed from yard by July 3rd and cannot be relisted; Buyer's responsibility for removal. RBA will not be able to assist with loading. Closing Time: 2026-06-17 03:58:57 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar D3G is a compact crawler dozer designed for grading, site preparation, and light earthmoving work. It is part of Caterpillar's D3 series and is commonly used in construction, landscaping, utility work, and general material handling. The D3G features a tracked undercarriage for improved traction and stability on soft or uneven ground. Typical configurations include a blade for pushing and leveling material, along with a diesel engine and operator cab or canopy options. The model is valued for maneuverability in confined job sites and for performing dozing and finish grading tasks in a range of terrain conditions.

Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	10 ft (3 m)
Length w/ Blade	13 ft (4 m)
Length w/o Blade	10 ft (3 m)
Width Over Tracks	6 ft (2 m)
Engine
Bore	4 in (9 cm)
Displacement	305 cu in (4,998 cu cm)
Engine Model	Cat 3046T
Gross Power	77 hp (57 kw)
Net Power	70 hp (52 kw)
Power Measured @	2,200 rpm
Stroke	5 in (12 cm)
Hydraulic System
Pump Flow Capacity	2,900 gpm (10,977 lpm)
Relief Valve Pressure	9 psi
Operating Specifications
Cooling System Fluid Capacity	6 gal (21 l)
Engine Oil Capacity	3 gal (13 l)
Final Drives Fluid Capacity	4 gal (14 l)
Fuel Capacity	44 gal (165 l)
Hydraulic Fluid Capacity	12 gal (45 l)
Operating Weight	16,227 lbs (7,360 kg)
Ripper
Ripper Type	Parallelogram
Service Refill Capacities
Cooling System	6 gal (21 l)
Fuel Tank	44 gal (165 l)
Standard Blade
Blade Angle (both directions)	25 degrees
Capacity	2 cu yd (1 cu m)
Height	37 in (94 cm)
Width	8 ft (2 m)
Standards
FOPS	SAE J231-JAN81 ISO 3449-92
ROPS	SAE J397-OCT95 SAE J1040-MAY94 ISO 3471-94 ISO 3164-95
Transmission
Max Speed - Forward	6 mph (9 kph)
Max Speed - Reverse	6 mph (10 kph)
Number of Forward Gears	1
Number of Reverse Gears	1
Transmission Type	dual path closed loop hydrostatic
Undercarriage
Ground Contact Area	2,586 cu in (42,377 cu cm)
Ground Pressure	6 psi
Number of Shoes per Side	39
Number of Track Rollers per Side	6
Standard Shoe Size	16 in (41 cm)
Track Gauge	5 ft (1 m)
Winch
Drum Diameter	10 in (25 cm)
Drum Width	11 in (27 cm)
Weight	1,345 lbs (610 kg)
