Equipment ↠ Caterpillar ↠ Crawler Dozers ↠ 2004 Caterpillar D5G LGP

2004 Caterpillar D5G LGP For Sale in North East, Md

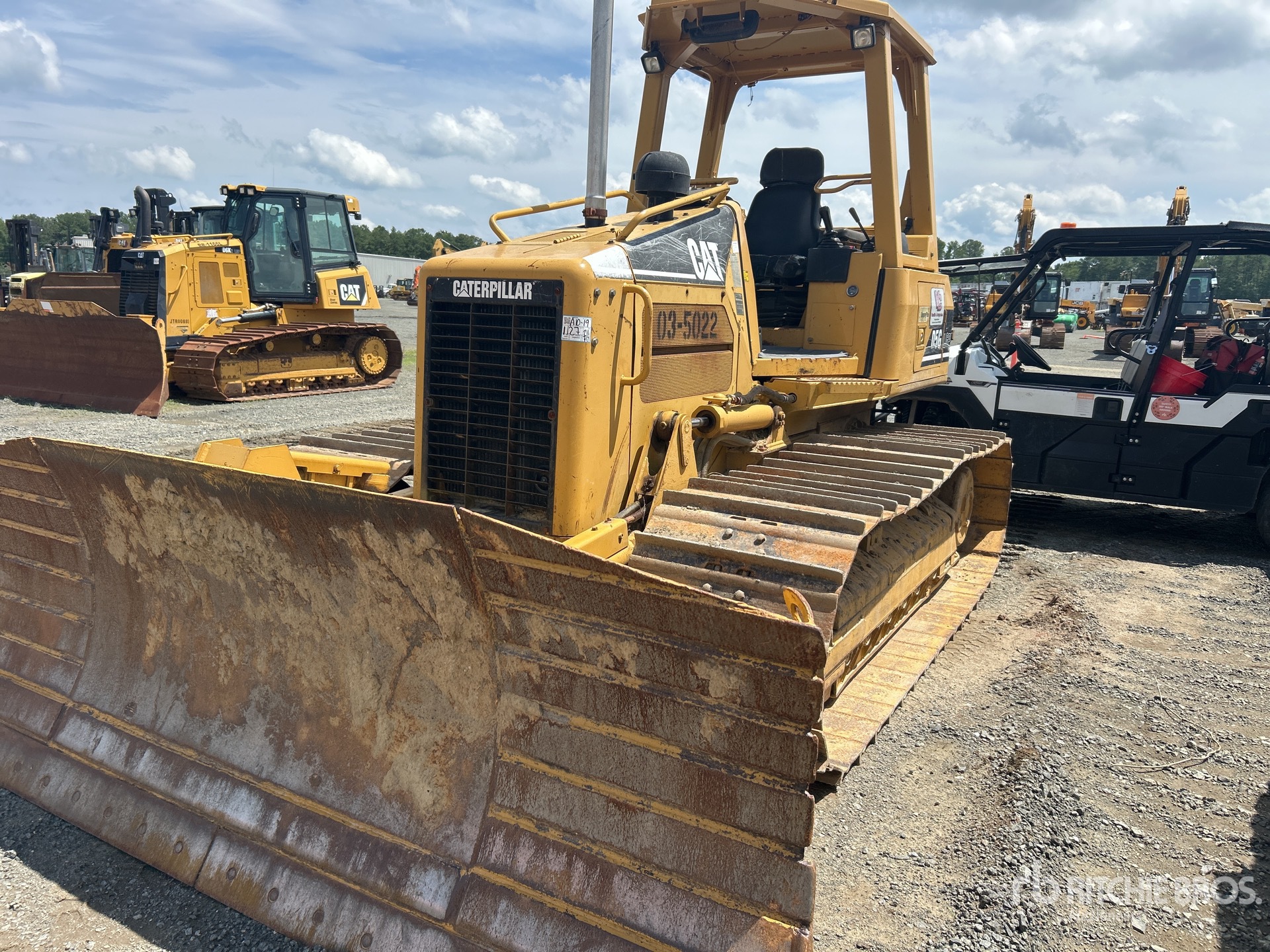

Name: 2004 Caterpillar D5G LGP
Brand: Caterpillar
SKU: 88866266
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-04 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

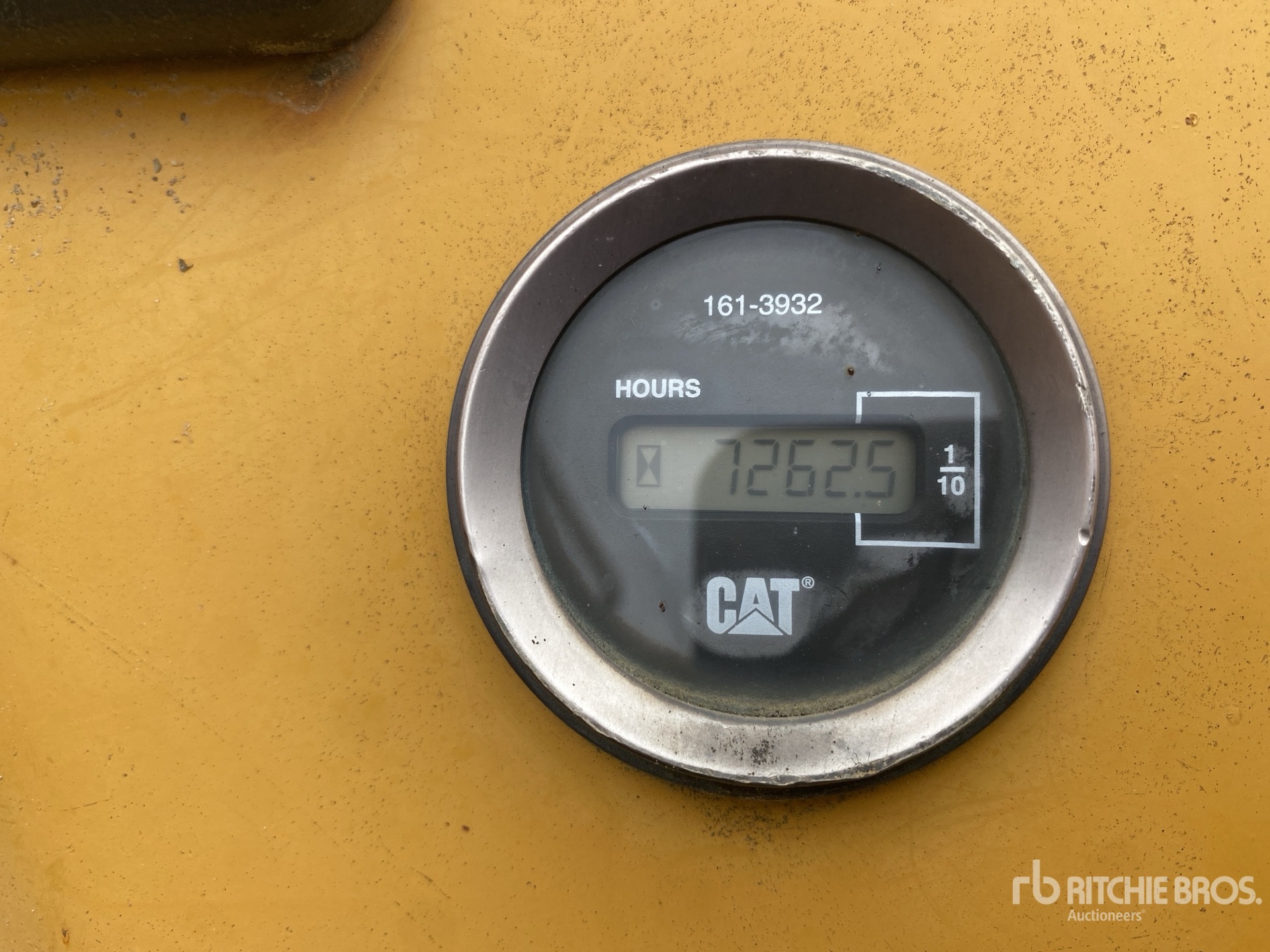

Hours:	7262

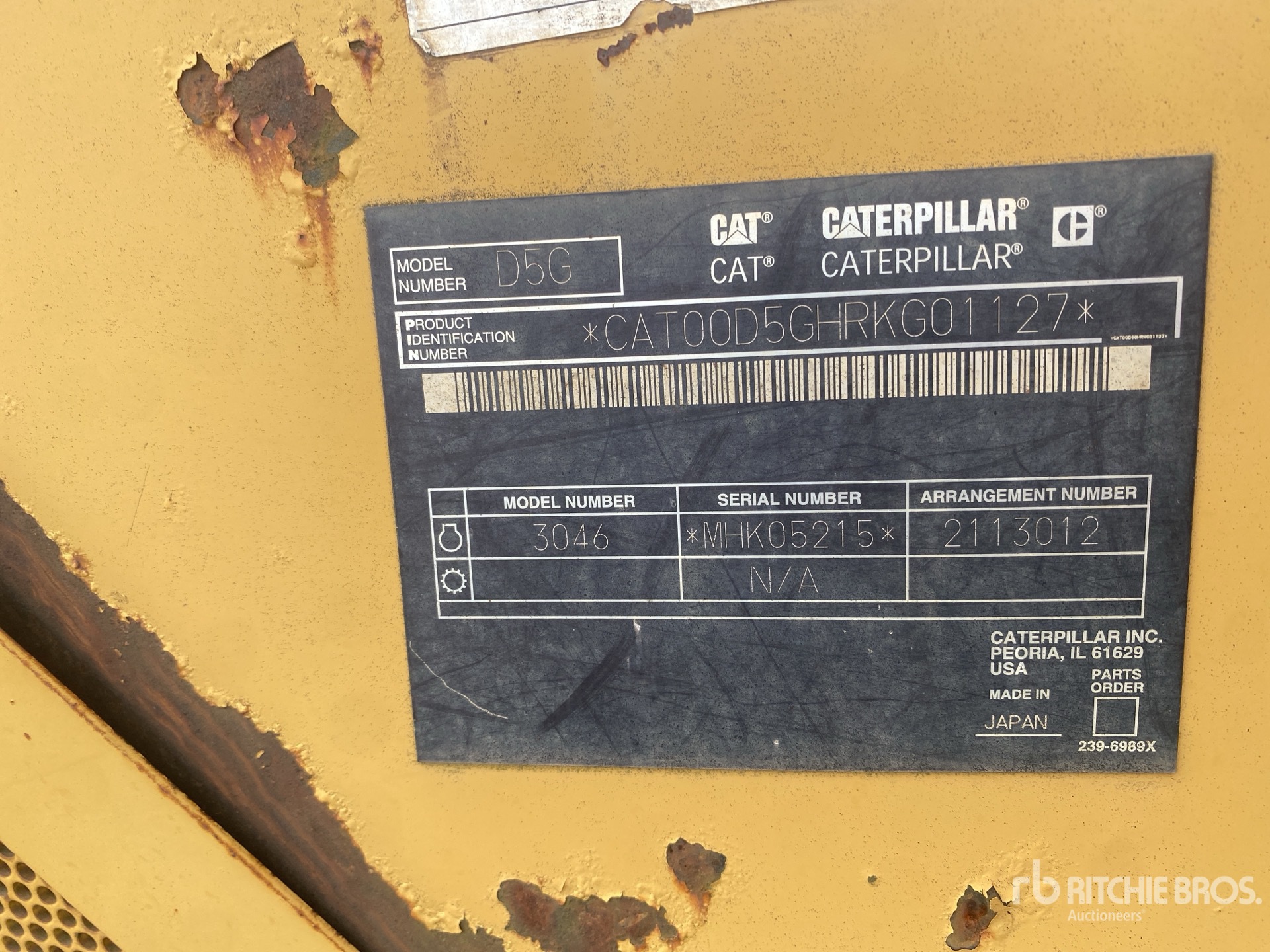

Serial Number:	CAT00D5GHRKG01127
Machine Location:	NORTH EAST, MD

Description:

Open Operator Station, 127 in Wide PAT Blade, 26 in Single Grouser Track Shoes, Drawbar Closing Time: 2026-08-04 09:11:50 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Caterpillar D5G crawler dozer is a mid-size tracked bulldozer designed for grading, earthmoving, site preparation, and general construction work. Part of Caterpillar's D5 series, the D5G uses a crawler undercarriage for traction and stability on soft, uneven, or sloped ground. It is commonly equipped with a front blade for pushing and leveling material and may be paired with a rear ripper for breaking compacted soil. The D5G is used in road building, land clearing, utility work, and agricultural applications. Its compact size and maneuverability make it suitable for confined job sites and finish grading tasks.

Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	11 ft (3 m)
Length w/ Blade	14 ft (4 m)
Width Over Tracks	7 ft (2 m)
Engine
Bore	4 in (9 cm)
Displacement	305 cu in (4,998 cu cm)
Engine Model	Cat 3046T
Gross Power	99 hp (74 kw)
Net Power	90 hp (67 kw)
Stroke	5 in (12 cm)
Operating Specifications
Cooling System Fluid Capacity	4 gal (16 l)
Engine Oil Capacity	4 gal (13 l)
Final Drives Fluid Capacity	4 gal (15 l)
Fuel Capacity	50 gal (187 l)
Operating Weight	20,547 lbs (9,320 kg)
Ripper
Ripper Type	Parallelogram
Service Refill Capacities
Cooling System	4 gal (16 l)
Fuel Tank	49 gal (184 l)
Standard Blade
Blade Angle (both directions)	25 degrees
Capacity	3 cu yd (2 cu m)
Height	43 in (110 cm)
Width	9 ft (3 m)
Standards
FOPS	SAE J231-JAN81 ISO 3449-92
ROPS	SAE J397-OCT95 SAE J1040-MAY94 ISO 3471-94 ISO 3164-95
Transmission
Max Speed - Forward	6 mph (9 kph)
Max Speed - Reverse	6 mph (10 kph)
Undercarriage
Ground Contact Area	36,631,225 cu in (600,279,557 cu cm)
Ground Pressure	5 psi
Number of Shoes per Side	39
Number of Track Rollers per Side	7
Standard Shoe Size	20 in (51 cm)
Track Gauge	5 ft (2 m)
Winch
Drum Diameter	10 in (25 cm)
Drum Width	11 in (27 cm)
Weight	1,345 lbs (610 kg)
