Equipment ↠ Caterpillar ↠ Excavators ↠ 2011 Caterpillar 311D LRR

2011 Caterpillar 311D LRR For Sale in Australia, Aus

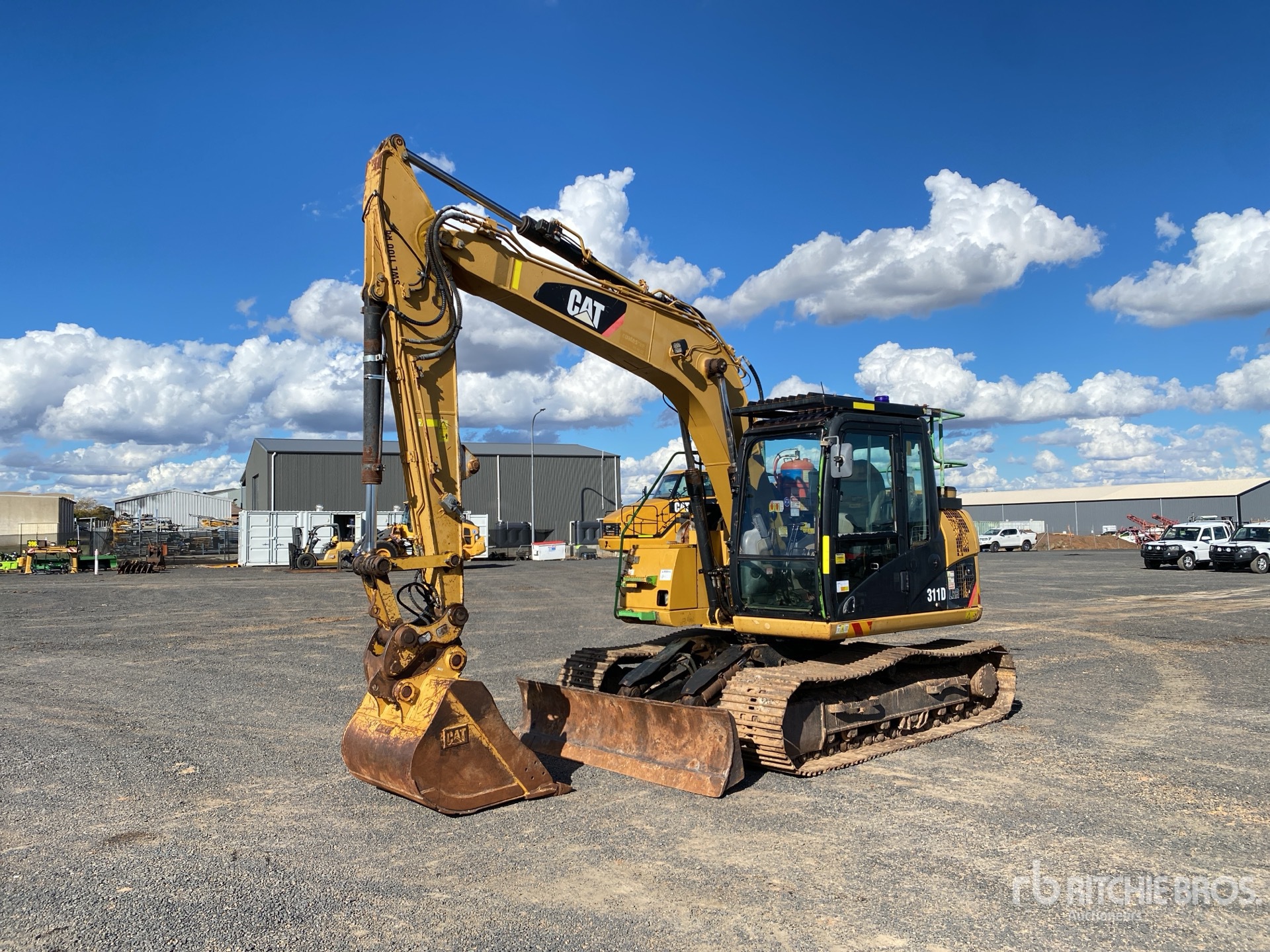

Name: 2011 Caterpillar 311D LRR
Brand: Caterpillar
SKU: 88314393
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-24 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

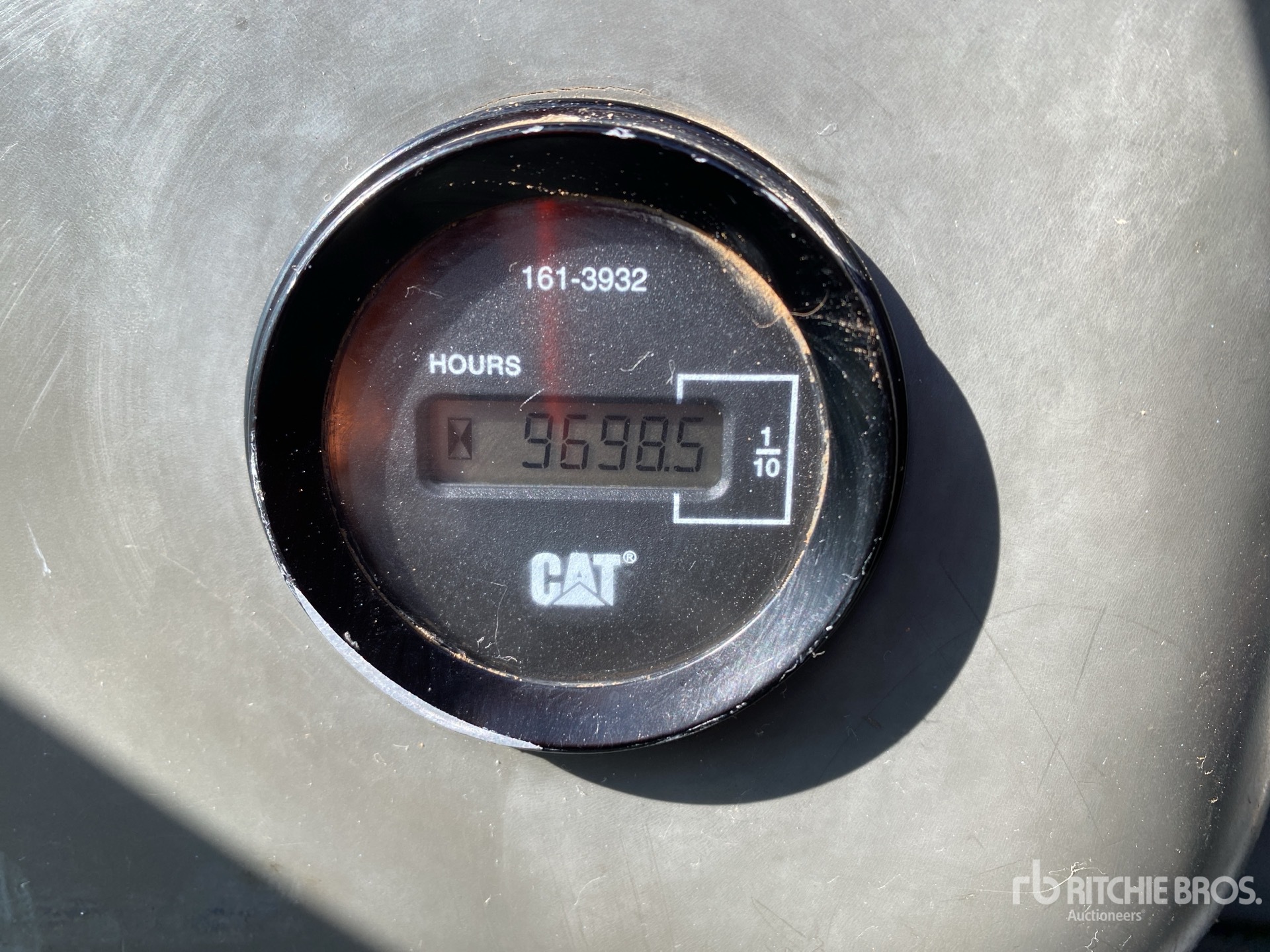

Hours:	9698

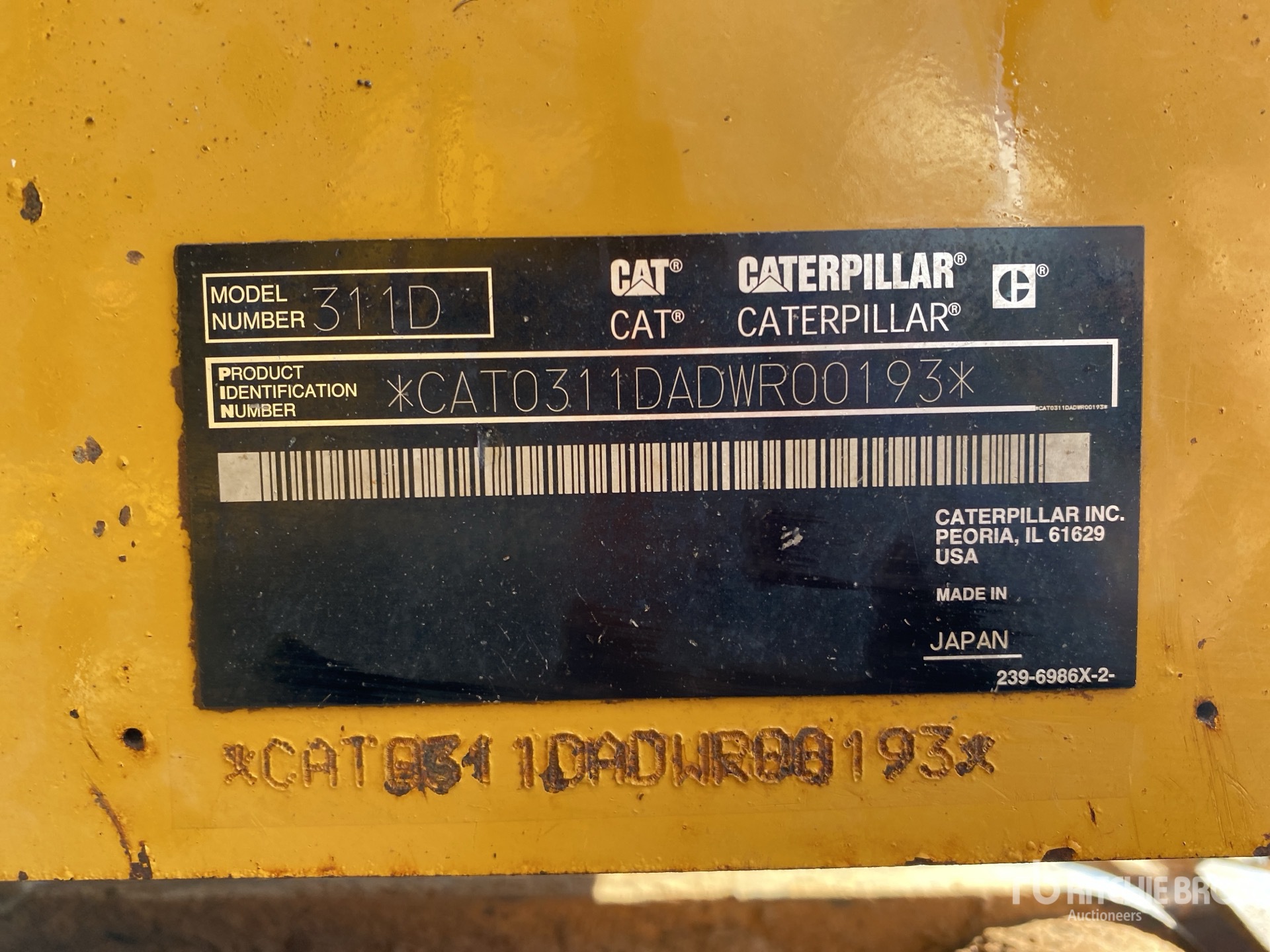

Serial Number:	CAT0311DADWR00193
Machine Location:	AUSTRALIA, AUS

Description:

Air Conditioner, Fire Suppression System, Rear View Camera, E-Stops, 2600 mm Stick, Auxiliary Hydraulic Plumbing, Stick Check Valve, Boom Check Valves, Backfill Blade, 600 mm Triple Grouser Track Shoes, Hydraulic Quick Coupler, 1000 mm Digging Bucket, Thumb Bracket, Safety Rails - Deficiencie(s) noted - Please see inspection report at rbauction.com.au Closing Time: 2026-06-24 01:52:30 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	26 ft (8 m)
Max Loading Height	18 ft (5 m)
Max Vertical Wall Digging Depth	15 ft (4 m)
Shipping Height of Unit	9 ft (3 m)
Shipping Length of Unit	23 ft (7 m)
Boom/Stick Excavator Option 2
Max Cutting Height	26 ft (8 m)
Max Digging Depth	18 ft (5 m)
Max Loading Height	19 ft (6 m)
Max Reach Along Ground	26 ft (8 m)
Max Vertical Wall Digging Depth	16 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	23 ft (7 m)
Boom/Stick Excavator Option 3
Max Cutting Height	27 ft (8 m)
Max Digging Depth	18 ft (6 m)
Max Loading Height	19 ft (6 m)
Max Reach Along Ground	27 ft (8 m)
Max Vertical Wall Digging Depth	16 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	22 ft (7 m)
Bucket
Maximum Bucket Capacity	1 cu yd (1 cu m)
Minimum Bucket Capacity	0 cu yd (0 cu m)
Reference Bucket Capacity	1 cu yd (0 cu m)
Dimensions
Counterweight Clearance	3 ft (1 m)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	9 ft (3 m)
Removal Counterweight Clearance	3 ft (1 m)
Shipping Height	10 ft (3 m)
Tail Swing Radius	6 ft (2 m)
Transport Width	9 ft (3 m)
Width to Outside of Tracks	9 ft (3 m)
DRIVE SYSTEM
Maximum Drawbar Pull	25,600 lbs (11,612 kg)
Travel Speed	3 mph (5 kph)
Engine
Bore	4 in (10 cm)
Displacement	259 cu in (4,244 cu cm)
Engine Model	Cat C4.2 ACERT
Flywheel Power	80 hp (60 kw)
Gross Power	86 hp (64 kw)
ISO 9249	80 hp (60 kw)
Net Power	80 hp (60 kw)
Net Power - SAE J1349	80 hp (60 kw)
SAE J1349	80 hp (60 kw)
Stroke	5 in (13 cm)
Hydraulic System
Boom Cylinder - Bore	4 in (10 cm)
Boom Cylinder - Stroke	39 in (100 cm)
Bucket Cylinder - Bore	4 in (10 cm)
Bucket Cylinder - Stroke	37 in (94 cm)
Main Implement System - Maximum Flow (2x)	31 gpm (117 lpm)
Maximum Pressure - Implements	4,424 psi
Maximum Pressure - Swing	3,336 psi
Maximum Pressure - Travel	5,076 psi
Stick Cylinder - Bore	4 in (11 cm)
Stick Cylinder - Stroke	47 in (119 cm)
Operating Specifications
Cooling System Fluid Capacity	5 gal (18 l)
Engine Oil Capacity	5 gal (19 l)
Fuel Capacity	56 gal (210 l)
Hydraulic Pump Flow Capacity	31 gpm (117 lpm)
Hydraulic System Fluid Capacity	38 gal (145 l)
Hydraulic System Relief Valve Pressure	5,076 psi
Swing Drive Fluid Capacity	1 gal (3 l)
Service Refill Capacities
Cooling System	5 gal (19 l)
Engine Oil	5 gal (19 l)
Final Drive - Each	1 gal (4 l)
Fuel Tank	55 gal (208 l)
Hydraulic System - Including Tank	38 gal (144 l)
Hydraulic Tank	21 gal (79 l)
Swing Drive - Each	1 gal (4 l)
Standards
Cab/FOGS	SAE J1356 FEB88/ISO 10262
Swing Mechanism
Swing Speed	11 rpm
Undercarriage
Drawbar Pull	25,628 lbs (11,625 kg)
Ground Pressure	5 psi
Max Travel Speed	3 mph (5 kph)
Shoe Size	24 in (60 cm)
Track Gauge	7 ft (2 m)
Weights
Operating Weight	27,514 lbs (12,480 kg)
Operating Weight - Long Undercarriage	27,514 lbs (12,480 kg)
