Equipment ↠ Caterpillar ↠ Excavators ↠ 2019 Caterpillar 313F L GC

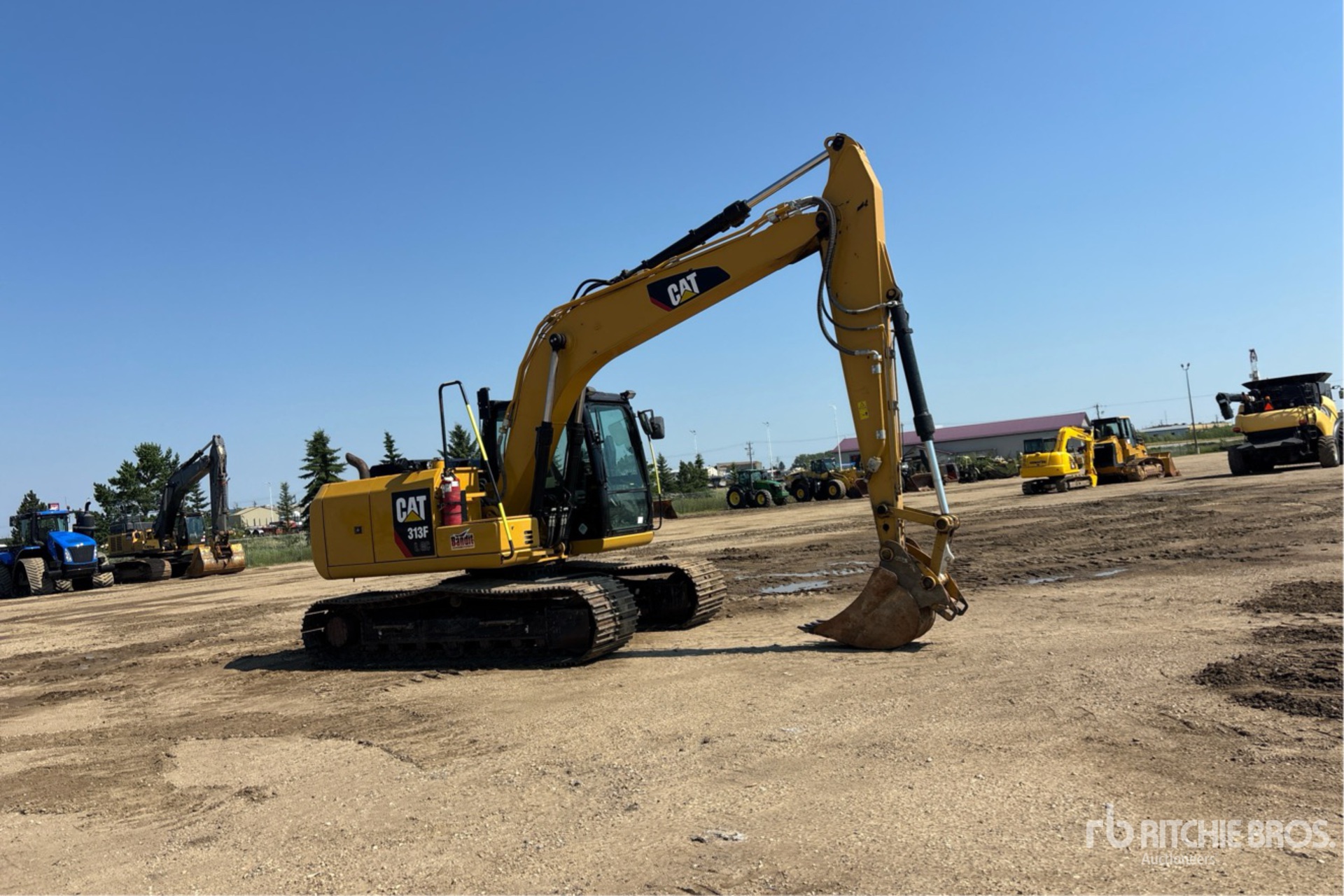

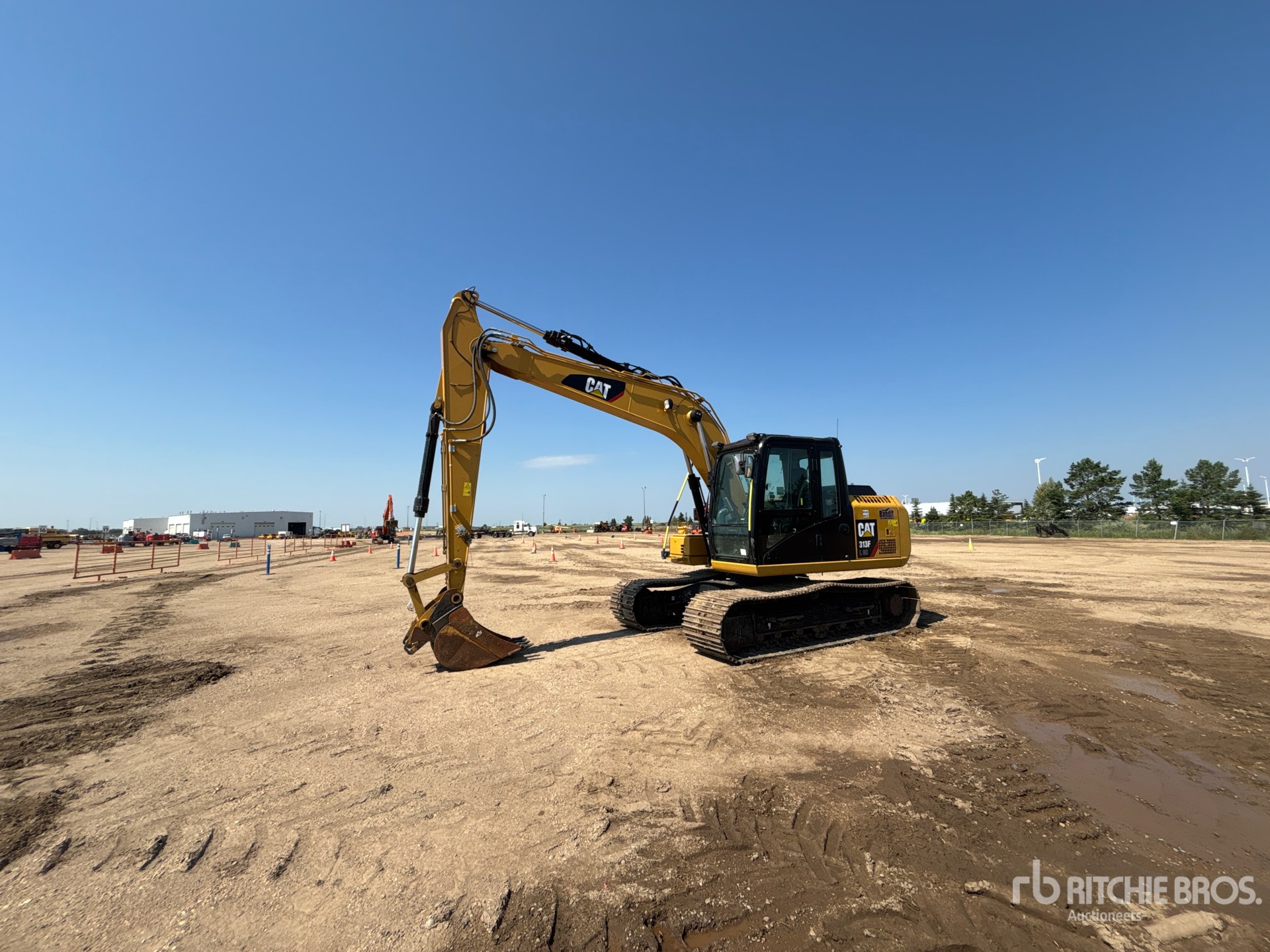

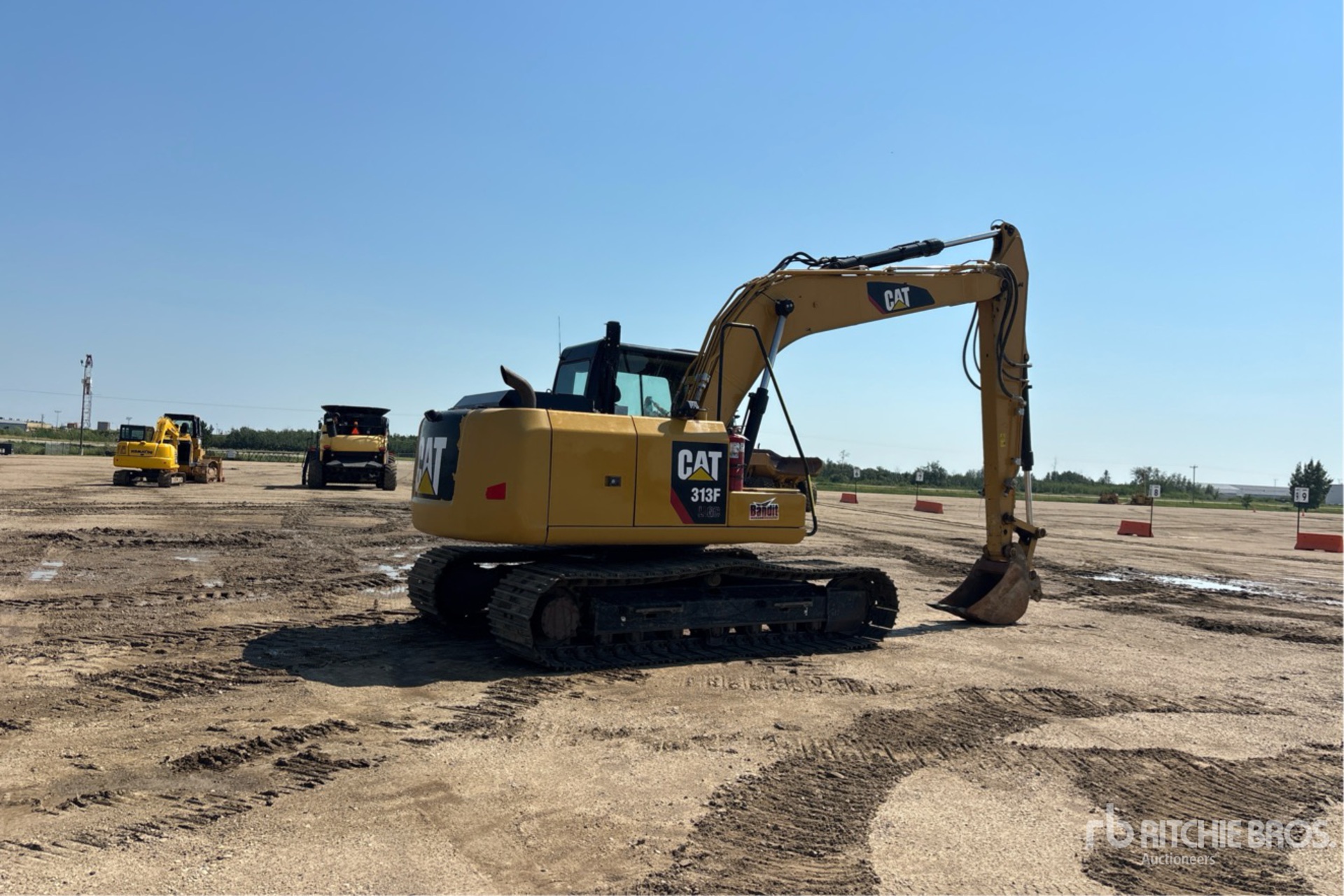

2019 Caterpillar 313F L GC For Sale in Edmonton, Ab

Name: 2019 Caterpillar 313F L GC
Brand: Caterpillar
SKU: 88885958
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

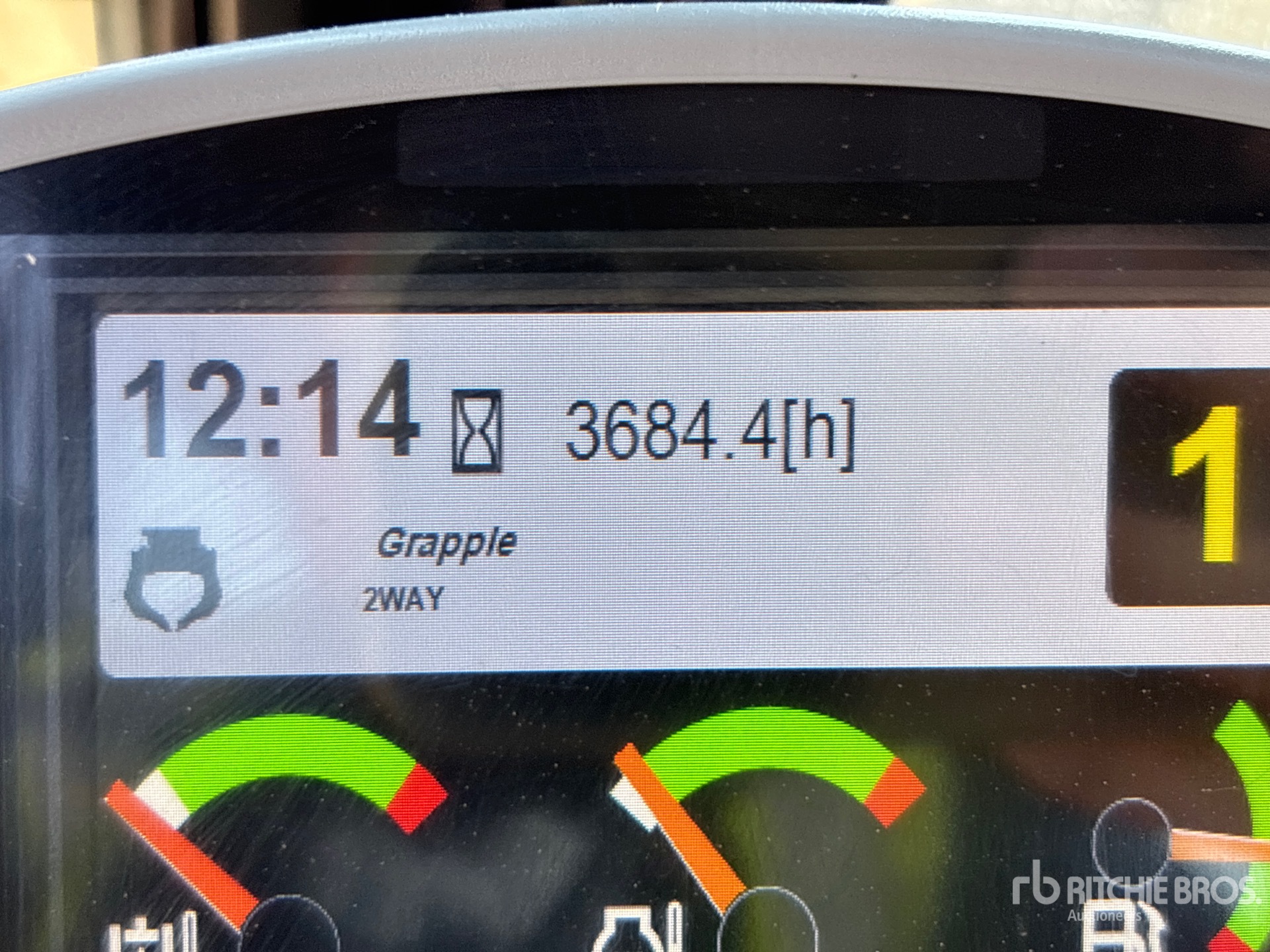

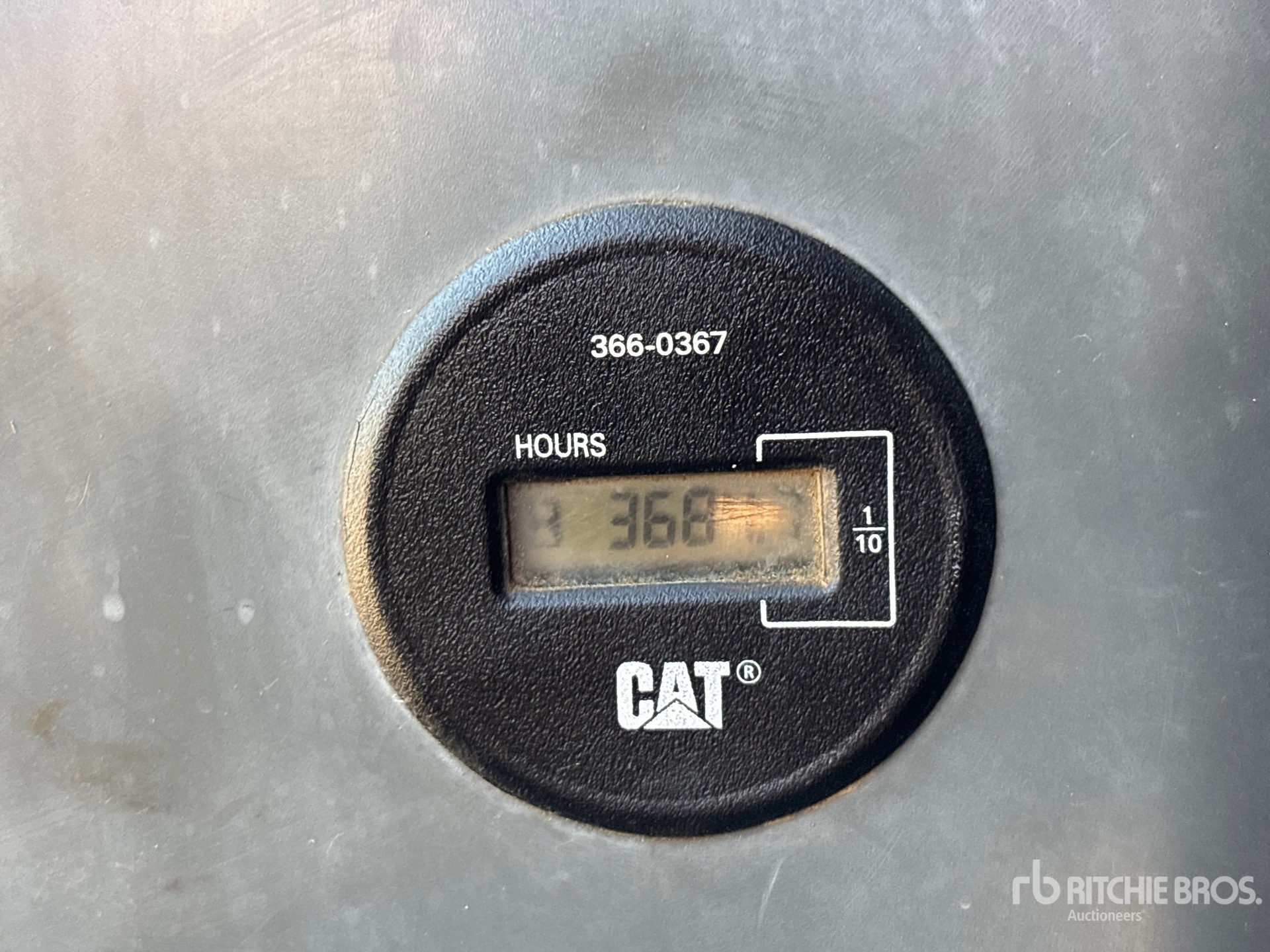

Hours:	3684
Serial Number:	CAT0313FHZGS00175
Machine Location:	EDMONTON, AB

Description:

Located in Lane 24 Spot 1, Air Conditioner, Rear & Side View Cameras, 2018 US EPA Label, CARB Compliant, 9 ft 4 in Stick, Auxiliary Hydraulic Plumbing, Stick Check Valve, 28 in Triple Grouser Track Shoes, Manual Quick Coupler, 18 in Digging Bucket, Equipment-from-Bandit-Pipeline-Ltd Additional information available - Maintenance history - Work order(s) Closing Time: 2026-08-11 09:28:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 313F L GC is a hydraulic excavator in Caterpillar's 13-ton class, designed for general construction and utility work. It features a fuel-efficient Cat engine, load-sensing hydraulics, and a comfortable operator cab with intuitive controls. The 313F L GC is built for digging, trenching, lifting, and site preparation applications. Its long undercarriage configuration provides stability and improved reach for a range of jobsite conditions. Common attachments include buckets, hydraulic hammers, and thumbs. The model is part of Caterpillar's F Series excavator lineup and is used in earthmoving, landscaping, and light demolition tasks.

Boom/Stick Excavator Option 1
Max Digging Depth	20 ft (6 m)
Max Reach Along Ground	28 ft (9 m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	12 ft (4 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	7 ft (2 m)
DRIVE SYSTEM
Maximum Travel Speed	3 mph (5 kph)
Engine
Bore	4 in (10 cm)
Displacement	207 cu in (3,392 cu cm)
Flywheel Power	70 hp (52 kw)
Gross Power	70 hp (52 kw)
Gross Power - SAE J1995	74 hp (55 kw)
Net Power - SAE J1349	70 hp (52 kw)
Stroke	4 in (11 cm)
Hydraulic System
Boom Cylinder - Bore	4 in (10 cm)
Boom Cylinder - Stroke	40 in (102 cm)
Bucket Cylinder - Bore	4 in (10 cm)
Bucket Cylinder - Stroke	37 in (94 cm)
Main System - Maximum Flow - Total	63 gpm (240 lpm)
Maximum Pressure - Equipment	4,424 psi
Maximum Pressure - Swing	3,336 psi
Maximum Pressure - Travel	4,424 psi
Pilot System - Maximum Pressure	598 psi
Stick Cylinder - Bore	5 in (13 cm)
Stick Cylinder - Stroke	47 in (119 cm)
Operating Specifications
Cooling System Fluid Capacity	5 gal (18 l)
Engine Oil Capacity	2 gal (8 l)
Fuel Capacity	66 gal (250 l)
Hydraulic System Fluid Capacity	43 gal (164 l)
Swing Drive Fluid Capacity	1 gal (3 l)
Service Refill Capacities
Cooling System	5 gal (18 l)
Engine Oil	2 gal (8 l)
Fuel Tank Capacity	66 gal (250 l)
Hydraulic System - Including Tank	43 gal (164 l)
Hydraulic Tank	24 gal (90 l)
Swing Drive	1 gal (3 l)
Standards
Brakes	ISO 10265
Swing
Swing Speed	12 rpm
Swing Torque	22,791 lbs ft (30,900 nm)
Swing Mechanism
Swing Speed	12 rpm
Track
Number of Shoes - Each Side - Long Undercarriage	46 pieces
Number of Track Rollers - Each Side - Long Undercarriage	7 pieces
Undercarriage
Drawbar Pull	24,707 lbs (11,207 kg)
Max Travel Speed	6 mph (9 kph)
Number of Carrier Rollers per Side	1
Number of Shoes per Side	46
Number of Track Rollers per Side	7
Weights
Maximum Operating Weight	32,200 lbs (14,606 kg)
Minimum Operating Weight	29,300 lbs (13,290 kg)
Operating Weight	29,300 lbs (13,290 kg)
