Equipment ↠ Caterpillar ↠ Excavators ↠ 2005 Caterpillar 315C L

2005 Caterpillar 315C L For Sale in North East, Md

Name: 2005 Caterpillar 315C L
Brand: Caterpillar
SKU: 88428308
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-23 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

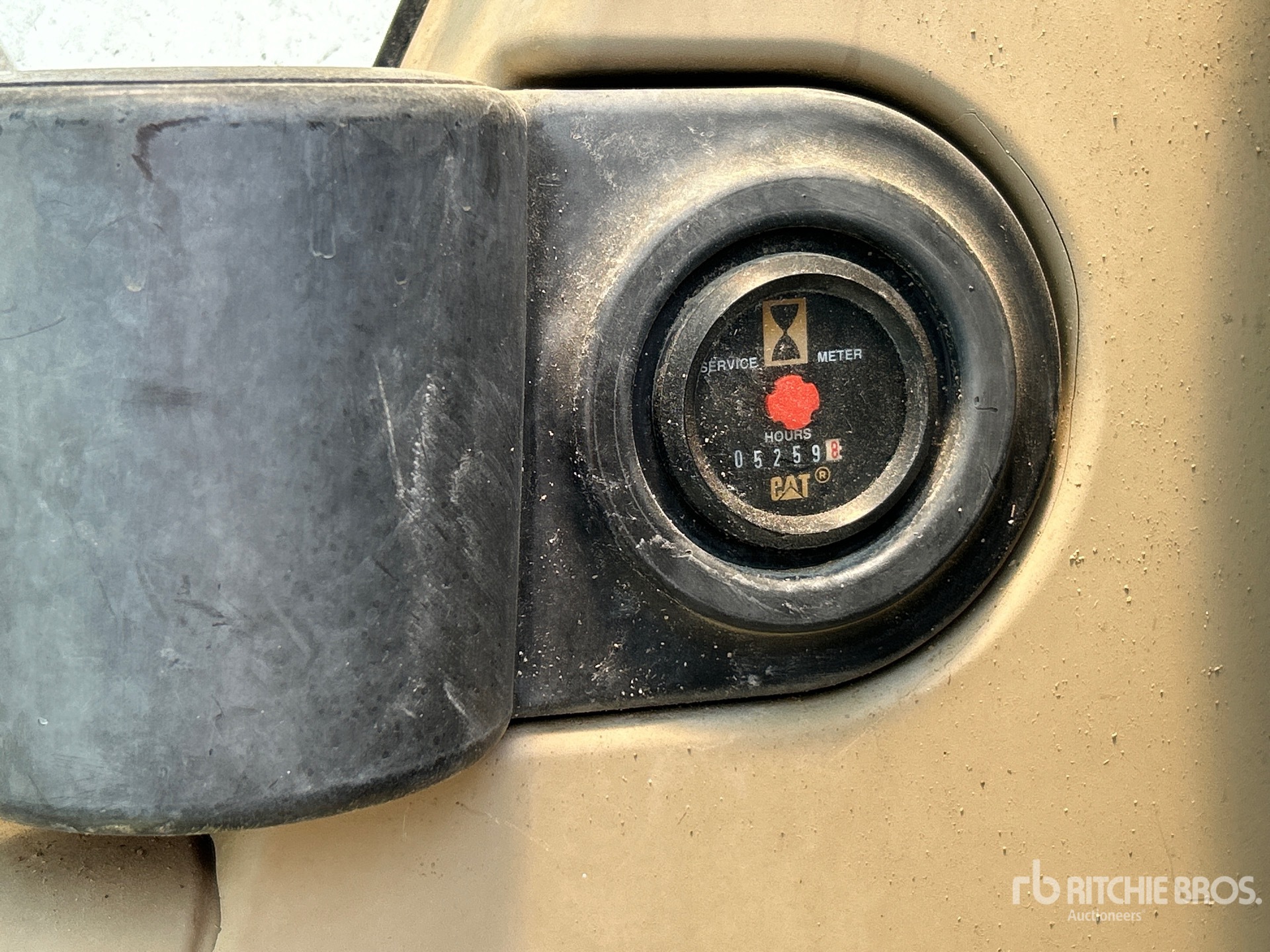

Hours:	5259

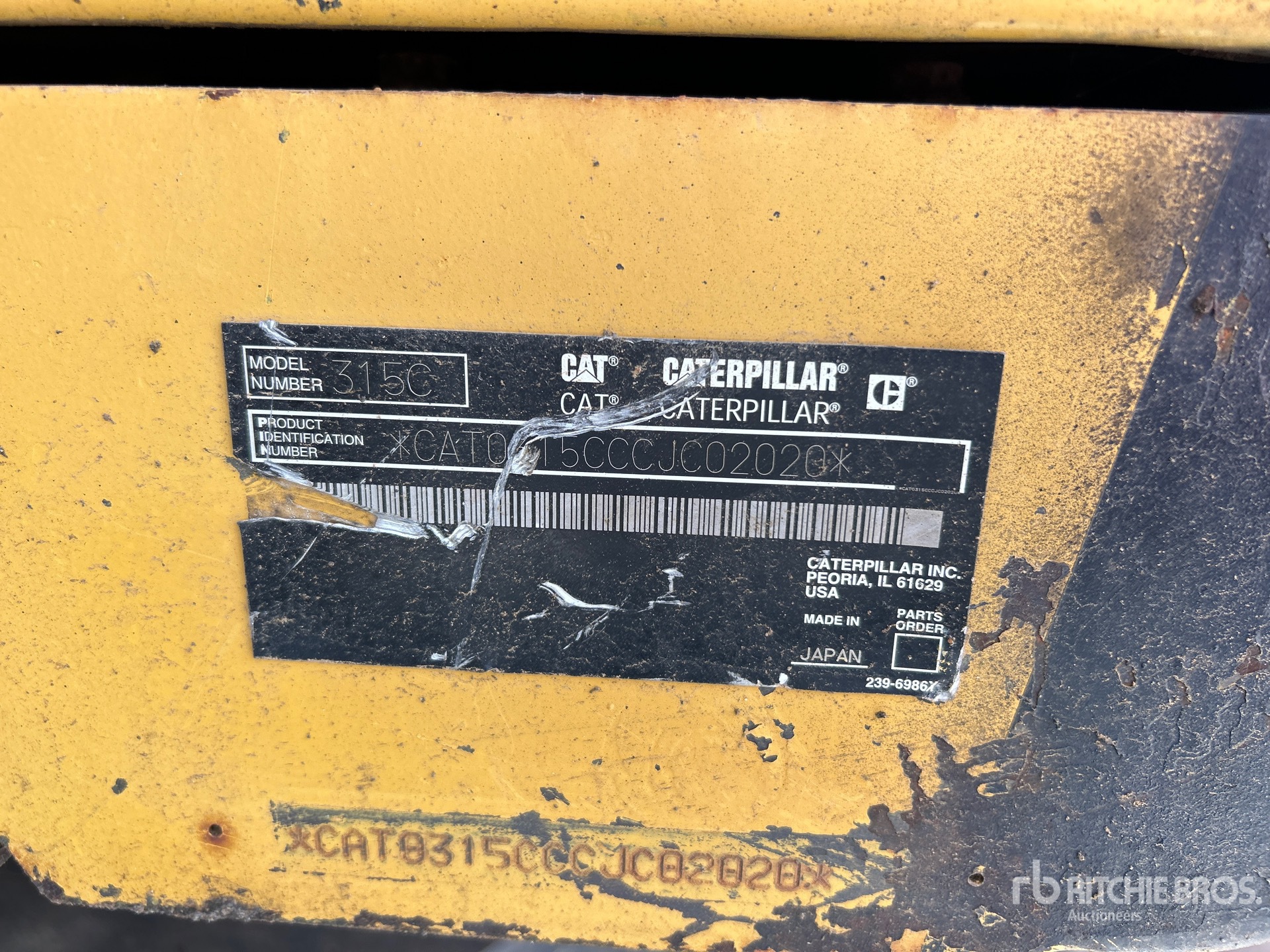

Serial Number:	CAT0315CCCJC02020
Machine Location:	NORTH EAST, MD

Description:

Straight Travel Pedal, Cab Screens, 8 ft 6 in Stick, 24 in Triple Grouser Track Shoes, Hydraulic Quick Coupler, Grapple Closing Time: 2026-06-23 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 315C L is a hydraulic excavator in Caterpillar's 315 series, designed for general excavation, trenching, loading, and site preparation work. The "L" designation indicates a long undercarriage configuration, which provides improved stability and support during digging and lifting operations. The 315C L is typically used in construction, utility, and earthmoving applications where maneuverability and digging performance are required. It features a crawler undercarriage, a boom and stick assembly, and a rotating upper structure for 360-degree operation. As part of the excavator class, it is suited to material handling, grading, and foundation work on varied job sites.

Boom/Stick Excavator Option 1
Max Cutting Height	29 ft (9 m)
Max Digging Depth	19 ft (6 m)
Max Loading Height	20 ft (6 m)
Max Reach Along Ground	28 ft (8 m)
Max Vertical Wall Digging Depth	16 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	28 ft (9 m)
Boom/Stick Excavator Option 2
Max Cutting Height	29 ft (9 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	29 ft (9 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	28 ft (9 m)
Boom/Stick Excavator Option 3
Max Cutting Height	30 ft (9 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	30 ft (9 m)
Max Vertical Wall Digging Depth	18 ft (6 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	28 ft (9 m)
Bucket
Maximum Bucket Capacity	1 cu yd (1 cu m)
Minimum Bucket Capacity	1 cu yd (0 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Digging Depth	21 ft (6 m)
Digging Reach	21 ft (6 m)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	11 ft (3 m)
Tail Swing Radius	8 ft (2 m)
Width to Outside of Tracks	9 ft (3 m)
Engine
Displacement	305 cu in (4,998 cu cm)
Engine Model	3046T
Gross Power	115 hp (86 kw)
Net Power	110 hp (82 kw)
Power Measured @	1,800 rpm
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	6 gal (22 l)
Engine Oil Capacity	5 gal (19 l)
Fuel Capacity	75 gal (284 l)
Hydraulic Pump Flow Capacity	40 gpm (150 lpm)
Hydraulic System Fluid Capacity	50 gal (190 l)
Hydraulic System Relief Valve Pressure	4,980 psi
Operating Voltage	24 volts
Swing Drive Fluid Capacity	1 gal (3 l)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Drawbar Pull	34,620 lbs (15,703 kg)
Ground Pressure	6 psi
Max Travel Speed	3 mph (5 kph)
Shoe Size	24 in (61 cm)
