1997 Caterpillar 320BL For Sale in Birmingham, AL

Name: 1997 Caterpillar 320BL
Brand: Caterpillar
SKU: 88595525
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-06-24

JJ Kane Auctions

JJ Kane Auctions Dealer Info

JJ Kane Auctions Website

Click here to email JJ Kane Auctions.

Click for Phone Number

Machine Info:

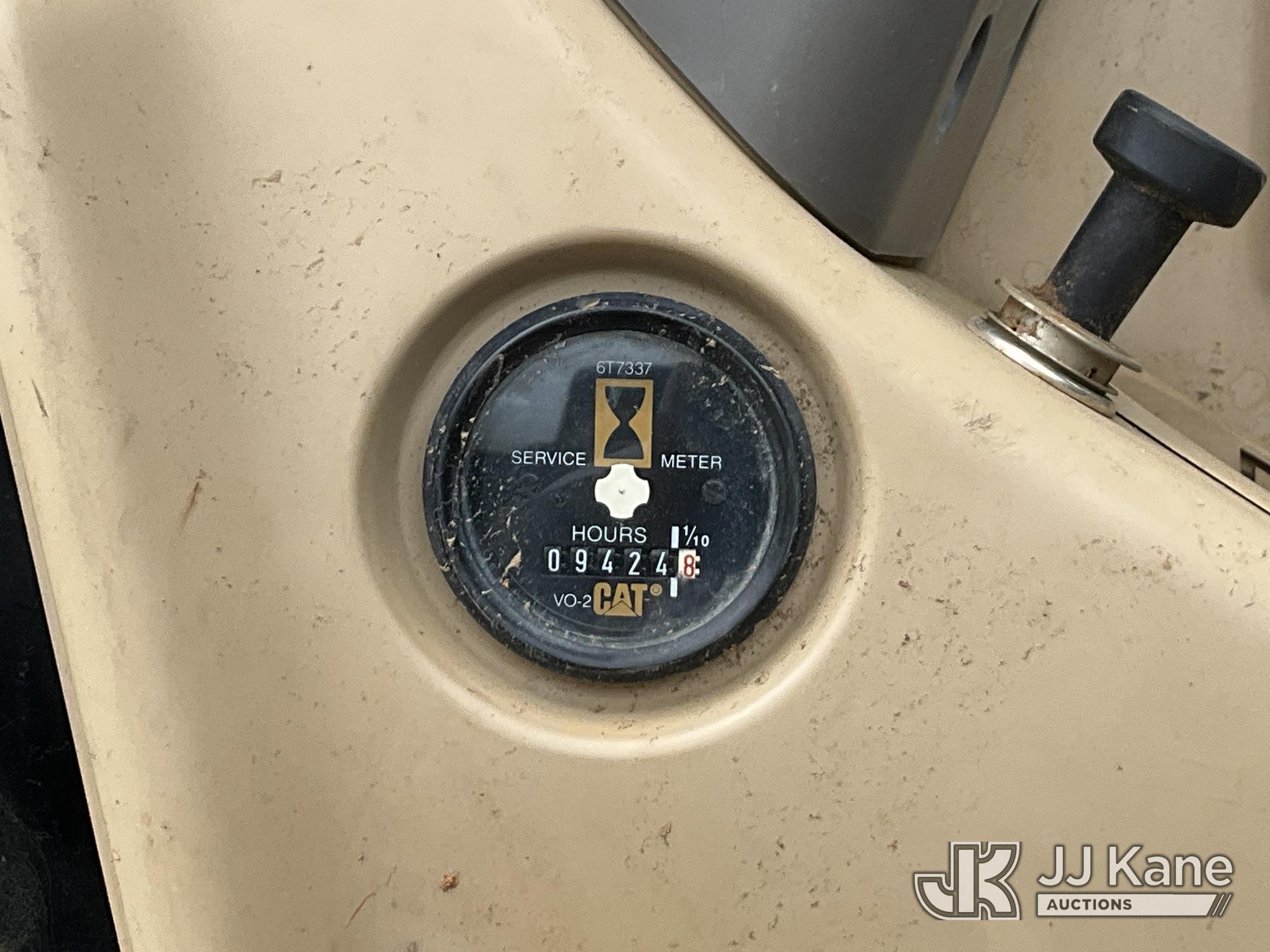

Hours:	9424

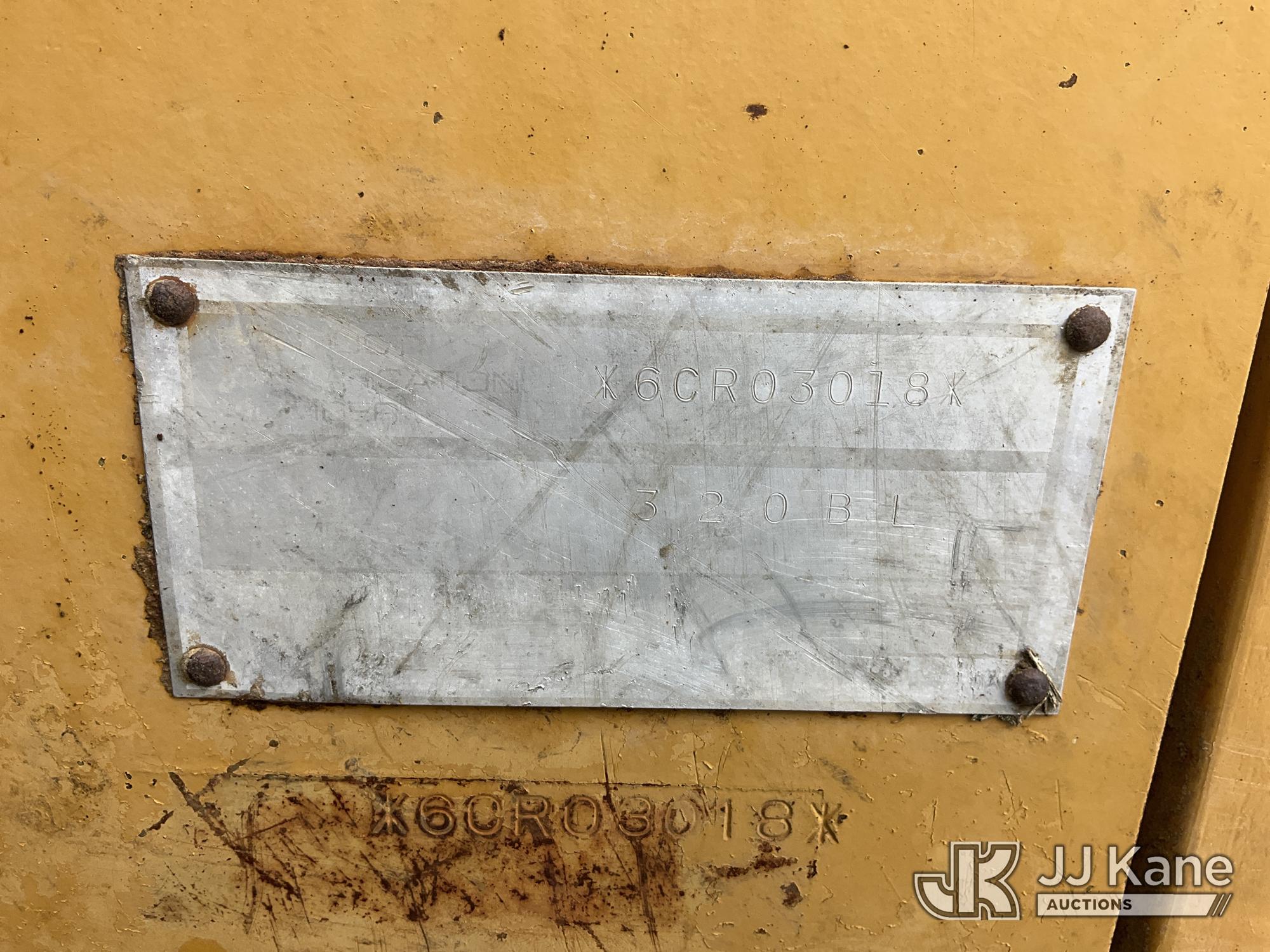

Serial Number:	6CR03018
Machine Location:	BIRMINGHAM, AL

Description:

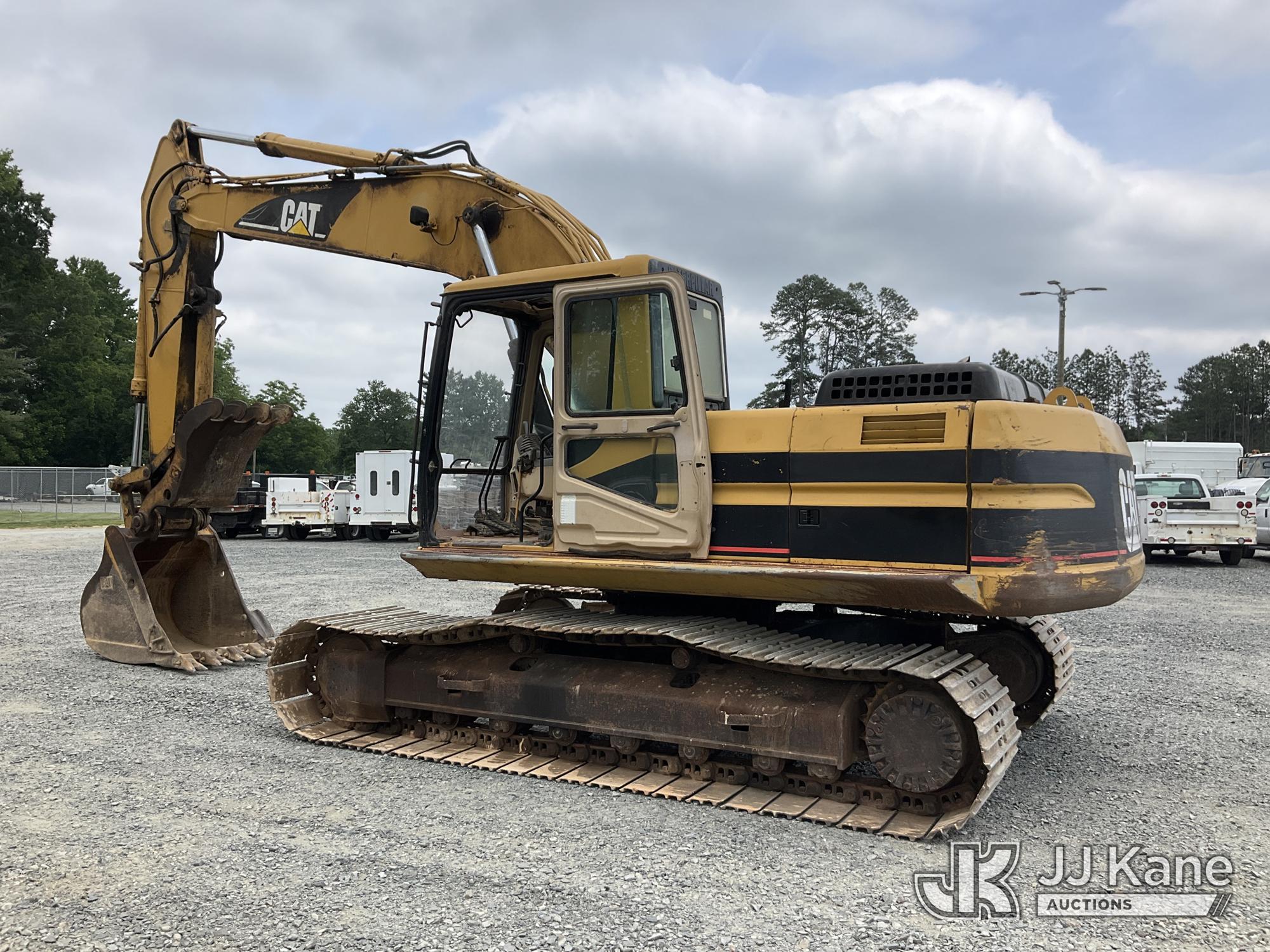

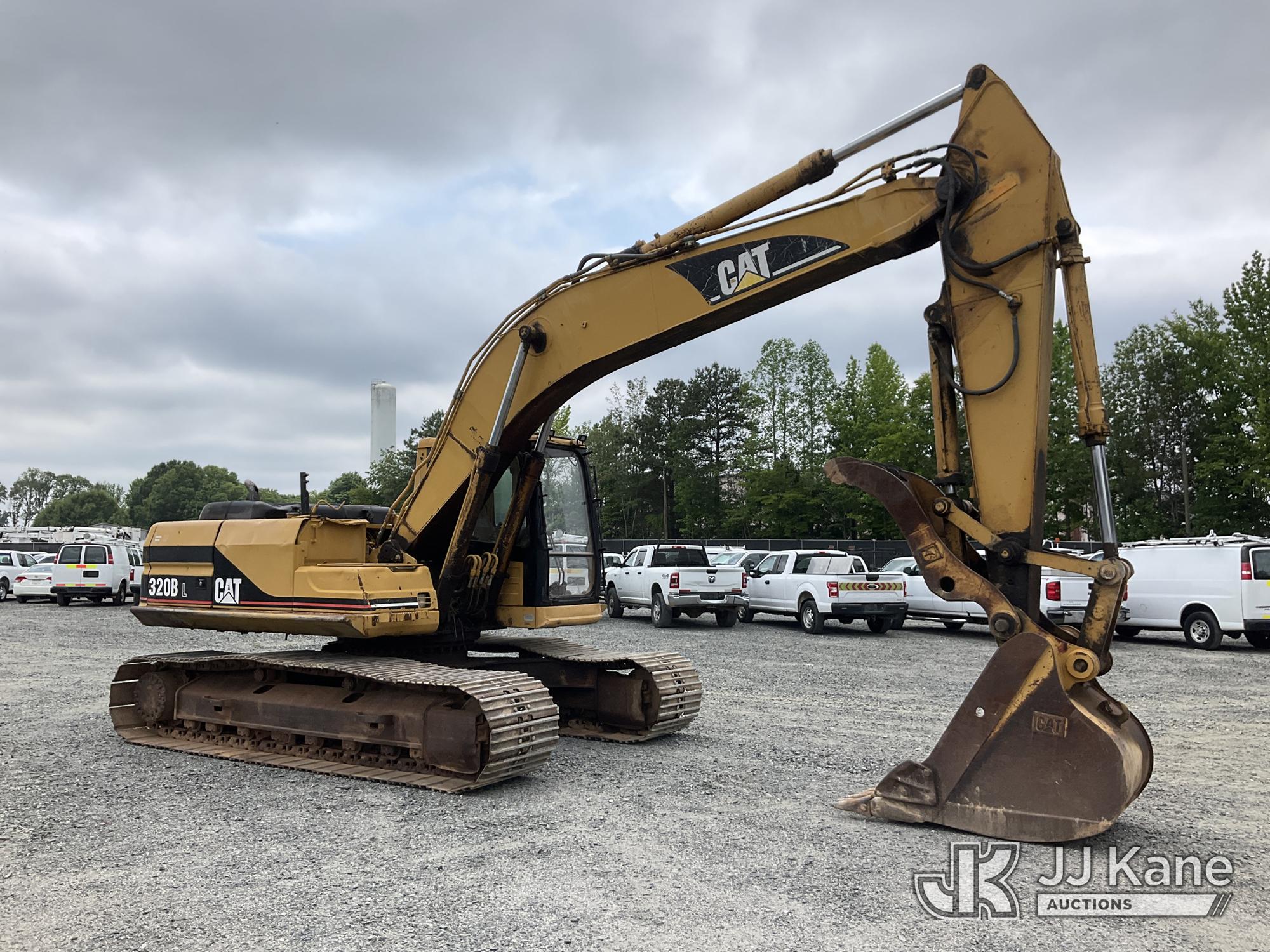

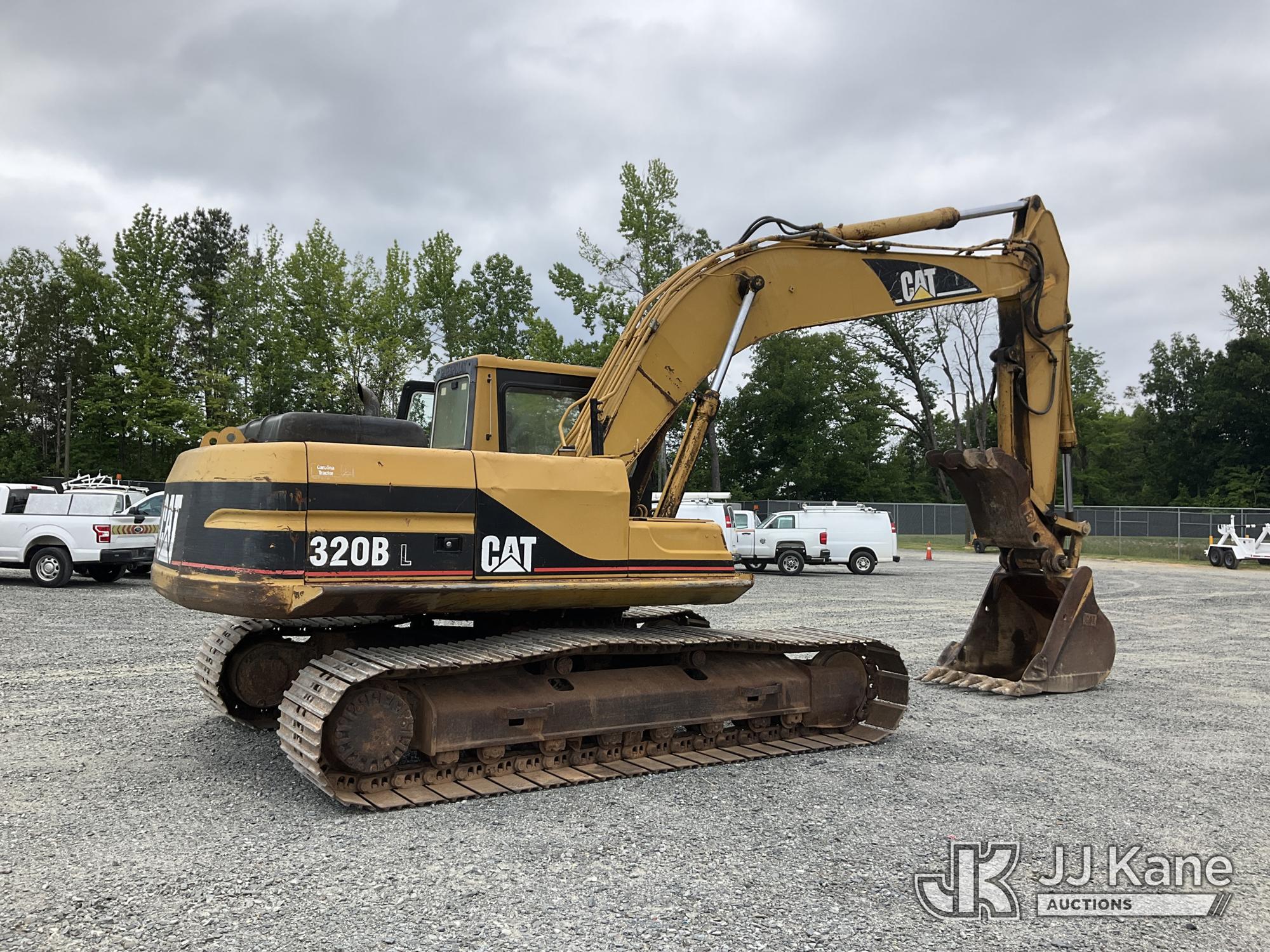

1997 Cat 320BL Hydraulic Crawler Excavator, s/n 6CR03018, Cat Diesel, Hydraulic Drive, with 10 ft stick, 38 in digging bucket, hyd thumb, 32 in TBG & EROPS & A/C, (Runs, Moves & Operates ) (Reads 9,424 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in China Grove, NC. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 820 E NC Hwy 152 China Grove, NC 28023 and hours of operations are 8a-4p. For pre-sale questions, please contact Office Staff @ (704) 674-1113. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	32 ft (10 m)
Max Digging Depth	25 ft (8 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Digging Depth	22 ft (7 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	31 ft (9 m)
Boom/Stick Excavator Option 2
Max Cutting Height	31 ft (9 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	31 ft (9 m)
Boom/Stick Excavator Option 3
Max Cutting Height	30 ft (9 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	31 ft (9 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Shipping Length of Unit	31 ft (9 m)
Boom/Stick Excavator Option 4
Max Cutting Height	29 ft (9 m)
Max Digging Depth	19 ft (6 m)
Max Loading Height	20 ft (6 m)
Max Reach Along Ground	29 ft (9 m)
Max Vertical Wall Dig Depth	15 ft (5 m)
Shipping Length of Unit	31 ft (10 m)
Boom/Stick Excavator Option 5
Max Cutting Height	29 ft (9 m)
Max Digging Depth	19 ft (6 m)
Max Loading Height	20 ft (6 m)
Max Reach Along Ground	29 ft (9 m)
Max Vertical Wall Dig Depth	16 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	30 ft (9 m)
Bucket
Maximum Bucket Capacity	2 cu yd (2 cu m)
Minimum Bucket Capacity	1 cu yd (0 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	12 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	9 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
DRIVE SYSTEM
Maximum Drawbar Pull	39,800 lbs (18,053 kg)
Engine
Aspiration	Turbocharged
Bore	4 in (10 cm)
Displacement	389 cu in (6,375 cu cm)
Engine Model	Cat 3066T
Gross Power	134 hp (100 kw)
Net Power	128 hp (95 kw)
Net Power - EEC 80/1269	128 hp (95 kw)
Net Power - ISO 9249	128 hp (95 kw)
Net Power - SAE J1349	128 hp (95 kw)
Power Measured @	1,800 rpm
Stroke	5 in (13 cm)
Hydraulic System
Boom Cylinder - Bore	5 in (13 cm)
Boom Cylinder - Stroke	50 in (127 cm)
Main Implement System - Maximum Flow (2x)	49 gpm (185 lpm)
Maximum Pressure - Equipment	4,980 psi
Maximum Pressure - Swing	3,340 psi
Maximum Pressure - Travel	4,980 psi
Pilot System - Maximum Flow	11 gpm (41 lpm)
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	7 gal (25 l)
Engine Oil Capacity	6 gal (21 l)
Fuel Capacity	90 gal (340 l)
Hydraulic Pump Flow Capacity	98 gpm (370 lpm)
Hydraulic System Fluid Capacity	58 gal (220 l)
Hydraulic System Relief Valve Pressure	4,980 psi
Operating Voltage	24 volts
Operating Weight	42,770 lbs (19,400 kg)
Swing Drive Fluid Capacity	2 gal (6 l)
Service Refill Capacities
Cooling System	7 gal (25 l)
Engine Oil	5 gal (19 l)
Final Drive - Each	3 gal (10 l)
Fuel Tank Capacity	90 gal (341 l)
Hydraulic System - Including Tank	58 gal (220 l)
Swing Drive	2 gal (6 l)
Undercarriage
Drawbar Pull	39,800 lbs (18,053 kg)
Max Travel Speed	4 mph (6 kph)
Shoe Size	32 in (80 cm)
Track Gauge	8 ft (2 m)
Weights
Operating Weight - Standard Undercarriage	45,459 lbs (20,620 kg)
