1998 Caterpillar 330B L For Sale in Chehalis, Wa

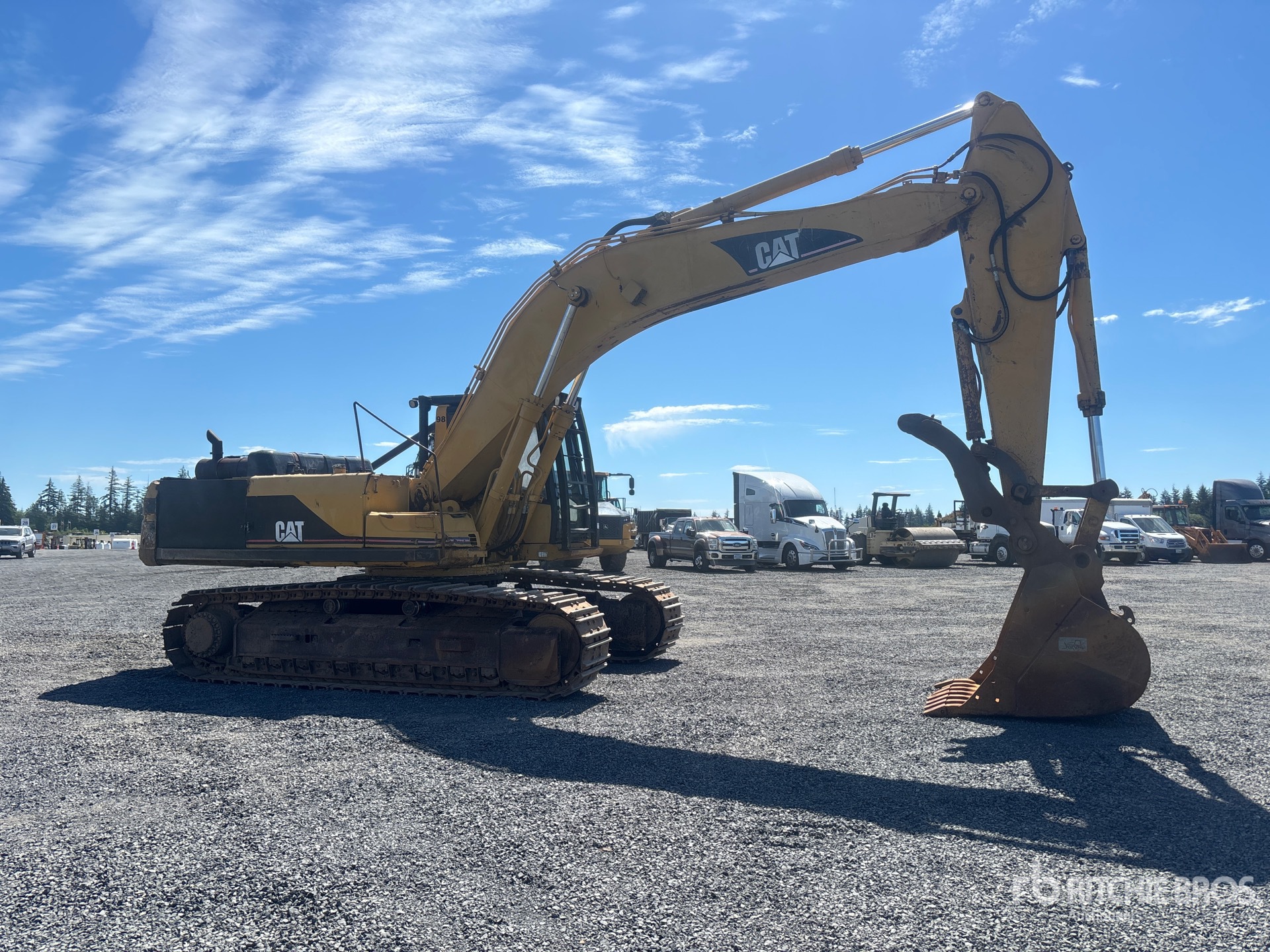

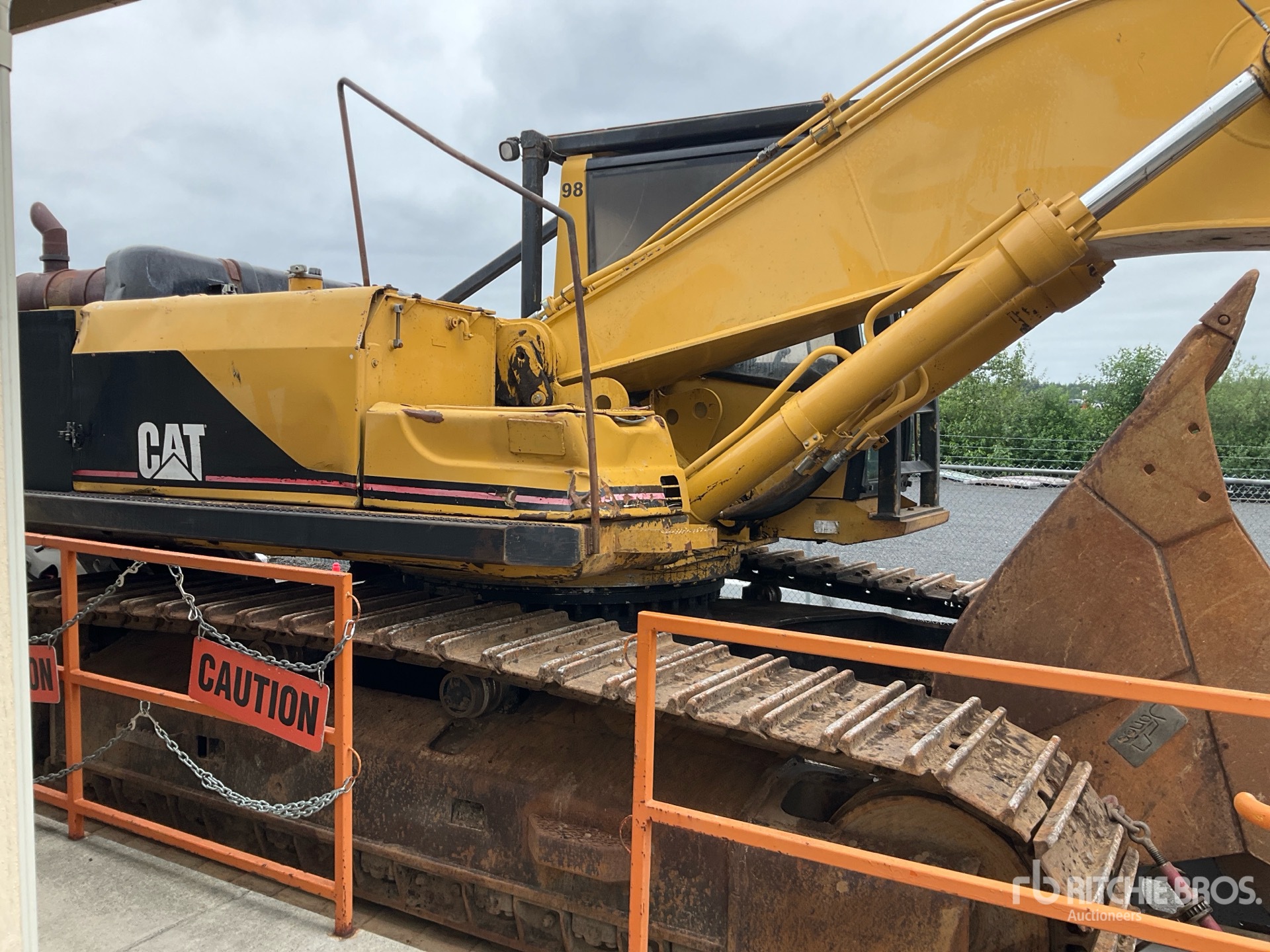

Name: 1998 Caterpillar 330B L
Brand: Caterpillar
SKU: 88647191
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-07-09 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

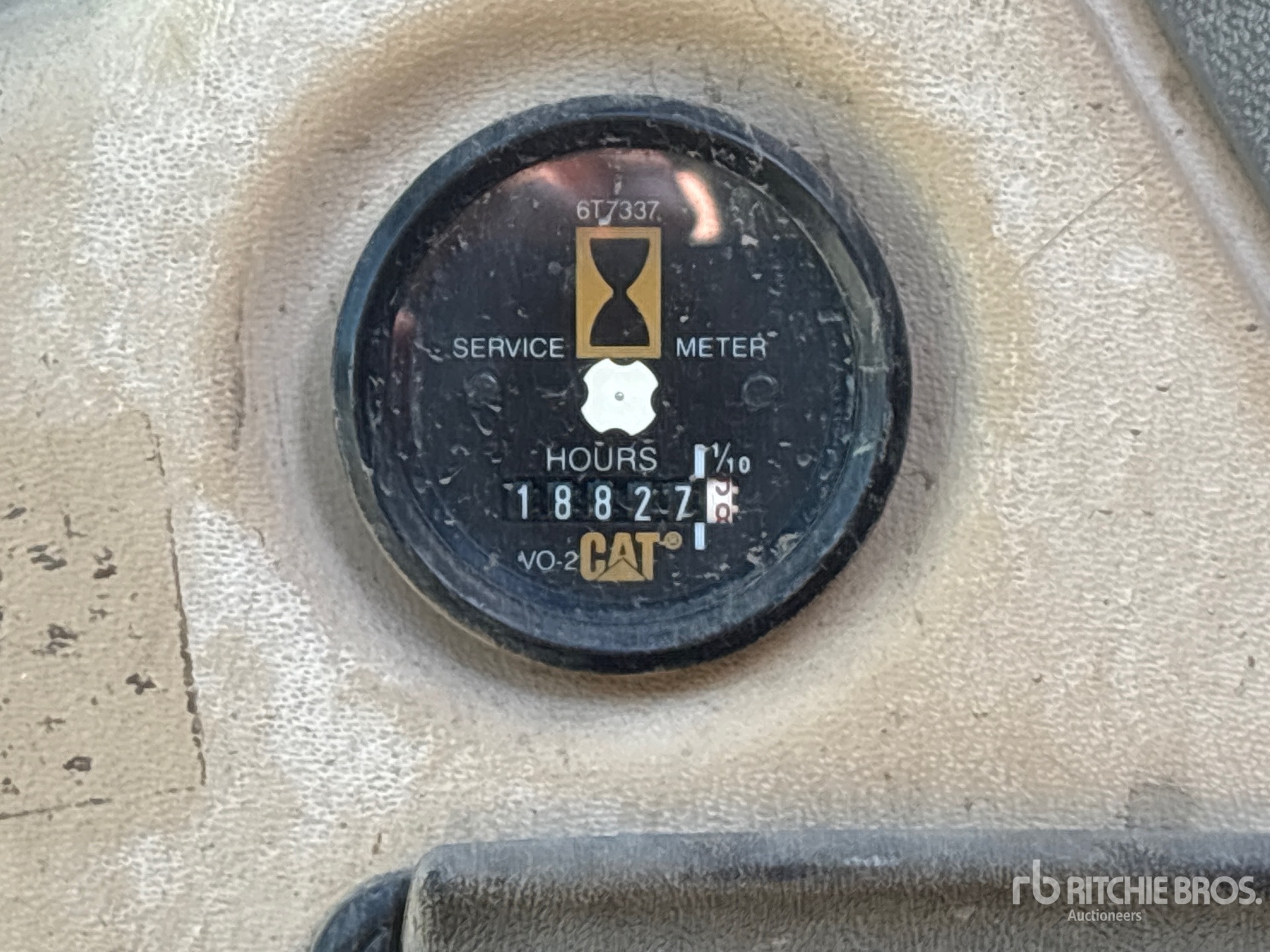

Hours:	18827

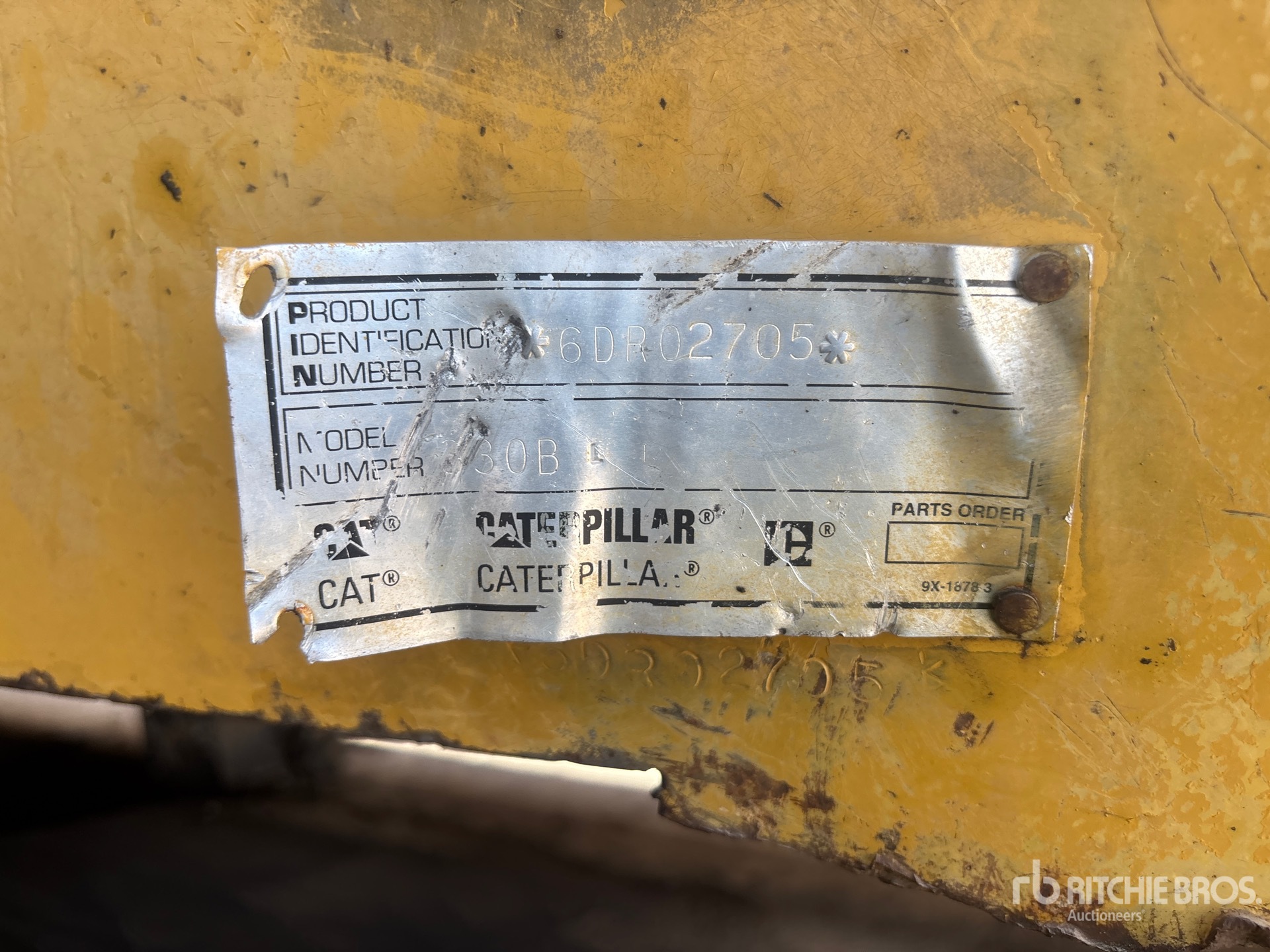

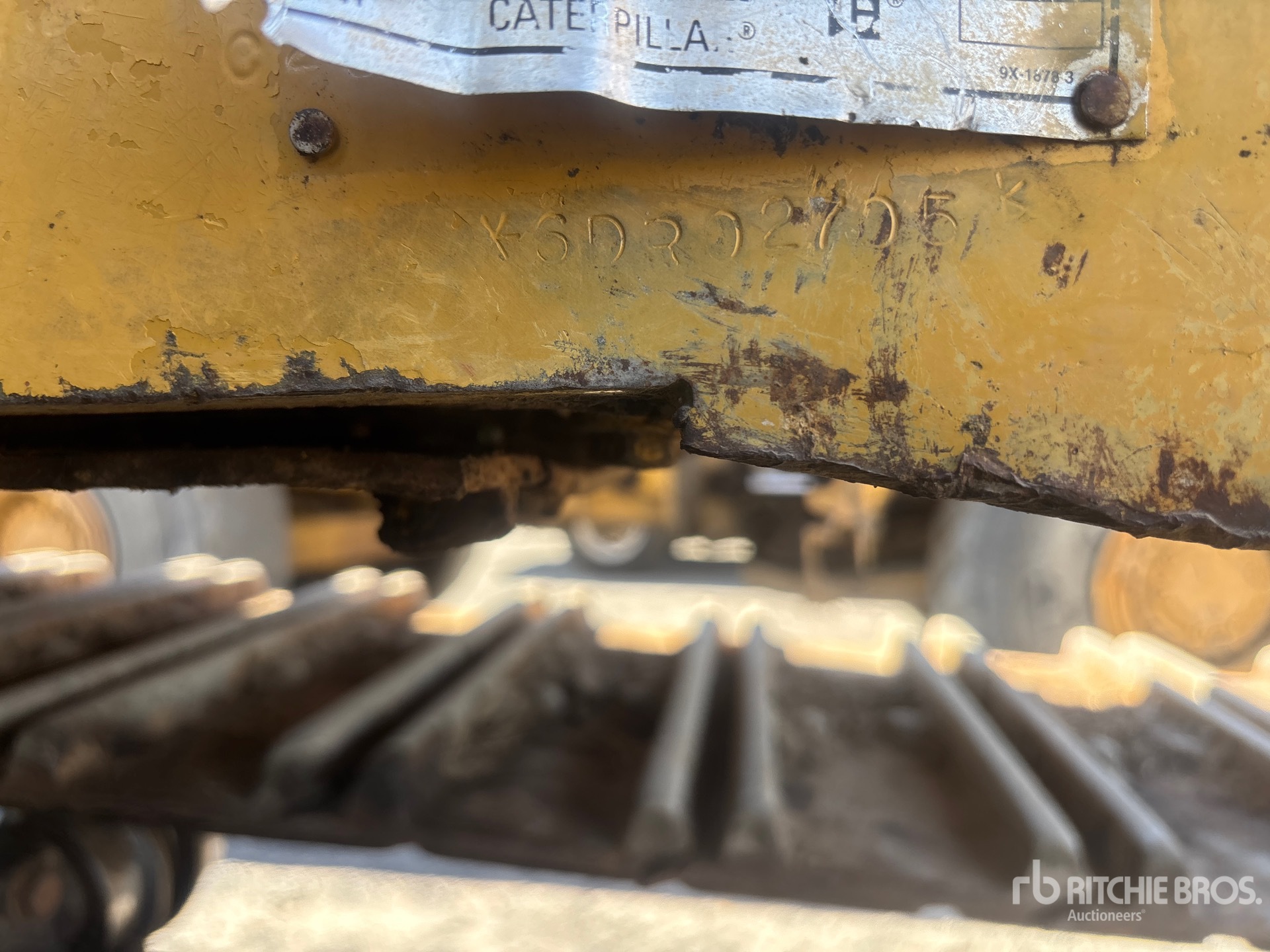

Serial Number:	6DR02705
Machine Location:	CHEHALIS, WA

Description:

10 ft 6 in Stick, 27.5 in Double Grouser Track Shoes, Rock Guards, 60 in Digging Bucket, Hydraulic Thumb

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 330B L is a hydraulic excavator in Caterpillar's 330 series, designed for heavy-duty earthmoving, trenching, and material handling applications. The "L" designation indicates a long undercarriage configuration, providing improved stability and balance for demanding digging and lifting tasks. The 330B L is commonly used in construction, site development, utility work, and quarry operations. It features a crawler undercarriage, a boom and stick hydraulic digging system, and compatibility with a range of buckets and work tools. As a mid-to-large class excavator, the Caterpillar 330B L is recognized for its operating capacity, reach, and versatility in general excavation work.

Boom/Stick Excavator Option 1
Max Cutting Height	35 ft (11 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	38 ft (12 m)
Max Vertical Wall Digging Depth	24 ft (7 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	36 ft (11 m)
Boom/Stick Excavator Option 2
Max Cutting Height	34 ft (10 m)
Max Digging Depth	25 ft (8 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	22 ft (7 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	36 ft (11 m)
Boom/Stick Excavator Option 3
Max Cutting Height	33 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	34 ft (10 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	35 ft (11 m)
Bucket
Maximum Bucket Capacity	3 cu yd (2 cu m)
Minimum Bucket Capacity	2 cu yd (1 cu m)
Reference Bucket Capacity	2 cu yd (2 cu m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	12 ft (4 m)
Width to Outside of Tracks	11 ft (3 m)
DRIVE SYSTEM
Maximum Drawbar Pull	60,250 lbs (27,329 kg)
Engine
Aspiration	Turbocharged and Aftercooled
Bore	5 in (12 cm)
Displacement	640 cu in (10,488 cu cm)
Engine Model	Cat 3306TA
Gross Power	236 hp (176 kw)
Net Power	222 hp (166 kw)
Net Power - EEC 80/1269	222 hp (166 kw)
Net Power - ISO 9249	222 hp (166 kw)
Net Power - SAE J1349	222 hp (166 kw)
Power Measured @	1,800 rpm
Stroke	6 in (15 cm)
Hydraulic System
Boom Cylinder - Bore	6 in (15 cm)
Boom Cylinder - Stroke	57 in (144 cm)
Main Implement System - Maximum Flow (2x)	63 gpm (240 lpm)
Maximum Pressure - Equipment	4,980 psi
Maximum Pressure - Swing	4,330 psi
Maximum Pressure - Travel	4,980 psi
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	12 gal (45 l)
Engine Oil Capacity	8 gal (30 l)
Fuel Capacity	148 gal (560 l)
Hydraulic Pump Flow Capacity	127 gpm (480 lpm)
Hydraulic System Fluid Capacity	106 gal (400 l)
Hydraulic System Relief Valve Pressure	4,980 psi
Operating Voltage	24 volts
Operating Weight	74,300 lbs (33,702 kg)
Swing Drive Fluid Capacity	4 gal (15 l)
Service Refill Capacities
Cooling System	12 gal (45 l)
Engine Oil	8 gal (30 l)
Final Drive - Each	4 gal (15 l)
Fuel Tank Capacity	145 gal (549 l)
Hydraulic System - Including Tank	106 gal (401 l)
Swing Drive	4 gal (15 l)
Undercarriage
Drawbar Pull	60,250 lbs (27,329 kg)
Max Travel Speed	3 mph (5 kph)
Shoe Size	30 in (75 cm)
Track Gauge	9 ft (3 m)
Weights
Operating Weight - Standard Undercarriage	76,412 lbs (34,660 kg)
