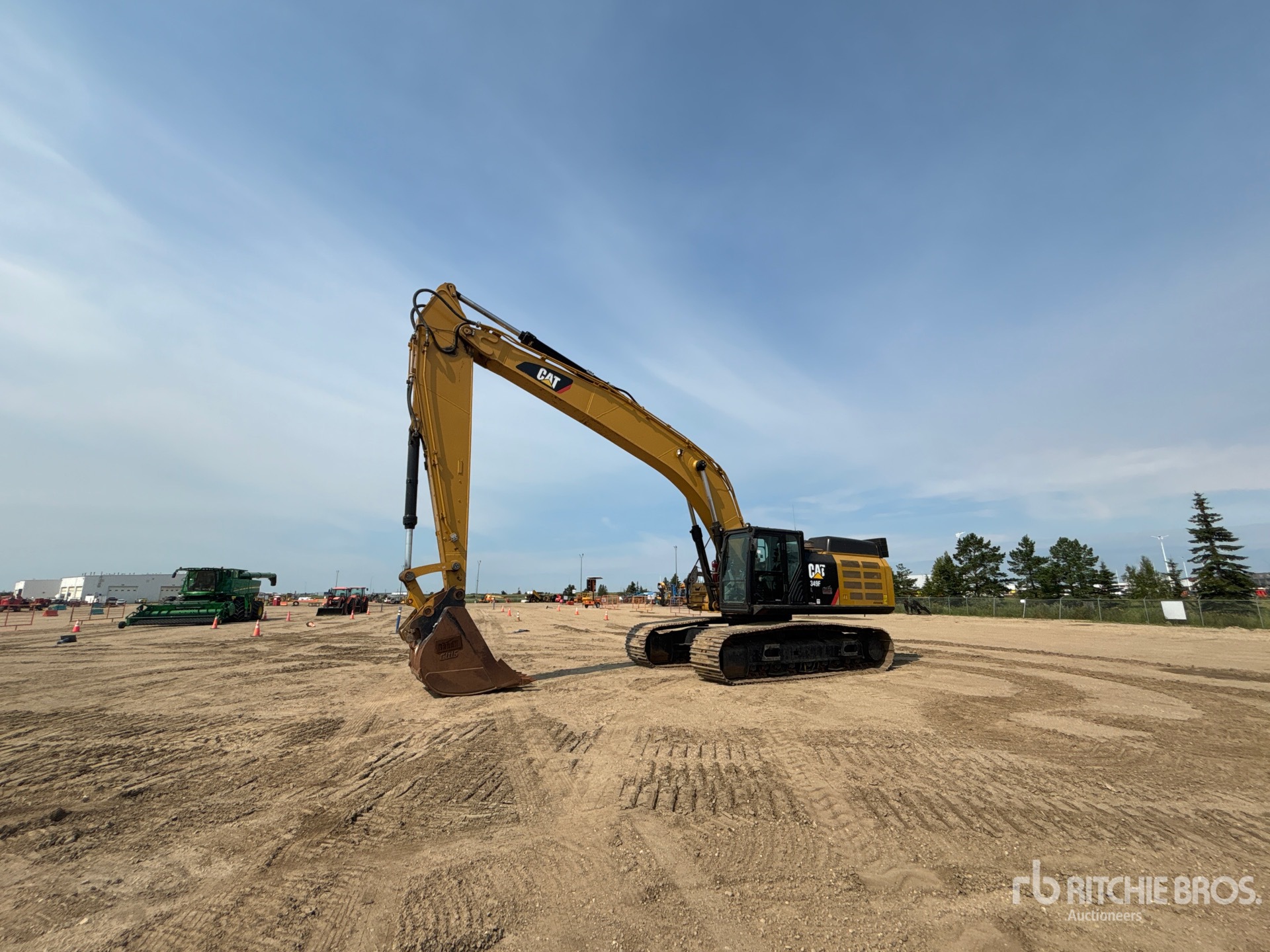

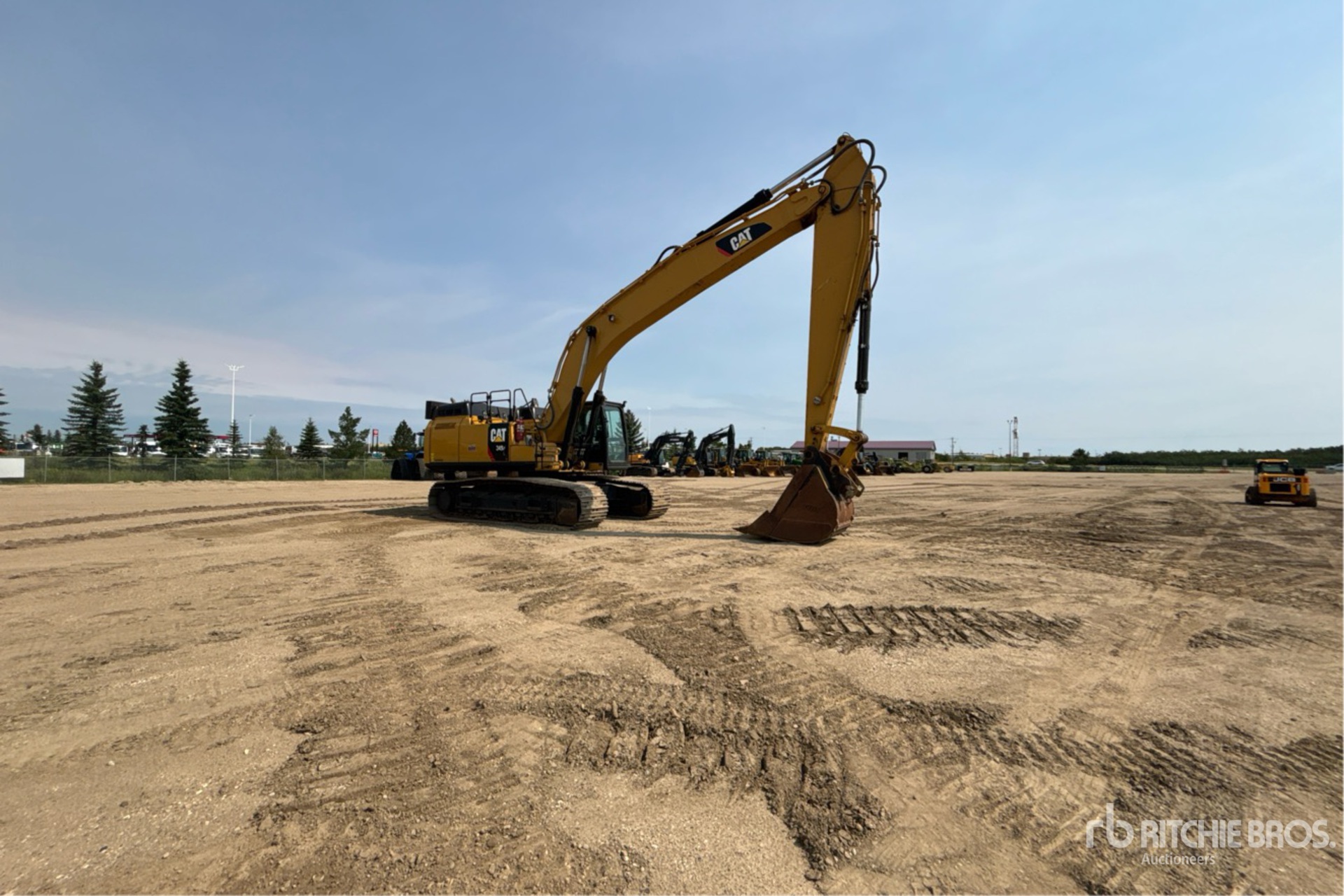

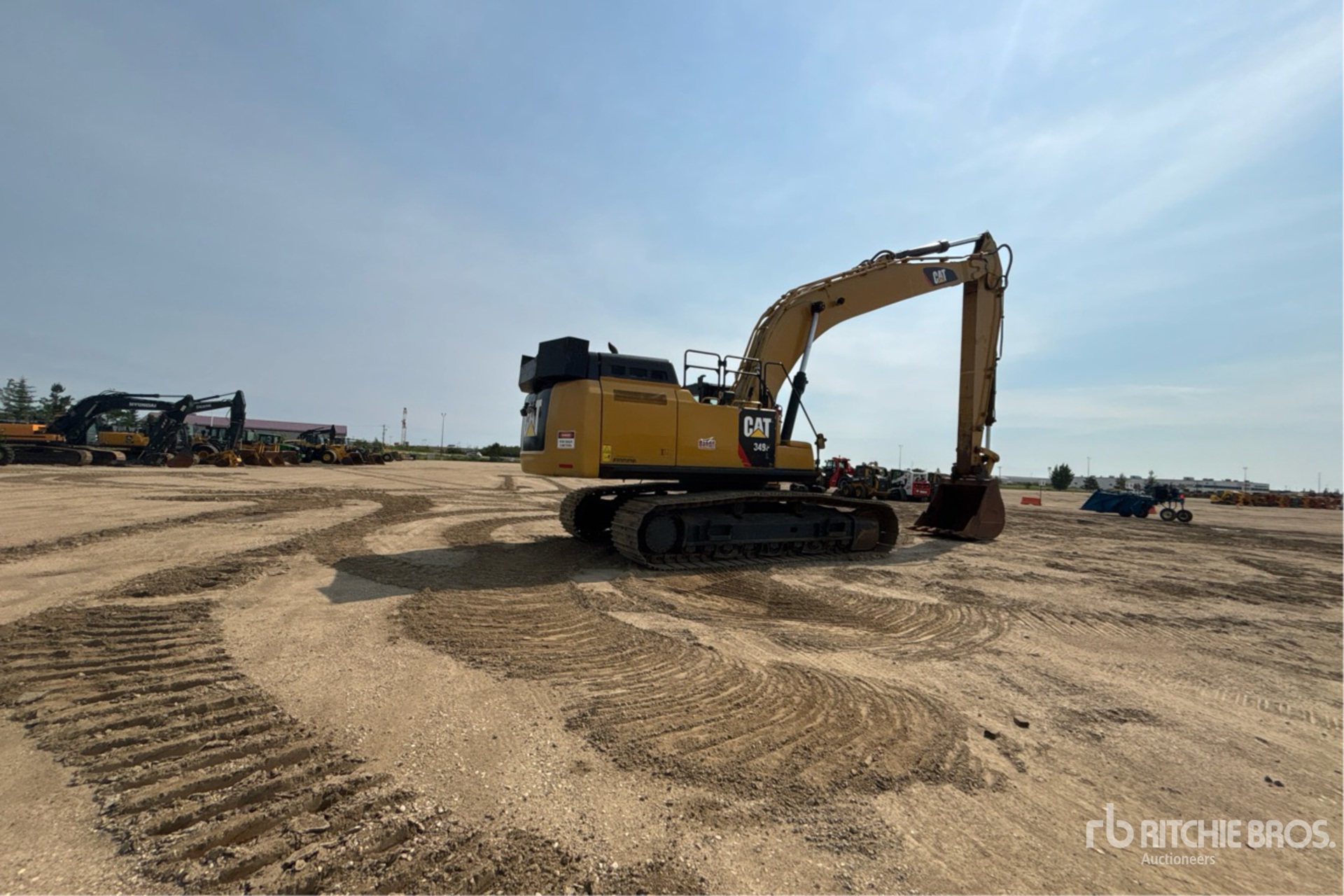

2018 Caterpillar 349F For Sale in Edmonton, Ab


/ Save to Watch List
Apply for Financing

Auction Pricing



   Auction Info: Starting on 2026-08-11   Click here to place a bid



Machine Info:

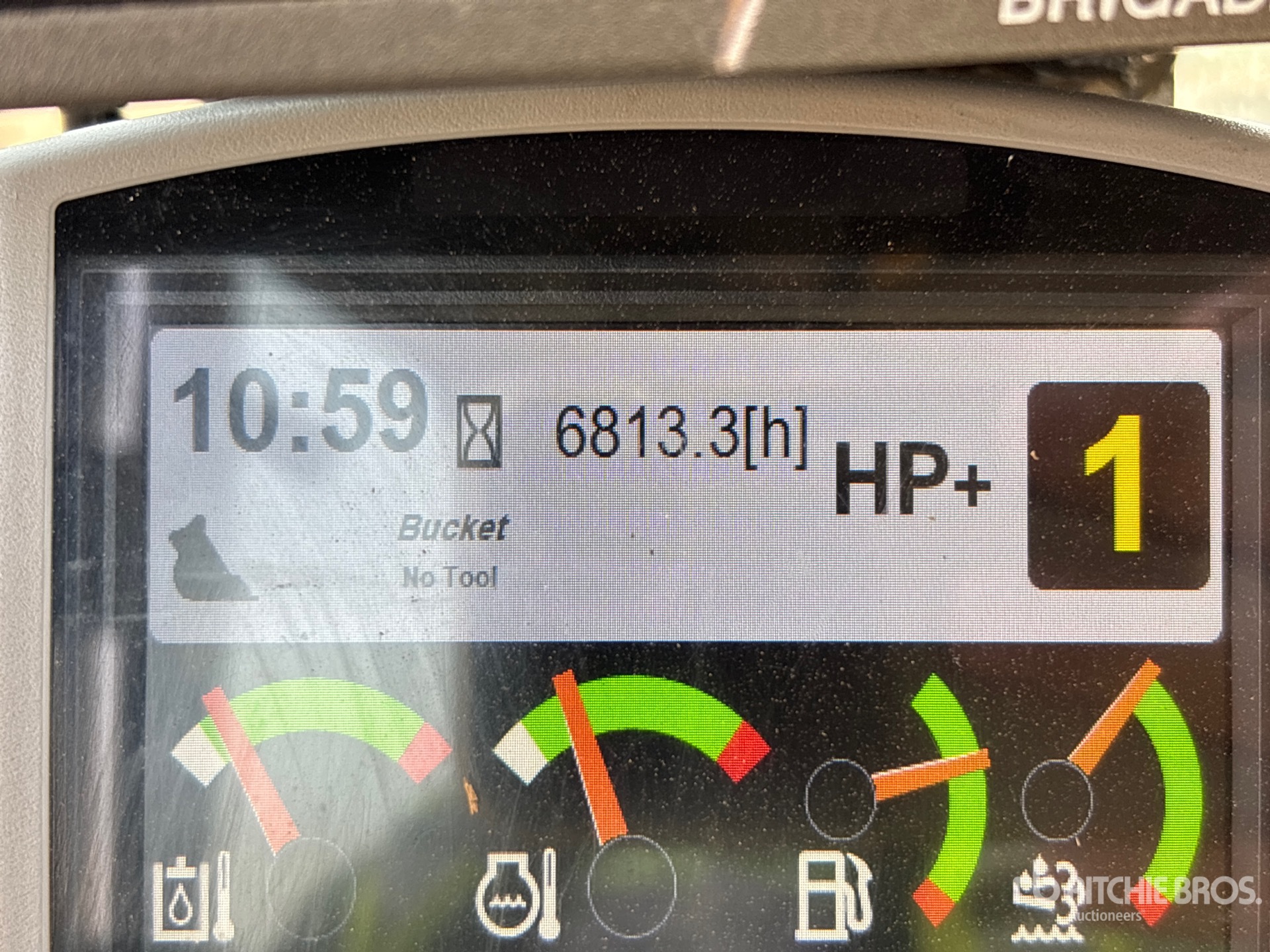

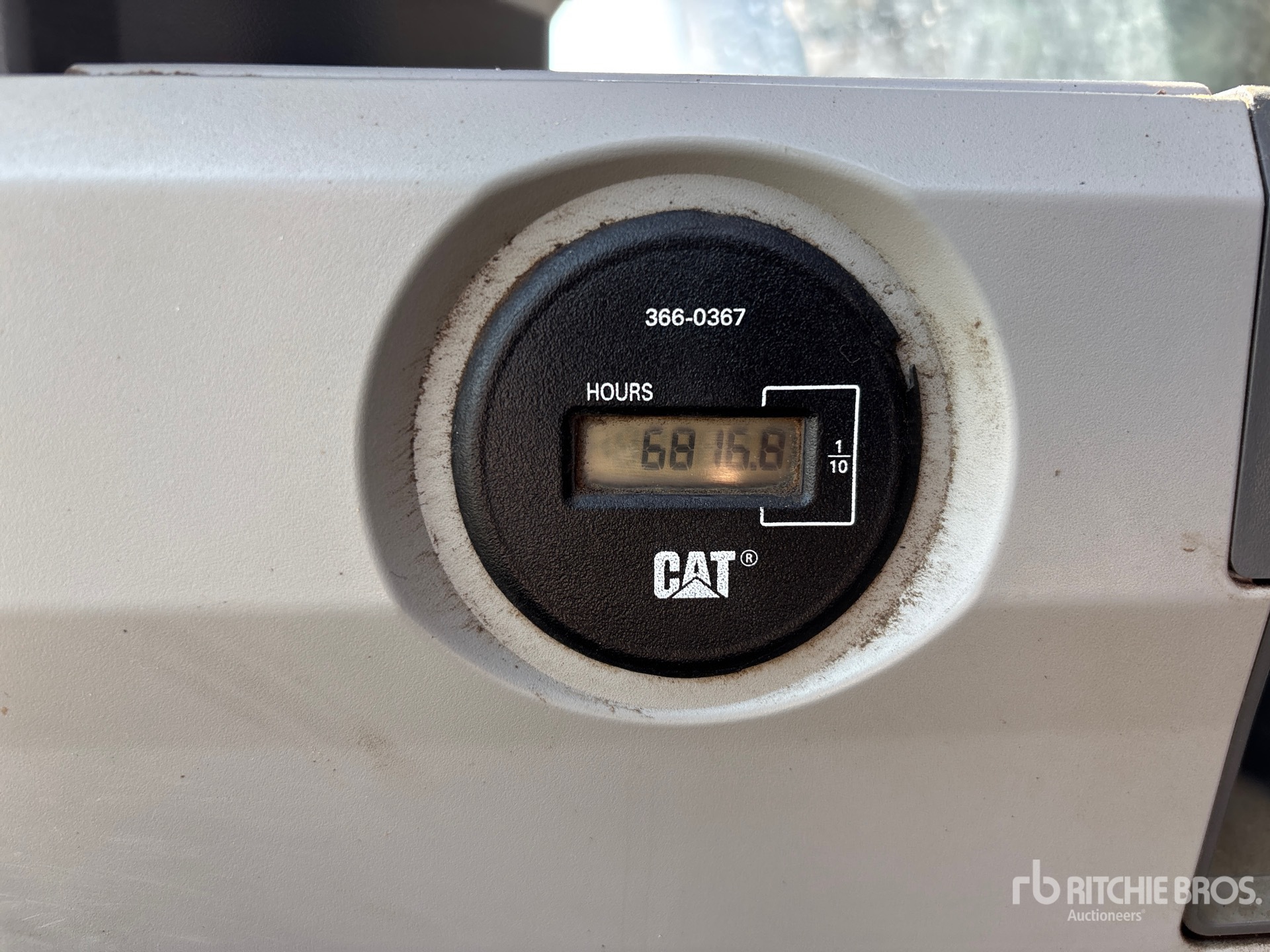

Hours:6816

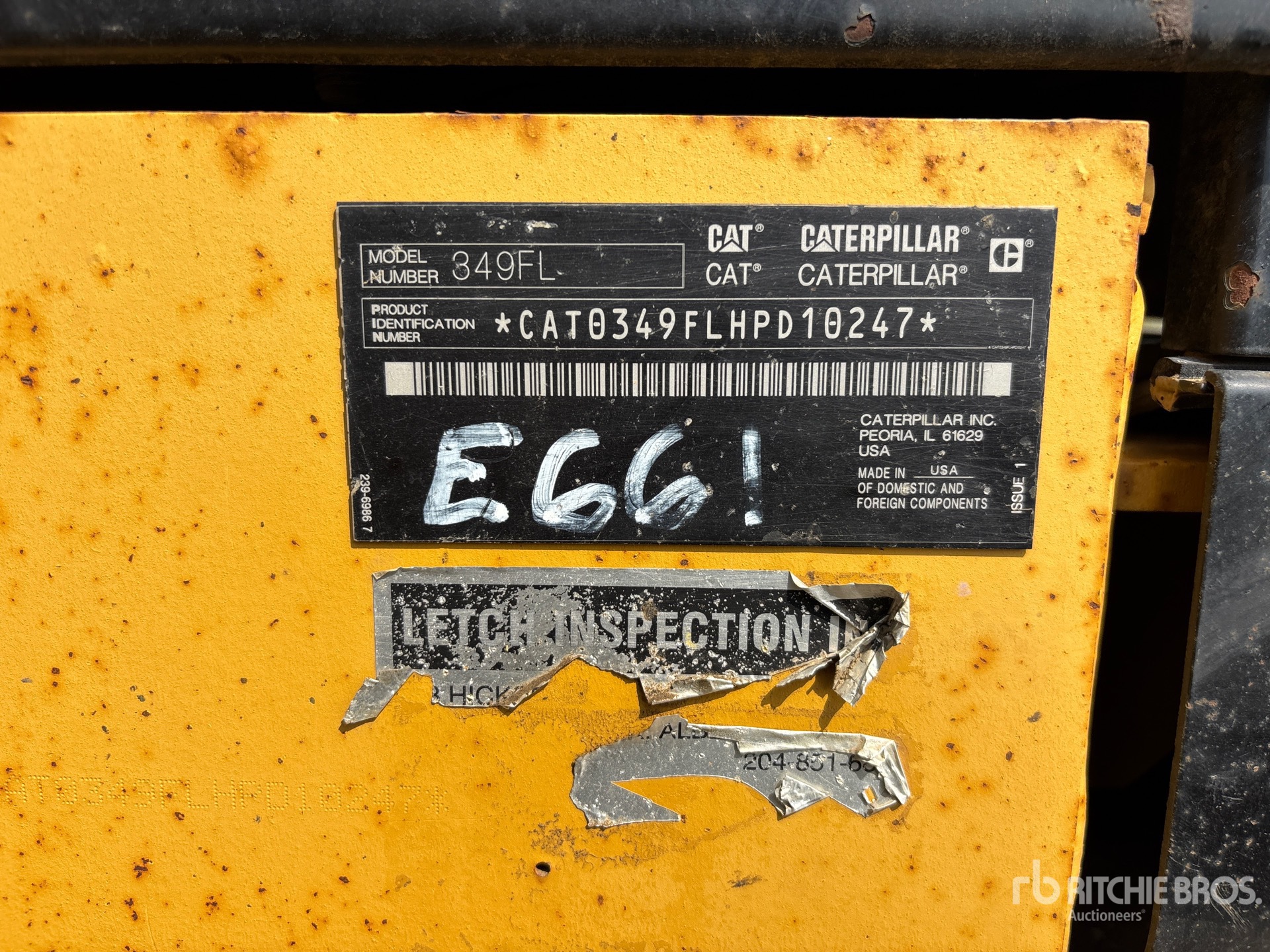

Serial Number:CAT0349FLHPD10247
Machine Location:EDMONTON, AB

Description:

Located in Lane 5 Spot 10, Air Conditioner, Straight Travel Pedal, Control Pattern Changer, Rear View Camera, 2017 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid, Positive Air Shutoff, 15 ft 6 in Stick, Auxiliary Hydraulic Plumbing, 35.5 in Triple Grouser Track Shoes, Manual Quick Coupler, 53 in Digging Bucket, Catwalks, Additional Counterweight, Equipment-from-Bandit-Pipeline-Ltd Additional information available - Maintenance history Closing Time: 2026-08-11 09:22:00 AM


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Caterpillar 349F is a large hydraulic excavator in Caterpillar's F Series lineup, designed for heavy-duty earthmoving, mass excavation, and material handling applications. It is commonly used in mining support, quarry work, road construction, site development, and large-scale utility projects. The 349F features a high-capacity undercarriage, reinforced boom and stick options, and Caterpillar engine and hydraulic systems engineered for productivity and fuel efficiency. Available with multiple work tool and attachment configurations, the model is suited to demanding digging, loading, and lifting tasks. The Caterpillar 349F is recognized for its size, durability, and application versatility in the excavator category.
Boom/Stick Excavator Option 1
Max Digging Depth 27 ft (8 m)
Max Reach Along Ground 40 ft (12 m)
Dimensions
Ground Clearance 2 ft (0 m)
Height - Top of Cab 11 ft (3 m)
Length of Track on Ground 14 ft (4 m)
Removal Counterweight Clearance 4 ft (1 m)
Tail Swing Radius 12 ft (4 m)
Width to Outside of Tracks 11 ft (3 m)
DRIVE SYSTEM
Maximum Drawbar Pull 75,300 lbs (34,156 kg)
Engine
Bore 5 in (13 cm)
Displacement 763 cu in (12,503 cu cm)
Engine Make Caterpillar
Engine Model Cat C13 ACERT
Gross Power 432 hp (322 kw)
Gross Power - SAE J1995 432 hp (322 kw)
Net Power 396 hp (295 kw)
Net Power - SAE J1349 417 hp (311 kw)
Stroke 6 in (16 cm)
Hydraulic System
203 203 gpm (768 lpm)
Boom Cylinder - Bore 7 in (17 cm)
Boom Cylinder - Stroke 60 in (152 cm)
Maximum Pressure - Equipment 5,076 psi
Maximum Pressure - Swing 3,989 psi
Maximum Pressure - Travel 5,076 psi
Stick Cylinder - Bore 8 in (19 cm)
Stick Cylinder - Stroke 69 in (176 cm)
Swing System - Maximum Flow 102 gpm (386 lpm)
Operating Specifications
Cooling System Fluid Capacity 13 gal (50 l)
Engine Oil Capacity 11 gal (43 l)
Fuel Capacity 190 gal (719 l)
Hydraulic System Fluid Capacity 151 gal (570 l)
Operating Weight 117,500 lbs (53,297 kg)
Swing Drive Fluid Capacity 3 gal (10 l)
Service Refill Capacities
Cooling System 13 gal (50 l)
Final Drive - Each 4 gal (15 l)
Fuel Tank Capacity 190 gal (719 l)
Hydraulic System - Including Tank 151 gal (570 l)
Hydraulic Tank 108 gal (407 l)
Swing Drive - Each 3 gal (10 l)
Standards
Brakes ISO 10265
Cab/FOGS SAE J1356
Swing Mechanism
Swing Speed 9 rpm
Undercarriage
Number of Carrier Rollers per Side 2 or 3
Number of Shoes per Side 52
Number of Track Rollers per Side 9
Weights
Operating Weight 117,500 lbs (53,297 kg)
