2006 Caterpillar 304 CR For Sale in Phoenix, Az

Name: 2006 Caterpillar 304 CR
Brand: Caterpillar
SKU: 88784432
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-25 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

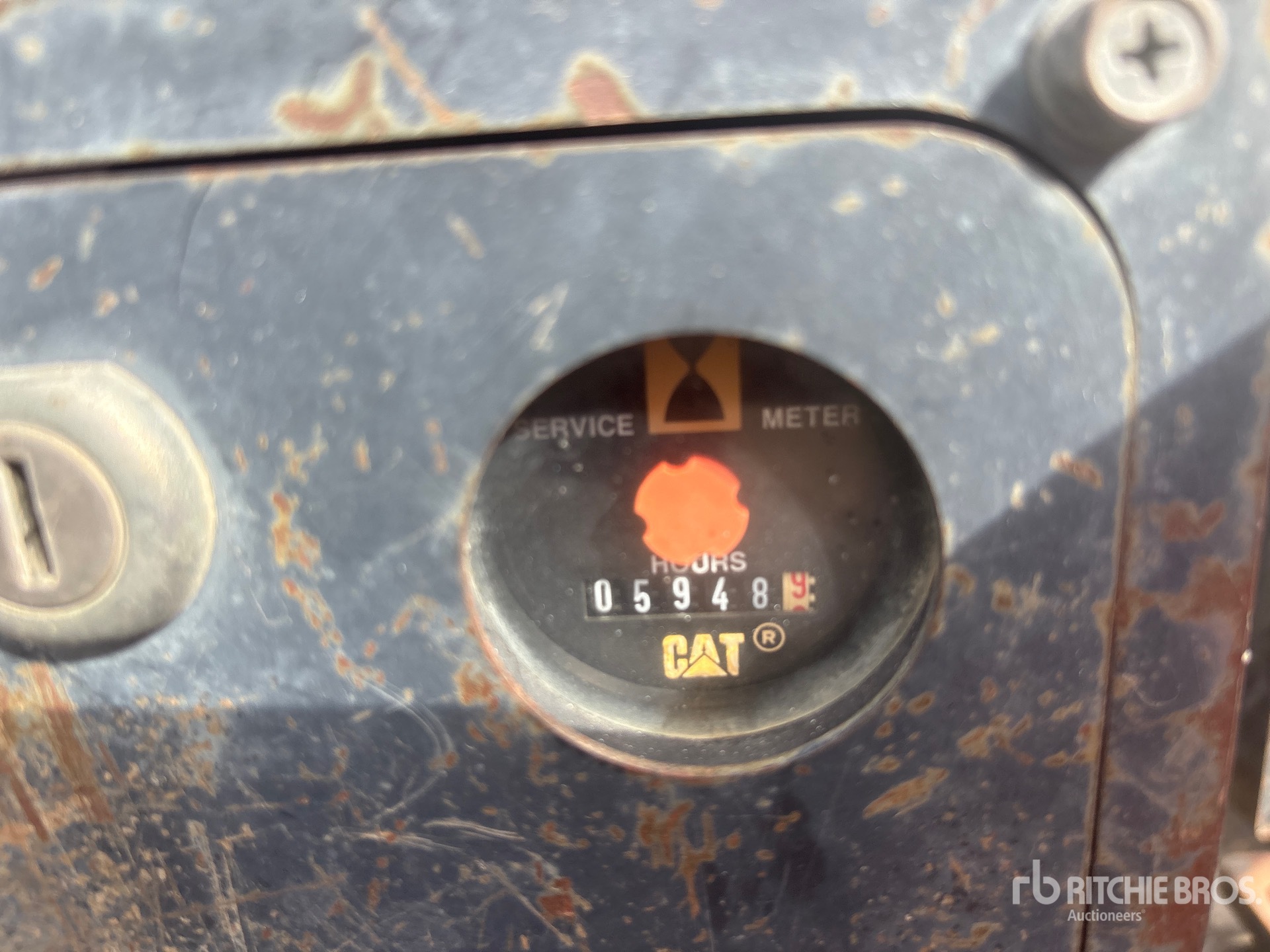

Hours:	5948

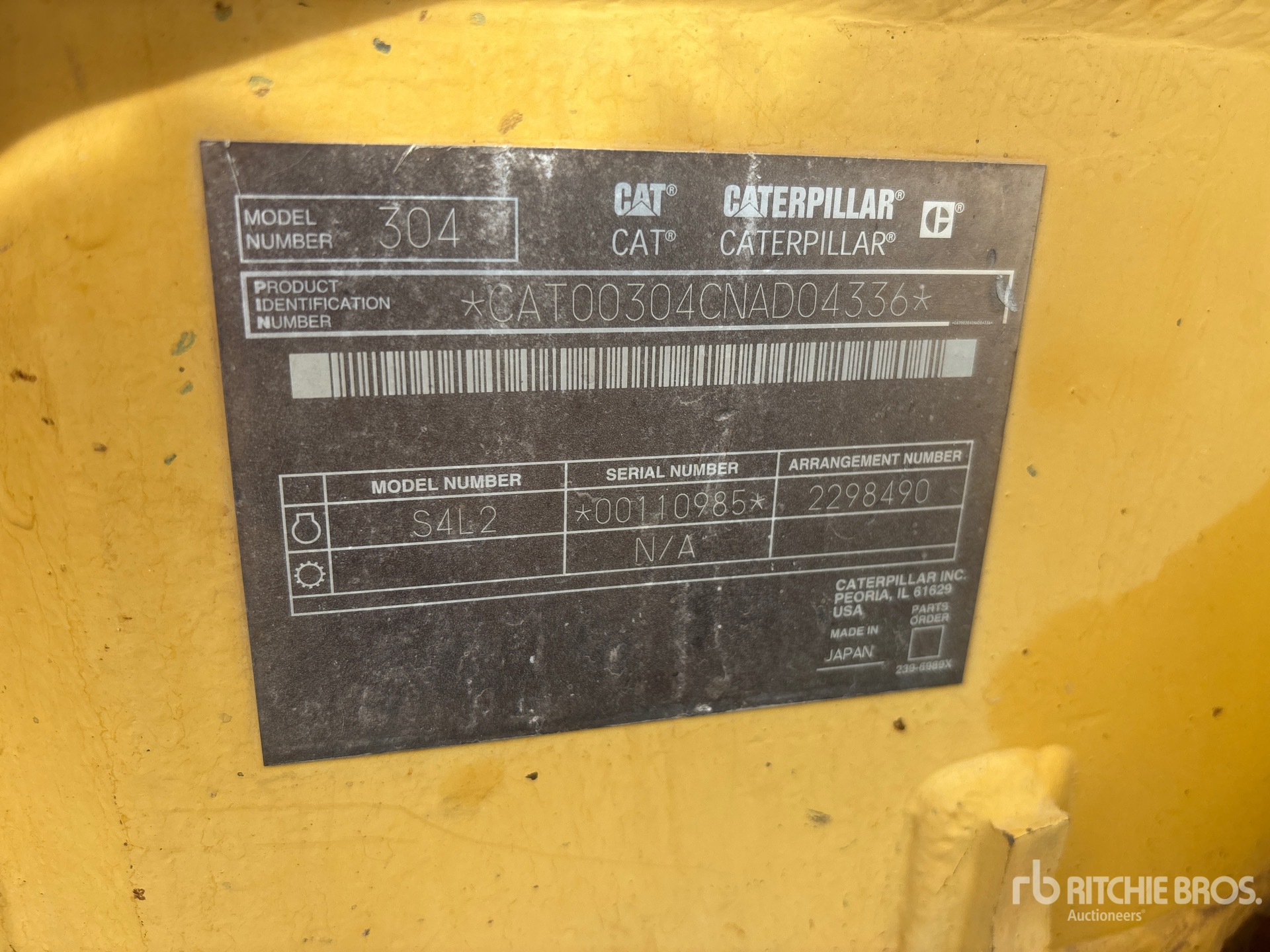

Serial Number:	CAT00304CNAD04336
Machine Location:	PHOENIX, AZ

Description:

Swing Boom, 3 ft 10 in Stick, Backfill Blade, 16 in Rubber Tracks, 12 in Digging Bucket Closing Time: 2026-08-25 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Blades
Blade Lift Height	18 in (45 cm)
Dig Depth	17 in (43 cm)
Dimensions
Center Ground Clearance	1 ft (0 m)
Height - Over Cab	9 ft (3 m)
Maximum Digging Depth - Standard Stick	11 ft (3 m)
Maximum Dump Height - Standard Stick	12 ft (4 m)
Maximum Reach - Ground Level - Standard Stick	18 ft (6 m)
Maximum Vertical Dig Depth - Standard Stick	9 ft (3 m)
Shipping Length	17 ft (5 m)
Swing Radius - Rear	3 ft (1 m)
Track Gauge	7 ft (2 m)
Track Shoe Width	1 ft (0 m)
Electrical System
Electrical System Type	Twelve-volt system
Engine
Bore	3 in (8 cm)
Displacement	107 cu in (1,753 cu cm)
Engine Model	3,013
Gross Power	37 hp (28 kw)
Net Power	36 hp (27 kw)
Stroke	4 in (9 cm)
Hydraulic System
Auxiliary Circuit - Primary	22 gpm (84 lpm)
Digging Force - Bucket	8,228 lbs (3,732 kg)
Digging Force - Stick - Long	4,699 lbs (2,131 kg)
Digging Force - Stick - Standard	5,373 lbs (2,437 kg)
Operating Pressure - Equipment	3,553 psi
Operating Pressure - Swing	2,990 psi
Operating Pressure - Travel	3,550 psi
Pump - Gear (Tandem)	11 gpm (43 lpm)
Service Refill Capacities
Cooling System TAG	2 gal (6 l)
Engine Oil	2 gal (8 l)
Fuel Tank	16 gal (61 l)
Hydraulic System	24 gal (91 l)
Hydraulic Tank	18 gal (68 l)
Swing System
Boom Swing - Left - With Stop	80 degrees
Boom Swing - Left - Without Stop	55 degrees
Boom Swing - Right	50 degrees
Machine Swing Speed	9 rpm
Swing System Type	Hydraulic Motor Driven
Travel System
Maximum Traction Force - High Speed	9,260 lbs (4,200 kg)
Travel Speed - High	3 mph (5 kph)
Travel Speed - Low	2 mph (3 kph)
Weights
Operating Weight - With Cab	9,896 lbs (4,489 kg)
