Equipment ↠ Caterpillar ↠ Mini Excavators ↠ 2007 Caterpillar 304C CR

2007 Caterpillar 304C CR For Sale in Las Vegas, Nv

Name: 2007 Caterpillar 304C CR
Brand: Caterpillar
SKU: 88423442
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-05 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

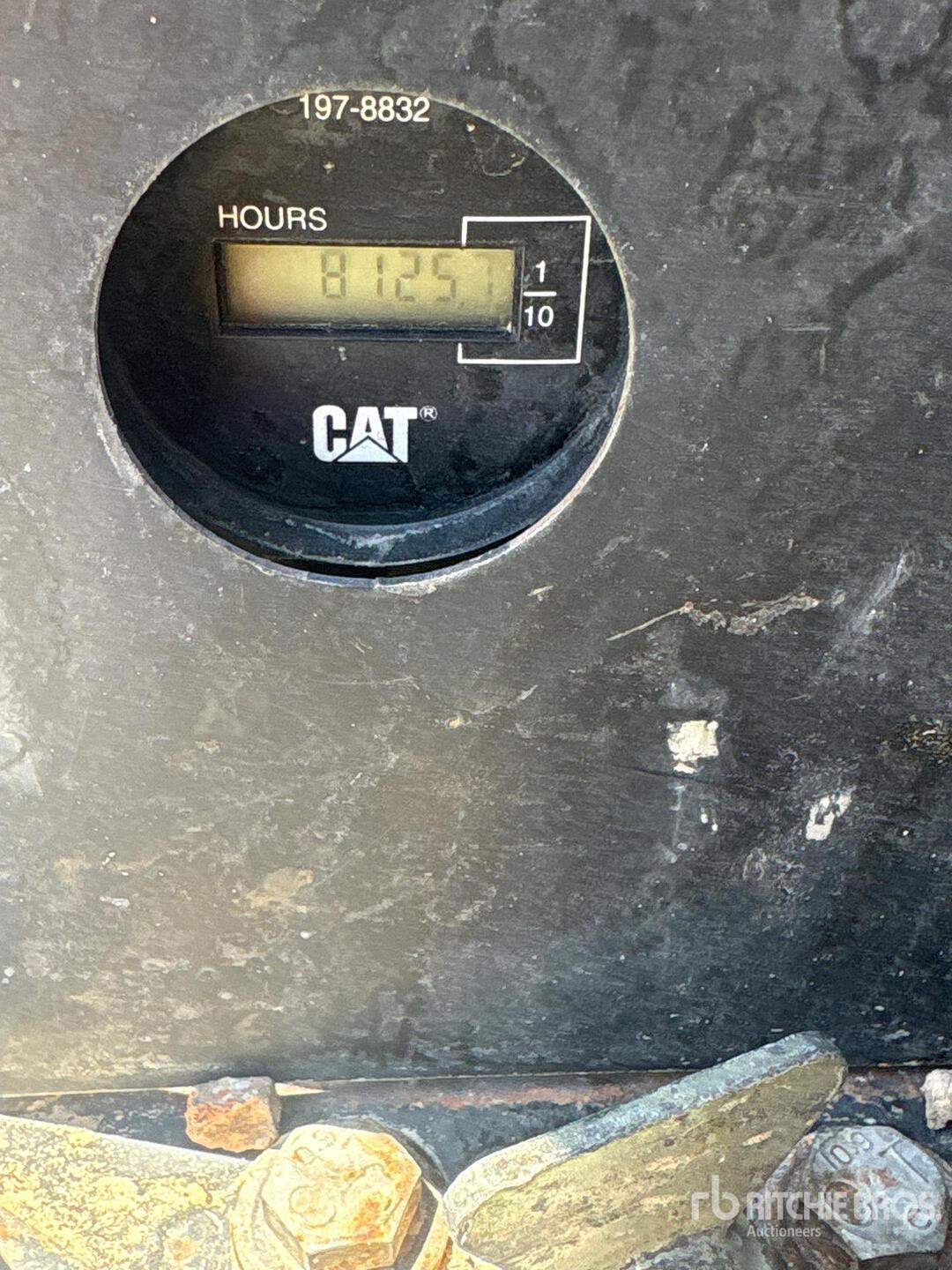

Hours:	8125

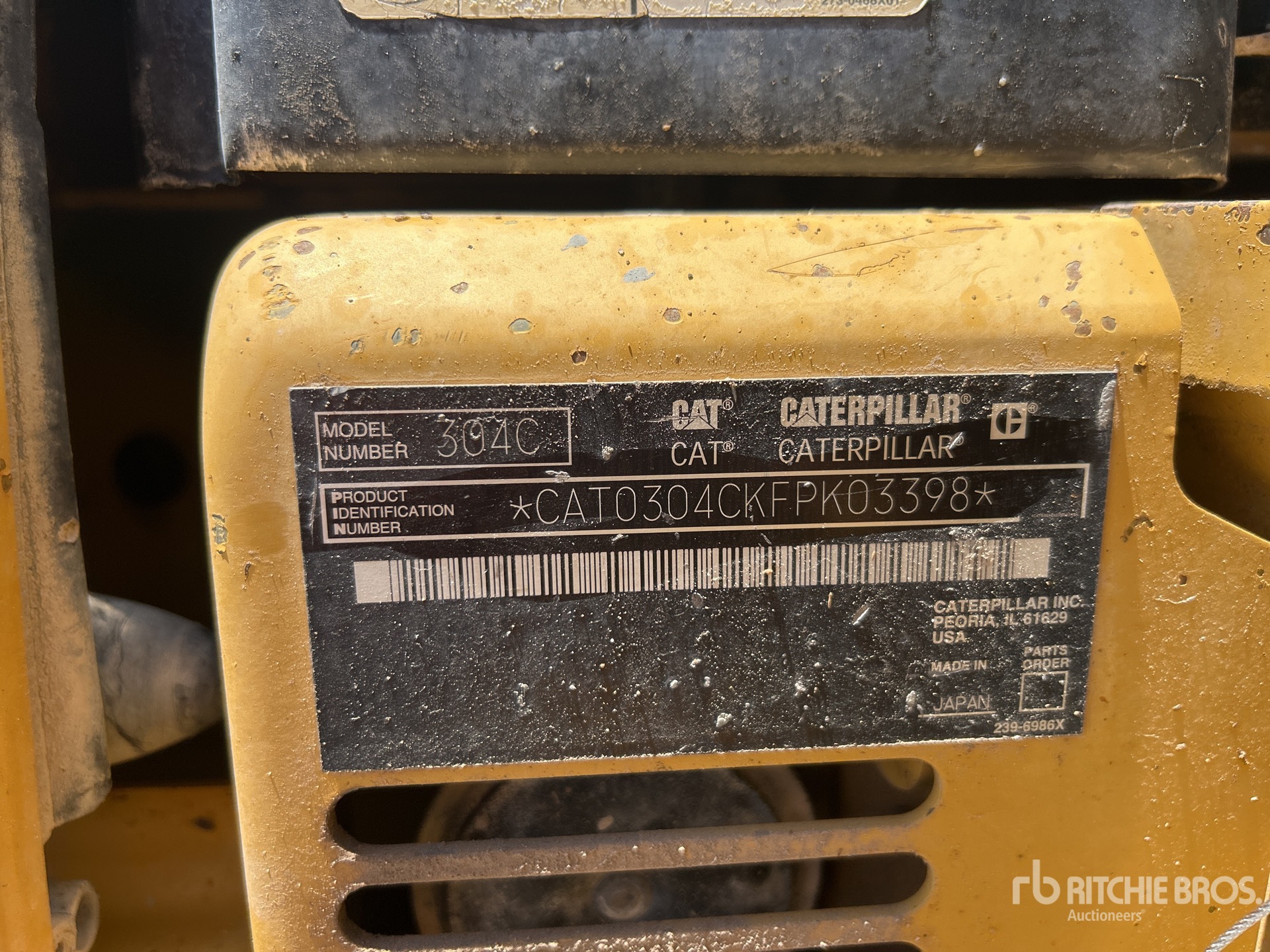

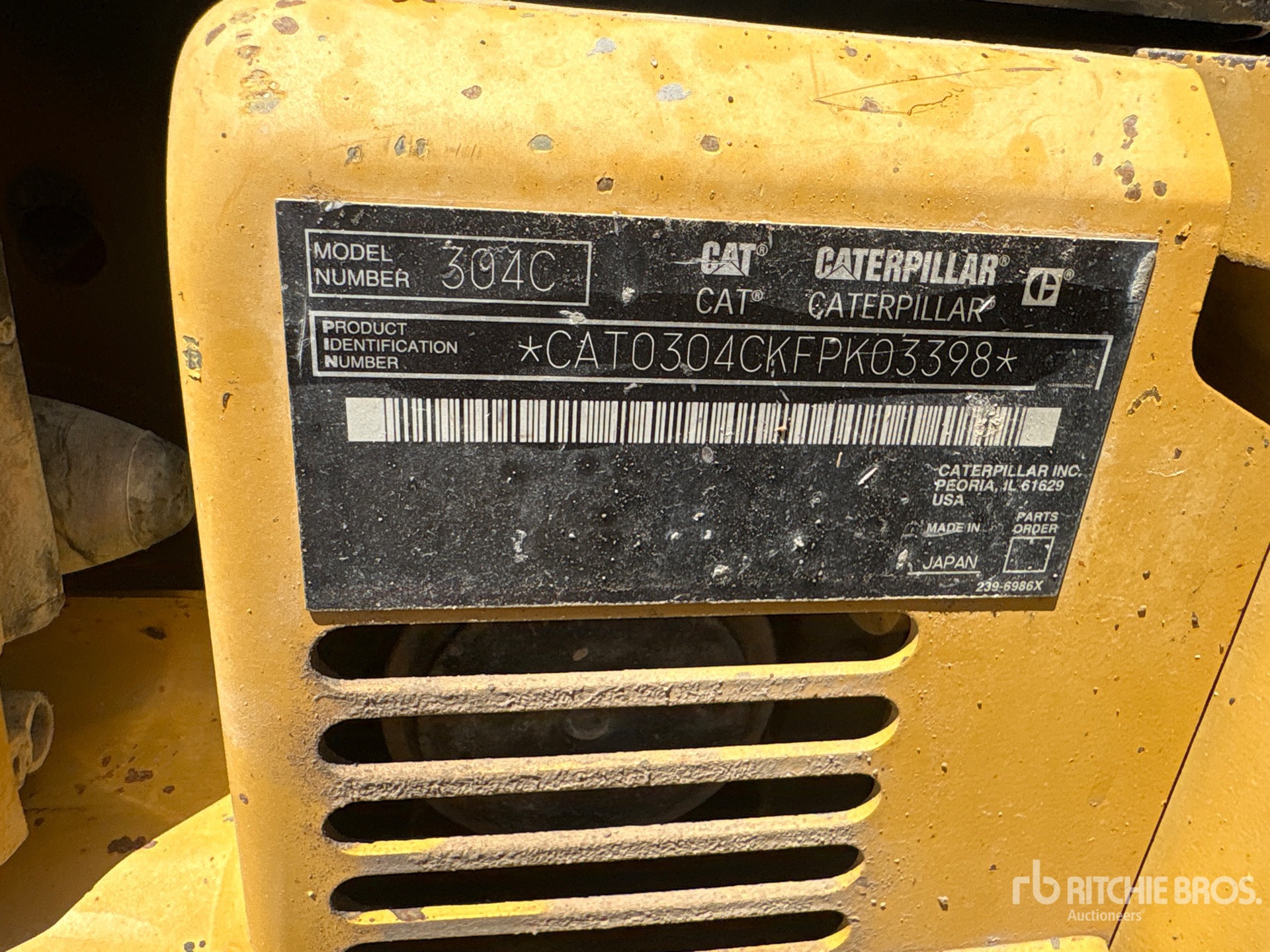

Serial Number:	CAT0304CKFPK03398
Machine Location:	LAS VEGAS, NV

Description:

2007 US EPA Label, Swing Boom, 3 ft 8 in Stick, Backfill Blade, 15.5 in Rubber Tracks, Manual Quick Coupler, 34 in Digging Bucket Closing Time: 2026-06-05 09:20:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 304C CR is a compact mini excavator designed for construction, utility, landscaping, and site preparation work. It features a reduced tail swing design for improved maneuverability in confined spaces, making it suitable for urban job sites and tight access areas. The 304C CR is typically equipped with a diesel engine, hydraulic system, and a versatile boom and arm configuration for digging, trenching, grading, and lifting tasks. As part of Caterpillar's mini excavator lineup, the 304C CR is valued for its balance of size, reach, and operating efficiency in small to medium earthmoving applications.

Boom/Stick Excavator Option 1
Max Cutting Height	17 ft (5 m)
Max Digging Depth	11 ft (3 m)
Max Loading Height	12 ft (4 m)
Max Reach Along Ground	18 ft (5 m)
Max Vertical Wall Digging Depth	8 ft (2 m)
Shipping Height of Unit	8 ft (3 m)
Shipping Length of Unit	17 ft (5 m)
Boom/Stick Excavator Option 2
Max Cutting Height	18 ft (5 m)
Max Digging Depth	12 ft (4 m)
Max Loading Height	13 ft (4 m)
Max Reach Along Ground	19 ft (6 m)
Max Vertical Wall Digging Depth	9 ft (3 m)
Shipping Height of Unit	8 ft (3 m)
Shipping Length of Unit	17 ft (5 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Over Cab	8 ft (3 m)
Height - Top of Cab	8 ft (3 m)
Length - Center of Rollers	18 ft (5 m)
Maximum Cutting Height - Long Stick	18 ft (5 m)
Maximum Cutting Height - Standard Stick	17 ft (5 m)
Maximum Digging Depth - Standard Stick	11 ft (3 m)
Maximum Dump Height - Long Stick	13 ft (4 m)
Maximum Dump Height - Standard Stick	12 ft (4 m)
Maximum Reach - Ground Level - Standard Stick	18 ft (5 m)
Maximum Vertical Dig Depth - Standard Stick	8 ft (2 m)
Removal Counterweight Clearance	2 ft (1 m)
Shipping Height	8 ft (3 m)
Shipping Length	17 ft (5 m)
Swing Radius - Rear	4 ft (1 m)
Tail Swing Radius	4 ft (1 m)
Track Shoe Width	1 ft (0 m)
Transport Width	7 ft (2 m)
Width to Outside of Tracks	7 ft (2 m)
Engine
Bore	4 in (9 cm)
Displacement	153 cu in (2,507 cu cm)
Engine Model	Mitsubishi S4Q2
Gross Power	42 hp (31 kw)
Net Power	43 hp (32 kw)
Number of Cylinders	4
Power Measured @	2,400 rpm
Stroke	4 in (10 cm)
Hydraulic System
Digging Force - Bucket	10,049 lbs (4,558 kg)
Digging Force - Stick - Long	4,788 lbs (2,172 kg)
Digging Force - Stick - Standard	5,553 lbs (2,519 kg)
Operating Pressure - Equipment	3,553 psi
Operating Pressure - Swing	2,553 psi
Operating Pressure - Travel	3,553 psi
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	3 gal (11 l)
Engine Oil Capacity	2 gal (7 l)
Fuel Capacity	19 gal (72 l)
Hydraulic Pump Flow Capacity	31 gpm (119 lpm)
Hydraulic System Fluid Capacity	21 gal (78 l)
Hydraulic System Relief Valve Pressure	3,553 psi
Operating Voltage	12 volts
Operating Weight	10,844 lbs (4,919 kg)
Service Refill Capacities
Cooling System	3 gal (11 l)
Engine Oil	2 gal (7 l)
Fuel Tank	19 gal (72 l)
Hydraulic System	21 gal (78 l)
Hydraulic Tank	13 gal (48 l)
Track Gauge	5 ft (2 m)
Swing Mechanism
Swing Speed	9 rpm
Swing System
Machine Swing Speed	9 rpm
Travel System
Travel Speed - High	3 mph (5 kph)
Undercarriage
Max Travel Speed	3 mph (5 kph)
Shoe Size	16 in (41 cm)
Track Gauge	5 ft (2 m)
Weights
Operating Weight	10,582 lbs (4,800 kg)
Operating Weight - With Cab	10,844 lbs (4,919 kg)
