2005 Caterpillar 12H For Sale in Orlando, Fl

Name: 2005 Caterpillar 12H
Brand: Caterpillar
SKU: 88556055
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-07-09 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

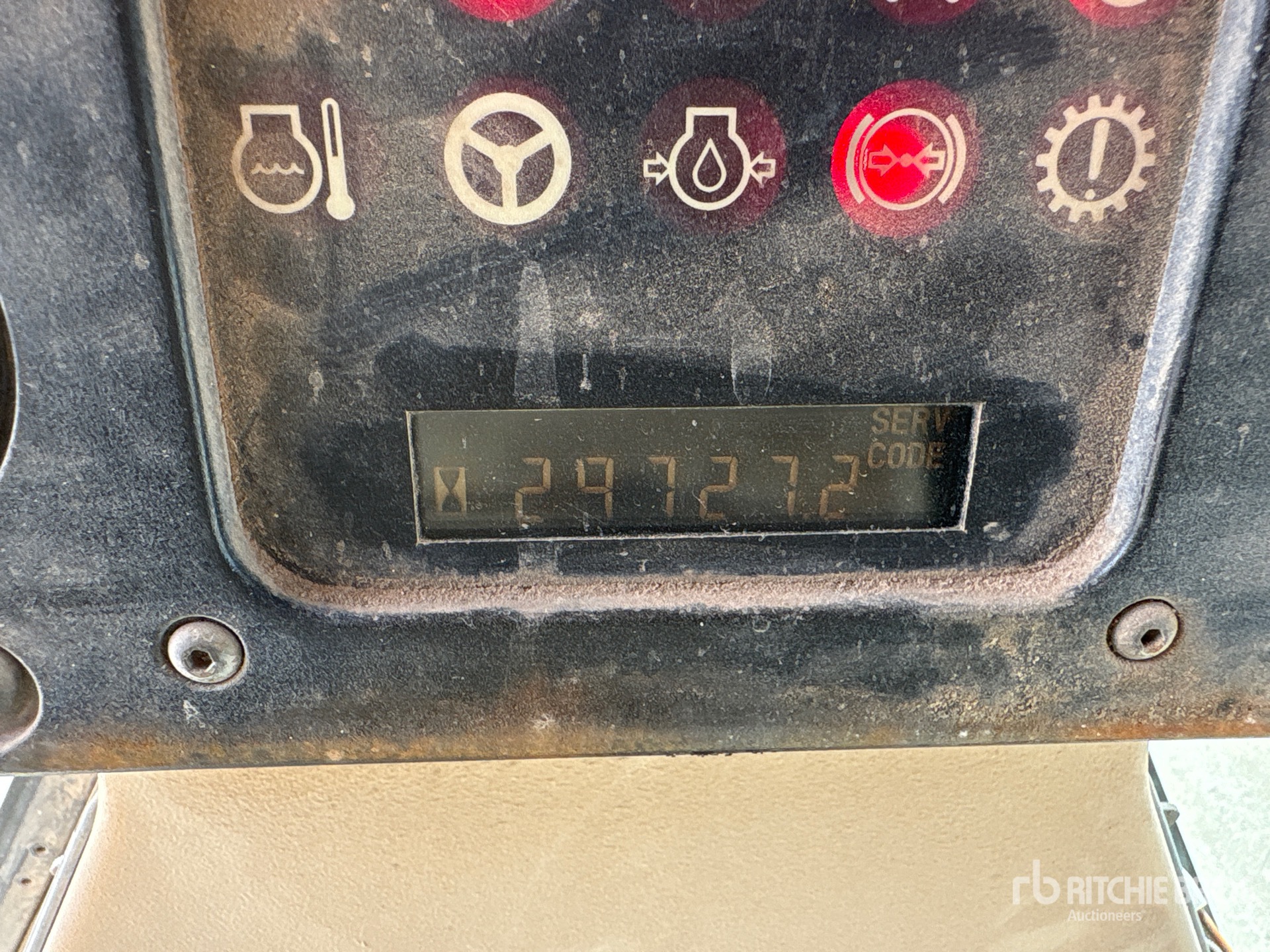

Hours:	29727

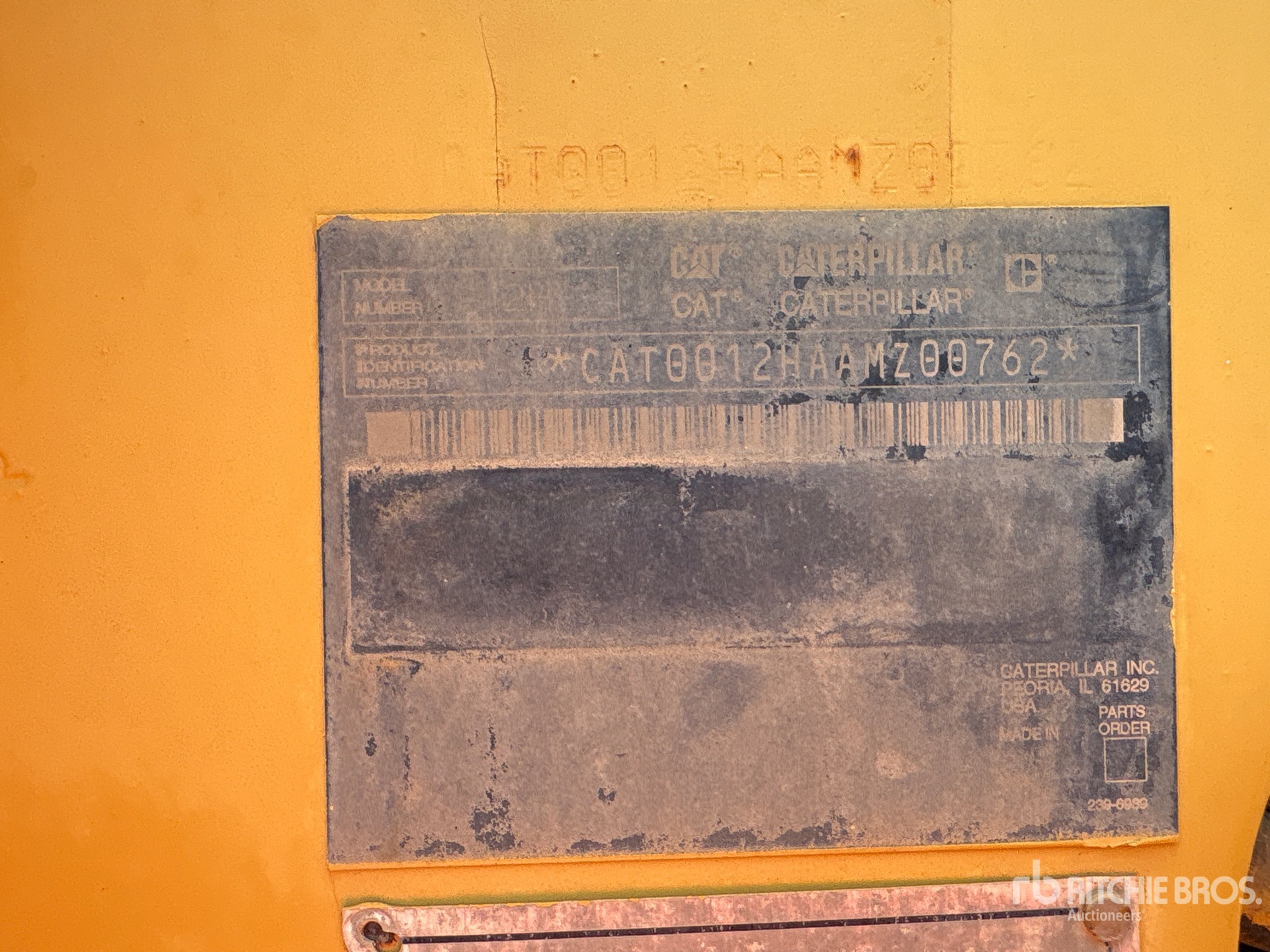

Serial Number:	CAT0012HAAMZ00762
Machine Location:	ORLANDO, FL

Description:

Located in Lane 126 Spot 12, Enclosed Cab, Air Conditioner, Low Profile, 14 ft / 4.27 m Moldboard, Mid Mount Scarifier, 14.00-24 Tires Engine runs, hydraulics operational, Closing Time: 2026-07-09 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 120H is a motor grader designed for road construction, maintenance, and grading applications. It is part of Caterpillar's 120-series grader line and is commonly used for shaping surfaces, maintaining haul roads, ditching, and fine grading work. The 120H typically features a front-mounted engine, articulated frame, and centrally positioned moldboard for precise blade control. It is known for its balance of maneuverability, visibility, and hydraulic responsiveness in general earthmoving tasks. The model has been used in municipal, construction, and mining support operations. Specifications vary by configuration, year, and market, including blade width, engine output, and operating weight.

Circle
Blade Tip Angle - Front	40 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	60 in (153 cm)
Max Lift Above Ground	18 in (46 cm)
Max Reach Outside Tires - Left	73 in (184 cm)
Max Reach Outside Tires - Right	75 in (191 cm)
Rotation	360 degrees
Shift Left	25 in (63 cm)
Shift Right	25 in (63 cm)
Dimensions
Blade Base	9 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	10 ft (3 m)
Overall Length	27 ft (8 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	19 ft (6 m)
Width Over Tires	8 ft (2 m)
Engine
Aspiration	turbocharged
Displacement	403 cu in (6,601 cu cm)
Engine Model	3116 DITA
Max Power	140 hp (104 kw)
Net Power Gear 1-2	125 hp (93 kw)
Net Power Gear 4-6	125 hp (93 kw)
Net Power Gears 7-8	140 hp (104 kw)
Number of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,400 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	39 gpm (148 lpm)
Pump Type	Axial Piston
Relief Valve Pressure	3,500 psi
Moldboard
Blade Down Pressure	20,062 lbs (9,100 kg)
Blade Pull at Max Weight	23,504 lbs (10,661 kg)
Max Depth of Cut	31 in (78 cm)
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	21 in (53 cm)
Side Shift Right	26 in (66 cm)
Operating Specifications
Alternator Supplied Amperage	50 amps
Circle Gearbox Fluid Capacity	2 gal (7 l)
Cooling System Fluid Capacity	11 gal (40 l)
Hydraulic System Fluid Capacity	18 gal (68 l)
Oil System Fluid Capacity	6 gal (23 l)
Operating Voltage	24 volts
Rear Diff/Final Drive Fluid Capacity	13 gal (47 l)
Std Operation Weight - Front Axle	7,880 lbs (3,574 kg)
Std Operation Weight - Rear Axle	19,720 lbs (8,945 kg)
Tandem Case Fluid Capacity (each)	13 gal (49 l)
Steering System
Articulation Angle	20 degrees
Turning Radius	24 ft (7 m)
Transmission
Max Speed - Forward	27 mph (43 kph)
Max Speed - Reverse	21 mph (34 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	6
Transmission Type	direct drive powershift
