Equipment ↠ Caterpillar ↠ Motor Graders ↠ 2000 Caterpillar 12H

2000 Caterpillar 12H For Sale in Fort Worth, Tx

Name: 2000 Caterpillar 12H
Brand: Caterpillar
SKU: 88579797
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

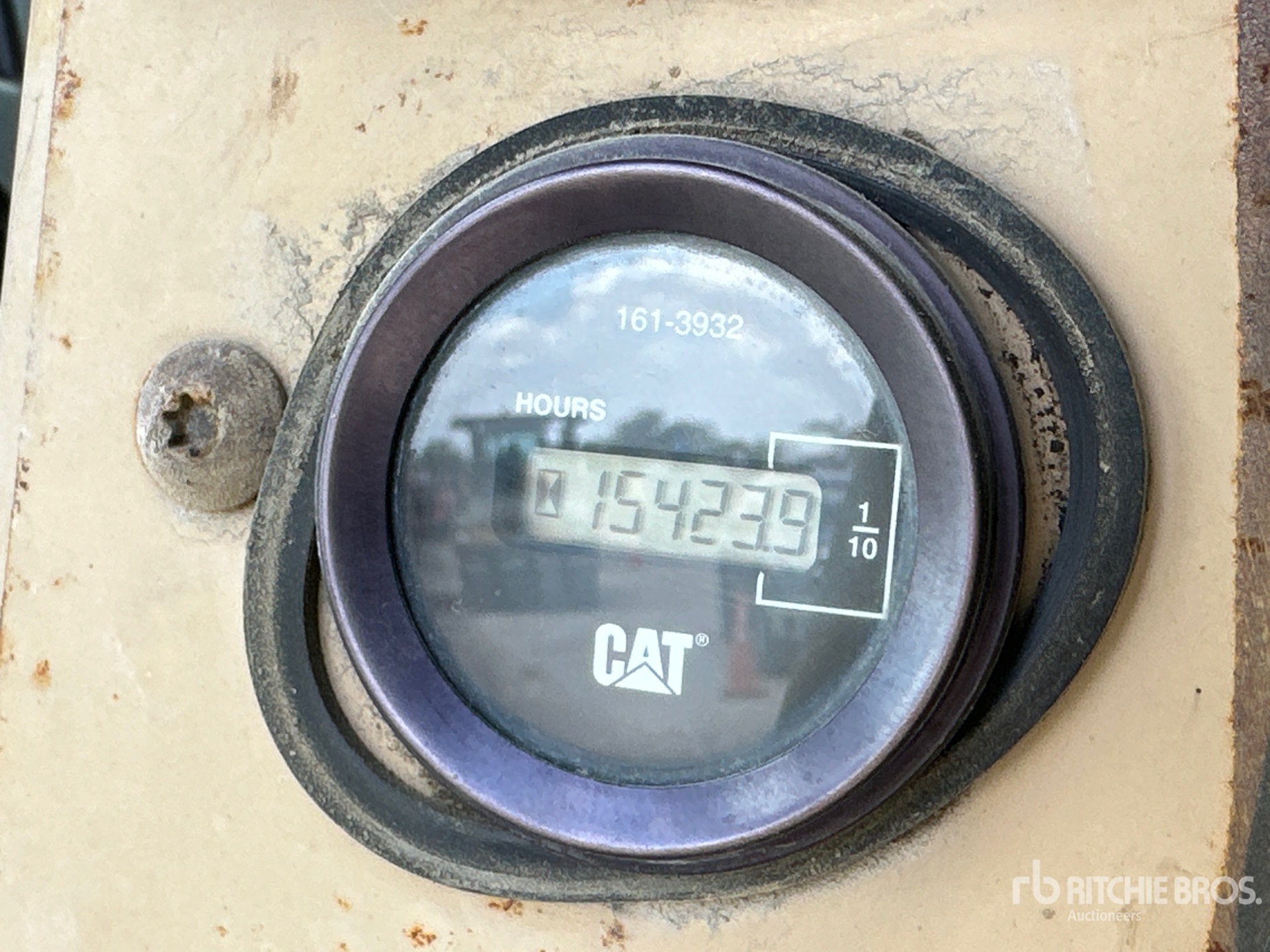

Hours:	15423

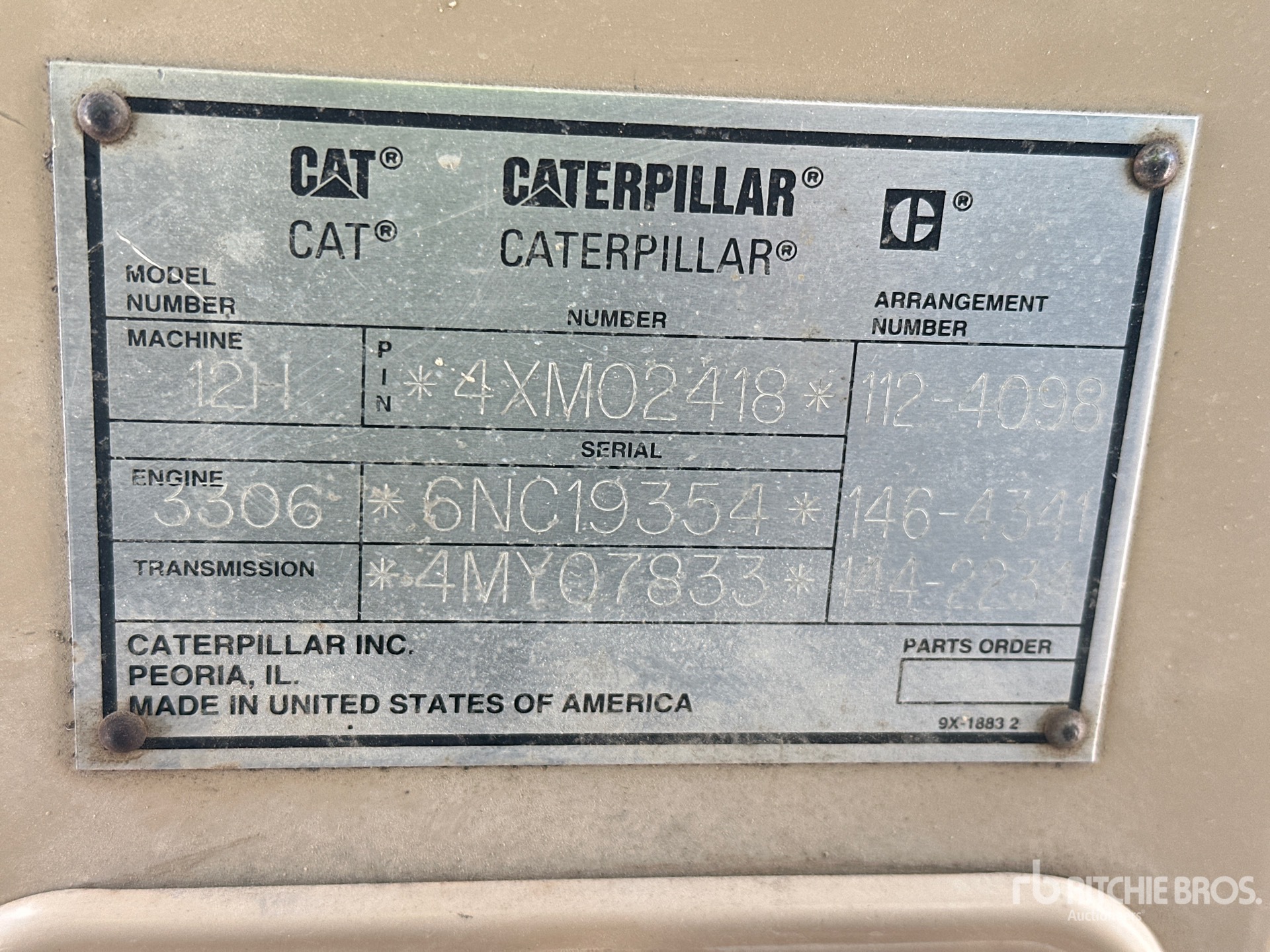

Serial Number:	4XM02418
Machine Location:	FORT WORTH, TX

Description:

Enclosed Cab, 2000 US EPA Label, 14 ft / 4.27 m Moldboard w/ Extension, Mid Mount Scarifier, 14.00-24 Tires

From the manufacturer:

Supplied by HeavyEquipmentData.com →

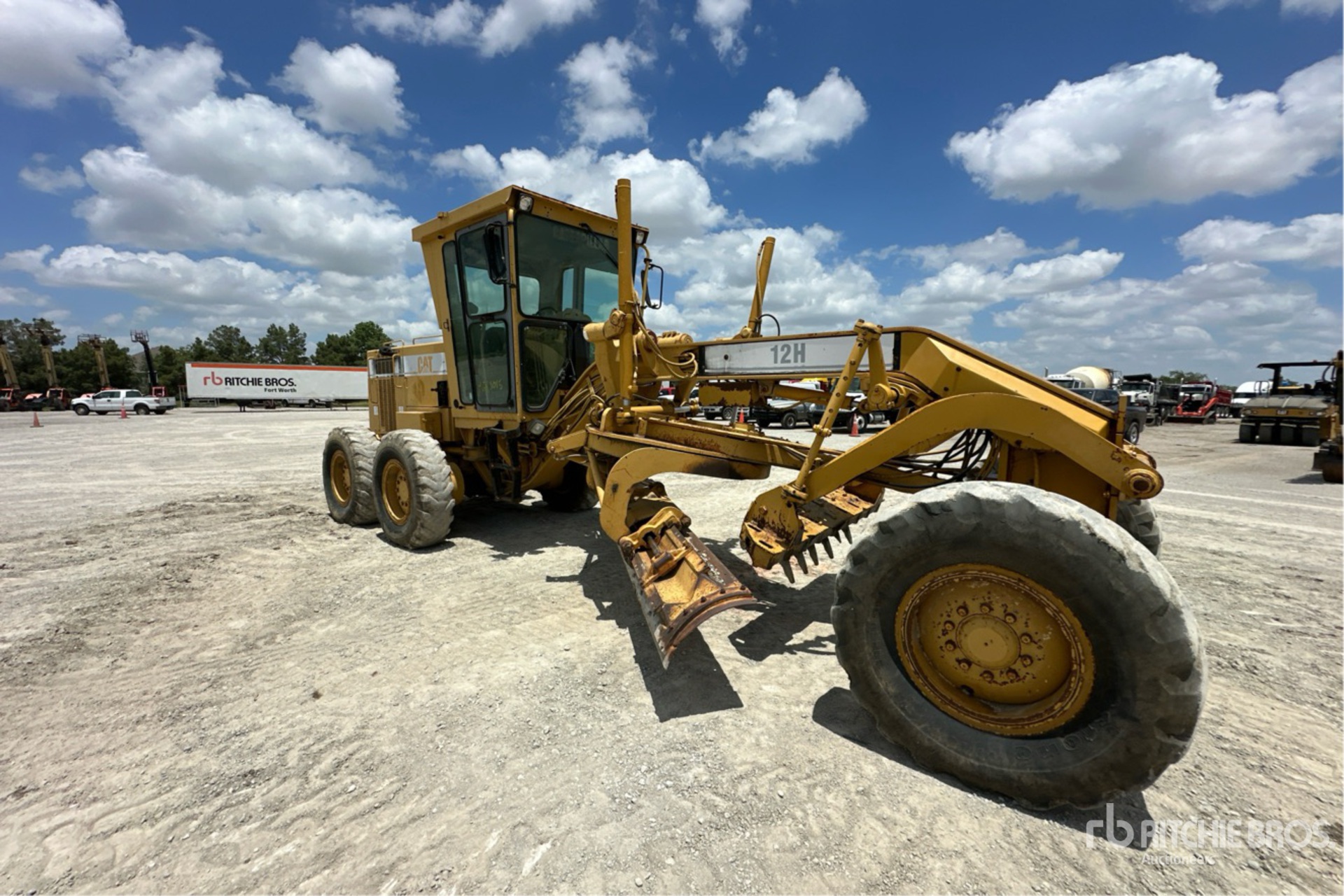

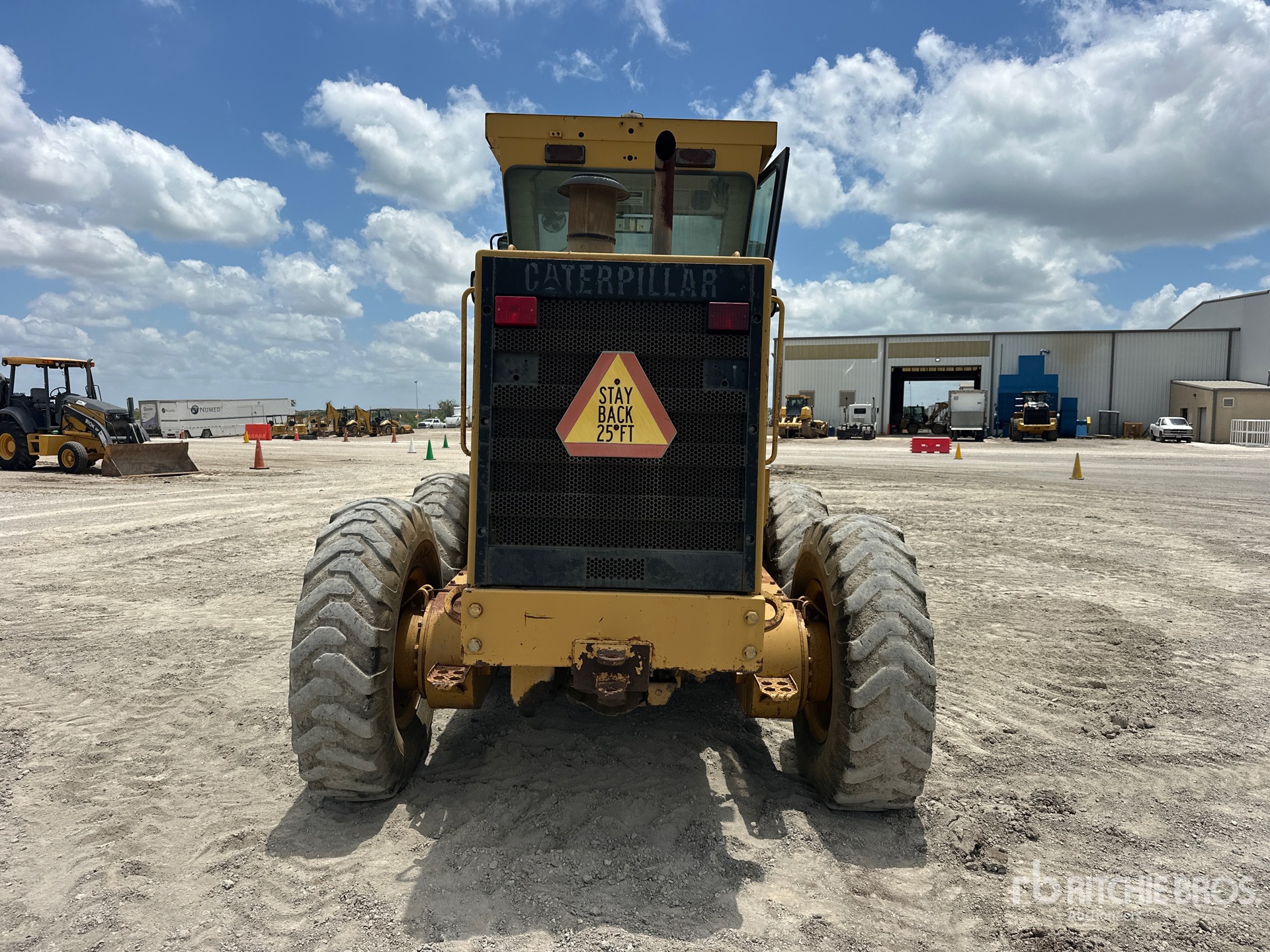

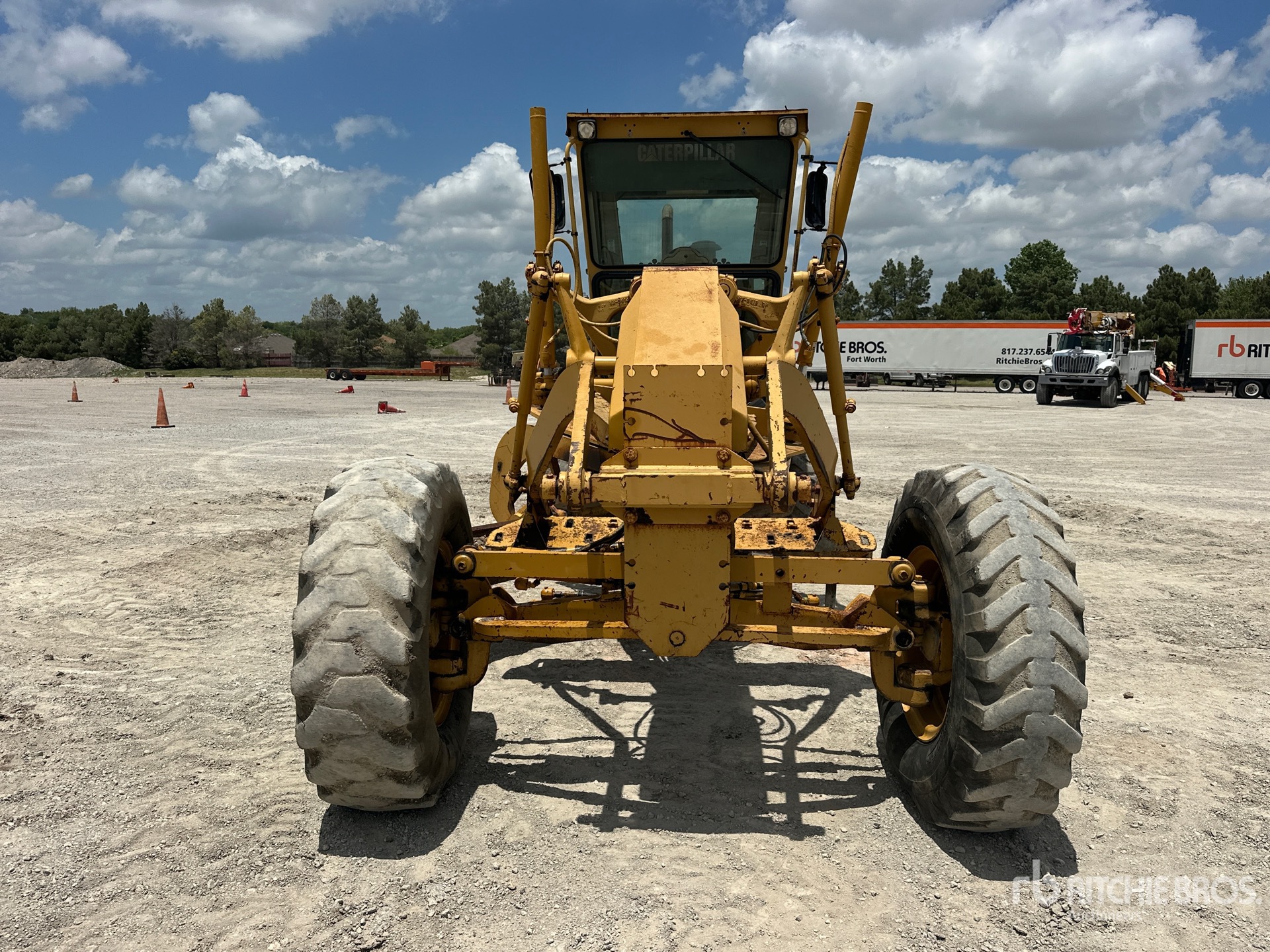

The Caterpillar 12H is a motor grader designed for road construction, maintenance, and grading applications. Built by Caterpillar, the 12H is part of the company's H-series grader line and is commonly used for shaping surfaces, maintaining haul roads, and fine grading work. It typically features a front-mounted moldboard, articulated frame, and rear tandem drive for controlled blade positioning and traction. The 12H is known for its mechanical simplicity, serviceability, and use in municipal, construction, and mining environments. As a Caterpillar motor grader, the 12H remains a recognized model in used equipment and fleet reference listings.

Circle
Blade Tip Angle - Front	40 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	60 in (153 cm)
Max Lift Above Ground	19 in (48 cm)
Max Reach Outside Tires - Left	74 in (187 cm)
Max Reach Outside Tires - Right	71 in (181 cm)
Rotation	360 degrees
Shift Left	27 in (70 cm)
Shift Right	29 in (73 cm)
Dimensions
Blade Base	9 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	10 ft (3 m)
Overall Length	28 ft (9 m)
Rear Ground Clearance	1 ft (0 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (2 m)
Engine
Displacement	638 cu in (10,450 cu cm)
Net Power Gear 1-2	145 hp (108 kw)
Net Power Gear 4-6	165 hp (123 kw)
Net Power Gear 5-6	165 hp (123 kw)
Number of Cylinders	6
Power Measured @	2,000 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	18 degrees
Hydraulic System
Relief Valve Pressure	3,500 psi
Moldboard
Blade Down Pressure	23,808 lbs (10,799 kg)
Blade Pull at Max Weight	28,867 lbs (13,094 kg)
Max Depth of Cut	29 in (73 cm)
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	21 in (52 cm)
Side Shift Right	26 in (66 cm)
Operating Specifications
Circle Gearbox Fluid Capacity	2 gal (7 l)
Cooling System Fluid Capacity	12 gal (44 l)
Max Operation Weight - Front Axle	13,744 lbs (6,234 kg)
Max Operation Weight - Rear Axle	32,074 lbs (14,549 kg)
Max Operation Weight - Total	45,818 lbs (20,783 kg)
Oil System Fluid Capacity	7 gal (27 l)
Operating Voltage	24 volts
Rear Diff/Final Drive Fluid Capacity	12 gal (46 l)
Std Operation Weight - Front Axle	8,346 lbs (3,786 kg)
Std Operation Weight - Rear Axle	22,974 lbs (10,421 kg)
Tandem Case Fluid Capacity (each)	17 gal (64 l)
Steering System
Turning Radius	24 ft (7 m)
Transmission
Number of Gears - Forward	8
Number of Gears - Reverse	6
Transmission Type	direct drive power shift
