1998 Caterpillar 135H For Sale in Birmingham, AL

Name: 1998 Caterpillar 135H
Brand: Caterpillar
SKU: 88548158
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-06-17

JJ Kane Auctions

JJ Kane Auctions Dealer Info

JJ Kane Auctions Website

Click here to email JJ Kane Auctions.

Click for Phone Number

Machine Info:

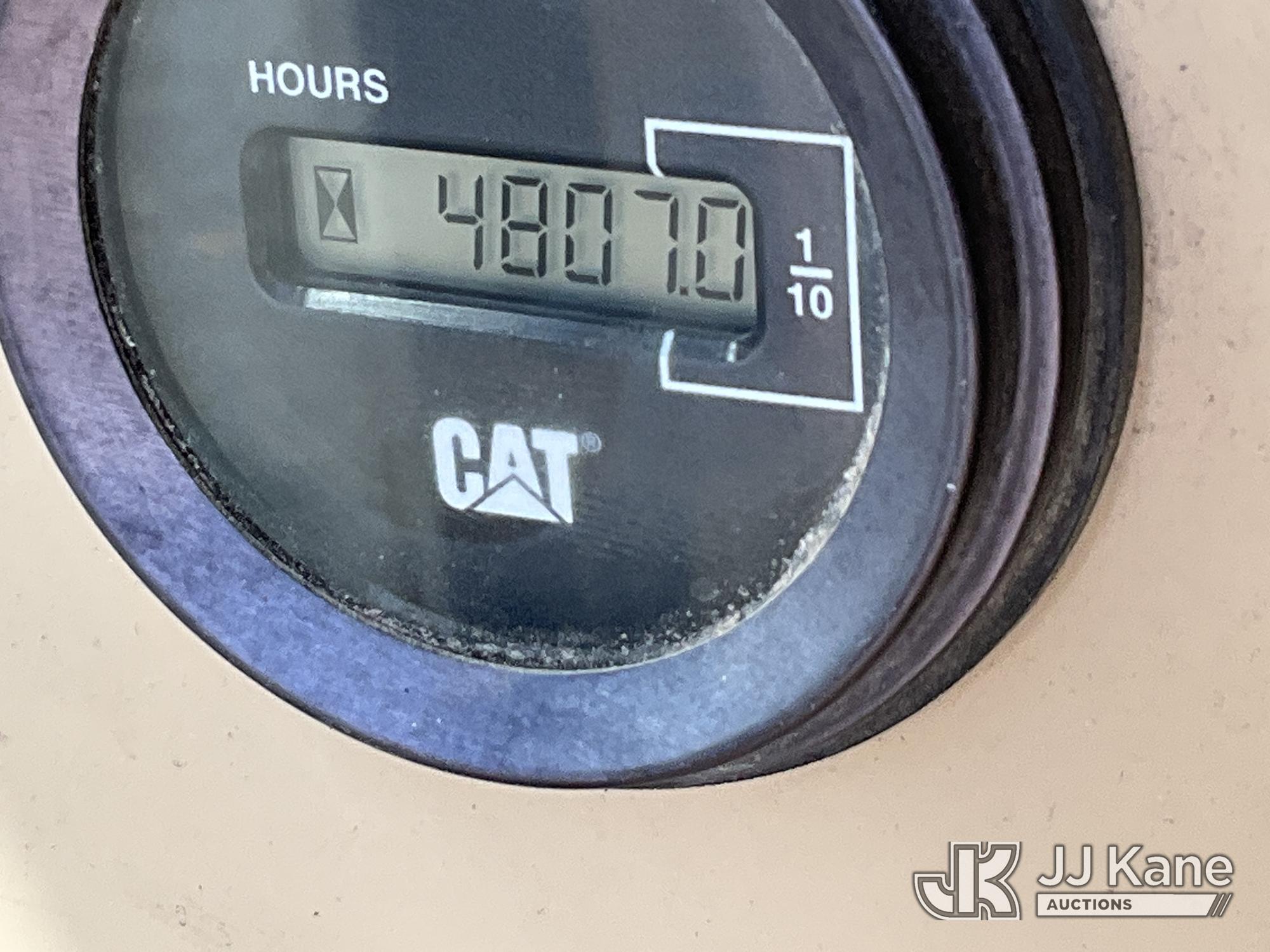

Hours:	4806

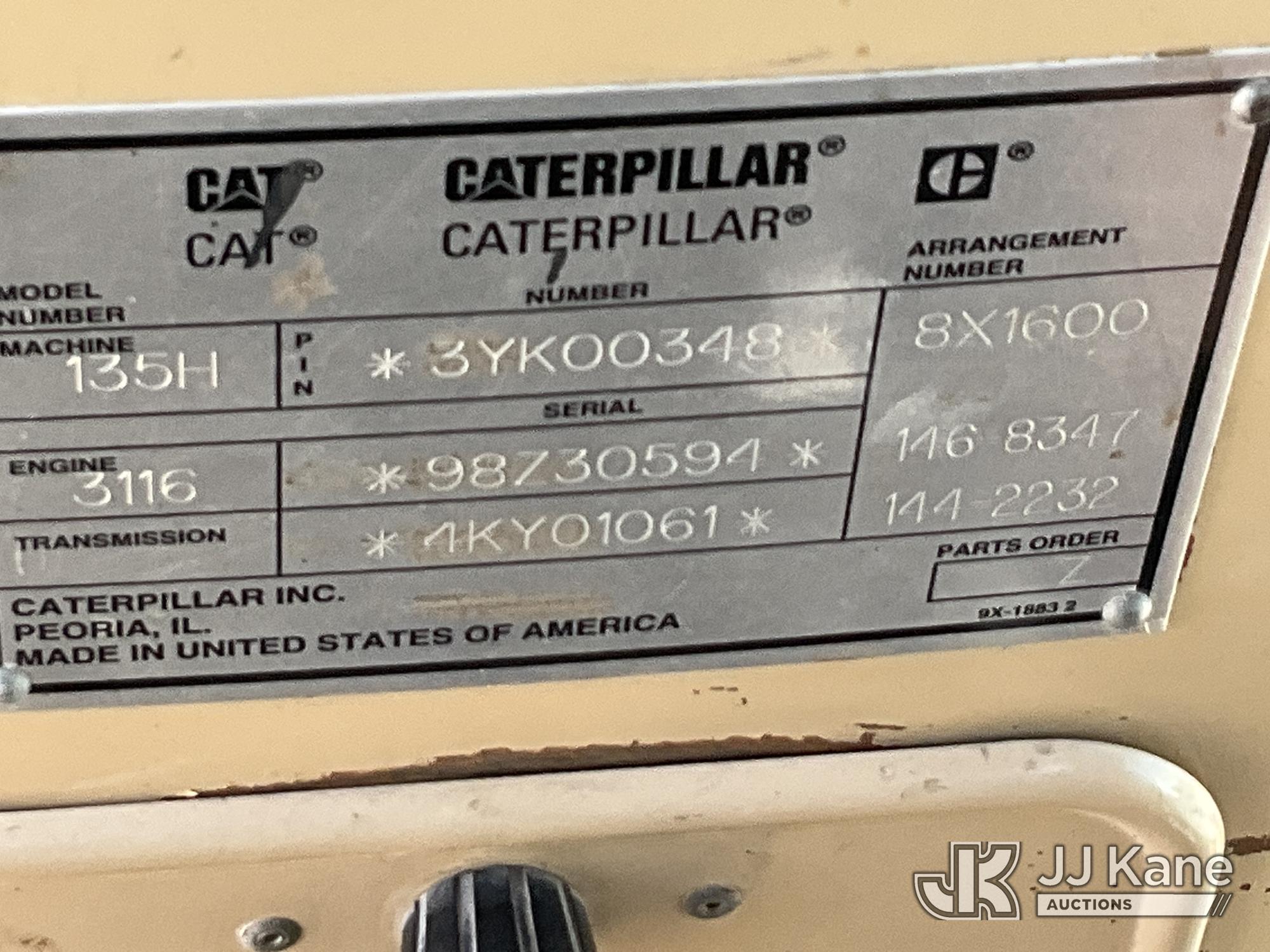

Serial Number:	3YK00348
Machine Location:	BIRMINGHAM, AL

Description:

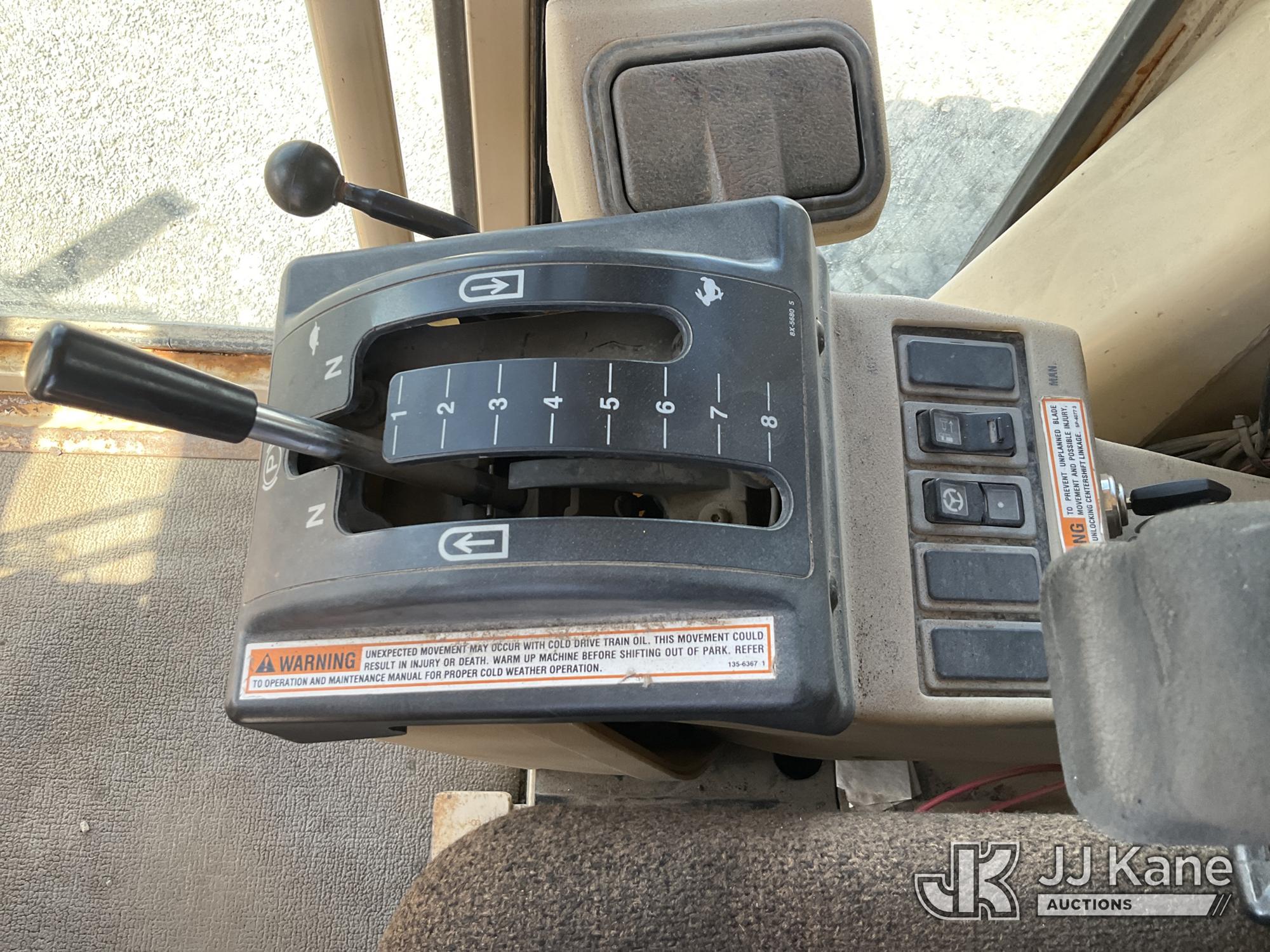

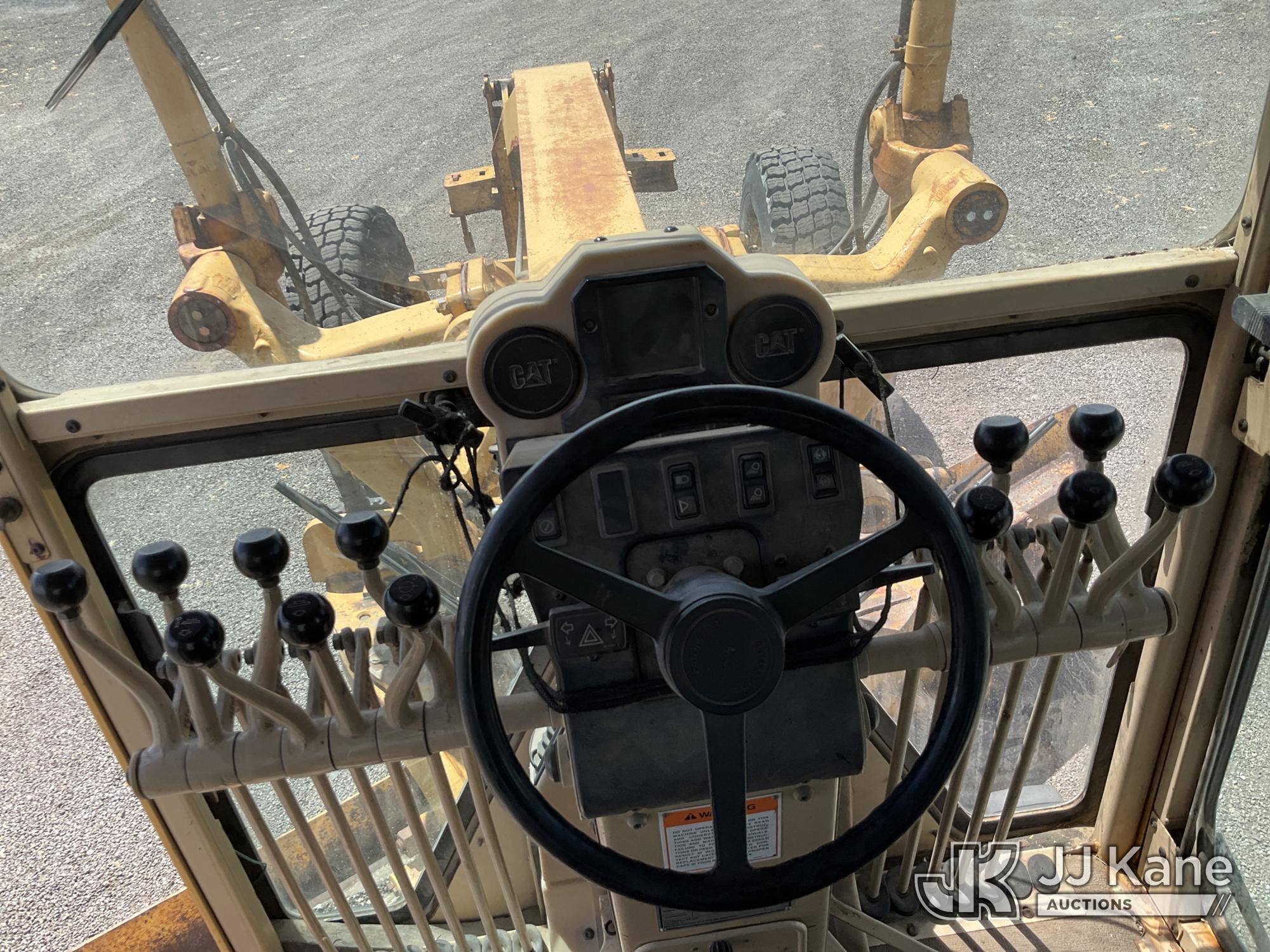

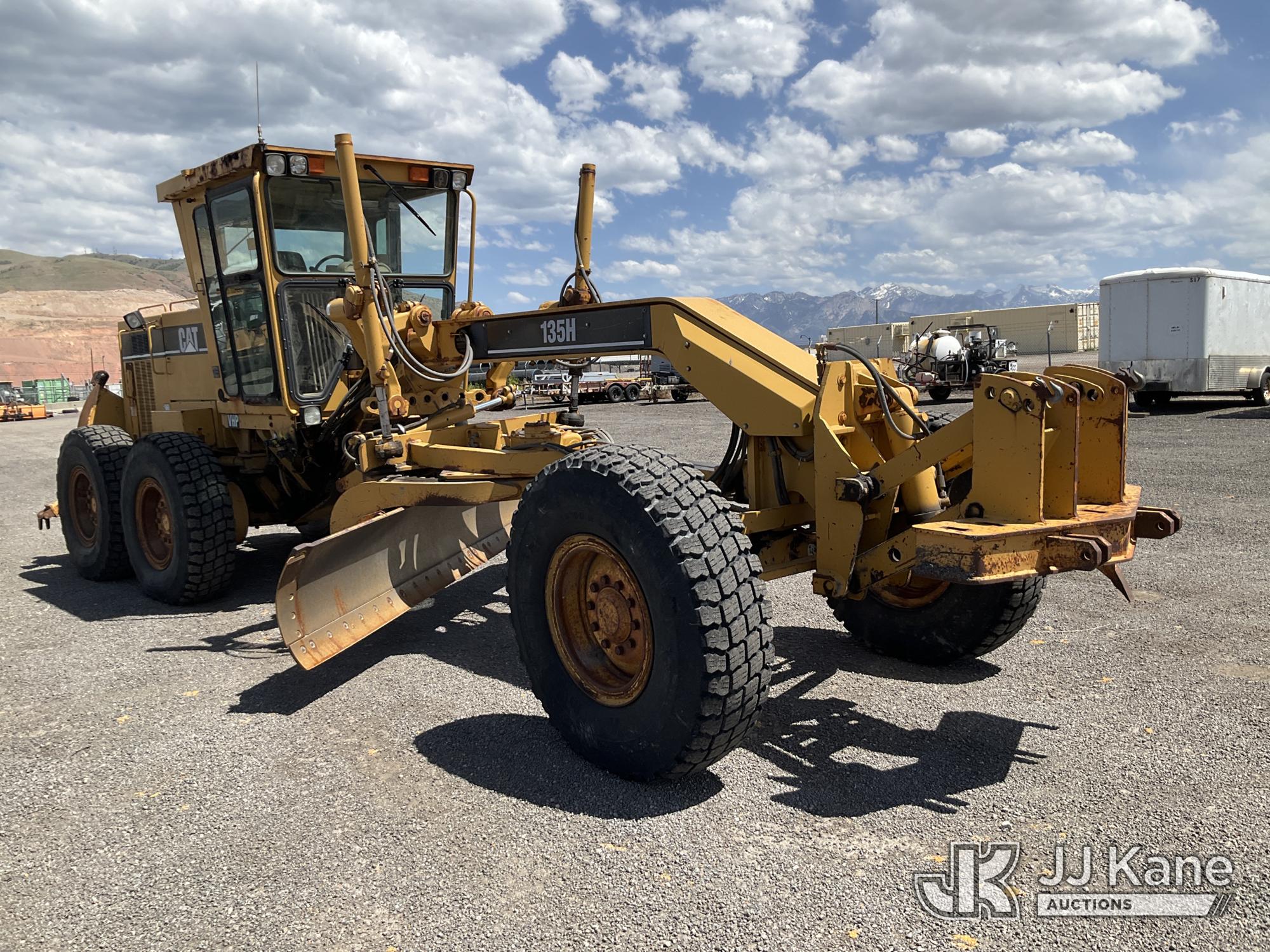

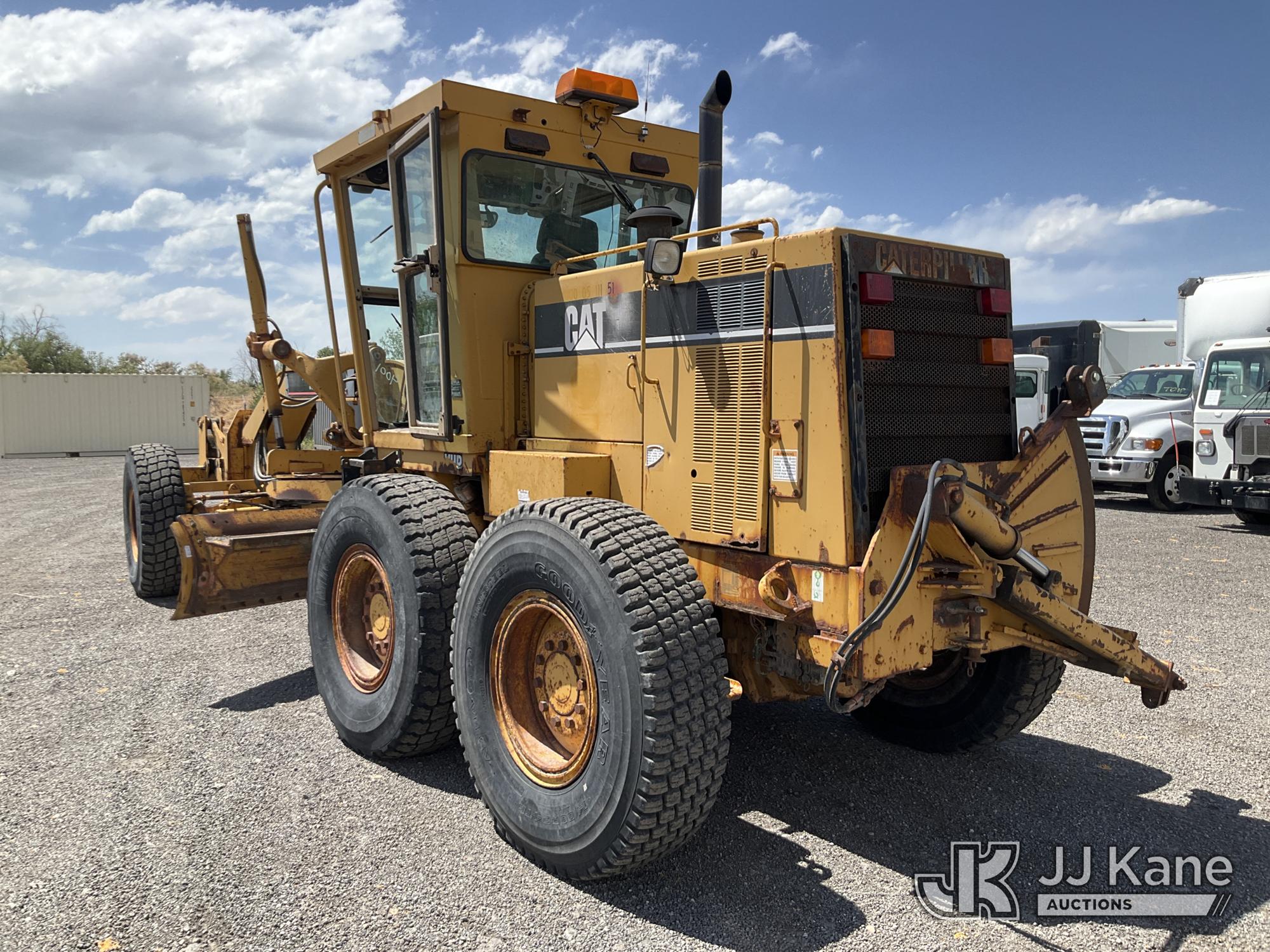

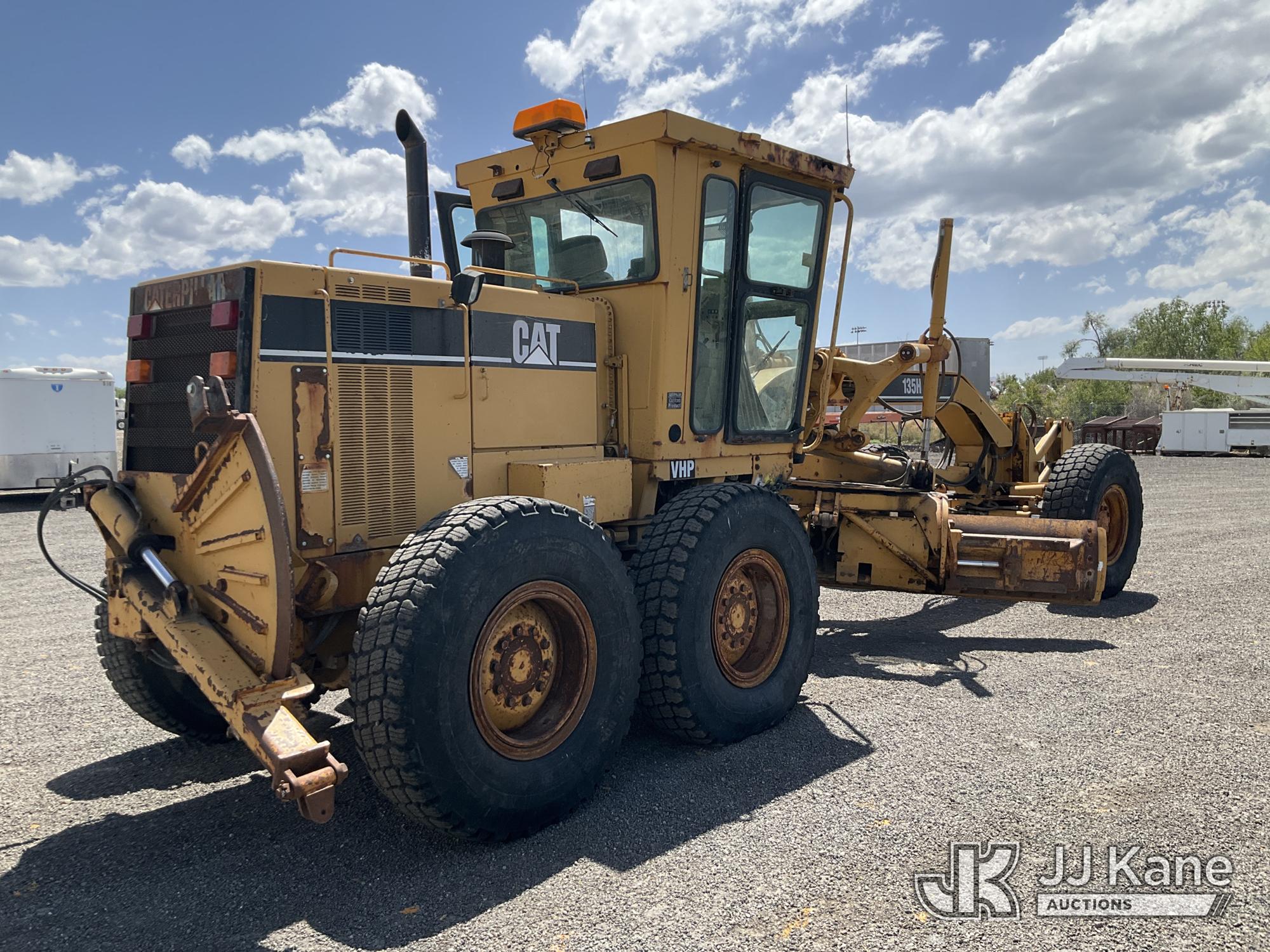

1998 Caterpillar 135H Motor Grader, s/n 3YK00348, Diesel, Powershift, with EROPS w/ AC, (Runs & Moves) (Reads 4,806 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Salt Lake City, UT. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 2353 N Redwood Rd Salt Lake City, UT 84116 and hours of operations are 8a-4p. Titles executed exactly as bidder registered. Ensure your name and/or business name and address in JJ Kane and/or ProxiBid is correct before bidding. For pre-sale questions, please contact Office Staff @ (801) 519-0123. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Circle
Blade Tip Angle - Front	40 degrees
Blade Tip Angle - Rear	5 degrees
Max Lift Above Ground	18 in (46 cm)
Max Reach Outside Tires - Left	73 in (184 cm)
Max Reach Outside Tires - Right	75 in (191 cm)
Shift Left	25 in (63 cm)
Shift Right	25 in (63 cm)
Dimensions
Blade Base	9 ft (3 m)
Front Ground Clearance	1 ft (0 m)
Rear Ground Clearance	1 ft (0 m)
Tandem Axle Wheelbase	5 ft (2 m)
Engine
Max Power	155 hp (116 kw)
Net Power Gear 1-2	135 hp (101 kw)
Net Power Gear 4-6	155 hp (116 kw)
Net Power Gear 5-6	155 hp (116 kw)
Net Power Gears 7-8	155 hp (116 kw)
Net Torque Gears 7-8	626 lbs ft (848 nm)
Number of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,000 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	38 gpm (144 lpm)
Relief Valve Pressure	3,500 psi
Moldboard
Blade Down Pressure	21,654 lbs (9,822 kg)
Blade Pull at Max Weight	25,364 lbs (11,505 kg)
Max Depth of Cut	31 in (78 cm)
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	21 in (53 cm)
Side Shift Right	26 in (66 cm)
Operating Specifications
Alternator Supplied Amperage	35 amps
Circle Gearbox Fluid Capacity	2 gal (7 l)
Cooling System Fluid Capacity	10 gal (39 l)
Operating Voltage	24 volts
Std Operation Weight - Front Axle	8,242 lbs (3,739 kg)
Std Operation Weight - Rear Axle	20,598 lbs (9,343 kg)
Tandem Case Fluid Capacity (each)	13 gal (48 l)
Tire Size	13-24 10 PR (G-2)
Steering System
Articulation Angle	20 degrees
Transmission
Max Speed - Forward	26 mph (42 kph)
Max Speed - Reverse	21 mph (33 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	6
Transmission Type	direct drive powershift
