2002 Caterpillar 143H For Sale in Duluth, MN

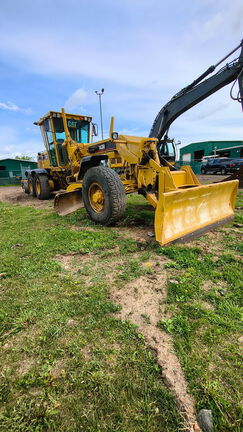

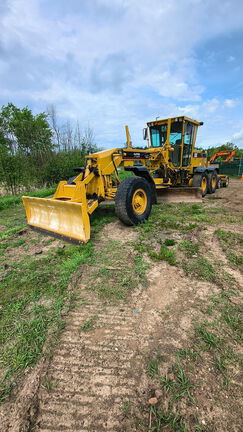

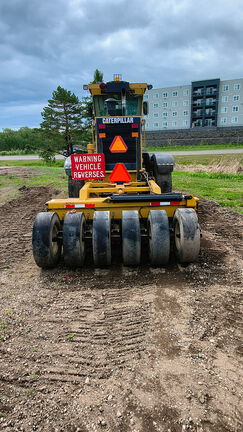

Name: 2002 Caterpillar 143H
Brand: Caterpillar
SKU: 88563010
Price: 85000 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $75,000.00 USD
Converted From: $85,000.00 USD

Apply for Financing

McCoy Construction & Forestry

McCoy Construction & Forestry Dealer Info

McCoy Construction & Forestry Website

Click here to email McCoy Construction & Forestry.

Contact: Chad Benz Cell 715-218-0030

Click for Phone Number

Machine Info:

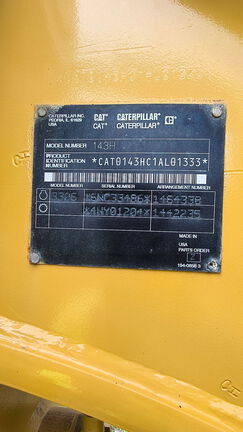

Serial Number:	CAT0143HC1AL01333
Stock Number:	309346
Machine Location:	DULUTH, MN

Description:

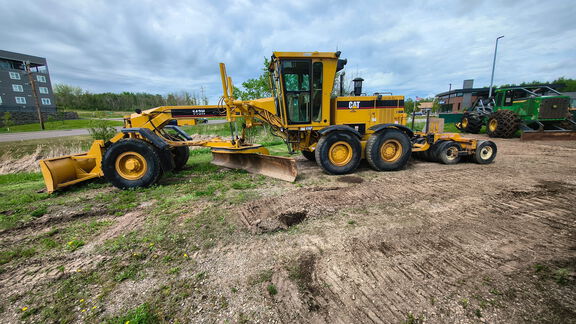

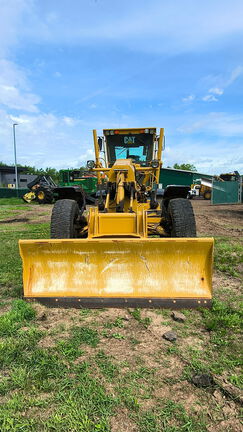

Cab w/ AC, Antler Rack Controls; 4.27 m (14 ft.) Blade; 14.00 Tires; All Wheel Drive; Aux Hydraulics, Dozer Blade, Snow Wing

Machine Details:

General Specifications

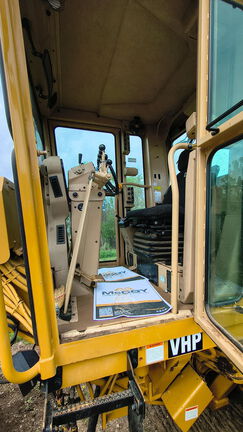

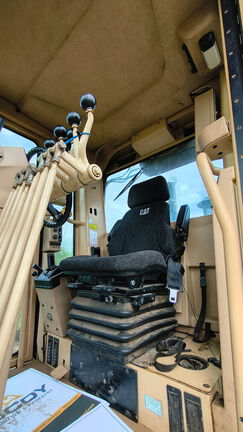

Operators Station	Antler Rack Controls
Blades	4.27 m (14 ft.) Blade
Tires	14.00 Tires
Powertrain	All Wheel Drive
Options	Aux Hydraulics
Attachments	Snow Wing

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 143H is a motor grader designed for road construction, maintenance, and site preparation. It is part of Caterpillar's H-series grader lineup and is used for grading, leveling, ditching, and surface finishing on highways, mining roads, and general earthmoving projects. The 143H typically features a front-mounted engine, articulated frame, and centrally positioned moldboard for precise blade control. It is commonly equipped with a diesel powertrain, hydraulic blade functions, and operator controls suited to fine grading applications. The Caterpillar 143H remains recognized in the used equipment market for its role in heavy-duty grading and material shaping tasks.

Circle
Blade Tip Angle - Front	40 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	60 in (153 cm)
Max Lift Above Ground	19 in (48 cm)
Max Reach Outside Tires - Left	75 in (189 cm)
Max Reach Outside Tires - Right	78 in (198 cm)
Shift Left	27 in (70 cm)
Shift Right	29 in (73 cm)
Dimensions
Blade Base	8 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	10 ft (3 m)
Overall Length	29 ft (9 m)
Rear Ground Clearance	1 ft (0 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (3 m)
Engine
Displacement	629 cu in (10,307 cu cm)
Engine Model	3176C DITA ATAAC VHP
Max Power	205 hp (153 kw)
Net Power Gear 1-2	165 hp (123 kw)
Net Power Gear 4-6	185 hp (138 kw)
Net Power Gear 5-6	185 hp (138 kw)
Net Power Gears 7-8	205 hp (153 kw)
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	54 gpm (206 lpm)
Pump Type	axial piston
Relief Valve Pressure	3,500 psi
Moldboard
Blade Down Pressure	30,126 lbs (13,665 kg)
Blade Pull at Max Weight	43,977 lbs (19,948 kg)
Max Depth of Cut	28 in (71 cm)
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	21 in (52 cm)
Side Shift Right	26 in (66 cm)
Operating Specifications
Circle Gearbox Fluid Capacity	2 gal (7 l)
Cooling System Fluid Capacity	10 gal (38 l)
Fuel Capacity	105 gal (397 l)
Hydraulic System Fluid Capacity	21 gal (79 l)
Max Operation Weight - Front Axle	17,443 lbs (7,912 kg)
Max Operation Weight - Rear Axle	31,420 lbs (14,252 kg)
Max Operation Weight - Total	48,863 lbs (22,164 kg)
Std Operation Weight - Front Axle	9,493 lbs (4,306 kg)
Std Operation Weight - Rear Axle	24,177 lbs (10,967 kg)
Std Operation Weight - Total	33,670 lbs (15,272 kg)
Tandem Case Fluid Capacity (each)	17 gal (64 l)
Steering System
Articulation Angle	20 degrees
Turning Radius	25 ft (8 m)
Transmission
Max Speed - Forward	27 mph (44 kph)
Max Speed - Reverse	22 mph (35 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	6
Transmission Type	direct drive power shift
