2002 Caterpillar 163H VHP PLUS For Sale in Denver, Co

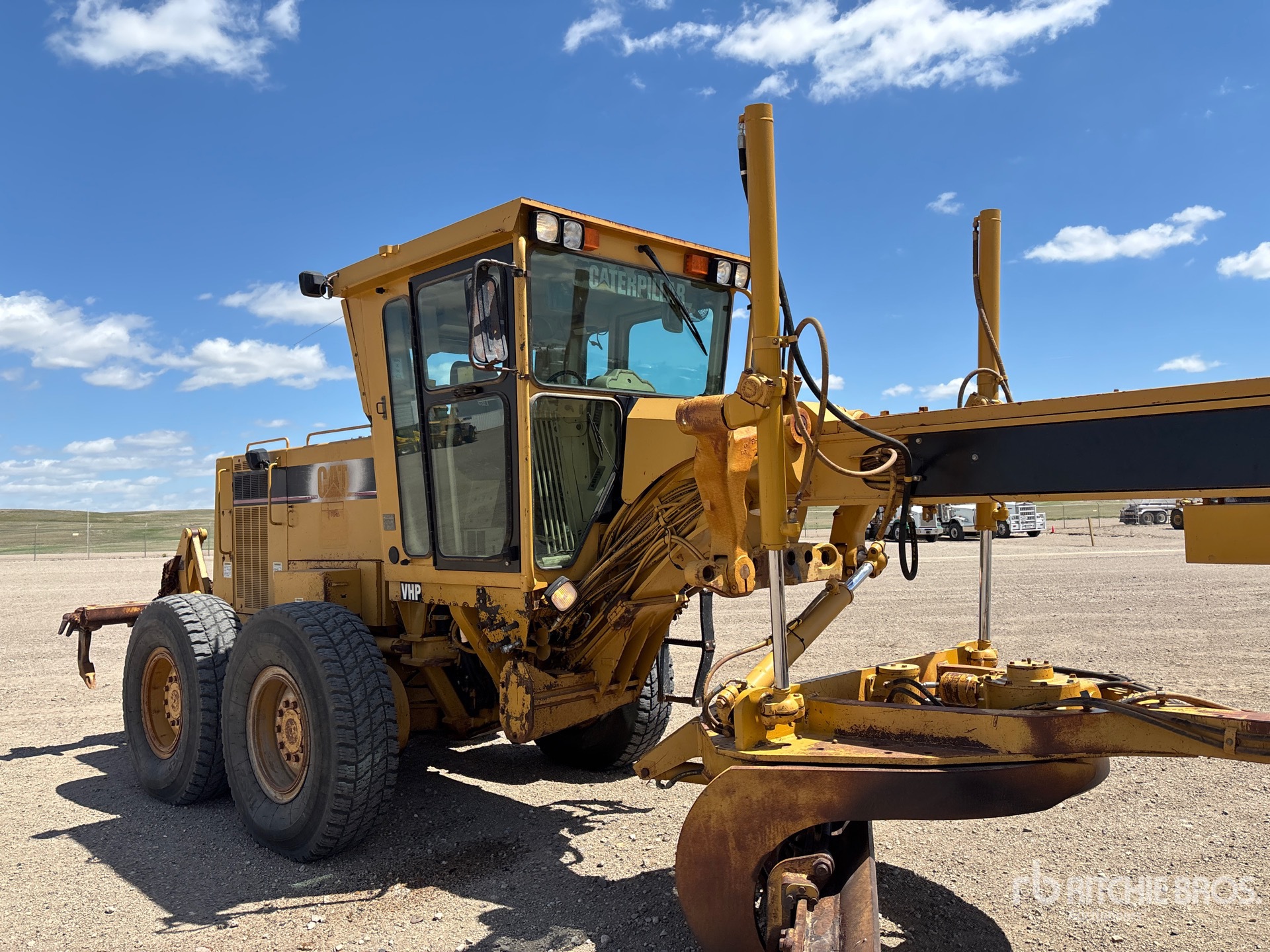

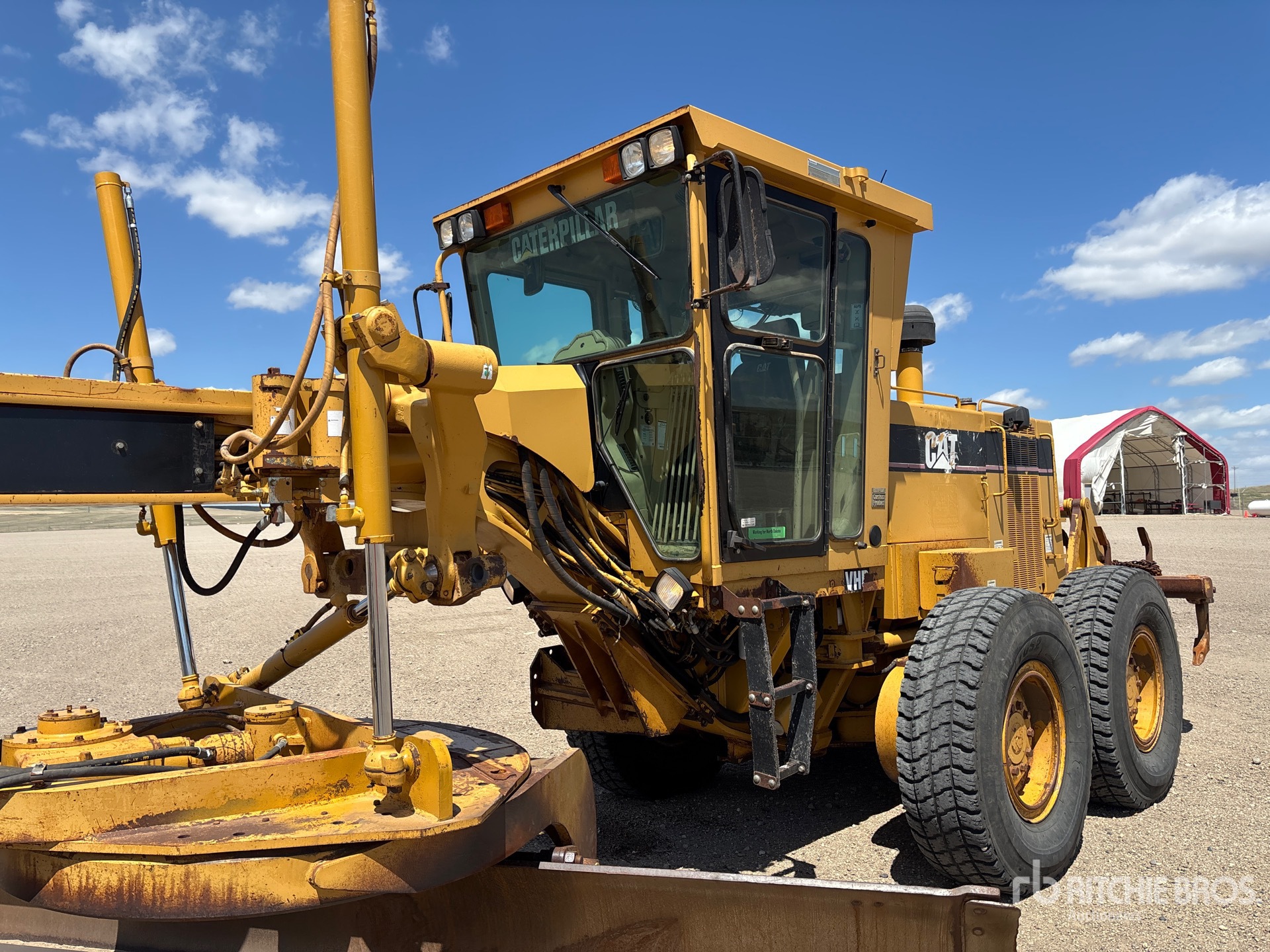

Name: 2002 Caterpillar 163H VHP PLUS
Brand: Caterpillar
SKU: 88253628
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-23 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

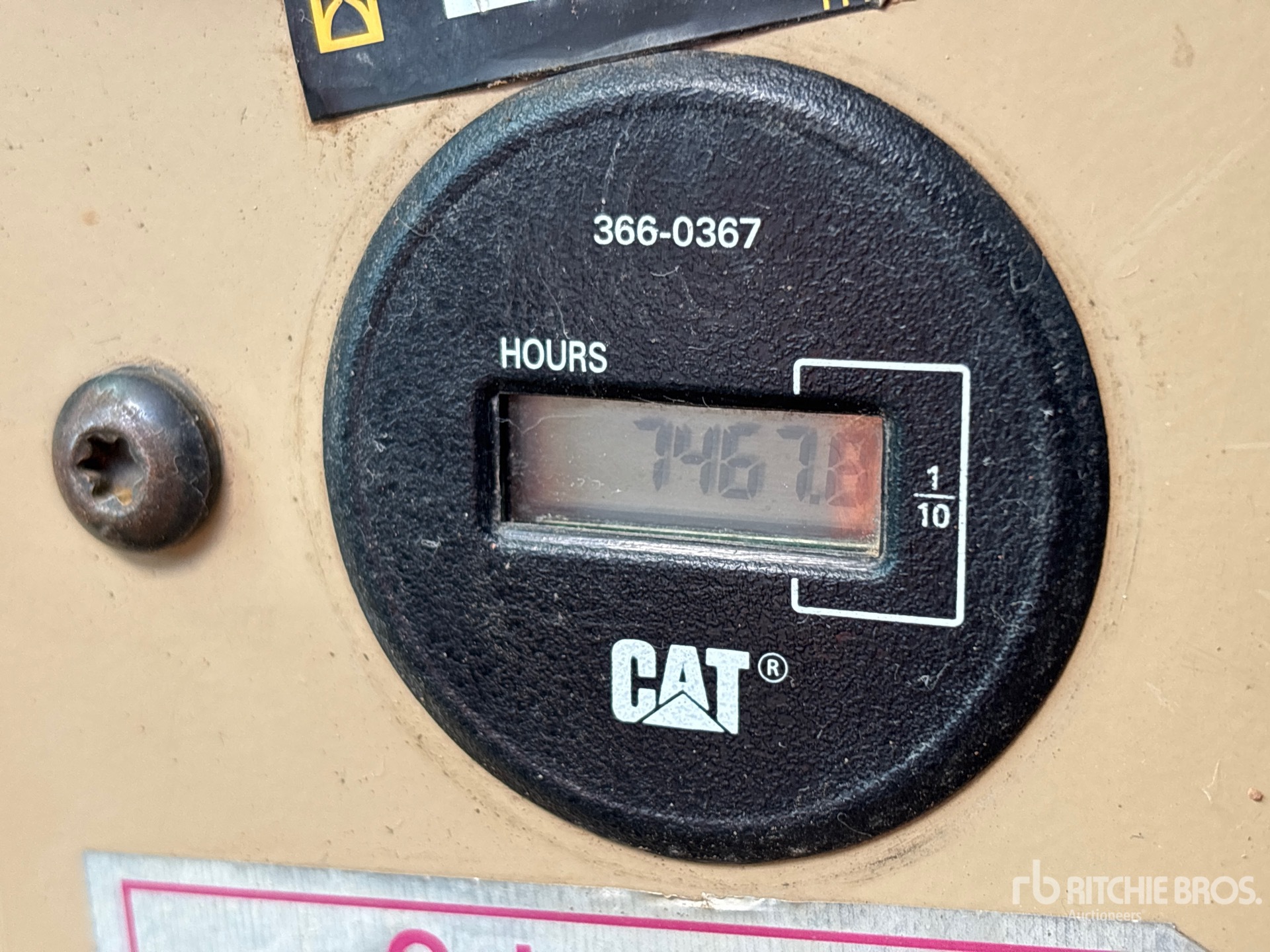

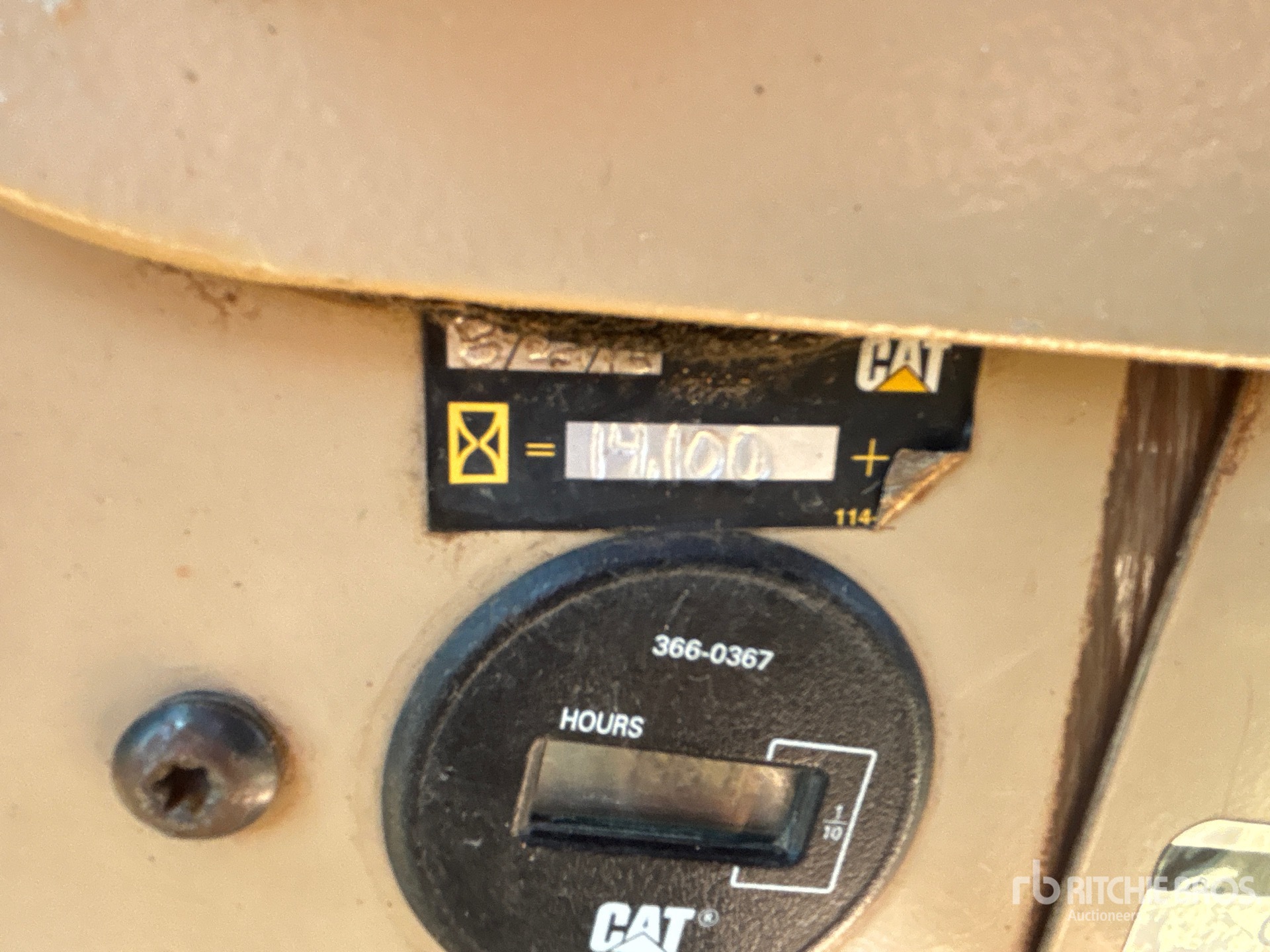

Hours:	7467

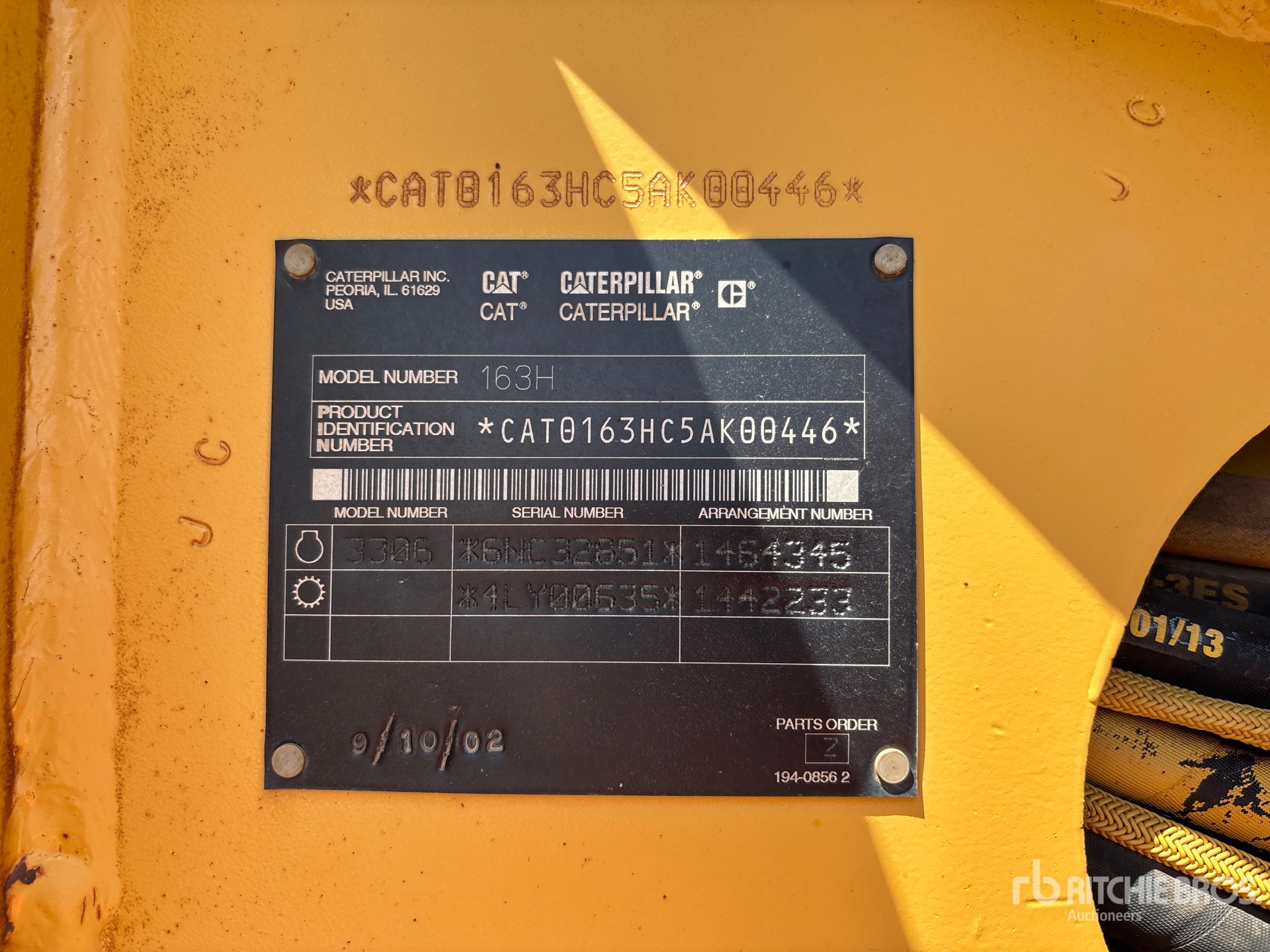

Serial Number:	CAT0163HC5AK00446
Machine Location:	DENVER, CO

Description:

Enclosed Cab, Air Conditioner, Air Ride Seat, Differential Lock, 14 ft / 4.27 m Moldboard, Lift Group, Combination Ripper/Scarifier, 14.00R24 Tires, Mid-Mount Auxiliary Hydraulics Closing Time: 2026-06-23 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 163H is a motor grader designed for road construction, maintenance, and earthmoving applications. Built by Caterpillar, the 163H features a heavy-duty frame, articulated steering, and a moldboard system for precise grading and surface shaping. It is commonly used for highway work, site preparation, ditching, and snow removal. The machine is typically equipped with a diesel engine, hydraulic controls, and an operator cab designed for visibility and control. The Caterpillar 163H is part of Caterpillar's motor grader lineup and is recognized for its use in grading, leveling, and finishing tasks across construction and municipal operations.

Circle
Blade Tip Angle - Front	40 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	60 in (153 cm)
Max Lift Above Ground	18 in (45 cm)
Max Reach Outside Tires - Left	88 in (222 cm)
Max Reach Outside Tires - Right	89 in (226 cm)
Shift Left	33 in (85 cm)
Shift Right	35 in (88 cm)
Dimensions
Blade Base	8 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	10 ft (3 m)
Overall Length	29 ft (9 m)
Rear Ground Clearance	1 ft (0 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (3 m)
Engine
Displacement	629 cu in (10,307 cu cm)
Engine Model	3176C DITA ATAAC VHP
Max Power	220 hp (164 kw)
Net Power Gear 1-2	180 hp (134 kw)
Net Power Gear 4-6	200 hp (149 kw)
Net Power Gear 5-6	200 hp (149 kw)
Net Power Gears 7-8	220 hp (164 kw)
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	54 gpm (206 lpm)
Pump Type	axial piston
Relief Valve Pressure	3,500 psi
Moldboard
Blade Down Pressure	31,670 lbs (14,365 kg)
Blade Pull at Max Weight	46,193 lbs (20,953 kg)
Max Depth of Cut	30 in (77 cm)
Moldboard Height	27 in (69 cm)
Moldboard Thickness	1 in (3 cm)
Moldboard Width	14 ft (4 m)
Side Shift Left	34 in (85 cm)
Side Shift Right	37 in (94 cm)
Operating Specifications
Circle Gearbox Fluid Capacity	2 gal (7 l)
Cooling System Fluid Capacity	10 gal (38 l)
Fuel Capacity	105 gal (397 l)
Hydraulic System Fluid Capacity	21 gal (79 l)
Max Operation Weight - Front Axle	18,322 lbs (8,311 kg)
Max Operation Weight - Rear Axle	33,004 lbs (14,970 kg)
Max Operation Weight - Total	51,326 lbs (23,281 kg)
Rear Diff/Final Drive Fluid Capacity	12 gal (47 l)
Std Operation Weight - Front Axle	10,119 lbs (4,590 kg)
Std Operation Weight - Rear Axle	25,771 lbs (11,690 kg)
Std Operation Weight - Total	35,890 lbs (16,279 kg)
Tandem Case Fluid Capacity (each)	21 gal (80 l)
Steering System
Articulation Angle	20 degrees
Turning Radius	25 ft (8 m)
Transmission
Max Speed - Forward	27 mph (44 kph)
Max Speed - Reverse	21 mph (34 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	6
Transmission Type	direct drive power shift
