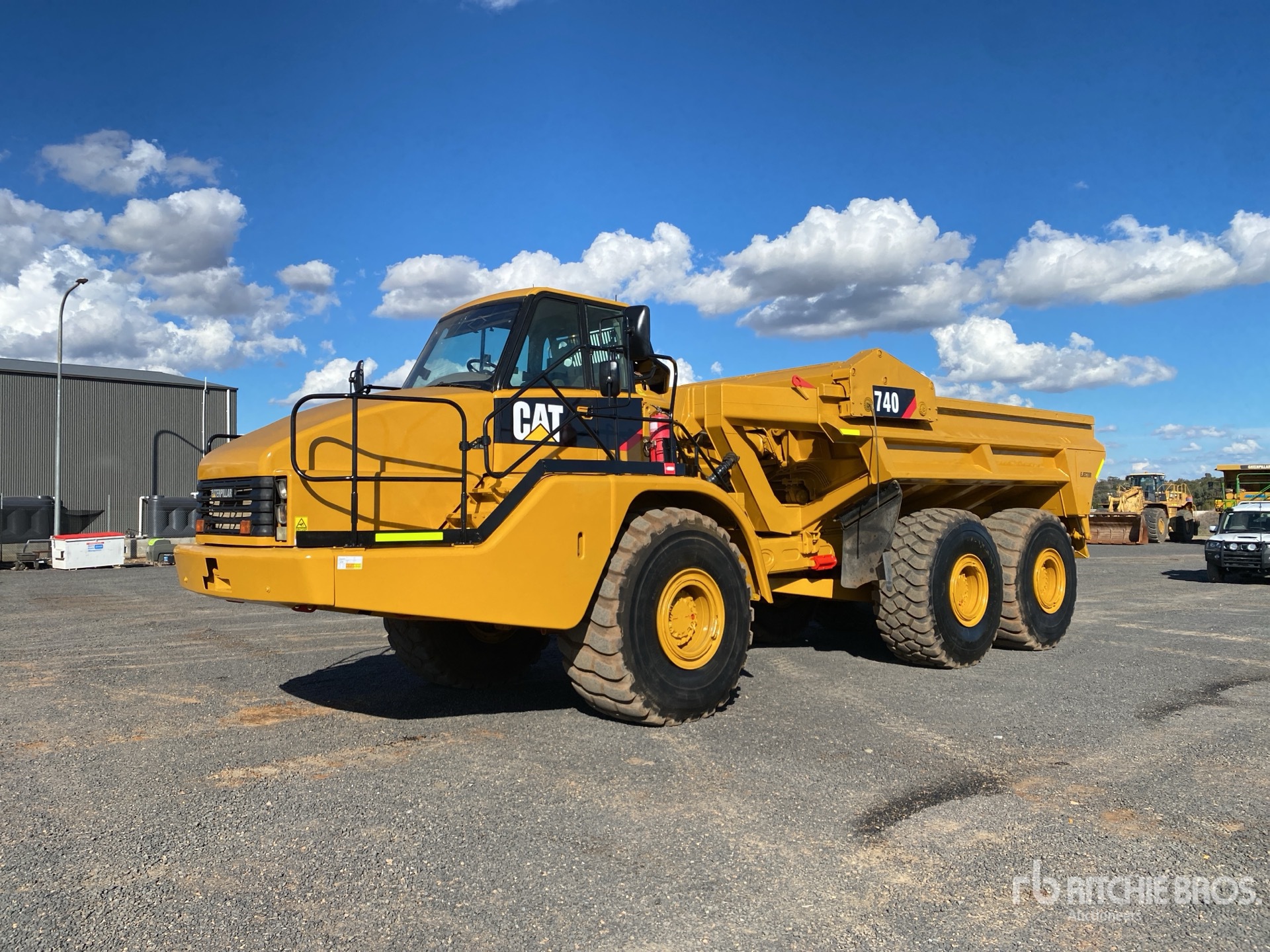

| Articulating/Rigid |
|
Articulating/Rigid |
Articulated |
| Body Plate |
|
Body Plate Type |
High Strength Brinell HB450 Wear Resistant Steel |
| Body Plate Thickness |
|
Base |
0 in (1 cm)
|
|
Front |
0 in (1 cm)
|
|
Side |
0 in (1 cm)
|
| Dimensions |
|
Dump Ground Clearance |
4 ft (1 m)
|
|
Ground Clearance |
2 ft (1 m)
|
|
Overall Height |
12 ft (4 m)
|
|
Overall Length |
38 ft (12 m)
|
|
Overall Width |
11 ft (3 m)
|
|
Wheelbase |
18 ft (6 m)
|
| DRIVE SYSTEM |
|
Drive Config |
6x6 |
| Dump |
|
Capacity - Heaped |
36 cu yd (27 cu m)
|
|
Capacity - Struck |
23 cu yd (18 cu m)
|
| Ejector Cycle Times |
|
Eject Time |
14 seconds |
|
Retract Time |
24 seconds |
| Engine |
|
Aspiration |
Turbocharged |
|
Gross Power |
464 hp (346 kw)
|
|
Make |
Cat |
|
Net Power |
445 hp (332 kw)
|
|
Net Power - EEC 80/1269 |
458 hp (342 kw)
|
|
Net Power - ISO 14396 |
504 hp (376 kw)
|
|
Net Power - ISO 9249 |
458 hp (342 kw)
|
|
No Engine De-rating Required Below |
10,000 ft (3,048 m)
|
|
Number of Cylinders |
6 |
|
Peak Engine Torque Gross (SAE J1995) |
1,931 lbs ft (2,618 nm)
|
|
Peak Engine Torque Net (SAE J1349) |
1,887 lbs ft (2,558 nm)
|
|
Peak Engine Torque Speed |
1,200 rpm |
|
Power Measured @ |
1,700 rpm |
| General Specifications |
|
Articulated/Rigid (Since 2018)
|
A |
|
Articulated/Rigid (2019)
|
A |
|
Articulated/Rigid (2020)
|
A |
|
Articulated/Rigid (2021)
|
A |
|
Articulated/Rigid (2022)
|
A |
|
Articulated/Rigid (2023)
|
A |
|
Articulated/Rigid (Since 2024)
|
Articulated |
|
Drive Configuration (Since 2018)
|
6WD |
|
Drive Configuration (2019)
|
6WD |
|
Drive Configuration (2020)
|
6WD |
|
Drive Configuration (2021)
|
6WD |
|
Drive Configuration (2022)
|
6WD |
|
Drive Configuration (2023)
|
6WD |
|
Drive Configuration (2024)
|
6WD |
|
Engine Type (Since 2018)
|
Cat C18 ACERT |
|
Engine Type (2019)
|
Cat C18 ACERT |
|
Engine Type (2020)
|
Cat C18 ACERT |
|
Engine Type (2021)
|
Cat C18 ACERT |
|
Engine Type (Since 2022)
|
Cat C18 |
|
Engine Type (2023)
|
Cat C18 |
|
Engine Type (2024)
|
Cat C18 |
|
Mfg. Model (Since 2018)
|
740 EJ |
|
Mfg. Model (2019)
|
740 EJ |
|
Mfg. Model (2020)
|
740 EJ |
|
Mfg. Model (2021)
|
740 EJ |
|
Mfg. Model (2022)
|
740 EJ |
|
Mfg. Model (2023)
|
740 EJ |
|
Mfg. Model (2024)
|
740 EJ |
|
Operating Weight Pounds (Kgs) (Since 2018)
|
79,622 (36,116) |
|
Operating Weight Pounds (Kgs) (2019)
|
79,622 (36,116) |
|
Operating Weight Pounds (Kgs) (2020)
|
79,622 (36,116) |
|
Operating Weight Pounds (Kgs) (2021)
|
79,622 (36,116) |
|
Operating Weight Pounds (Kgs) (2022)
|
79,622 (36,116) |
|
Operating Weight Pounds (Kgs) (2023)
|
79,622 (36,116) |
|
Operating Weight Pounds (Kgs) (2024)
|
79,622 (36,116) |
|
Planetary Powershift Transmission (Since 2018)
|
Powershift w/ lockup torque converter |
|
Planetary Powershift Transmission (2019)
|
Powershift w/ lockup torque converter |
|
Planetary Powershift Transmission (2020)
|
Powershift w/ lockup torque converter |
|
Planetary Powershift Transmission (2021)
|
Powershift w/ lockup torque converter |
|
Planetary Powershift Transmission (2022)
|
Powershift w/ lockup torque converter |
|
Planetary Powershift Transmission (2023)
|
Powershift w/ lockup torque converter |
|
Planetary Powershift Transmission (2024)
|
Powershift w/ lockup torque converter |
|
Rated Payload Tons (Metric Tons) (Since 2018)
|
42 (38) |
|
Rated Payload Tons (Metric Tons) (2019)
|
42 (38) |
|
Rated Payload Tons (Metric Tons) (2020)
|
42 (38) |
|
Rated Payload Tons (Metric Tons) (2021)
|
42 (38) |
|
Rated Payload Tons (Metric Tons) (2022)
|
42 (38) |
|
Rated Payload Tons (Metric Tons) (2023)
|
42 (38) |
|
Rated Payload Tons (Metric Tons) (2024)
|
42 (38) |
| Operating Specifications |
|
Cooling System Fluid Capacity |
21 gal (80 l)
|
|
Engine Oil Capacity |
10 gal (38 l)
|
|
Fuel Capacity |
148 gal (560 l)
|
|
Hydraulic System Fluid Capacity |
62 gal (233 l)
|
|
Tire Size |
29.5R25 |
|
Transmission Fluid Capacity |
19 gal (72 l)
|
| Operating Weights |
|
Total - Rated Load |
83,776 lbs (38,000 kg)
|
| Service Refill Capacities |
|
Axles - Each |
16 gal (60 l)
|
|
Brake Cooling Tank |
18 gal (67 l)
|
|
DEF Tank |
5 gal (20 l)
|
|
Final Drive - Each |
1 gal (5 l)
|
|
Final Drives/Differential |
61 gal (230 l)
|
|
Hydraulic System |
87 gal (330 l)
|
|
Output Transfer Gear Box |
5 gal (18 l)
|
|
Steering/Hoist Hydraulic System |
37 gal (140 l)
|
|
Transmission |
19 gal (72 l)
|
|
Transmission - OTG |
20 gal (75 l)
|
| Standards |
|
Cab - FOPS |
ISO 3449 Level II 2005 |
|
Cab - ROPS |
ISO 3471 2008 |
|
Steering |
ISO 5010 2007 |
| Steering System |
|
Lock to Lock |
4.8 seconds @ 60 rpm |
| Transmission |
|
Forward - 8 |
24 mph (38 kph)
|
|
Forward - 9 |
34 mph (55 kph)
|
|
Max Speed |
34 mph (55 kph)
|
|
Number of Forward Gears |
7 |
|
Number of Reverse Gears |
1 |
|
Transmission Type |
Powershift |
| Turning Circle |
|
Turning Dimensions - Aisle Width |
233 in (592 cm)
|
|
Turning Dimensions - Clearance Radius |
356 in (904 cm)
|
|
Turning Dimensions - Inside Radius |
173 in (439 cm)
|
|
Turning Dimensions - SAE Turning Radius |
339 in (861 cm)
|
| Weights |
|
Center Axle - empty |
18,166 lbs (8,240 kg)
|
|
Center Axle - loaded |
58,246 lbs (26,420 kg)
|
|
Front Axle - empty |
43,652 lbs (19,800 kg)
|
|
Front Axle - loaded |
47,267 lbs (21,440 kg)
|
|
Operating Weight |
157,650 lbs (71,509 kg)
|
|
Rear Axle - empty |
16,689 lbs (7,570 kg)
|
|
Rear Axle - loaded |
56,769 lbs (25,750 kg)
|
|
Total Empty |
78,507 lbs (35,610 kg)
|
|
Total Loaded |
162,282 lbs (73,610 kg)
|
