2017 Caterpillar 745C For Sale in Ocana, Esp

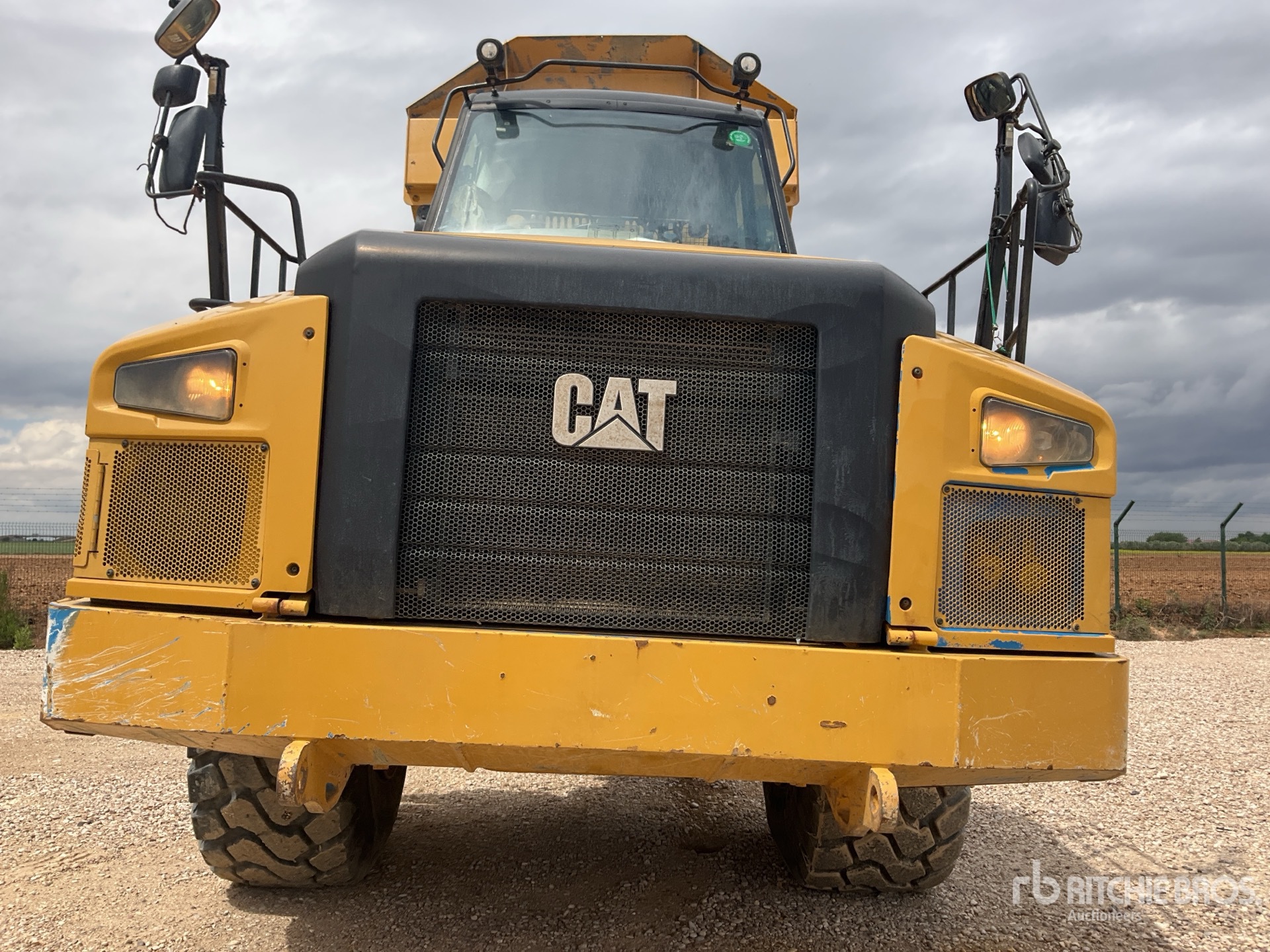

Name: 2017 Caterpillar 745C
Brand: Caterpillar
SKU: 87751207
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-10 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	13500

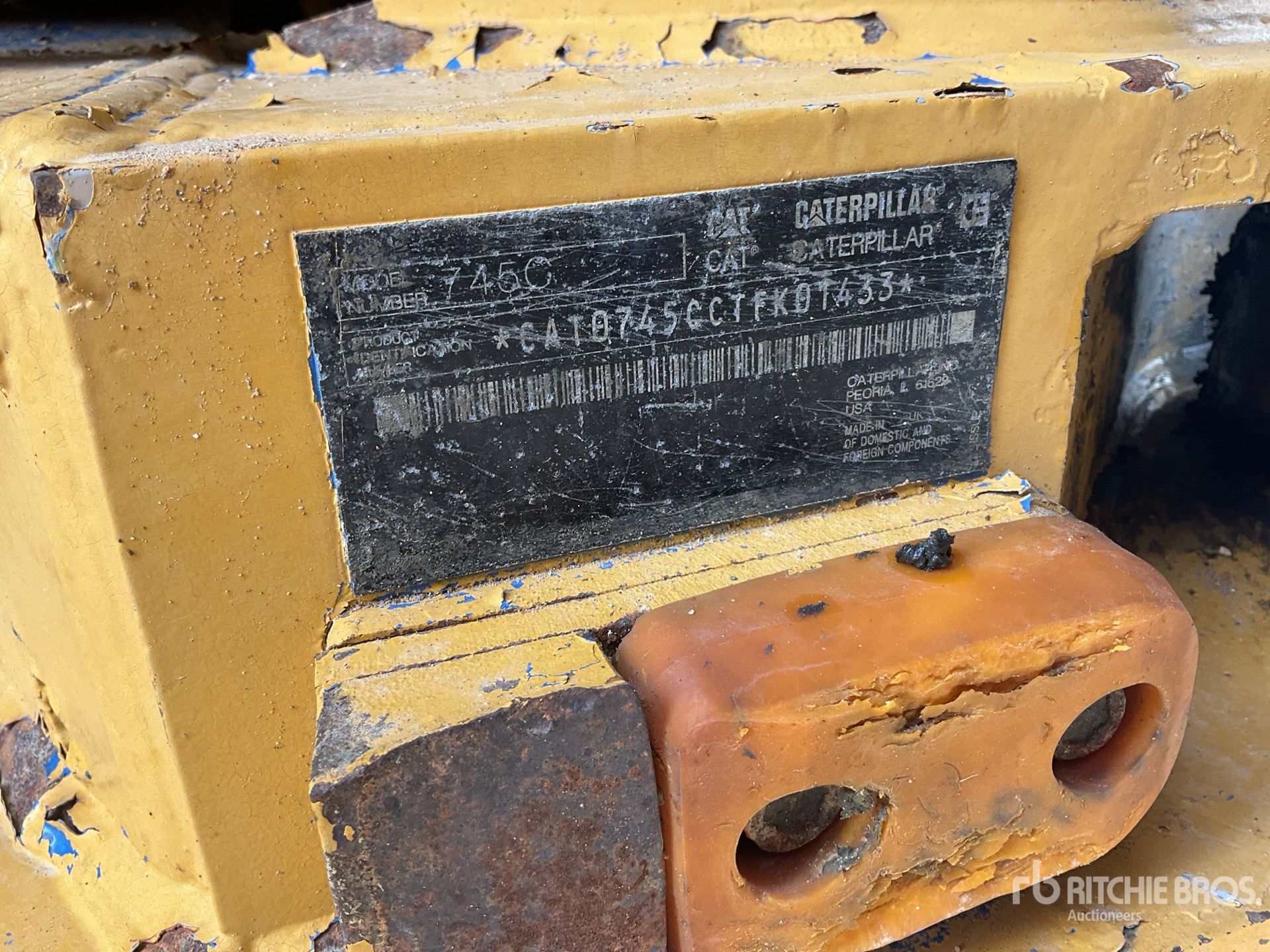

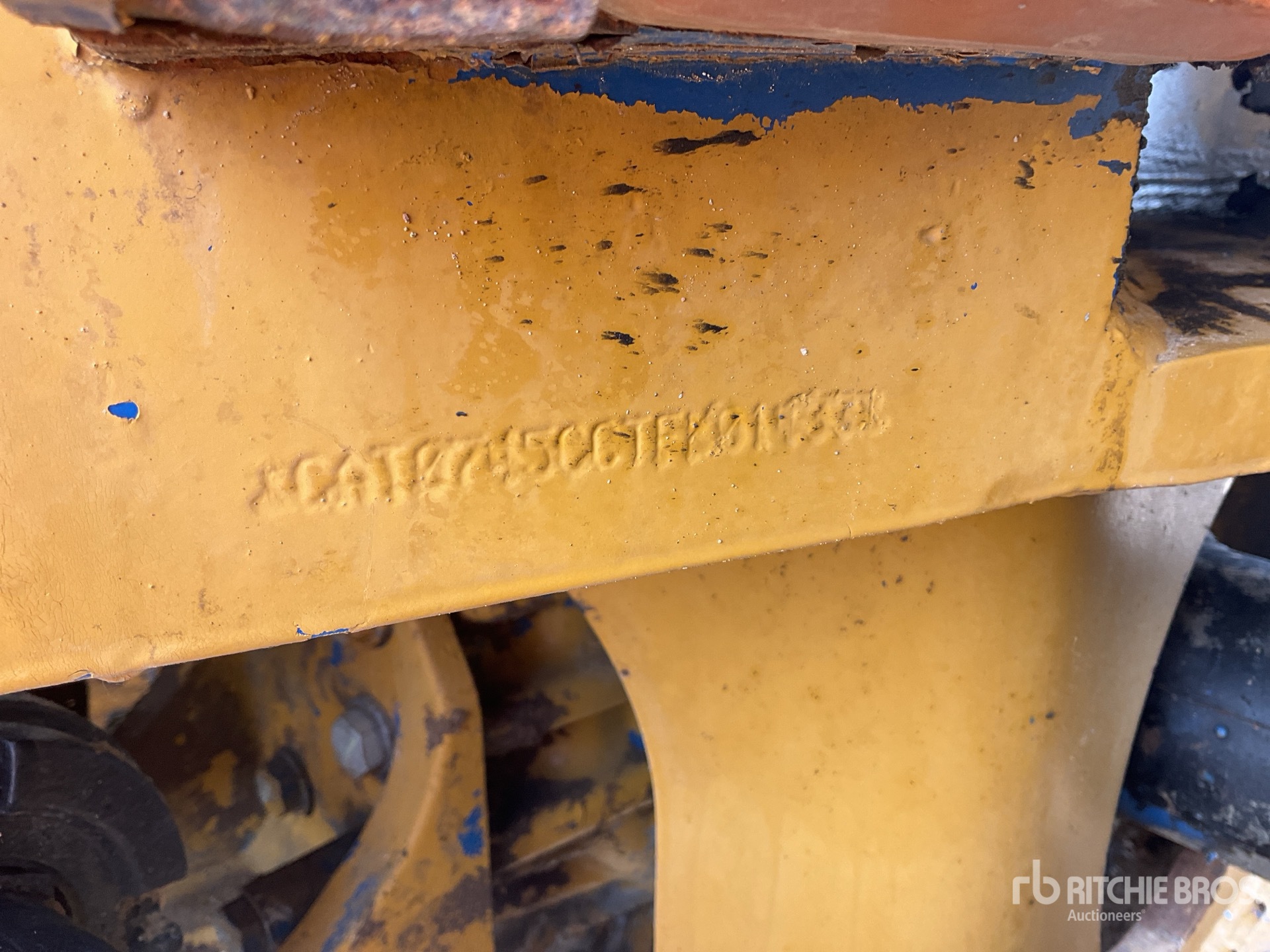

Serial Number:	CAT0745CCTFK01433
Machine Location:	OCANA, ESP

Description:

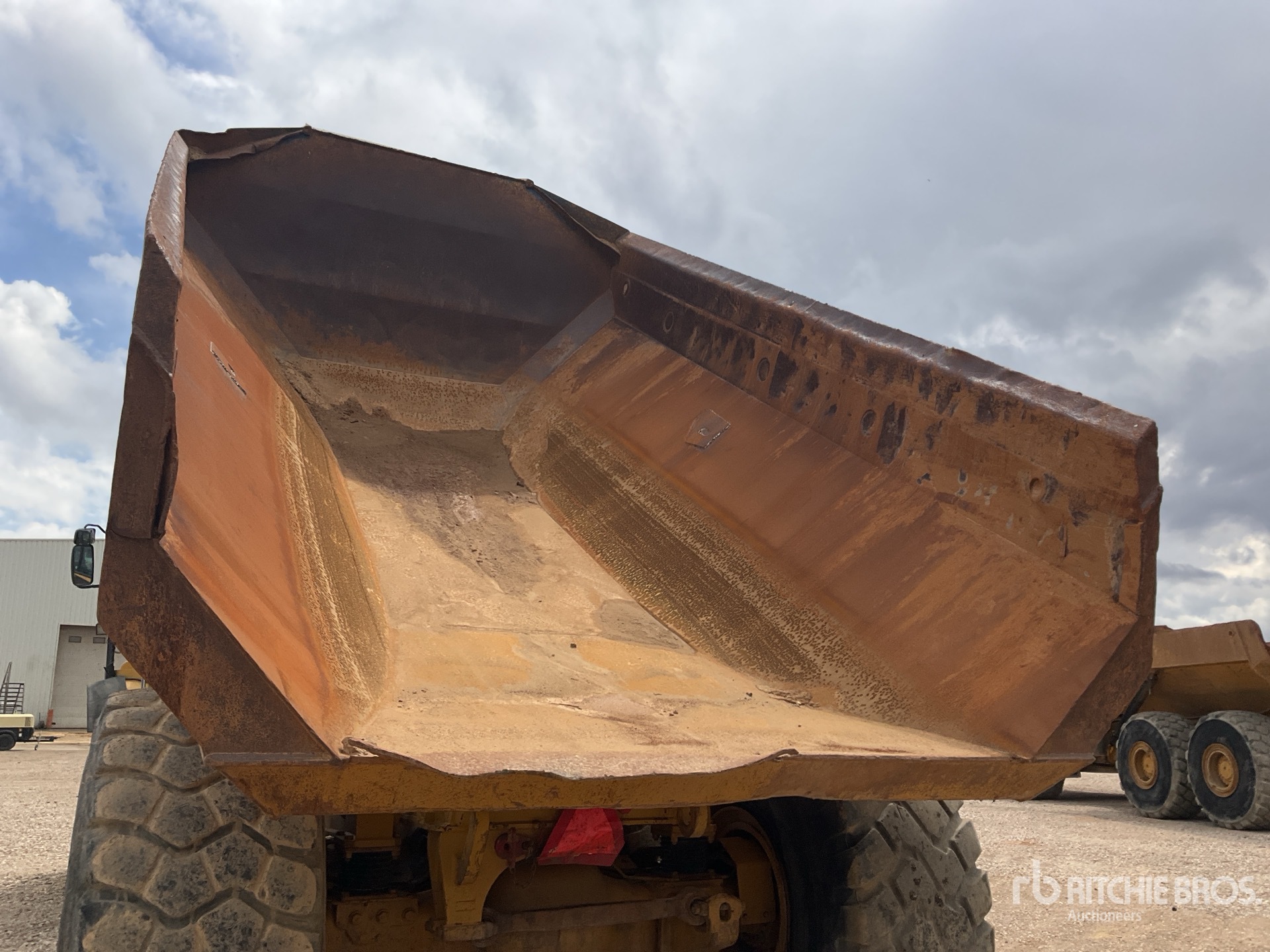

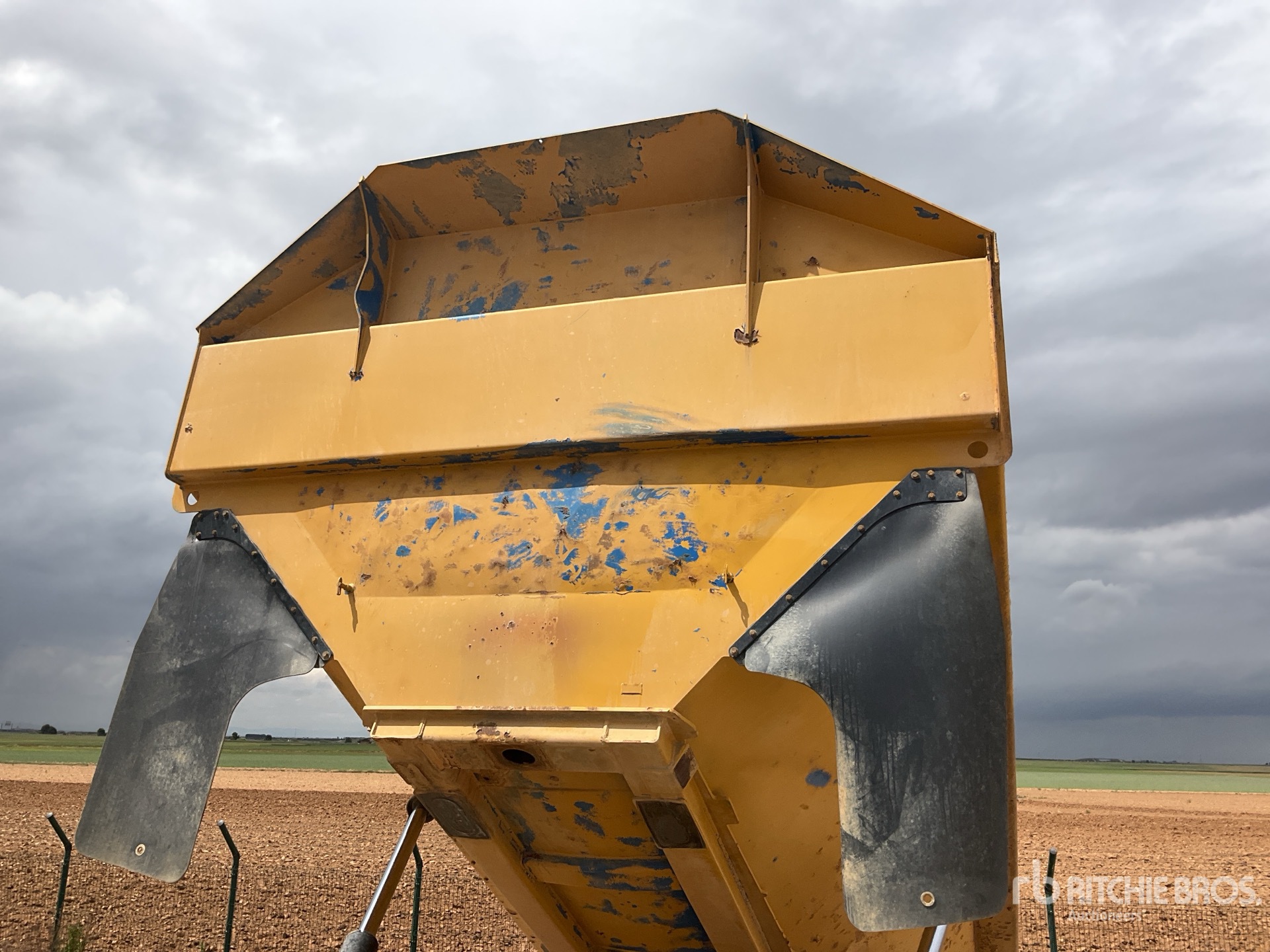

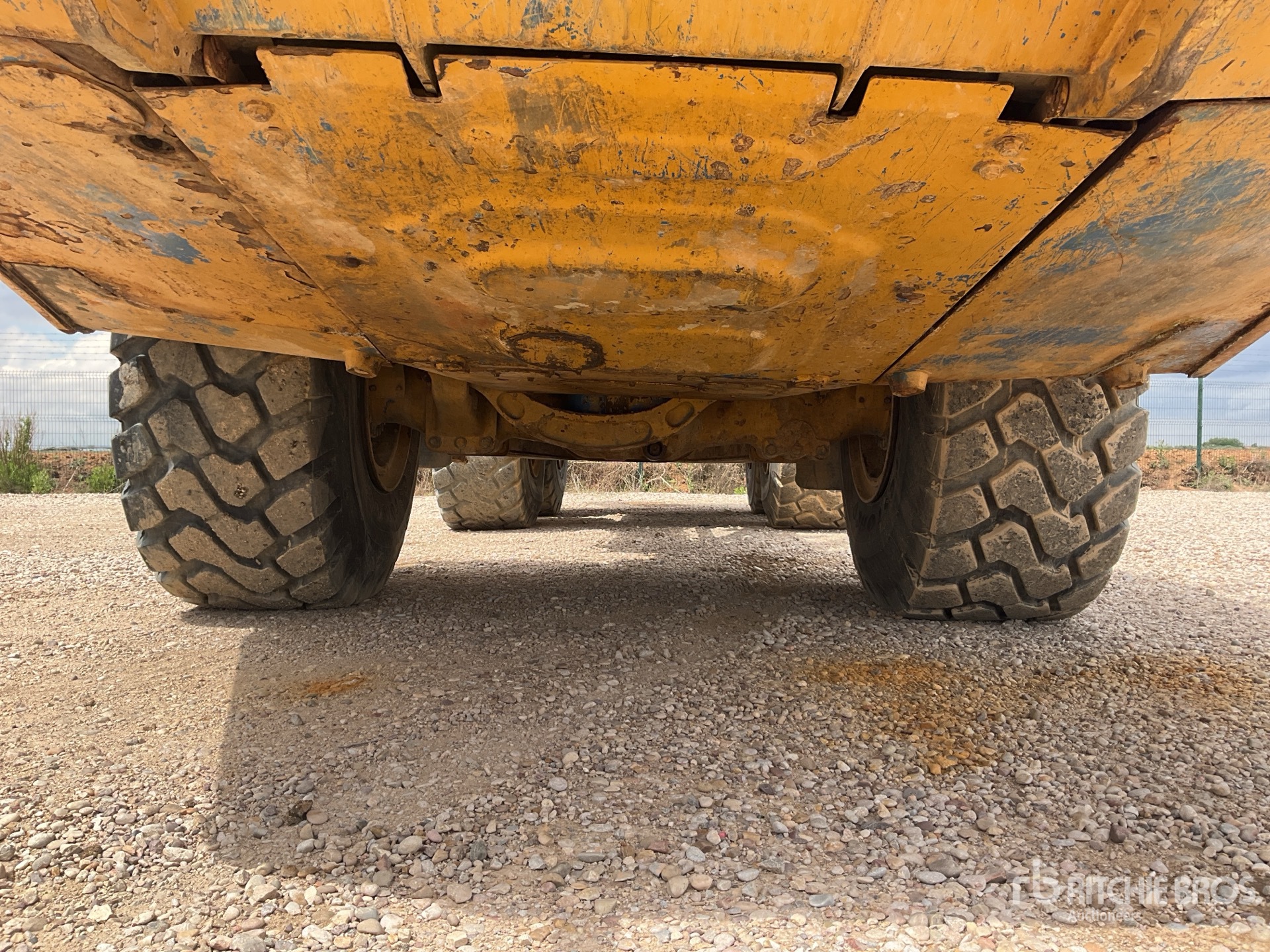

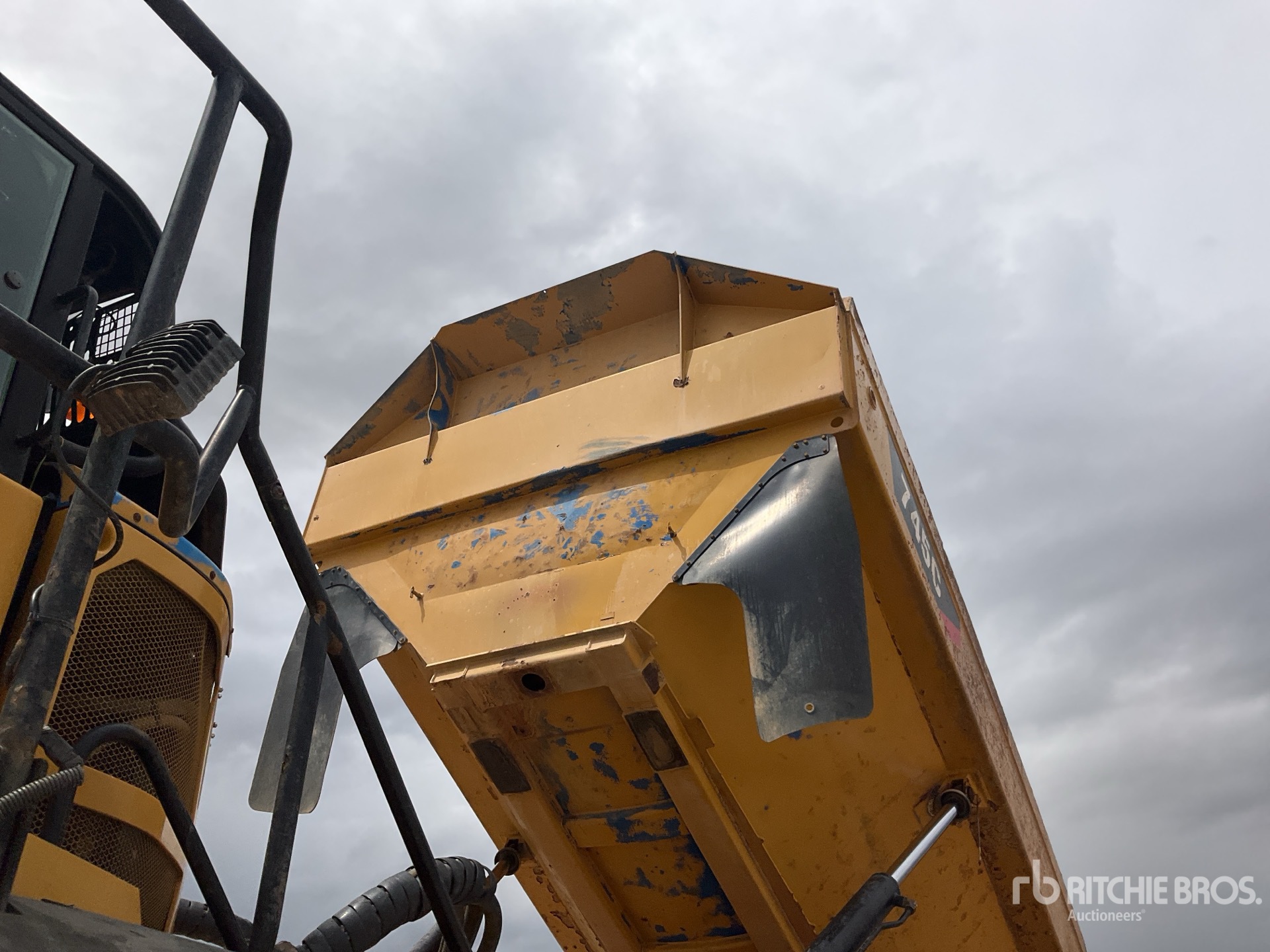

Air Conditioner, Retarder, Rear View Camera, Air Ride Seat, Requires AdBlue, Body Extensions, Steel Body Liner, 29.5R25 Tires **COPIA CERTIFICADO CE DISPONIBLE/ COPY CE CERTIFICATE AVAILABLE** Closing Time: 2026-06-10 07:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

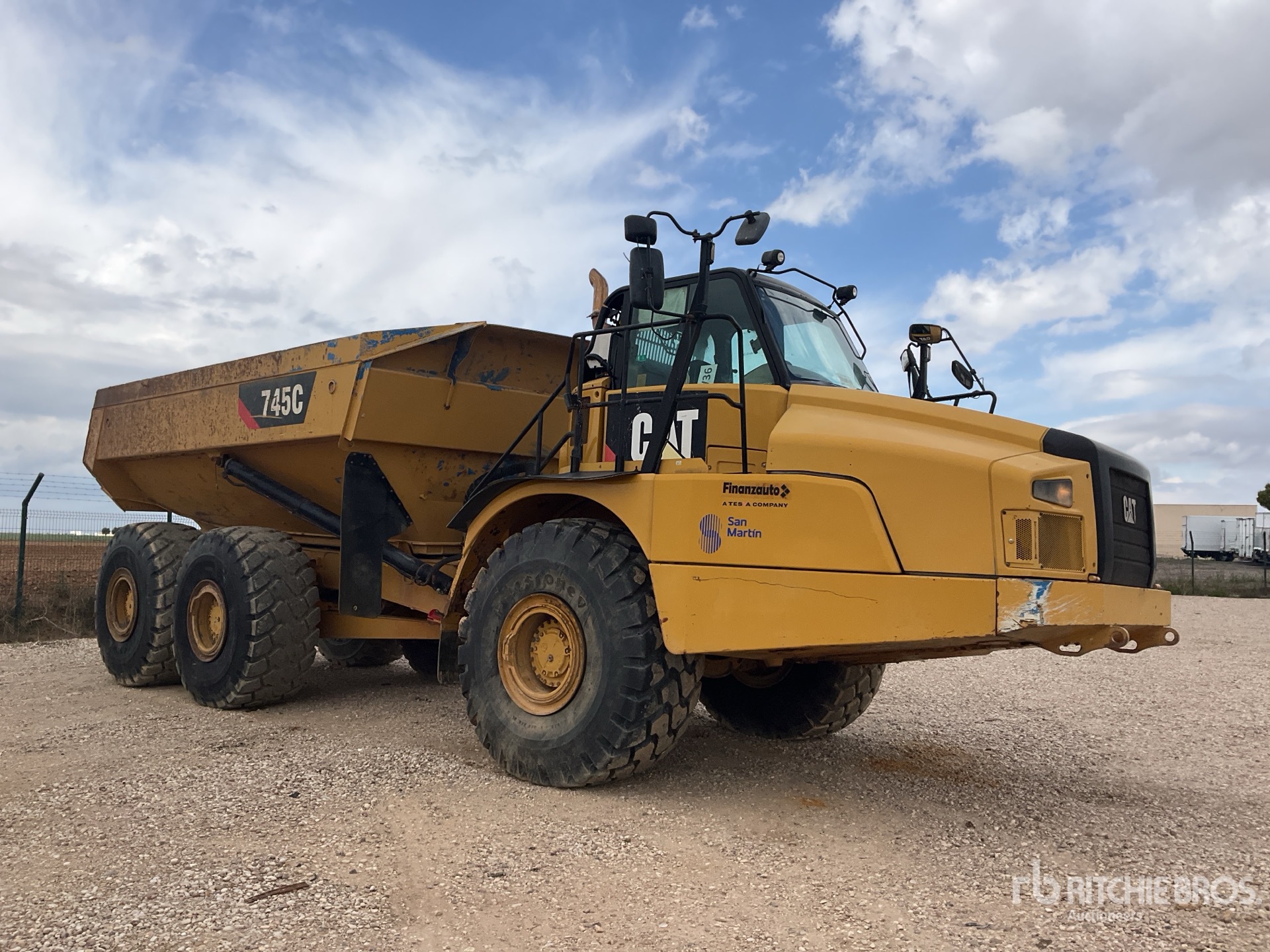

The Caterpillar 745C is an articulated off-highway truck designed for hauling material in construction, quarry, and earthmoving applications. It is part of Caterpillar's 745-series and is used for transporting loose aggregate, soil, rock, and other bulk materials over rough terrain. The 745C features a high-capacity dump body, articulated steering, and all-wheel drive for improved traction and maneuverability on uneven ground. It is commonly paired with excavators, wheel loaders, and dozers in large-scale site development and material handling operations. The model is built for heavy-duty hauling cycles, operator comfort, and reliable performance in demanding off-road environments.

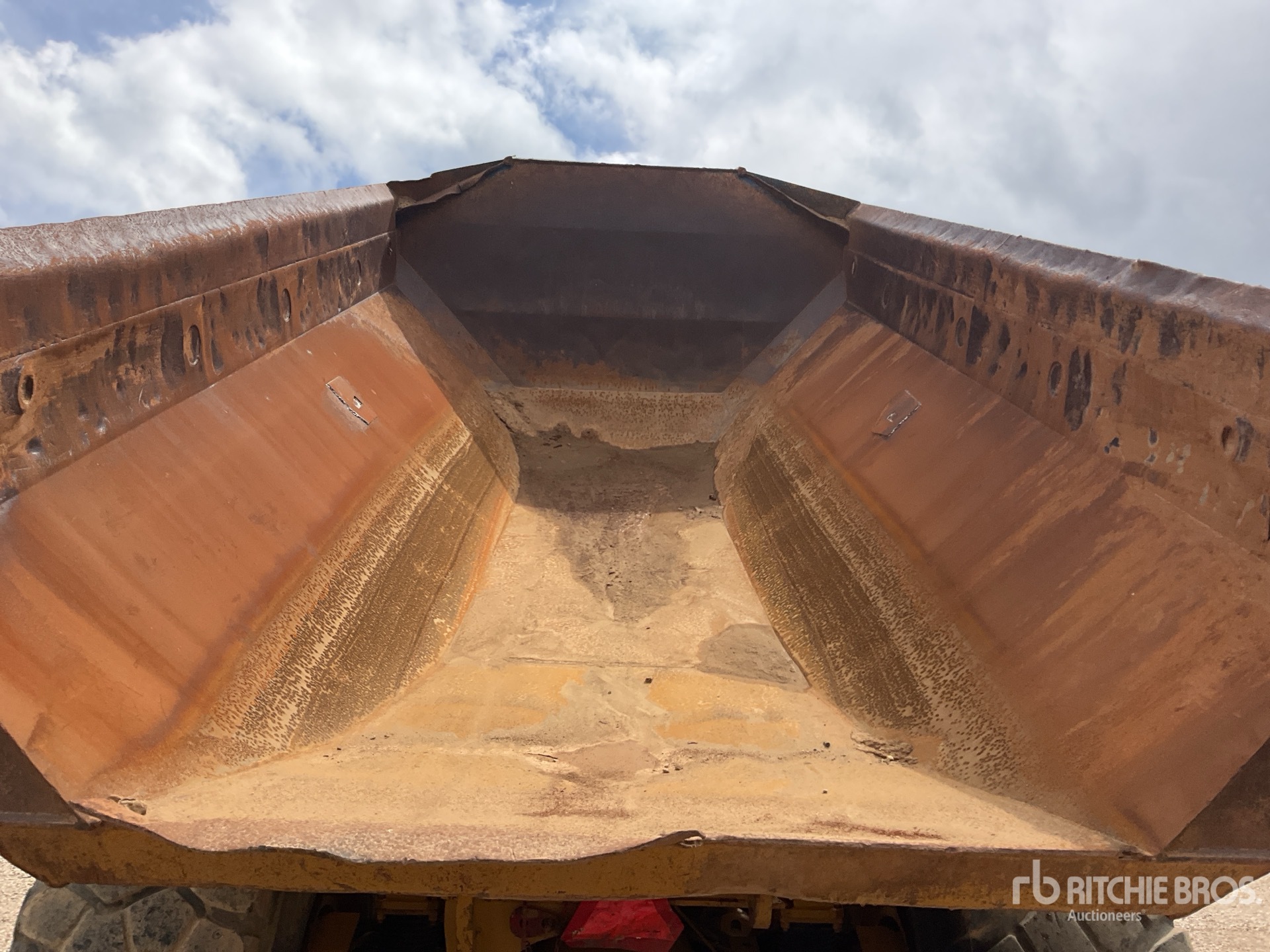

Body Capacities
Heaped (SAE 2:1)	33 cu yd (25 cu m)
Struck	24 cu yd (19 cu m)
Tailgate Heaped SAE 2:1	35 cu yd (27 cu m)
Tailgate Struck	26 cu yd (20 cu m)

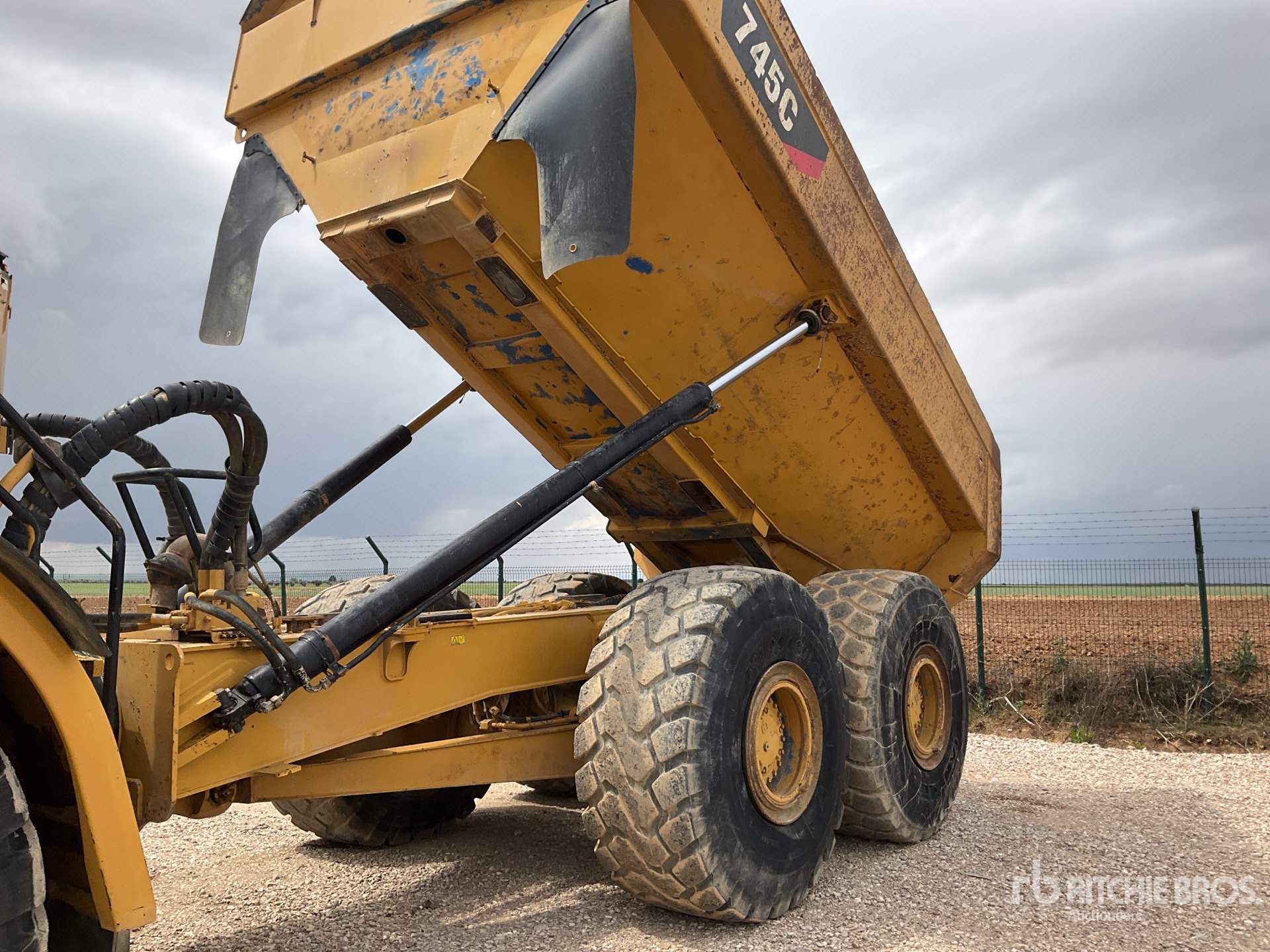

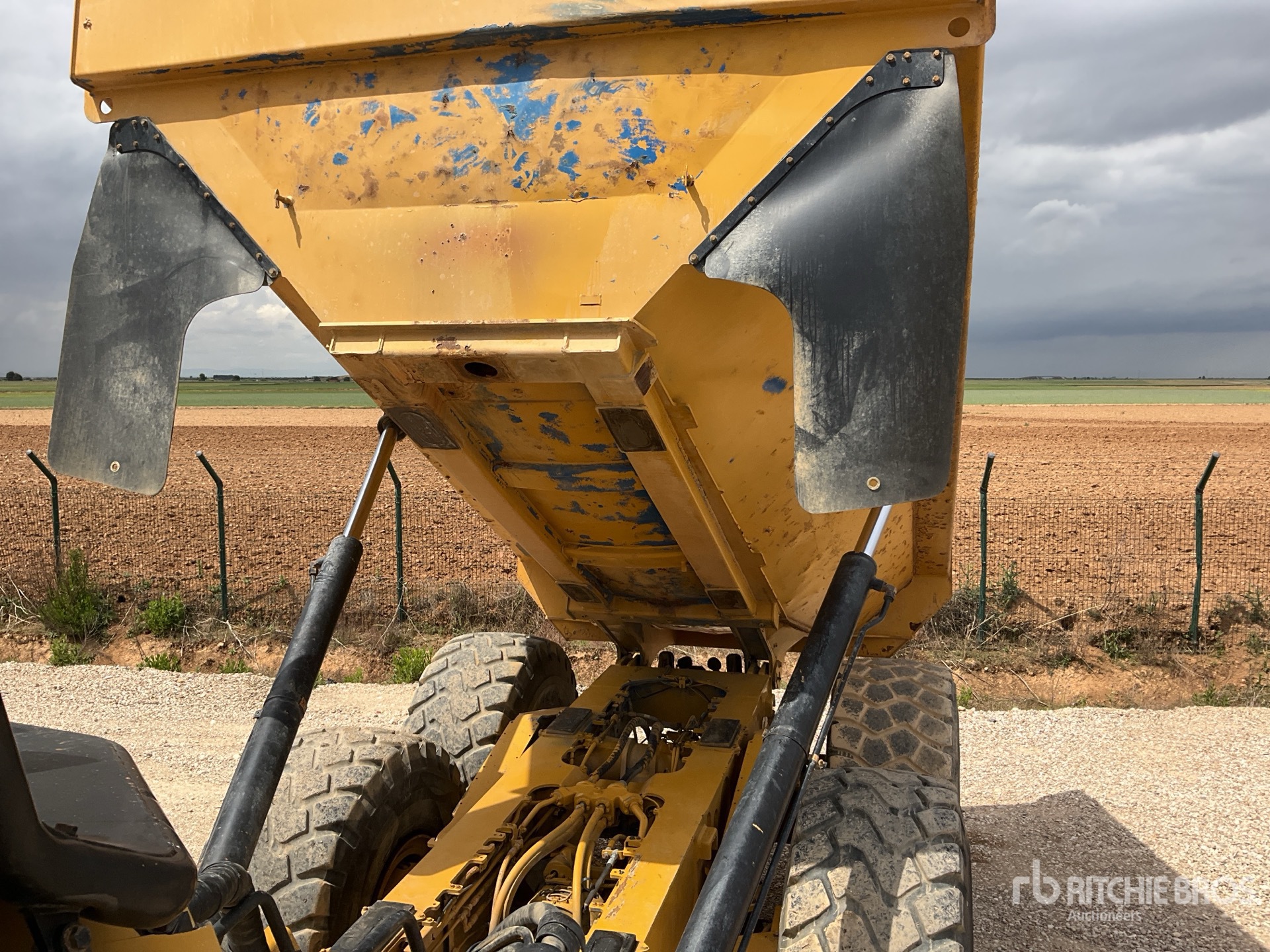

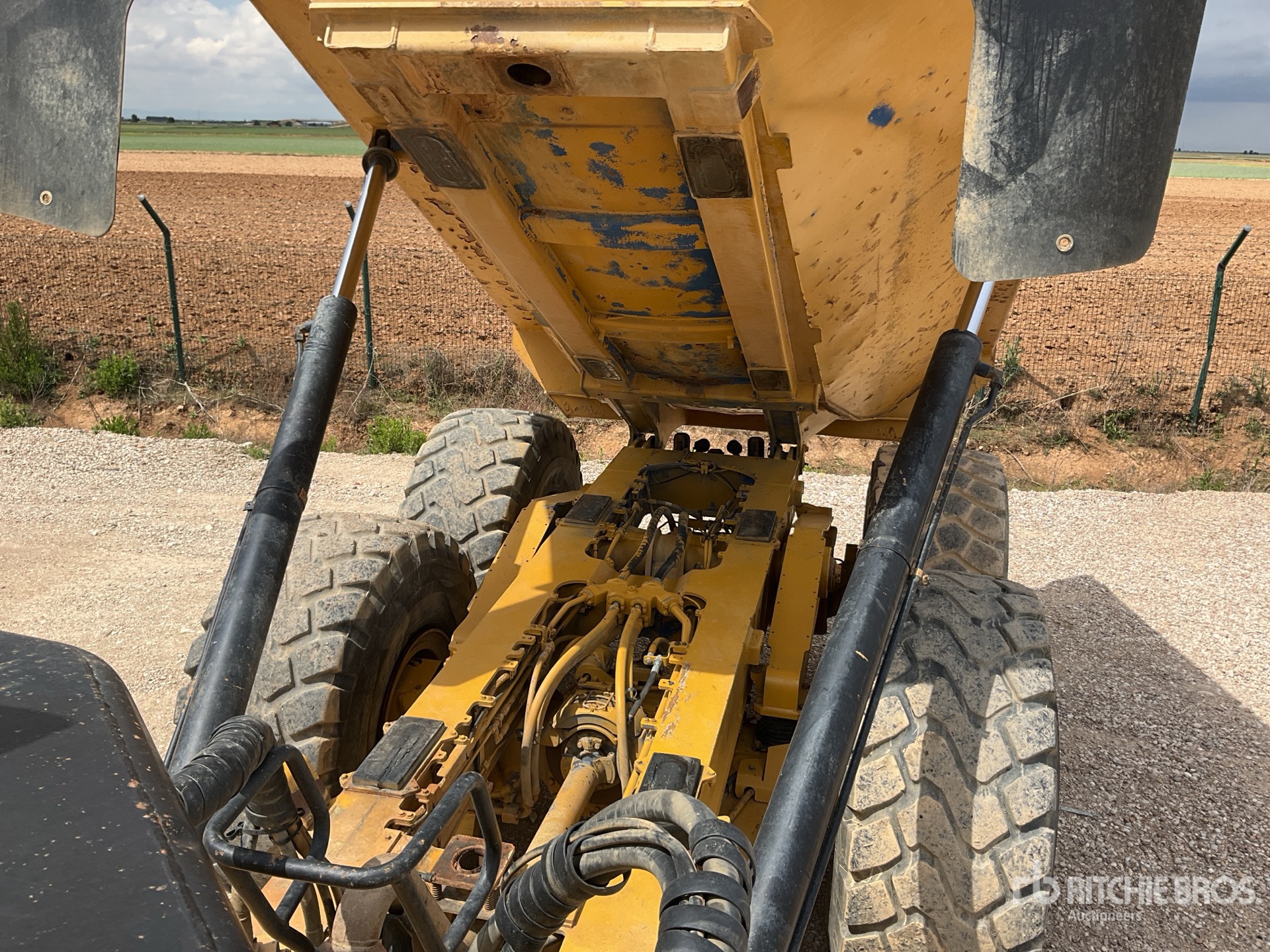

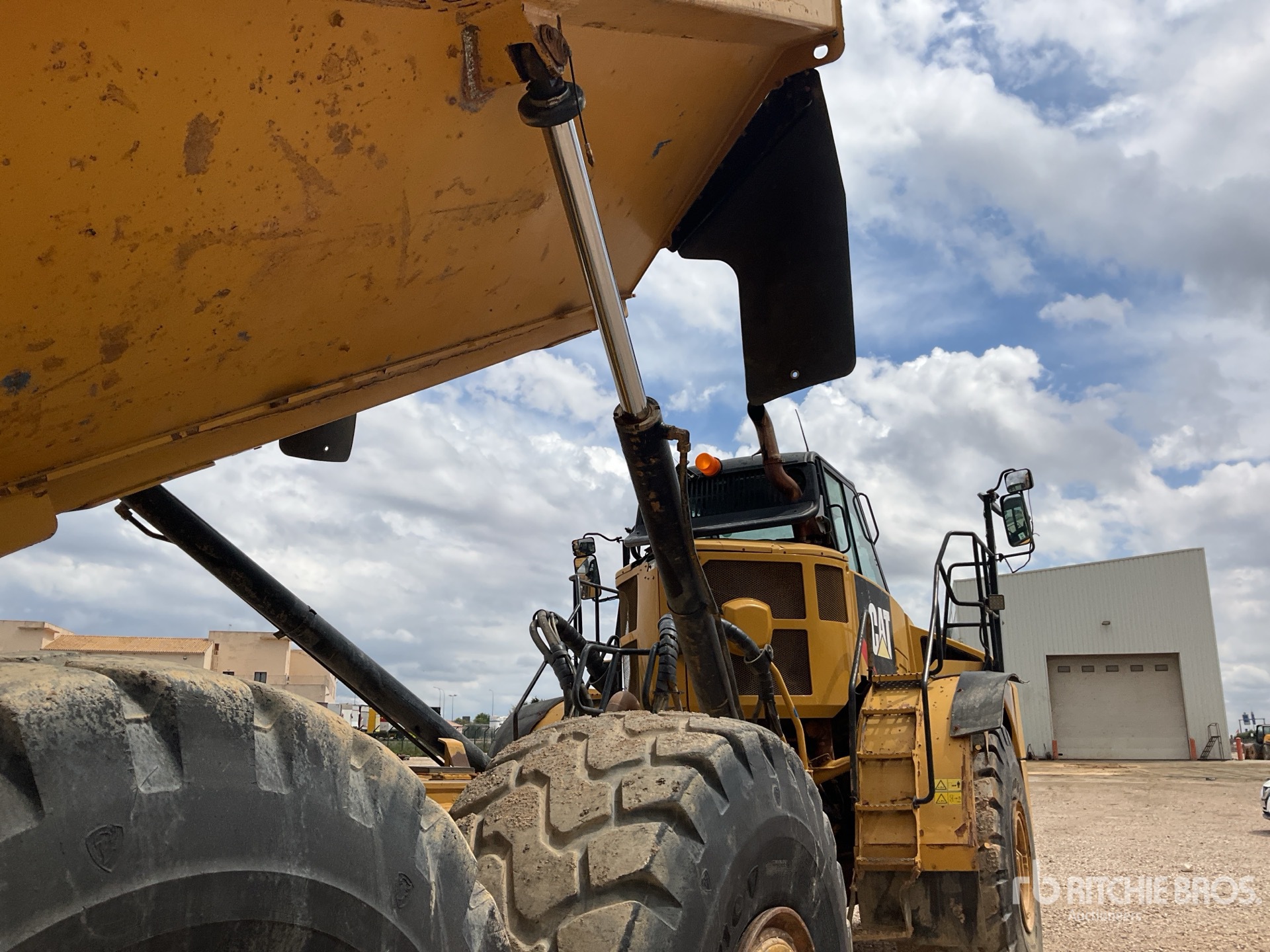

Body Hoist
Lower Time	8 seconds
Raise Time	12 seconds
Body Plate
Body Plate Type	High strength Brinell HB450 wear resistant steel

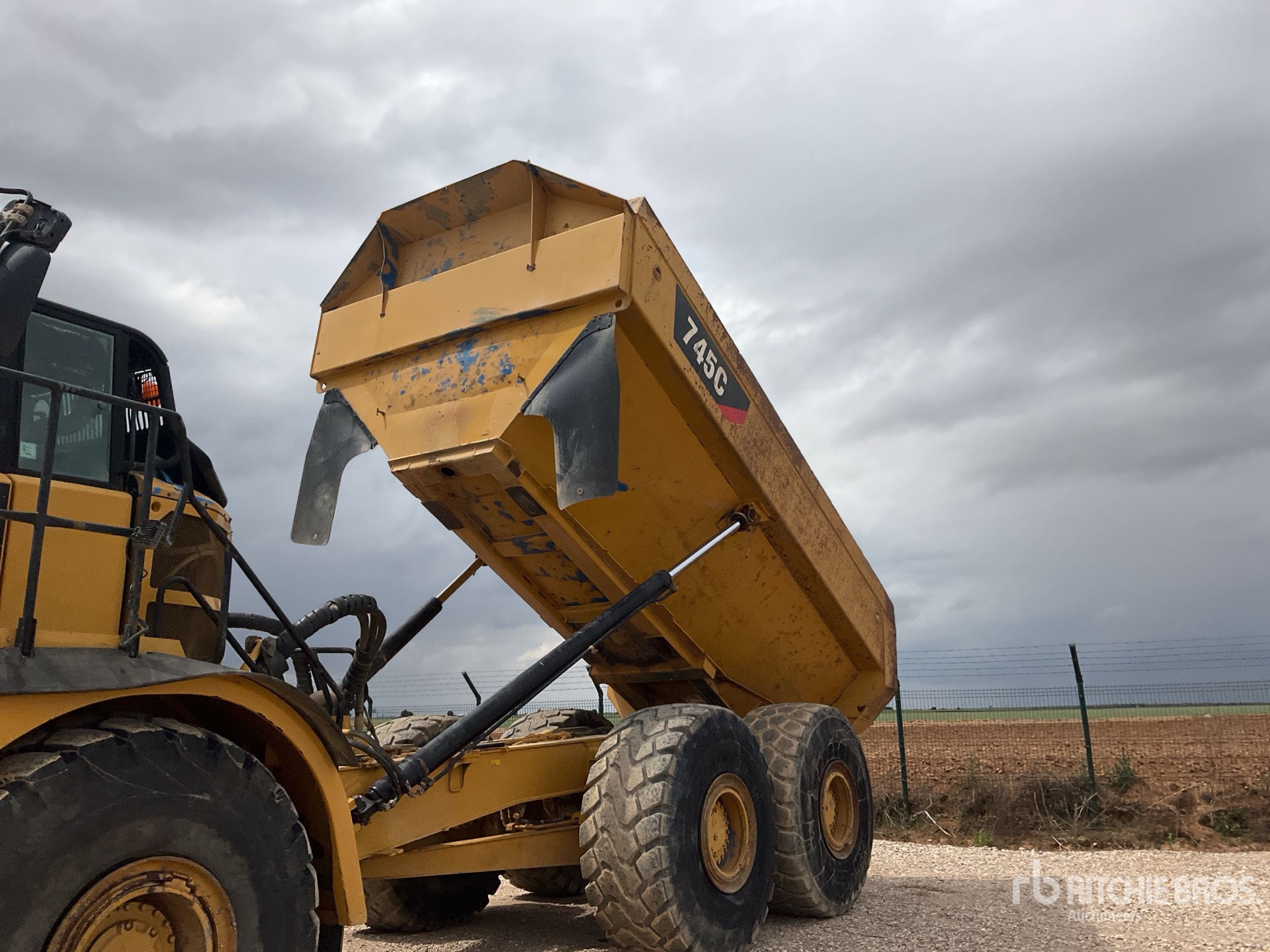

Dump
Capacity - Heaped	33 cu yd (25 cu m)
Capacity - Struck	24 cu yd (19 cu m)
Lower Time	8 seconds
Raise Time	12 seconds
Engine
Bore	6 in (14 cm)
Displacement	1,106 cu in (18,124 cu cm)
Engine Model	Cat C18 ACERT
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final	Cat C18 ACERT
Gross Power	511 hp (381 kw)
Gross Power - SAE J1995	511 hp (381 kw)
Net Power	496 hp (370 kw)
Net Power - ISO 14396	504 hp (376 kw)
Net Power - SAE J1349	496 hp (370 kw)
No Engine De-rating Required Below	10,000 ft (3,048 m)
Peak Engine Torque Gross (SAE J1995)	1,931 lbs ft (2,618 nm)
Peak Engine Torque Net (SAE J1349)	1,887 lbs ft (2,558 nm)
Peak Engine Torque Speed	1,200 rpm
Stroke	7 in (18 cm)
Torque Measured @	1,200 rpm
Operating Specifications
Cooling System Fluid Capacity	24 gal (90 l)
Fuel Capacity	145 gal (550 l)
Hydraulic System Fluid Capacity	37 gal (140 l)
Transmission Fluid Capacity	20 gal (75 l)
Operating Weights
Center Axle - Empty	15,300 lbs (6,940 kg)
Center Axle - Loaded	53,991 lbs (24,490 kg)
Center Axle - Rated Load	38,691 lbs (17,550 kg)
Front Axle - Empty	43,585 lbs (19,770 kg)
Front Axle - Loaded	56,593 lbs (25,670 kg)
Front Axle - Rated Load	13,007 lbs (5,900 kg)
Rear Axle - Empty	14,749 lbs (6,690 kg)
Rear Axle - Loaded	53,440 lbs (24,240 kg)
Rear Axle - Rated Load	38,691 lbs (17,550 kg)
Total - Empty	73,634 lbs (33,400 kg)
Total - Loaded	164,024 lbs (74,400 kg)
Total - Rated Load	90,389 lbs (41,000 kg)
Service Refill Capacities
Axles - Each	16 gal (60 l)
Brake Cooling Tank	18 gal (67 l)
Cooling System	24 gal (90 l)
DEF Tank	7 gal (25 l)
Engine Crankcase	14 gal (52 l)
Final Drive - Each	1 gal (5 l)
Fuel Tank	145 gal (550 l)
Steering/Hoist Hydraulic System	37 gal (140 l)
Transmission - OTG	20 gal (75 l)
Sound Levels
Interior Cab	79 dB(A)
Standards
Brakes	ISO 3450 2011
Cab - FOPS	ISO 3449 Level II 2005
Cab - ROPS	ISO 3471 2008
Steering	ISO 5010 2007
Steering System
Lock to Lock	4.8 seconds @ 60 rpm
Transmission
Forward - 1	4 mph (6 kph)
Forward - 2	5 mph (8 kph)
Forward - 3	7 mph (11 kph)
Forward - 4	9 mph (14 kph)
Forward - 5	12 mph (19 kph)
Forward - 6	14 mph (23 kph)
Forward - 7	20 mph (32 kph)
Forward - 8	24 mph (38 kph)
Forward - 9	34 mph (55 kph)
Number of Forward Gears	9
Number of Reverse Gears	2
Reverse - 1	4 mph (6 kph)
Reverse - 2	9 mph (15 kph)
Turning Circle
Turning Dimensions - Aisle Width	235 in (597 cm)
Turning Dimensions - Clearance Radius	358 in (909 cm)
Turning Dimensions - Inside Radius	174 in (442 cm)
Turning Dimensions - SAE Turning Radius	340 in (864 cm)
Weights
Center Axle - empty	15,300 lbs (6,940 kg)
Center Axle - loaded	53,991 lbs (24,490 kg)
Front Axle - empty	43,585 lbs (19,770 kg)
Front Axle - loaded	56,593 lbs (25,670 kg)
Rear Axle - empty	14,749 lbs (6,690 kg)
Rear Axle - loaded	53,440 lbs (24,240 kg)
Total Empty	73,634 lbs (33,400 kg)
Total Loaded	90,389 lbs (41,000 kg)
Wheel Base Length
Long Wheel Base	228 in (580 cm)
Standard Wheel Base	181 in (459 cm)
