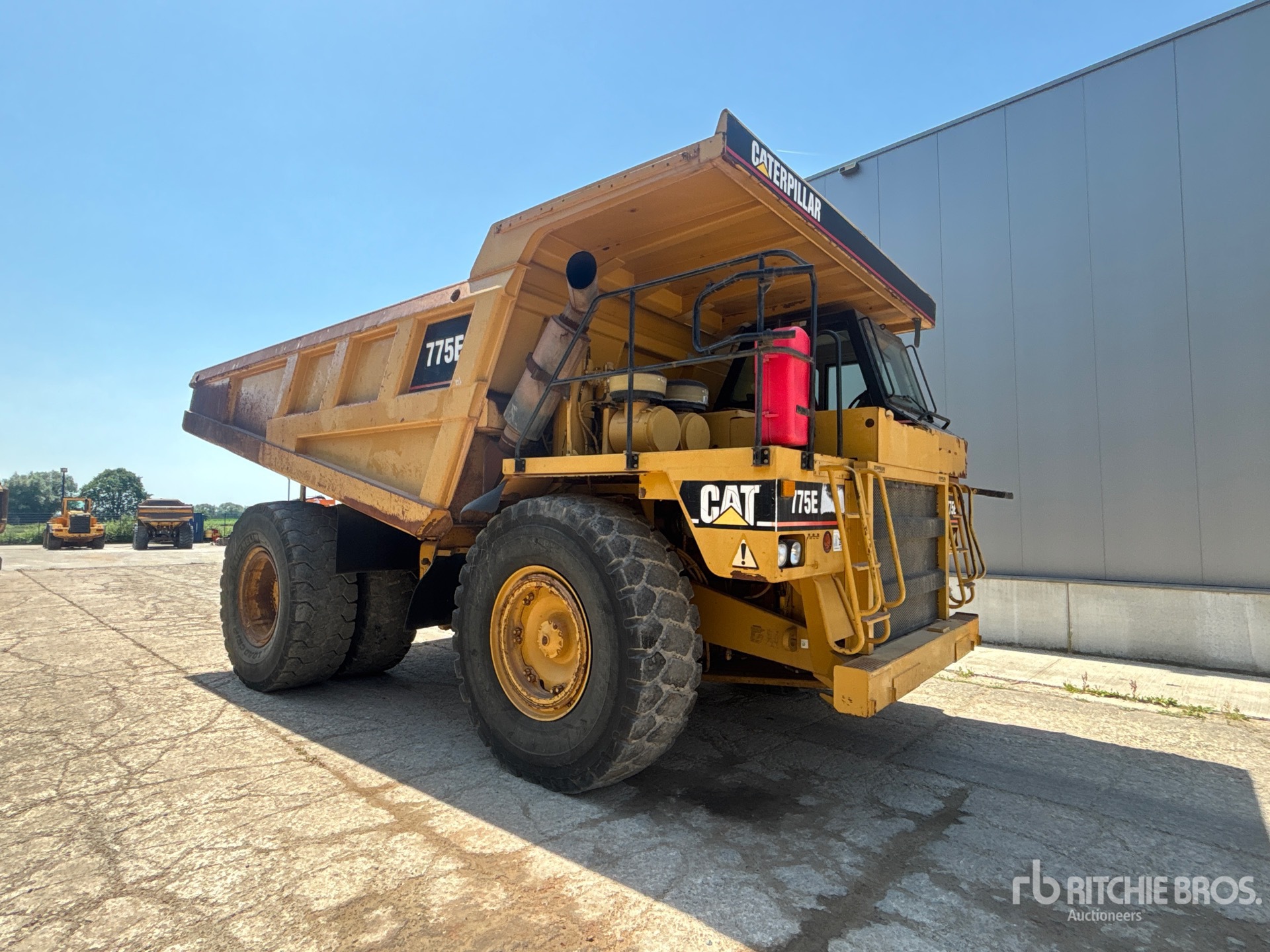

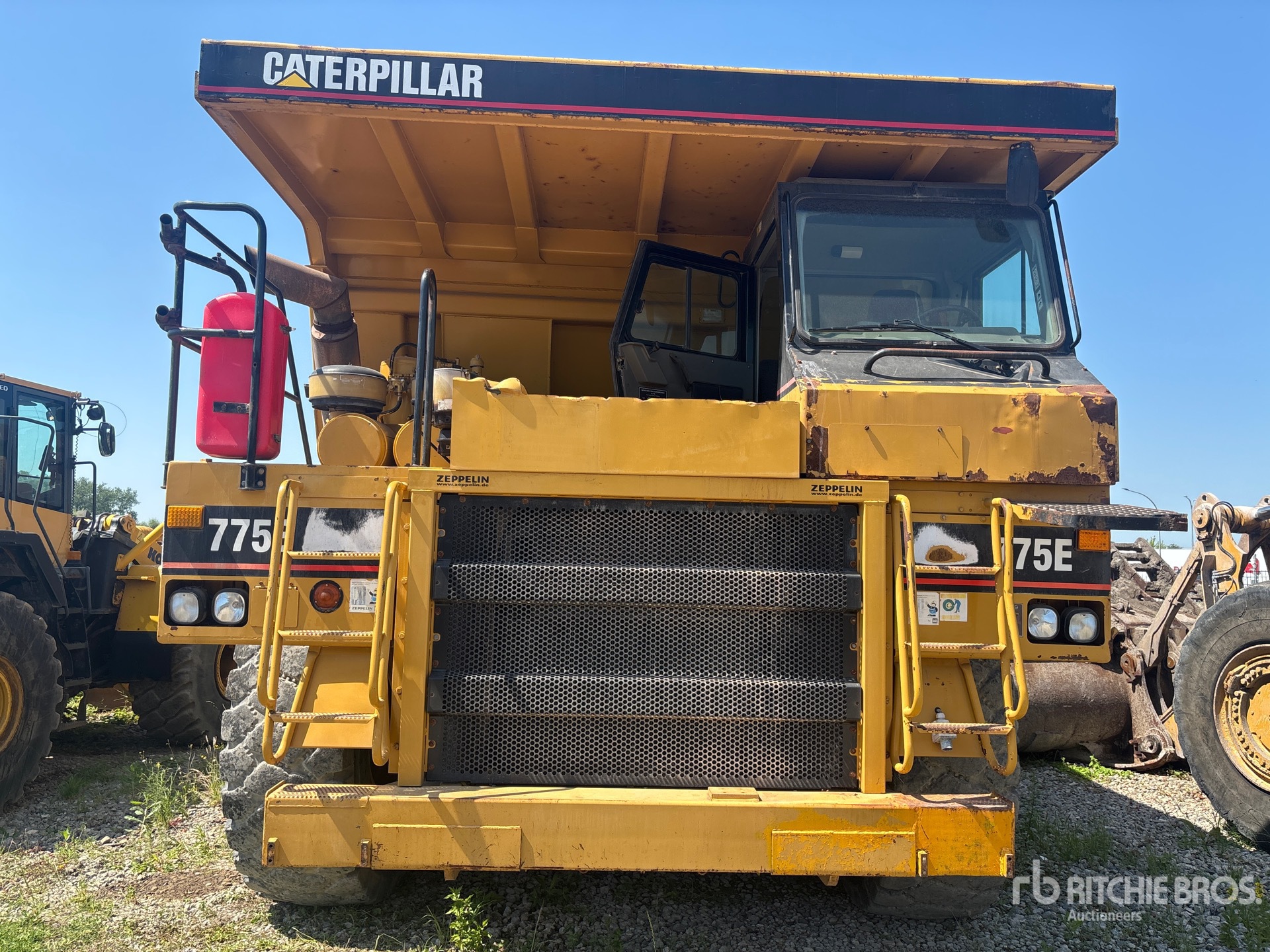

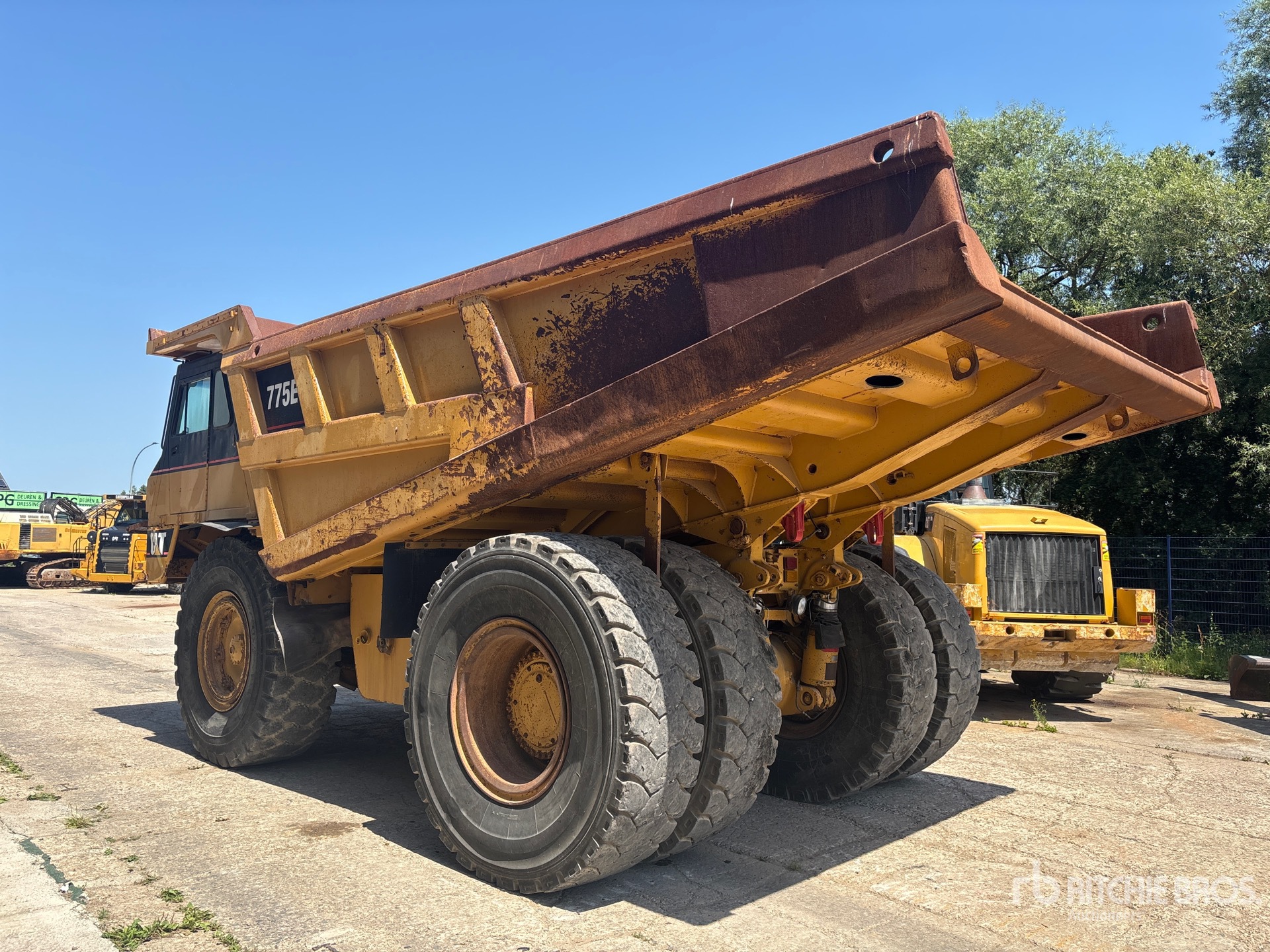

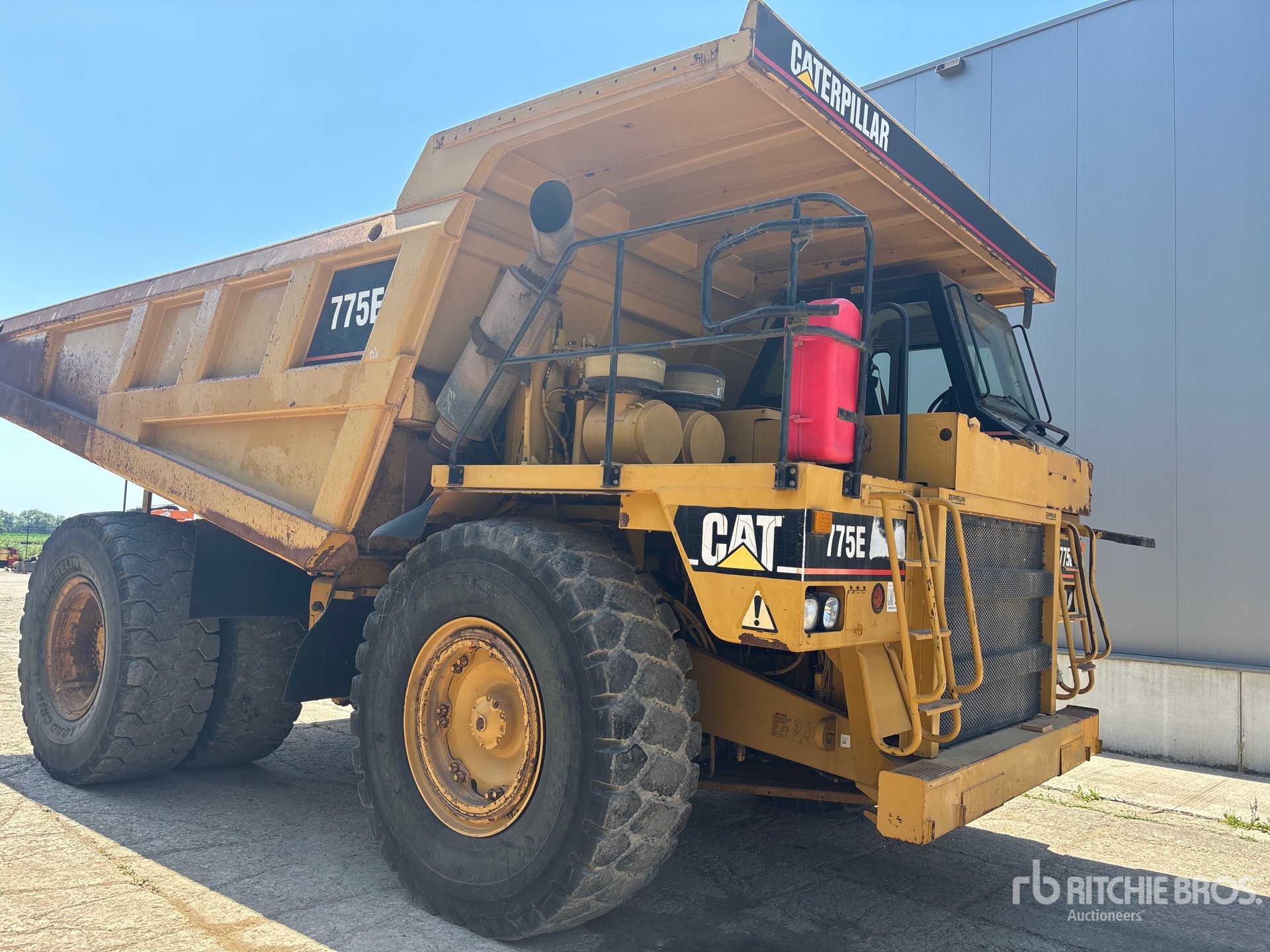

2004 Caterpillar 775E For Sale in Moerdijk, Nld

Name: 2004 Caterpillar 775E
Brand: Caterpillar
SKU: 88692352
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-07-07 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

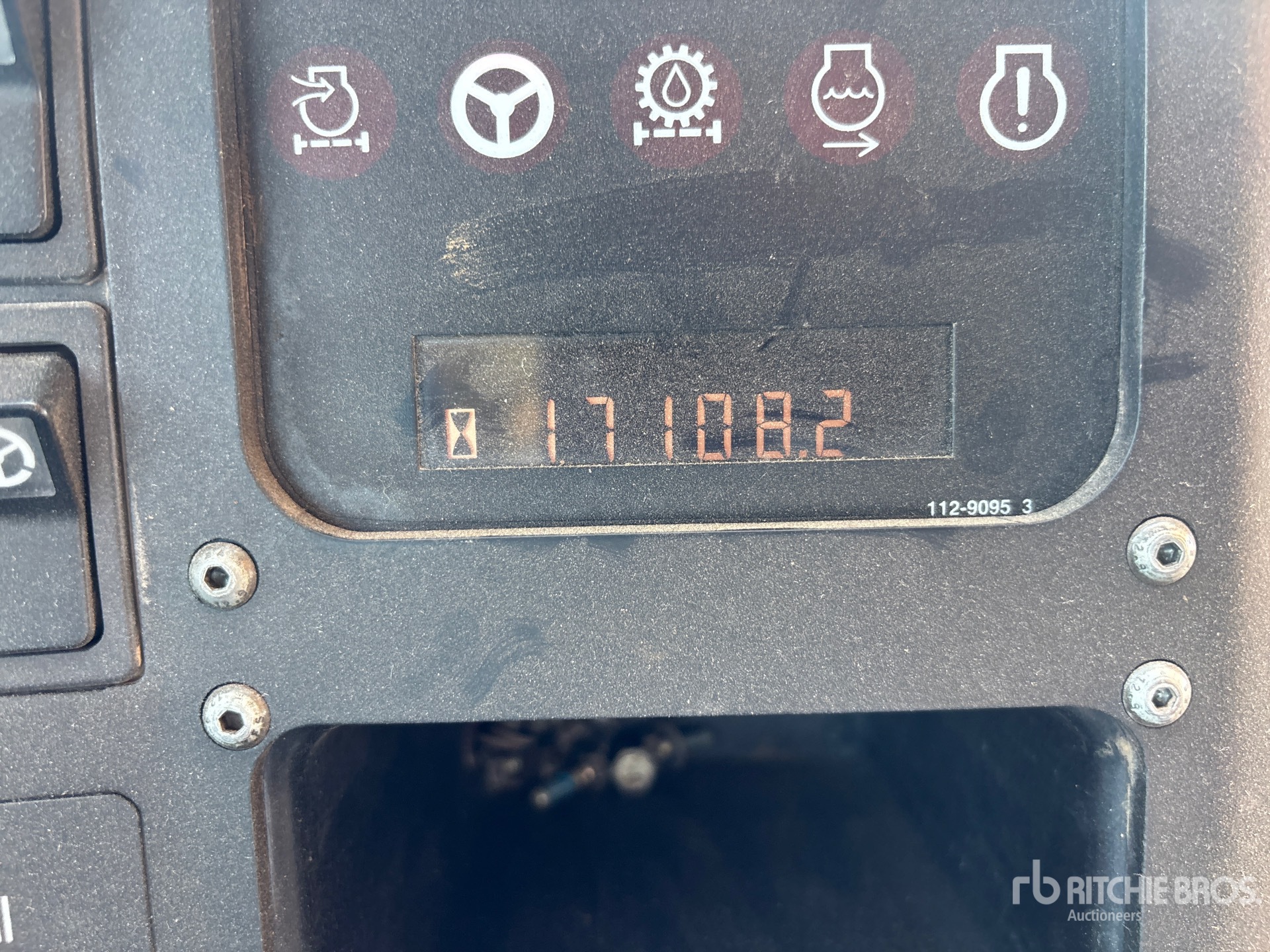

Hours:	17109

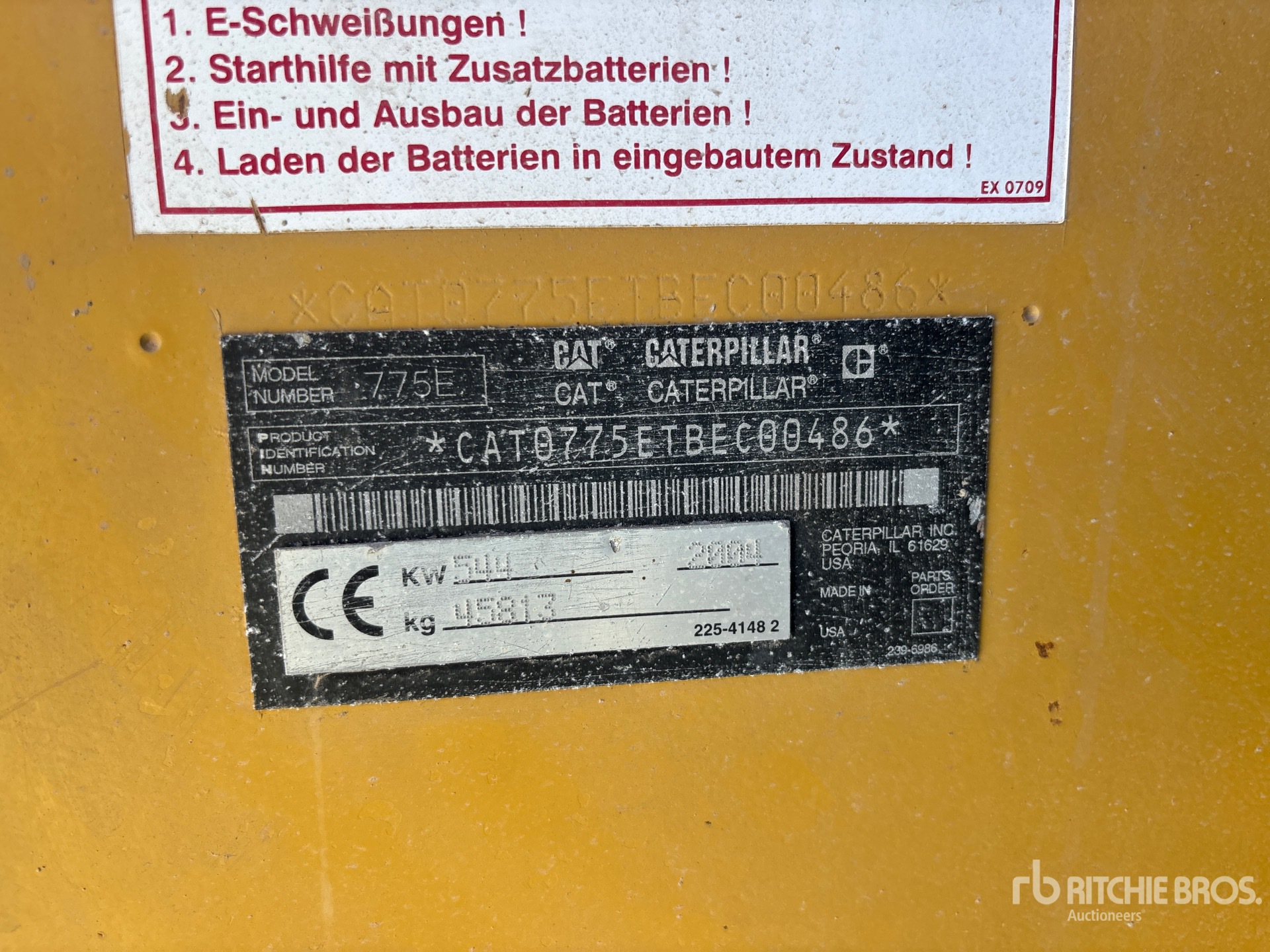

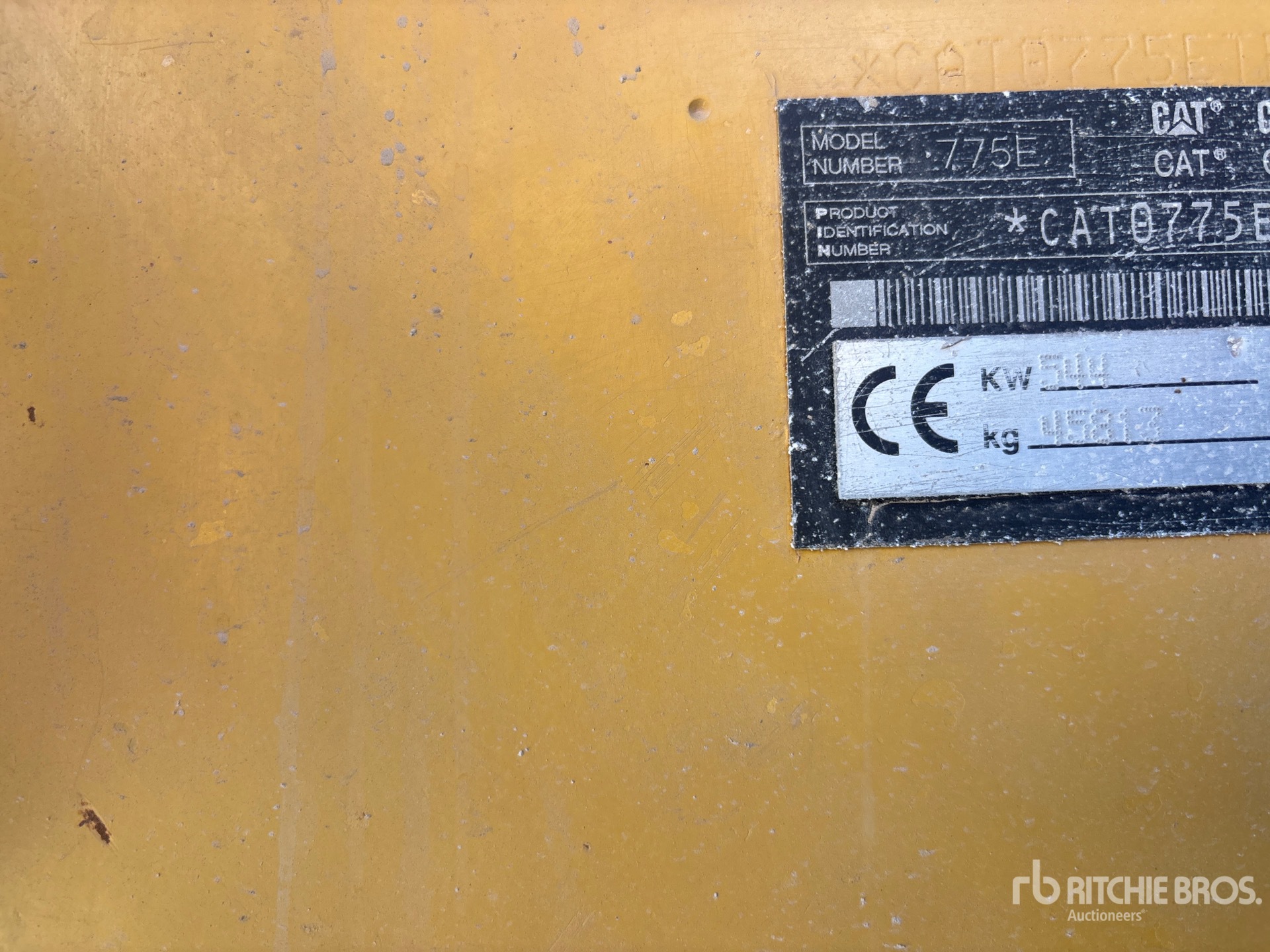

Serial Number:	CAT0775ETBEC00486
Machine Location:	MOERDIJK, NLD

Description:

Air Conditioner, Retarder, 2004 US EPA Label, Heated Body, Auto Lube, 24.00R35 Tires ** This item is located outside of our yard. Please arrange an appointment for viewing via email: [email protected]. Appointment requests are accepted until July 3rd, 5pm. **, Closing Time: 2026-07-07 03:44:10 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Approximate Weights - Flat Floor
Body	28,814 lbs (13,070 kg)
Body Hoists
Body Lower Time - Float	13 seconds
Body Power Down - High Idle	31 degrees
Body Raise Time - High Idle	10 seconds
Pump Flow - High Idle	148 gpm (560 lpm)
Relief Valve Setting - Raise	2,750 psi
Brakes
Brake Surface - Rear	9,496 cu in (155,612 cu cm)
Standards	3.64:1
Dimensions
Centerline Front Tire Width	11 ft (3 m)
Dump Ground Clearance	2 ft (1 m)
Dump Height	29 ft (9 m)
Front Canopy Height	15 ft (4 m)
Ground Clearance	2 ft (1 m)
Inside Body Length	22 ft (7 m)
Loading Height - Empty	13 ft (4 m)
Operating Width	17 ft (5 m)
Overall Height	15 ft (4 m)
Overall Height - Body Raised	29 ft (9 m)
Overall Length	30 ft (9 m)
Overall Width	15 ft (4 m)
Wheel Base	14 ft (4 m)
Wheelbase	14 ft (4 m)
Dump
Load Capacity - heaped	54 cu yd (42 cu m)
Load Capacity - Struck	41 cu yd (31 cu m)
Engine
Bore	5 in (14 cm)
Displacement	1,649 cu in (27,022 cu cm)
Engine Model	Cat 3412E
Flywheel Power	730 hp (544 kw)
Gross Power	760 hp (567 kw)
Gross Power - SAE J1995	760 hp (567 kw)
Max Torque	2,542 lbs ft (3,447 nm)
Net Power	730 hp (544 kw)
Net Power - 80/1269/EEC	730 hp (544 kw)
Net Power - Cat	730 hp (544 kw)
Net Power - ISO 9249	730 hp (544 kw)
Net Power - SAE J1349	730 hp (544 kw)
Number of Cylinders	12
Power Measured @	2,000 rpm
Stroke	6 in (15 cm)
Torque Rise	33%
Final Drives
Planetary Ratio	4.80:1
Total Reduction Ratio	17.48:1
Operating Specifications
Body Capacity - SAE 2:1	54 cu yd (42 cu m)
Body Capacity - Struck	41 cu yd (31 cu m)
Brake/Hoist System Fluid Capacity	81 gal (307 l)
Cooling System Fluid Capacity	40 gal (151 l)
Diff and Final Drive Fluid Capacity	41 gal (155 l)
Engine Oil Capacity	18 gal (68 l)
Fuel Capacity	185 gal (700 l)
Maximum Capacity	140,000 lbs (63,503 kg)
Nominal Payload Capacity	41 lbs (19 kg)
Nominal Payload Class (100%)	140,000 lbs (63,503 kg)
Steer Angle	31 degrees
Steering System Fluid Capacity	16 gal (61 l)
Tire Size	24.00-R35 (E4)
Top Speed - Loaded	41 mph (66 kph)
ROPS
ROPS Standards	Meets SAE J88 APR95
Service Refill Capacities
Brake Hoist System - Includes Tank	81 gal (307 l)
Brake/Hoist Hydraulic Tank	136,488 gal (516,608 l)
Cooling System	40 gal (151 l)
Differential - Final Drives	41 gal (155 l)
Fuel Tank	185 gal (700 l)
Steering System - Including Tank	16 gal (61 l)
Steering Tank	9 gal (34 l)
Torque Converter - Brake - Hoist Hydraulic Tank	35 gal (132 l)
Torque Converter - Transmission System - Including Sump	19 gal (72 l)
Sound
Sound Standards	Meets SAE J88 APR95
Steering System
Steering Standards	Meets SAE J1511 FEB94 and ISO 5010:1992
Tires
Standard Tire	Standard: 24.00-R35 (E4)
Standard Tires	216
Transmission
Forward - 1	6 mph (10 kph)
Forward - 2	9 mph (14 kph)
Forward - 3	12 mph (19 kph)
Forward - 4	16 mph (25 kph)
Forward - 5	21 mph (34 kph)
Forward - 6	29 mph (46 kph)
Forward - 7	41 mph (66 kph)
Max Speed	41 mph (66 kph)
Number of Gears - Forward	7
Number of Gears - Reverse	1
Reverse	8 mph (12 kph)
Weights
Empty Weight	67,000 lbs (30,391 kg)
Front Axle - Empty	44.3%
Front Axle - Loaded	31.2%
Loaded Weight	239,000 lbs (108,409 kg)
Operating Weight - Loaded	Meets SAE J1511 FEB94 and ISO 5010:1992 lbs
Rear Axle - Empty	55.7%
Rear Axle - Loaded	68.8%
Weight Distribution Front - empty	44.3%
Weight Distribution Front - loaded	31.2%
Weight Distribution Rear - empty	55.7%
Weight Distribution Rear - loaded	68.8%
