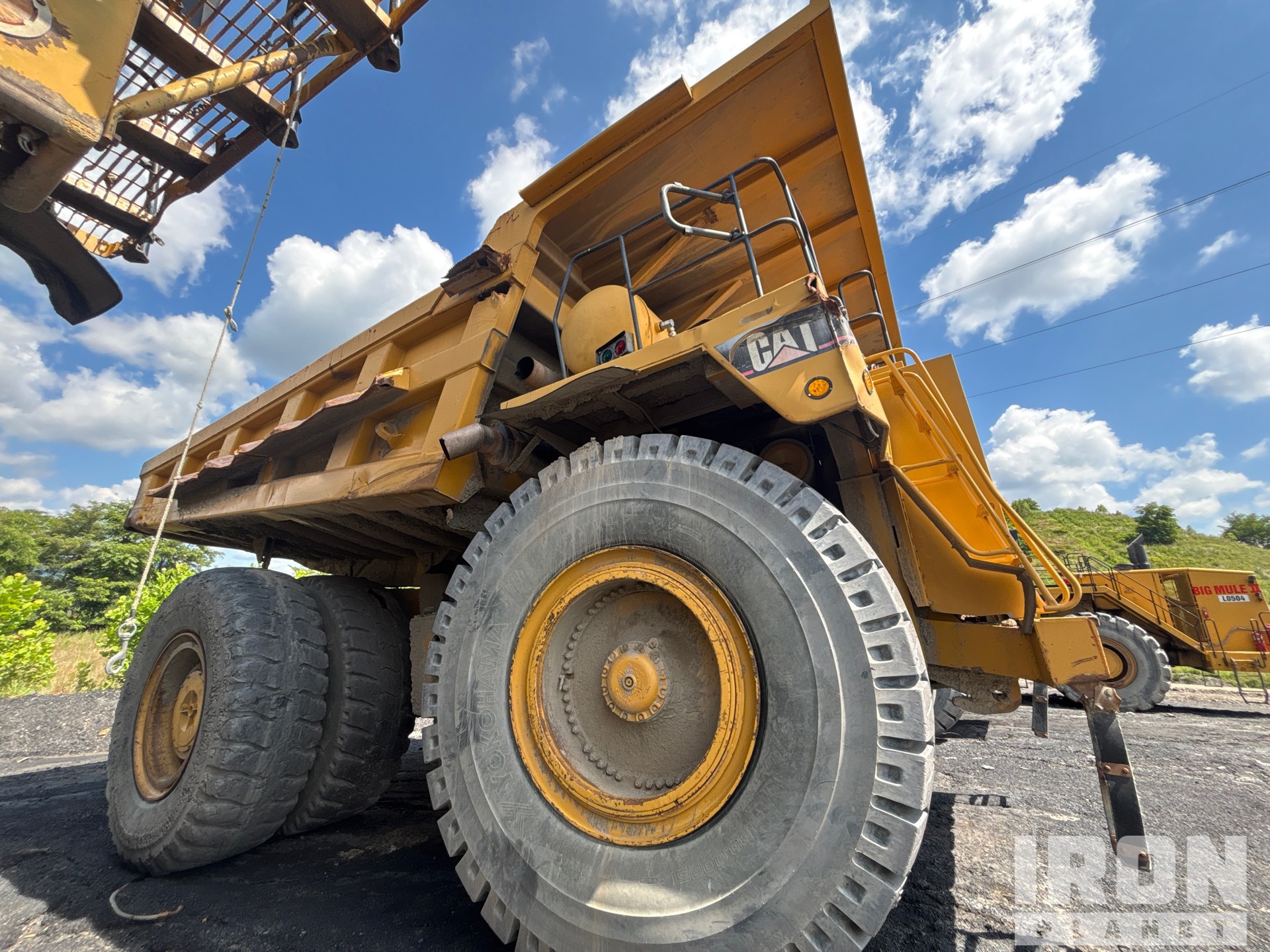

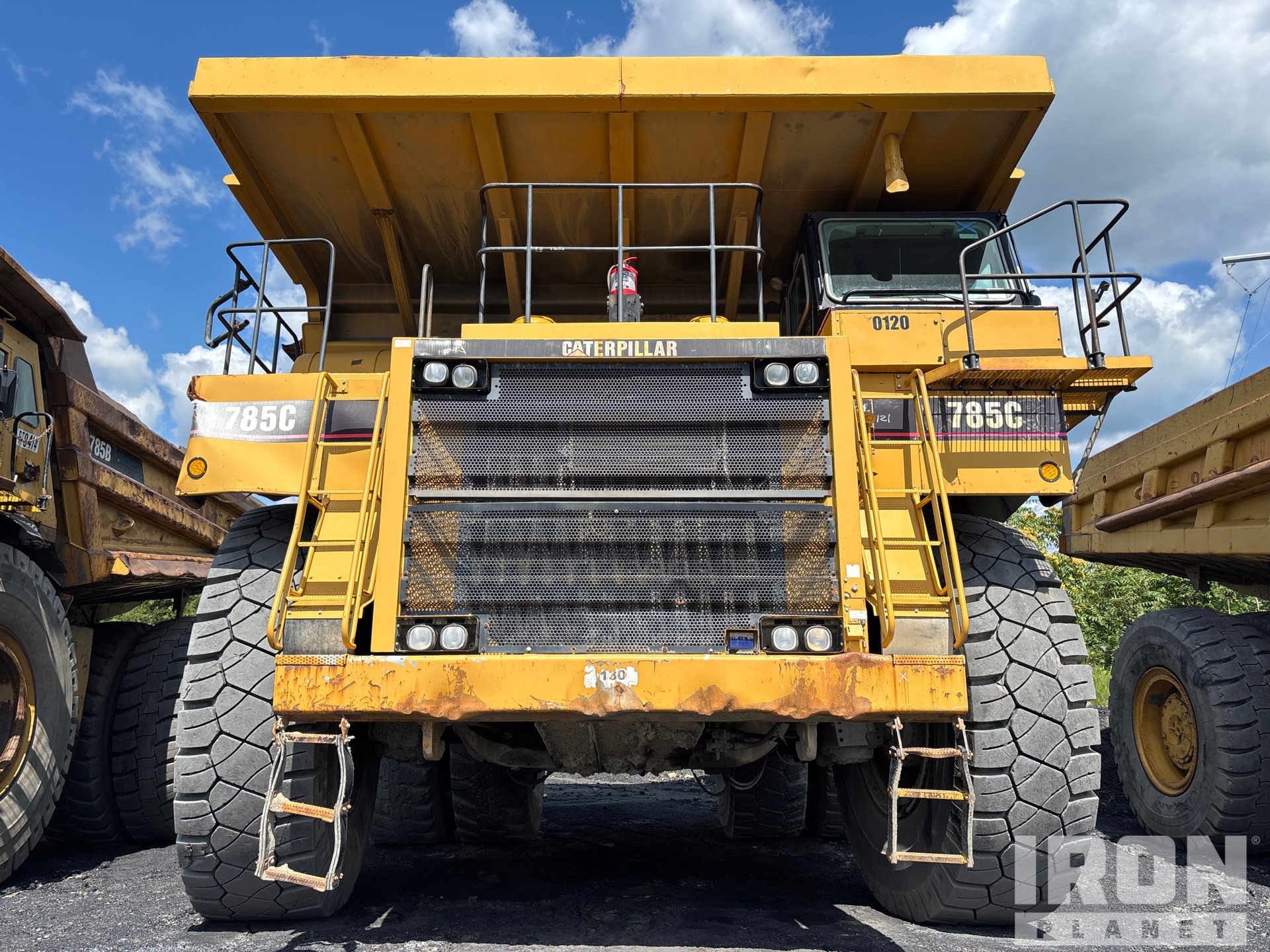

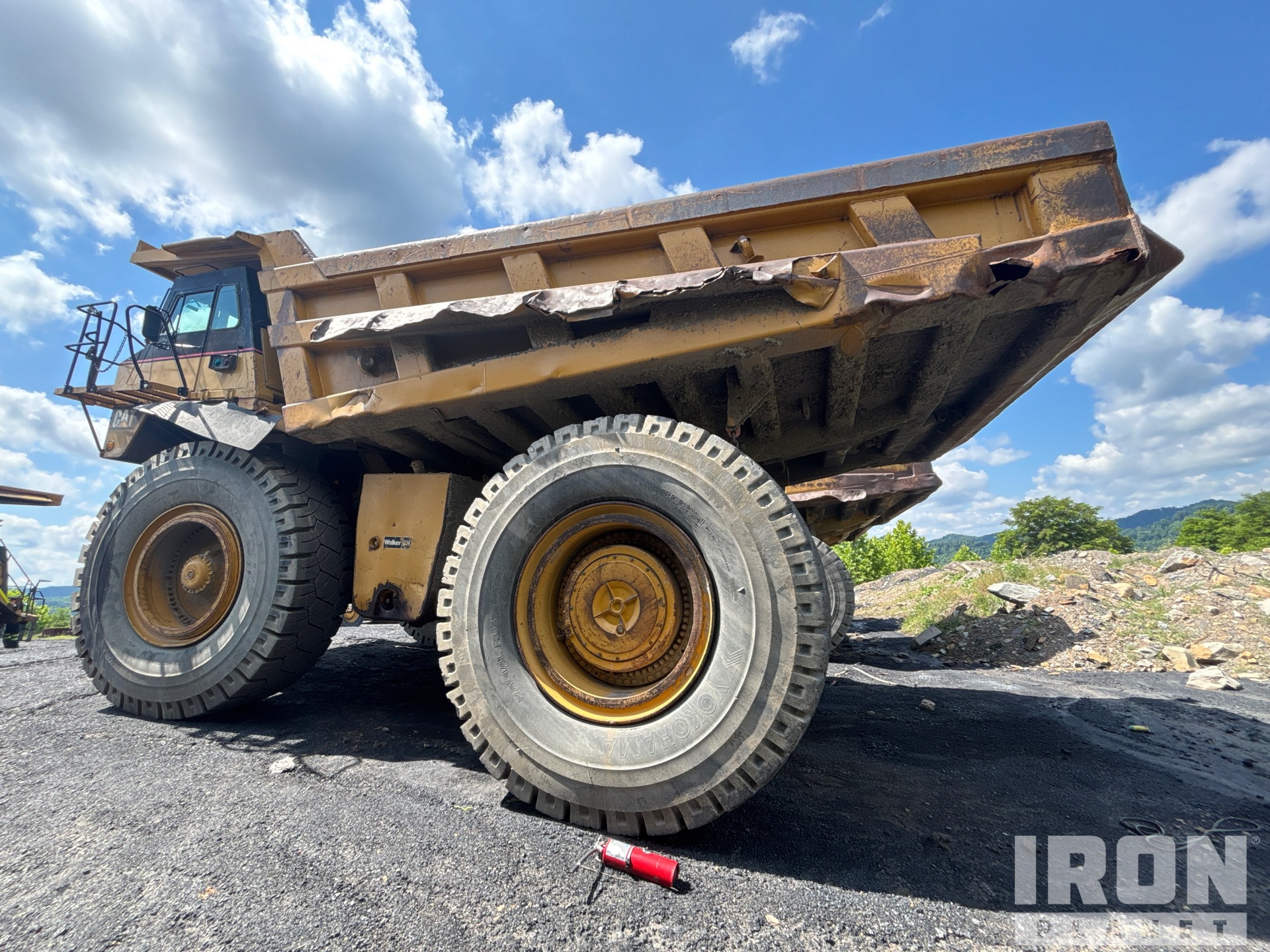

1999 Caterpillar 785C For Sale in Atlanta, Ga

Name: 1999 Caterpillar 785C
Brand: Caterpillar
SKU: 88682001
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-07-14 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

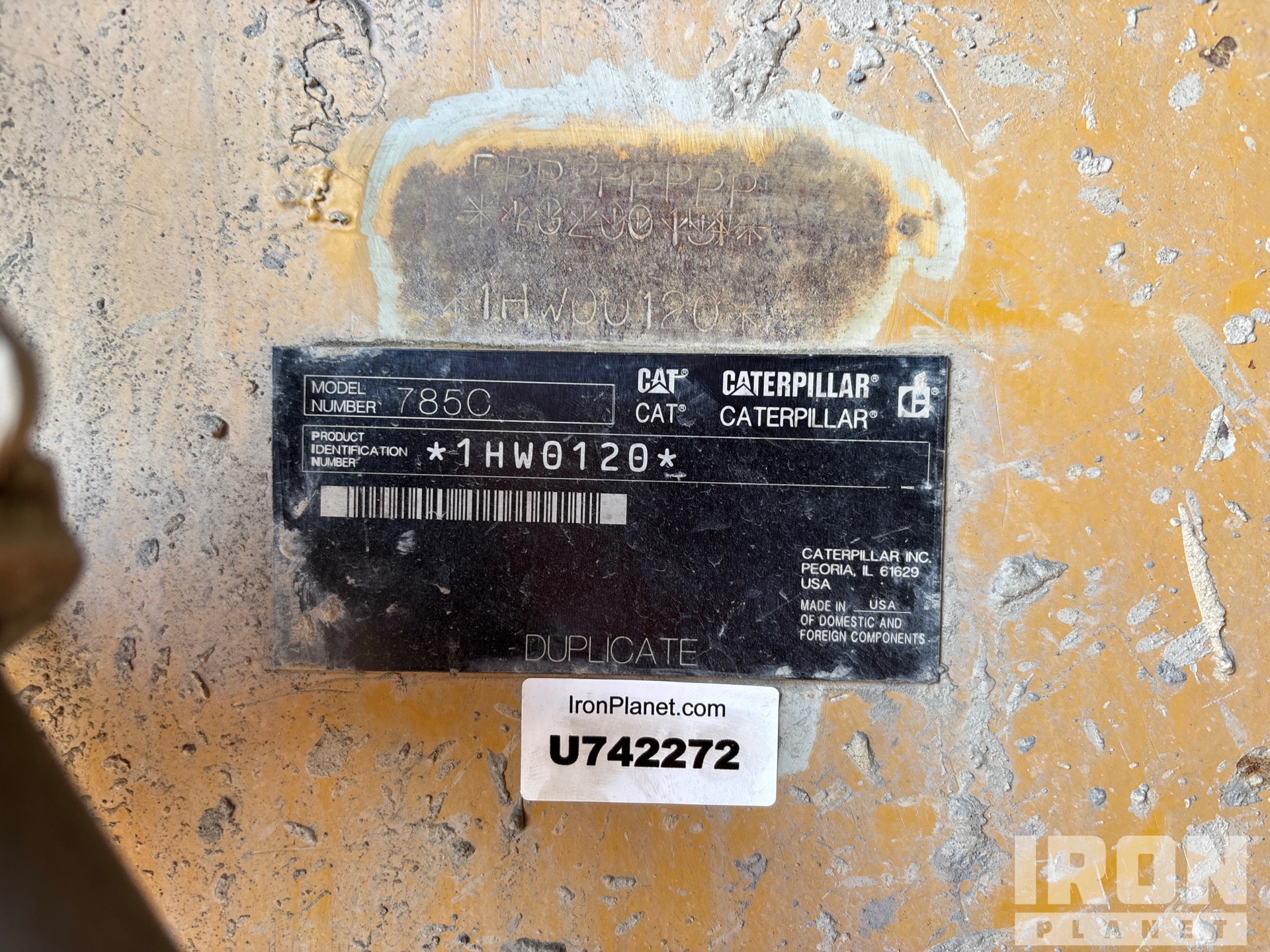

Serial Number:	1HW00120
Machine Location:	ATLANTA, GA

Description:

Air Conditioner, Retarder, Air Ride Seat, Coal Body, Steel Body Liner, Fast Fuel Fill, 33.00R51 Tires, Equipment-from-Civil-LLC Closing Time: 2026-07-15 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 785C is a rigid-frame off-highway haul truck designed for large-scale mining and heavy earthmoving applications. It is part of Caterpillar's 785 series and is used to transport high volumes of overburden, ore, and aggregate in demanding site conditions. The 785C features a high-capacity dump body, diesel powertrain, and heavy-duty suspension for operation on rough haul roads. Common specifications include a large payload rating, articulated service access, and operator cab designed for visibility and control. The model is widely recognized in quarry, mining, and construction fleets for material transport in continuous production environments.

Approximate Weights - Dual Slope
Chassis	164,134 lbs (74,450 kg)
Gross Weight - Empty	211,035 lbs (95,724 kg)
Approximate Weights - Flat Floor
Body	56,630 lbs (25,687 kg)
Chassis	164,134 lbs (74,450 kg)
Articulating/Rigid
Articulating/Rigid	Rigid
Body Hoists
Body Lower Time - Float	16 seconds
Body Raise Time - High Idle	15 seconds
Pump Flow - High Idle	198 gpm (749 lpm)
Relief Valve Setting - Lower	74 psi
Relief Valve Setting - Raise	2,500 psi
Capacity - Dual Slope - 100% Fill Factor
Heaped 2:1 (SAE)	96 cu yd (73 cu m)
Struck	74 cu yd (57 cu m)
Capacity - Flat Floor - 100% Fill Factor
Struck	96 cu yd (73 cu m)
Dimensions
Dump Ground Clearance	4 ft (1 m)
Dump Height	37 ft (11 m)
Ground Clearance	3 ft (1 m)
Overall Height	19 ft (6 m)
Overall Length	36 ft (11 m)
Overall Width	21 ft (6 m)
Wheelbase	17 ft (5 m)
DRIVE SYSTEM
Drive Config	4x2
Dump
Dump Angle	49 degrees
Load Capacity - heaped	119 cu yd (91 cu m)
Load Capacity - Struck	96 cu yd (73 cu m)
Lower Time	16 seconds
Raise Time	15 seconds
Engine
Bore	7 in (17 cm)
Displacement	3,158 cu in (51,750 cu cm)
Engine Model	Cat 3512B-EUI
Gross Power	1,451 hp (1,082 kw)
Gross Power - SAE J1995	1,450 hp (1,081 kw)
Make	Cat
Net Power	1,348 hp (1,005 kw)
Net Power - 80/1269/EEC	1,348 hp (1,005 kw)
Net Power - Cat	1,348 hp (1,005 kw)
Net Power - ISO 9249	1,348 hp (1,005 kw)
Net Power - SAE J1349	1,348 hp (1,005 kw)
Number of Cylinders	16
Power Measured @	1,750 rpm
Rated Engine Speed	169 rpm
Stroke	8 in (19 cm)
Torque Measured @	Turbocharged rpm
Final Drives
Planetary Ratio	10.83:1
Operating Specifications
Brake/Hoist System Fluid Capacity	89 gal (337 l)
Cooling System Fluid Capacity	100 gal (379 l)
Diff and Final Drive Fluid Capacity	115 gal (435 l)
Engine Oil Capacity	24 gal (91 l)
Fuel Capacity	500 gal (1,893 l)
Hydraulic System Fluid Capacity	169 gal (641 l)
Lower Time	16 seconds
Operating Voltage	24 volts
Raise Time	15 seconds
Steering System Fluid Capacity	31 gal (117 l)
Tire Size	33.00-R51 tires
Top Speed - Loaded	34 mph (55 kph)
Turning Circle - Clearance Diameter	66 ft (20 m)
ROPS
ROPS/FOPS Standards	46,865
Service Refill Capacities
Brake / Hoist / Fan Hydraulic Tank	102 gal (386 l)
Brake Hoist System - Includes Tank	169 gal (640 l)
Cooling System	100 gal (379 l)
Fuel Tank - Standard	500 gal (1,893 l)
Steering System - Including Tank	31 gal (117 l)
Steering Tank	24 gal (91 l)
Torque Converter - Transmission Sump	164,134 gal (621,247 l)
Torque Converter/Transmission System - Including Sump	66 gal (248 l)
Sound
Sound Standards	ANSI/SAE J1166 MAY90 SAE J88 APR95
Suspension
Rear axle - Oscillation	12 degrees
Transmission
Forward - 1	8 mph (12 kph)
Forward - 2	10 mph (16 kph)
Forward - 3	14 mph (22 kph)
Forward - 4	19 mph (30 kph)
Forward - 5	25 mph (41 kph)
Forward - 6	34 mph (55 kph)
Max Speed	34 mph (55 kph)
Number of Gears - Forward	6
Number of Gears - Reverse	1
Reverse	7 mph (11 kph)
Transmission Type	Six-speed planetary
Weights
Body Weight	164,134 lbs (74,450 kg)
Empty Weight	225,200 lbs (102,149 kg)
Front Axle - Empty	47%
Front Axle - Loaded	33%
Gross Machine Operating Weight (GMW)	SAE J1040 APR88 ISO 3471:1994 lbs
Loaded Weight	550,000 lbs (249,476 kg)
Operating Weight	550,000 lbs (249,476 kg)
Operating Weight - Loaded	SAE J1511 OCT90 ISO 5010:1992 lbs
Rear Axle - Empty	53%
Rear Axle - Loaded	67%
Weight Distribution Front - empty	47%
Weight Distribution Front - loaded	33%
Weight Distribution Rear - empty	53%
Weight Distribution Rear - loaded	67%
