2004 Caterpillar 216B For Sale in North East, Md

Name: 2004 Caterpillar 216B
Brand: Caterpillar
SKU: 88578583
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-23 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

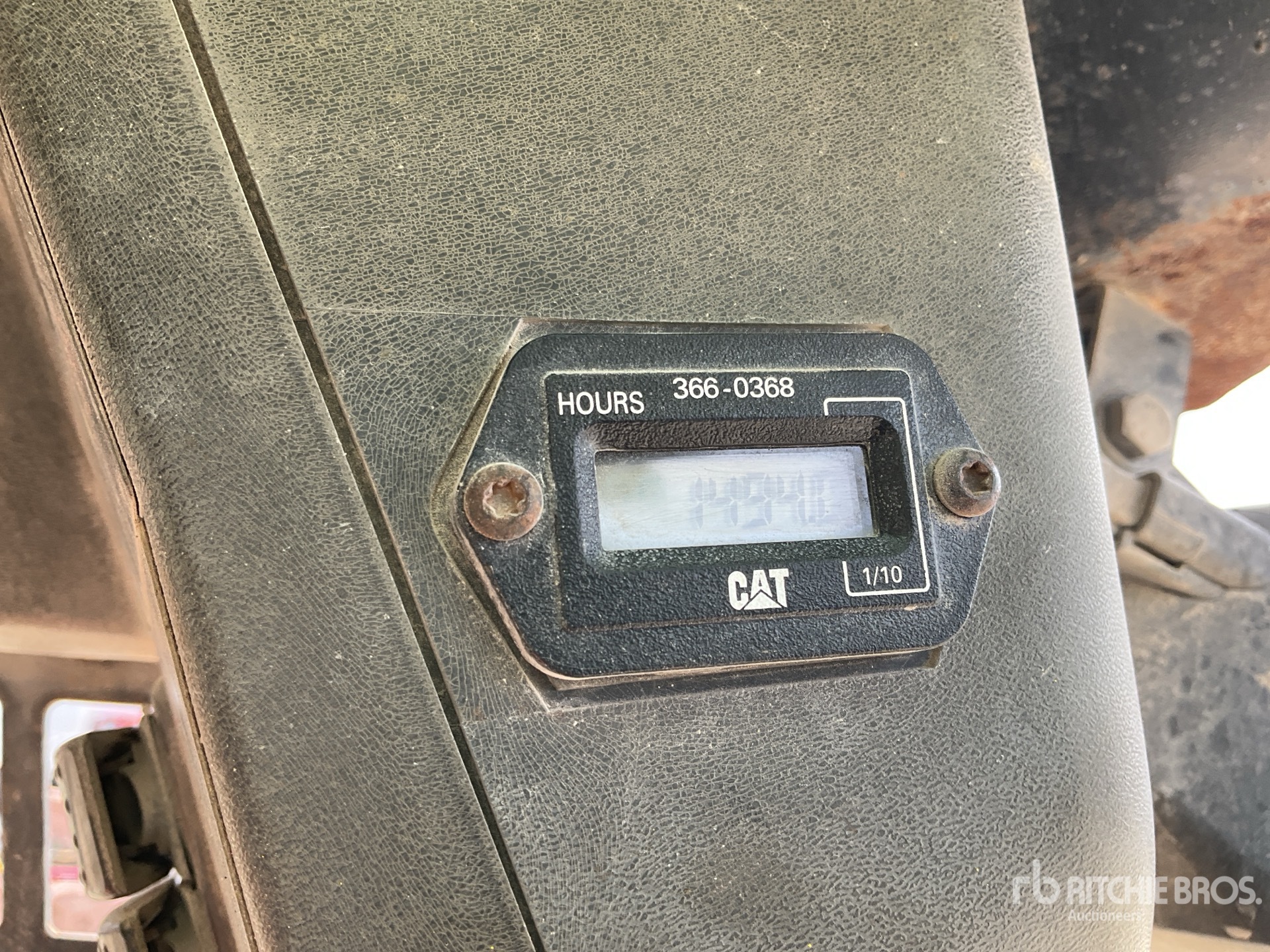

Hours:	1494

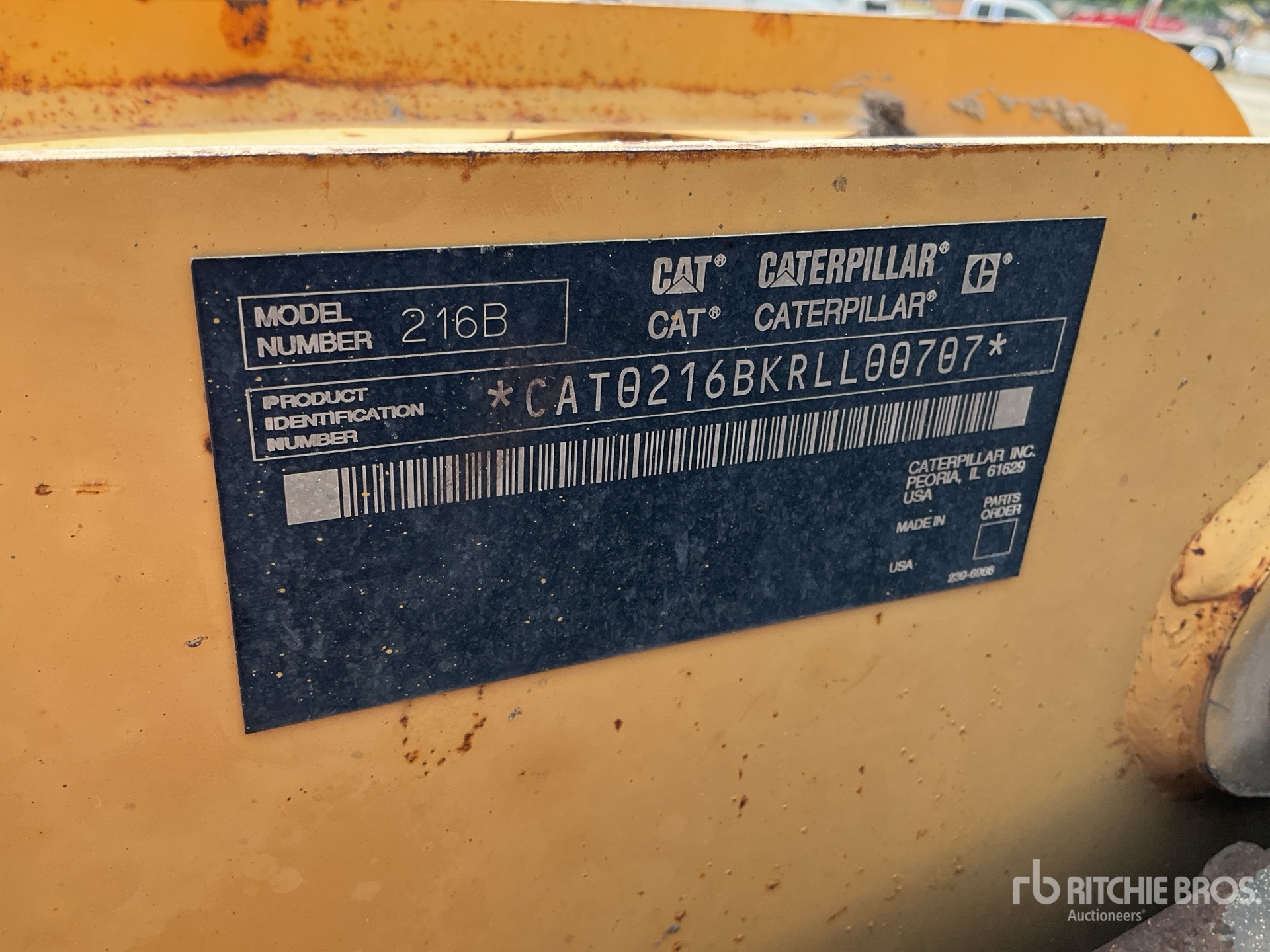

Serial Number:	CAT0216BKRLL00707
Machine Location:	NORTH EAST, MD

Description:

Open Operator Station, Joystick Steering, Manual Quick Coupler Closing Time: 2026-06-23 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Cab
FOPS	SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I
FOPS Level II	SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional)
ROPS	SAE J1040 MAY94 and ISO3471:1994
Dimensions
Bucket Pin Height - Carry Position	9 in (24 cm)
Bucket Pin Height - Maximum Lift	9 ft (3 m)
Bumper Overhang - Rear Axle	38 in (97 cm)
Clearance at Max Lift and Dump	7 ft (2 m)
Clearance at Maximum Lift and Dump	85 in (216 cm)
Ground Clearance	8 in (20 cm)
Length - With Bucket on Ground	127 in (323 cm)
Length - Without Bucket	99 in (251 cm)
Length w/o Bucket	8 ft (3 m)
Length with Bucket	11 ft (3 m)
Maximum Overall Height	146 in (371 cm)
Maximum Reach - With Arms Parallel	50 in (128 cm)
Reach - Maximum Lift/Dump	20 in (51 cm)
Reach at Max Lift and Dump	20 in (51 cm)
Turn Radius from Center - Bucket	76 in (194 cm)
Turn Radius from Center - Coupler	47 in (120 cm)
Turn Radius from Center - Rear	59 in (149 cm)
Turning Radius from Center - inc bucket	76 in (194 cm)
Turning Radius from Center - machine rear	59 in (149 cm)
Vehicle Width over Tires	60 in (152 cm)
Wheel Base	3 ft (1 m)
Wheelbase	3 ft (1 m)
Width Over Tires	5 ft (2 m)
Engine
Bore	3 in (8 cm)
Engine Make	Caterpillar
Engine Model	Cat 3024C
Engine Power - ISO 14396	51 hp (38 kw)
Gross Power - SAE J1995	52 hp (39 kw)
Net Flywheel Power	49 hp (37 kw)
Net Power - EEC 80/1269	50 hp (37 kw)
Net Power - ISO 9249 EEC	50 hp (37 kw)
Net Power - SAE 1349	49 hp (37 kw)
Stroke	4 in (10 cm)
Hydraulic System
Hydraulic Flow	Standard flow
Hydraulic Power	28 hp (21 kw)
Loader Hydraulic Flow	16 gpm (59 lpm)
Loader Hydraulic Pressure	3,100 psi
Pump Flow Capacity	16 gpm (60 lpm)
Relief Valve Pressure	3,104 psi
Loader
Breakout Force	3,785 psi
Operating Load Rating	1,400 lbs (635 kg)
Tipping Angle	2,800 degrees
Operating Specifications
Alternator Supplied Amperage	65 amps
Breakout Force - Lift Cylinder	3,057 lbs (1,387 kg)
Breakout Force - Tilt Cylinder	3,787 lbs (1,718 kg)
Chain Box Fluid Capacity - each side	2 gal (6 l)
Cooling System Fluid Capacity	3 gal (10 l)
Engine Oil Fluid Capacity	2 gal (8 l)
Fuel Capacity	17 gal (65 l)
Hydraulic System Fluid Capacity	15 gal (55 l)
Max Speed	8 mph (13 kph)
Operating Voltage	12 volts
Operational Weight	5,708 lbs (2,589 kg)
Rated Operating Capacity	1,400 lbs (635 kg)
Rated Operating Capacity with Optional Counterweight	1,500 lbs (680 kg)
Tipping Load	2,800 lbs (1,270 kg)
Tire Size	10x16.5 6PR
Power Train
Travel Speed Forward	8 mph (13 kph)
Travel Speed Reverse	8 mph (13 kph)
Service Refill Capacities
Chain Box - Each Side	2 gal (6 l)
Cooling System	3 gal (10 l)
Engine Crankcase	2 gal (8 l)
Fuel Tank	17 gal (64 l)
Hydraulic System	15 gal (55 l)
Hydraulic Tank	9 gal (35 l)
Weights
Operating Weight	5,709 lbs (2,590 kg)
