Equipment ↠ Caterpillar ↠ Skid Steer Loaders ↠ 2005 Caterpillar 246B

2005 Caterpillar 246B For Sale in Polotitlan, Mex

Name: 2005 Caterpillar 246B
Brand: Caterpillar
SKU: 88578240
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

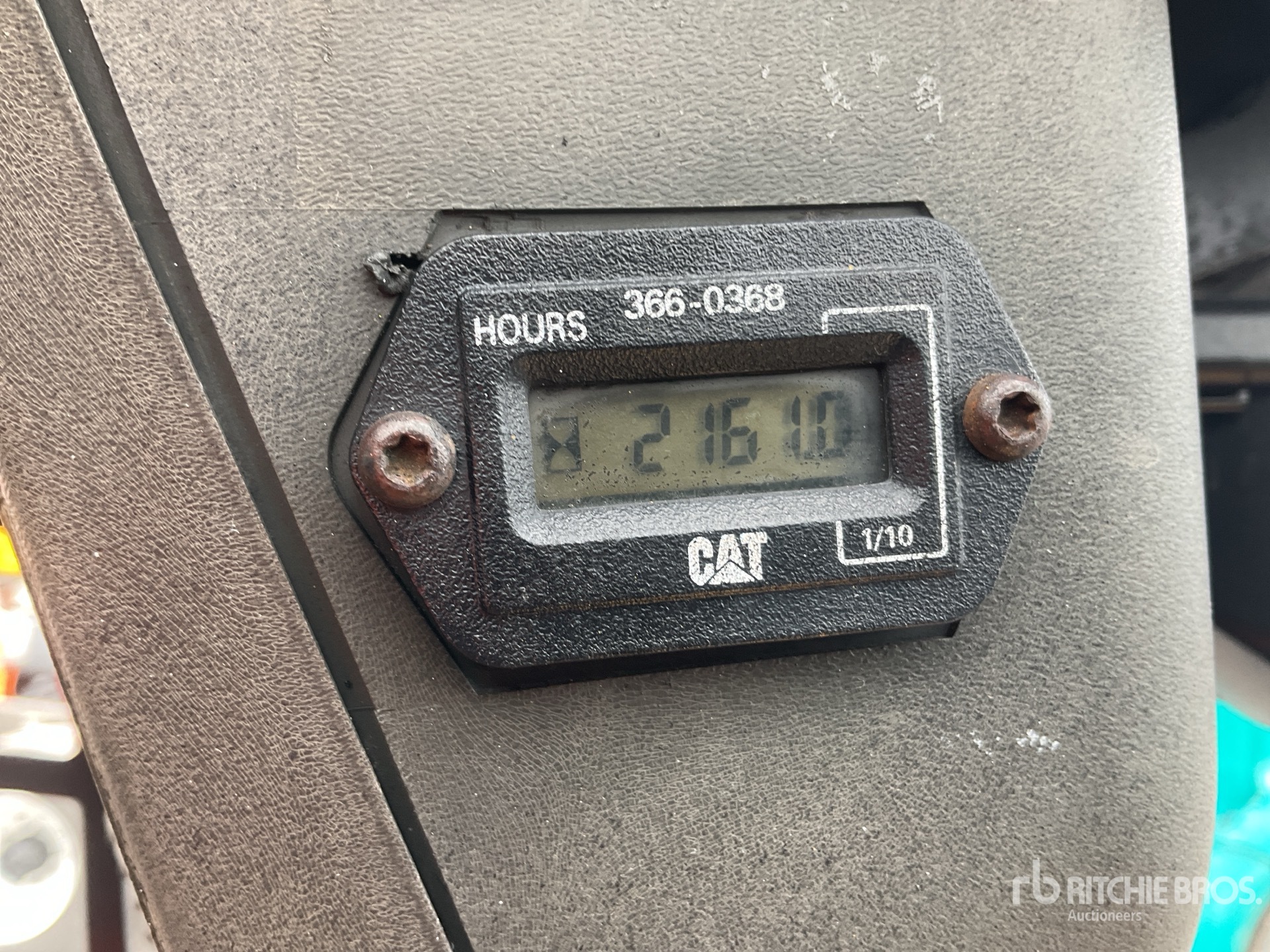

Hours:	2161

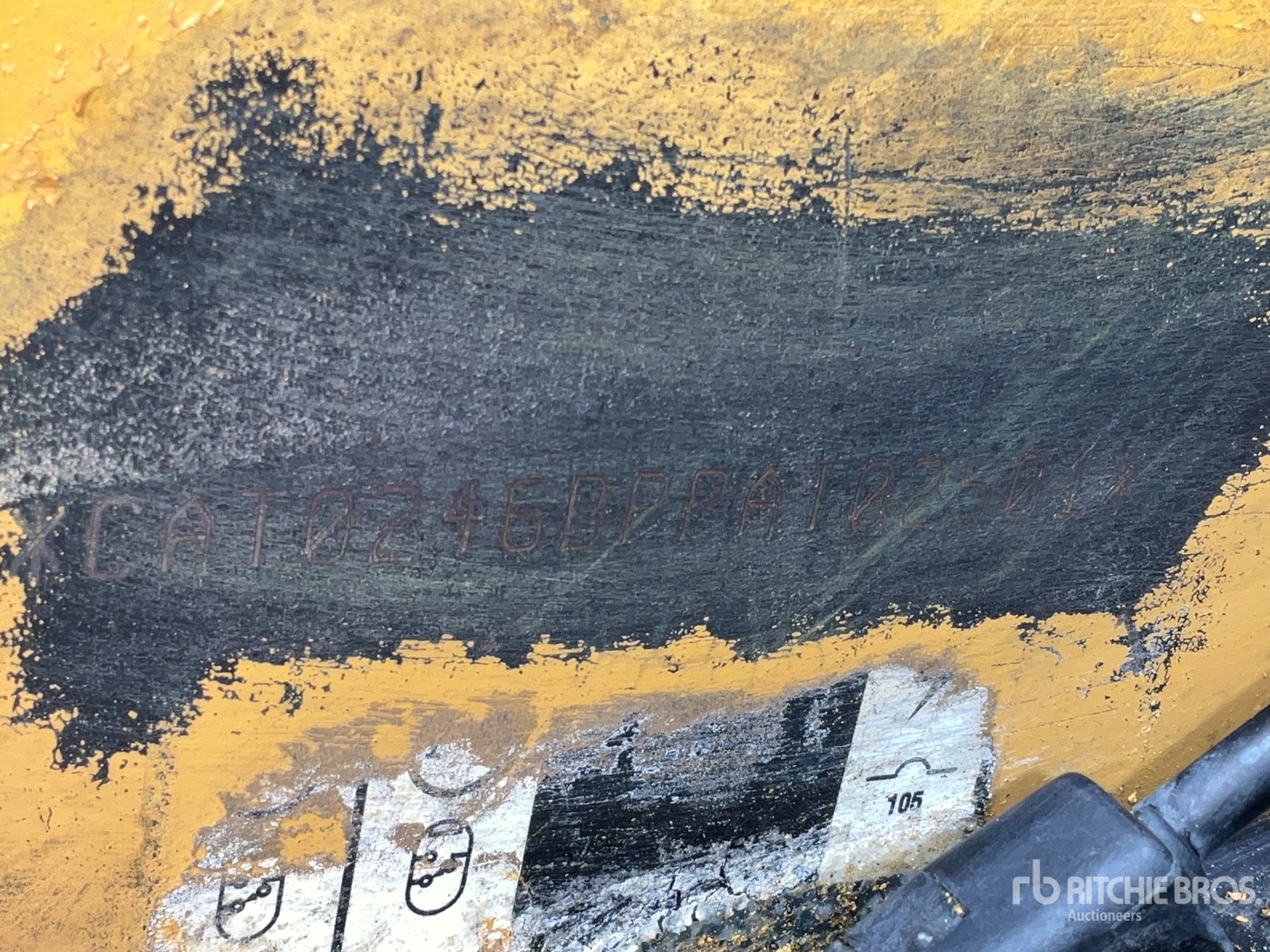

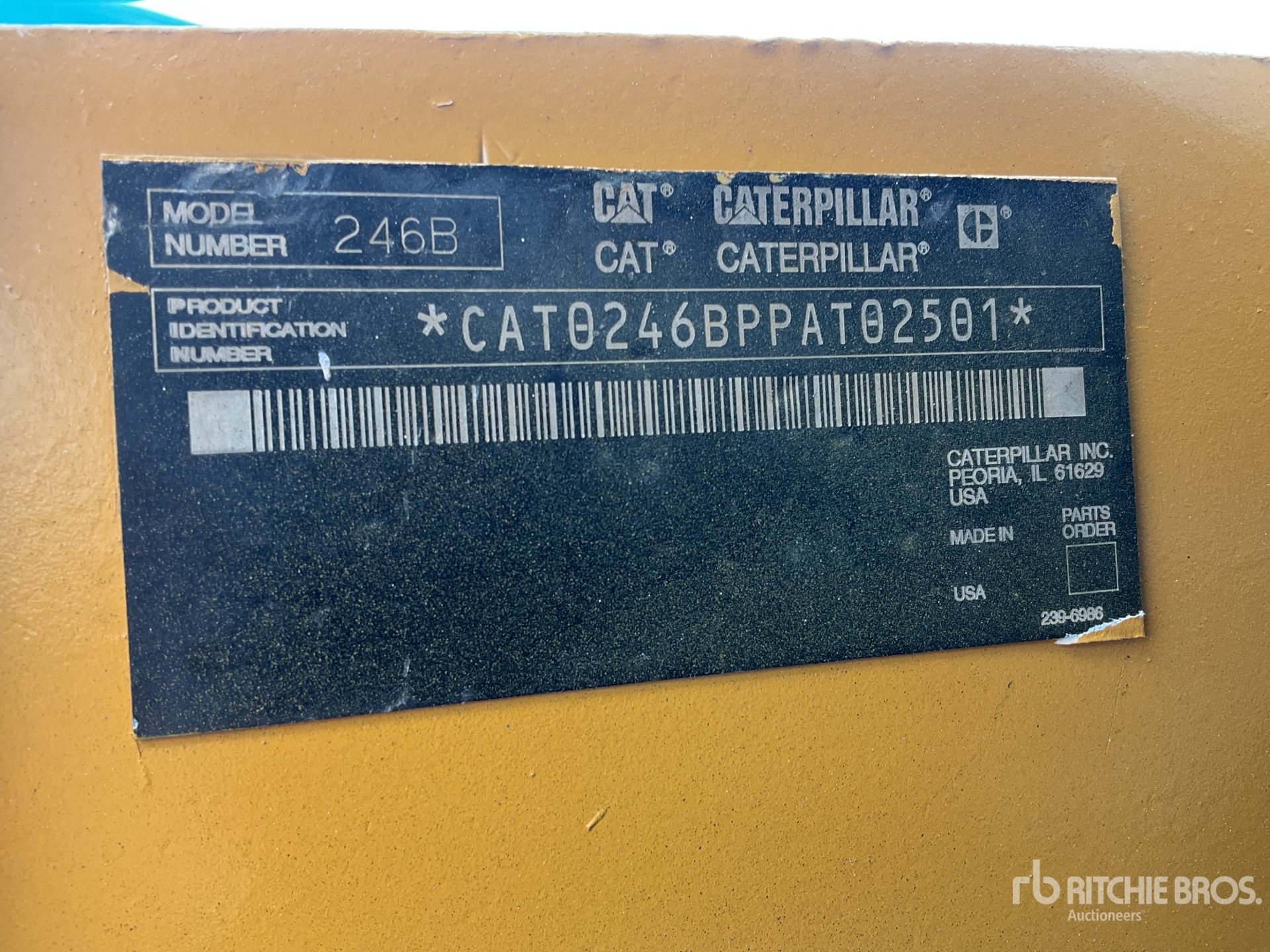

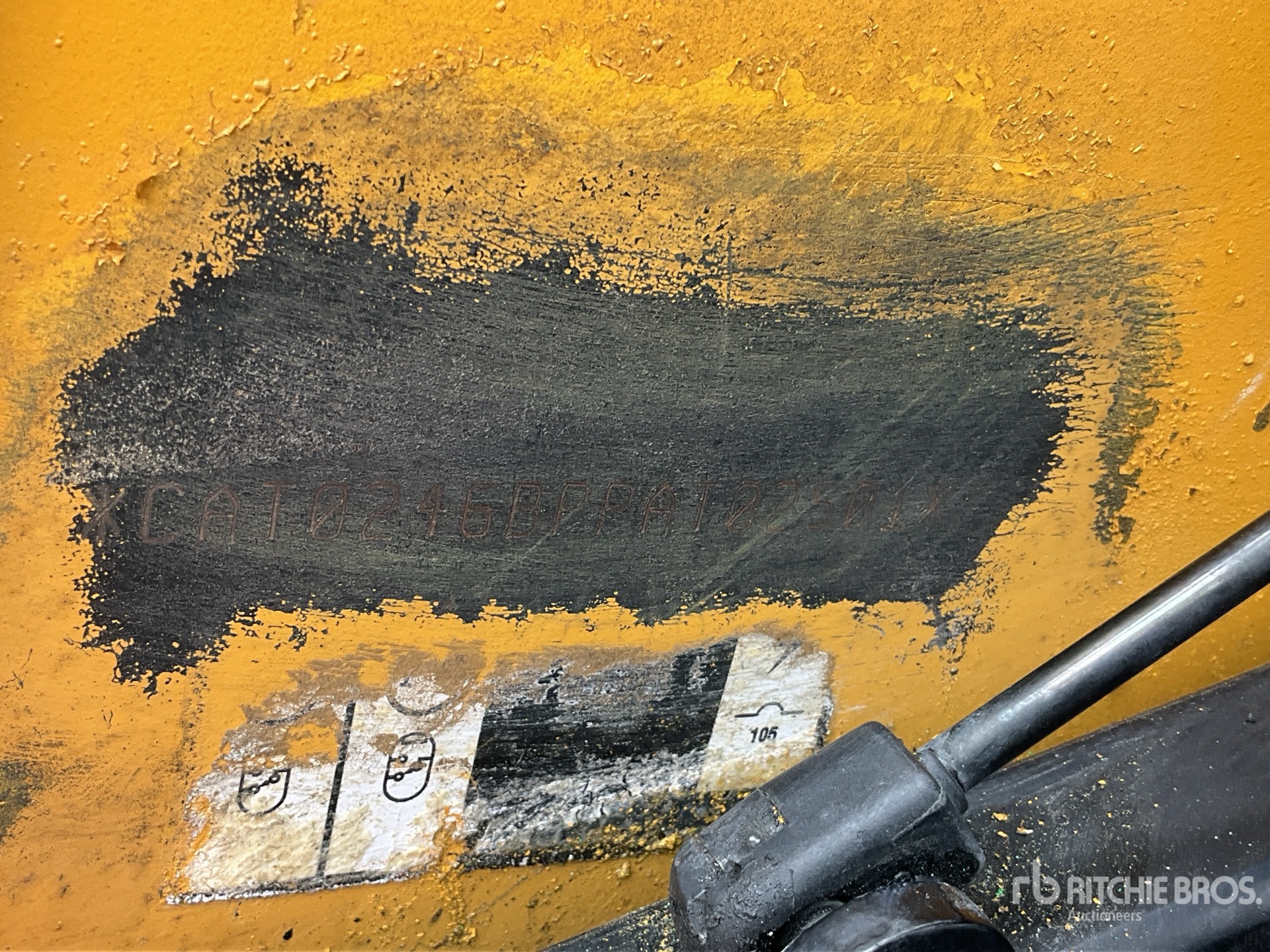

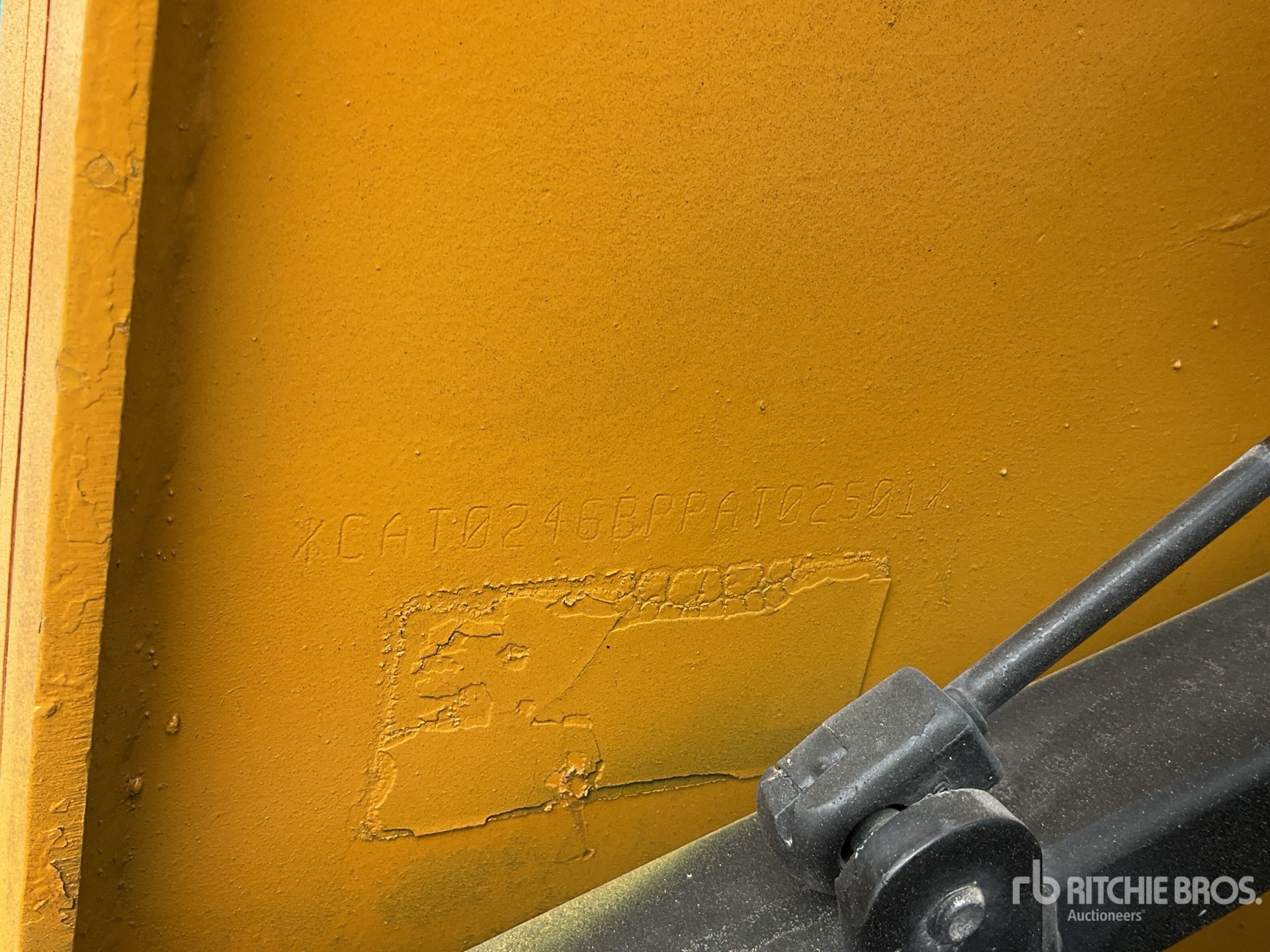

Serial Number:	CAT0246BPPAT02501
Machine Location:	POLOTITLAN, MEX

Description:

Located in Lane 7 Spot 23, Open Operator Station, Joystick Steering, Manual Quick Coupler, 66 in Bucket, / Caseta, Direccion con Palanca, Acoplador Rapido Manual, Cucharon 66 in Closing Time: 2026-06-12 10:03:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Cab
FOPS	SAE J/ISO 3449 APR98 Level I and ISO3449:1992 Level I
FOPS Level II	SAE J/ISO 3449 APR98 Level II and ISO 3449:1992 Level II (optional)
ROPS	SAE J1040 MAY94 and ISO3471:1994
Dimensions
Bucket Pin Height - Carry Position	10 in (25 cm)
Bucket Pin Height - Maximum Lift	10 ft (3 m)
Bumper Overhang - Rear Axle	41 in (104 cm)
Clearance at Max Lift and Dump	8 ft (2 m)
Clearance at Maximum Lift and Dump	94 in (239 cm)
Ground Clearance	9 in (23 cm)
Length - With Bucket on Ground	138 in (351 cm)
Length - Without Bucket	110 in (279 cm)
Length w/o Bucket	9 ft (3 m)
Length with Bucket	12 ft (4 m)
Maximum Overall Height	156 in (396 cm)
Maximum Reach - With Arms Parallel	53 in (135 cm)
Reach - Maximum Lift/Dump	21 in (53 cm)
Reach at Max Lift and Dump	21 in (54 cm)
Turn Radius from Center - Bucket	83 in (211 cm)
Turn Radius from Center - Coupler	52 in (132 cm)
Turn Radius from Center - Rear	64 in (163 cm)
Turning Radius from Center - inc bucket	83 in (210 cm)
Turning Radius from Center - machine rear	64 in (162 cm)
Vehicle Width over Tires	66 in (168 cm)
Wheel Base	4 ft (1 m)
Wheelbase	4 ft (1 m)
Width Over Tires	6 ft (2 m)
Engine
Aspiration	turbocharged
Bore	4 in (9 cm)
Engine Make	Caterpillar
Engine Model	Cat 3044C DIT
Engine Power - ISO 14396	80 hp (60 kw)
Gross Power	79 hp (59 kw)
Gross Power - SAE J1995	82 hp (61 kw)
Net Flywheel Power	78 hp (58 kw)
Net Power - EEC 80/1269	78 hp (58 kw)
Net Power - ISO 9249 EEC	78 hp (58 kw)
Net Power - SAE 1349	78 hp (58 kw)
Stroke	5 in (12 cm)
Hydraulic System
Hydraulic Flow	Standard flow
Hydraulic Power	43 hp (32 kw)
Loader Hydraulic Flow	22 gpm (83 lpm)
Loader Hydraulic Pressure	3,335 psi
Pump Flow Capacity	22 gpm (83 lpm)
Relief Valve Pressure	3,336 psi
Loader
Breakout Force	5,483 psi
Operating Load Rating	2,000 lbs (907 kg)
Tipping Angle	3,999 degrees
Operating Specifications
Alternator Supplied Amperage	90 amps
Breakout Force - Lift Cylinder	4,656 lbs (2,112 kg)
Breakout Force - Tilt Cylinder	5,484 lbs (2,488 kg)
Chain Box Fluid Capacity - each side	2 gal (7 l)
Cooling System Fluid Capacity	3 gal (10 l)
Engine Oil Fluid Capacity	3 gal (10 l)
Fuel Capacity	24 gal (90 l)
Hydraulic System Fluid Capacity	14 gal (52 l)
Max Speed	8 mph (13 kph)
Operating Voltage	12 volts
Operational Weight	7,141 lbs (3,239 kg)
Rated Operating Capacity	2,000 lbs (907 kg)
Rated Operating Capacity with Optional Counterweight	2,100 lbs (953 kg)
Tipping Load	4,188 lbs (1,900 kg)
Tire Size	12x16.5 10PR
Power Train
Travel Speed Forward	8 mph (12 kph)
Travel Speed Forward - 2-Speed Option	12 mph (19 kph)
Travel Speed Reverse	8 mph (12 kph)
Travel Speed Reverse - 2-Speed Option	12 mph (19 kph)
Service Refill Capacities
Chain Box - Each Side	2 gal (7 l)
Cooling System	3 gal (10 l)
Engine Crankcase	3 gal (10 l)
Fuel Tank	24 gal (90 l)
Hydraulic System	14 gal (52 l)
Hydraulic Tank	9 gal (35 l)
Weights
Operating Weight	7,142 lbs (3,240 kg)
