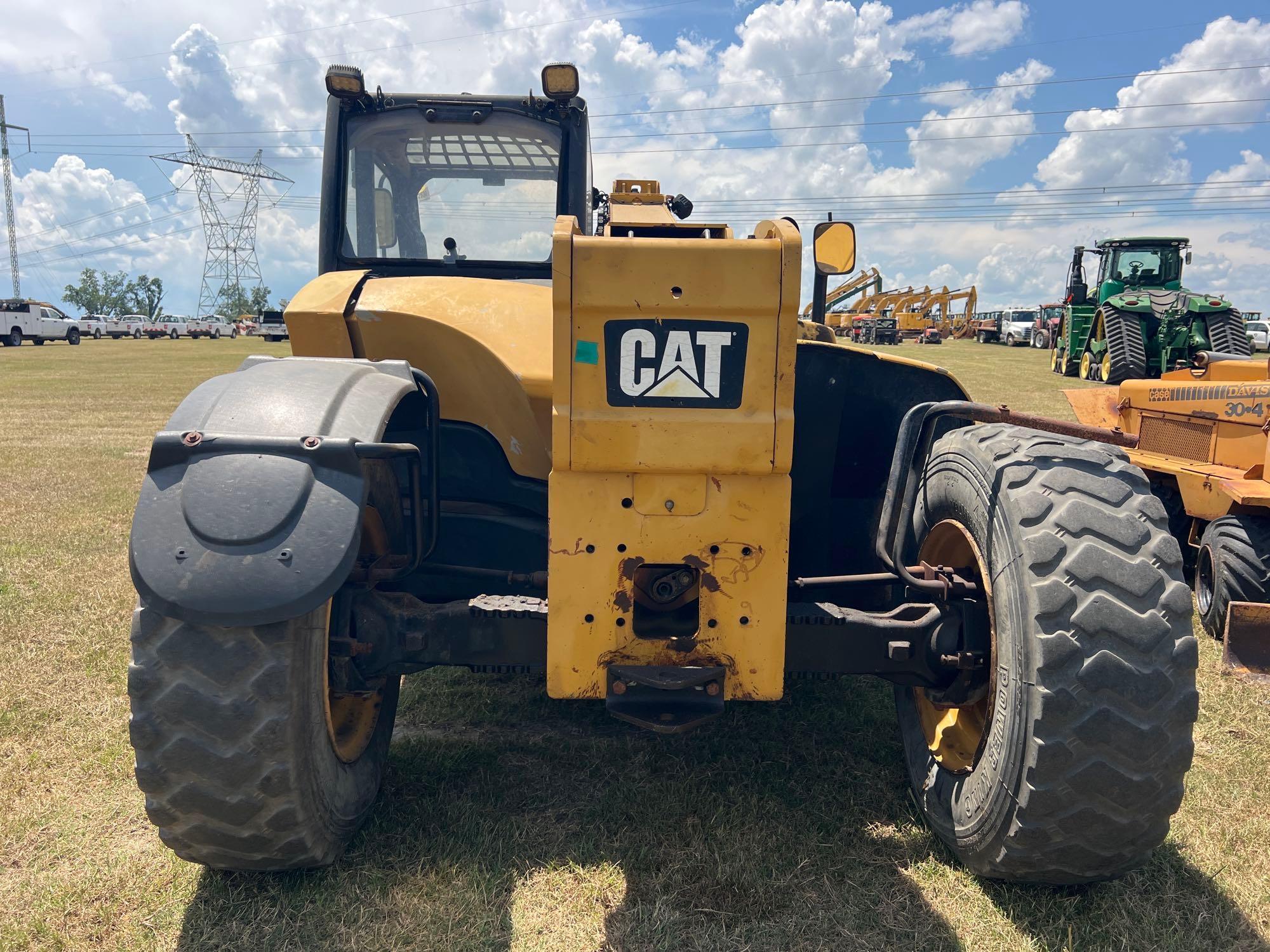

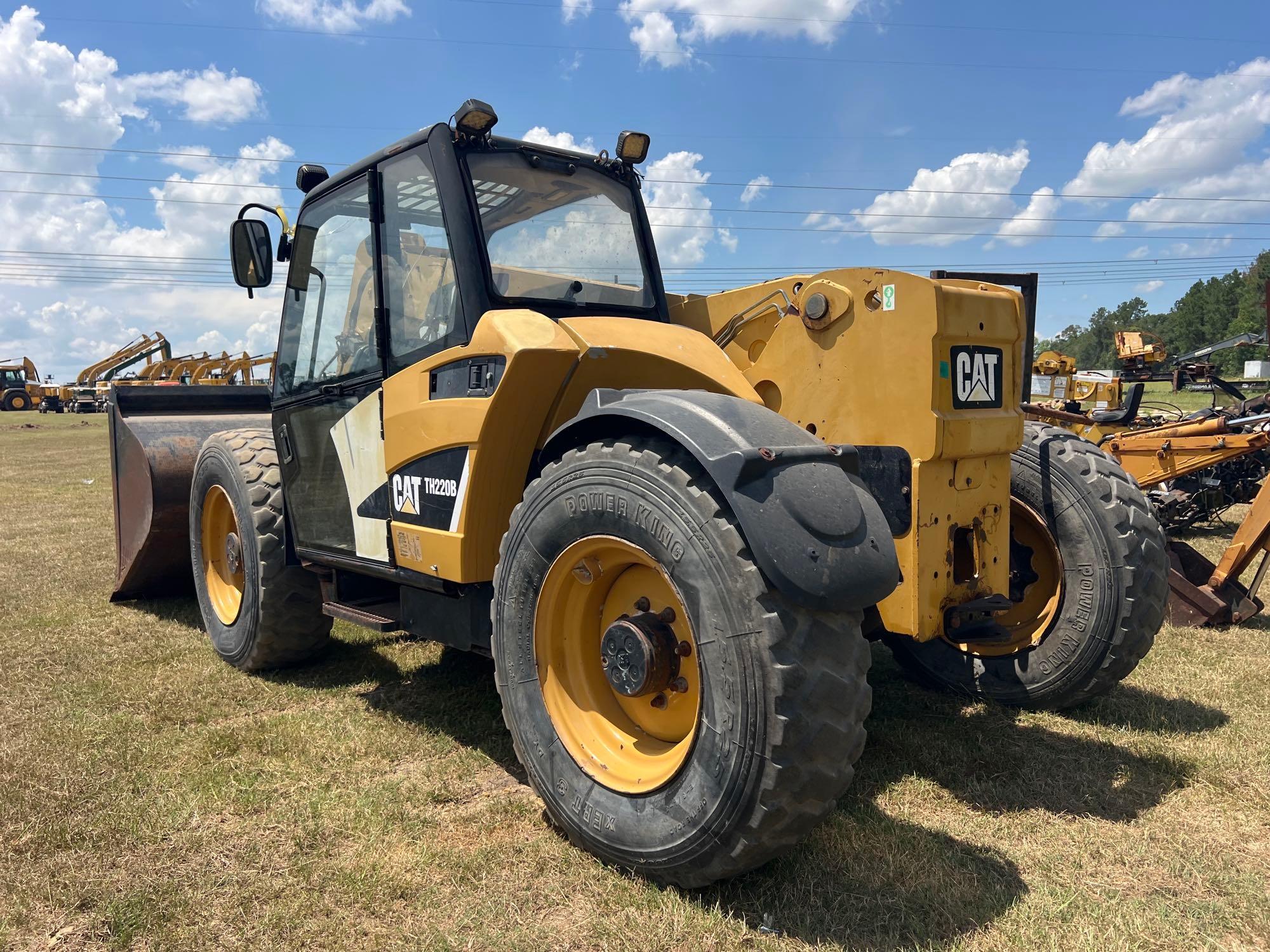

2007 Caterpillar TH220B For Sale in Hazlehurst, GA

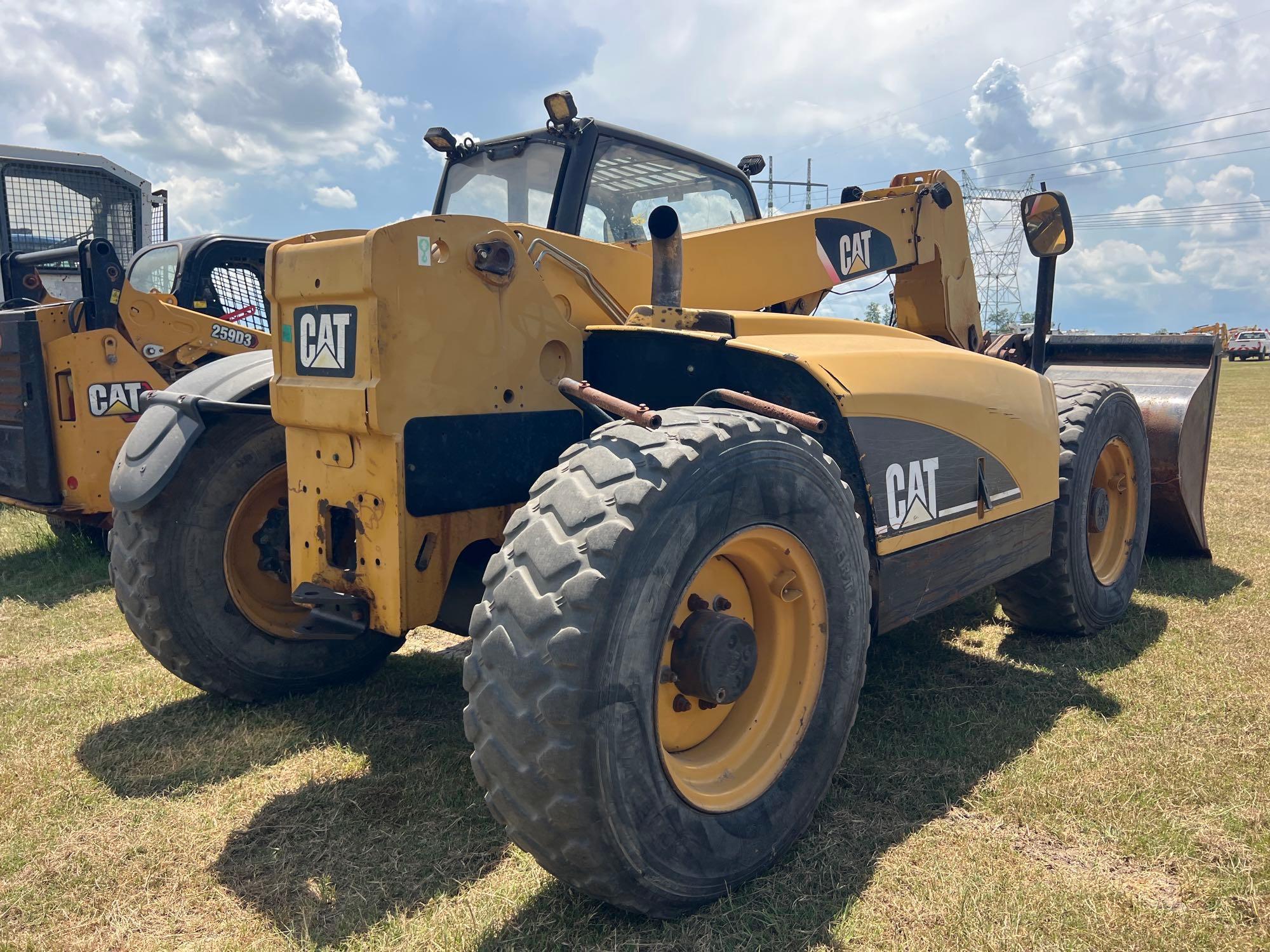

Name: 2007 Caterpillar TH220B
Brand: Caterpillar
SKU: 88753433
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-07-09 Click here to place a bid

Rebel Auction Co., Inc.

Rebel Auction Co., Inc. Dealer Info

Rebel Auction Co., Inc. Website

Click here to email Rebel Auction Co., Inc..

Click for Phone Number

Machine Info:

Machine Location:	HAZLEHURST, GA
More Information:	https://www.proxibid.com/heavy-construction-equipment/lifts/2007-caterpillar-th220b-telescopic-forklift/lotInformation/101873806?utm_source=ceg&utm_medium=referral&utm_campaign=atgxl_ceg&utm_content=72932

Description:

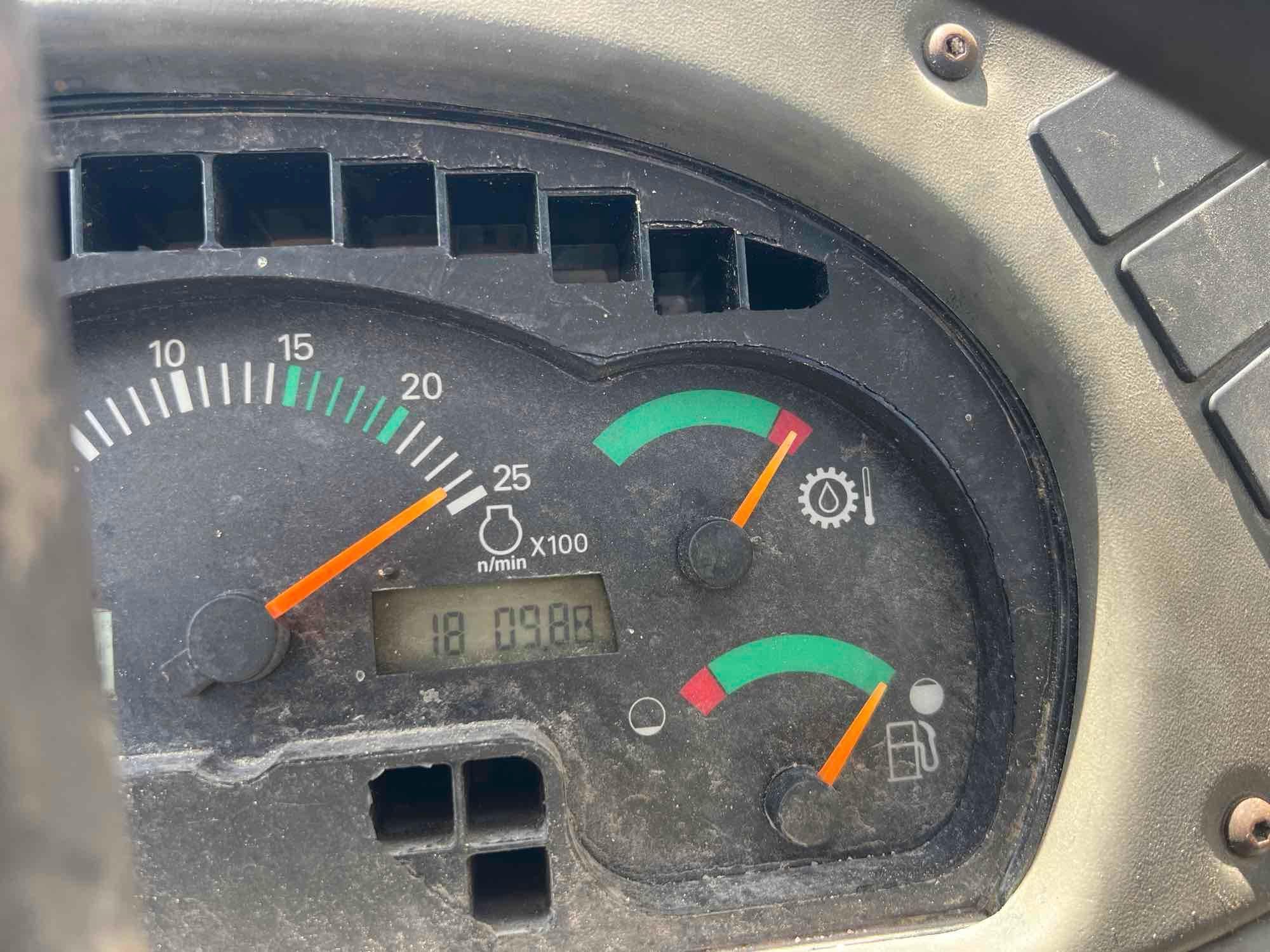

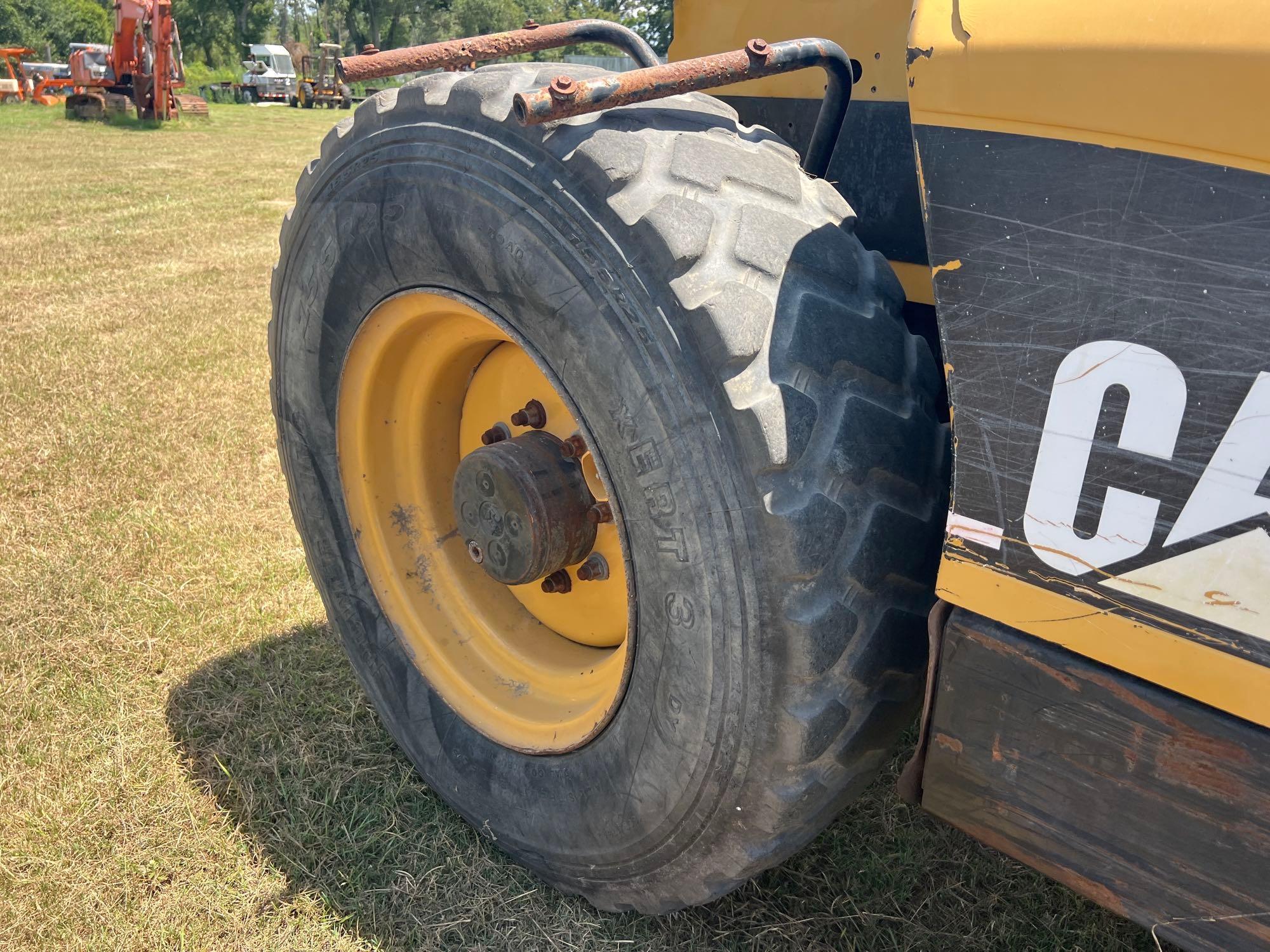

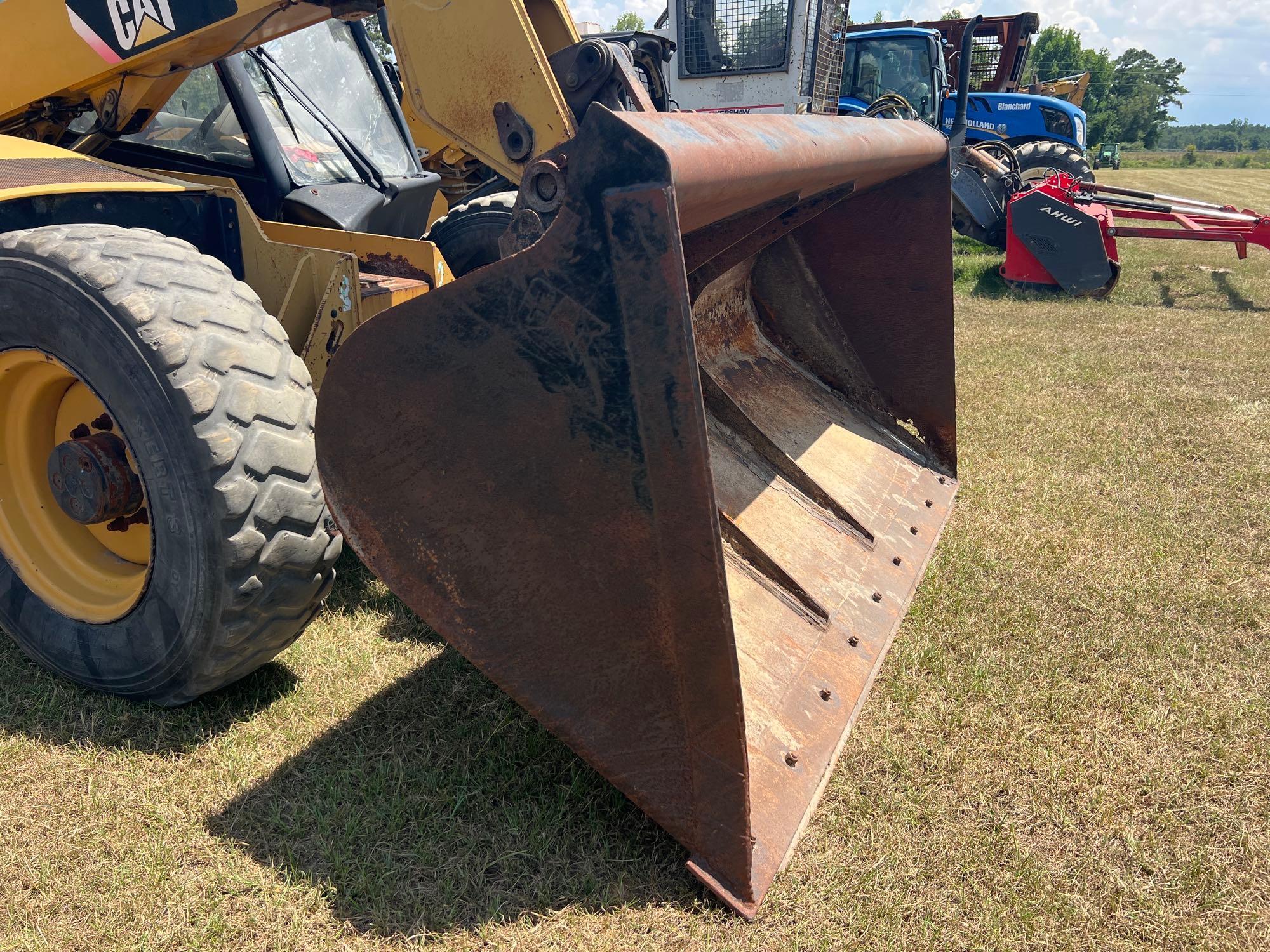

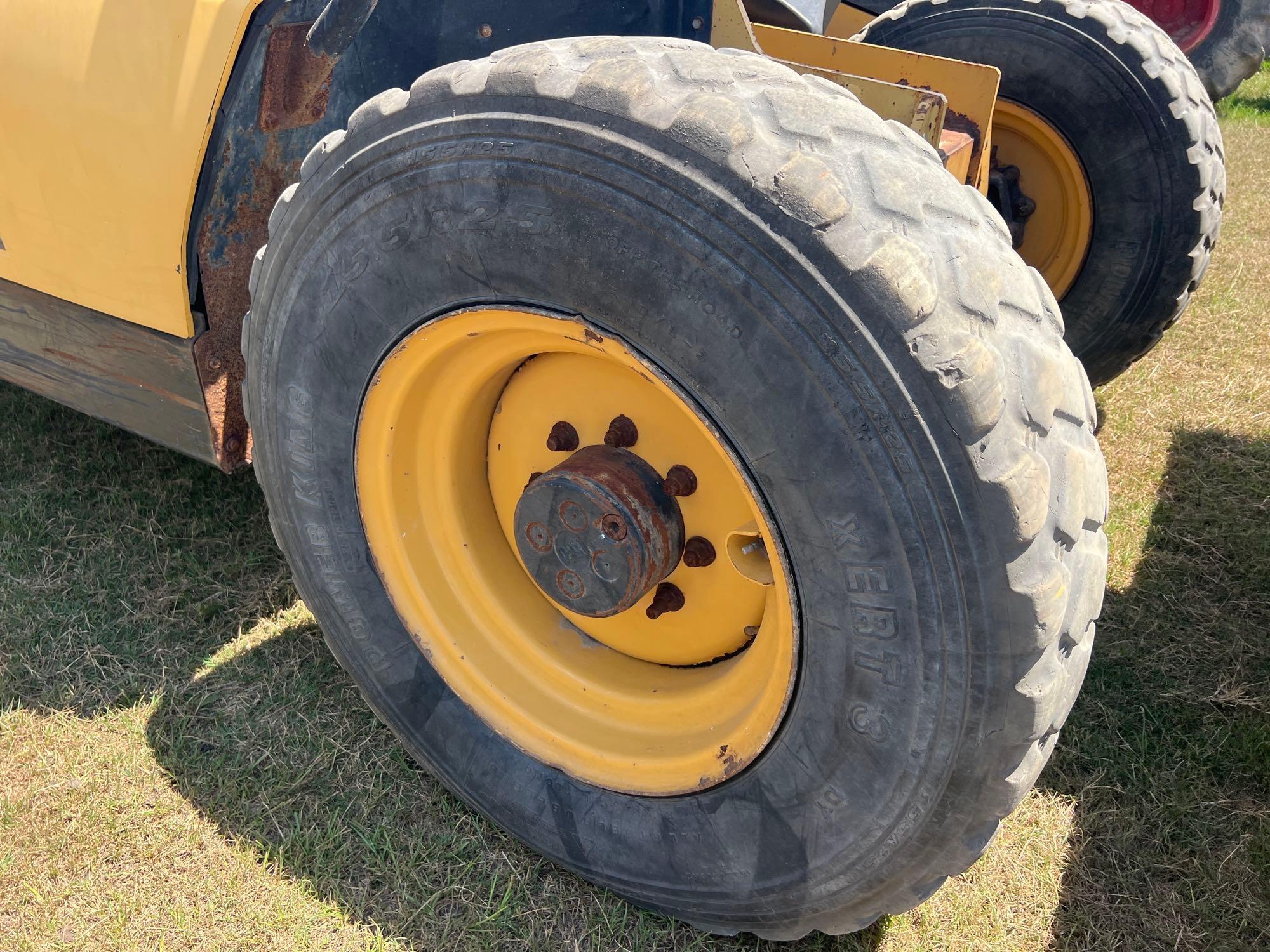

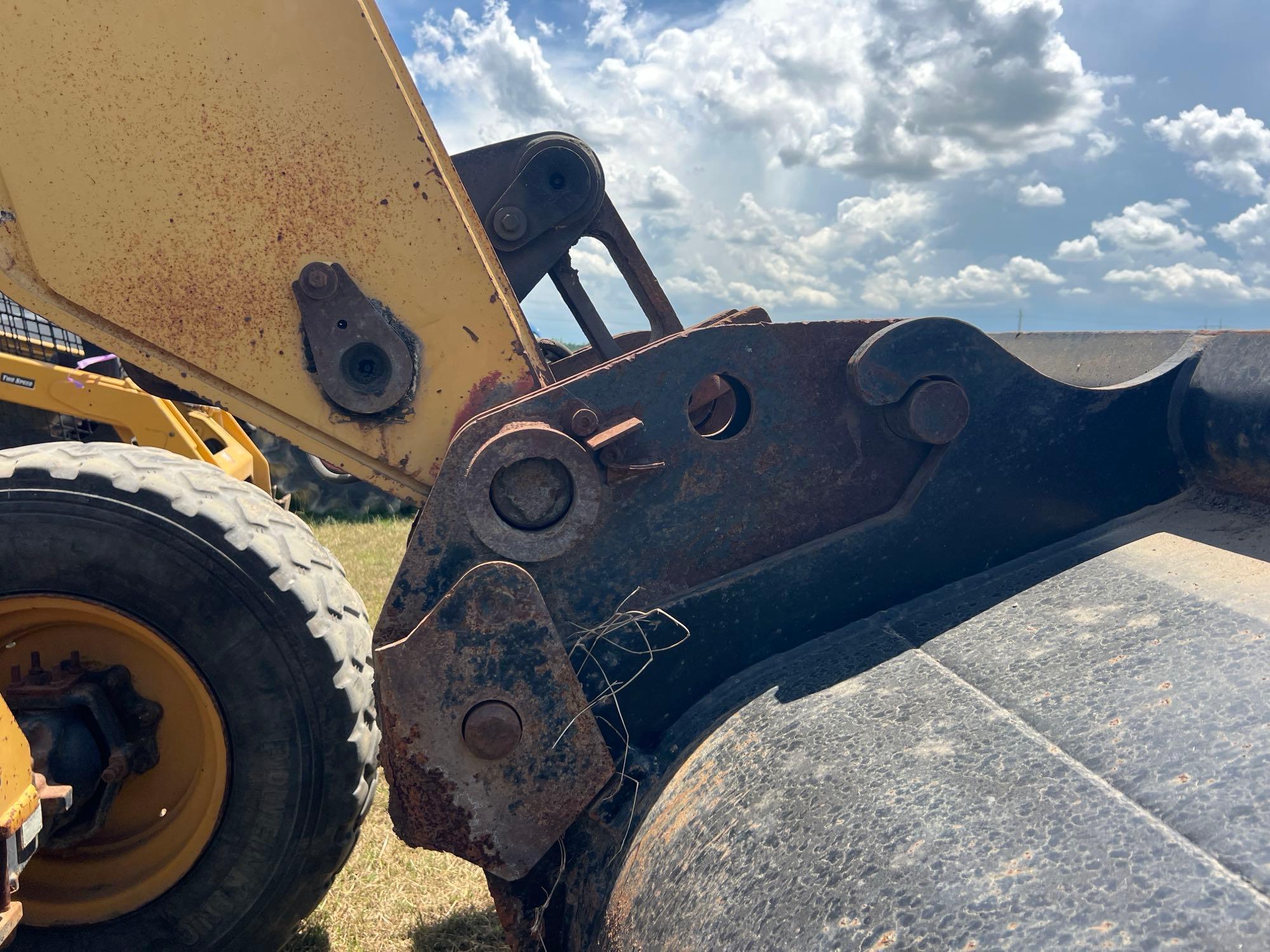

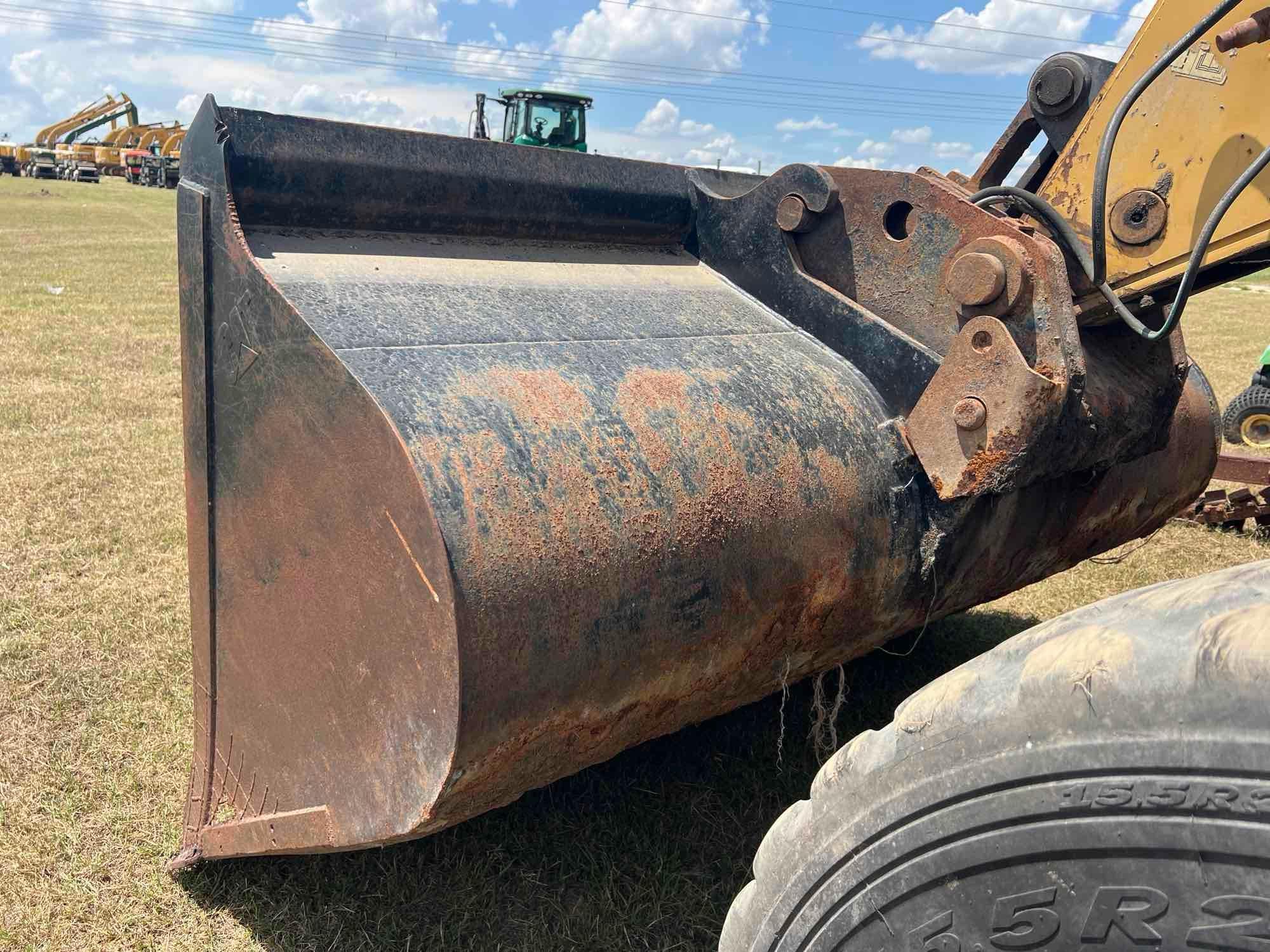

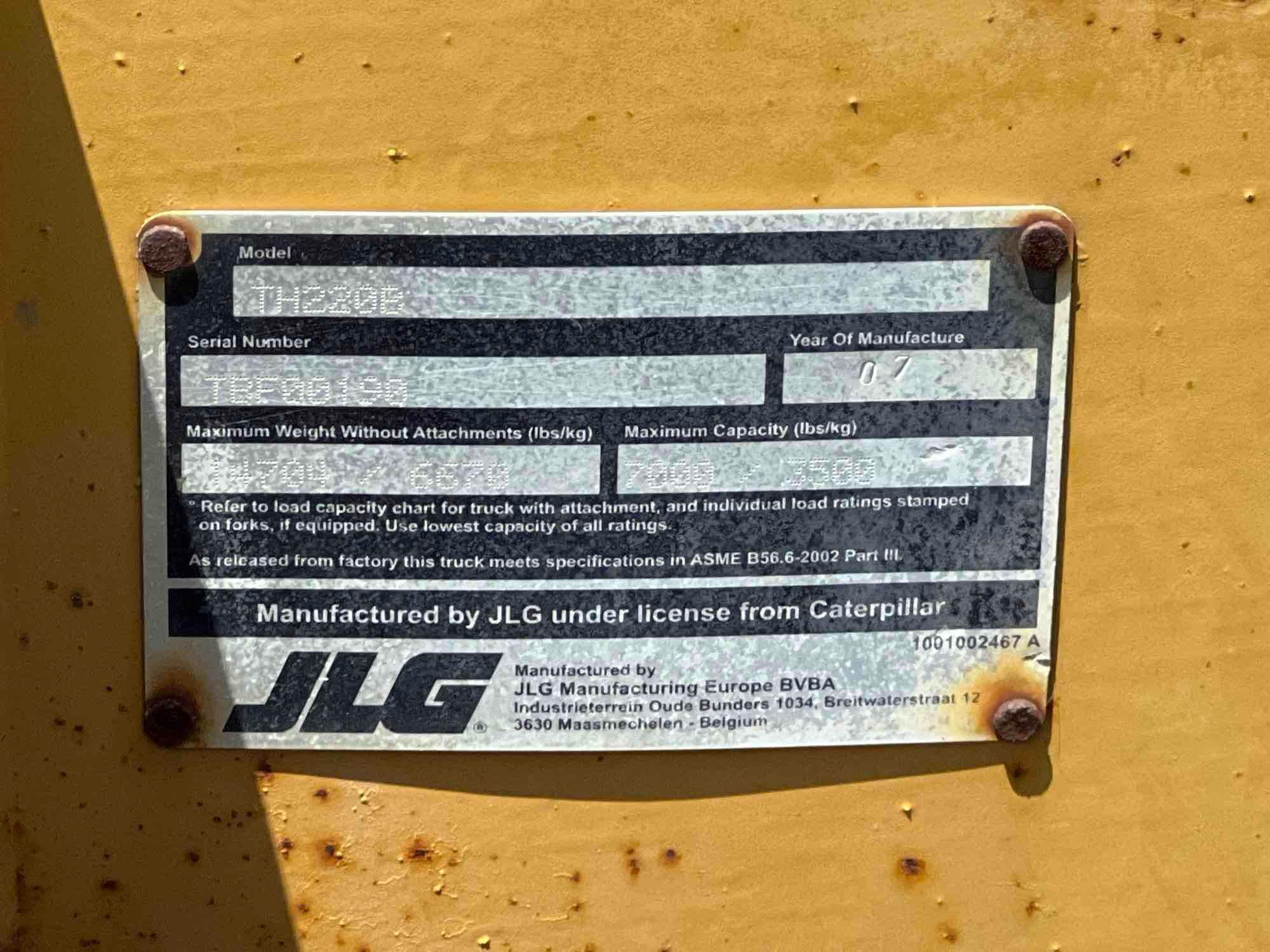

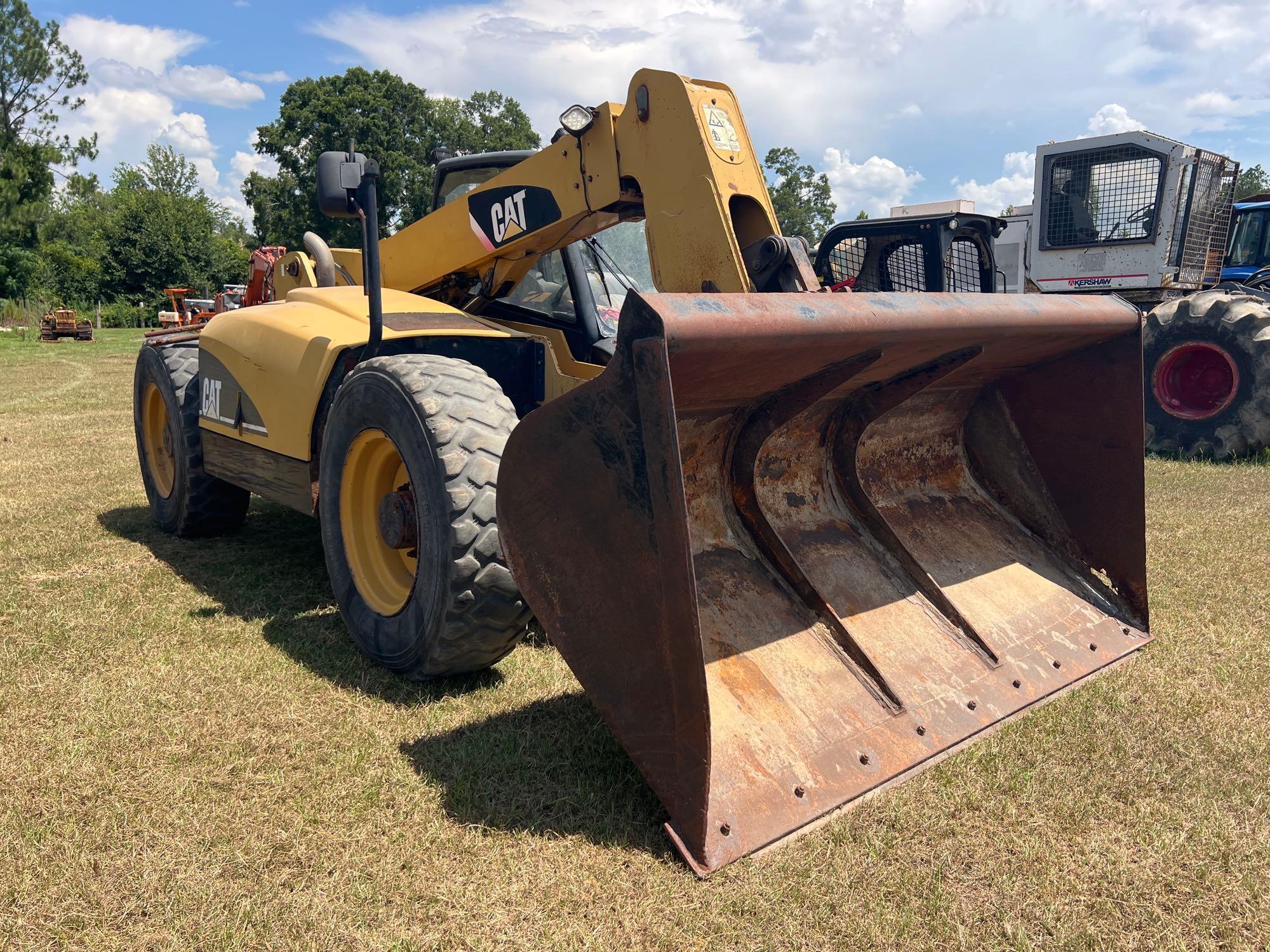

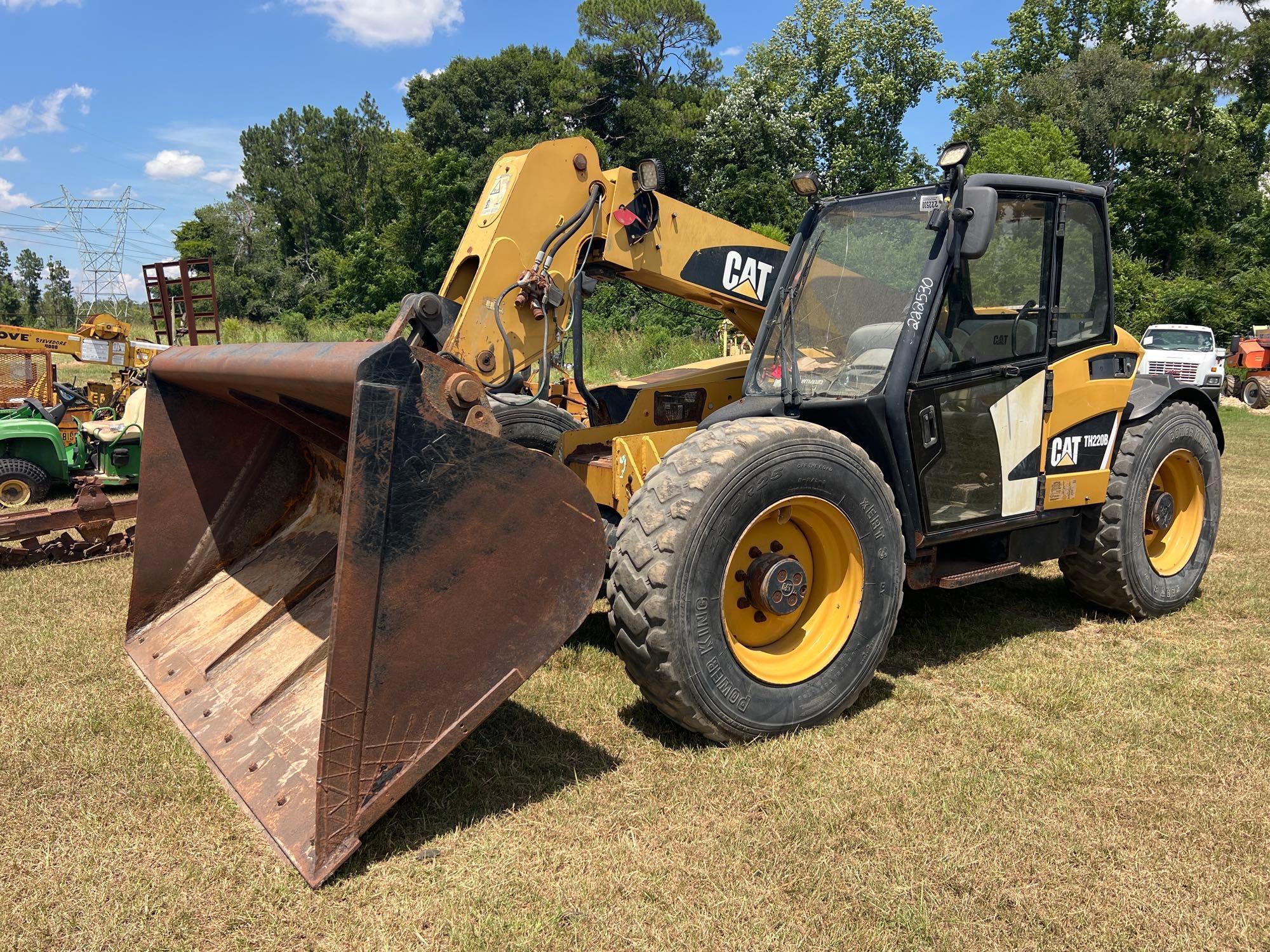

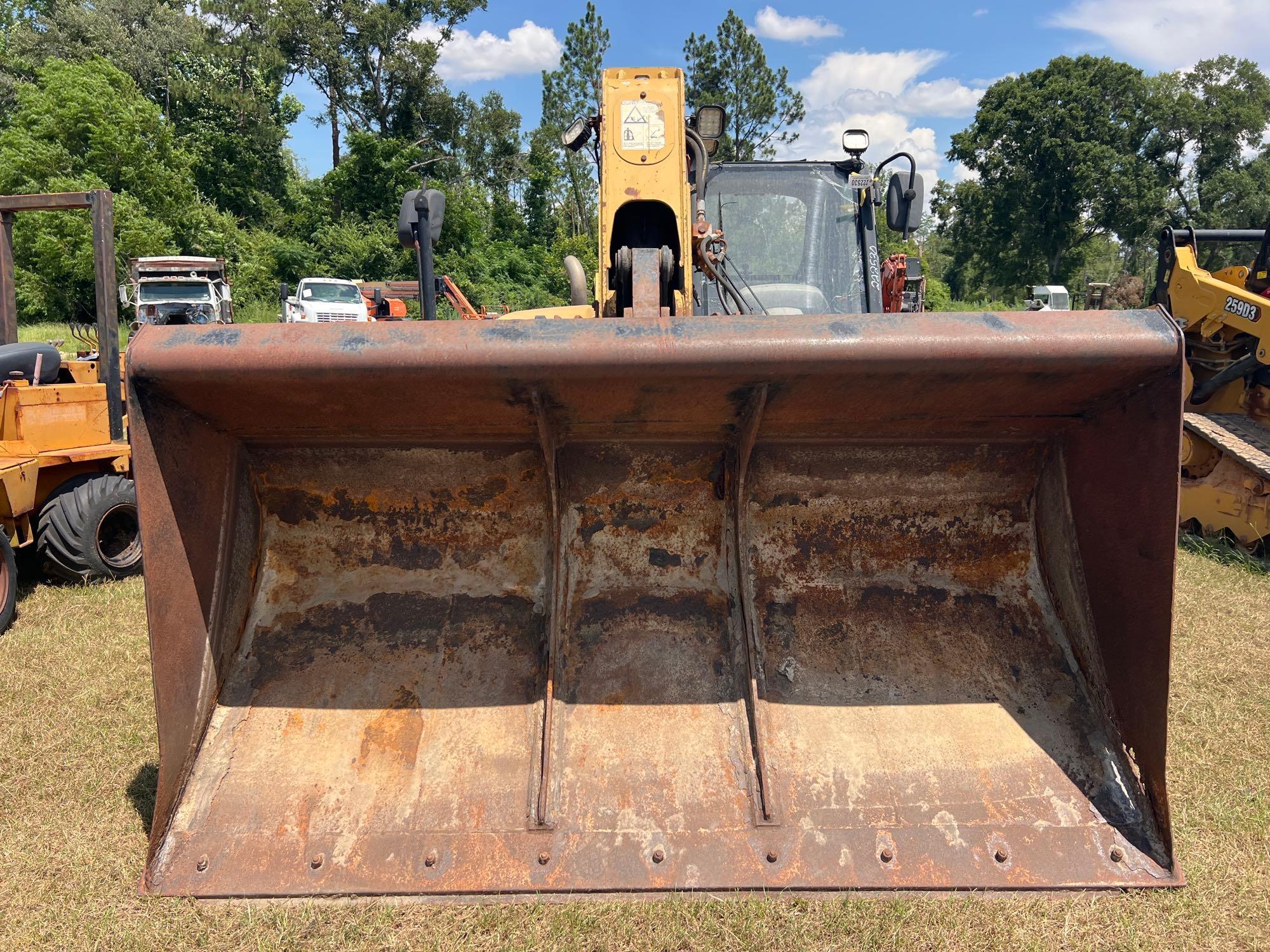

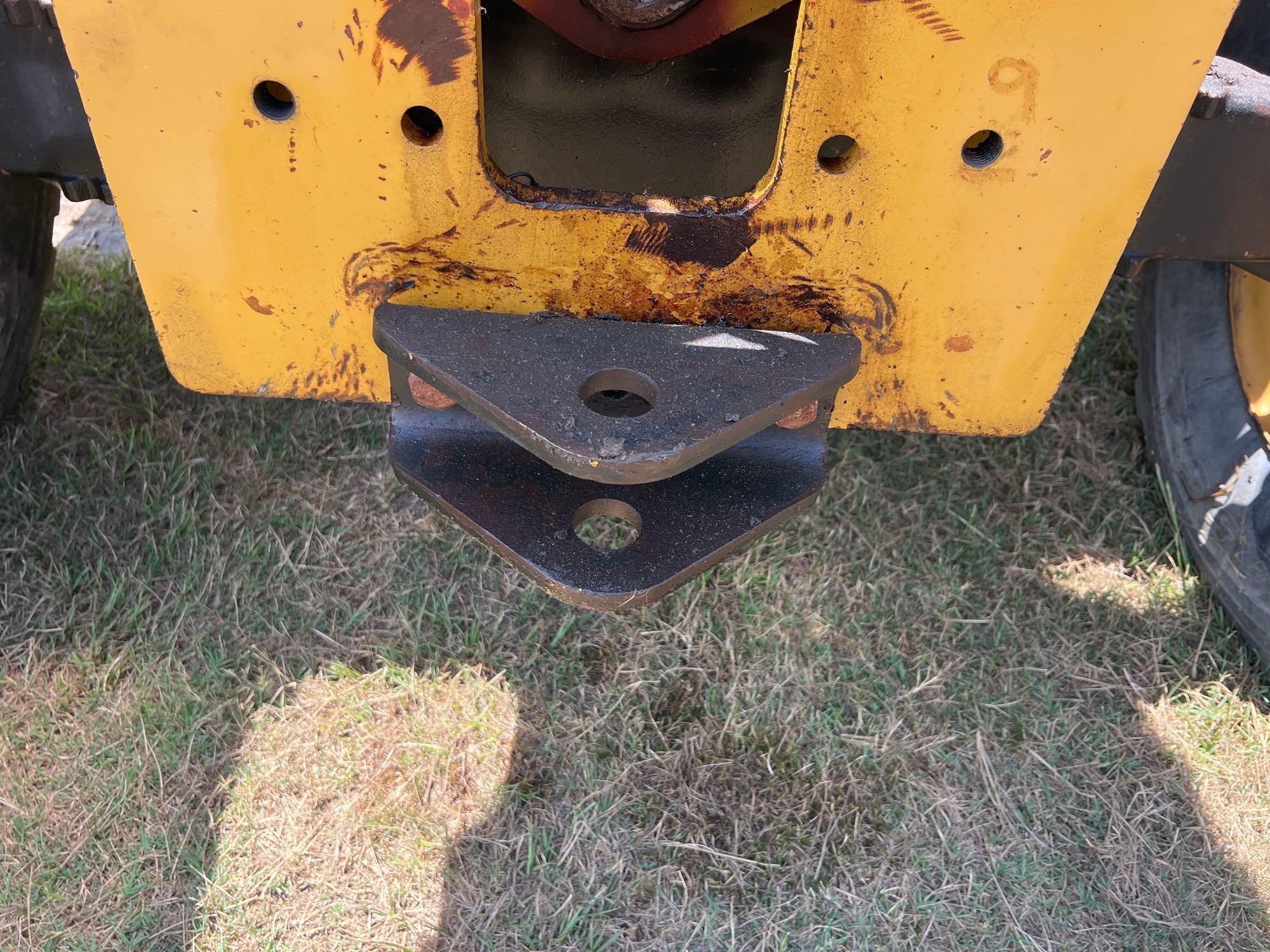

(HRS SHOWN 18-09) EROPS, TELESCOPIC BOOM, AUX HYD, HYD QUICK COUPLER, 98" BUCKET, 7000LB CAP, 15.5R25 TIRES, 4X4X4 PULLBAR, S/N - TBF00198 **RUNS & DRIVES - BOOM DOES NOT OPERATE**

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom Performance
Boom Breakout Force	6,924 lbs (3,141 kg)
Boom Down	4 seconds
Boom Up	5 seconds
Bucket Breakout Force	12,365 lbs (5,609 kg)
Combined - Down and In	5 seconds
Combined - Up and Out	10 seconds
Crowd Backward	3 seconds
Crowd Forward - Dump	3 seconds
Drawbar Pull - Basic	17,985 lbs (8,158 kg)
Drawbar Pull - Premium	21,357 lbs (9,687 kg)
Tele In	5 seconds
Tele Out	6 seconds
Dimensions
Ground Clearance	17 in (43 cm)
Height	7 ft (2 m)
Height - Top of Hood	68 in (173 cm)
Length - Fork Face	16 ft (5 m)
Length - Front of Tire	14 ft (4 m)
Length to Fork Face	16 ft (5 m)
Overall Height	7 ft (2 m)
Rear - Overhang	2 ft (1 m)
Turning Radius - Over Forks	14 ft (4 m)
Turning Radius - Over Tires	11 ft (3 m)
Turning Radius Outside Tires	11 ft (3 m)
Wheel Base	10 ft (3 m)
Wheelbase	10 ft (3 m)
Width Over Tires	8 ft (2 m)

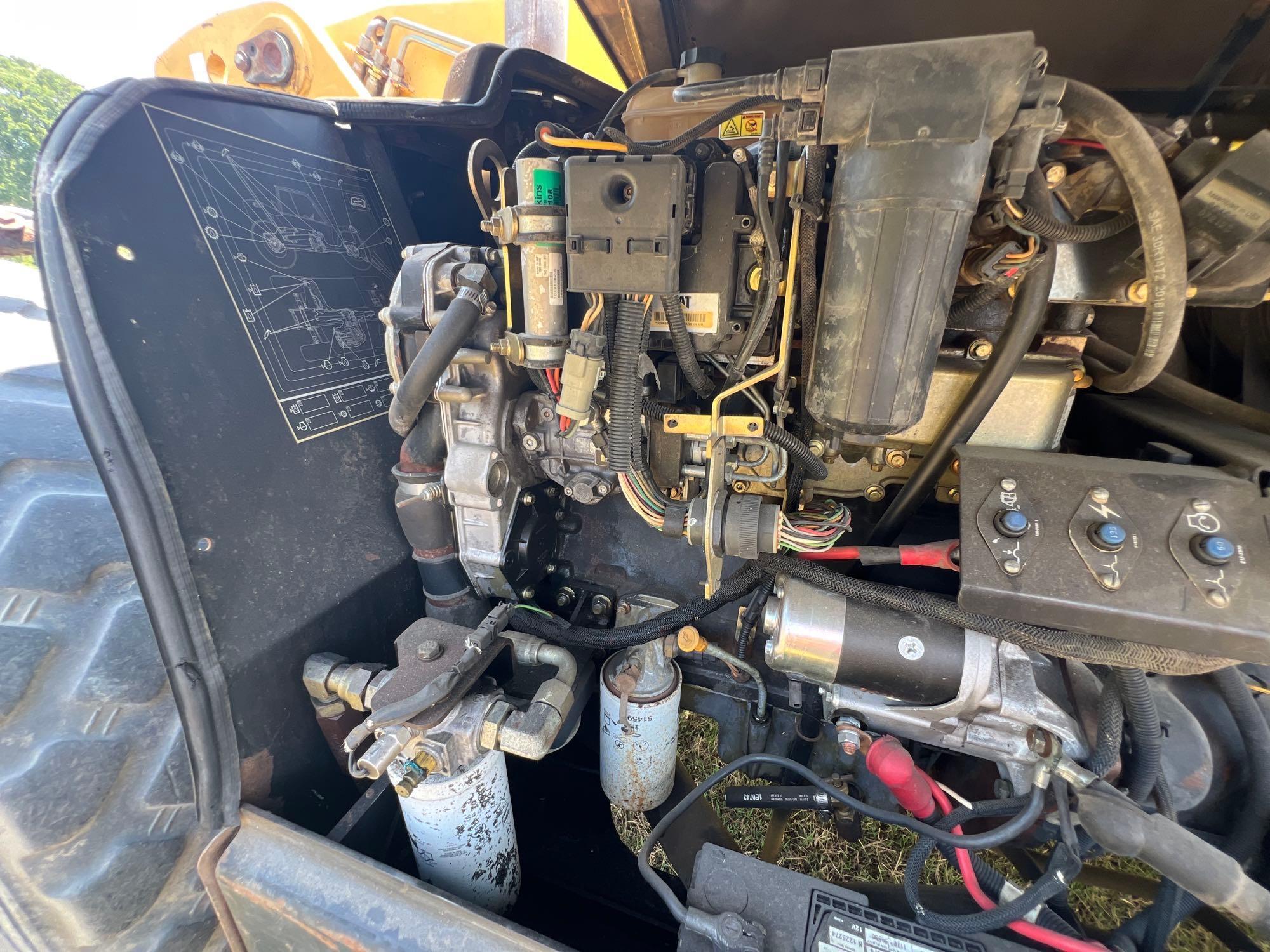

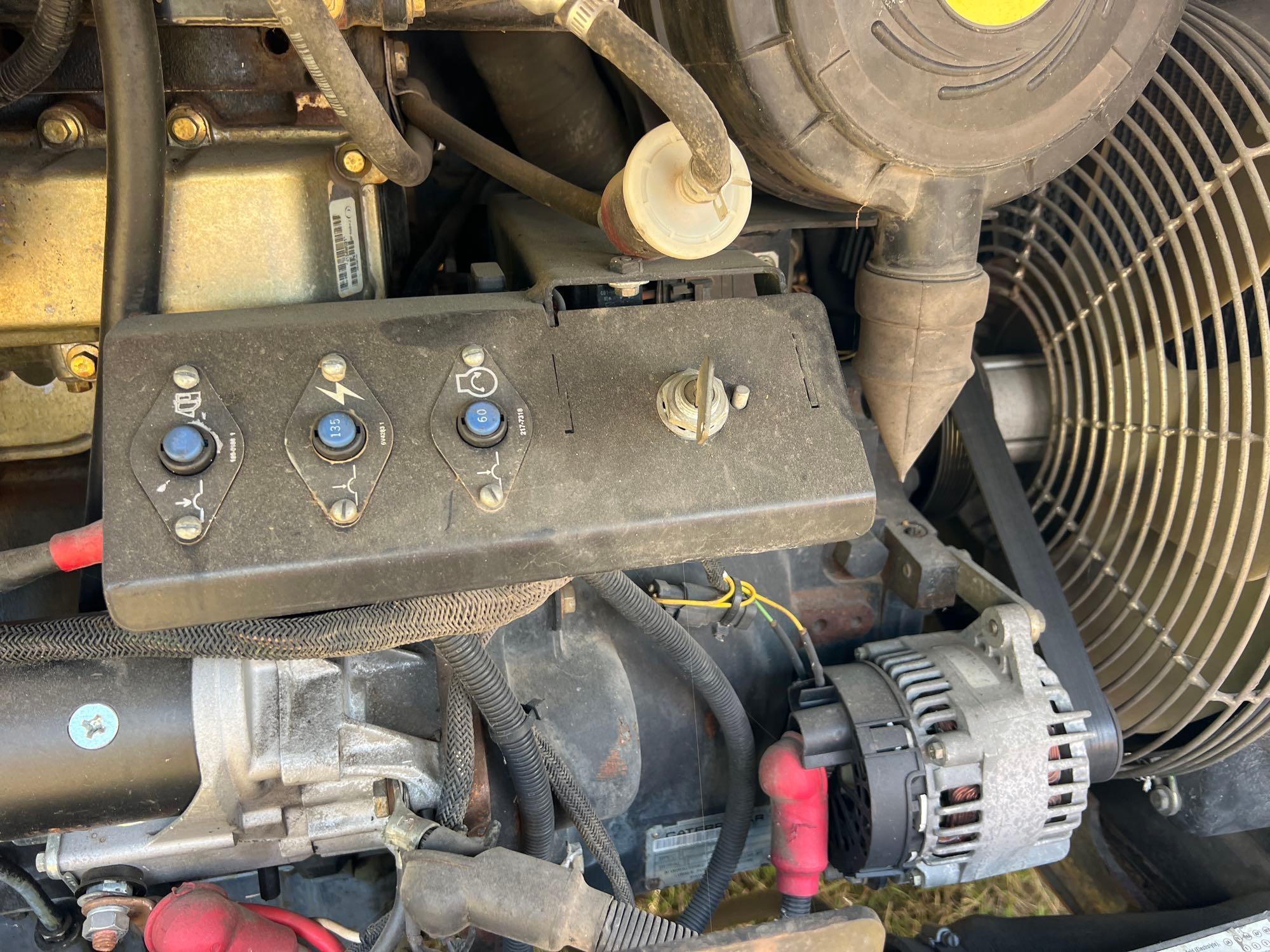

Engine
Bore	4 in (10 cm)
Displacement	268 cu in (4,392 cu cm)
Engine Model	Cat 3054E
Gross Power	100 hp (75 kw)
Gross Power - Basic	100 hp (75 kw)
Gross Power - Premium	120 hp (89 kw)
Max Torque	303 lbs ft (410 nm)
Maximum Torque - Basic	300 lbs ft (407 nm)
MaximumTorque - Premium	330 lbs ft (447 nm)
Net Power	95 hp (71 kw)
Net Power (Basic)	95 hp (71 kw)
Net Power (Premium)	118 hp (88 kw)
Number of Cylinders	4
Power Measured @	2,200 rpm
Stroke	5 in (13 cm)
Torque Measured @	1,400 rpm
Hydraulic System
Auxiliary Hydraulic Supply - Continuous	16 gpm (59 lpm)
Auxiliary Hydraulic Supply - Intermittent	24 gpm (91 lpm)
Maximum Pump Flow	28 gpm (106 lpm)
Maximum System Pressure	3,626 psi
Pump Flow Capacity	28 gpm (106 lpm)
Relief Valve Pressure	3,626 psi
Lift System
Max Forward Reach	11 ft (3 m)
Max Lift Capacity	7,000 lbs (3,175 kg)
Max Lift Height	20 ft (6 m)
Max Load at Max Height	3,300 lbs (1,497 kg)
Max Load at Max Reach	3,300 lbs (1,497 kg)
Operating Specifications
Fuel Capacity	26 gal (100 l)
Hydraulic System Fluid Capacity	16 gal (59 l)
Load at Maximum Height	3,300 lbs (1,497 kg)
Load at Maximum Reach	3,300 lbs (1,497 kg)
Load at Maximum Reach - No Stabilizers	3,300 lbs (1,497 kg)
Maximum Forward Reach	11 ft (3 m)
Maximum Lift Height	20 ft (6 m)
Operating Weight	14,771 lbs (6,700 kg)
Rated Load Capacity	7,000 lbs (3,175 kg)
Tire Size	15.5 - 25 SGL - 2A Goodyear
Top Travel Speed	25 mph (40 kph)
Service Refill Capacities
Fuel Tank	26 gal (100 l)
Hydraulic Tank	16 gal (59 l)

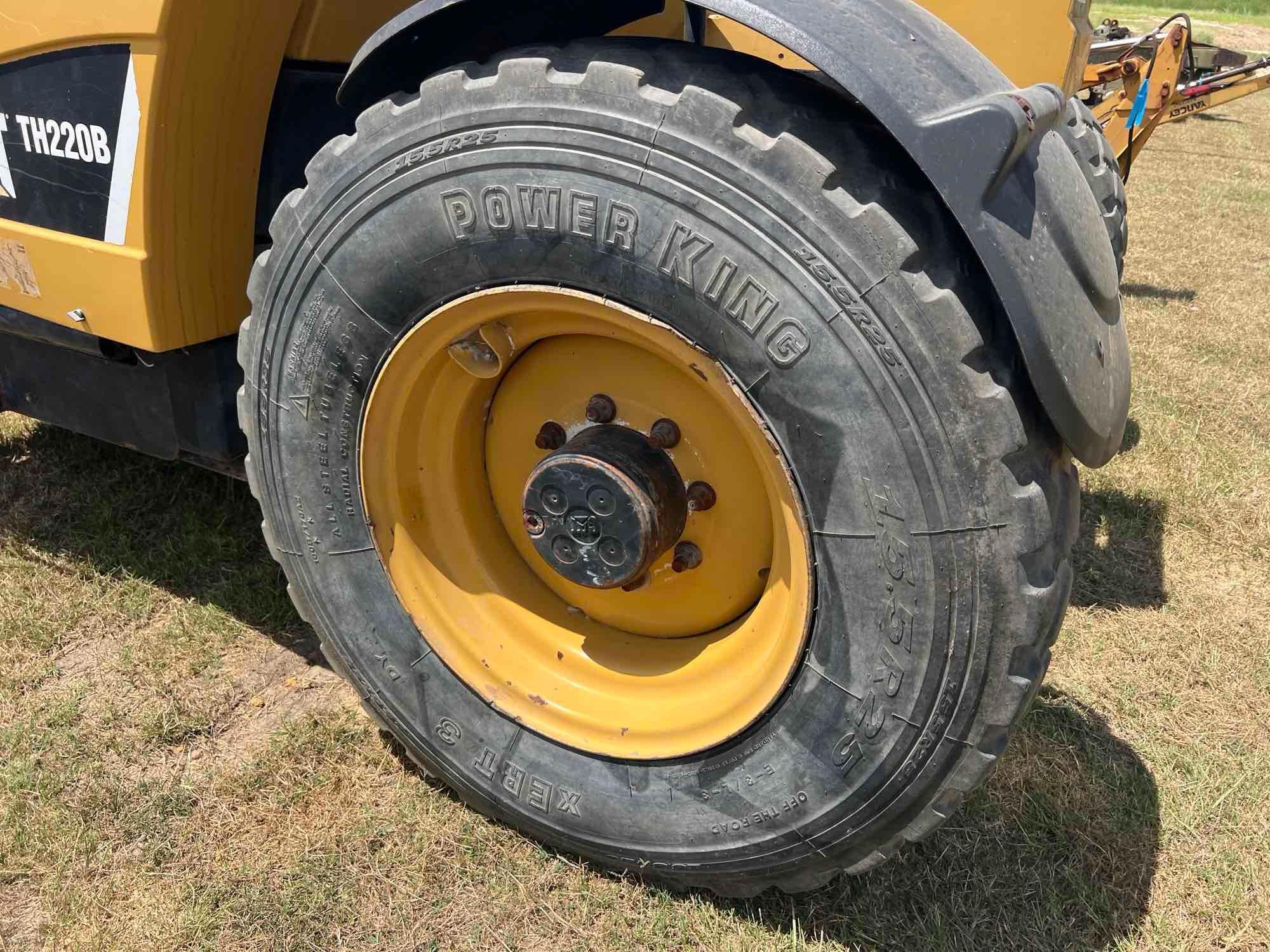

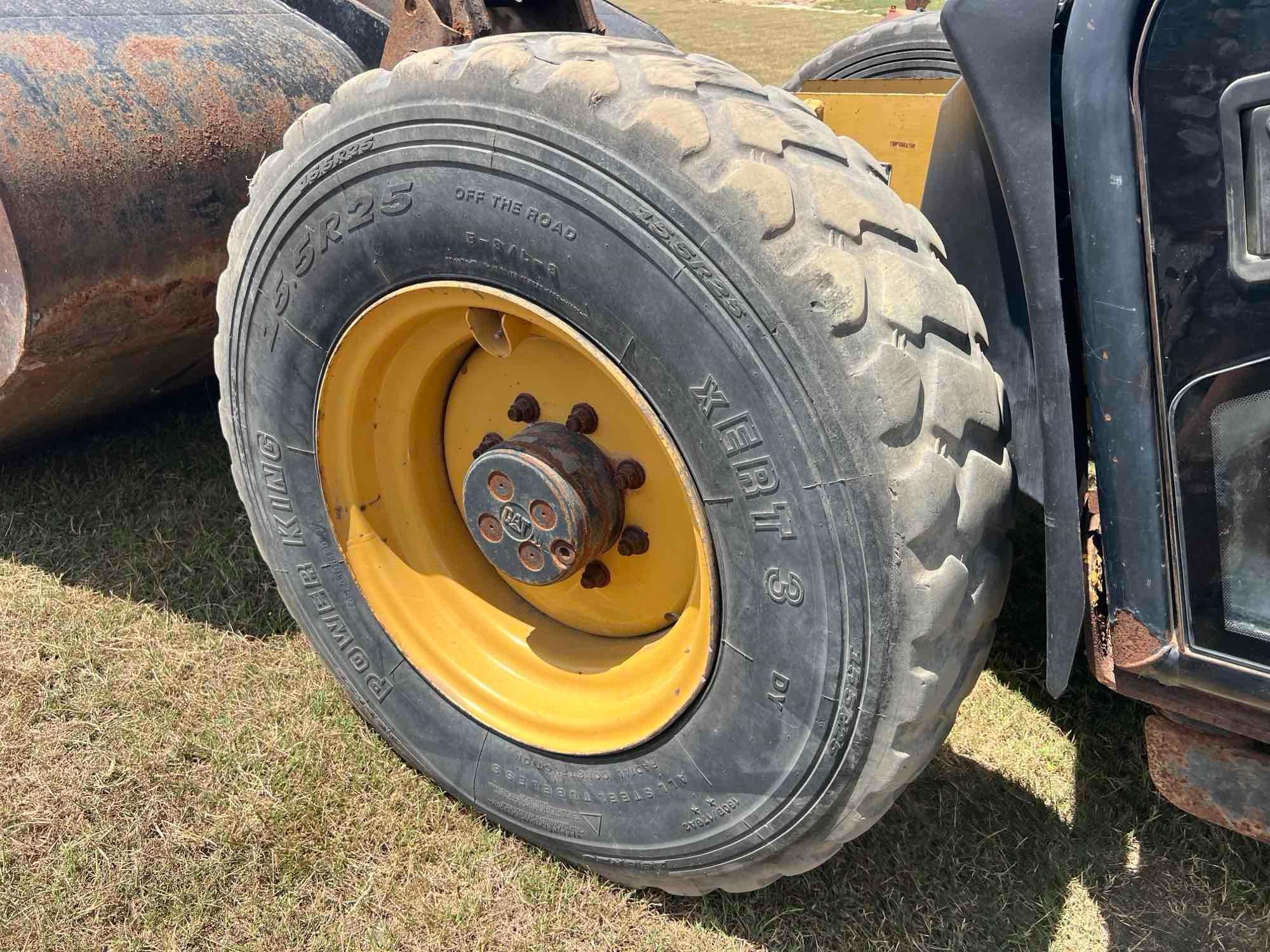

Tires
Standard	15.5-25 SGL-2A Goodyear
Transmission
Max Speed - forward	25 mph (40 kph)
Max Speed - reverse	13 mph (21 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Power shift
Transmission Speeds
Forward - 1	4 mph (6 kph)
Forward - 2	7 mph (11 kph)
Forward - 3	13 mph (21 kph)
Forward - 4	25 mph (40 kph)
Reverse - 1	4 mph (6 kph)
Reverse - 2	7 mph (11 kph)
Reverse - 3	13 mph (21 kph)
Weights
Operating Weight	14,771 lbs (6,700 kg)
