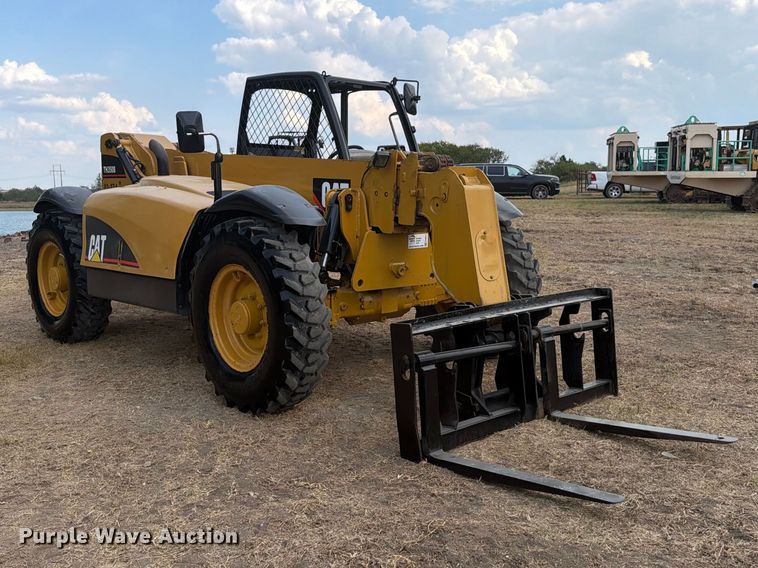

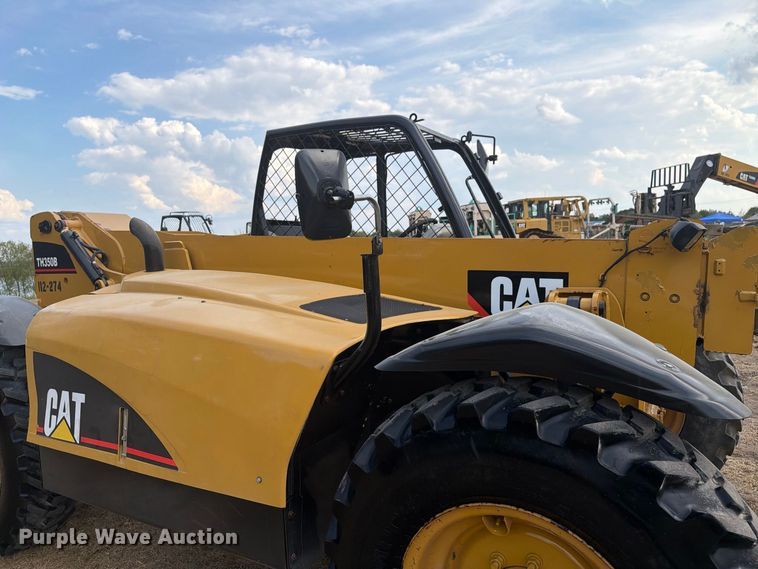

2004 Caterpillar TH350B For Sale in Manhattan, KS

Name: 2004 Caterpillar TH350B
Brand: Caterpillar
SKU: 89301051
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: Auction Pricing

Purple Wave, Inc.

Purple Wave, Inc. Dealer Info

Purple Wave, Inc. Website

Click here to email Purple Wave, Inc..

Click for Phone Number

Machine Info:

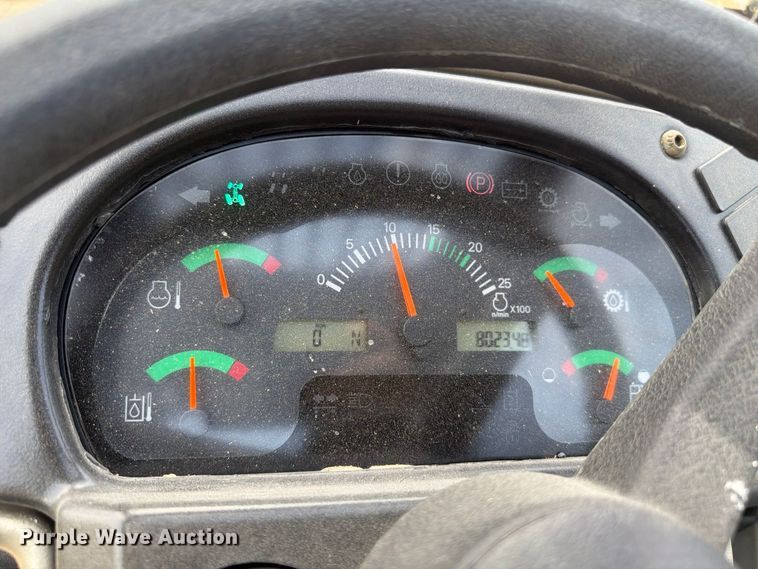

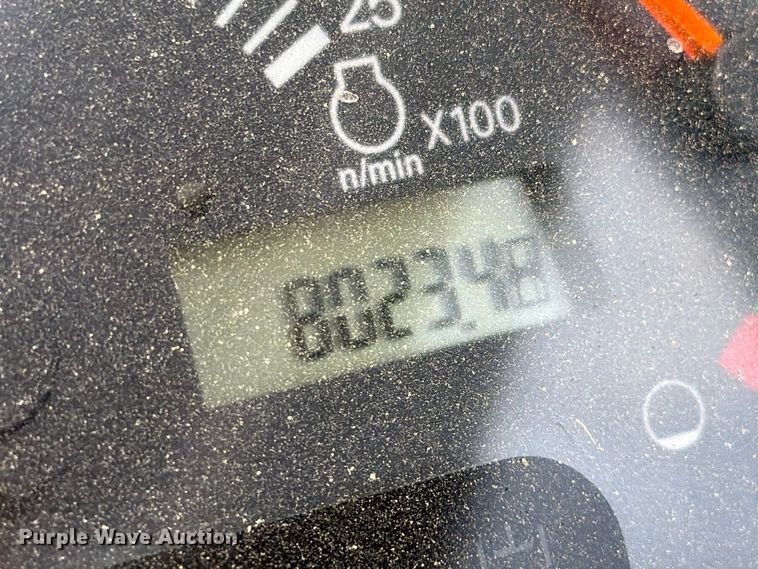

Hours:	8023

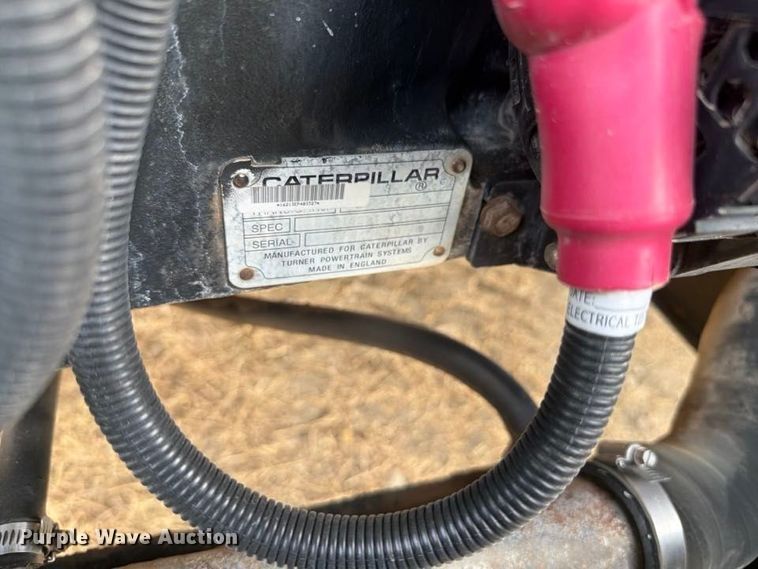

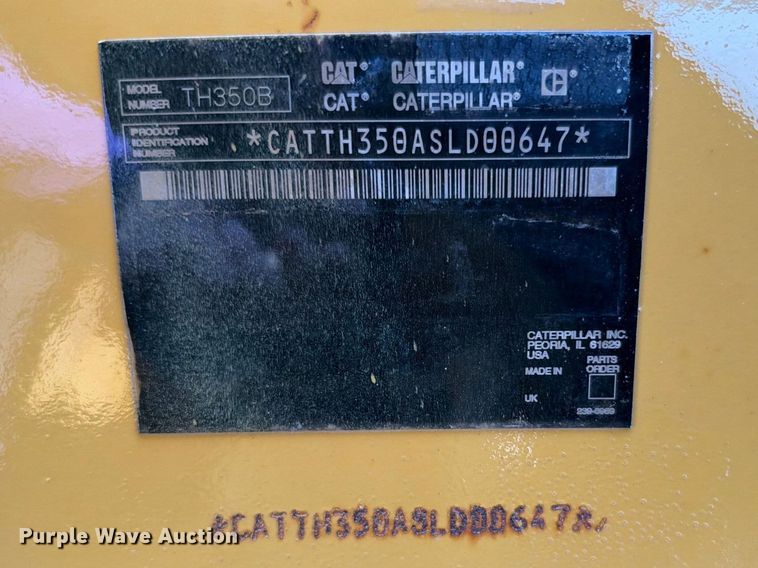

Serial Number:	CATTH350ASLD00647
Machine Location:	MANHATTAN, KS
More Information:	https://www.purplewave.com/auction/261111A/item/FN3675

Description:

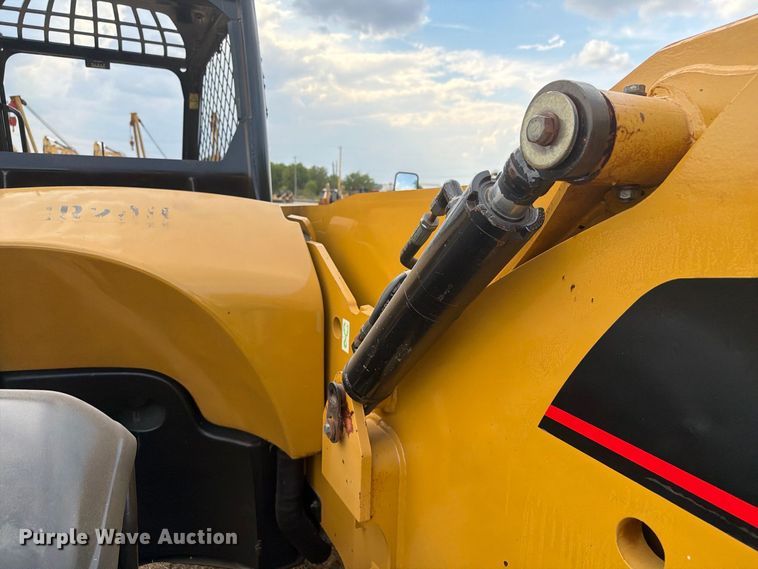

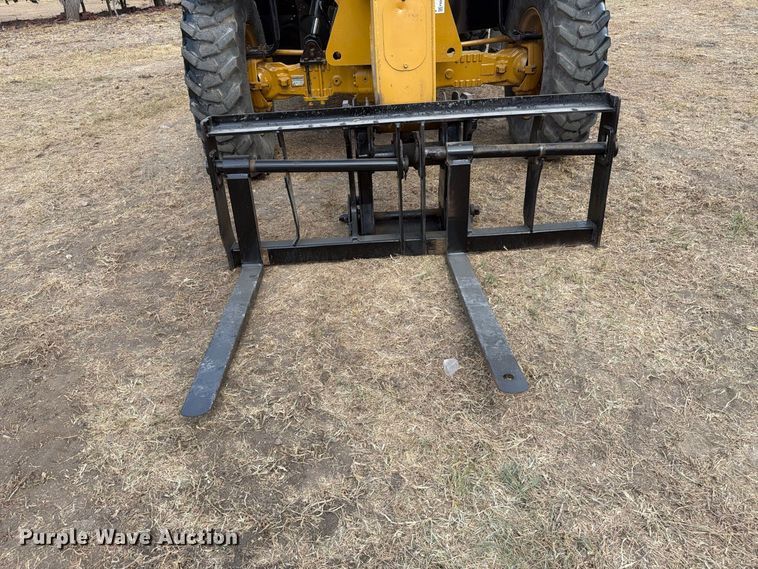

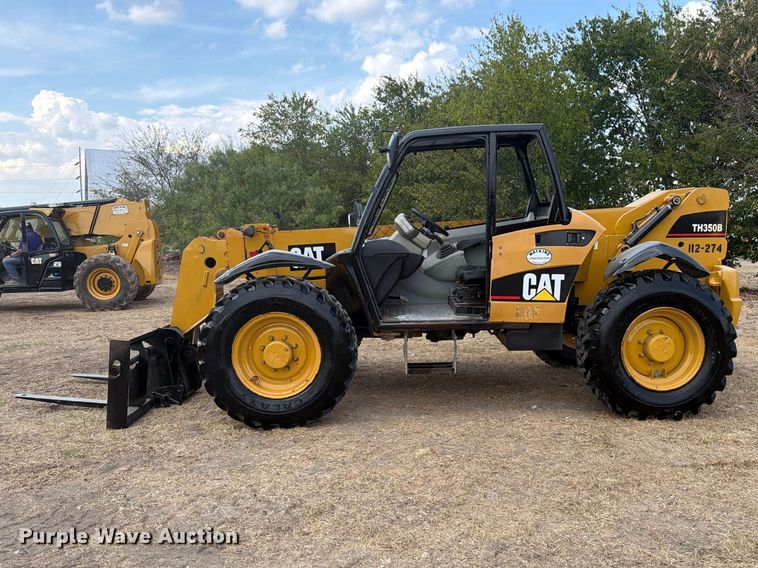

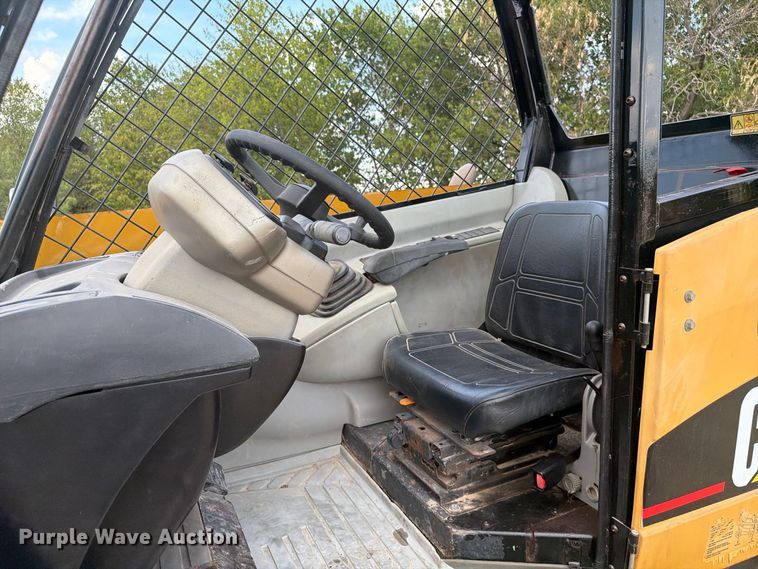

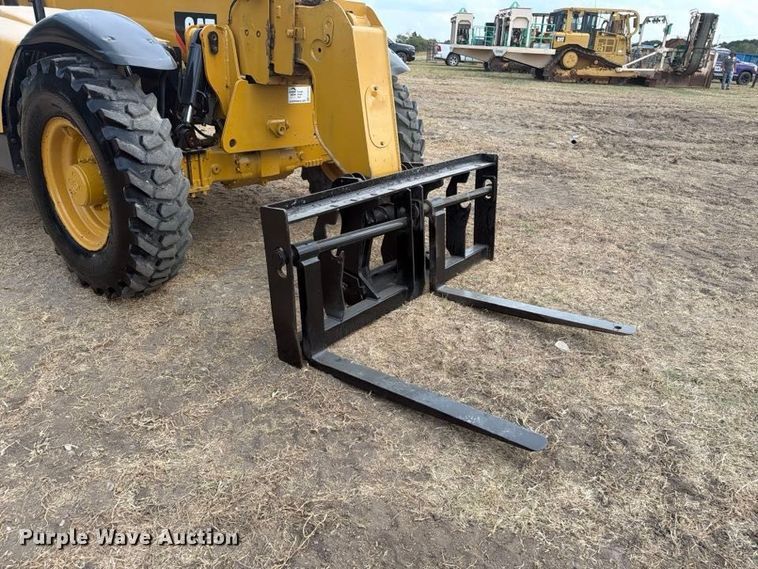

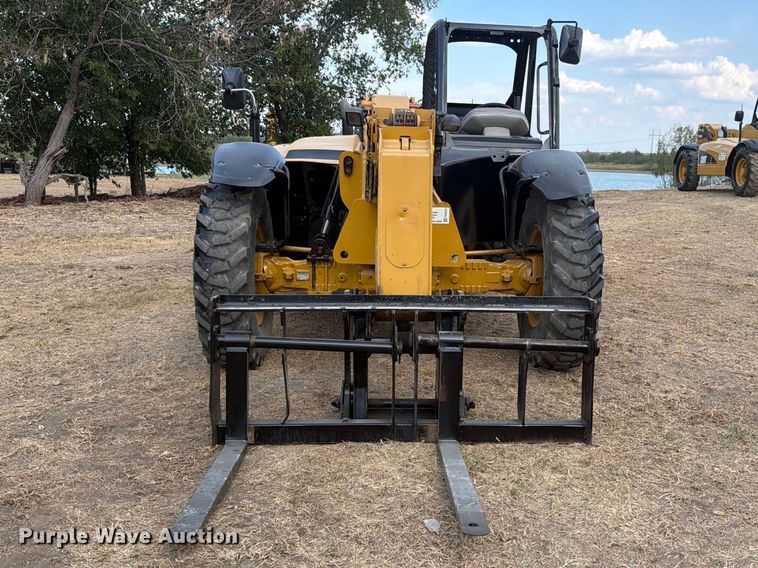

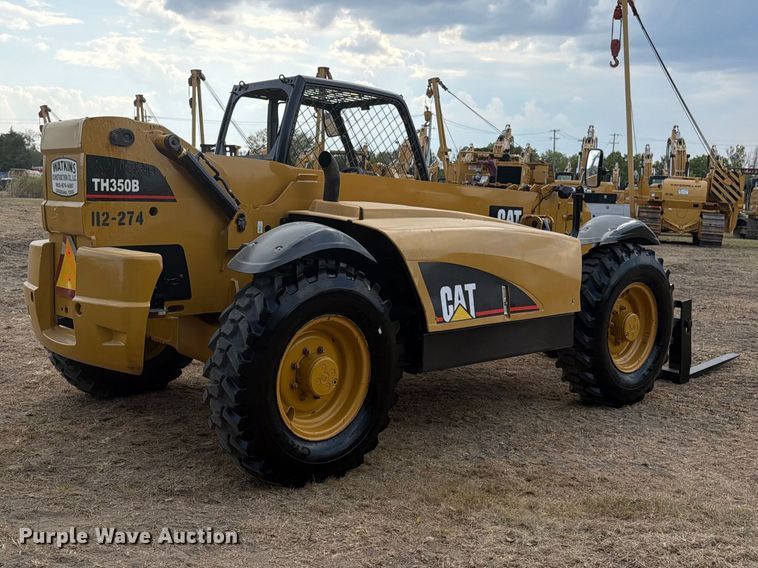

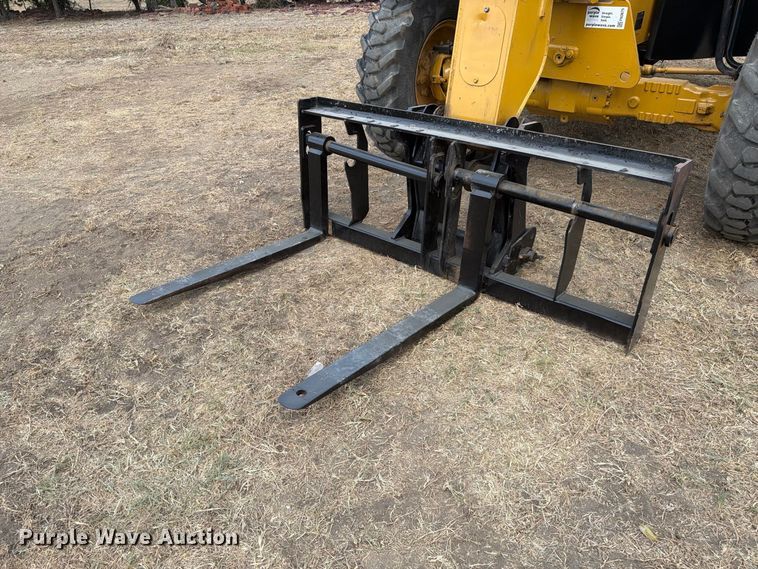

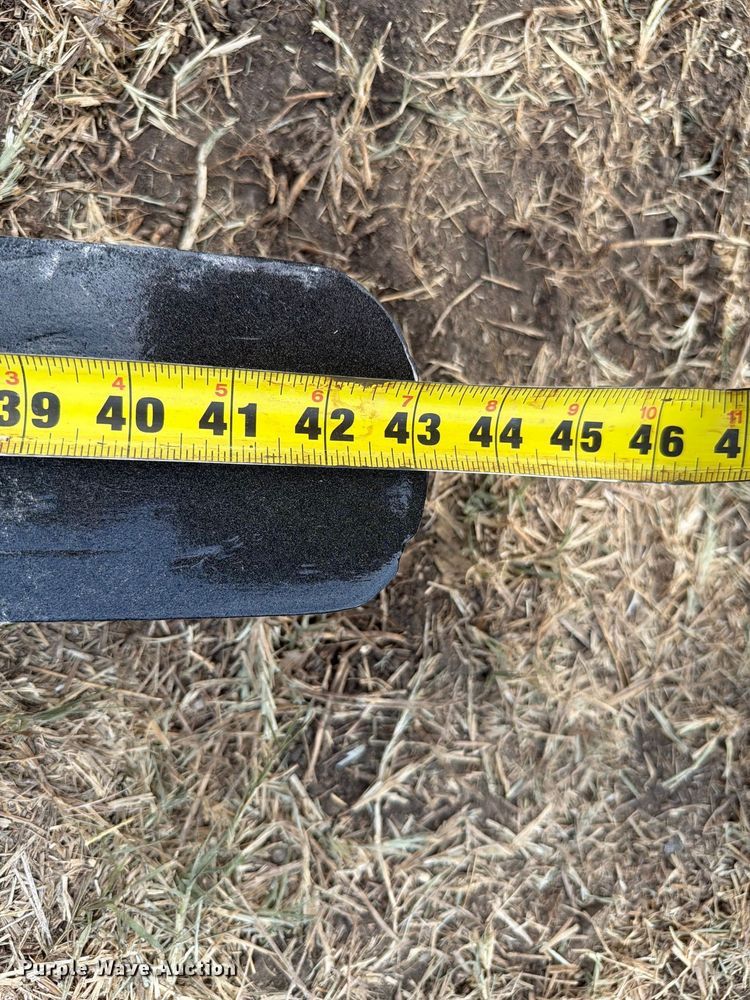

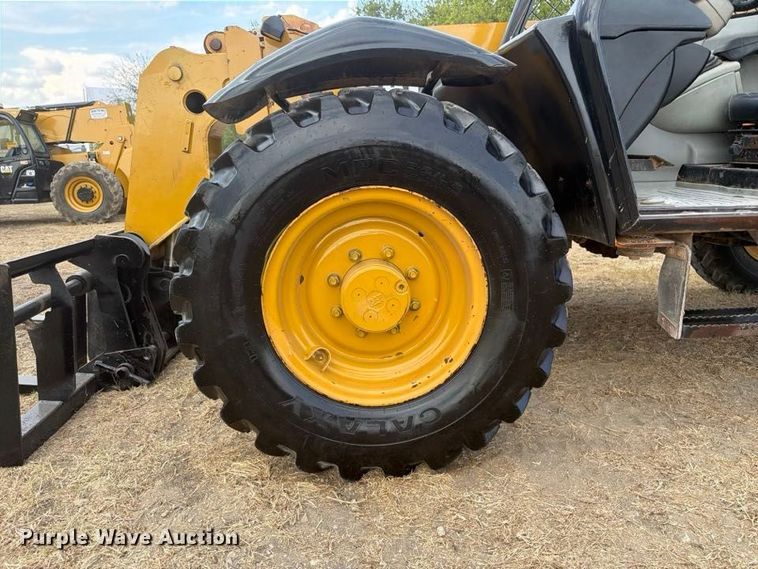

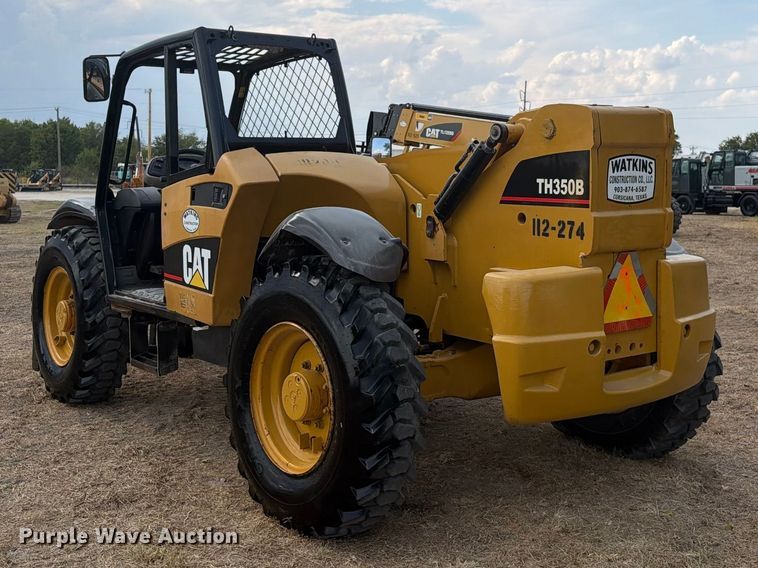

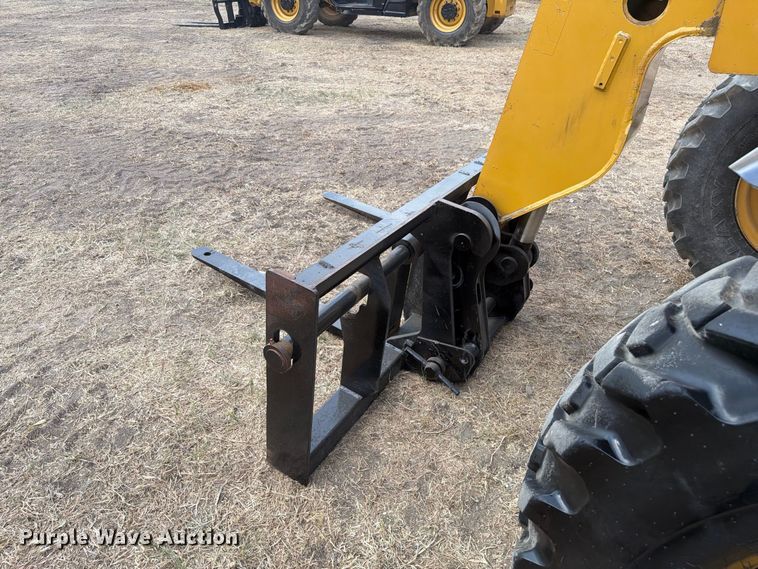

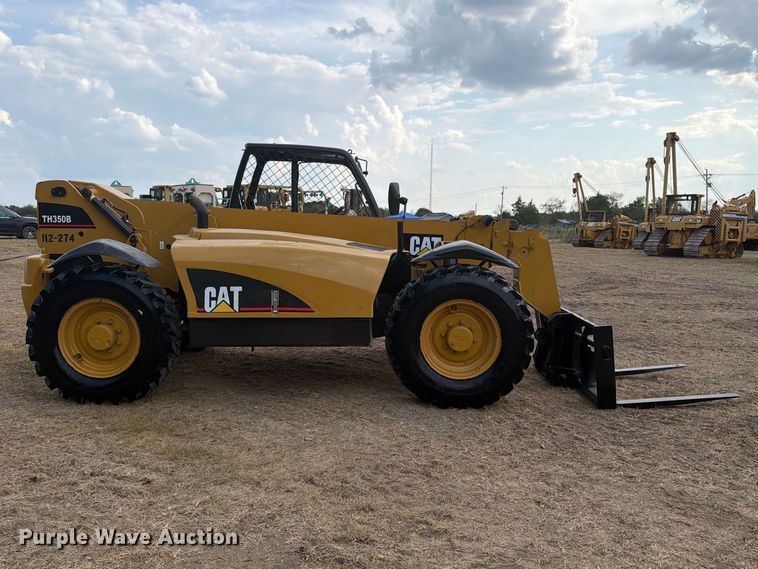

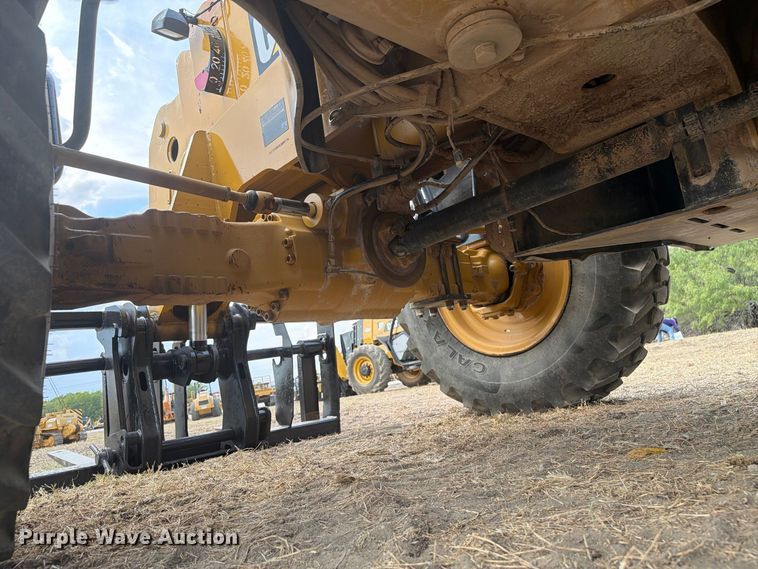

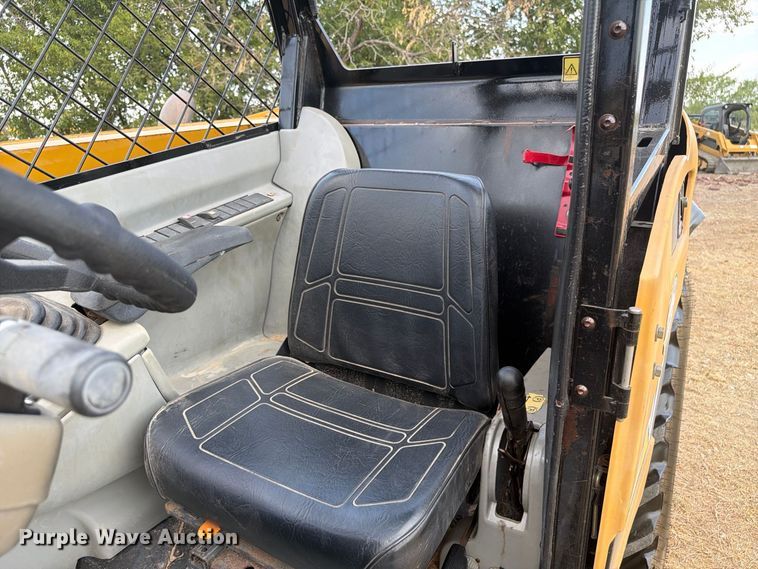

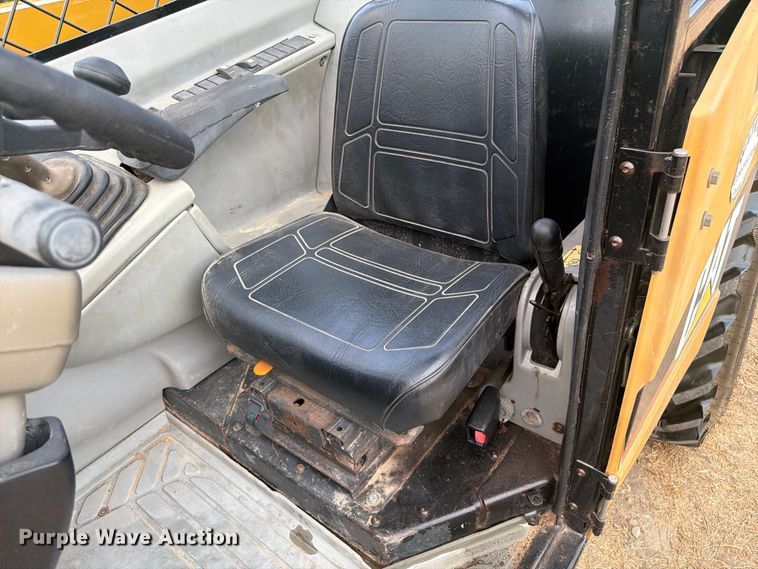

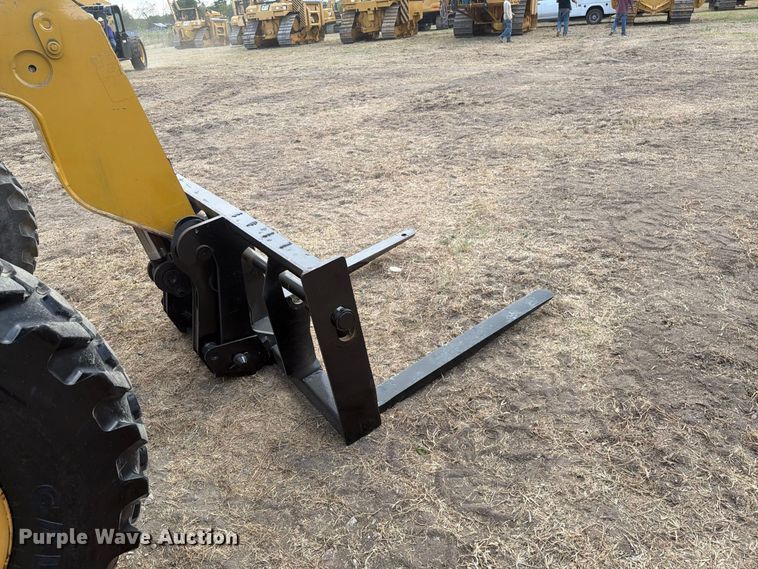

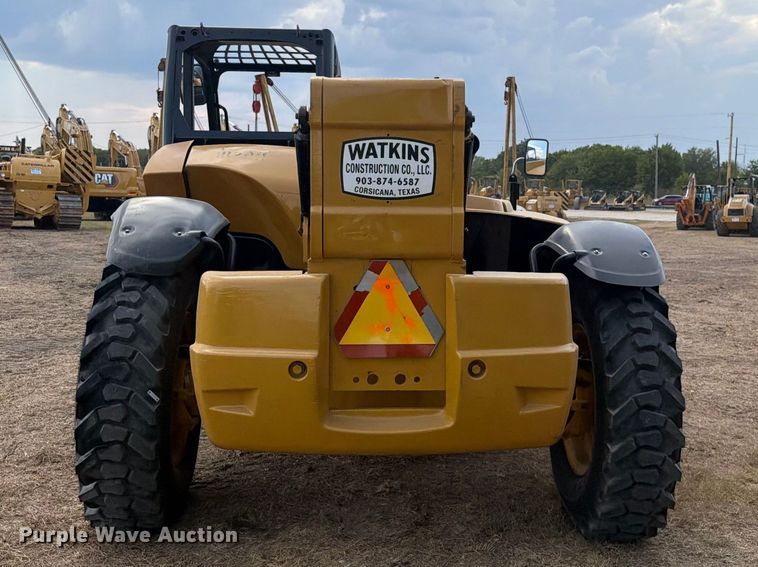

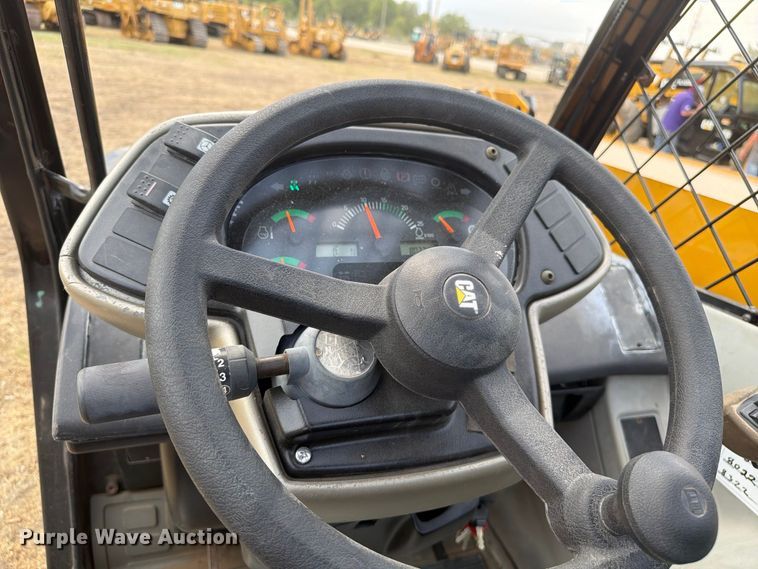

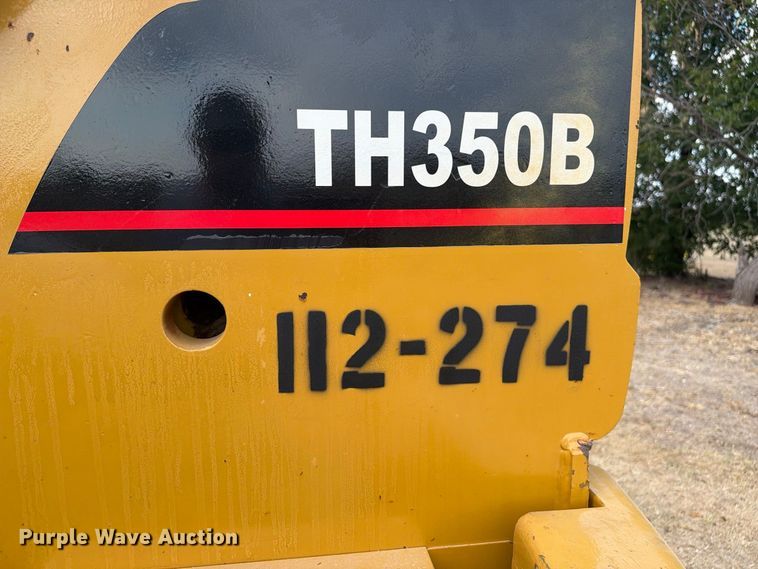

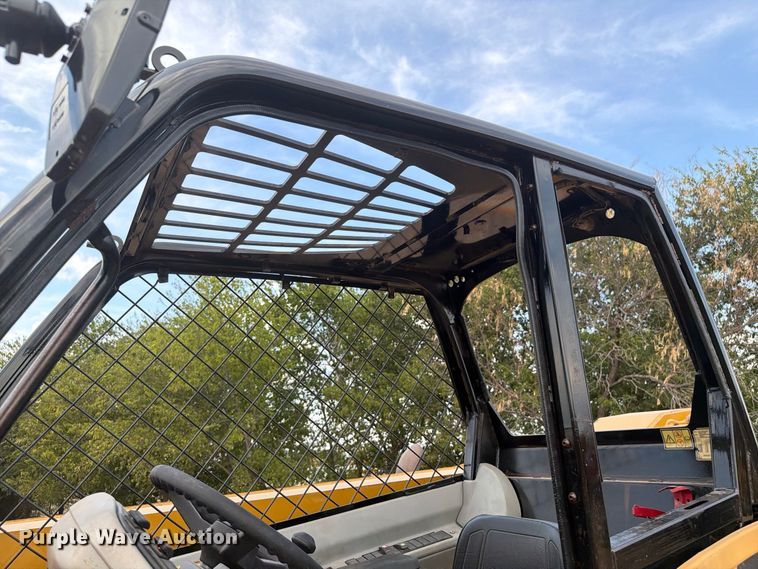

2004 Caterpillar TH350B telehandlerHours: 8,023 on meterSerial: CATTH350ASLD00647Unit #: 112-0274EngineCaterpillarCylinders: 4Fuel type: DieselTransmissionPowershift4F - 3RFour wheel driveOperators stationOROPSSteering: Crab, Four wheelFeaturesMaximum lift capacity: 6,600 lbsMaximum lift height: 36'Boom stages: 3Fork length: 48"Quick attach: HydraulicTiresSize: 13.00-24

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom Performance
Boom Down	7 s
Boom Up	10 s
Combined - Down And In	14 s
Combined - Up And Out	25 s
Crowd Backward	3 s
Crowd Forward - Dump	3 s
Tele In	13 s
Tele Out	14 s
Brakes

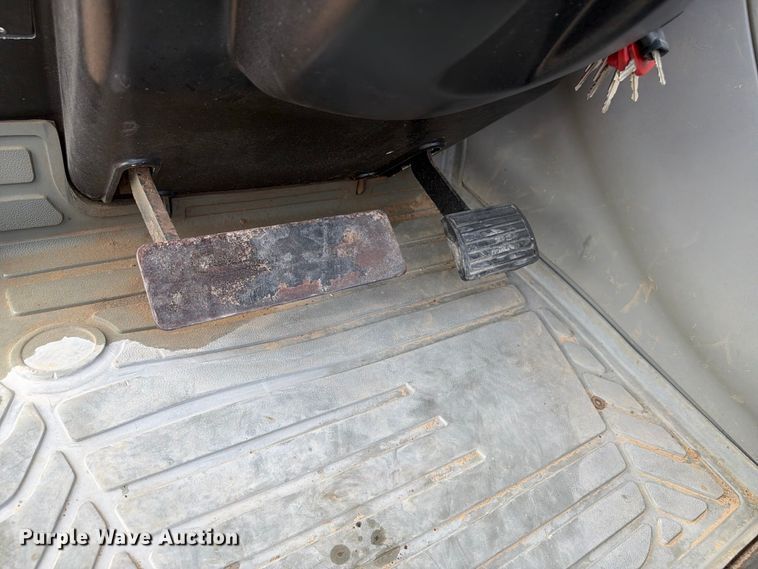

Foot Brake	Servo assisted service brake
Parking Brake	Dry disc on front axle
Dimensions
Ground Clearance	2 ft (1 m)
Height	8 ft (2 m)
Height	8 ft (2 m)
Height - Top Of Hood	77 in (195 cm)
Length	17 ft (5 m)
Length - Fork Face	17 ft (5 m)
Length - Front Of Tire	15 ft (5 m)
Length To Fork Face	17 ft (5 m)
Overall Height	8 ft (2 m)
Rear - Overhang	3.31 ft
Turning Radius - Over Forks	16 ft (5 m)
Turning Radius - Over Tires	12 ft (4 m)
Turning Radius Outside Tires	12 ft (4 m)
Weight	18,700 lbs (8,482 kg)
Wheel Base	10 ft (3 m)
Wheelbase	10 ft (3 m)
Width	8 ft (2 m)
Width	8 ft
Width Over Tires	8 ft (2 m)

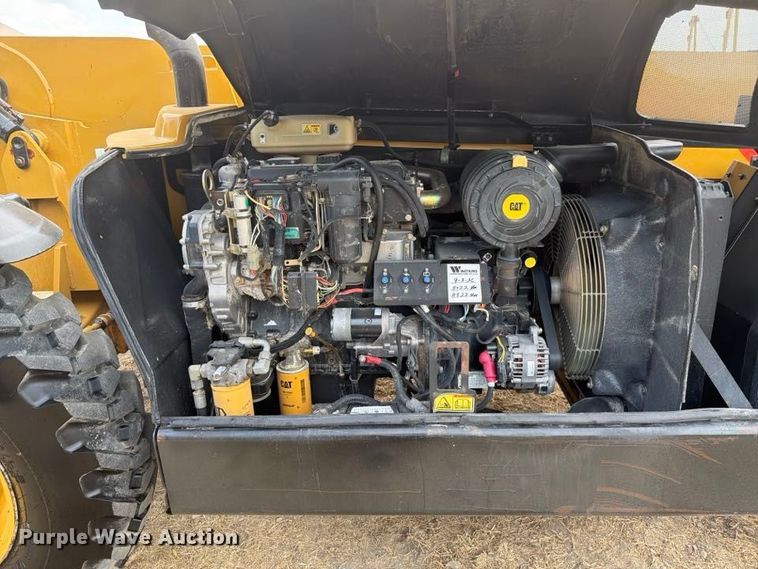

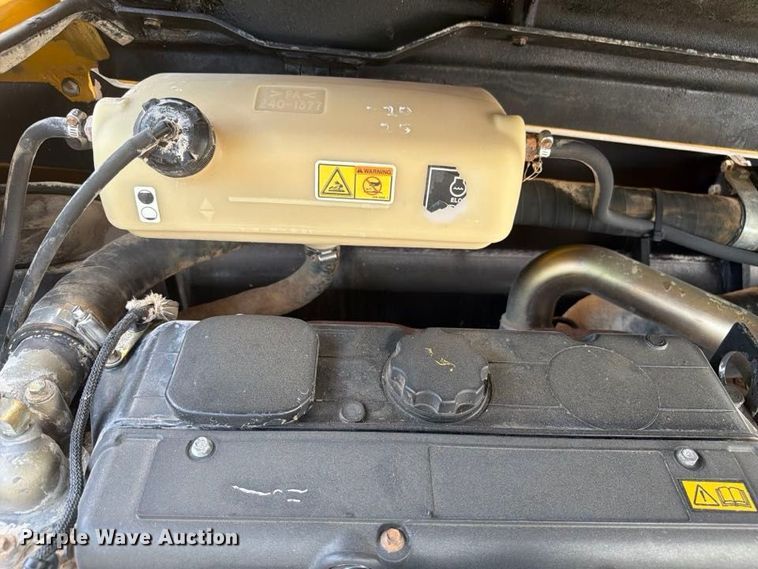

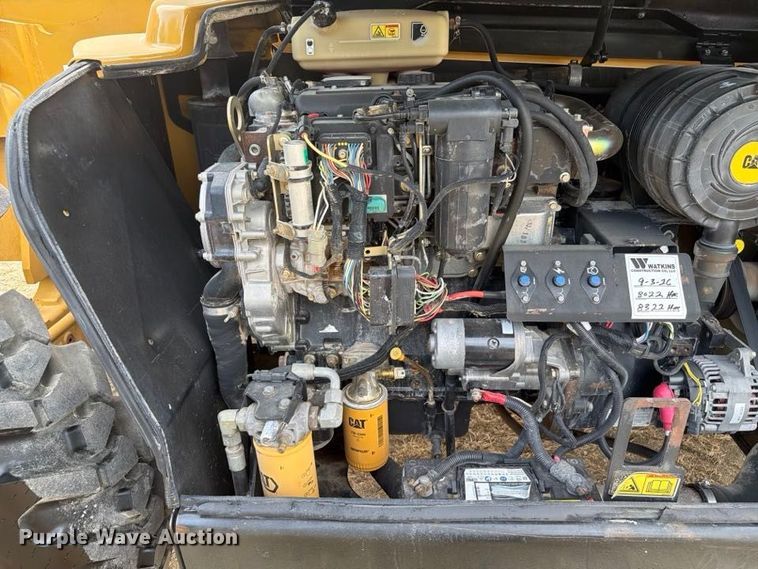

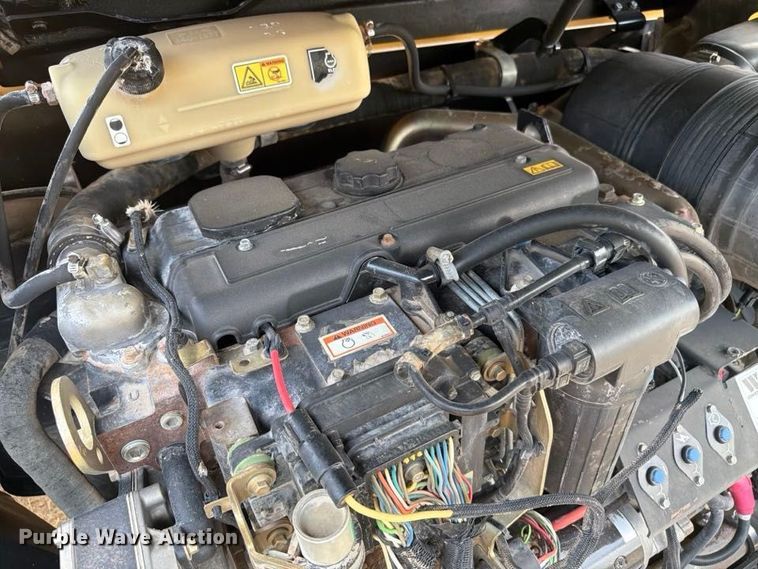

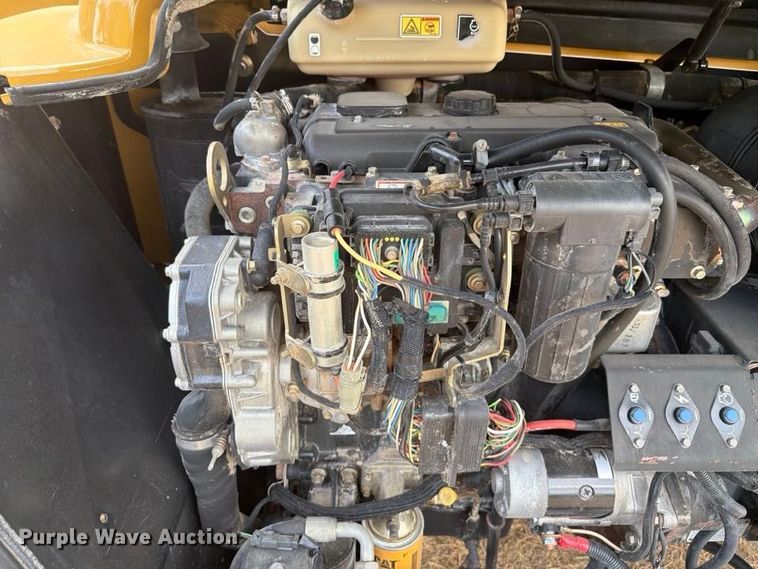

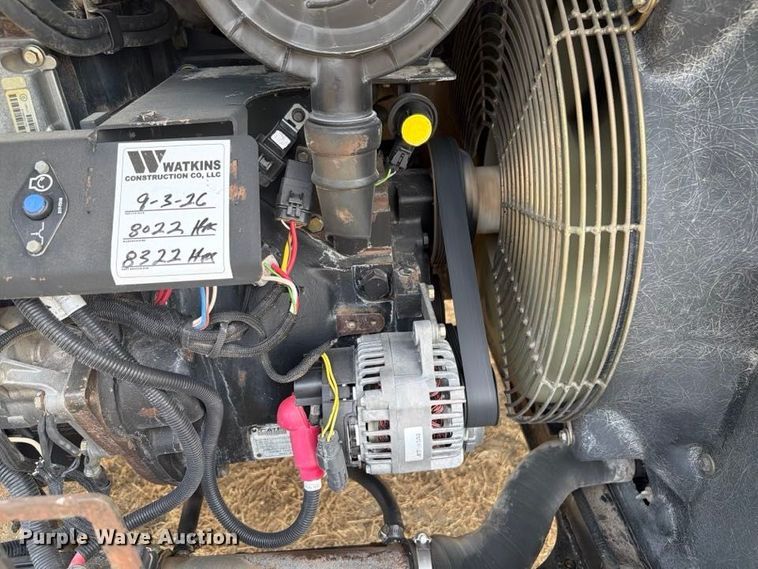

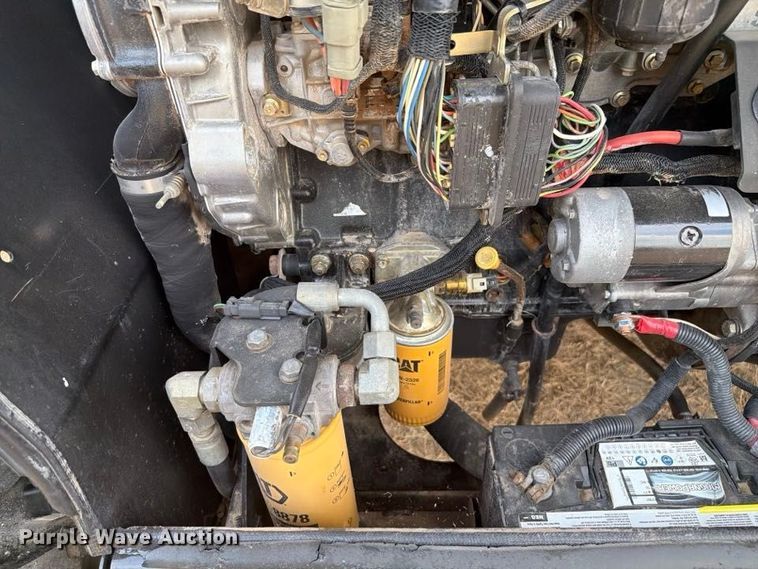

Engine
Bore	4 in (10 cm)
Displacement	268 cu in (4,392 cu cm)
Engine Make	2,236
Engine Model	Cat 3054E
Engine Model	3054T
Gross Power	99 hp (74 kw)
Max Torque	297 lbs ft (402 nm)
Maximum Torque	303 lbs ft (411 nm)
Net Power	95 hp (71 kw)
Power Measured @	2,200 rpm
Stroke	5 in (13 cm)
Torque Measured @	1,400 rpm
Hydraulic
Pump Flow Capacity	30 gpm (113 lpm)
Relief Valve Pressure	3,626 psi
Hydraulic System
Auxiliary Hydraulic Supply	13 gpm (49 lpm)
Maximum Pump Flow	30 gpm (114 lpm)
Maximum System Pressure	3,625 psi
Pump Type	Variable Displacement Axial Piston Pump
Lift
Max Forward Reach	24 ft (7 m)
Max Lift Capacity	6,614 lbs (3,000 kg)
Max Lift Height	36 ft (11 m)
Max Load At Max Height	5,512 lbs (2,500 kg)
Max Load At Max Reach	1,753 lbs (795 kg)
Operating Specifications
Load At Maximum Height	5,000 lbs (2,268 kg)
Load At Maximum Height - No Stabilizers	5,500 lbs (2,495 kg)
Load At Maximum Reach	1,750 lbs (794 kg)
Load At Maximum Reach - No Stabilizers	1,750 lbs (794 kg)
Maximum Forward Reach	24 ft (7 m)
Maximum Lift Height	36 ft (11 m)
Rated Load Capacity	6,600 lbs (2,994 kg)
Top Travel Speed	25 mph (40 kph)
Operational
Alternator Supplied Amperage	90 amps
Fuel Capacity	27 gal (100 l)
Hydraulic System Fluid Capacity	17 gal (65 l)
Operating Voltage	12 V
Operating Weight	18,078 lbs (8,200 kg)

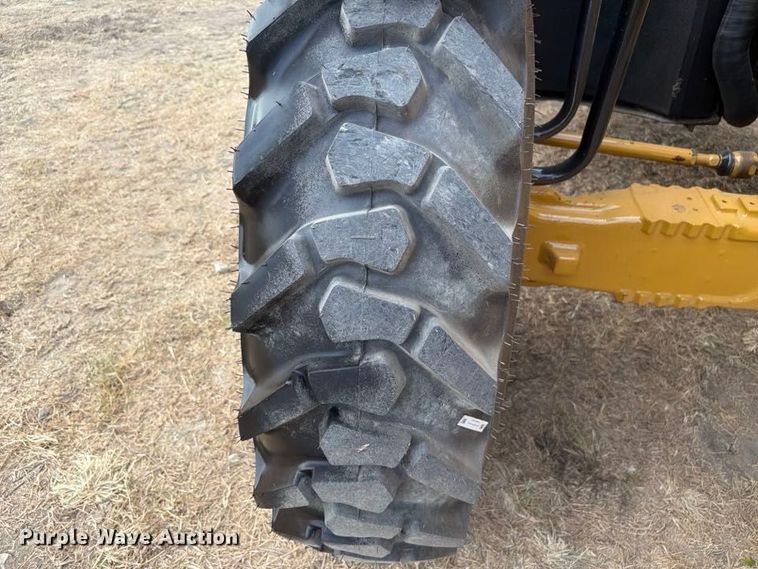

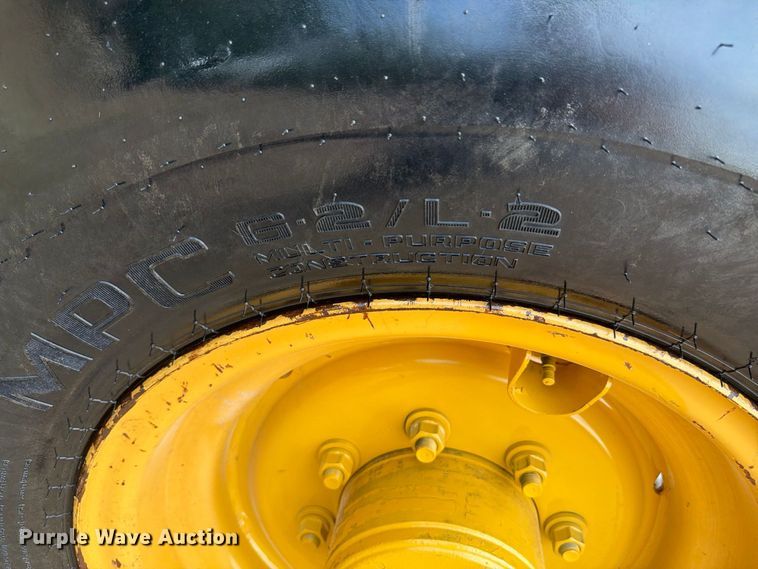

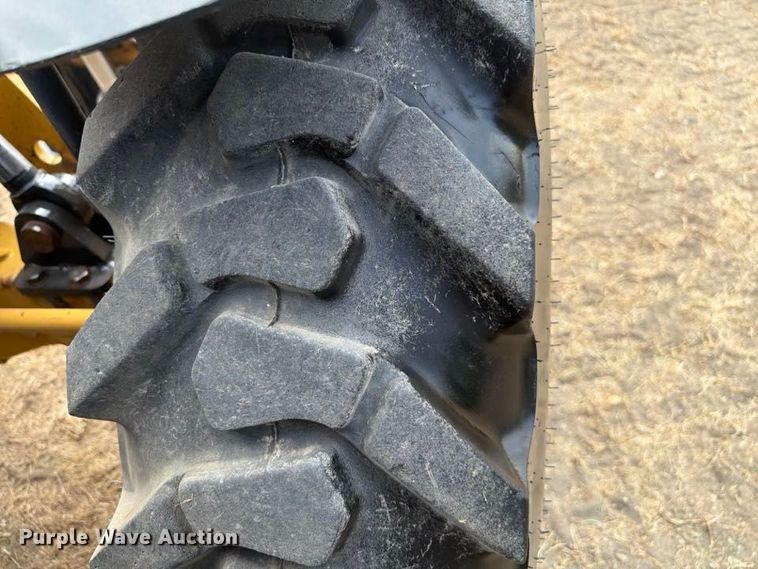

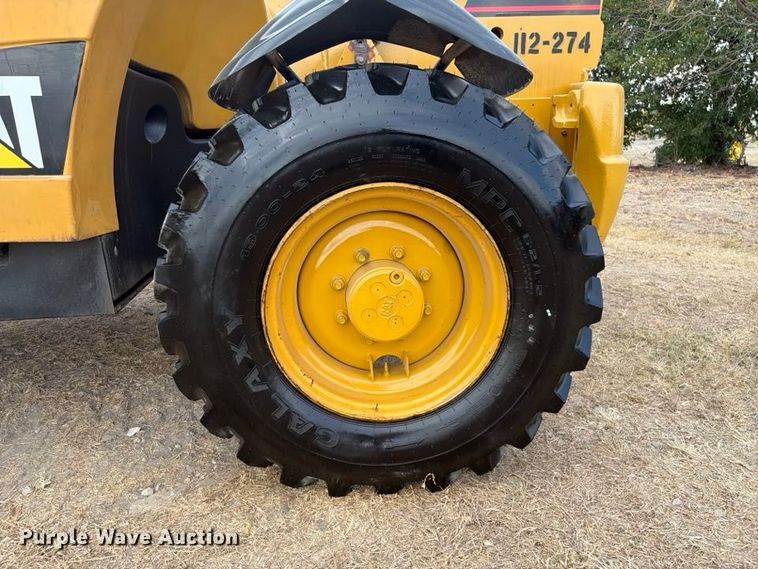

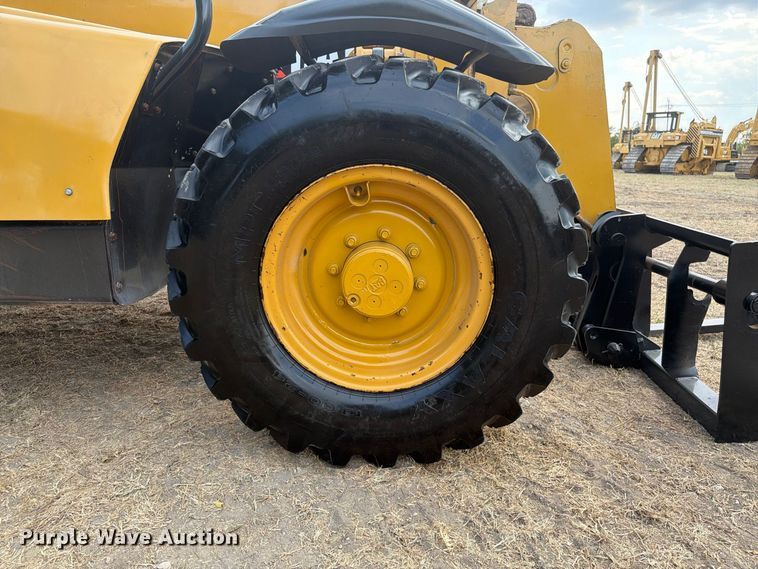

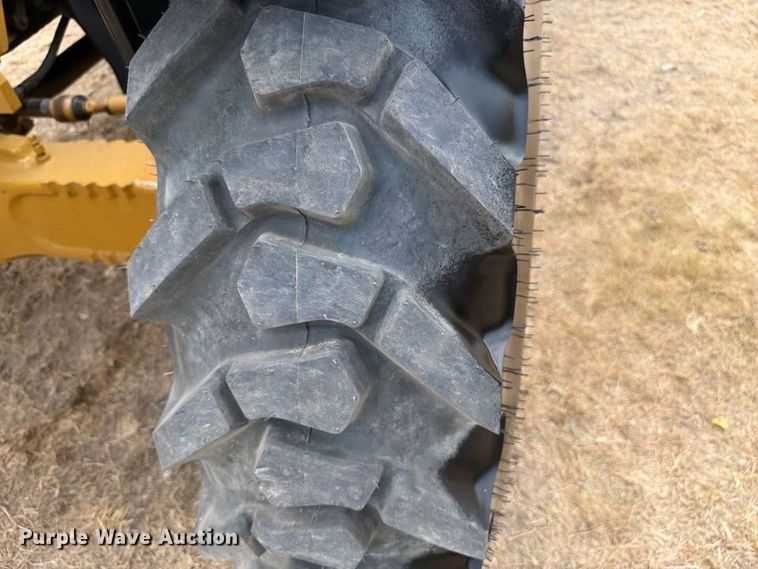

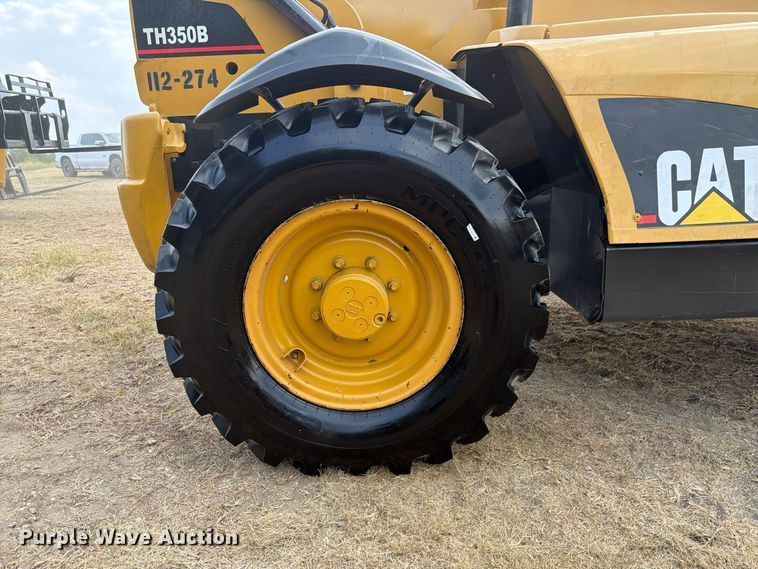

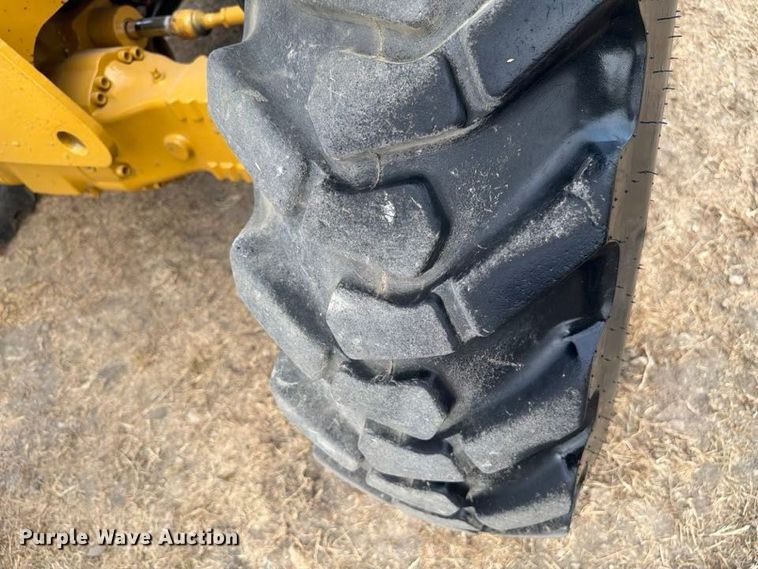

Tire Size	13.00-24
Service Refill Capacities
Fuel Tank	23 gal (87 l)
Hydraulic Tank	17 gal (64 l)

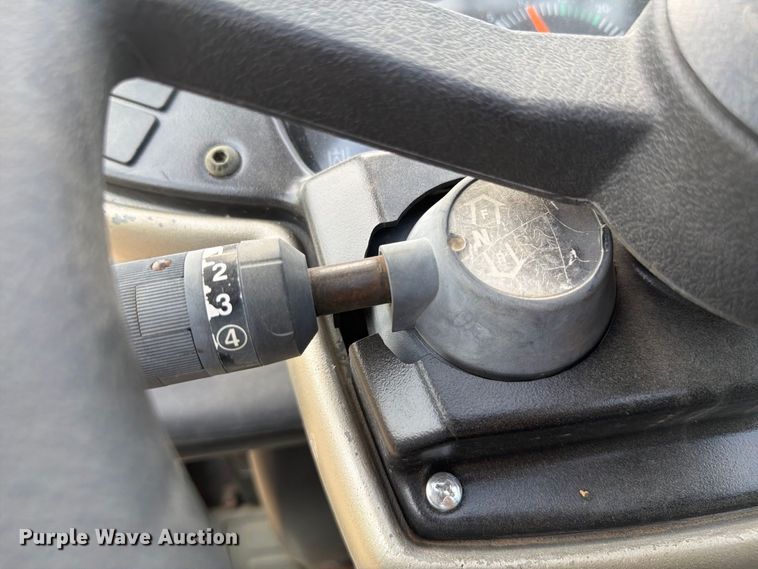

Transmission
Max Speed - Forward	20 mph (32 kph)
Max Speed - Reverse	13 mph (20 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	3
Transmission Speeds
Forward - 1	4 mph (6 kph)
Forward - 2	7 mph (11 kph)
Forward - 3	13 mph (21 kph)
Forward - 4	25 mph (40 kph)
Reverse - 1	4 mph (6 kph)
Reverse - 2	7 mph (11 kph)
Reverse - 3	13 mph (21 kph)
Weights
Operating Weight	18,700 lbs (8,482 kg)
