2012 Caterpillar TH514 For Sale in Manhattan, KS

Name: 2012 Caterpillar TH514
Brand: Caterpillar
SKU: 89301072
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: Auction Pricing

Purple Wave, Inc.

Purple Wave, Inc. Dealer Info

Purple Wave, Inc. Website

Click here to email Purple Wave, Inc..

Click for Phone Number

Machine Info:

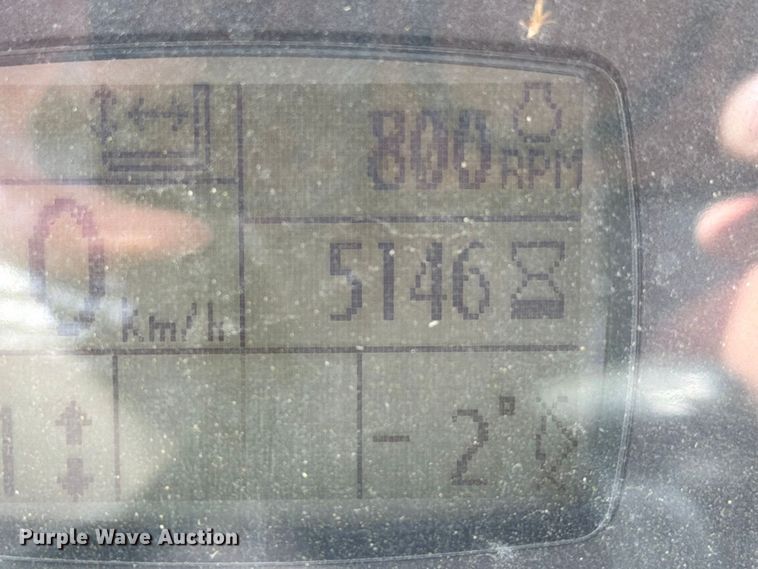

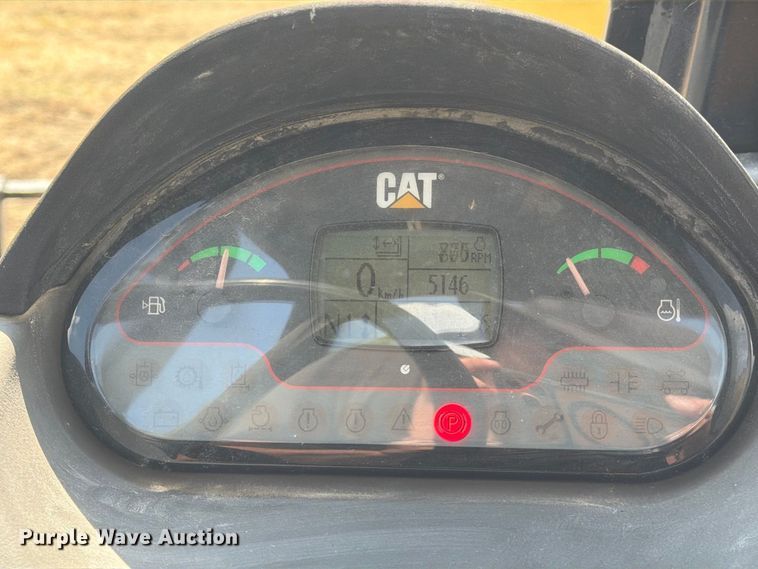

Hours:	5146

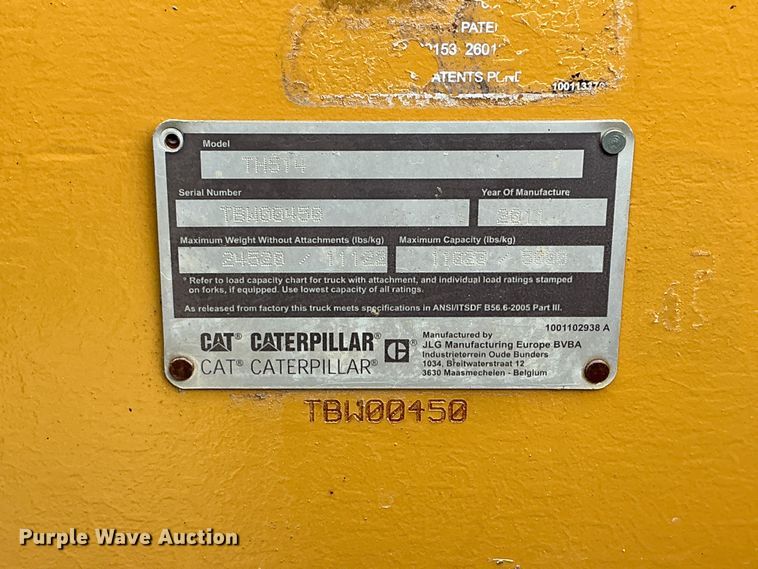

Serial Number:	TBW00450
Machine Location:	MANHATTAN, KS
More Information:	https://www.purplewave.com/auction/261111A/item/FN3668

Description:

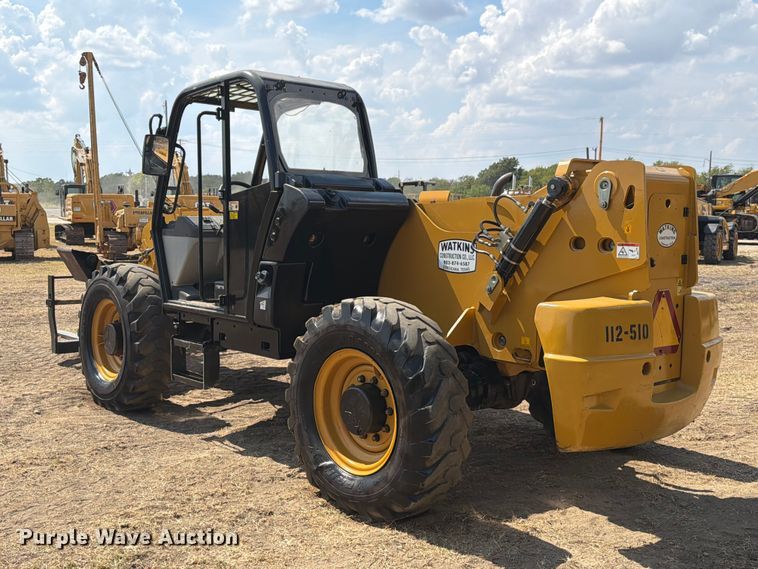

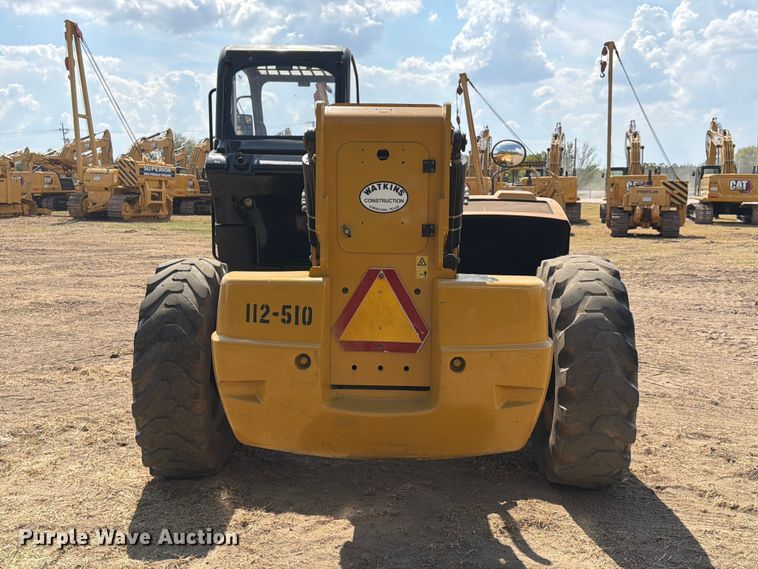

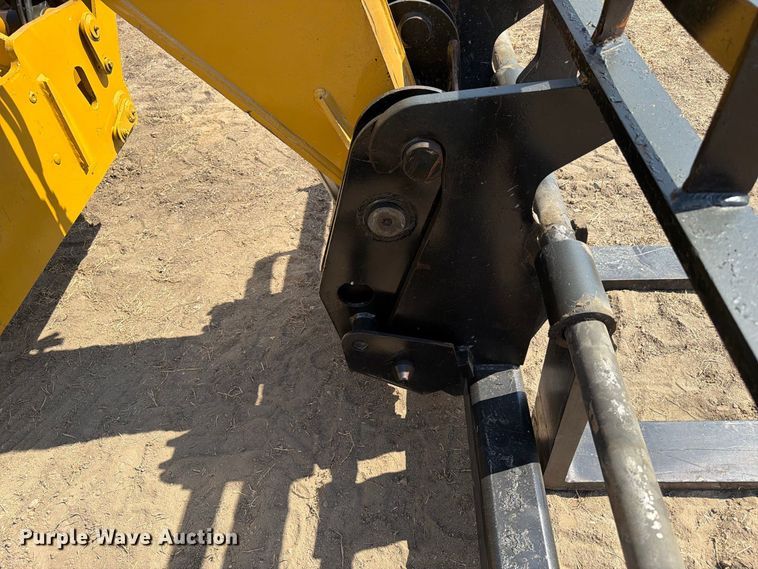

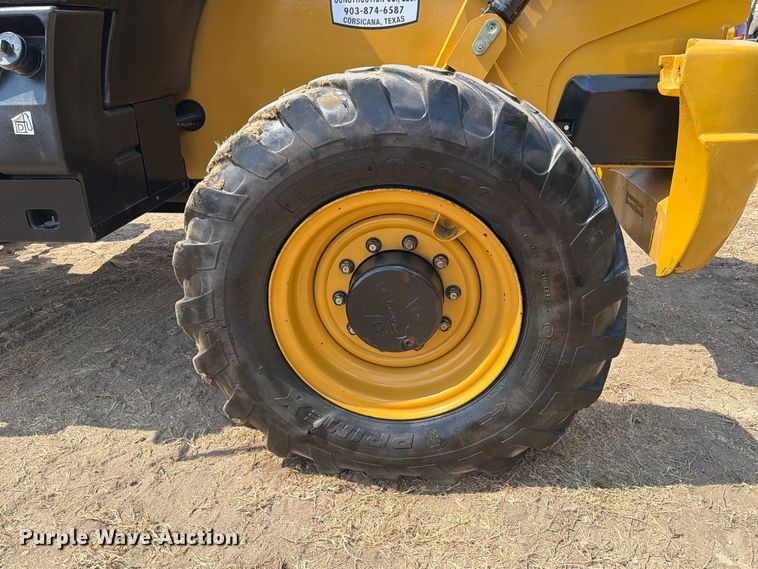

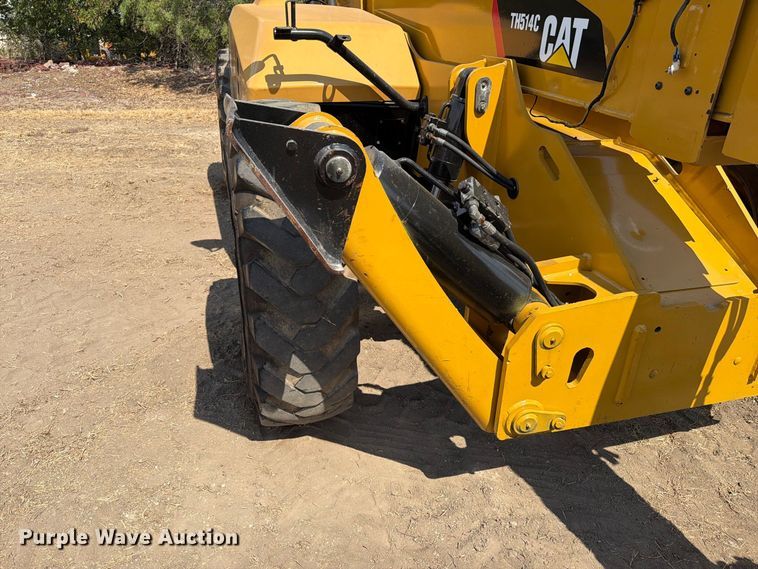

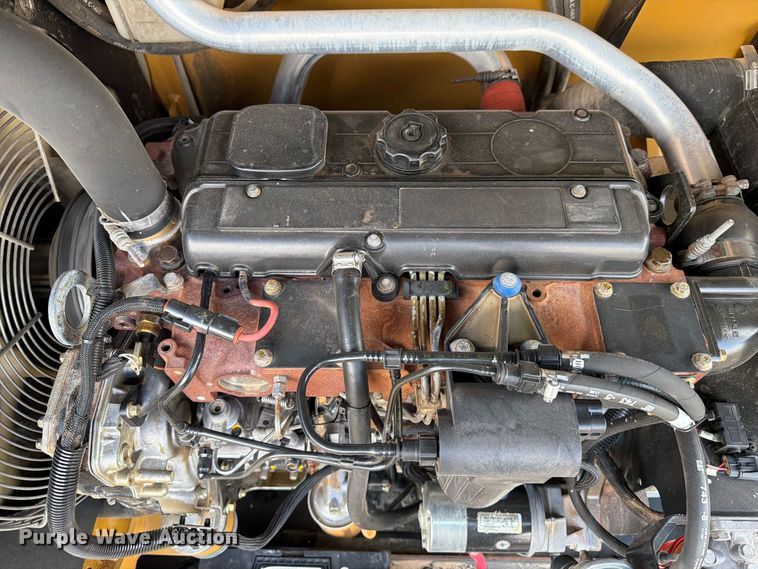

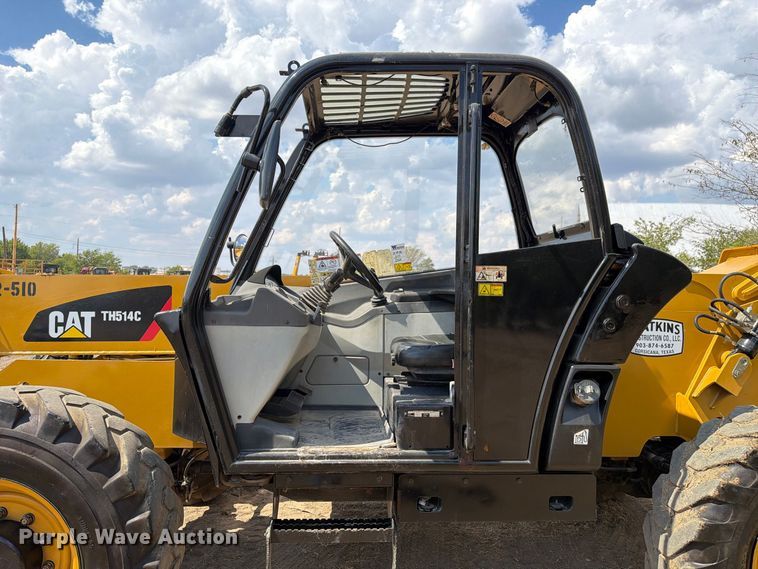

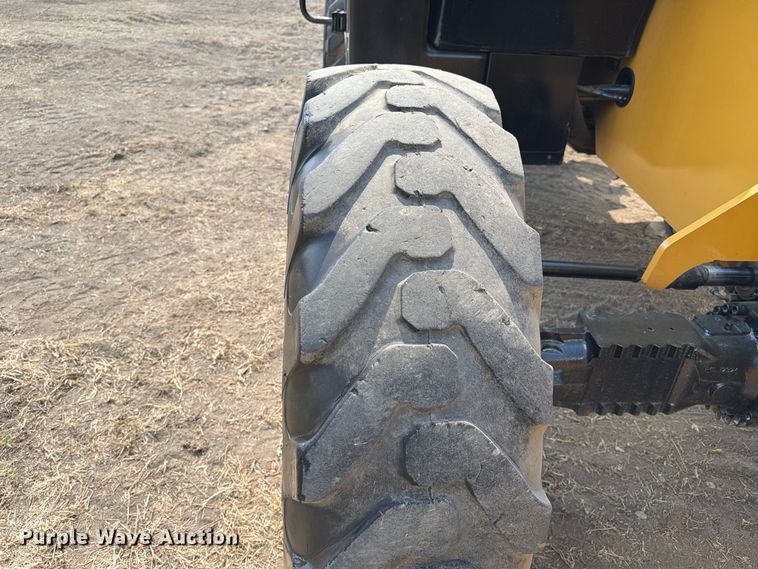

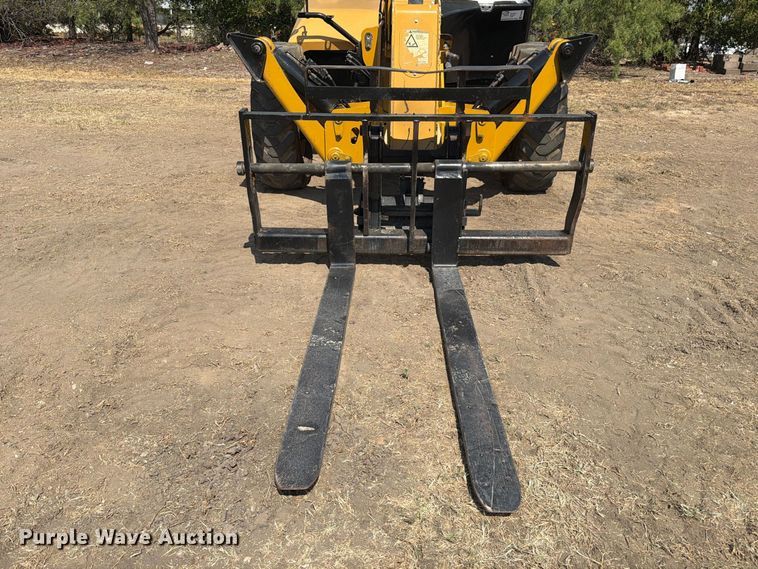

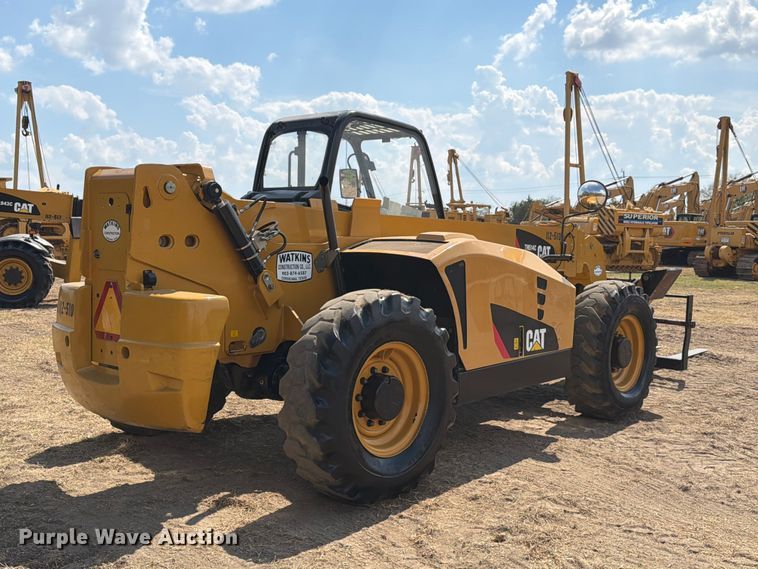

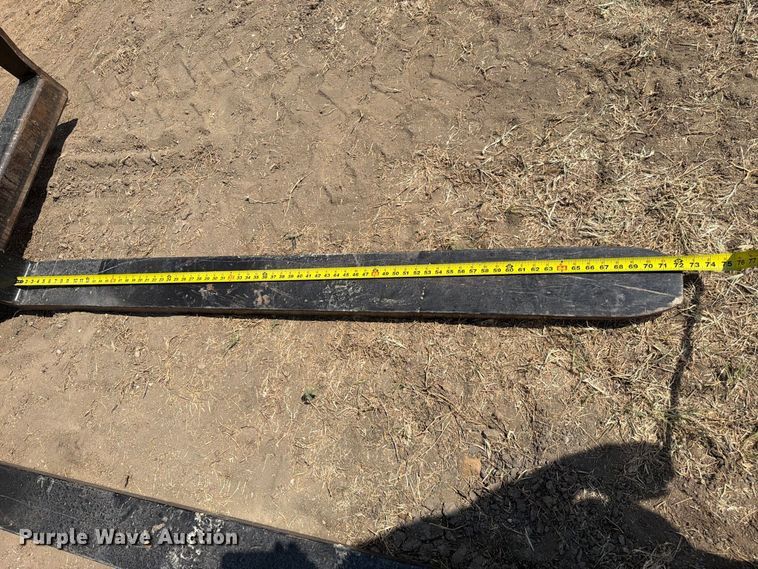

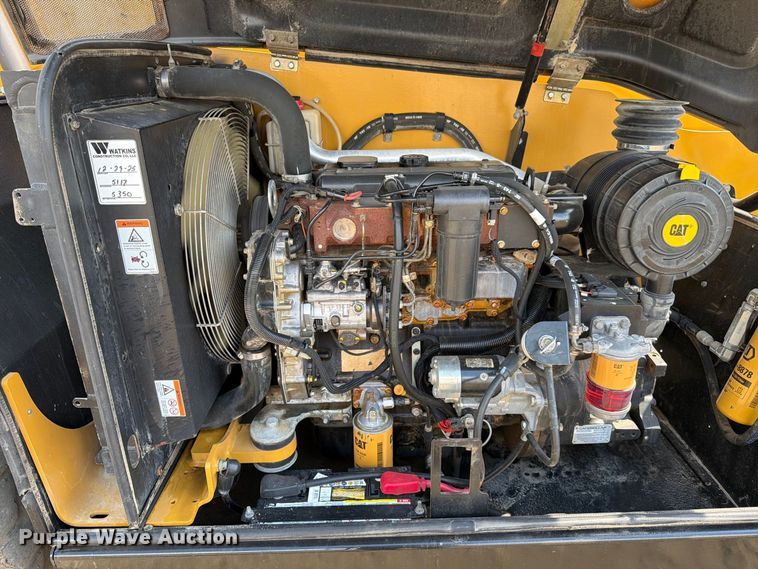

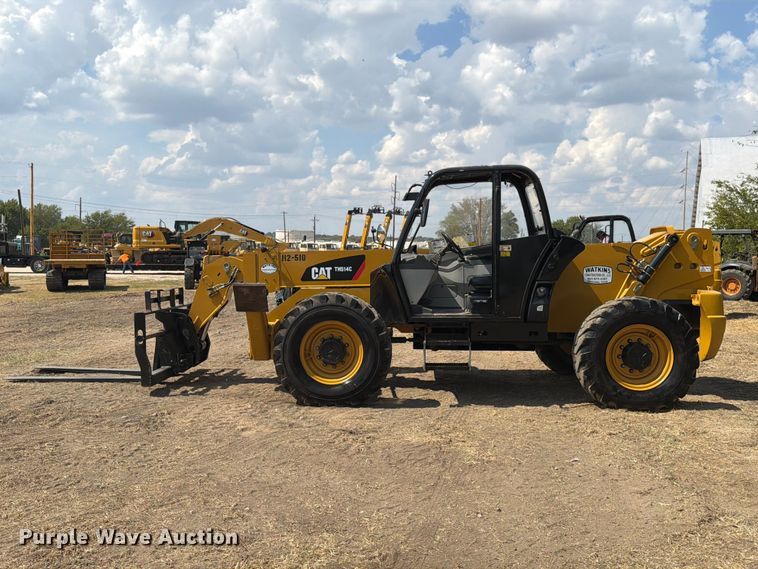

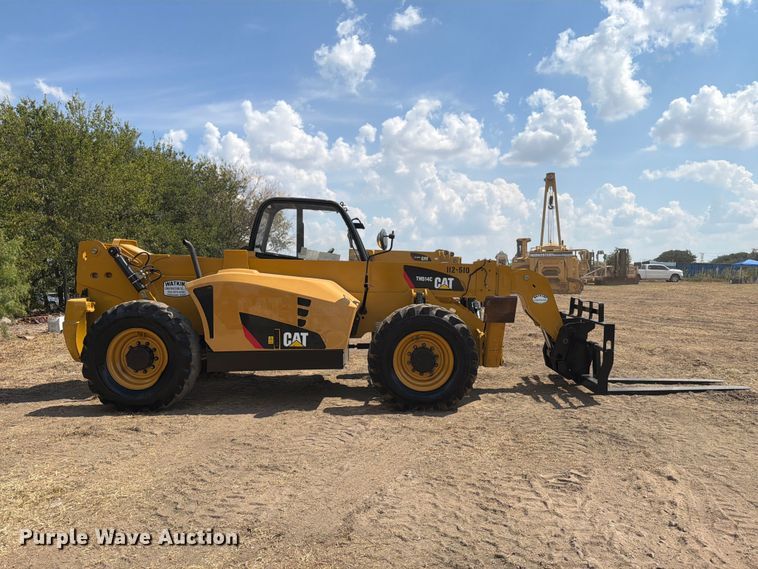

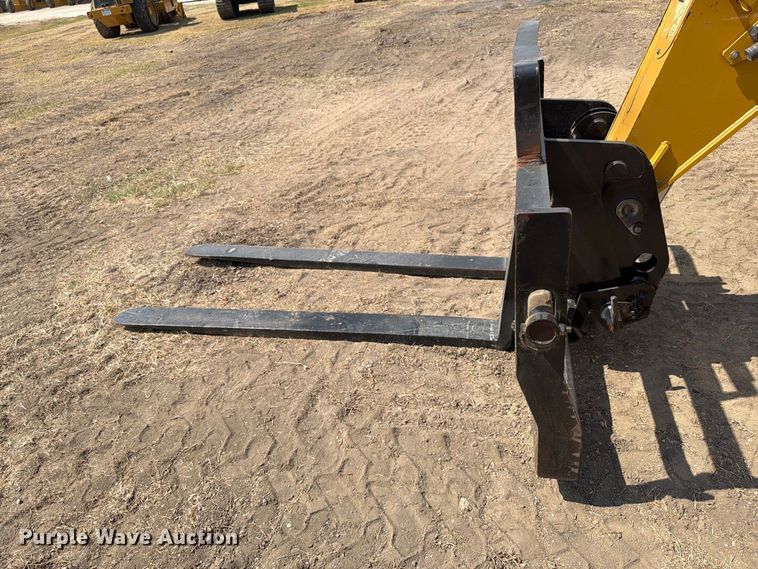

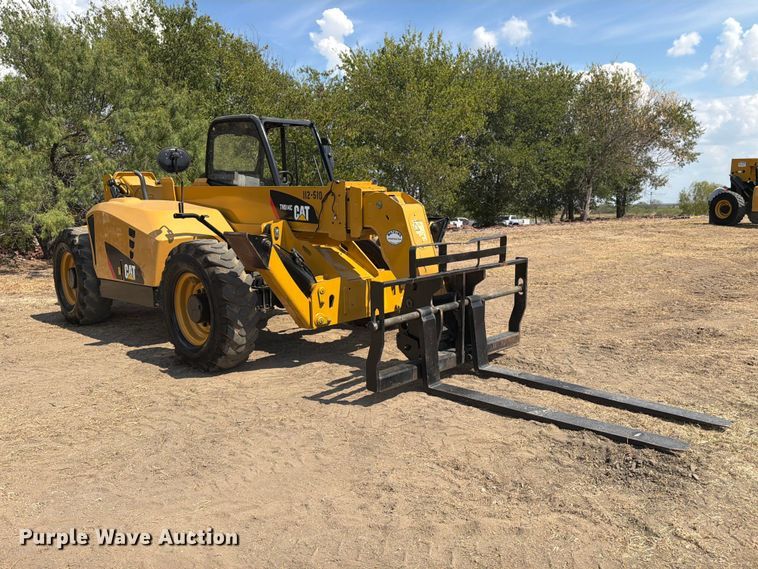

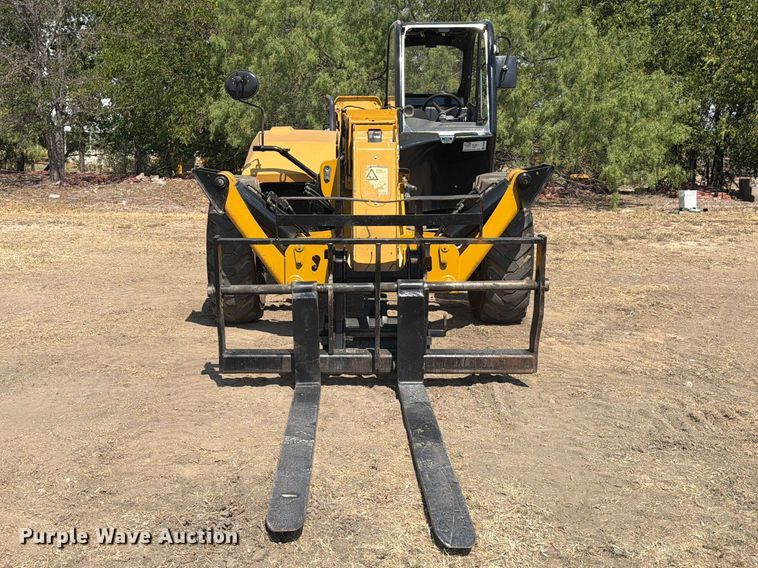

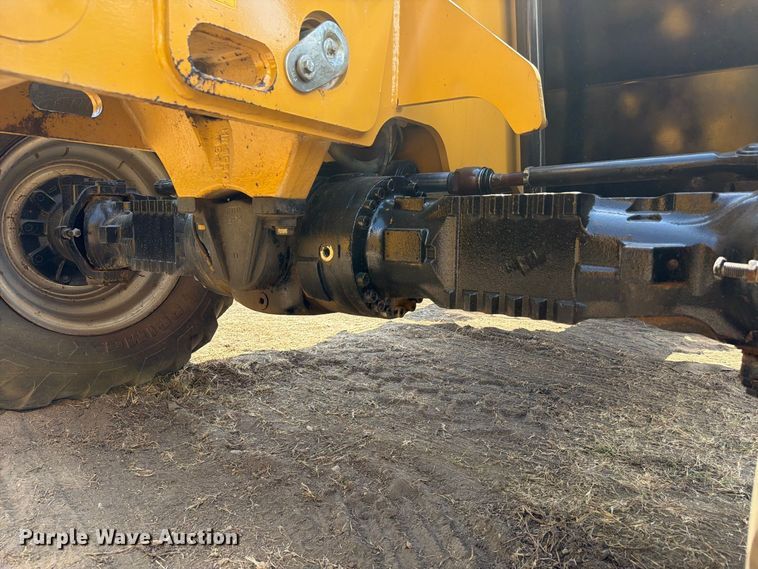

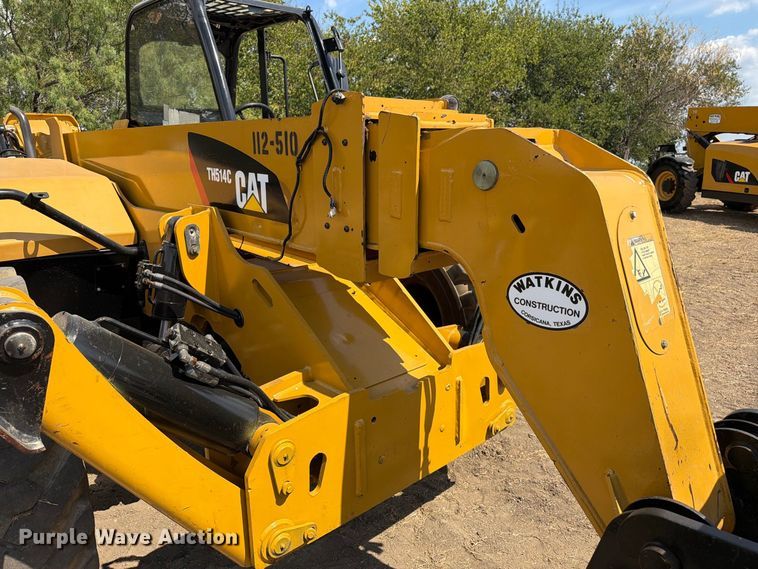

2012 Caterpillar TH514 telehandlerHours: 5,146 on meterSerial: TBW00450Unit #: 112-0510EngineCaterpillar C4.4Serial: 44608708Displacement: 4.4LCylinders: 4Fuel type: DieselTransmissionPowershift4F - 3RFour wheel driveOperators stationOROPSSteering: Crab, Four wheelFeaturesMaximum lift capacity: 11,000 lbsMaximum lift height: 45'Boom stages: 3Fork length: 72"Auxiliary hydraulicsHydraulic outriggersHydraulic levelingQuick attach: ManualTiresSize: 14.00-24Foam filled

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar TH514 is a telehandler designed for material handling, lifting, and placement tasks on construction and industrial sites. It features a telescopic boom for extended reach, allowing operators to move loads to elevated or distant positions with improved access in confined or uneven work areas. The TH514 is typically used for loading, unloading, stacking, and transporting palletized materials. As part of Caterpillar's telehandler lineup, it is built for versatility across jobsite applications where lift height, reach, and maneuverability are required. Specifications may vary by configuration, attachment, and market.

Boom Performance
Boom Breakout Force	14,163 lbs (6,424 kg)
Boom Down	10 s
Boom Up	17 s
Bucket Breakout Force	21,357 lbs (9,687 kg)
Combined - Down And In	19 s
Combined - Up And Out	28 s
Crowd Backward	3 s
Crowd Forward - Dump	4 s
Drawbar Pull - Basic	19,783 lbs (8,974 kg)
Tele In	20 s
Tele Out	17.5 s
Dimensions
Ground Clearance	16 ft (5 m)
Height	9 ft (3 m)
Height	9 ft (3 m)
Length	21 ft (7 m)
Length - Fork Face	21 ft (7 m)
Length - Front Of Tire	17 ft (5 m)
Rear - Overhang	4
Turning Radius - Over Forks	18 ft (6 m)
Turning Radius - Over Tires	13 ft (4 m)
Weight	24,251 lbs (11,000 kg)
Wheel Base	11 ft (3 m)
Width	8 in (20 cm)
Width	8 ft (2 m)

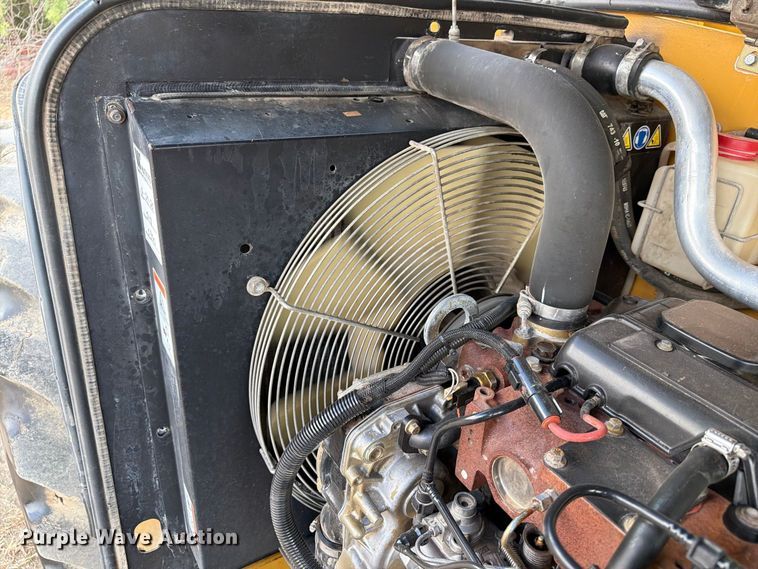

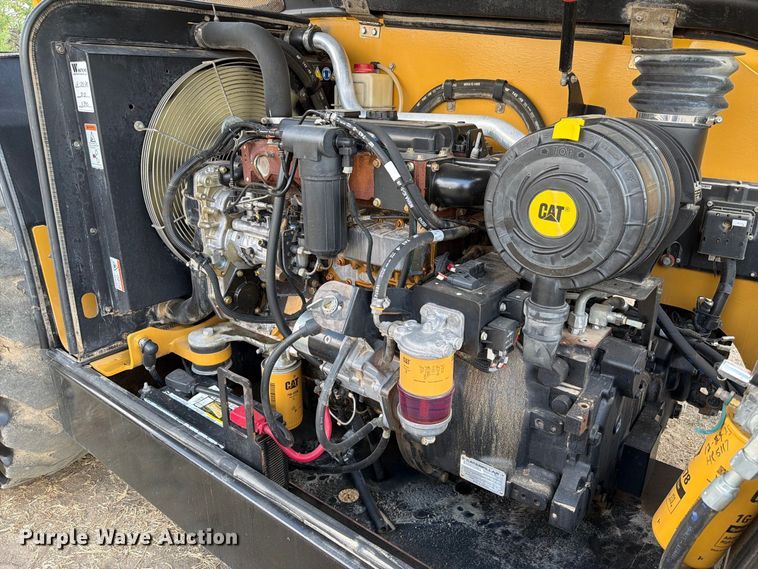

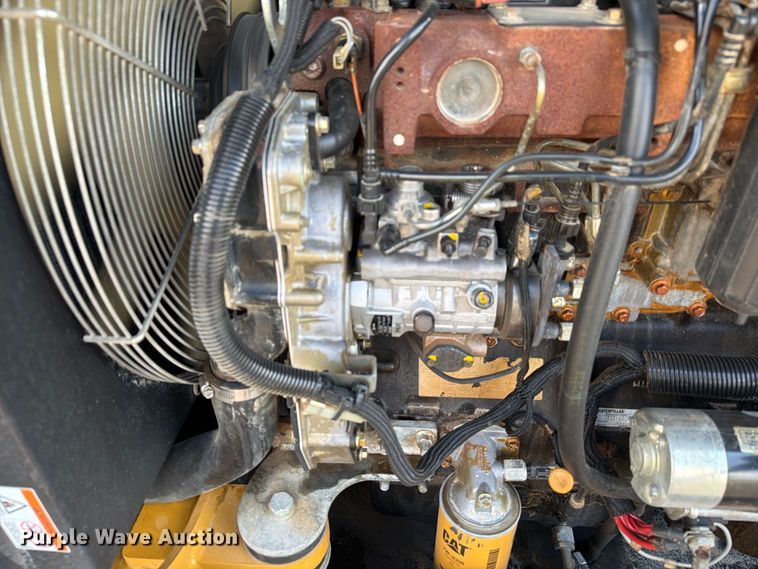

Engine
Bore	4 in (11 cm)
Displacement	269 cu in (4,400 cu cm)
Engine Model	Cat C4.4 DITAAC
Gross Power	101 hp (75 kw)
Maximum Torque	302 lbs ft (410 nm)
Stroke	5 in (13 cm)
Hydraulic System
Auxiliary Hydraulic Supply - Continuous	16 gpm (60 lpm)
Auxiliary Hydraulic Supply - Intermittent	21 gpm (80 lpm)
Maximum System Pressure	3,626 psi
Primary System Maximum Pressure	3,626 psi
Primary System Maximum Pump Flow	40 gpm (150 lpm)
Pump Type	Variable displacement load sensing axial piston pump
Operating Specifications
Load At Maximum Height	7,000 lbs (3,175 kg)
Load At Maximum Height - Stabilizers Down	7,000 lbs (3,175 kg)
Load At Maximum Height - Stabilizers Up	4,000 lbs (1,814 kg)
Load At Maximum Reach	3,000 lbs (1,361 kg)
Load At Maximum Reach - Stabilizers Down	3,000 lbs (1,361 kg)
Load At Maximum Reach - Stabilizers Up	1,000 lbs (454 kg)
Maximum Forward Reach	30 ft (9 m)
Maximum Lift Height	45 ft (14 m)
Rated Load Capacity	11,000 lbs (4,990 kg)
Top Travel Speed	20 mph (32 kph)
Operational
Operating Weight	23,772 lbs (10,783 kg)
Service Refill Capacities
Fuel Tank	40 gal (150 l)
Hydraulic Tank	24 gal (90 l)

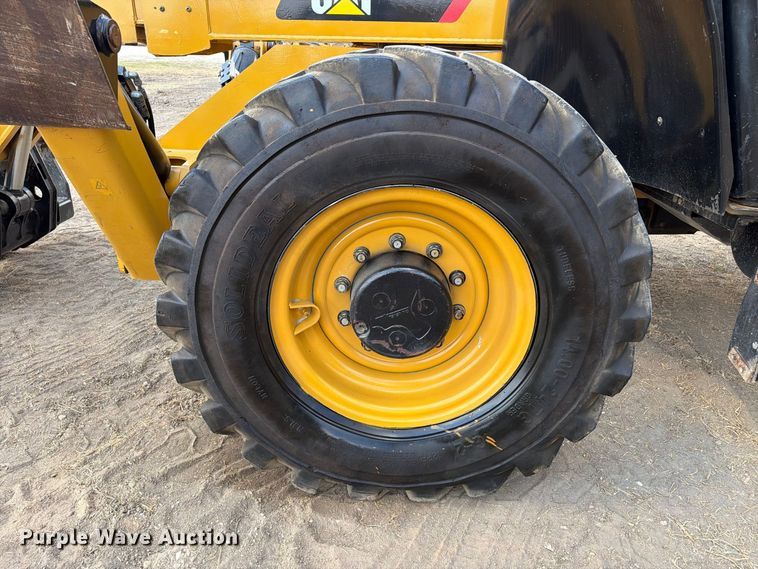

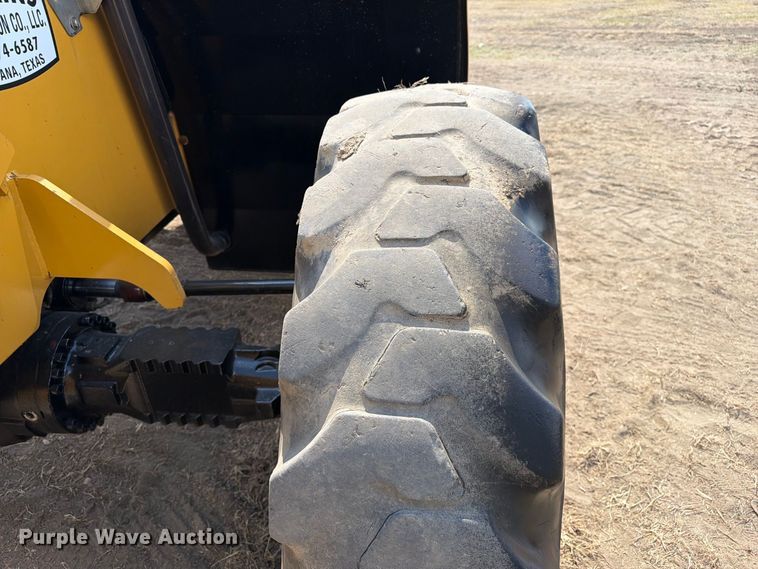

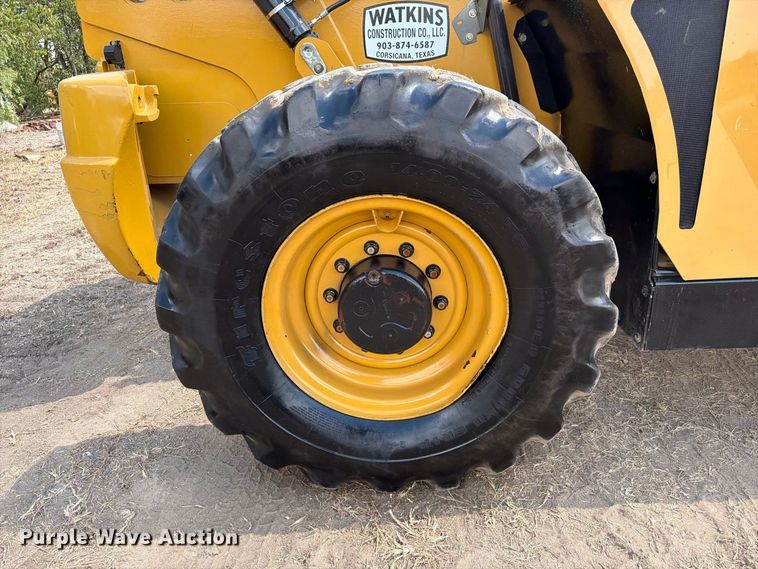

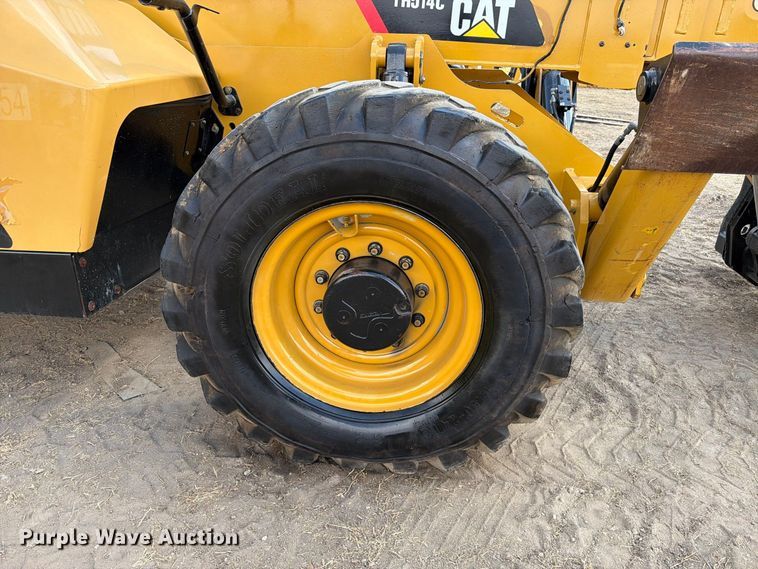

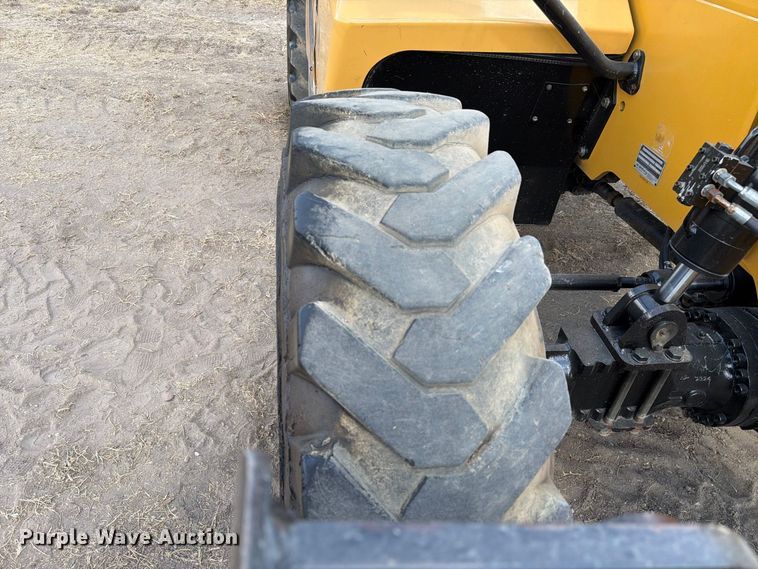

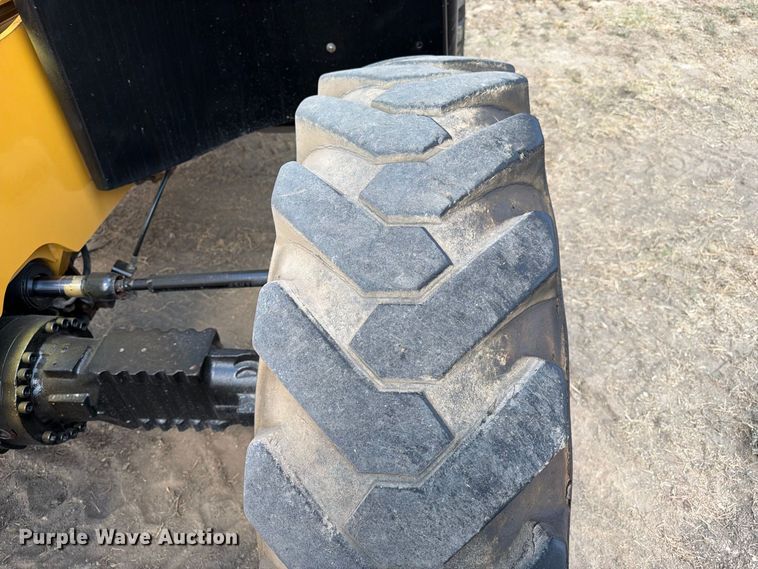

Tires
Optional Construction	14.00 - 24 SGG Goodyear
Standard	14.00-24 16PR TG-02 Mitas

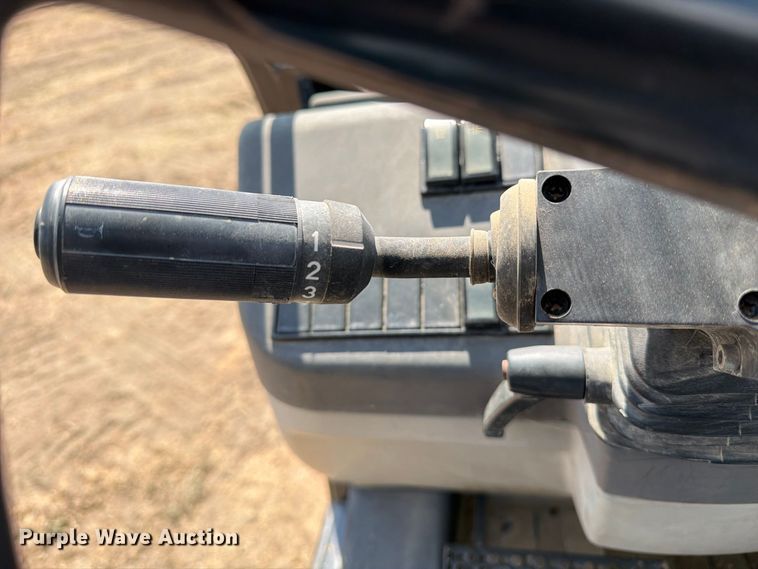

Transmission Speeds
Forward - 1	4 mph (7 kph)
Forward - 2	8 mph (12 kph)
Forward - 3	13 mph (21 kph)
Forward - 4	20 mph (32 kph)
Reverse - 1	4 mph (7 kph)
Reverse - 2	8 mph (12 kph)
Reverse - 3	13 mph (21 kph)
