Equipment ↠ Caterpillar ↠ Wheel Loaders ↠ 2024 Caterpillar 910

2024 Caterpillar 910 For Sale in Chilliwack, Bc

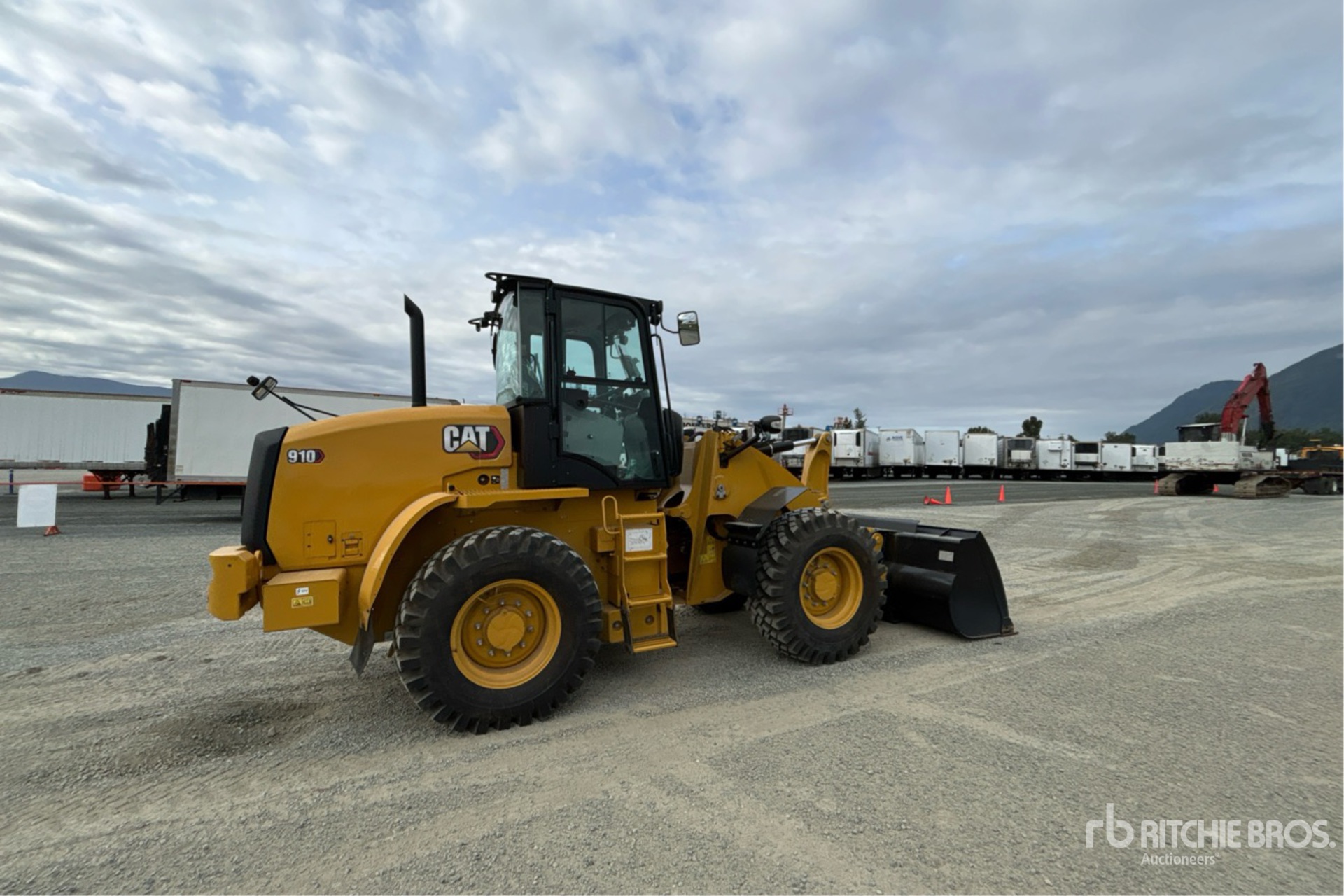

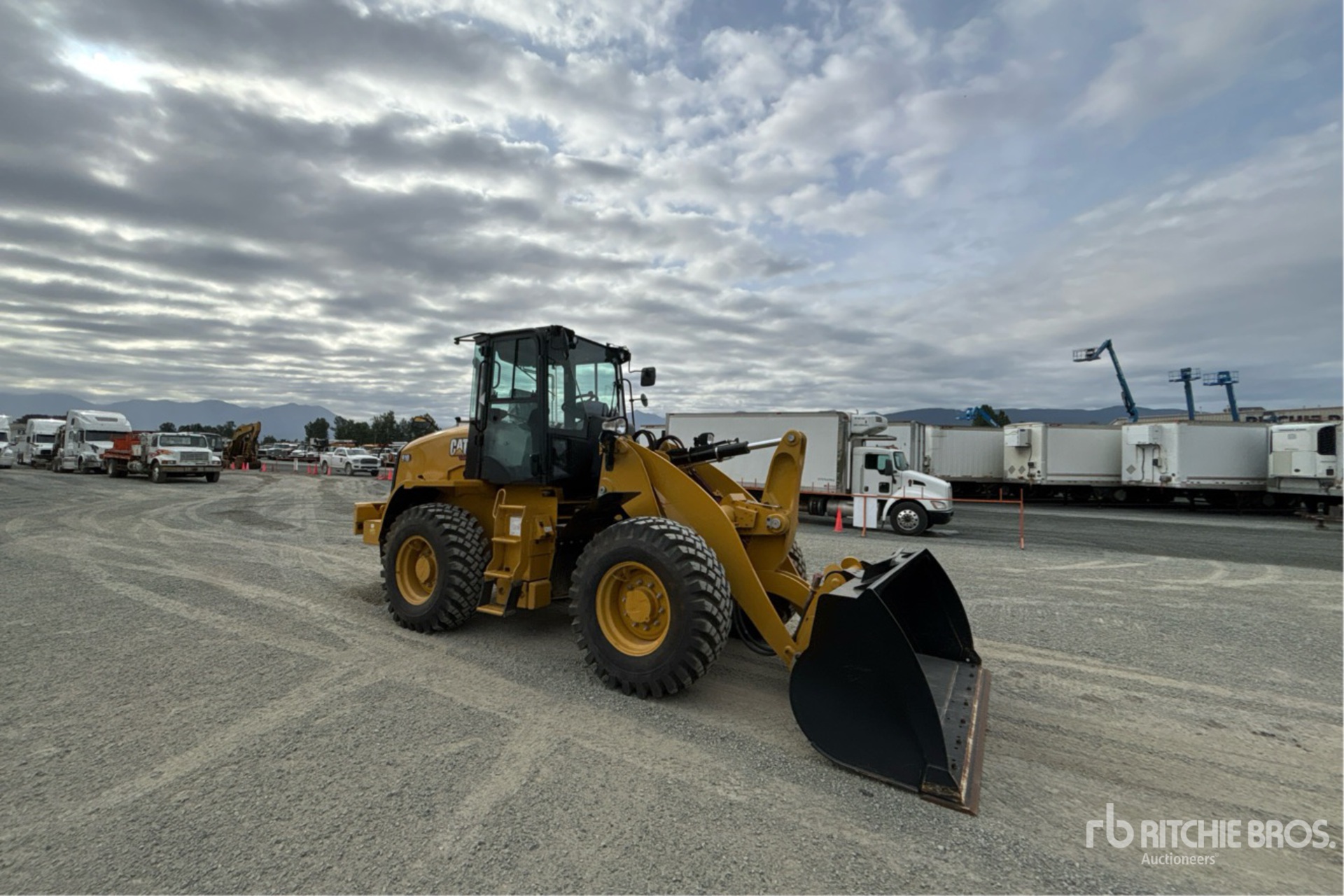

Name: 2024 Caterpillar 910
Brand: Caterpillar
SKU: 88538770
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-11

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

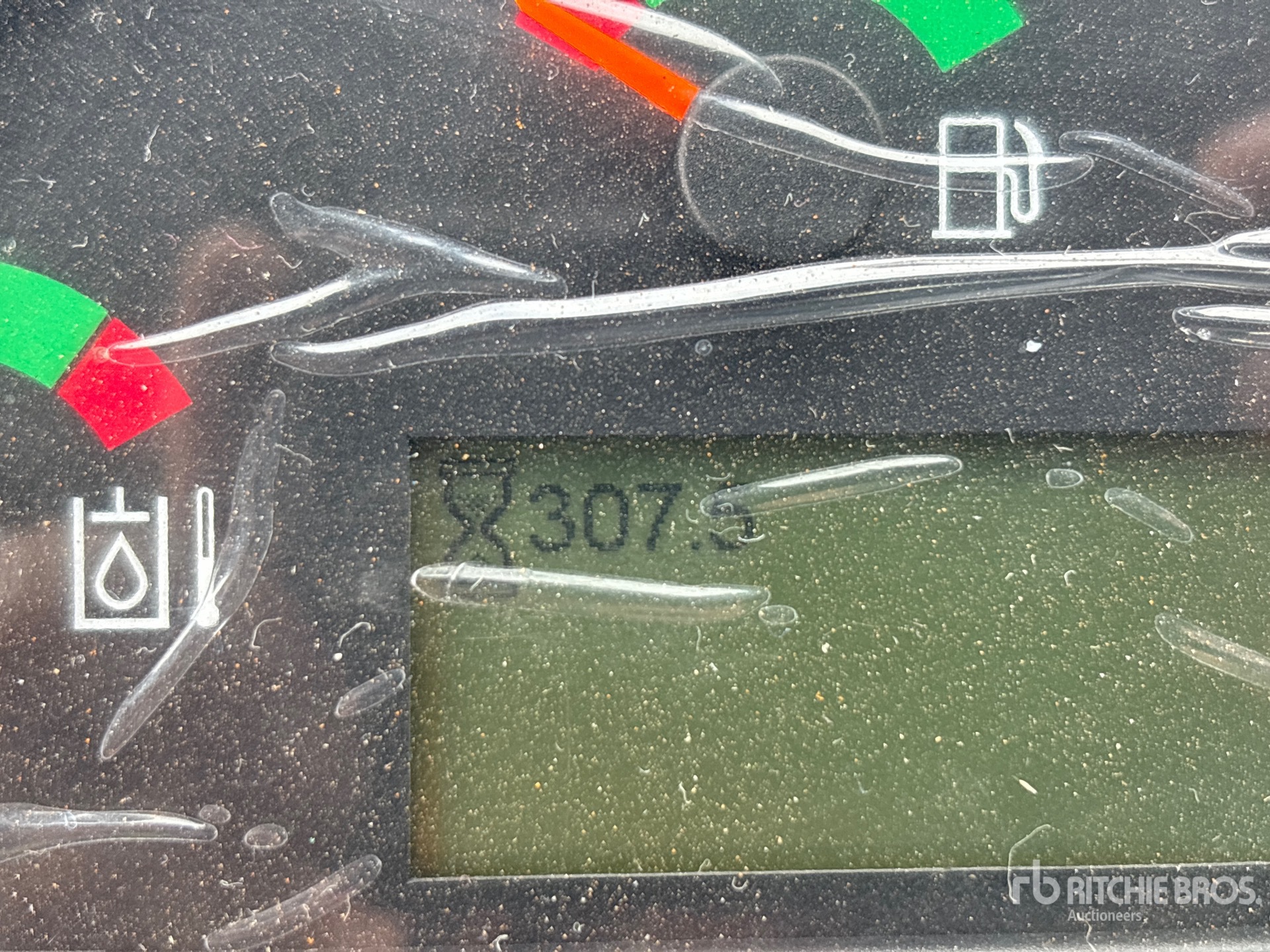

Hours:	307

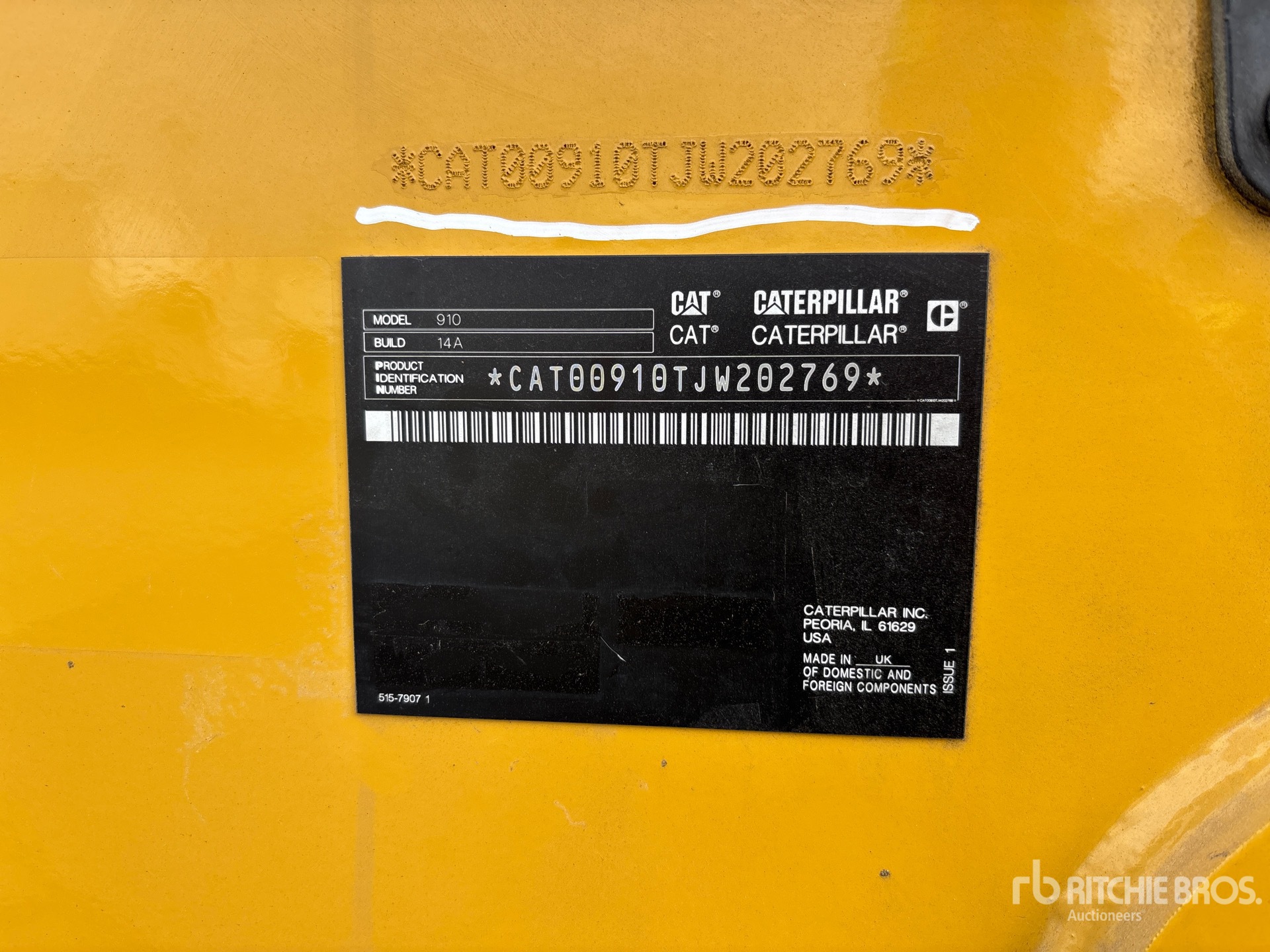

Serial Number:	CAT00910TJW202769
Machine Location:	CHILLIWACK, BC

Description:

Enclosed Cab, Air Conditioner, Rear View Camera, 2024 US EPA Label, CARB Compliant, Auxiliary Hydraulics, Hydraulic Coupler, 95 in Bucket, 16.9-24 Tires Closing Time: 2026-06-11 08:34:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 910 is a compact wheel loader designed for material handling, loading, and general construction work. As part of Caterpillar's wheel loader lineup, the 910 is used in applications such as aggregate yards, landscaping, agriculture, and light site preparation. It typically features articulated steering, a front-mounted loader bucket, and a diesel powertrain suited to maneuverability and productivity in confined areas. The Caterpillar 910 is known for its balance of size, lift capability, and operator visibility. Specifications can vary by model year and configuration, including engine output, operating weight, bucket capacity, and hydraulic performance.

Bucket
Breakout Force	11,632 - 16,291 lbs (5,276 - 7,389 kg)
Bucket Capacity - heaped	1 cu yd (1 cu m)
Bucket Width	7 ft (2 m)
Dump Clearance at Max Raise	8 ft (2 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Hinge Pin - Max Height	10 ft (3 m)
Length with Bucket on Ground	18 ft (5 m)
Reach at Max Lift and Dump	3 ft (1 m)
Wheelbase	8 ft (2 m)
Width Over Tires	7 ft (2 m)
Engine
Displacement	317 cu in (5,201 cu cm)
Engine Model	C3.6
Net Power	65 hp (48 kw)
Number of Cylinders	4
Power Measured @	2,400 rpm
General Specifications
Breakout Force (Since 2021)	13,567 lbs ft (18,394 nm)
Breakout Force (Since 2023)	13,577 lbs ft (18,408 nm)
Bucket Capacity (Since 2020)	1.7 - 4.6 (1.3 - 3.5)
Bucket Capacity (Since 2021)	1.7 - 2.5 (1.3 - 1.9)
Bucket Capacity (2022)	1.7 - 2.5 (1.3 - 1.9)
Bucket Capacity (2023)	1.7 - 2.5 (1.3 - 1.9)
Bucket Capacity (Since 2023)	2 cu yd
Bucket Capacity (Since 2024)	1.7 - 2.0 (1.3 - 1.50)
Bucket Capacity cu. yd. (cu m) (Since 2025)	1.7 - 2.0 (1.3 - 1.50)
Engine (Since 2021)	C4.4 ACERT
Engine (Since 2023)	C3.6
Engine Power (Since 2020)	110 (82)
Engine Power (Since 2021)	100 (74.6)
Engine Power (2022)	100 (74.6)
Engine Power (2023)	100 (74.6)
Engine Power (Since 2024)	110 (82)
Engine Power Net hp (kW) (Since 2025)	110 (82)
Engine type (Since 2020)	Cat C3.6
Engine type (2021)	Cat C3.6
Engine type (2022)	Cat C3.6
Engine type (2023)	Cat C3.6
Engine type (2024)	Cat C3.6
Engine type (2025)	Cat C3.6
Full-Turn Tipping Load (Since 2021)	10,957 lbs (4,970 kg)
Full-Turn Tipping Load (Since 2023)	10,641 lbs (4,827 kg)
Max Dump Height (Since 2020)	9.1 (2.7)
Max Dump Height (Since 2021)	9 ft (3 m)
Net Power (Since 2021)	111 hp (83 kw)
Net Power (Since 2023)	110 hp (82 kw)
Operating Weight (Since 2020)	11,632 (5,276)
Operating Weight (Since 2021)	17,822 lbs (8,084 kg)
Operating Weight (Since 2021)	17,893 (8,116)
Operating Weight (2022)	17,893 (8,116)
Operating Weight (Since 2023)	17,909 lbs (8,123 kg)
Operating Weight (Since 2023)	17,893 (8,116)
Operating Weight (Since 2024)	17,822 (8,086)
Operating Weight lbs. (kg) (Since 2025)	17,822 (8,086)
Rated Bucket Capacity (Since 2021)	2 cu yd
Tip Load (Since 2021)	13,237 (6,004)
Tip Load (2022)	13,237 (6,004)
Tip Load (2023)	13,237 (6,004)
Tip Load (Since 2024)	10,785 (4,878)
Tip Load lbs. (kg) (Since 2025)	10,785 (4,878)
Travel Speed (Since 2024)	25 / 12.5 mph
Travel Speed (Fwd/Rev) (Since 2025)	25 / 12.5 mph
Travel Speed(Fwd/Rev) (Since 2021)	25 / 25 mph
Travel Speed(Fwd/Rev) (2022)	25 / 25 mph
Travel Speed(Fwd/Rev) (2023)	25 / 25 mph
Hydraulic System
Dump Time	1 seconds
Lower Time	4 seconds
Pump Type	double section gear
Raise Time	6 seconds
Relief Valve Setting	2,500 psi
Operating Specifications
Alternator Supplied Amperage	40 amps
Cooling System Fluid Capacity	7 gal (25 l)
Engine Oil Fluid Capacity	3 gal (11 l)
Front Axle/Diff Fluid Capacity	4 gal (15 l)
Fuel Capacity	30 gal (113 l)
Hydraulic System Fluid Capacity	15 gal (57 l)
Operating Voltage	12 volts
Operating Weight	14,210 - 18,102 lbs (6,446 - 8,211 kg)
Rear Axle Oscillation	22 degrees
Rear Axle/Diff Fluid Capacity	4 gal (15 l)
Static Tipping Weight	9,877 lbs (4,480 kg)
Tire Size	15.5 x 25.8 PR
Transmission Fluid Capacity	6 gal (23 l)
Turning Radius	16 ft (5 m)
Transmission
Max Speed - Forward	15 mph (24 kph)
Max Speed - Reverse	7 mph (11 kph)
Number of Forward Gears	3
Number of Reverse Gears	1
Transmission Type	Planetary power shift
