Equipment ↠ Caterpillar ↠ Wheel Loaders ↠ 2003 Caterpillar 938G SERIES II

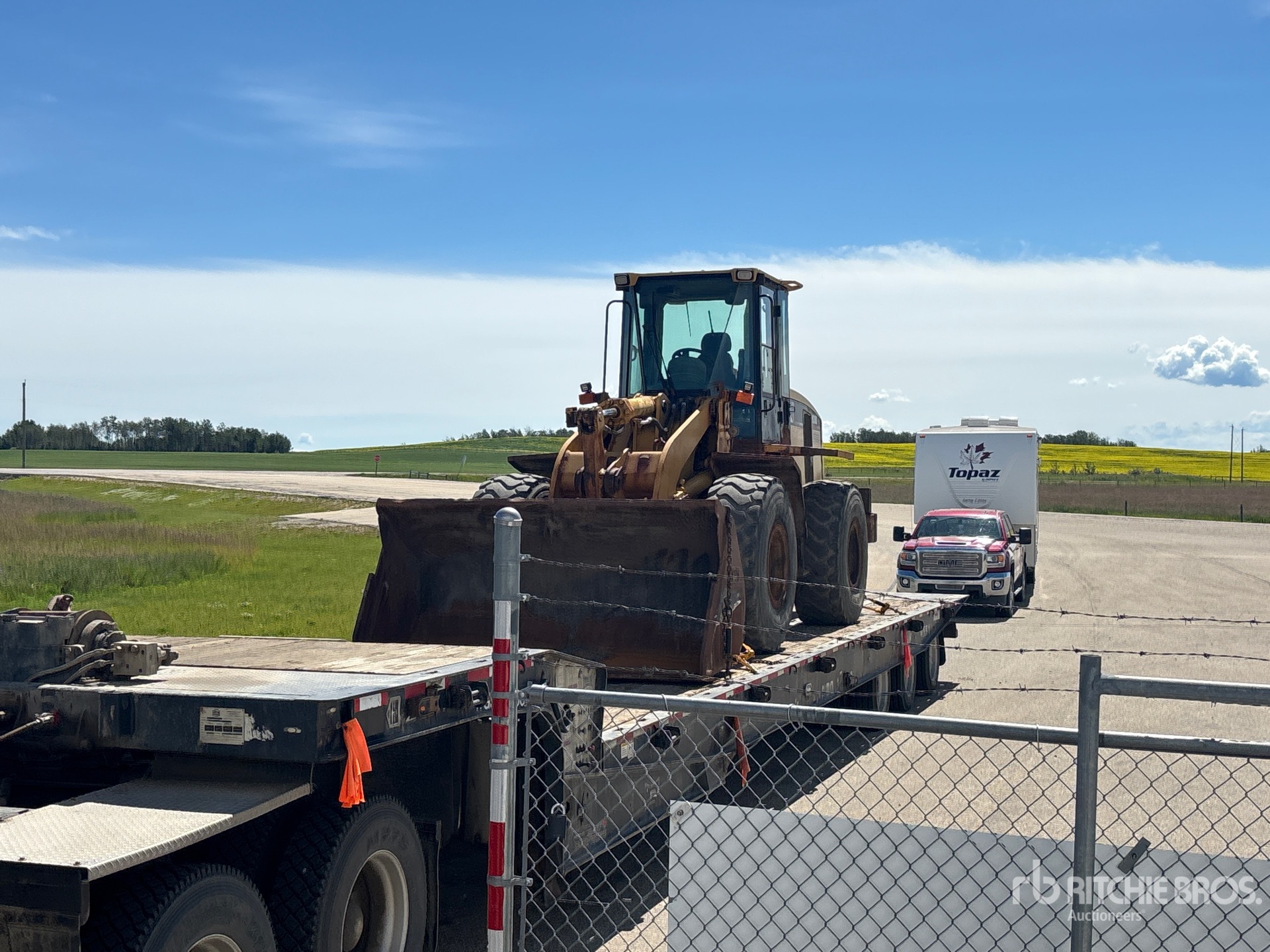

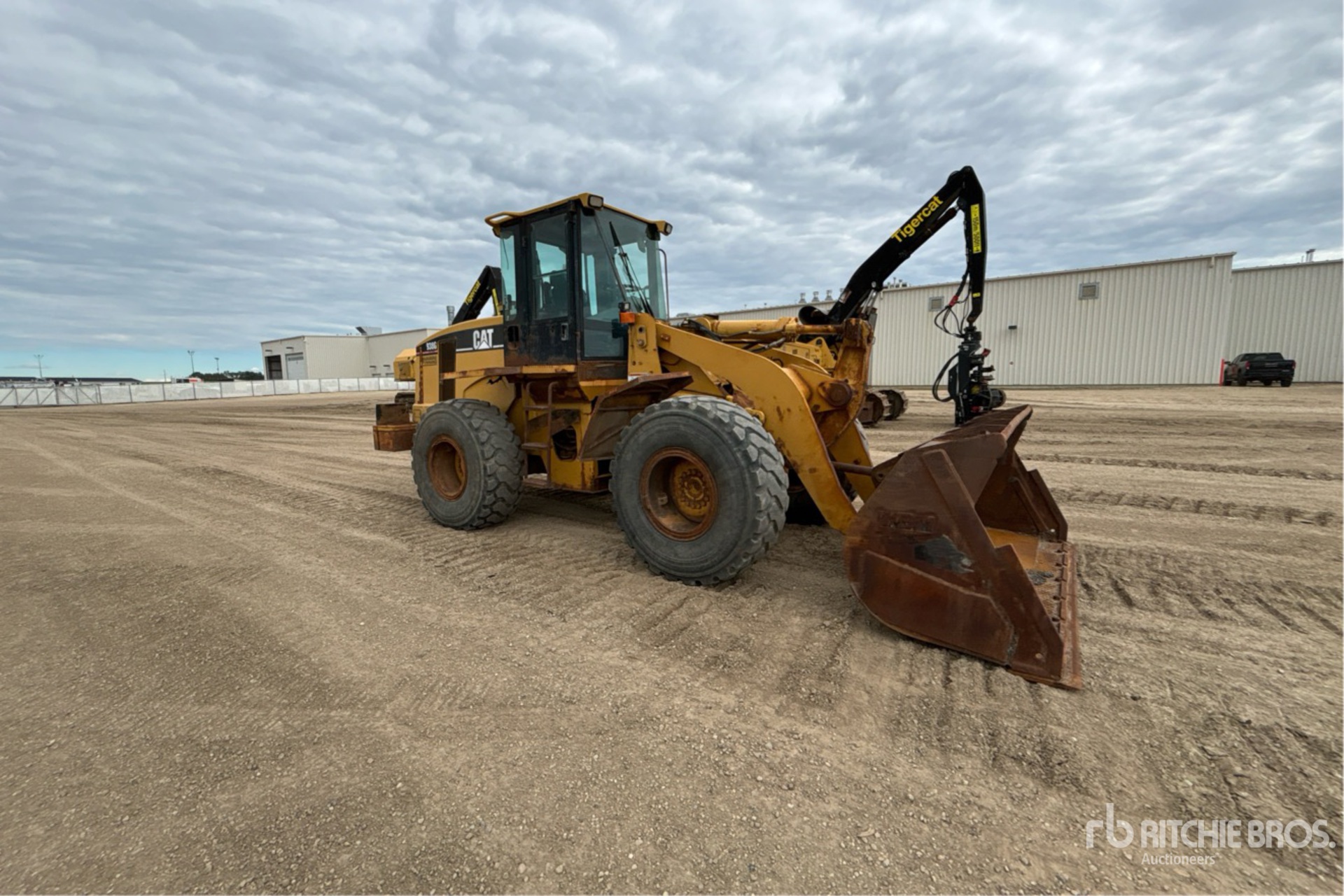

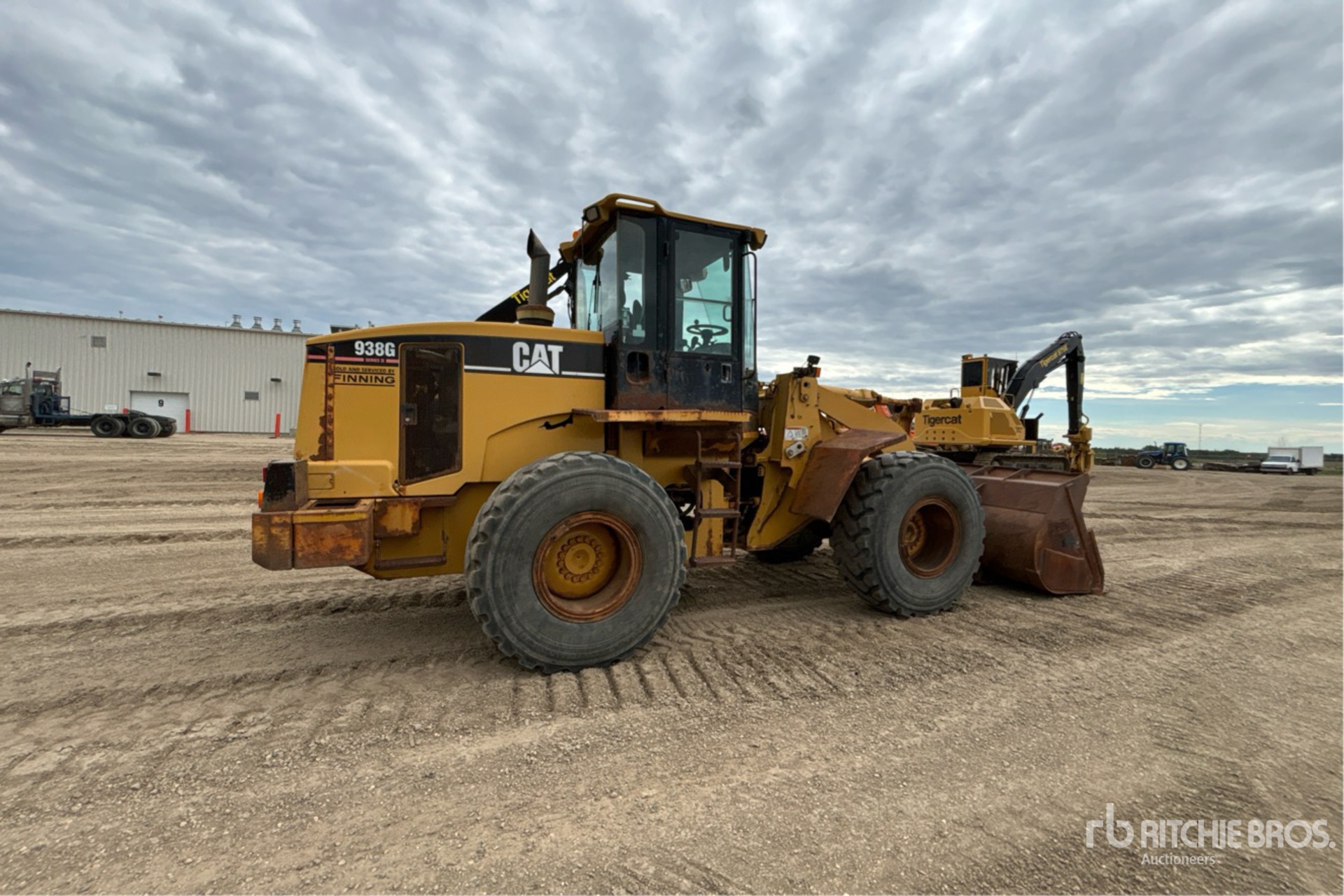

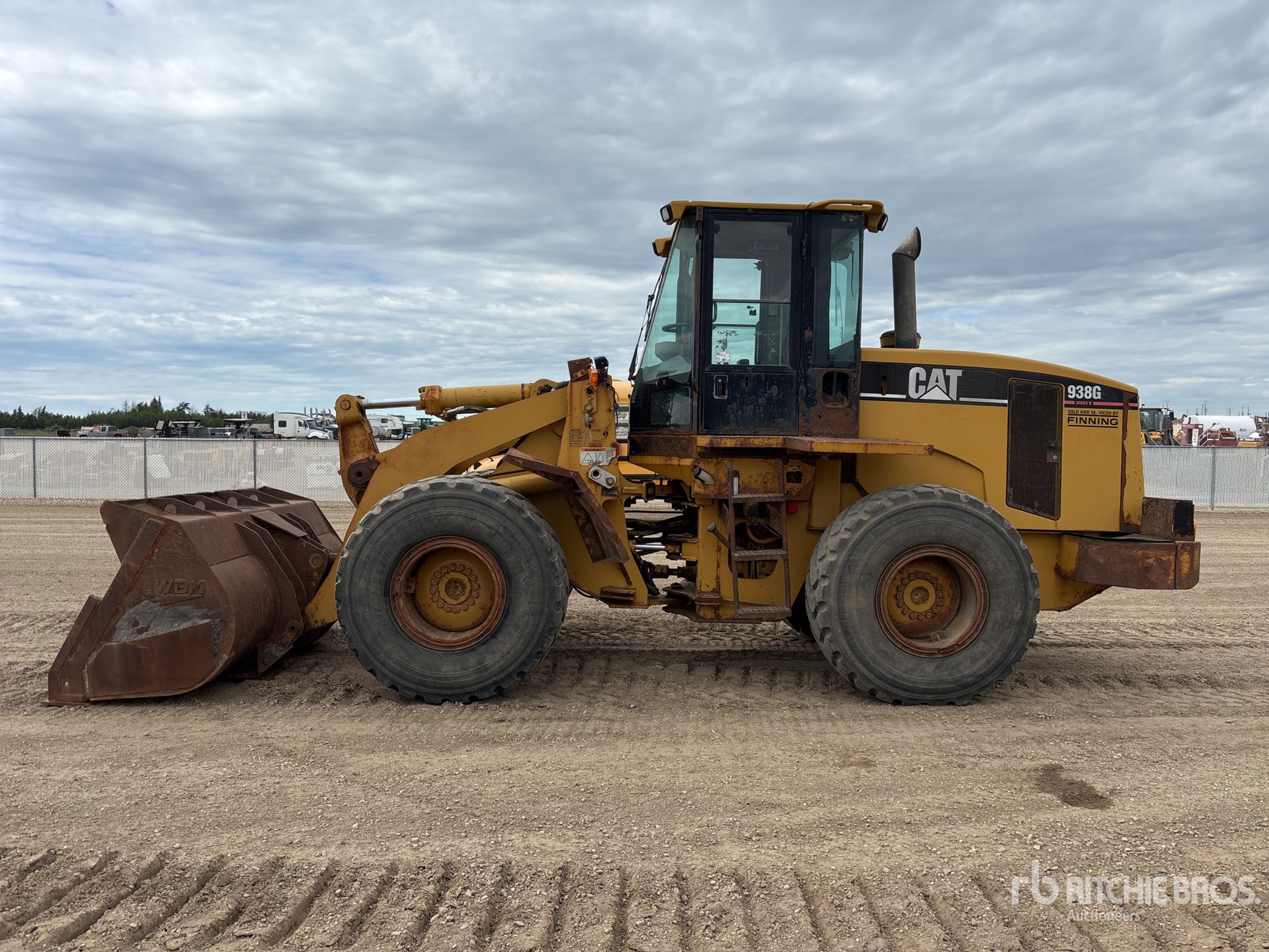

2003 Caterpillar 938G SERIES II For Sale in Grande Prairie, Ab

Name: 2003 Caterpillar 938G SERIES II
Brand: Caterpillar
SKU: 88851114
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-02 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

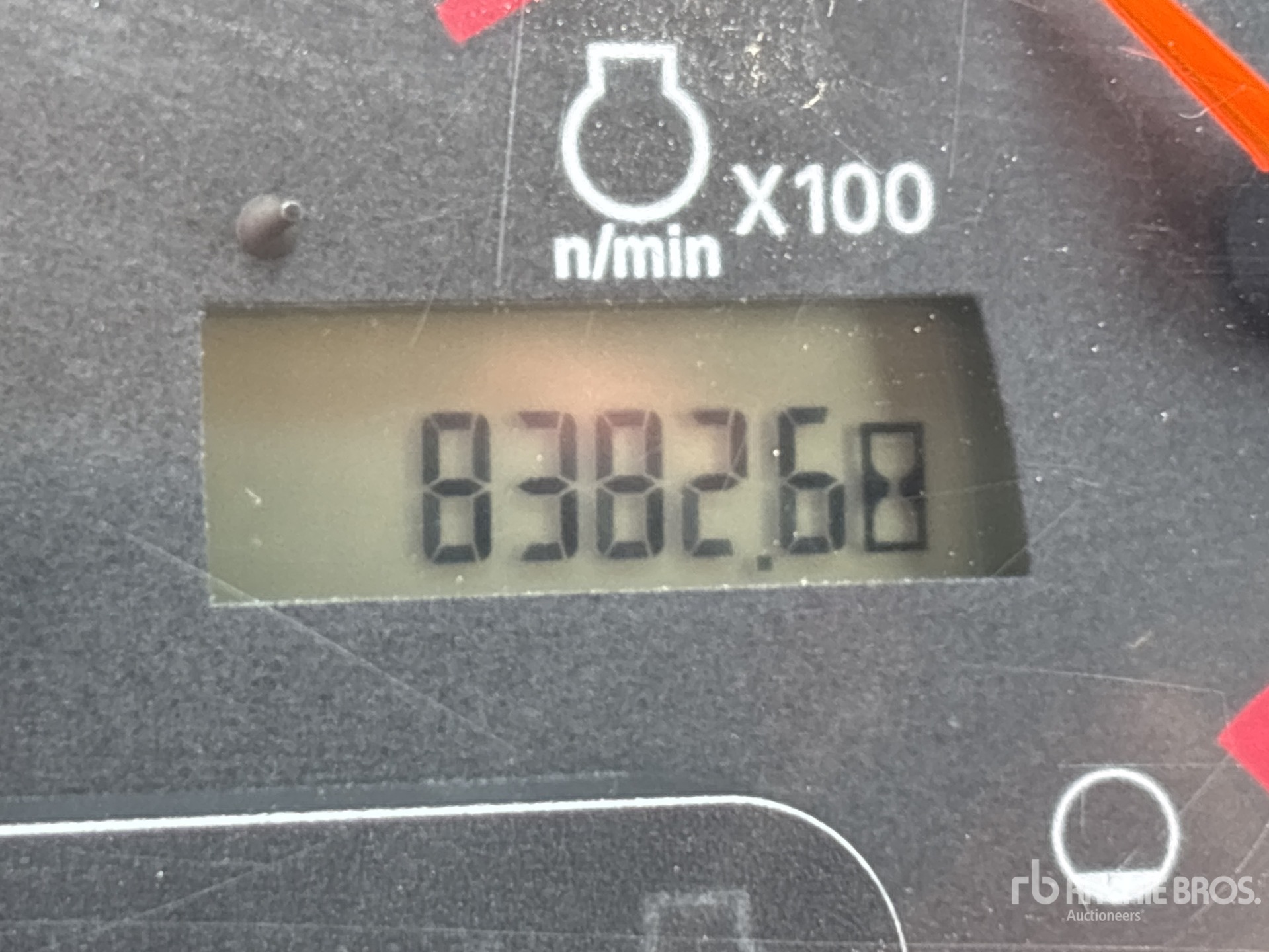

Hours:	8383

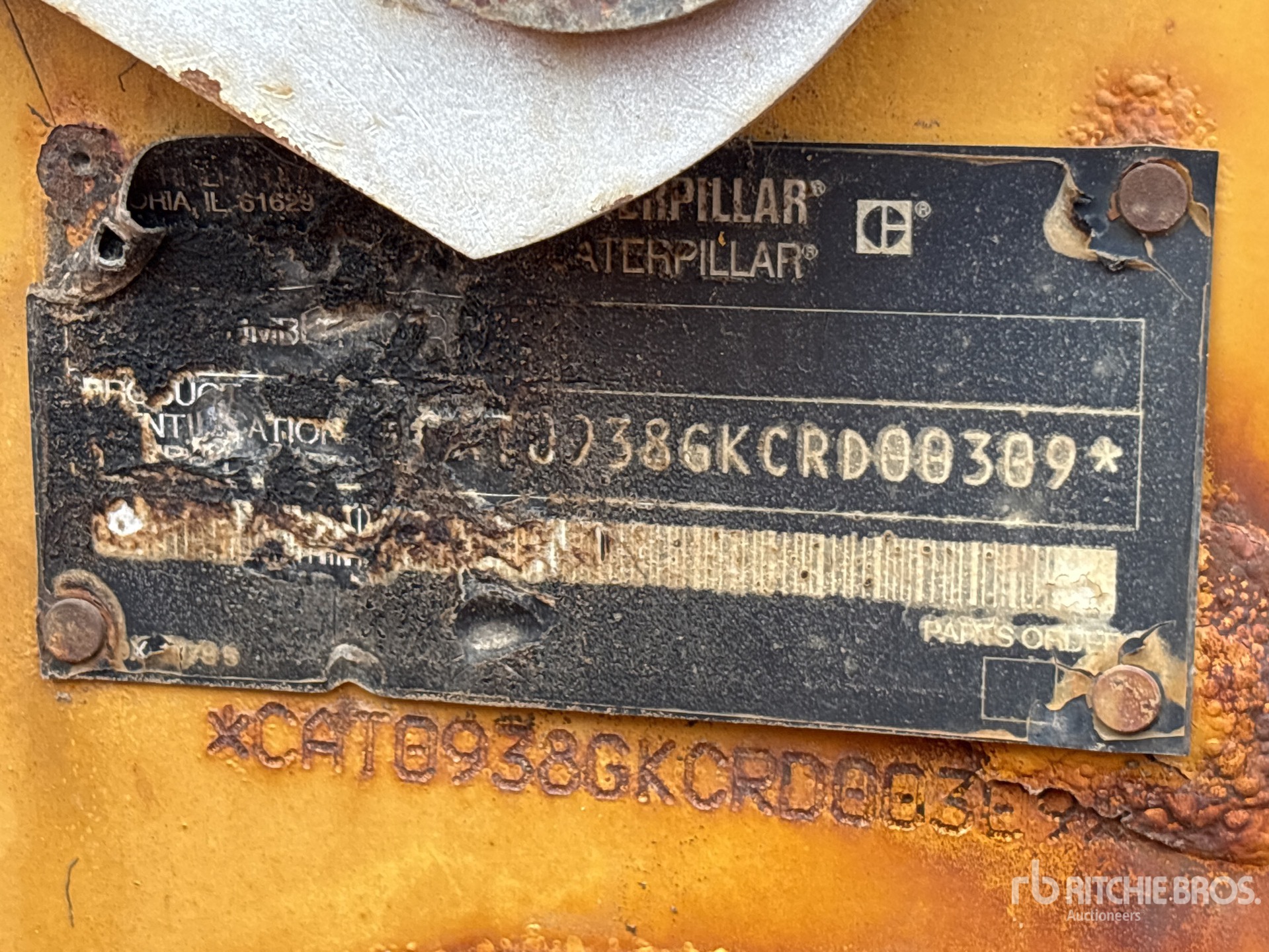

Serial Number:	CRD00309
Machine Location:	GRANDE PRAIRIE, AB

Description:

Located in Lane 4 Spot 77, Enclosed Cab, Air Conditioner, 2003 US EPA Label, Manual Quick Coupler, 104 in Bucket, 20.5R25 Tires Mechanical issues Closing Time: 2026-09-02 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 938G II is a wheel loader designed for material handling, stockpiling, truck loading, and general construction applications. Part of Caterpillar's G Series II lineup, it is commonly used in aggregate yards, roadwork, waste handling, and industrial sites. The machine features a front-mounted loader bucket, articulated steering, and a diesel powertrain suited to demanding earthmoving and loading tasks. The 938G II is known for balanced performance, operator visibility, and compatibility with a range of attachments. It is typically selected for medium-duty loading operations where maneuverability, cycle efficiency, and reliable serviceability are important.

Bucket
Breakout Force	28,326 lbs (12,848 kg)
Bucket Capacity - heaped	3 cu yd (2 cu m)
Bucket Capacity - struck	3 cu yd (2 cu m)
Bucket Width	9 ft (3 m)
Dump Clearance at Max Raise	10 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	24 ft (7 m)
Reach at Max Lift and Dump	3 ft (1 m)
Wheelbase	10 ft (3 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	turbocharged
Displacement	439 cu in (7,200 cu cm)
Engine Model	3126B HEUI
Gross Power	180 hp (134 kw)
Torque Rise	62%
Hydraulic System
Dump Time	1 seconds
Lower Time	3 seconds
Pump Flow Capacity	43 gpm (163 lpm)
Pump Type	vane type
Raise Time	6 seconds
Relief Valve Setting	3,597 psi
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	13 gal (48 l)
Engine Oil Fluid Capacity	8 gal (31 l)
Front Axle/Diff Fluid Capacity	8 gal (30 l)
Fuel Capacity	67 gal (254 l)
Hydraulic System Fluid Capacity	24 gal (90 l)
Operating Voltage	24 volts
Operating Weight	30,819 lbs (13,979 kg)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	9 gal (32 l)
Static Tipping Weight	25,230 lbs (11,444 kg)
Tire Size	20.5R25
Transmission Fluid Capacity	8 gal (30 l)
Turning Radius	20 ft (6 m)
Transmission
Max Speed - Forward	24 mph (39 kph)
Max Speed - Reverse	15 mph (23 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	electronic planetary powershift
