2011 Caterpillar 962H For Sale in Edmonton, Ab

Name: 2011 Caterpillar 962H
Brand: Caterpillar
SKU: 88554377
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-24 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

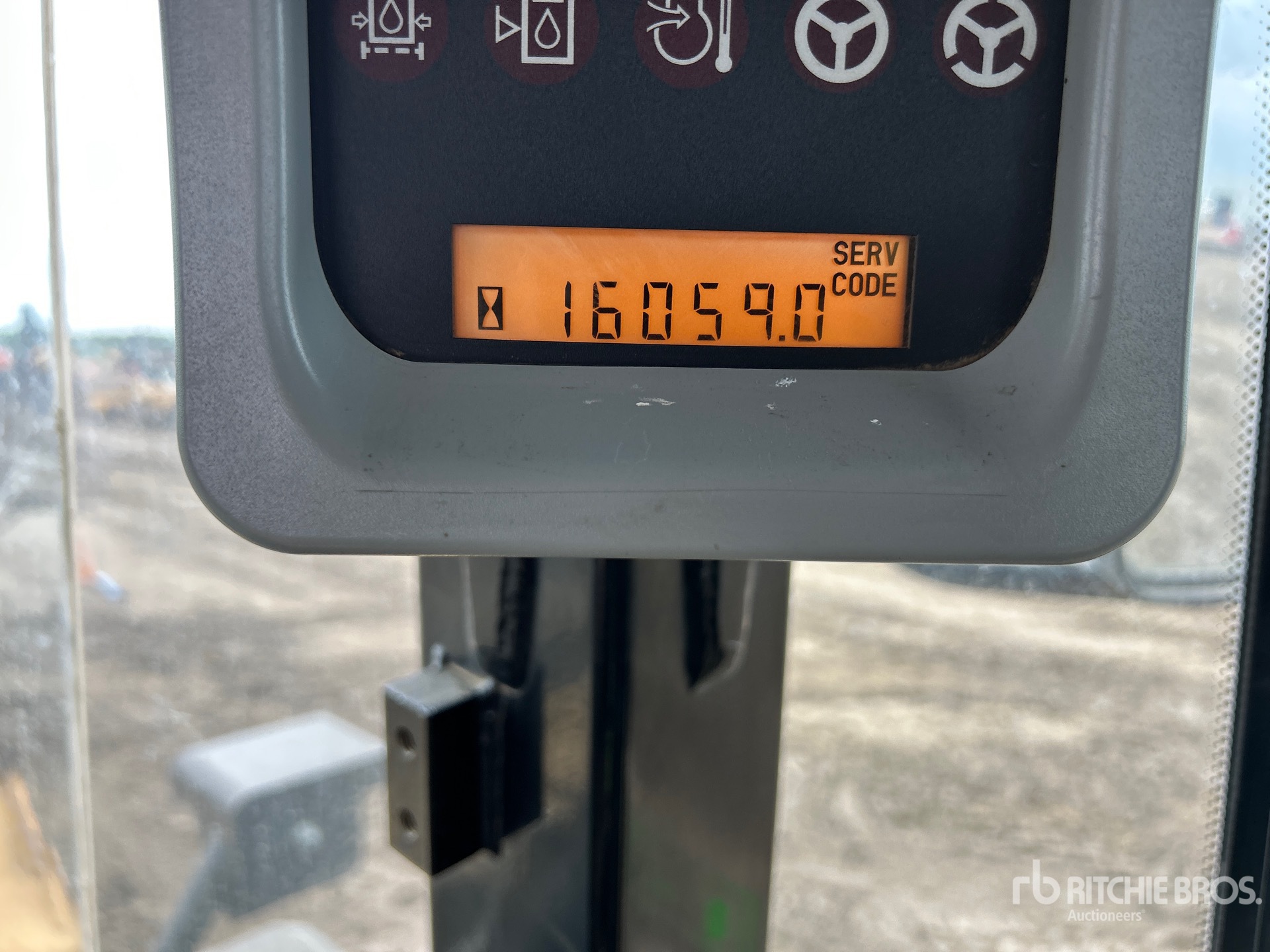

Hours:	16059

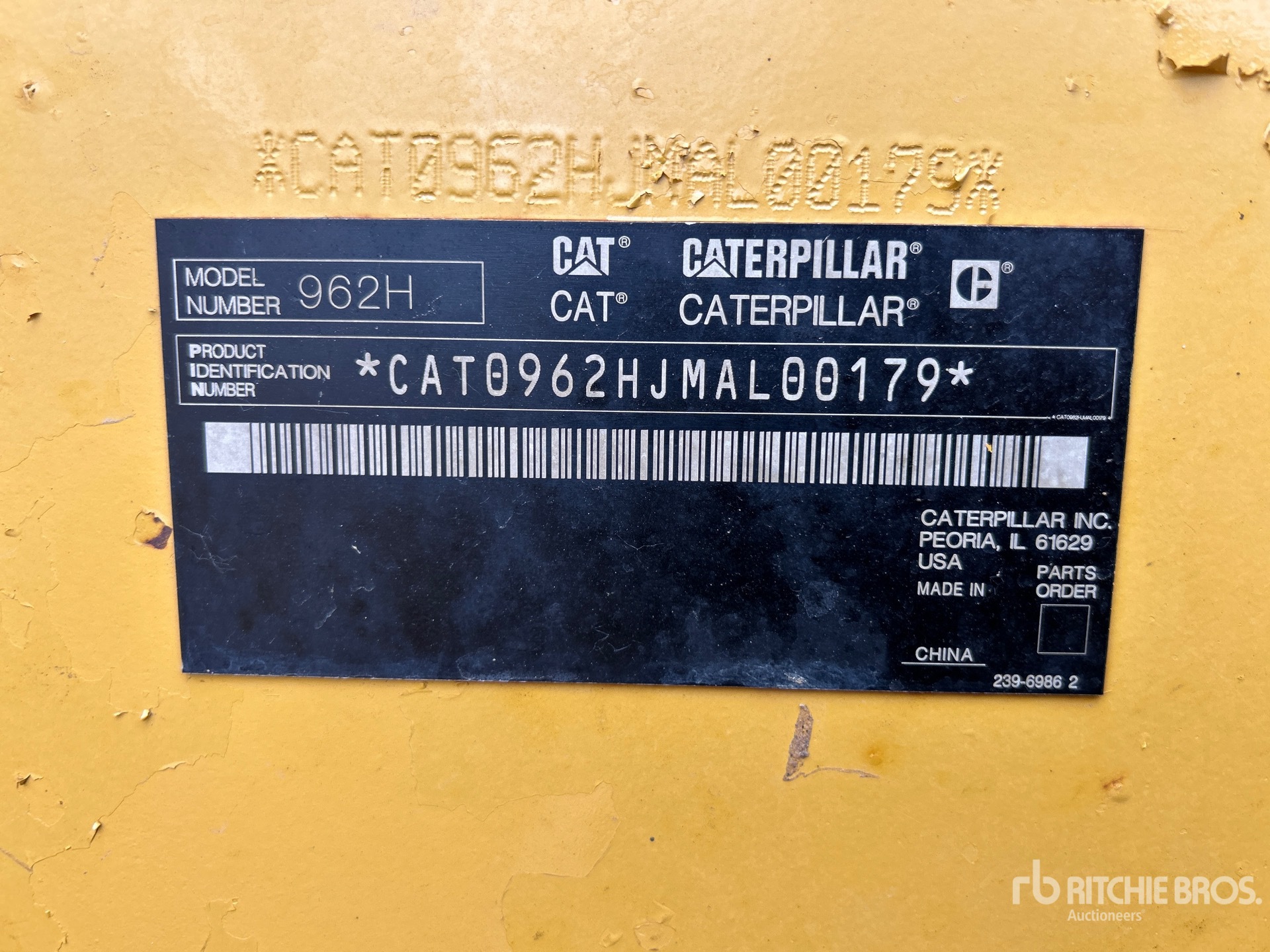

Serial Number:	CAT0962HJMAL00179
Machine Location:	EDMONTON, AB

Description:

Located in Lane 60 Spot 7, Enclosed Cab, Air Conditioner, Autoshift, Traction Control, 117 in Spade Nose Bucket, 23.5R25 Tires Contact Derek Kolosky 306.621.2497 or Derrick Murray 306.641.5645 for equipment info, Major Realignment Yorkton Concrete 2012 Ltd Closing Time: 2026-06-24 10:09:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 962H is a wheel loader designed for material handling, loading, stockpiling, and general earthmoving applications. Part of Caterpillar's H Series, it is commonly used in construction, aggregate, quarry, and industrial site operations. The 962H features a front-mounted loader bucket, articulated steering, and a diesel powertrain configured for productivity and durability in demanding work environments. Typical uses include truck loading, site cleanup, and bulk material movement. As a mid-size wheel loader, the 962H is recognized for balanced performance, operator visibility, and compatibility with a range of attachments and bucket options for varied jobsite requirements.

Axles
Front	Fixed front
Maximum Single-Wheel Rise and Fall	19 in (47 cm)
Rear	Oscillating +/- 13?
Brakes
Brakes	Meets required standards.
Bucket
Breakout Force	33,075 lbs (15,003 kg)
Breakout Force - Reference Bucket	40,466 lbs (18,355 kg)
Bucket Capacities	5 cu yd (4 cu m)
Bucket Capacity - heaped	5 cu yd (3 cu m)
Bucket Capacity - struck	4 cu yd (3 cu m)
Bucket Width	10 ft (3 m)
Maximum Bucket Capacity	5 cu yd (4 cu m)
Reference Bucket Capacity	4 cu yd (3 cu m)
Type - Reference bucket	General purpose
Cab
ROPS/FOPS	Meets SAE and ISO standards.
Dimensions
B-Pin Height - Standard	13 ft (4 m)
Centerline of Rear Axle to Hitch	66 in (168 cm)
Centerline Rear Axle to Edge of Counterweight	7 ft (2 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Height - Top of Exhaust	133 in (337 cm)
Height - Top of Hood	97 in (246 cm)
Height - Top of ROPS/FOPS	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	27 ft (8 m)
Reach at Max Lift and Dump	4 ft (1 m)
Wheel Base	11 ft (3 m)
Wheelbase	11 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Bore	4 in (11 cm)
Displacement	439 cu in (7,194 cu cm)
Engine Model	Cat C7 ACERT
Flywheel Power	211 hp (157 kw)
Gross Power	230 hp (172 kw)
Gross Power - SAE J1995	230 hp (172 kw)
Make	Cat
Net Power	211 hp (157 kw)
Net Power - 80/1269/EEC	211 hp (157 kw)
Net Power - ISO 9249	211 hp (157 kw)
Net Power - SAE J1349	209 hp (156 kw)
Number of Cylinders	6
Peak Torque - 1,400 rpm - Net	669 lbs ft (907 nm)
Power Measured @	1,800 rpm
Stroke	5 in (13 cm)
Hydraulic System
Bucket/Work Tool System - Pump Output	71 gpm (269 lpm)
Dump Time	1 seconds
Hydraulic Cycle Time - Dump	1 seconds
Hydraulic Cycle Time - Lower, Empty, Float Down	3 seconds
Hydraulic Cycle Time - Raise	6 seconds
Hydraulic Cycle Time - Total	10 seconds
Lower Time	3 seconds
Pump Flow Capacity	71 gpm (269 lpm)
Pump Type	piston
Raise Time	6 seconds
Relief Valve Setting	1,000 psi
Steering System - Pump Type	Piston
Operating Specifications
Alternator Supplied Amperage	80 amps
Breakout Force	33,075 lbs (15,003 kg)
Cooling System Fluid Capacity	11 gal (42 l)
Engine Oil Fluid Capacity	8 gal (30 l)
Front Axle/Diff Fluid Capacity	10 gal (36 l)
Fuel Capacity	83 gal (314 l)
Hydraulic System Fluid Capacity	29 gal (110 l)
Operating Voltage	24 volts
Operating Weight	42,700 lbs (19,368 kg)
Rated Bucket Capacity	5 cu yd (4 cu m)
Rear Axle Oscillation	26 degrees
Rear Axle/Diff Fluid Capacity	10 gal (36 l)
Static Tipping Load - Full Turn	26,676 lbs (12,100 kg)
Static Tipping Weight	30,603 lbs (13,881 kg)
Tire Size	23.5R25
Transmission Fluid Capacity	9 gal (34 l)
Turning Radius	23 ft (7 m)
Service Refill Capacities
Cooling System	11 gal (42 l)
Crankcase	8 gal (30 l)
Differential - Final Drives - Front	10 gal (36 l)
Differential - Final Drives - Rear	10 gal (36 l)
Fuel Tank - Standard	83 gal (314 l)
Hydraulic Tank	29 gal (110 l)
Transmission	9 gal (34 l)
Tires
Tires	Choose from a variety of tires to match your application.
Transmission
Forward - 1	4 mph (7 kph)
Forward - 2	8 mph (13 kph)
Forward - 3	14 mph (23 kph)
Forward - 4	24 mph (38 kph)
Max Speed - Forward	24 mph (38 kph)
Max Speed - Reverse	25 mph (40 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Reverse - 1	5 mph (8 kph)
Reverse - 2	9 mph (14 kph)
Reverse - 3	15 mph (24 kph)
Reverse - 4	25 mph (40 kph)
Transmission Type	Powershift
Weights
Operating Weight	42,700 lbs (19,368 kg)
Operational Weight	42,358 lbs (19,213 kg)
