Equipment ↠ Caterpillar ↠ Wheel Loaders ↠ 1996 Caterpillar 966F

1996 Caterpillar 966F For Sale in Las Vegas, Nv

Name: 1996 Caterpillar 966F
Brand: Caterpillar
SKU: 88458591
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-05 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

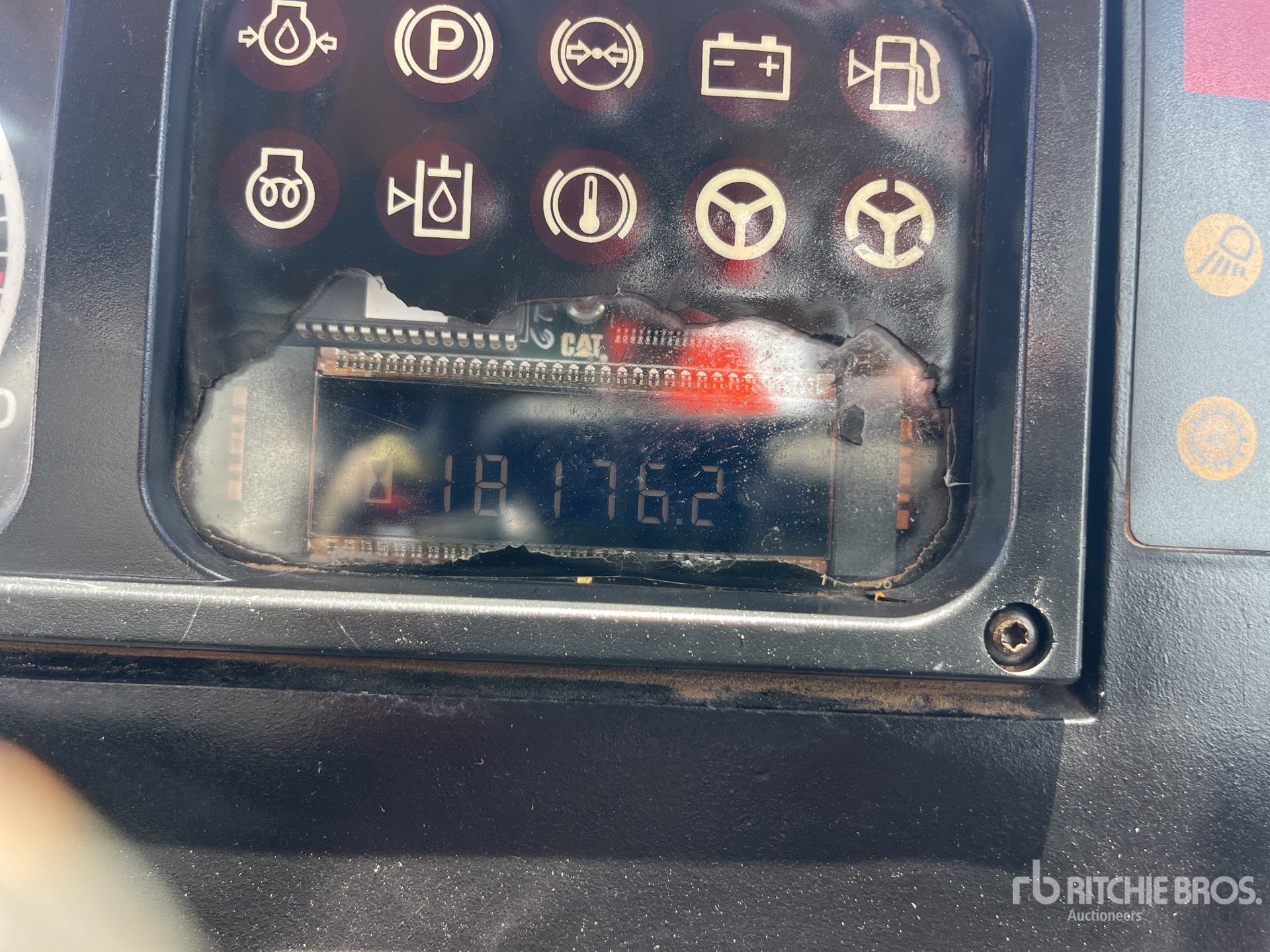

Hours:	18176

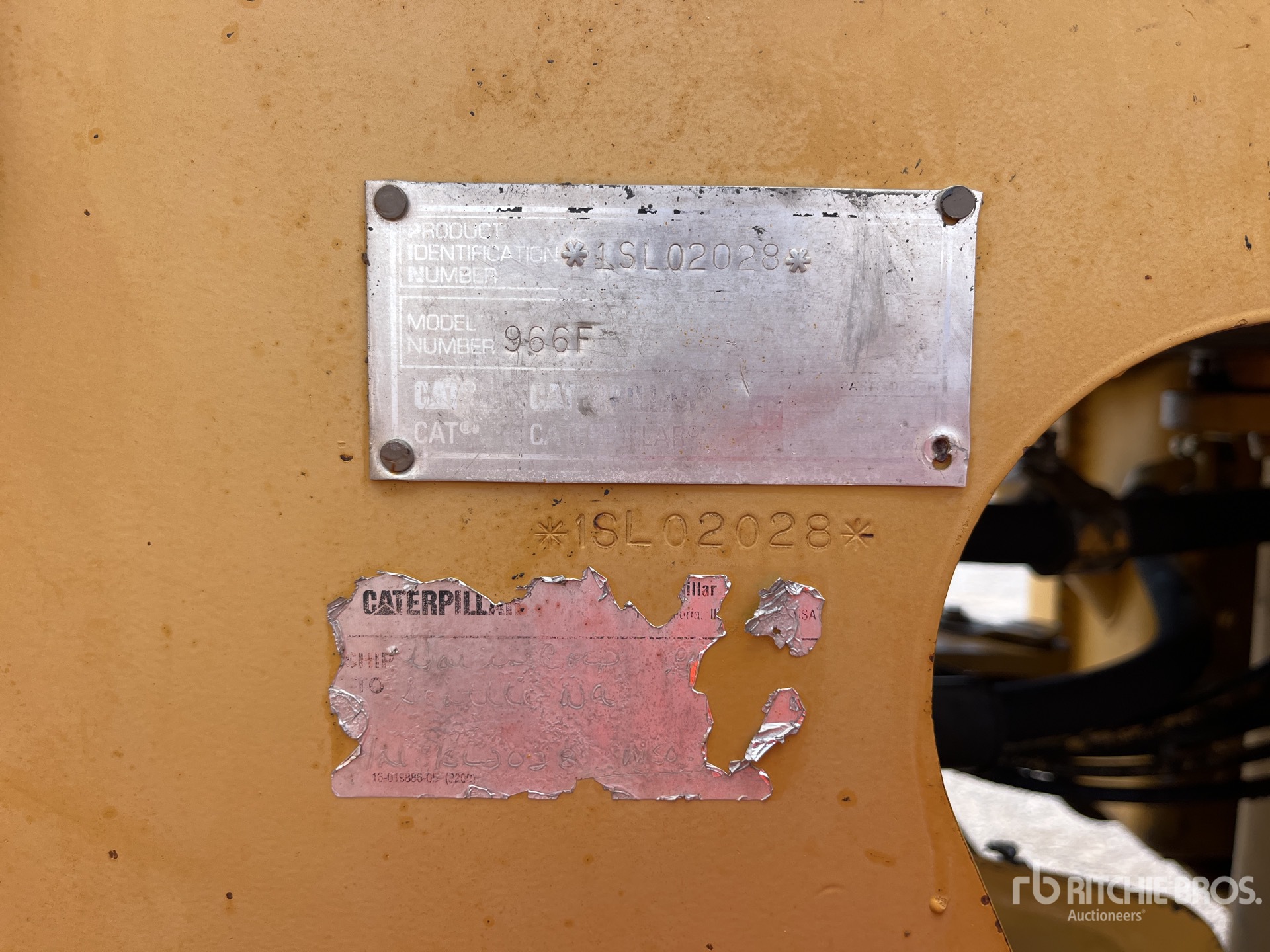

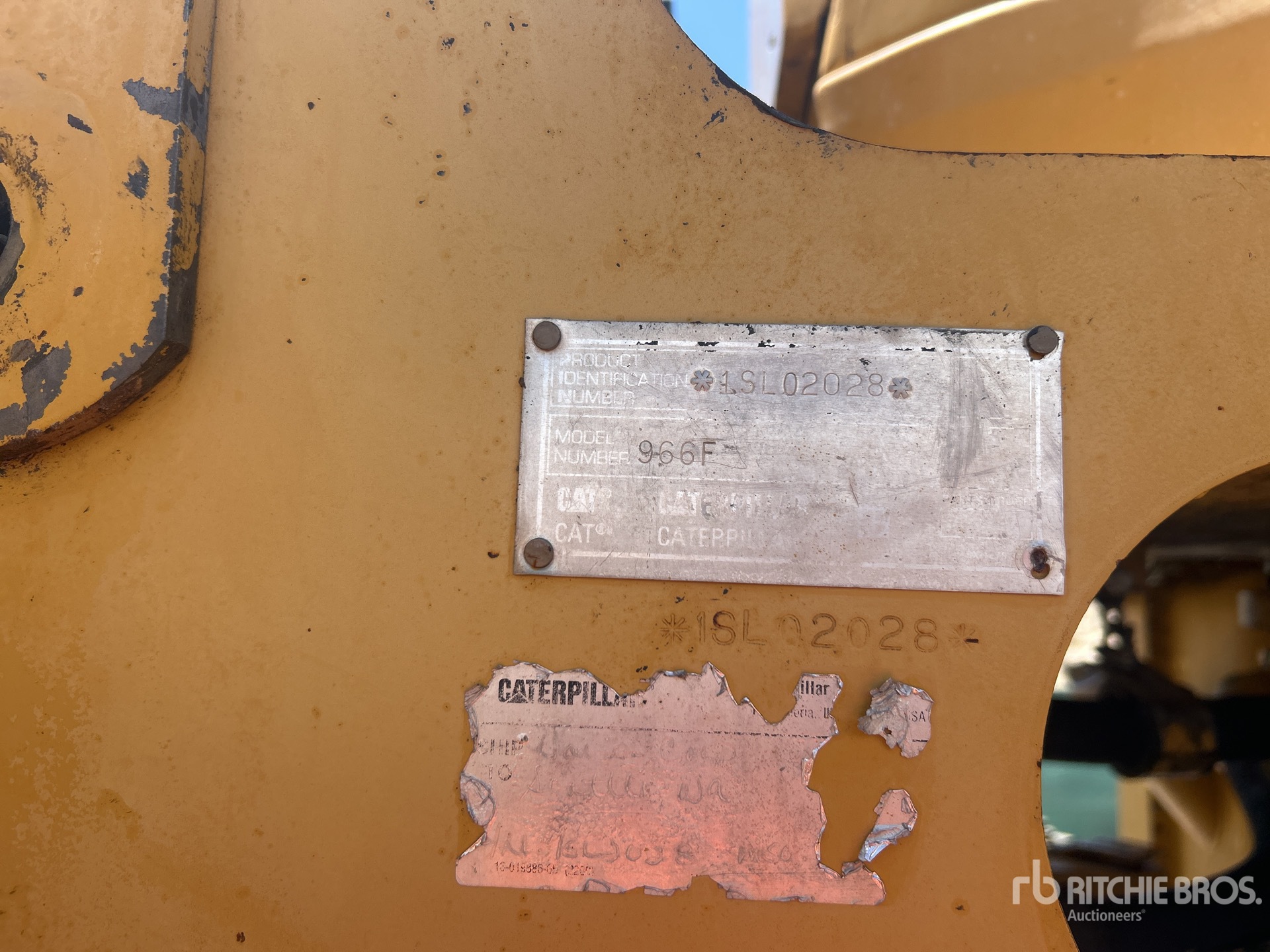

Serial Number:	1SL02028
Machine Location:	LAS VEGAS, NV

Description:

Enclosed Cab, Air Conditioner, 120 in Bucket, 26.5R25 Tires Seller supplied oil sample attached in the document section -, Closing Time: 2026-06-05 09:12:55 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

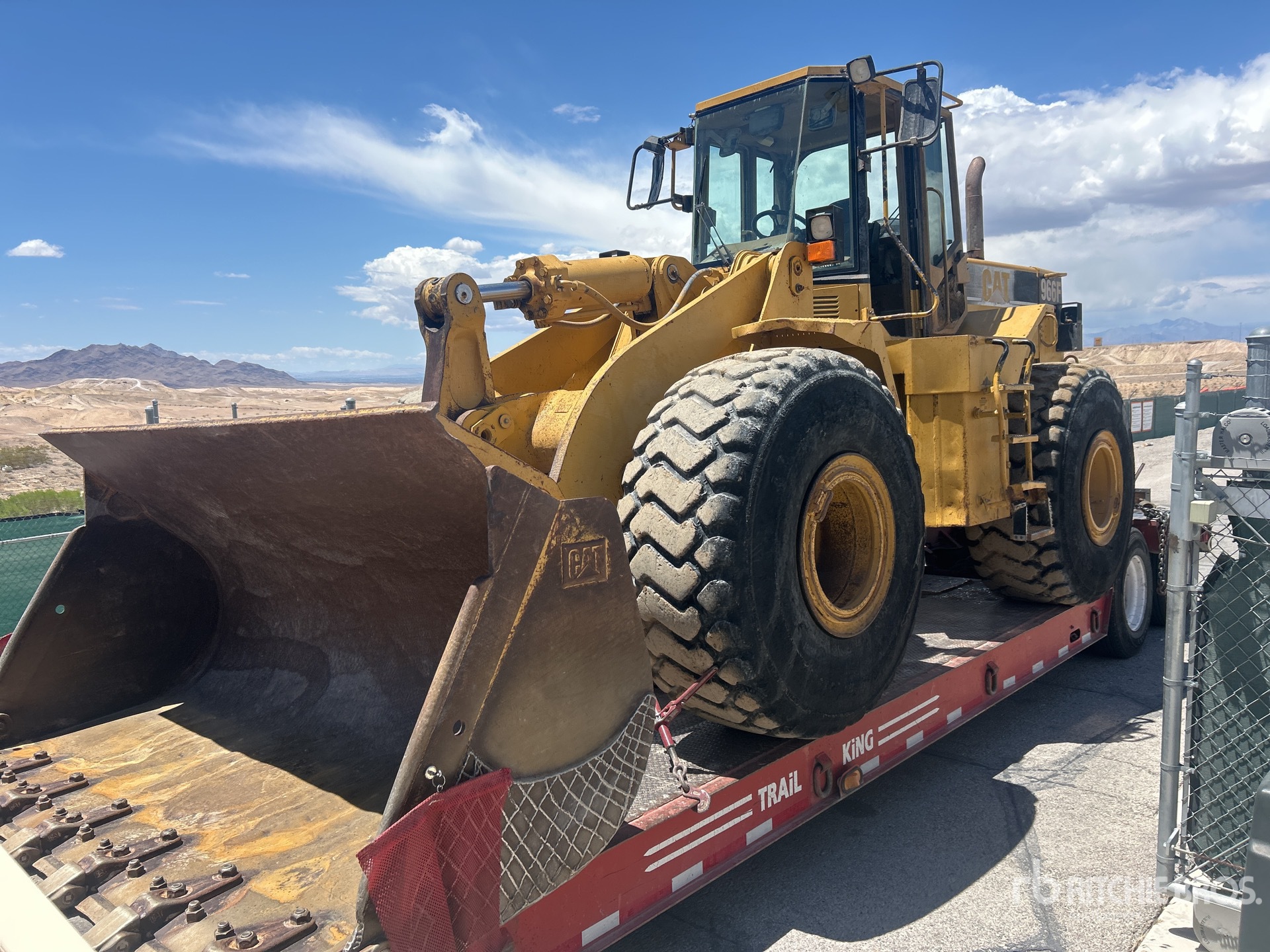

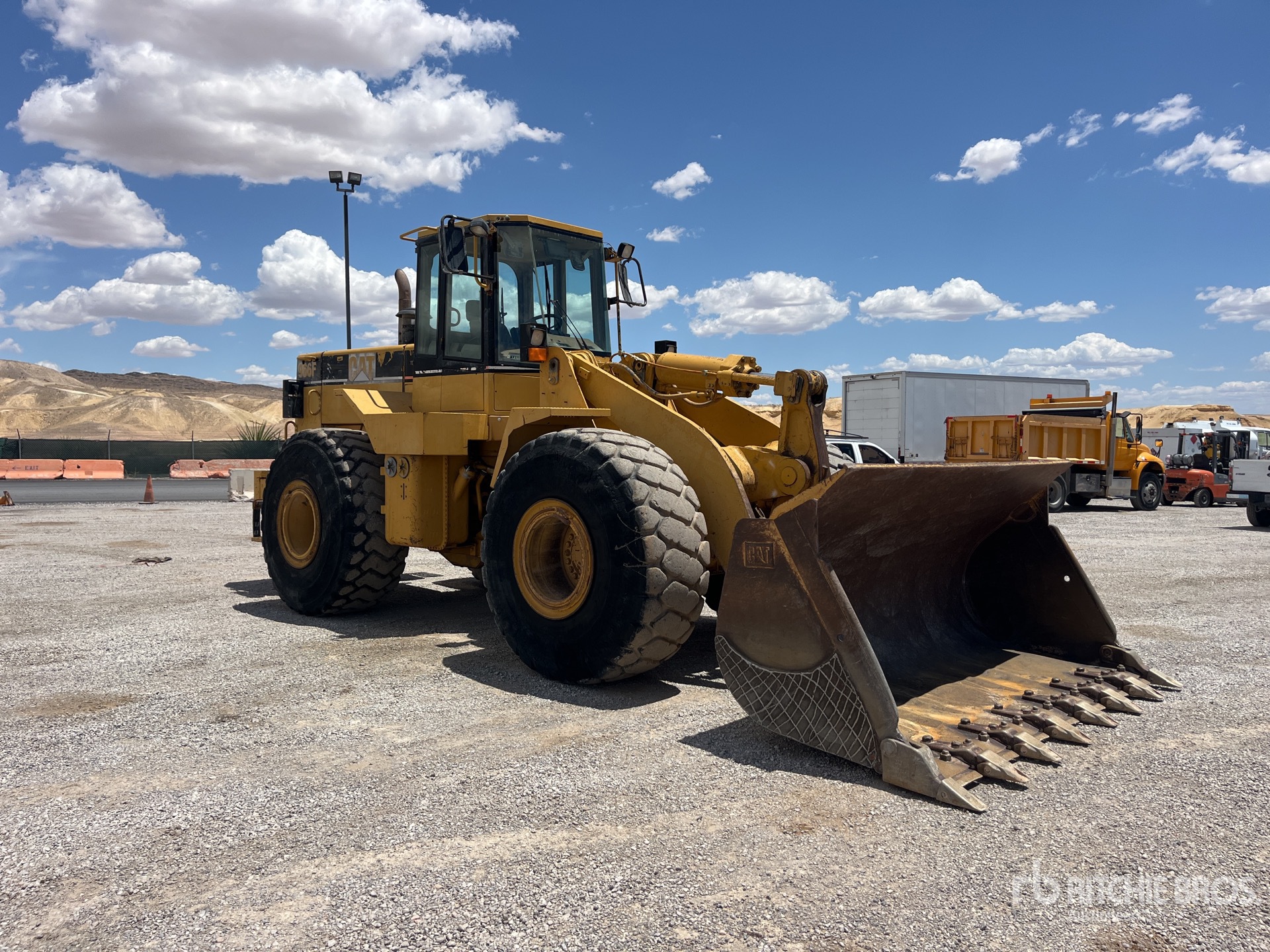

The Caterpillar 966F is a wheel loader designed for material handling, loading, stockpiling, and general earthmoving applications. Part of Caterpillar's 966 series, the 966F is commonly used in construction, aggregate, quarry, and industrial site operations. It features a front-mounted loader bucket, articulated steering, and a diesel powertrain suited to repetitive loading cycles and site transport. The machine is known for its serviceability, operator visibility, and compatibility with a range of work tools and bucket configurations. The Caterpillar 966F remains a recognized model in the used equipment market for medium-duty wheel loader applications.

Bucket
Breakout Force	48,446 lbs (21,975 kg)
Bucket Capacity - heaped	5 cu yd (4 cu m)
Bucket Capacity - struck	4 cu yd (3 cu m)
Bucket Width	10 ft (3 m)
Dump Clearance at Max Raise	9 ft (3 m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	12 ft (4 m)
Hinge Pin - Max Height	14 ft (4 m)
Length with Bucket on Ground	28 ft (8 m)
Reach at Max Lift and Dump	5 ft (1 m)
Wheelbase	11 ft (3 m)
Width Over Tires	10 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	641 cu in (10,501 cu cm)
Engine Model	3,306
Gross Power	235 hp (175 kw)
Net Power	220 hp (164 kw)
Number of Cylinders	6
Power Measured @	2,200 rpm
Hydraulic System
Dump Time	2 seconds
Lower Time	2 seconds
Pump Flow Capacity	80 gpm (302 lpm)
Raise Time	7 seconds
Relief Valve Setting	3,000 psi
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	11 gal (41 l)
Engine Oil Fluid Capacity	7 gal (28 l)
Front Axle/Diff Fluid Capacity	13 gal (47 l)
Fuel Capacity	80 gal (304 l)
Hydraulic System Fluid Capacity	54 gal (205 l)
Operating Voltage	24 volts
Operating Weight	45,162 lbs (20,485 kg)
Rear Axle Oscillation	26 degrees
Rear Axle/Diff Fluid Capacity	13 gal (47 l)
Static Tipping Weight	30,825 lbs (13,982 kg)
Tire Size	26.5-25 14PR
Transmission Fluid Capacity	16 gal (59 l)
Turning Radius	22 ft (7 m)
Transmission
Max Speed - Forward	23 mph (38 kph)
Max Speed - Reverse	27 mph (43 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Transmission Type	Planetary powershift
