2011 Caterpillar 980H For Sale in GOODFIELD, IL


/ Save to Watch List

For Sale: $82,500.00 USD

Apply for Financing

Martin Equipment


Request an equipment inspection

Get shipping quotes


Contact: Josh White, Used Equipment Manager

Click for Phone Number

Machine Info:

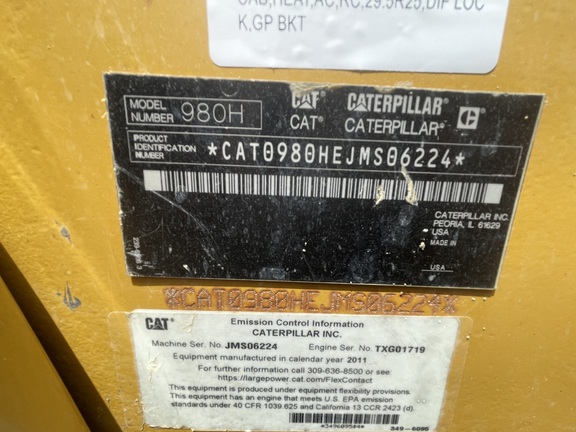

Serial Number:CAT0980HEJMS06224
Stock Number:77831
Machine Location:GOODFIELD, IL

Description:

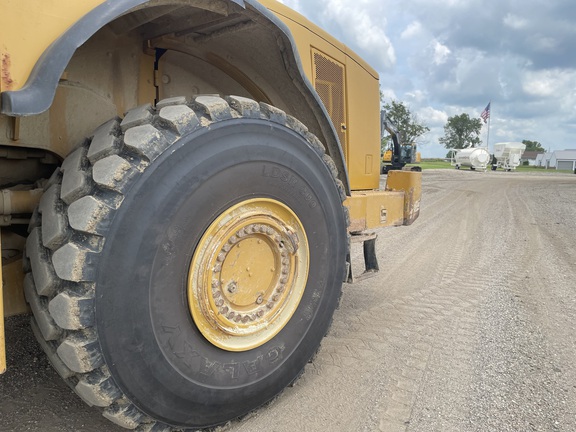

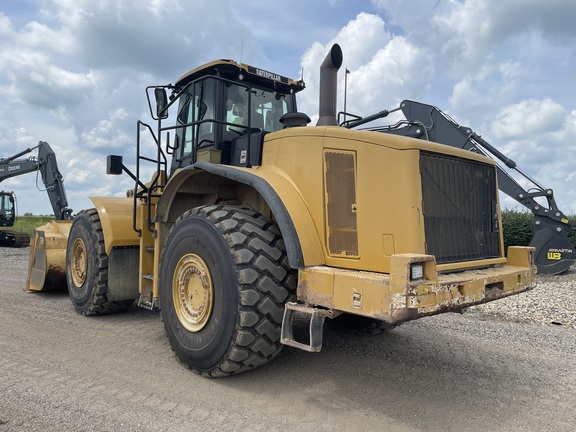

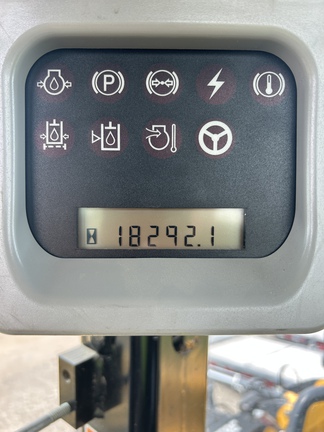

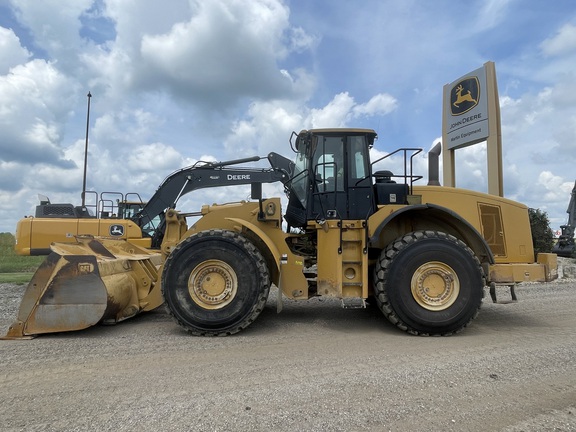

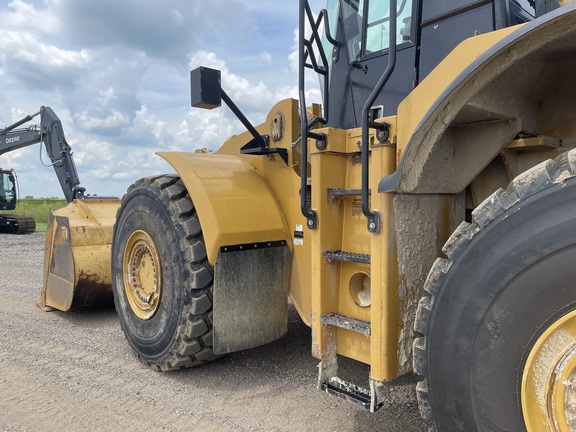

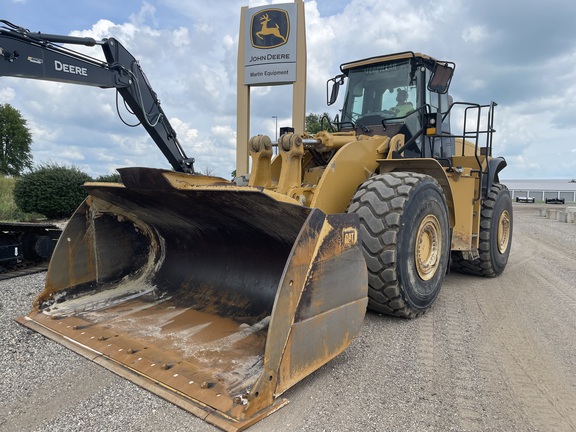

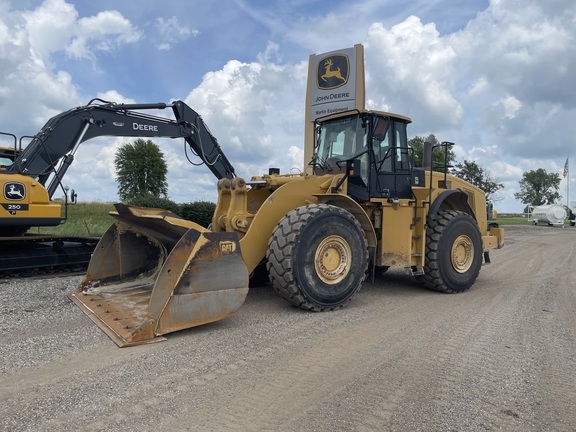

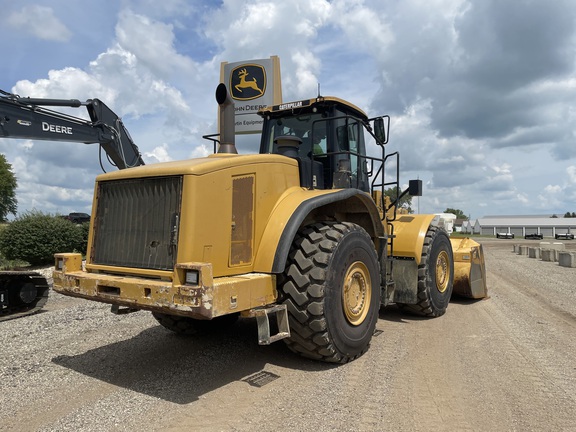

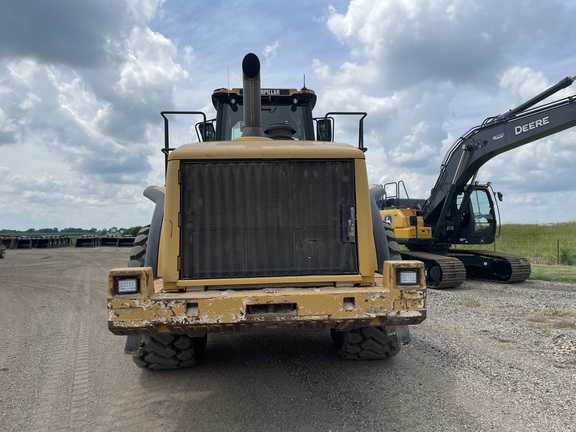

2011 Caterpillar 980H Wheel Loader, 18,292 Hours, This 2011 Cat 980H came straight from the job site to our lot and now it's headed to AuctionTime. It's still wearing its work clothes no fresh paint, no cover-ups, and nothing to hide. What you see is exactly what you're bidding on., This is a big, well-maintained loader that's been earning its keep. If you're looking for a solid machine this one deserves a look., 18,292 hours Tires approximately 80% Fresh off the jobsite Honest machine with no cosmetic makeover, Be sure to check out all the photos and videos. They tell the story better than we can. If you have any questions or would like additional information don't hesitate to call before the auction ends, Good luck bidding!

Machine Details:

General Specifications

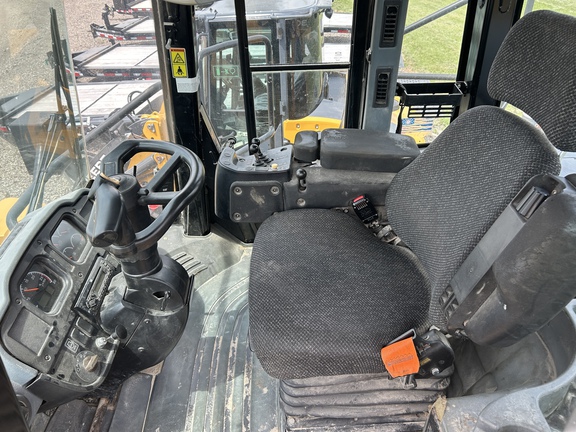

Operators StationFingertip Controls

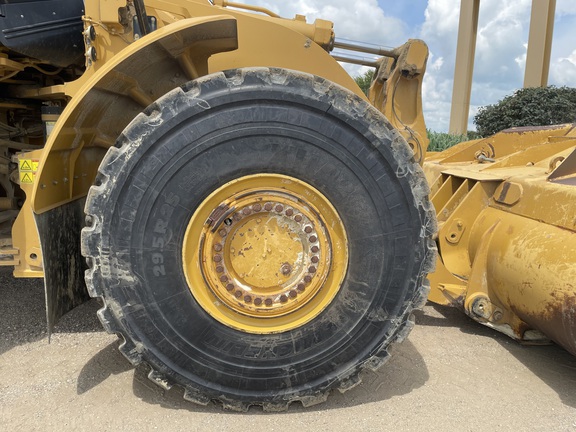

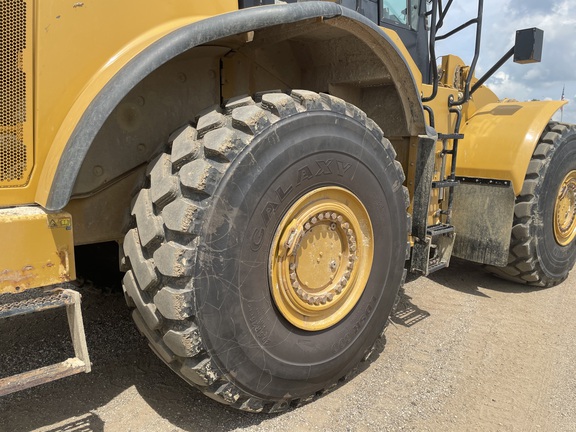

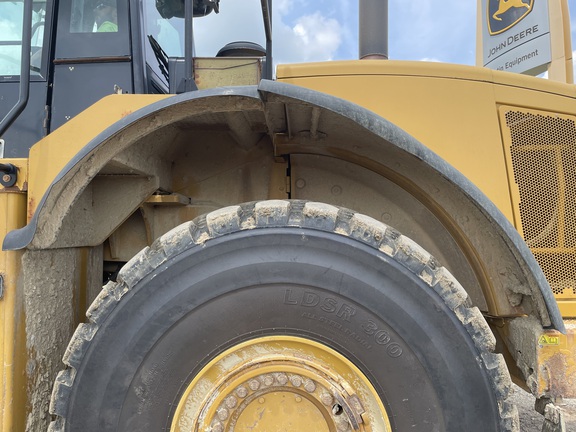

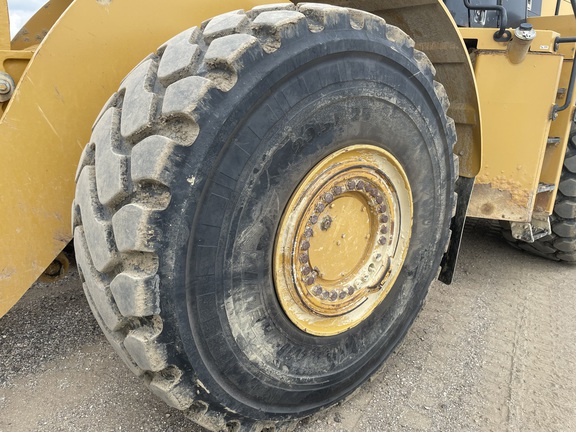

Tires29.5 Tires

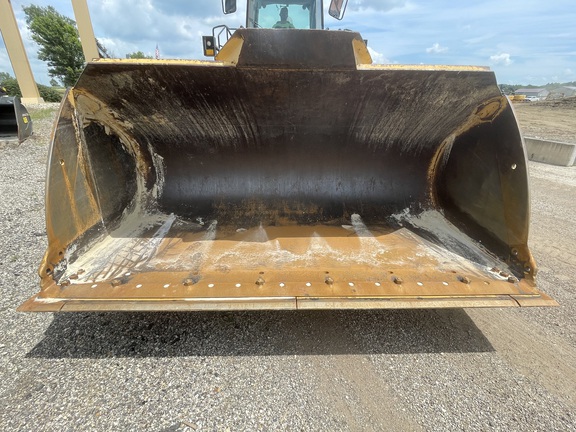

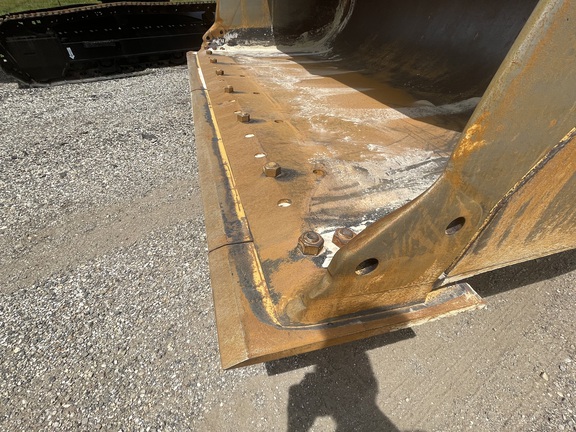

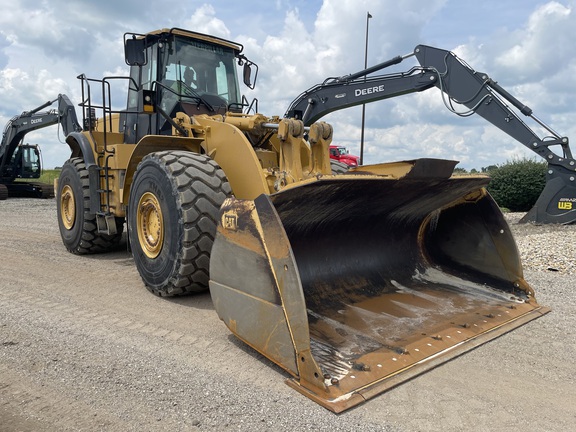

BucketsGeneral Purpose Bkt
OptionsAuto Lube


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Caterpillar 980H is a large wheel loader designed for material handling, aggregate, quarry, and construction applications. Part of Caterpillar's H Series, it is equipped with a diesel engine, hydraulic lifting system, and articulated steering for efficient loading and transport of bulk materials. The 980H is commonly used with buckets and other attachments for stockpiling, truck loading, and site preparation. Known for its heavy-duty frame, operator cab, and service access, the model is built for productivity in demanding environments. It remains a recognized Caterpillar wheel loader in the used equipment and rental markets.
Axles
Front Fixed front
Maximum Single-Wheel Rise and Fall 22 in (55 cm)
Rear Oscillating +/- 13?
Brakes
Brakes Meets required standards.
Bucket
Breakout Force 61,425 lbs (27,862 kg)
Breakout Force - Reference Bucket 61,373 lbs (27,838 kg)
Bucket Capacities 8 yd (7 m)
Bucket Capacity - heaped 6 cu yd (4 cu m)
Bucket Capacity - struck 5 cu yd (4 cu m)
Bucket Width 12 ft (4 m)
Dump Clearance at Max Raise 11 ft (3 m)
Maximum Bucket Capacity 8 cu yd (6 cu m)
Reference Bucket Capacity 6 cu yd (4 cu m)
Type - Reference bucket General purpose with Teeth
Cab
ROPS/FOPS Meets SAE and ISO standards.
Dimensions
B-Pin Height - Standard 15 ft (5 m)
Centerline of Rear Axle to Hitch 73 in (185 cm)
Centerline Rear Axle to Edge of Counterweight 8 ft (3 m)
Ground Clearance 2 ft (0 m)
Height - Top of Cab 12 ft (4 m)
Height - Top of Exhaust 146 in (372 cm)
Height - Top of Hood 107 in (272 cm)
Height - Top of ROPS/FOPS 12 ft (4 m)
Hinge Pin - Max Height 15 ft (5 m)
Length with Bucket on Ground 31 ft (9 m)
Reach at Max Lift and Dump 5 ft (2 m)
Wheel Base 12 ft (4 m)
Wheelbase 12 ft (4 m)
Width Over Tires 11 ft (3 m)
Engine
Bore 5 in (14 cm)
Displacement 928 cu in (15,207 cu cm)
Engine Model Cat C15 ACERT
Gross Power 355 hp (265 kw)
Gross Power - SAE J1995 393 hp (293 kw)
Make Cat
Net Power 318 hp (237 kw)
Net Power - 80/1269/EEC 353 hp (263 kw)
Net Power - ISO 9249 349 hp (260 kw)
Net Power - SAE J1349 349 hp (260 kw)
Number of Cylinders 6
Power Measured @ 1,800 rpm
Stroke 7 in (17 cm)
Hydraulic System
Bucket/Work Tool System - Pump Output 123 gpm (466 lpm)
Dump Time 2 seconds
Hydraulic Cycle Time - Dump 2 seconds
Hydraulic Cycle Time - Lower, Empty, Float Down 3 seconds
Hydraulic Cycle Time - Raise 6 seconds
Hydraulic Cycle Time - Total 12 seconds
Lower Time 3 seconds
Pump Flow Capacity 123 gpm (466 lpm)
Pump Type Gear
Raise Time 6 seconds
Relief Valve Setting 3,000 psi
Operating Specifications
Alternator Supplied Amperage 80 amps
Breakout Force 44,775 lbs (20,310 kg)
Cooling System Fluid Capacity 22 gal (83 l)
Dump Clearance 10,843 ft (3,305 m)
Engine Oil Fluid Capacity 10 gal (38 l)
Front Axle/Diff Fluid Capacity 23 gal (87 l)
Fuel Capacity 127 gal (481 l)
Hydraulic System Fluid Capacity 66 gal (250 l)
Operating Voltage 24 volts
Operating Weight 66,489 lbs (30,159 kg)
Rated Bucket Capacity 5 - 8 cu yd (4 - 6 cu m)
Rear Axle Oscillation 26 degrees
Rear Axle/Diff Fluid Capacity 23 gal (87 l)
Static Tipping Load - Full Turn 42,989 lbs (19,500 kg)
Static Tipping Weight 50,201 lbs (22,771 kg)
Tire Size 29.5-25
Transmission Fluid Capacity 16 gal (61 l)
Turning Radius 26 ft (8 m)
Service Refill Capacities
Cooling System 22 gal (83 l)
Crankcase 17 gal (64 l)
Differential - Final Drives - Front 23 gal (87 l)
Differential - Final Drives - Rear 23 gal (87 l)
Fuel Tank - Standard 127 gal (481 l)
Hydraulic Tank 33 gal (125 l)
Transmission 16 gal (61 l)
Tires
Tires Choose from a variety of tires to match your application.
Transmission
Forward - 1 4 mph (7 kph)
Forward - 2 7 mph (12 kph)
Forward - 3 13 mph (21 kph)
Forward - 4 23 mph (36 kph)
Max Speed - Forward 23 mph (36 kph)
Max Speed - Reverse 26 mph (42 kph)
Number of Forward Gears 4
Number of Reverse Gears 4
Reverse - 1 5 mph (8 kph)
Reverse - 2 8 mph (14 kph)
Reverse - 3 15 mph (24 kph)
Reverse - 4 26 mph (42 kph)
Transmission Type Powershift
Weights
Operating Weight 67,294 lbs (30,524 kg)
Operational Weight 68,489 lbs (31,066 kg)
