Champion 720A For Sale in Hazlehurst, GA

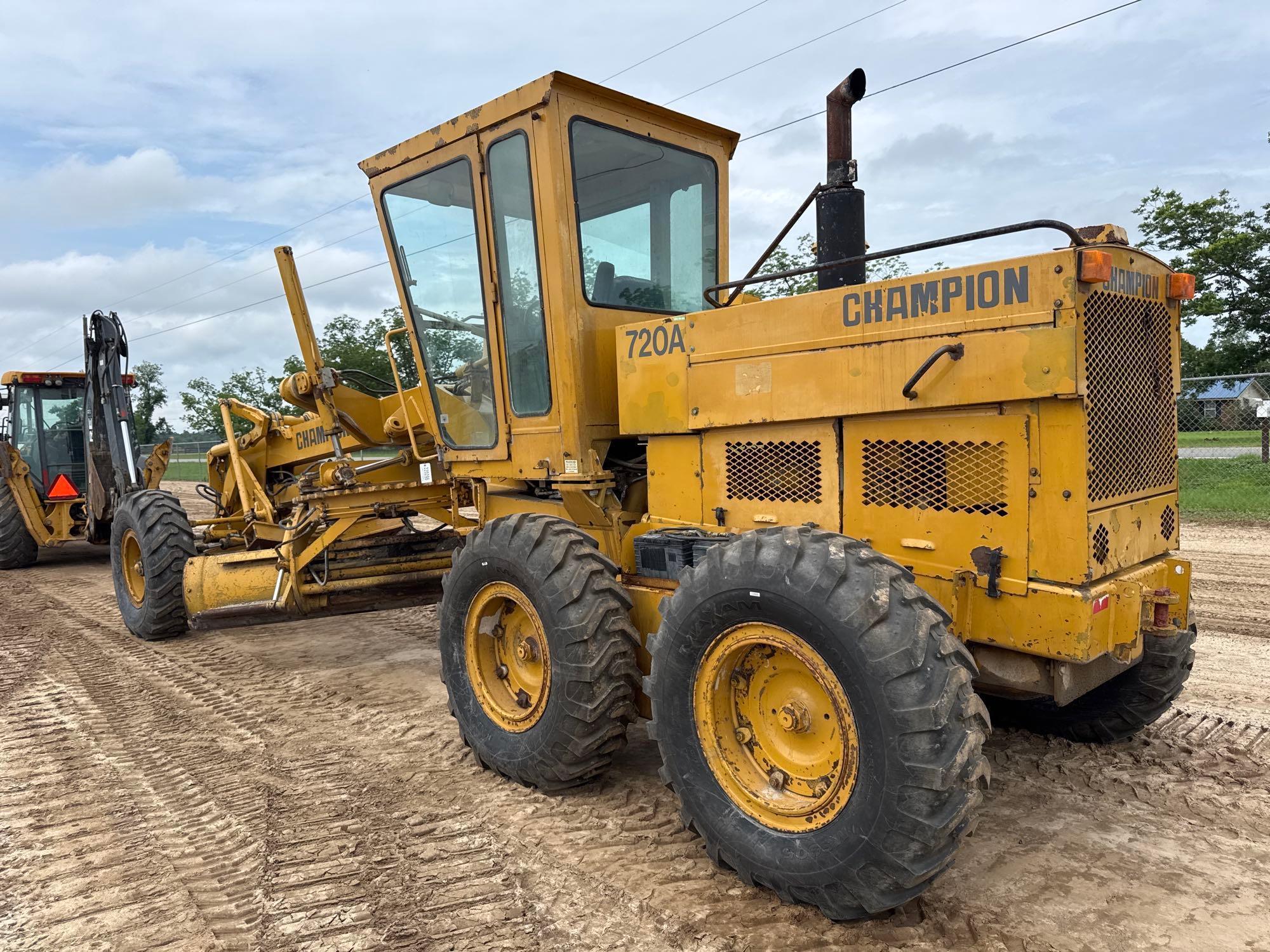

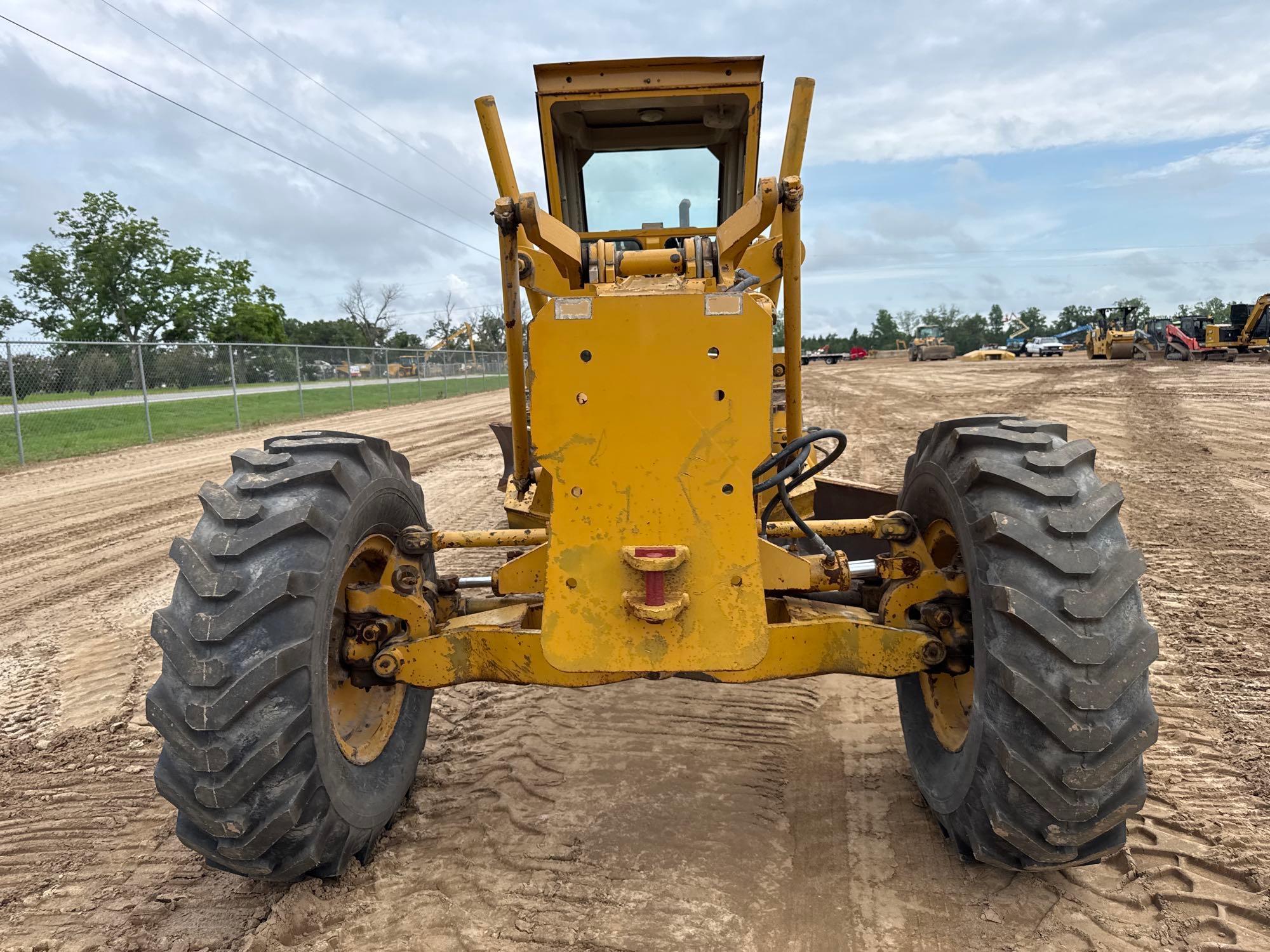

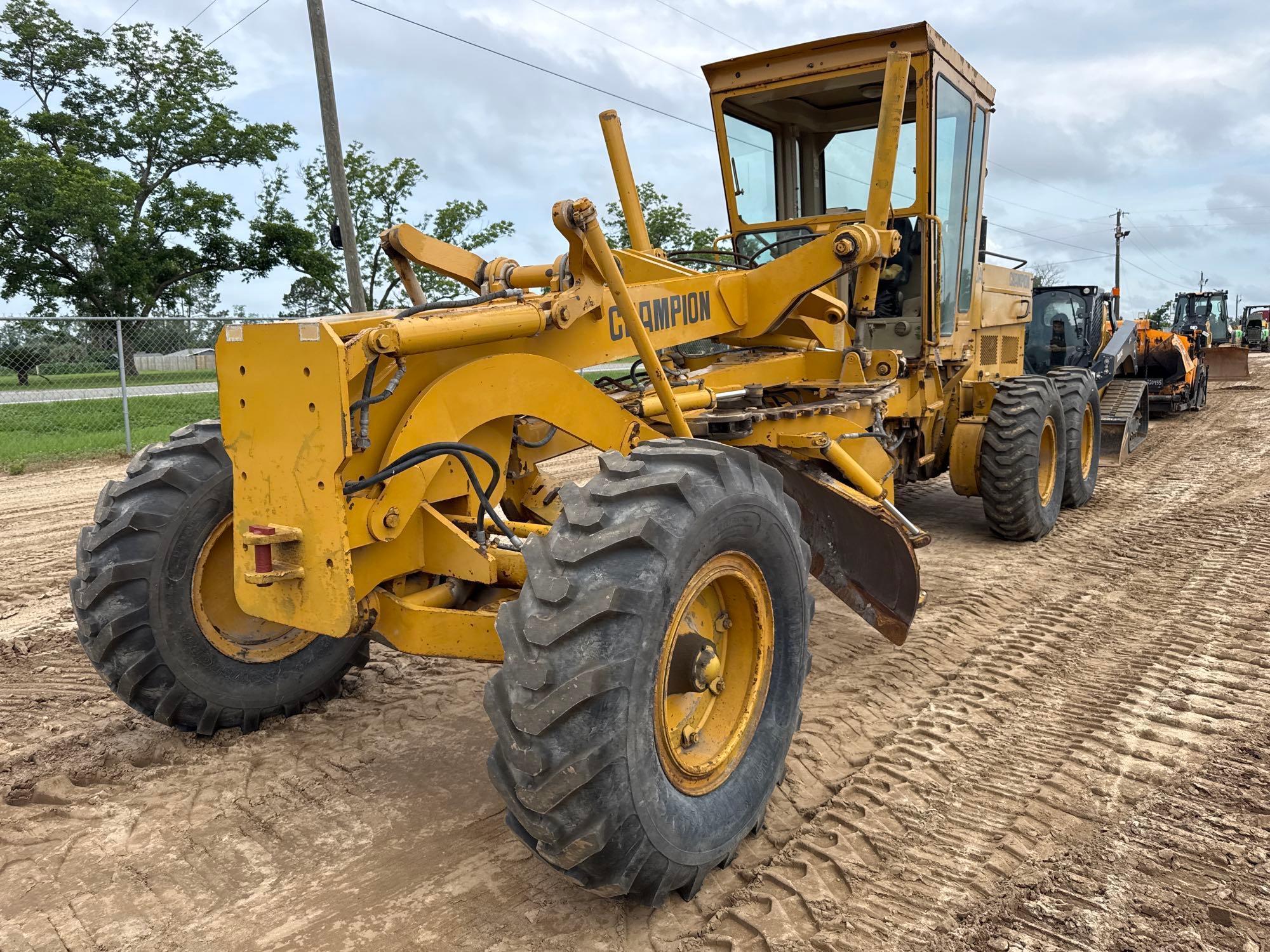

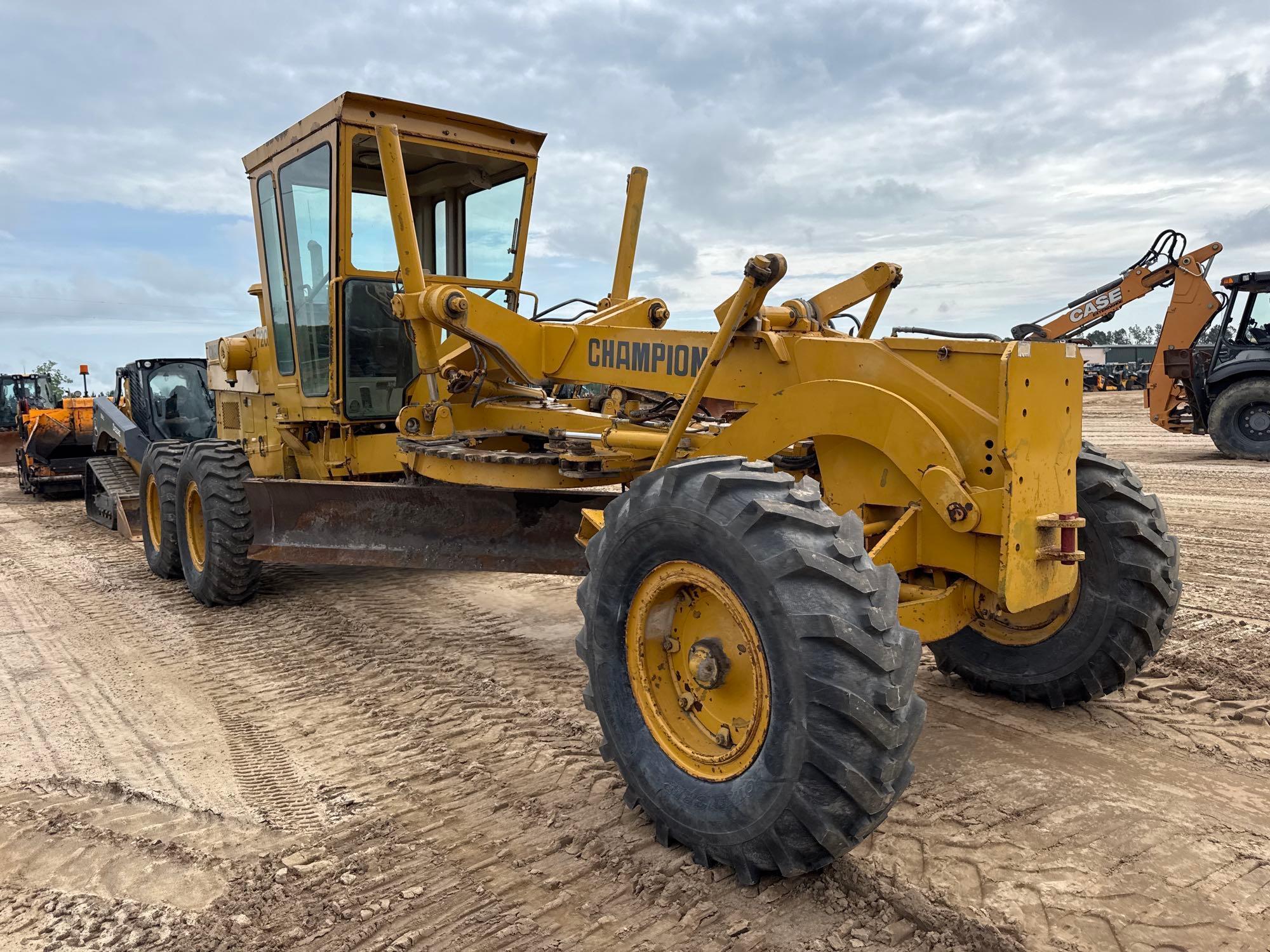

Name: Champion 720A
Brand: Champion
SKU: 88743050
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-07-09 Click here to place a bid

Rebel Auction Co., Inc.

Rebel Auction Co., Inc. Dealer Info

Rebel Auction Co., Inc. Website

Click here to email Rebel Auction Co., Inc..

Click for Phone Number

Machine Info:

Machine Location:	HAZLEHURST, GA
More Information:	https://www.proxibid.com/heavy-construction-equipment/motor-graders/1979-champion-720a-motorgrader/lotInformation/101849773?utm_source=ceg&utm_medium=referral&utm_campaign=atgxl_ceg&utm_content=72932

Description:

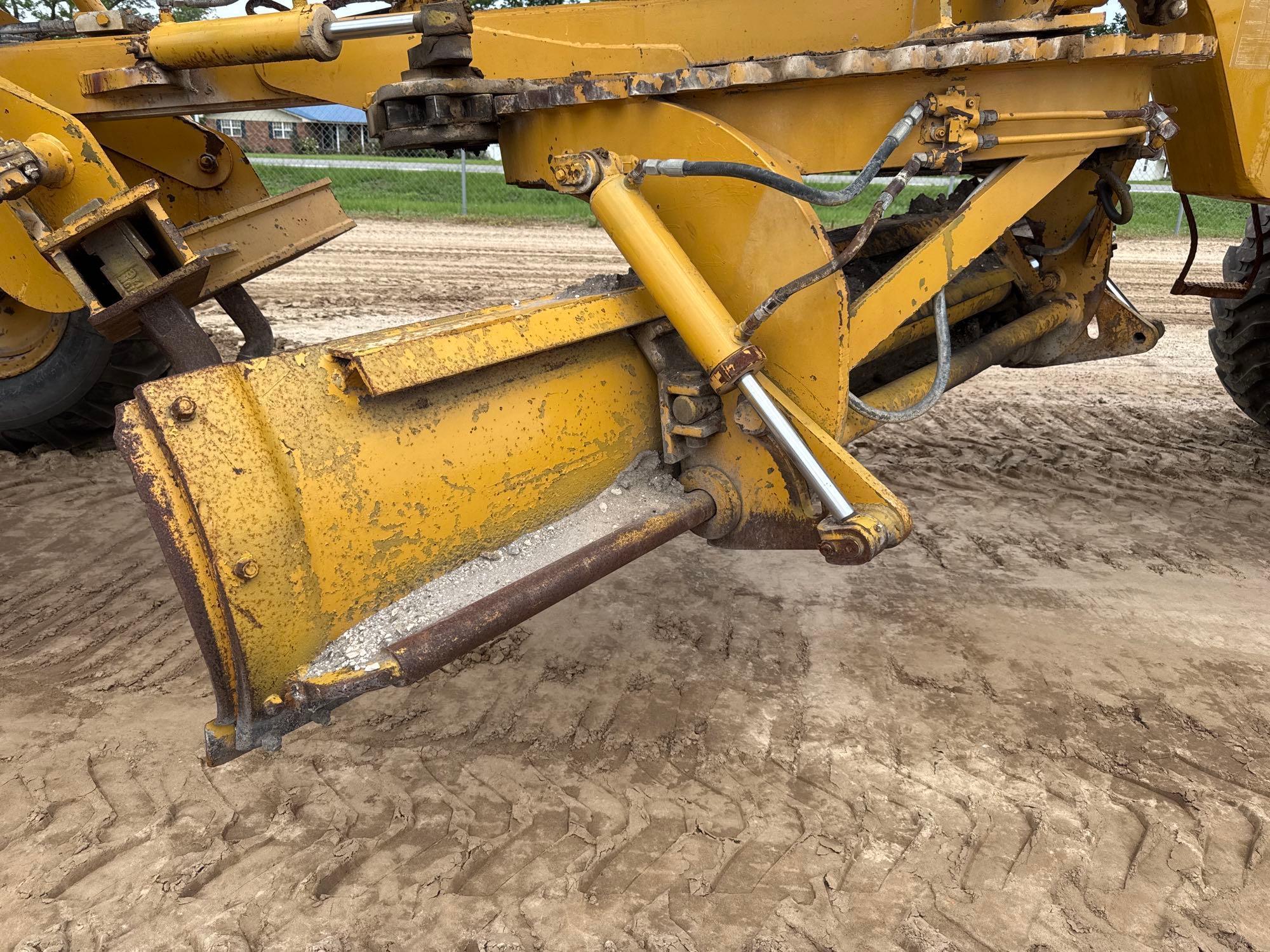

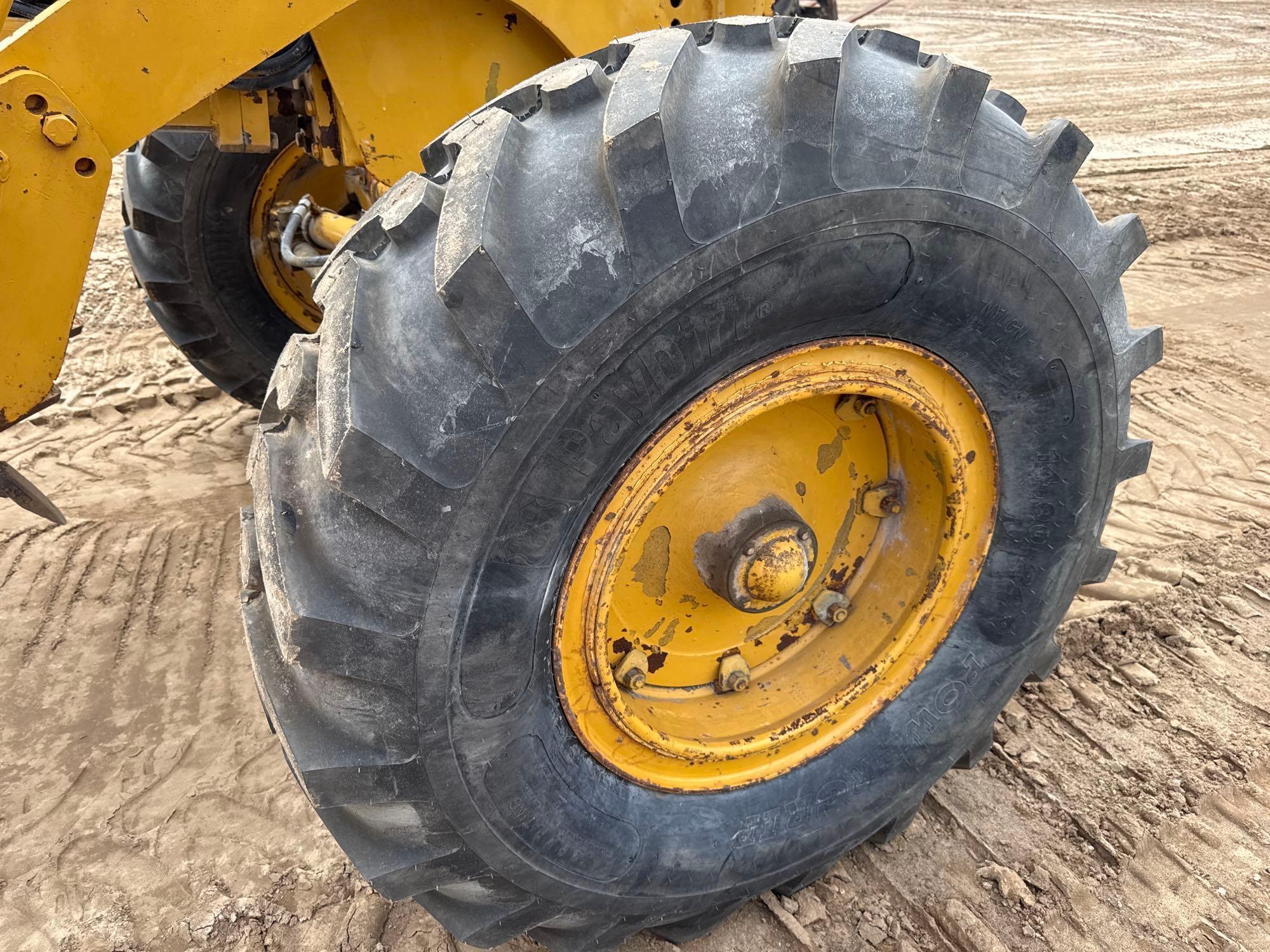

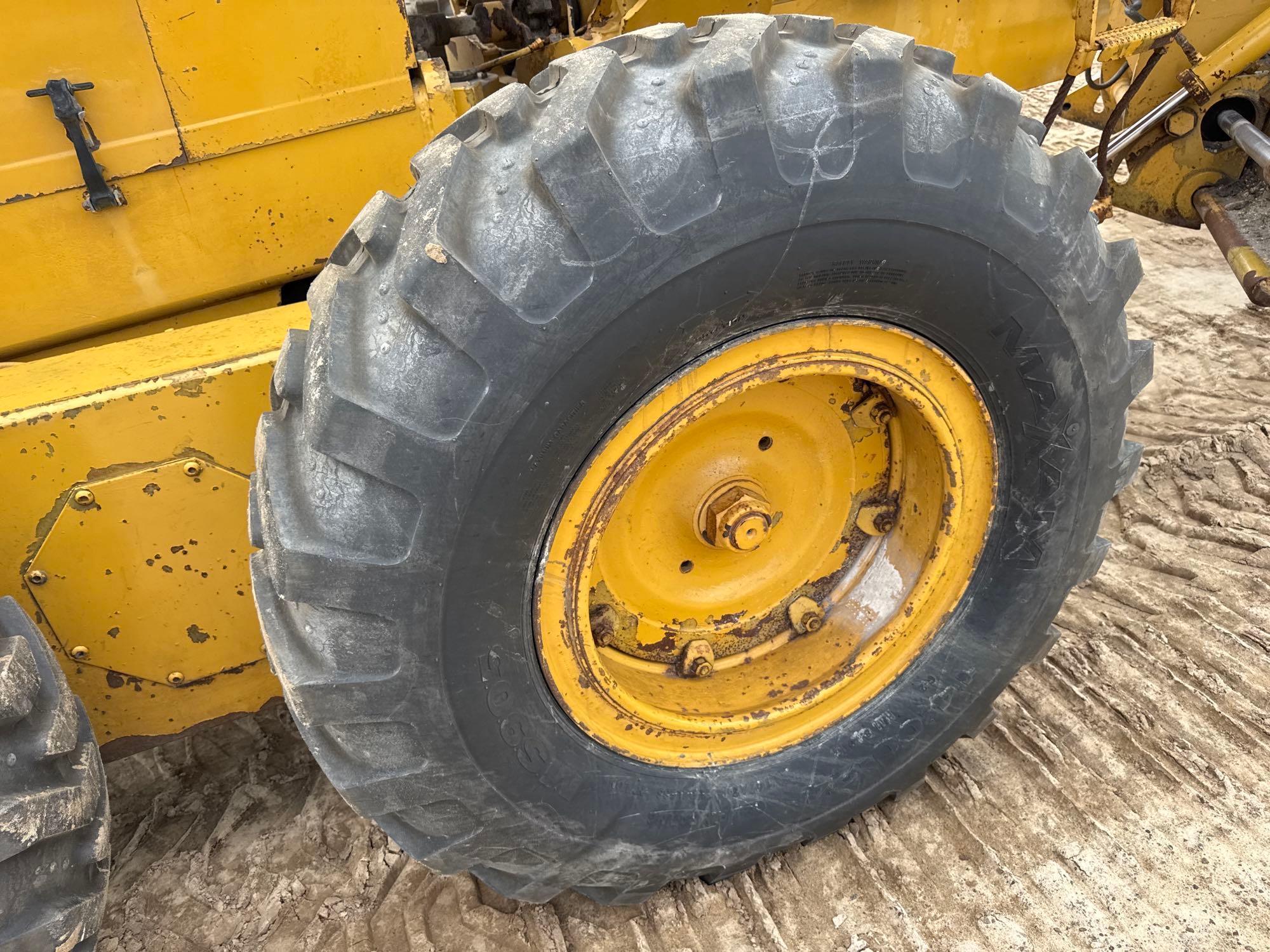

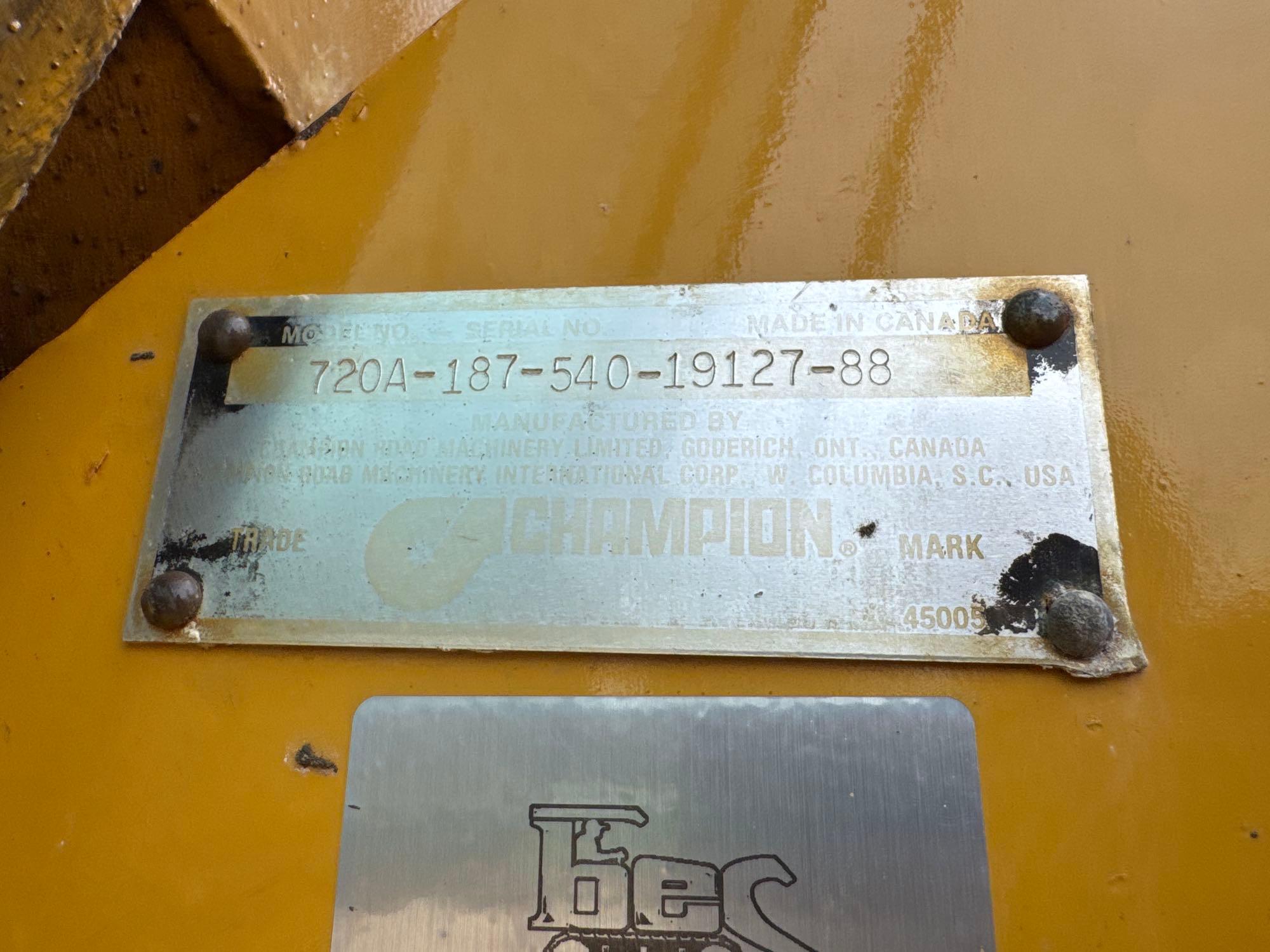

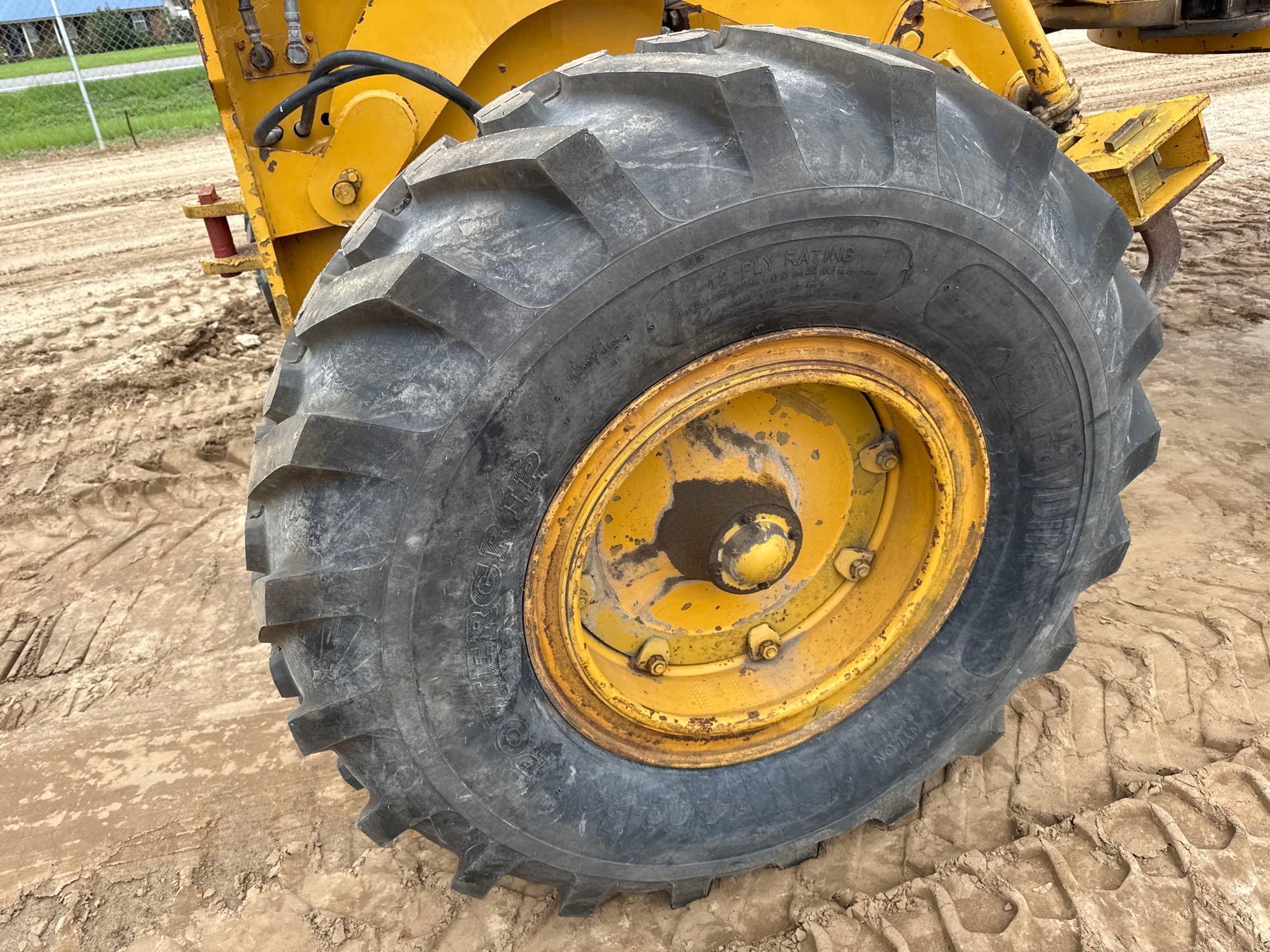

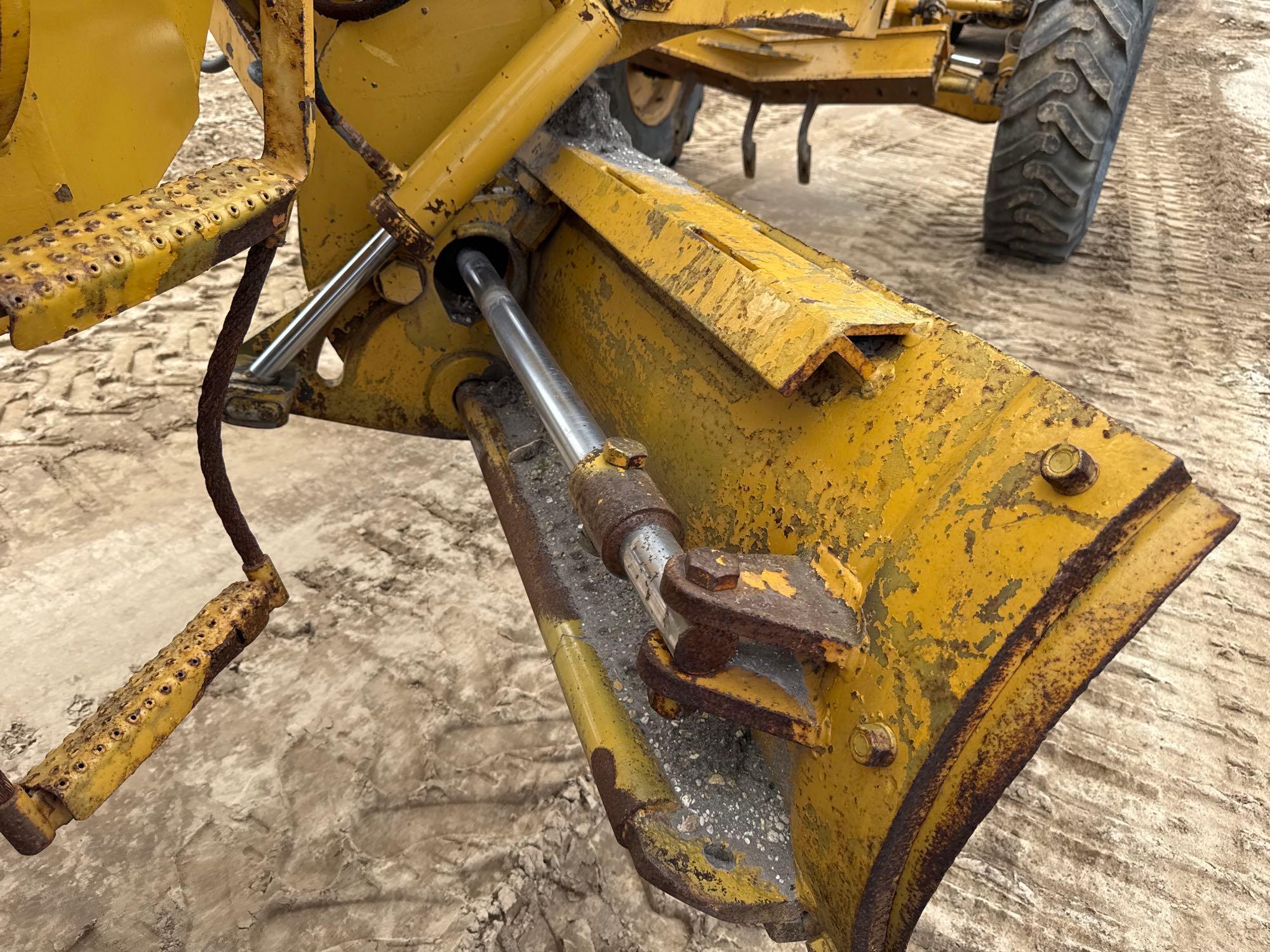

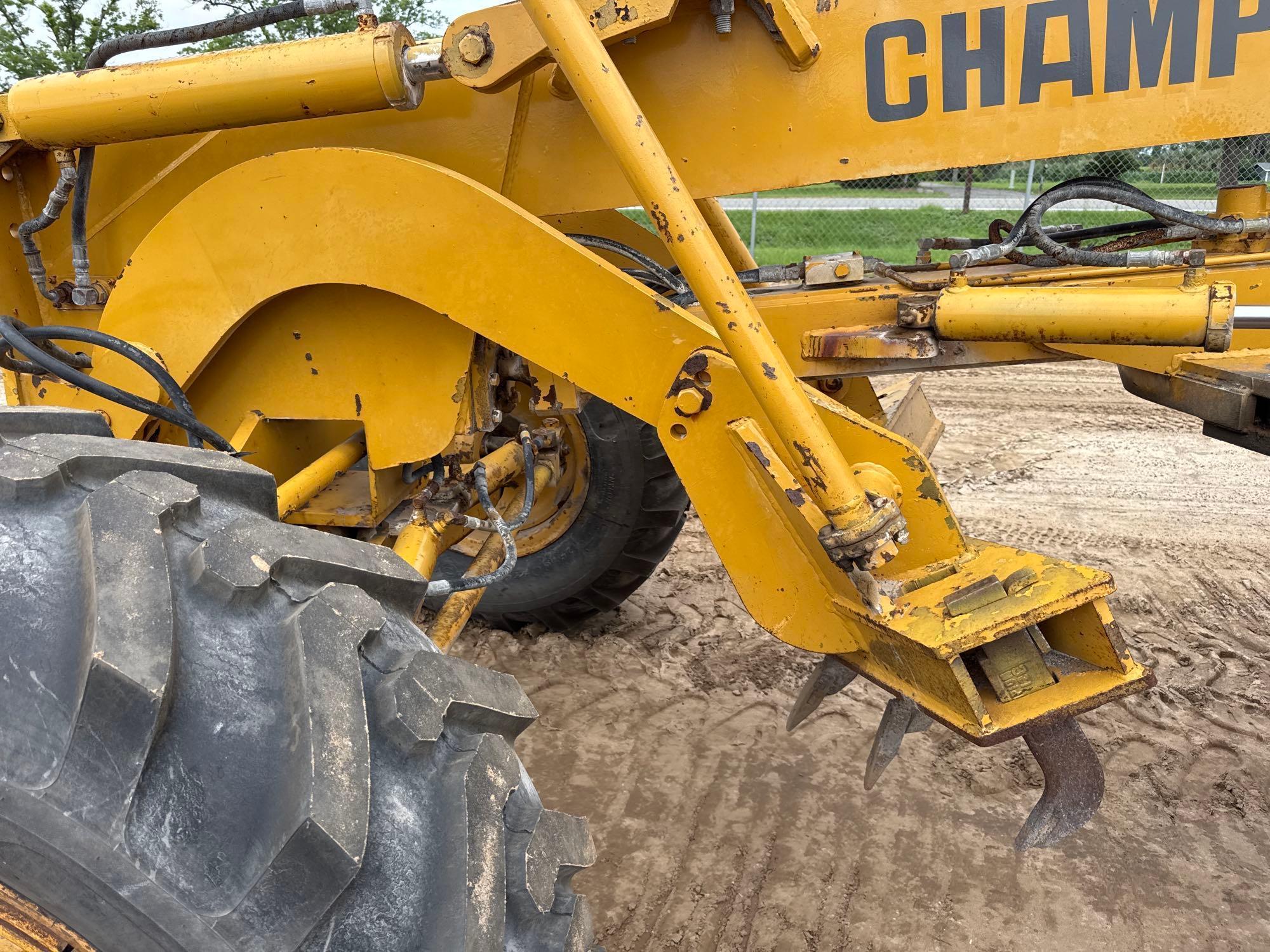

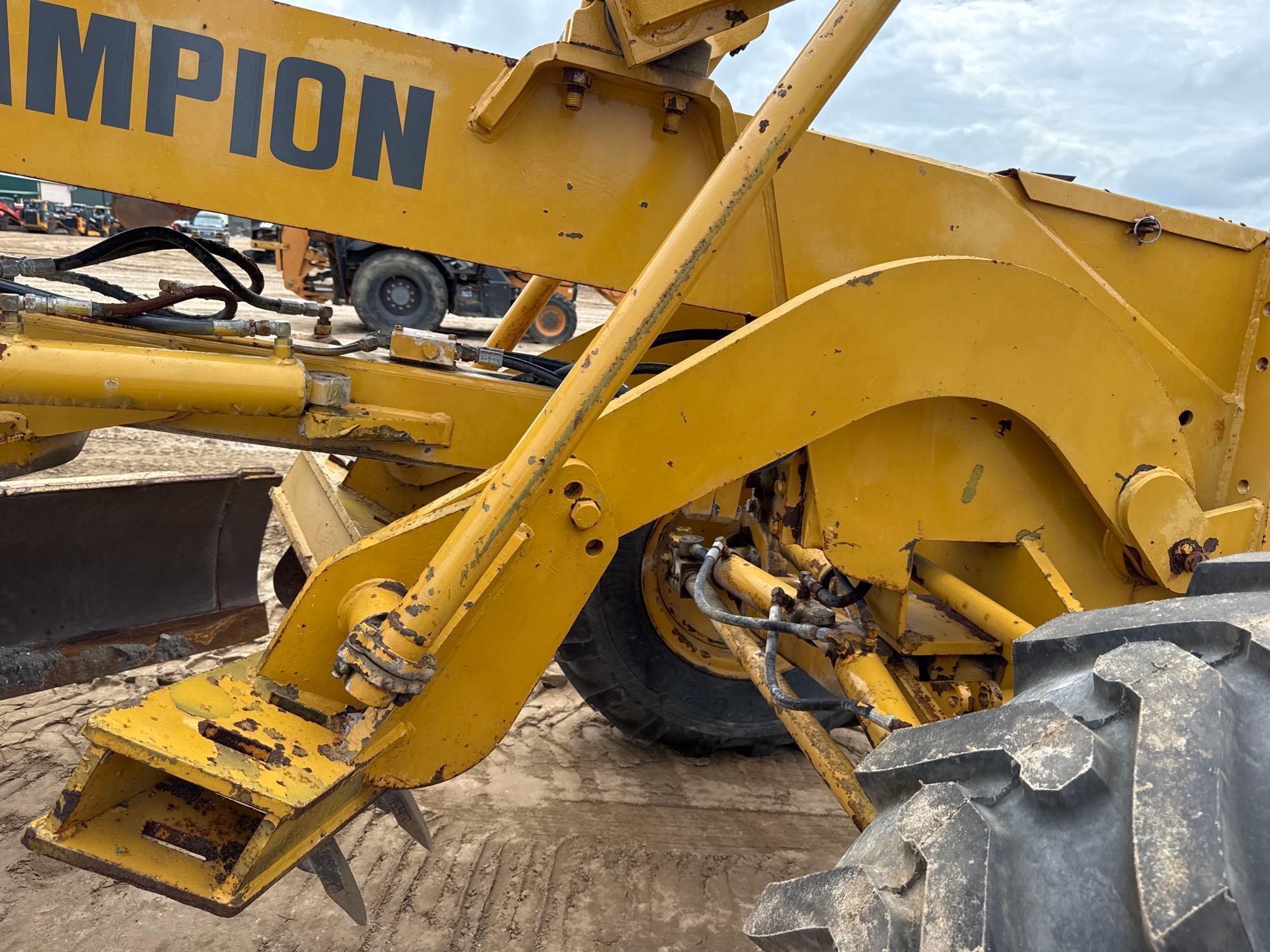

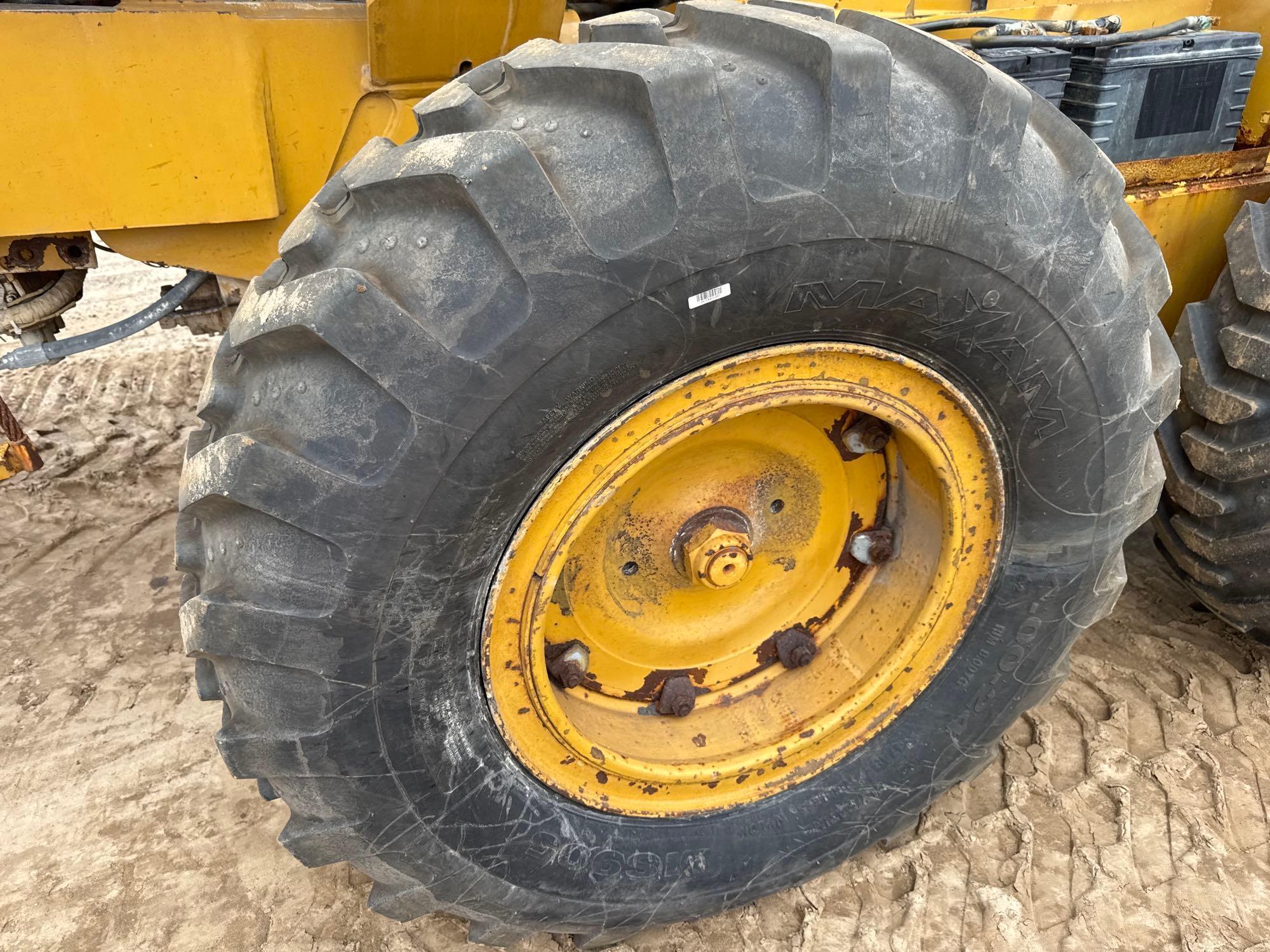

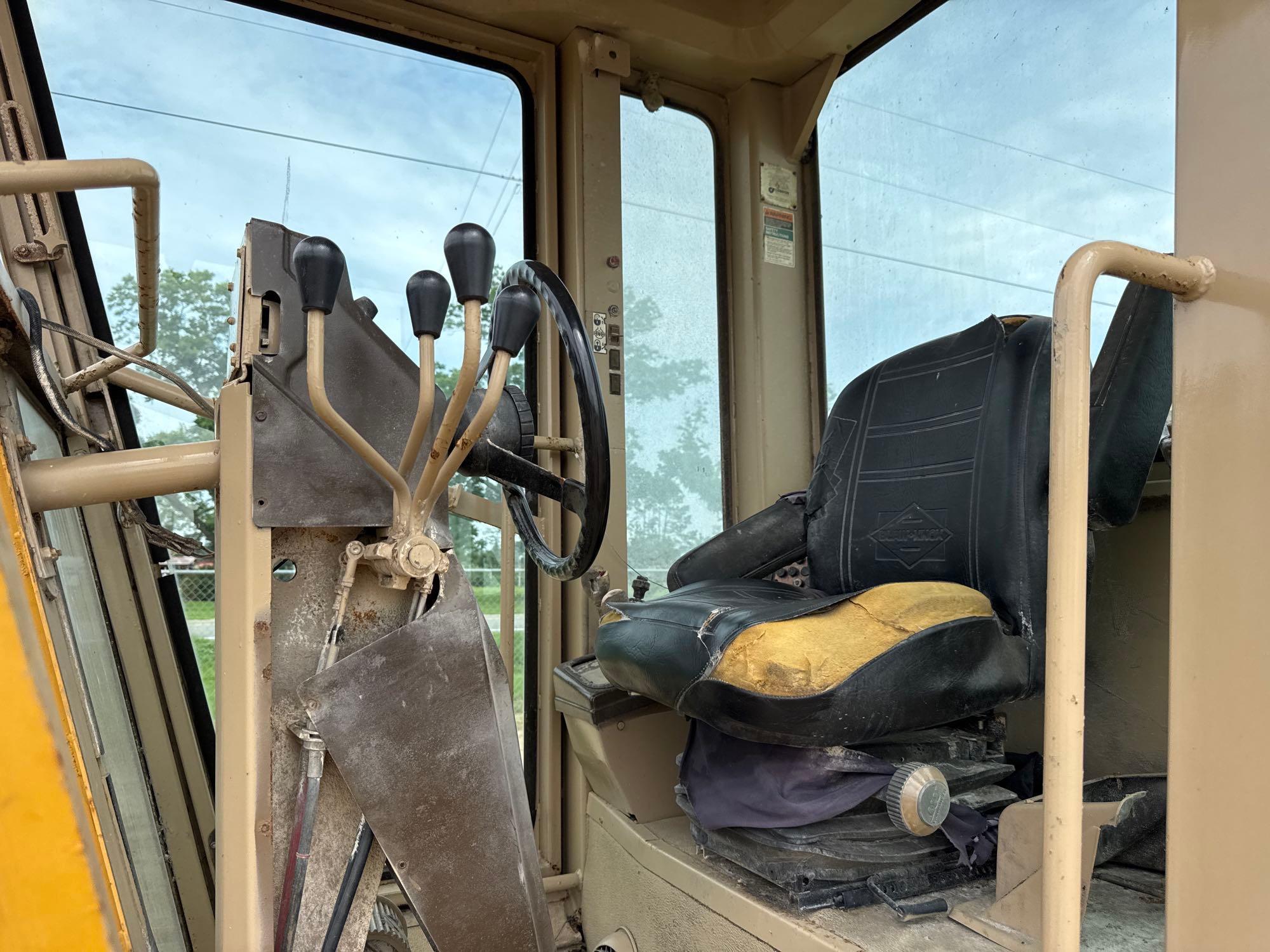

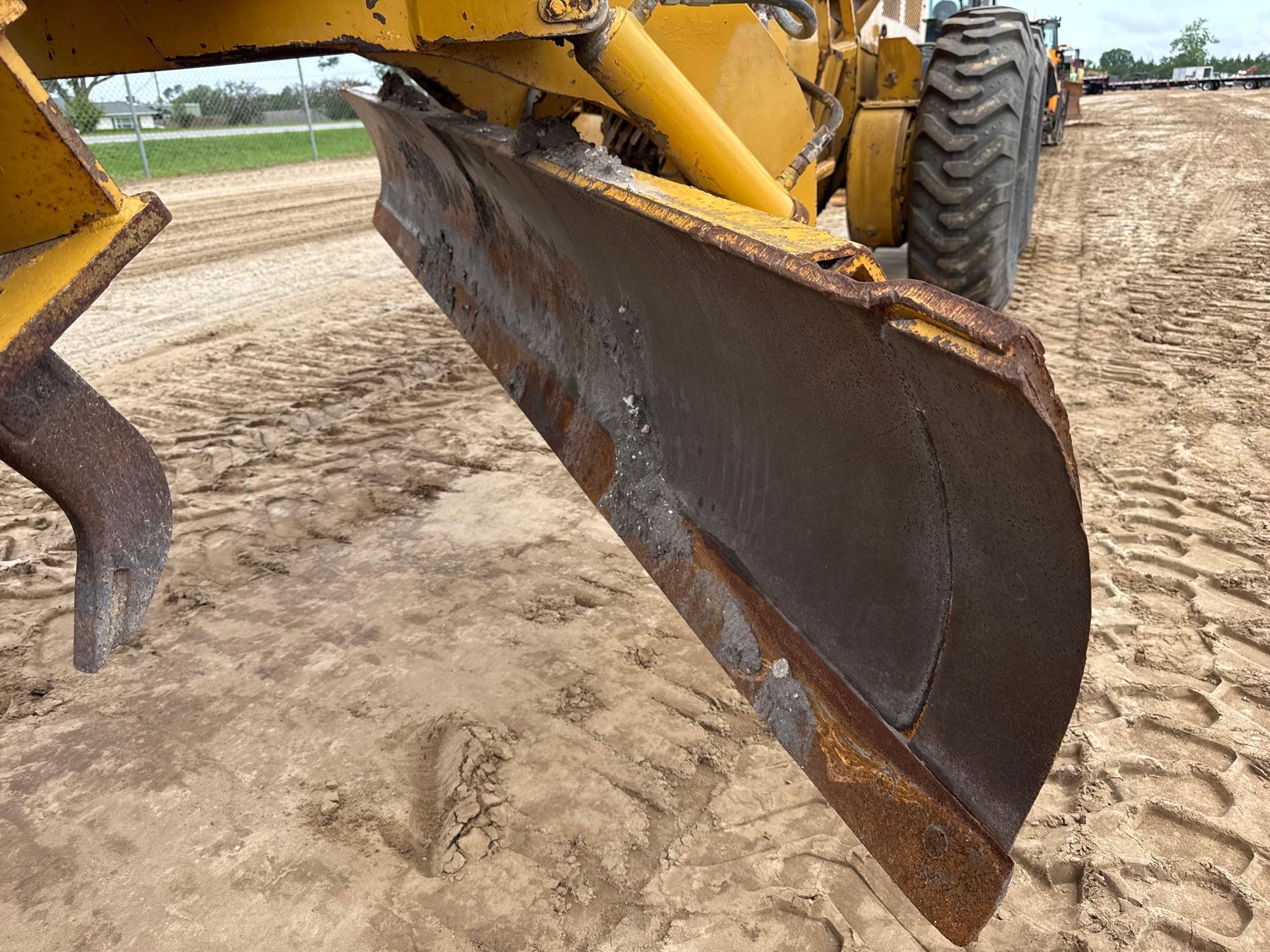

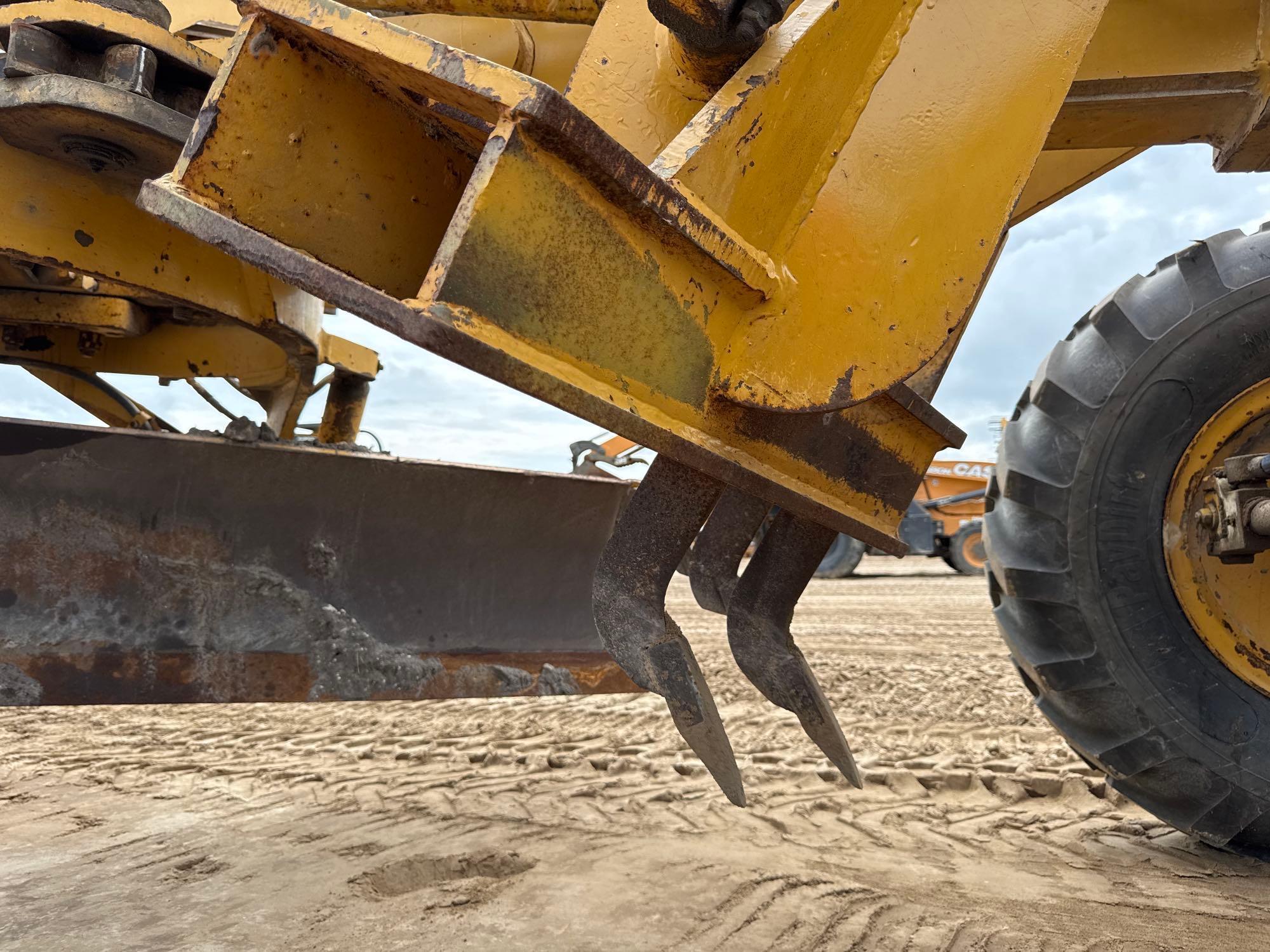

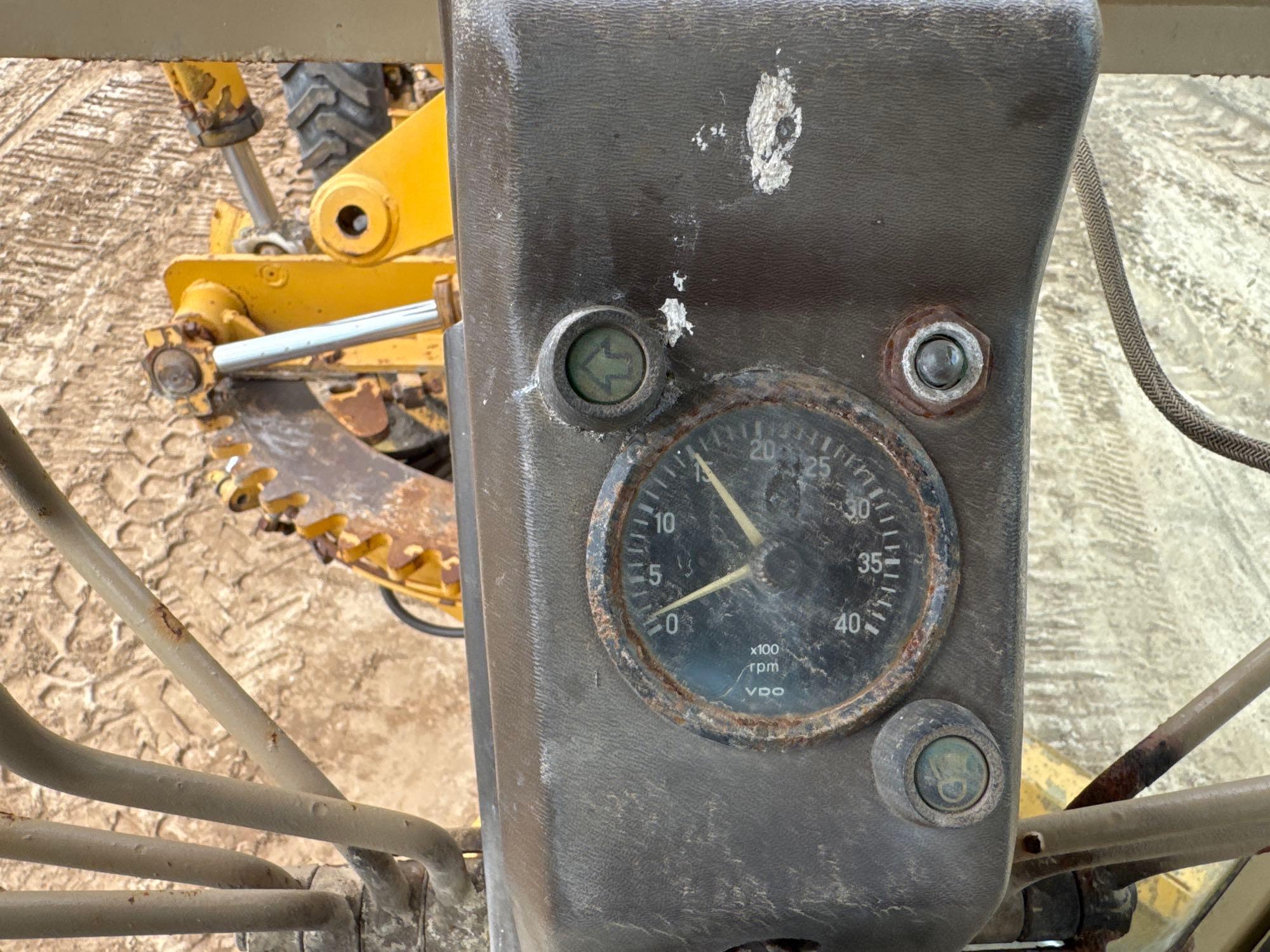

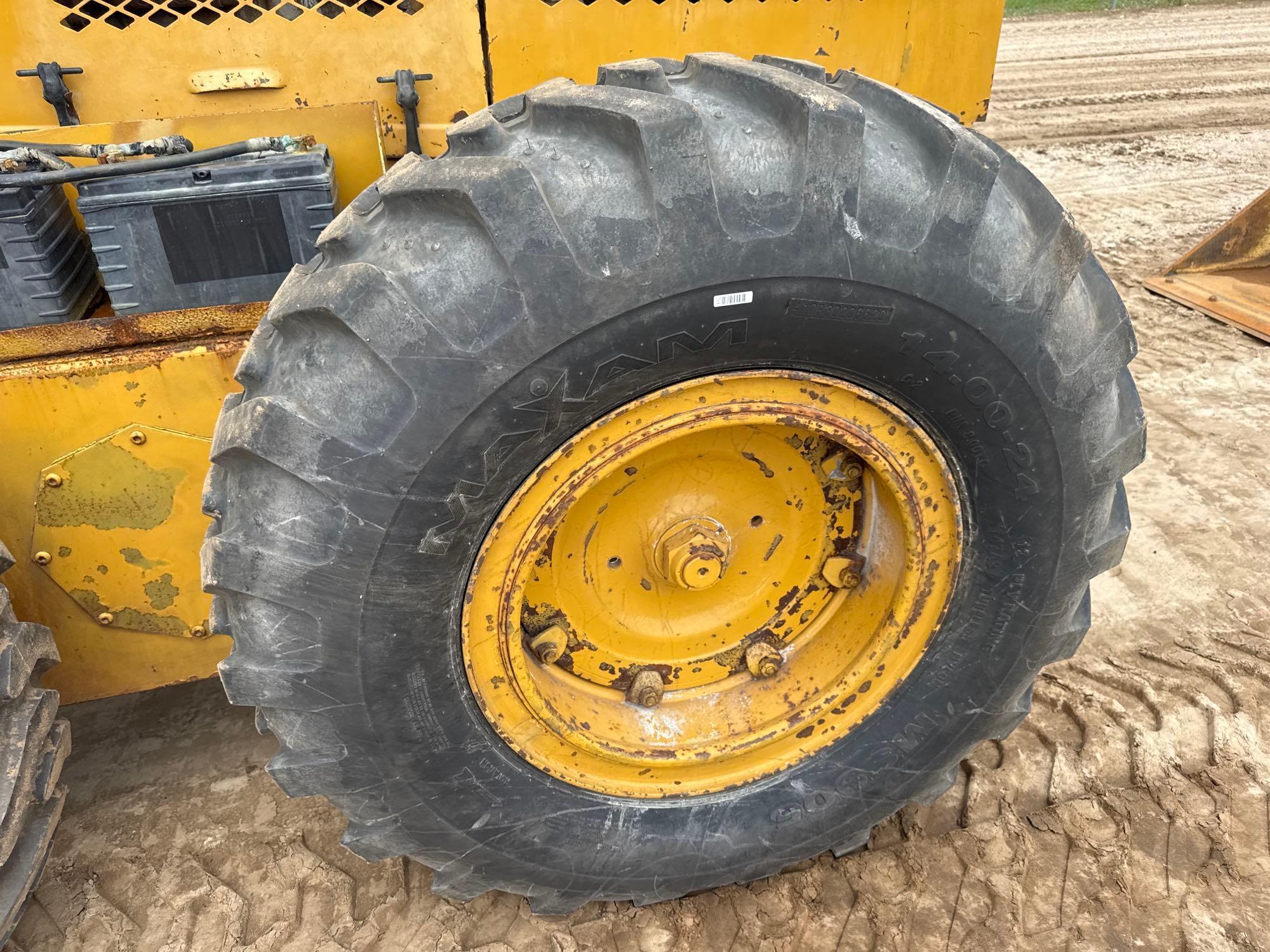

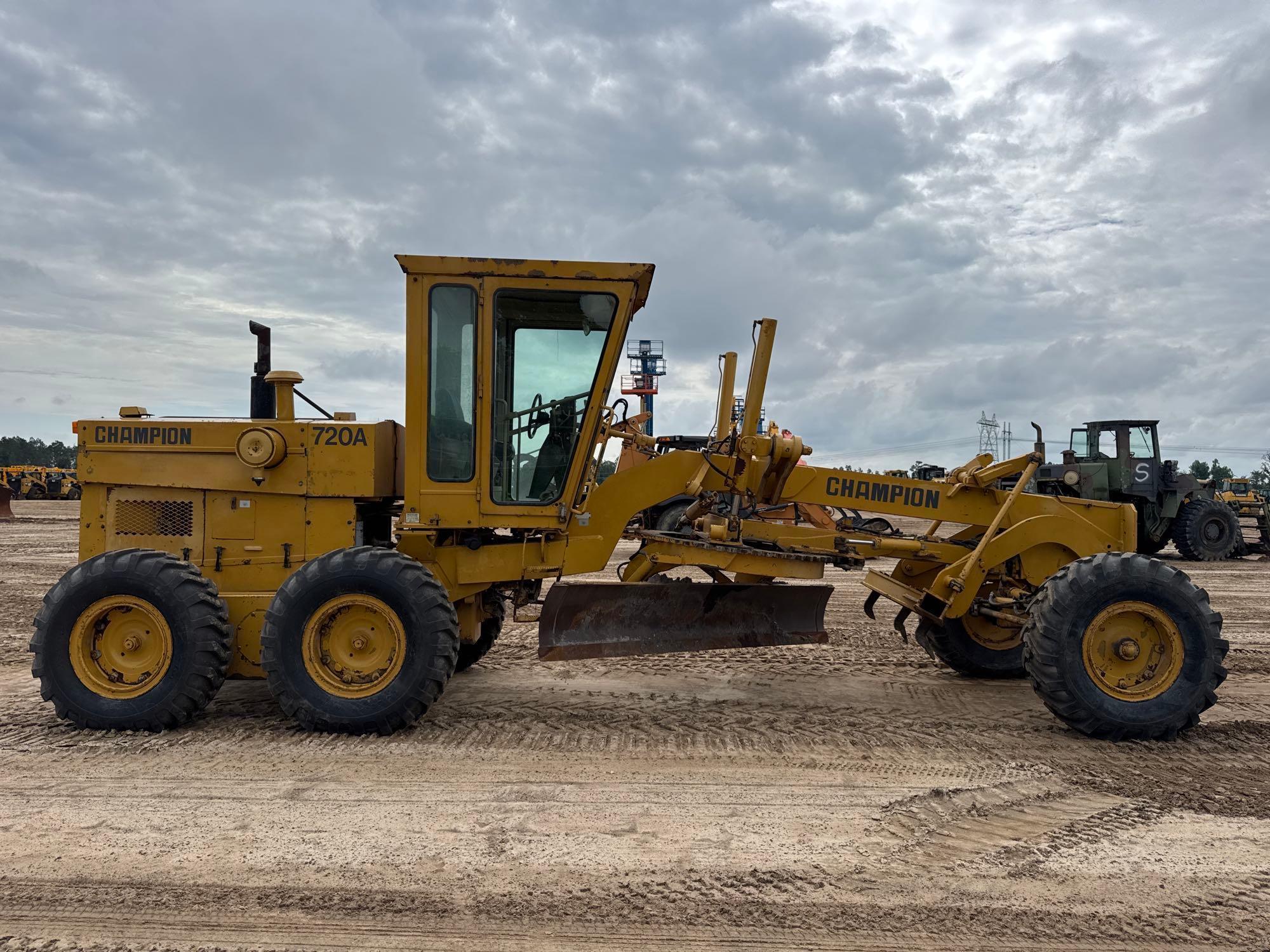

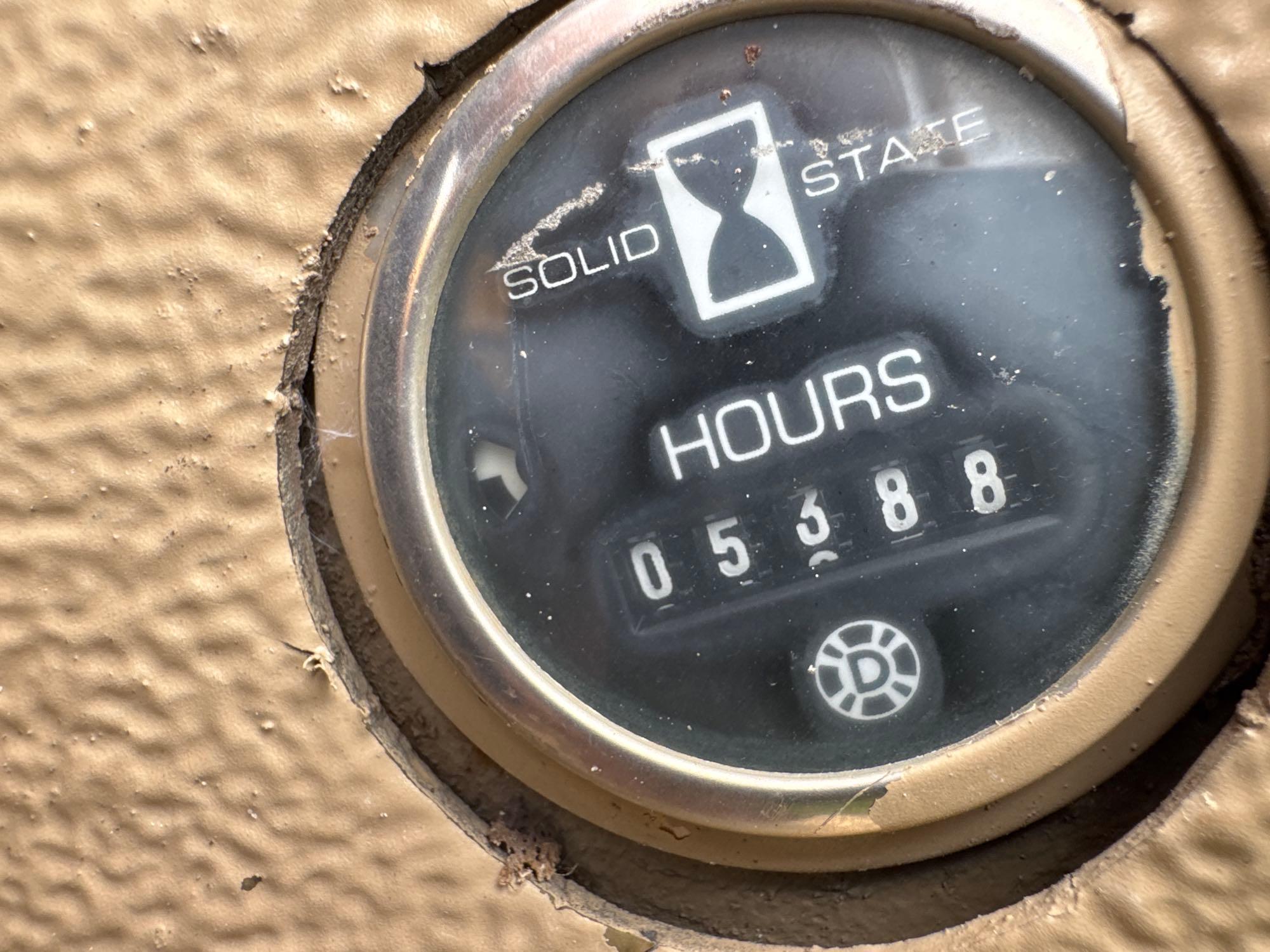

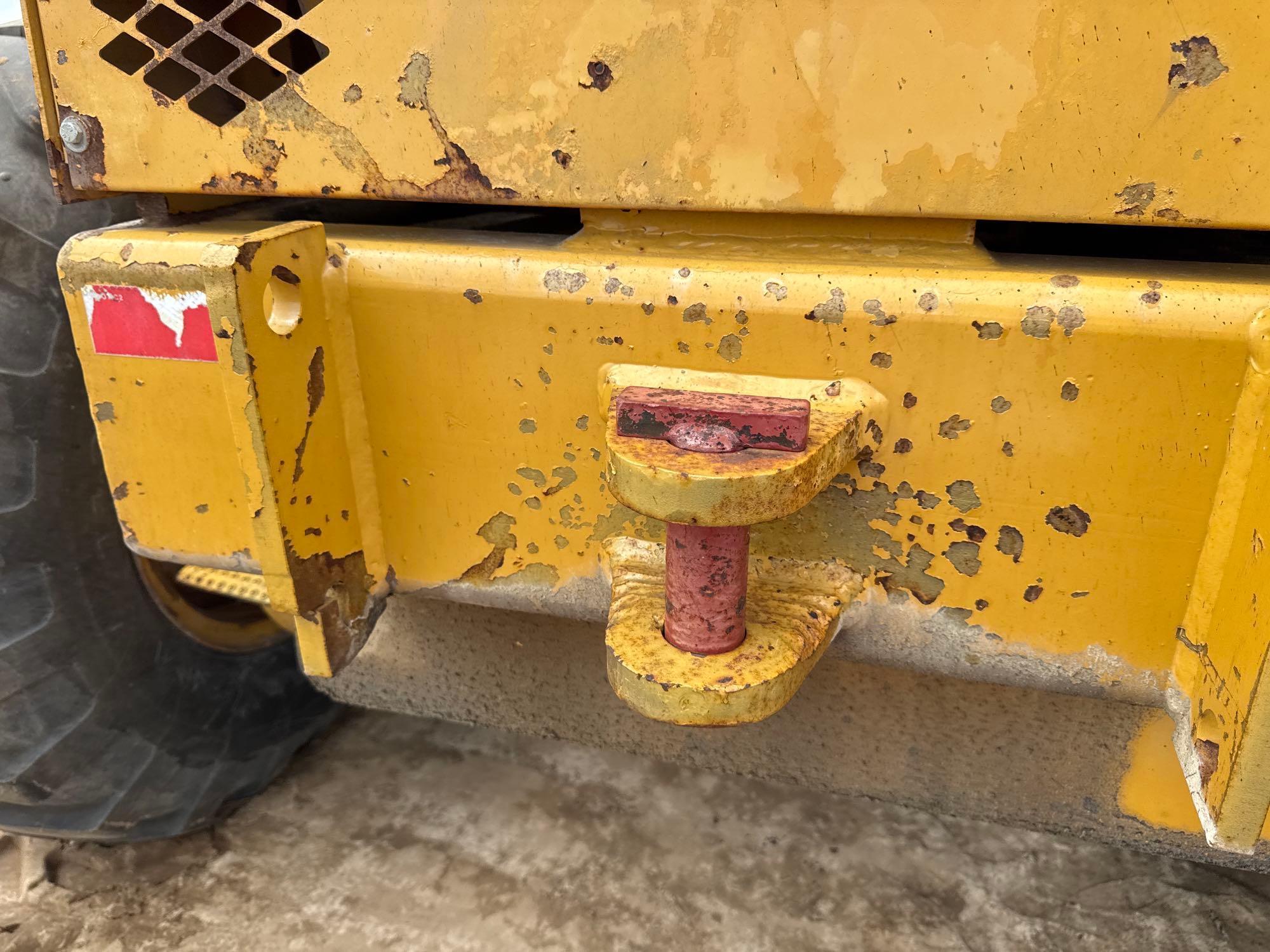

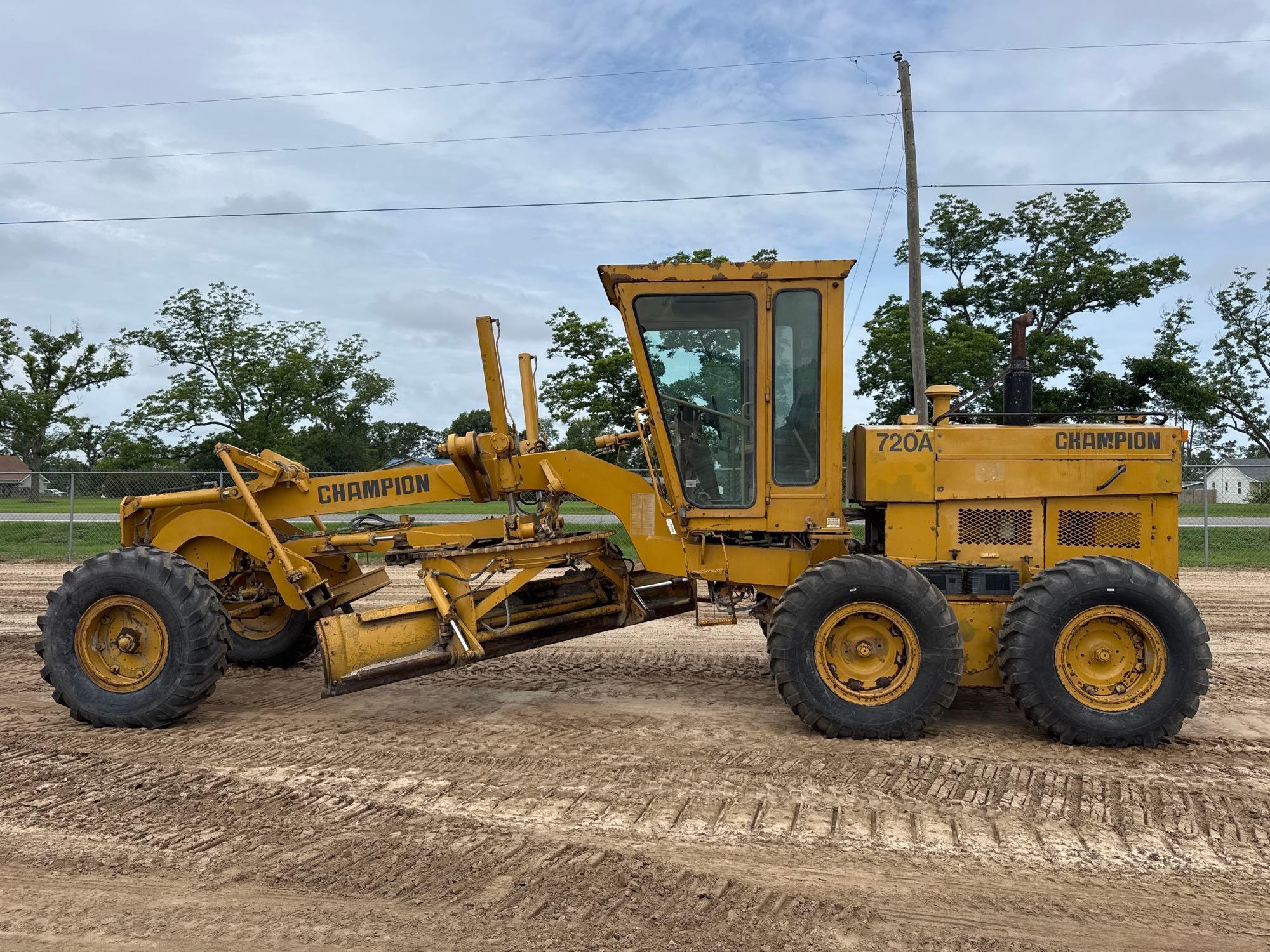

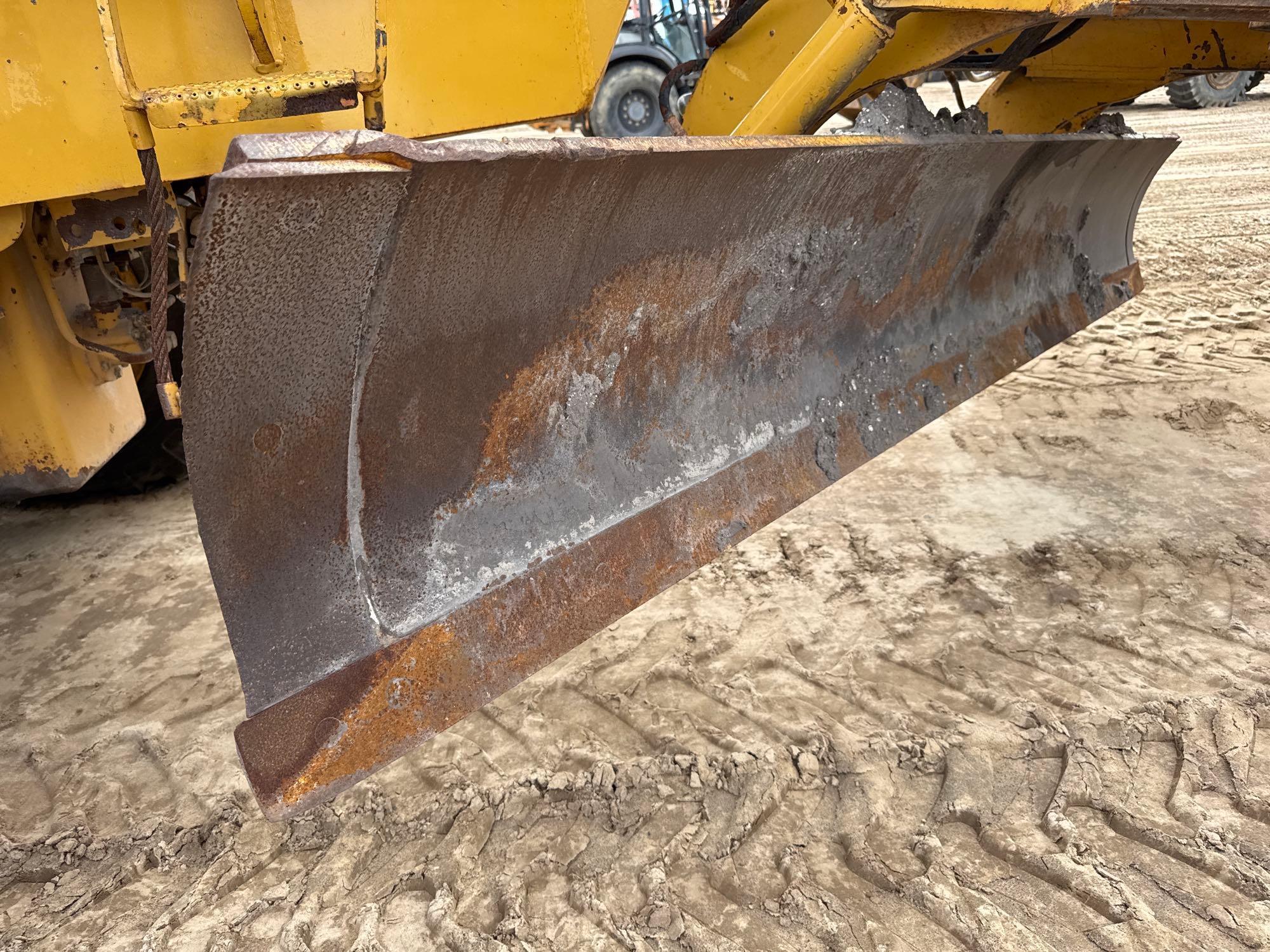

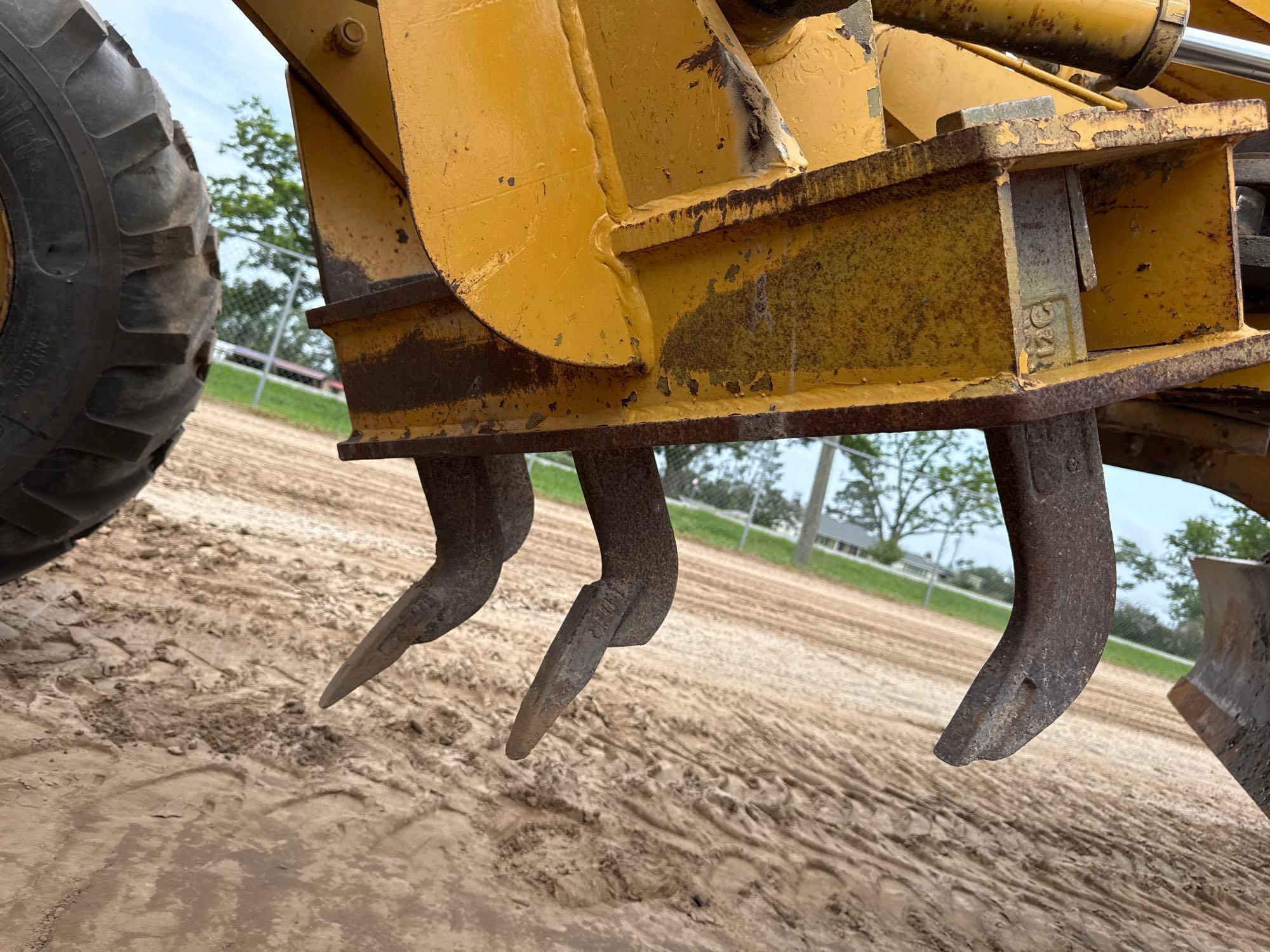

(HRS SHOW-5387), EROPS, (MISSING GLASS), S/S, HYD TILT, SCARFIER, 144" MOLDBOARD, 14.00-24 TIRES, PULLBAR, S/N-720A1875401912788

From the manufacturer:

Supplied by HeavyEquipmentData.com →

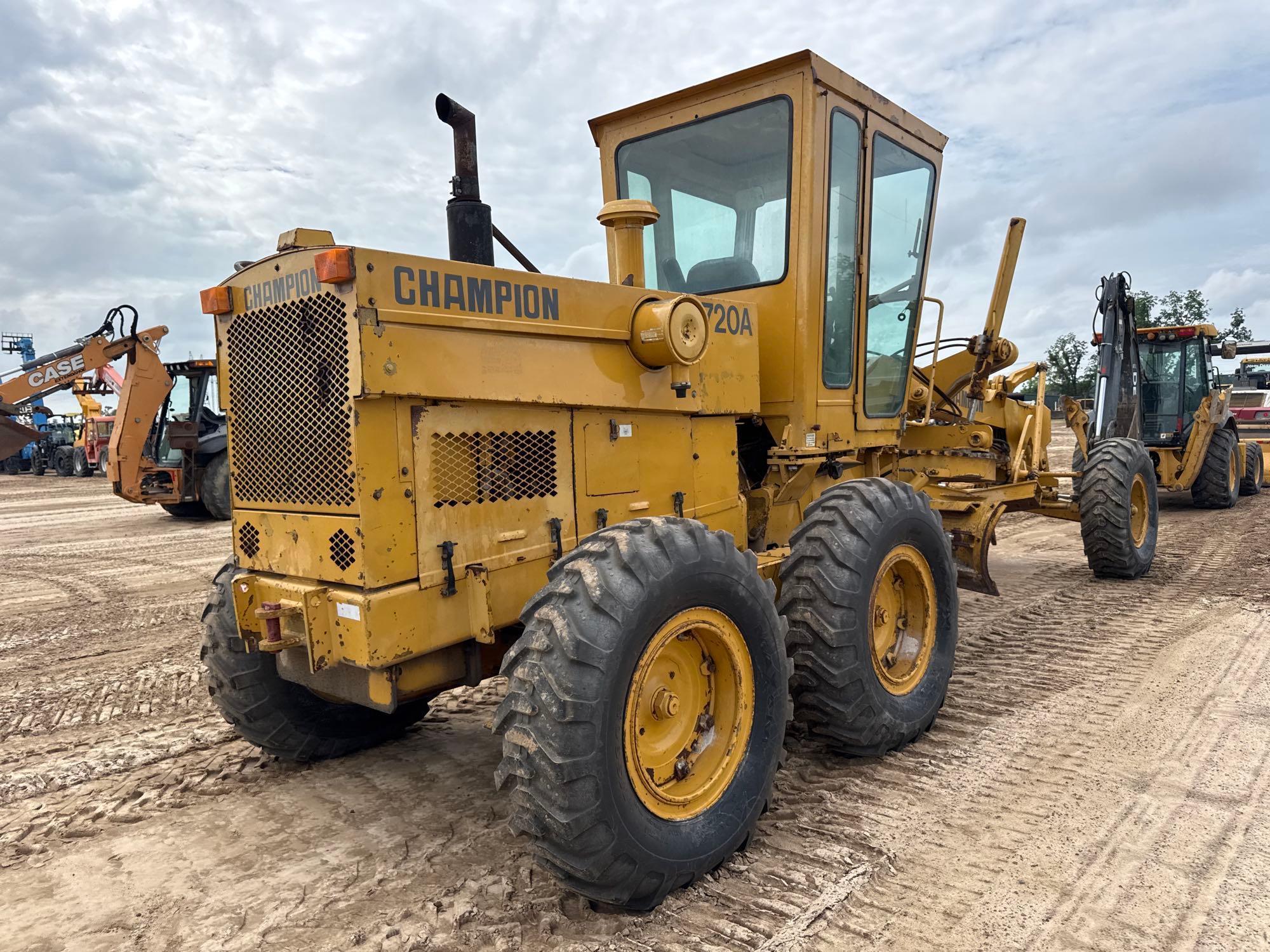

Champion 720A is a motor grader used for road construction, grading, ditching, and surface finishing. Built by Champion Road Machinery, the 720A is part of a line of articulated graders designed for earthmoving and maintenance work on highways, municipal roads, and job sites. Typical features include a front-mounted moldboard, tandem rear drive, and operator controls for precise blade adjustment and material shaping. The Champion 720A is commonly referenced in used equipment, parts, and service contexts. It is recognized as a vintage motor grader model associated with heavy-duty grading applications and general road maintenance operations.

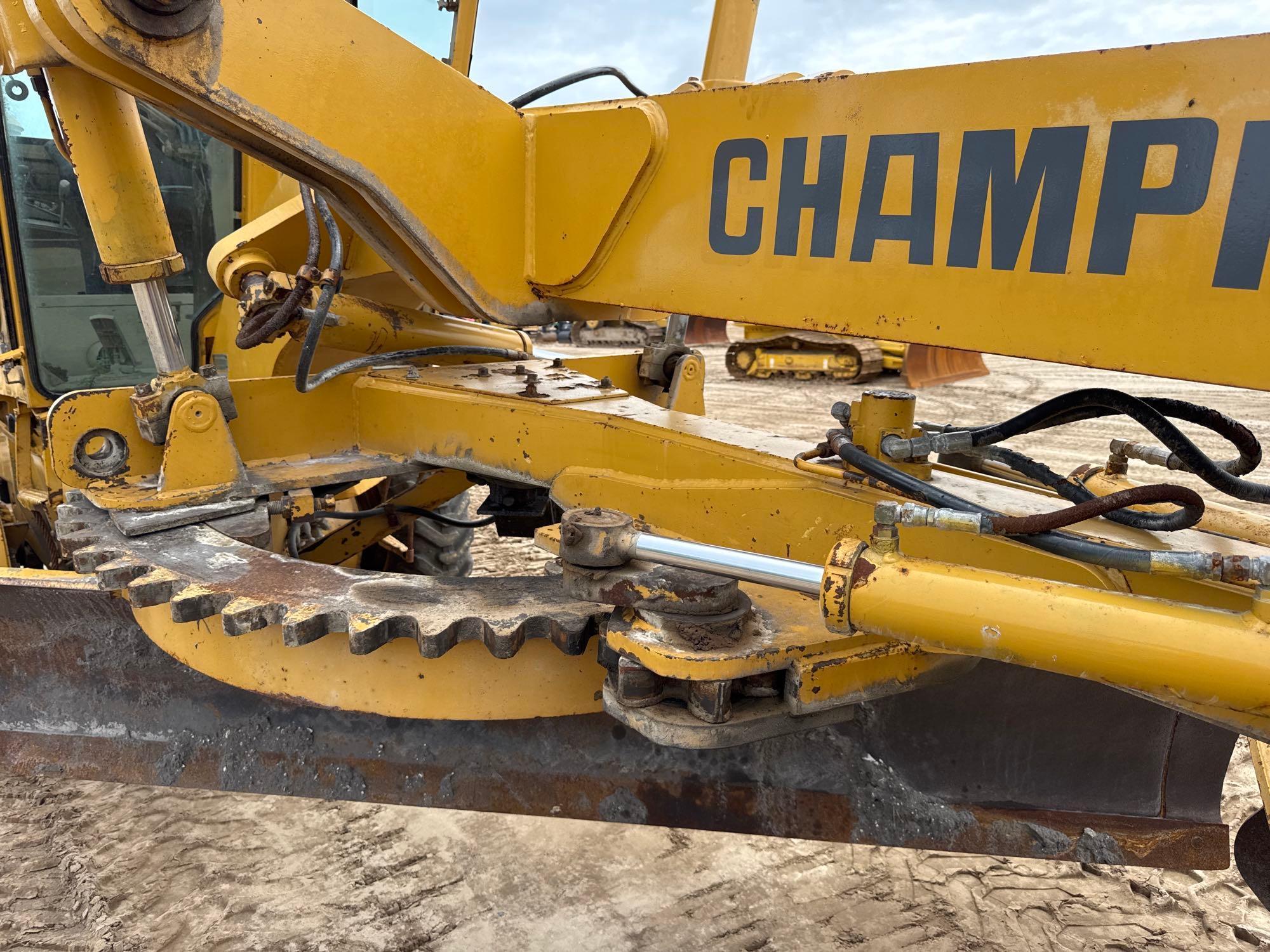

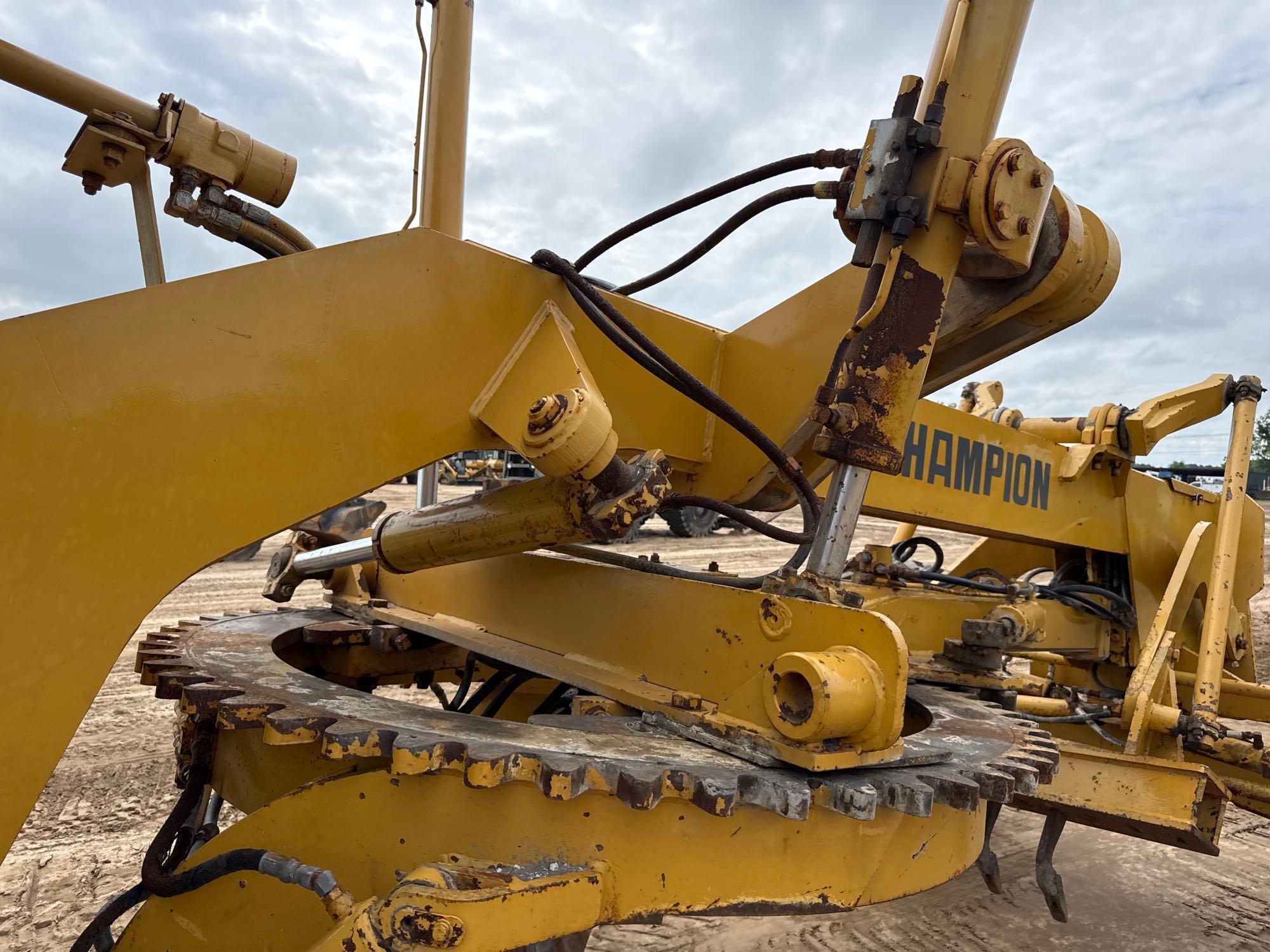

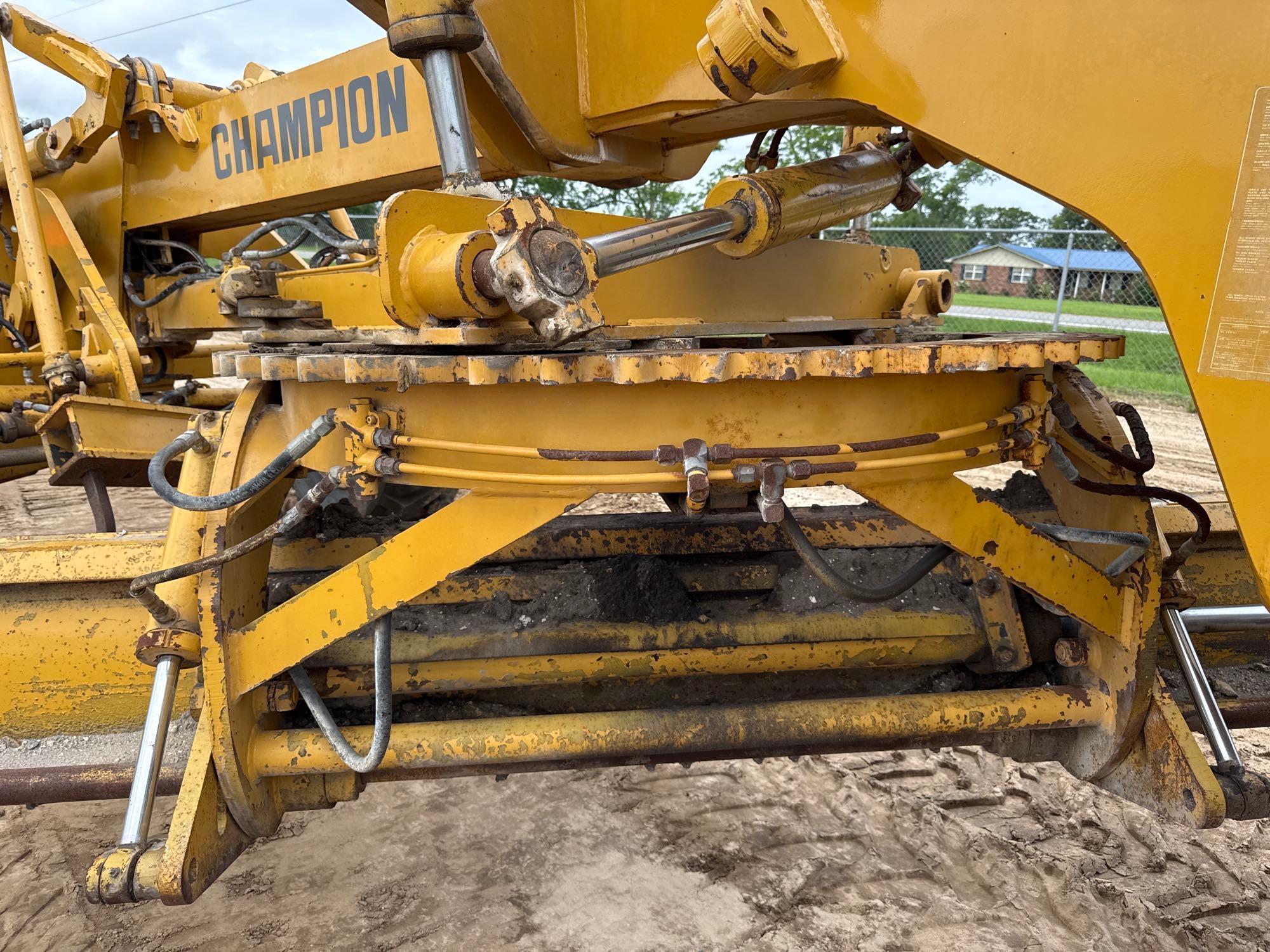

Circle
Blade cutting depth	3 ft (1 m)
Blade ground clearance	2 ft (0 m)
Blade Tip Angle - Front	44 degrees
Blade Tip Angle - Rear	7 degrees
Diameter	66 in (168 cm)
Rotation	360 degrees
Shift Left	26 in (66 cm)
Shift Right	24 in (61 cm)
Dimensions
Blade Base	9 ft (3 m)
Overall Height with cab	11 ft (3 m)
Overall Length	28 ft (9 m)
Overall width	8 ft (3 m)
Tread width	82 in (209 cm)
Wheelbase	20 ft (6 m)
Engine
Aspiration	Turbocharged
Bore	5 in (11 cm)
Displacement	505 cu in (8,271 cu cm)
Engine Model	6CT8.3
Net Power Gear 1-2	155 hp (116 kw)
Number of Cylinders	6
Power Measured @	2,300 rpm
Stroke	5 in (14 cm)
Torque	540 lbs ft (732 nm)
Torque Measured @	1,500 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	16 degrees

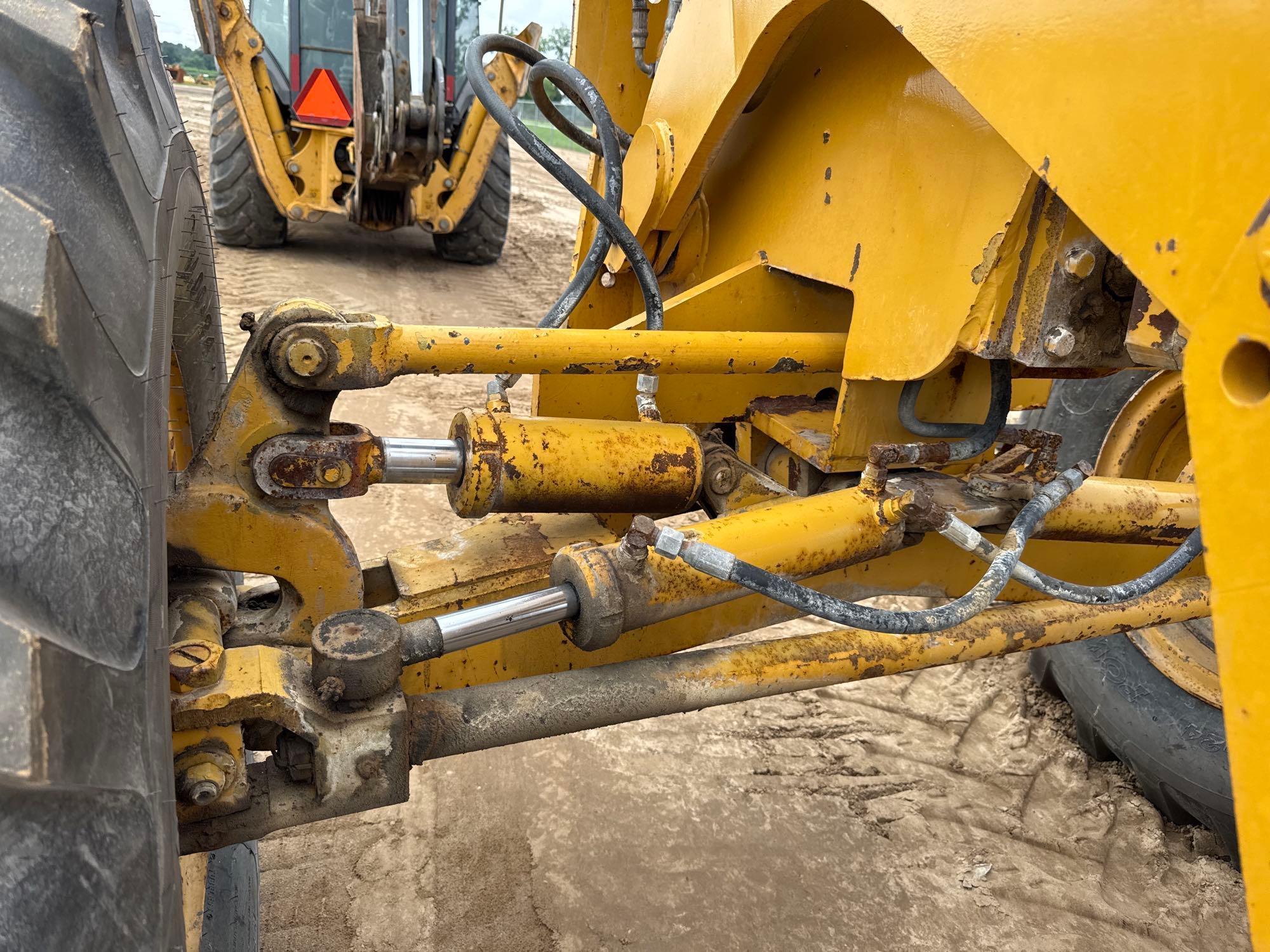

Wheel Lean	18 degrees
Hydraulic System
Pump Flow	53 gpm (200 lpm)
Relief Valve Pressure	2,500 psi
Moldboard
Max Reach outside - left	10 ft (3 m)
Max Reach outside - right	10 ft (3 m)
Moldboard Height	25 in (64 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (67 cm)
Side Shift Right	27 in (67 cm)
Operating Specifications
Cooling System Fluid Capacity	11 gal (43 l)
Fuel Capacity	100 gal (379 l)
Hydraulic System Fluid Capacity	24 gal (90 l)
Oil System Fluid Capacity	10 gal (38 l)
Rear Diff/Final Drive Fluid Capacity	6 gal (23 l)
Std Operation Weight - Front Axle	9,560 lbs (4,336 kg)
Std Operation Weight - Rear Axle	22,720 lbs (10,306 kg)
Std Operation Weight - Total	32,280 lbs (14,642 kg)
Tandem Case Fluid Capacity (each)	27 gal (100 l)

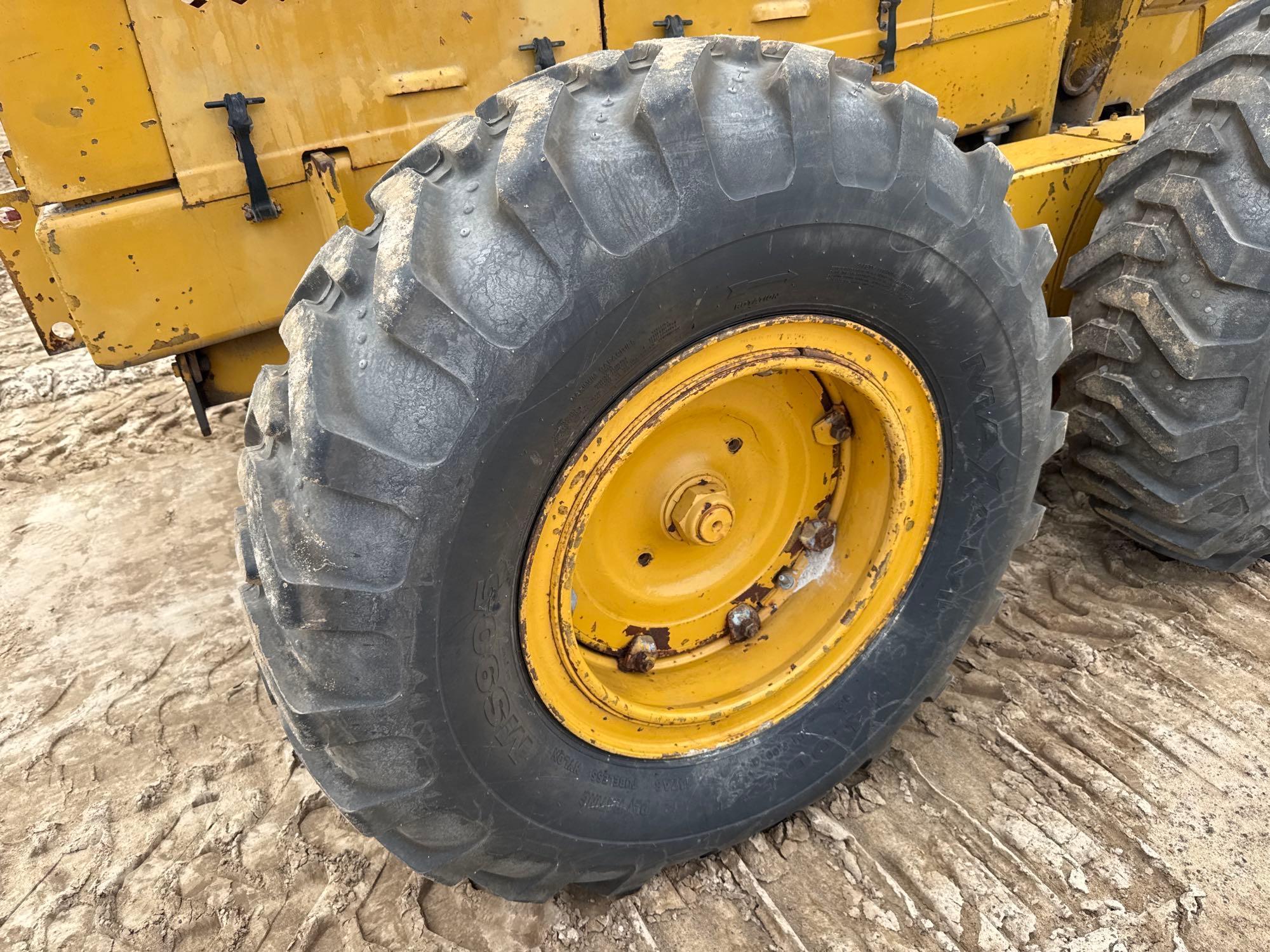

Tire Size	14.00 * 24 G-2
Transmission Fluid Capacity	10 gal (39 l)
Steering System
Articulation Angle	22 degrees
Turning Radius	26 ft (8 m)
Transmission
Max Speed - Forward	29 mph (47 kph)
Max Speed - Reverse	21 mph (33 kph)
Transmission Type	Powershift
