Equipment ↠ Doosan ↠ Excavators ↠ 2020 Doosan DX235 LCR-5

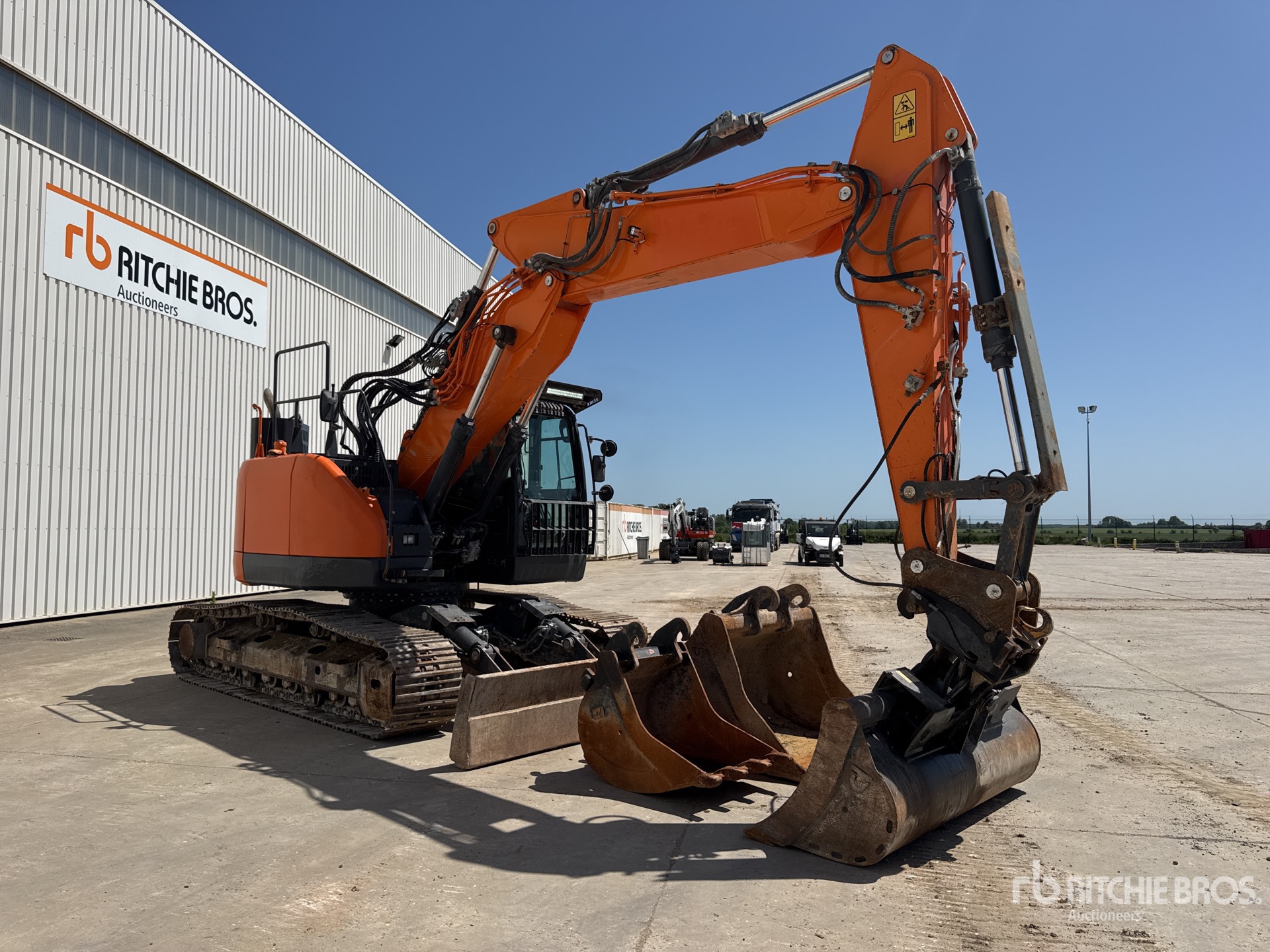

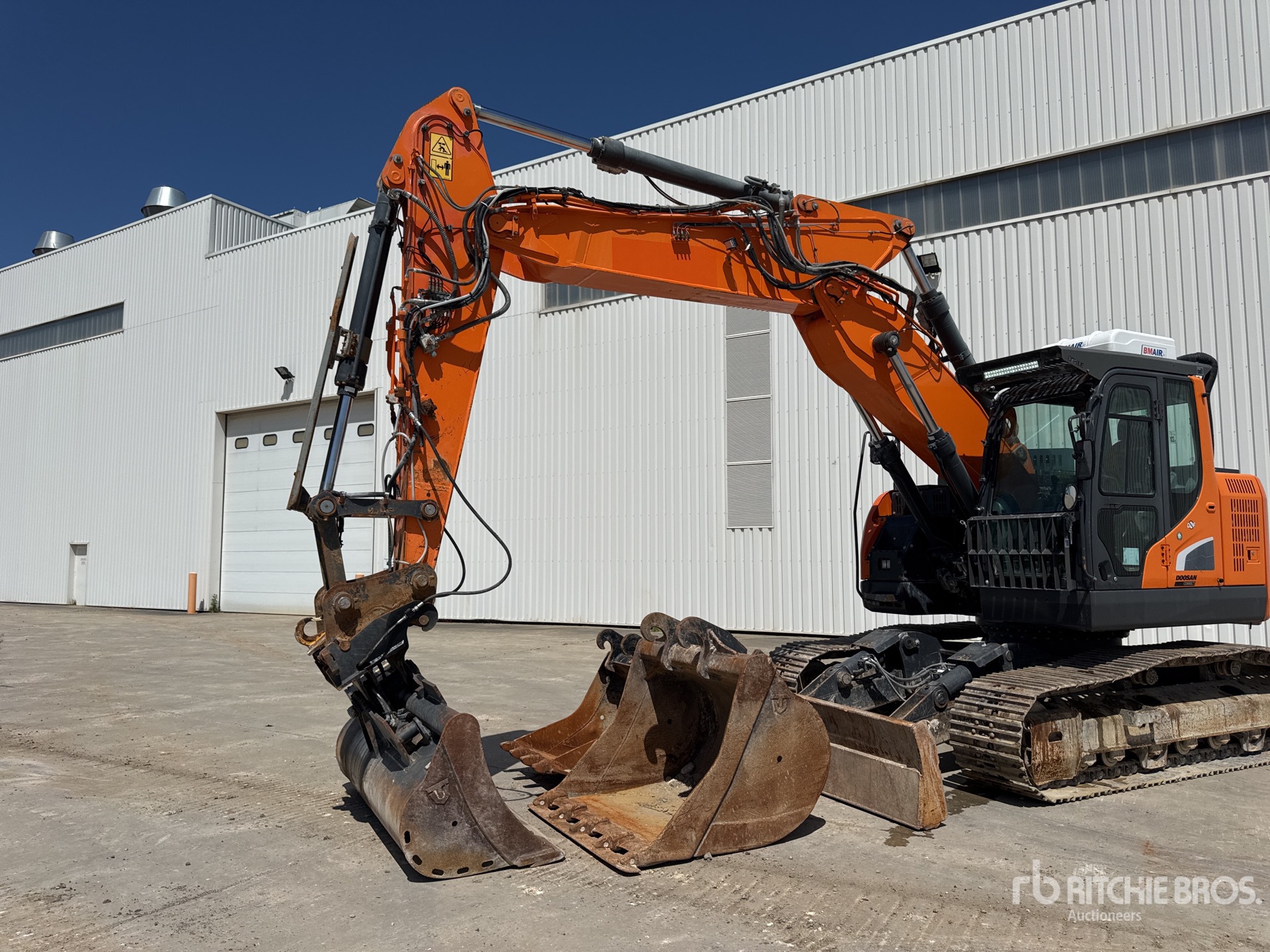

2020 Doosan DX235 LCR-5 For Sale in St Aubin Sur Gaillon, Fra

Name: 2020 Doosan DX235 LCR-5
Brand: Doosan
SKU: 88370568
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-23 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

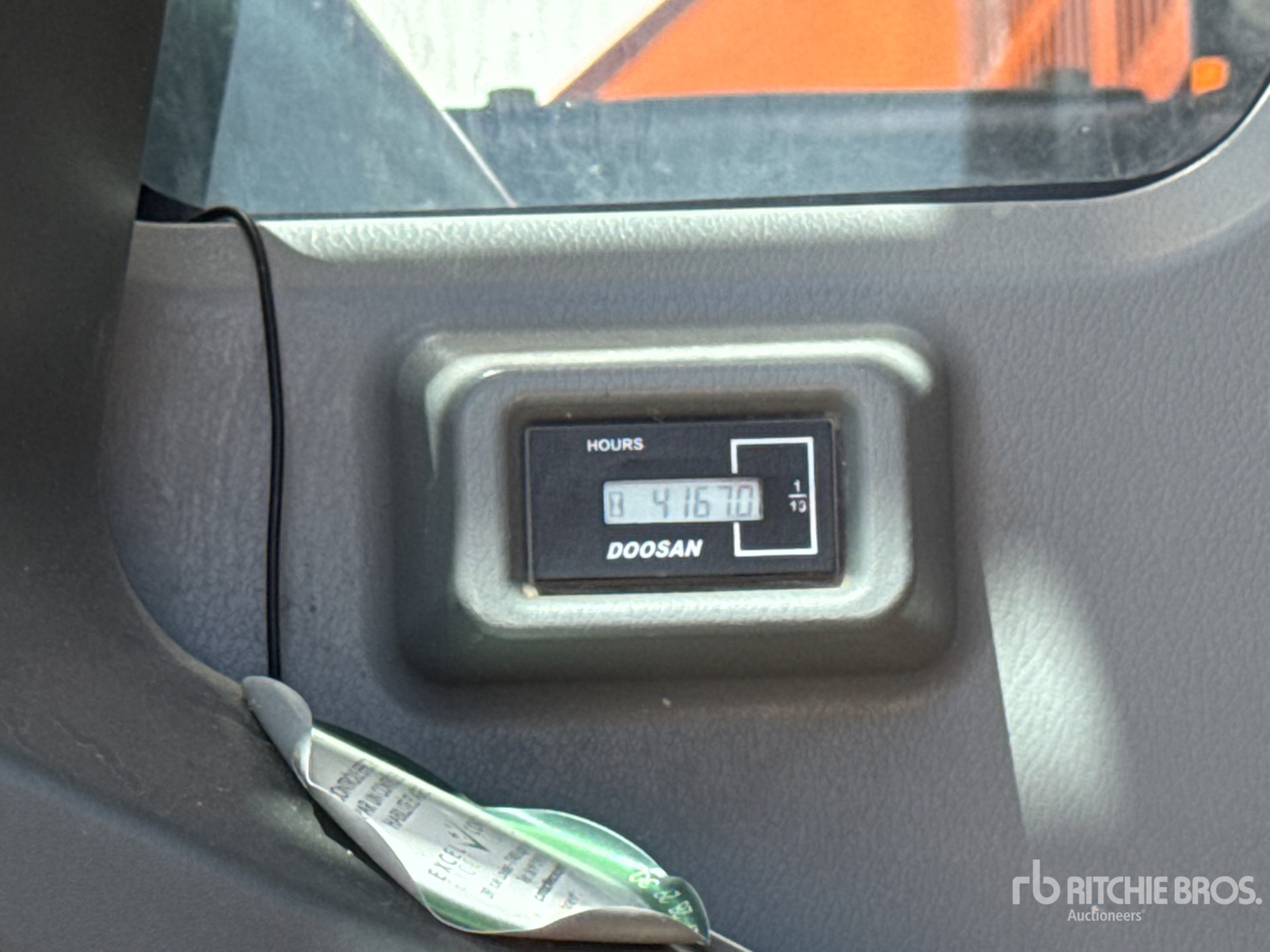

Hours:	4167

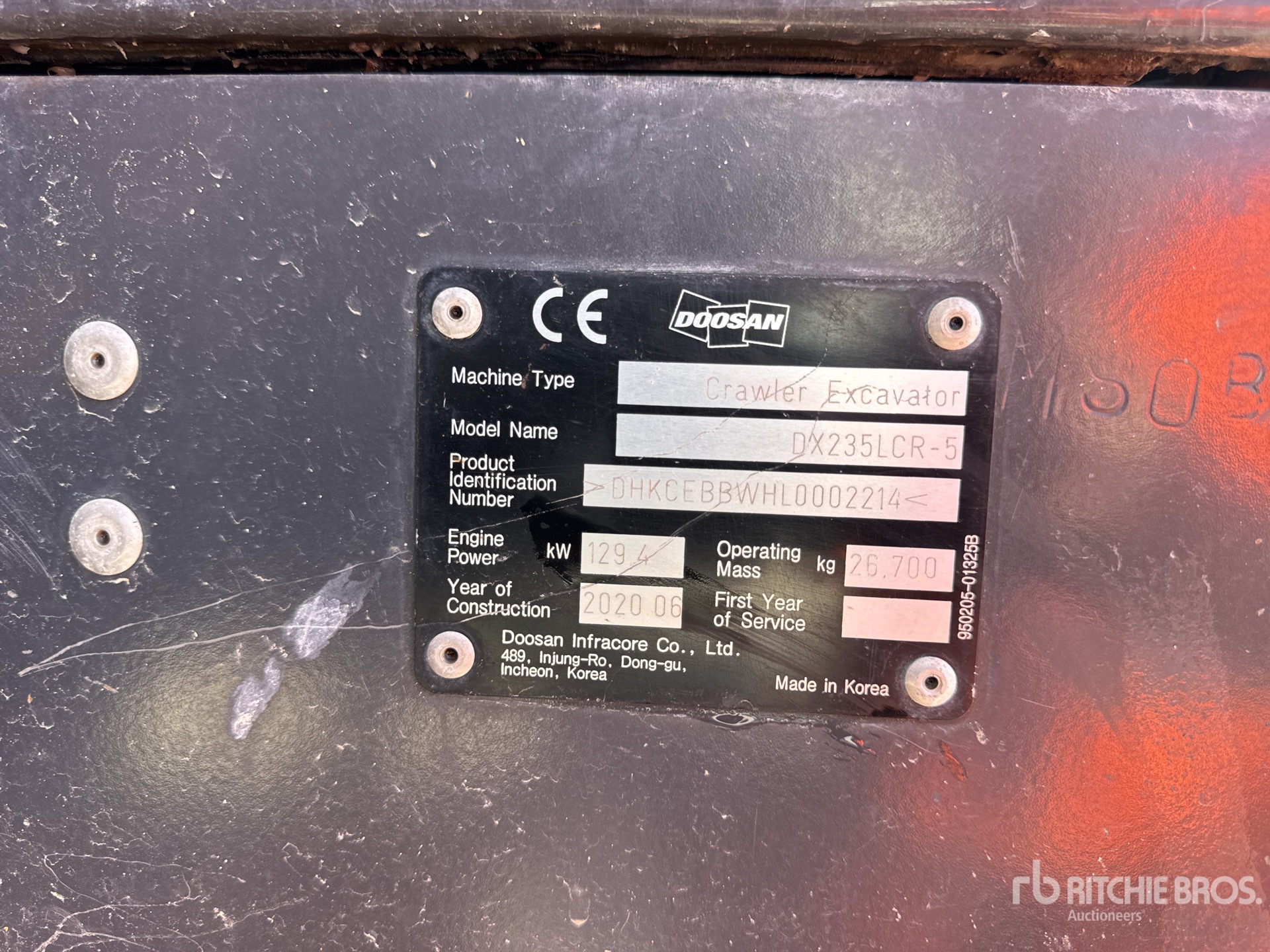

Serial Number:	DHKCEBBWHL0002214
Machine Location:	ST AUBIN SUR GAILLON, FRA

Description:

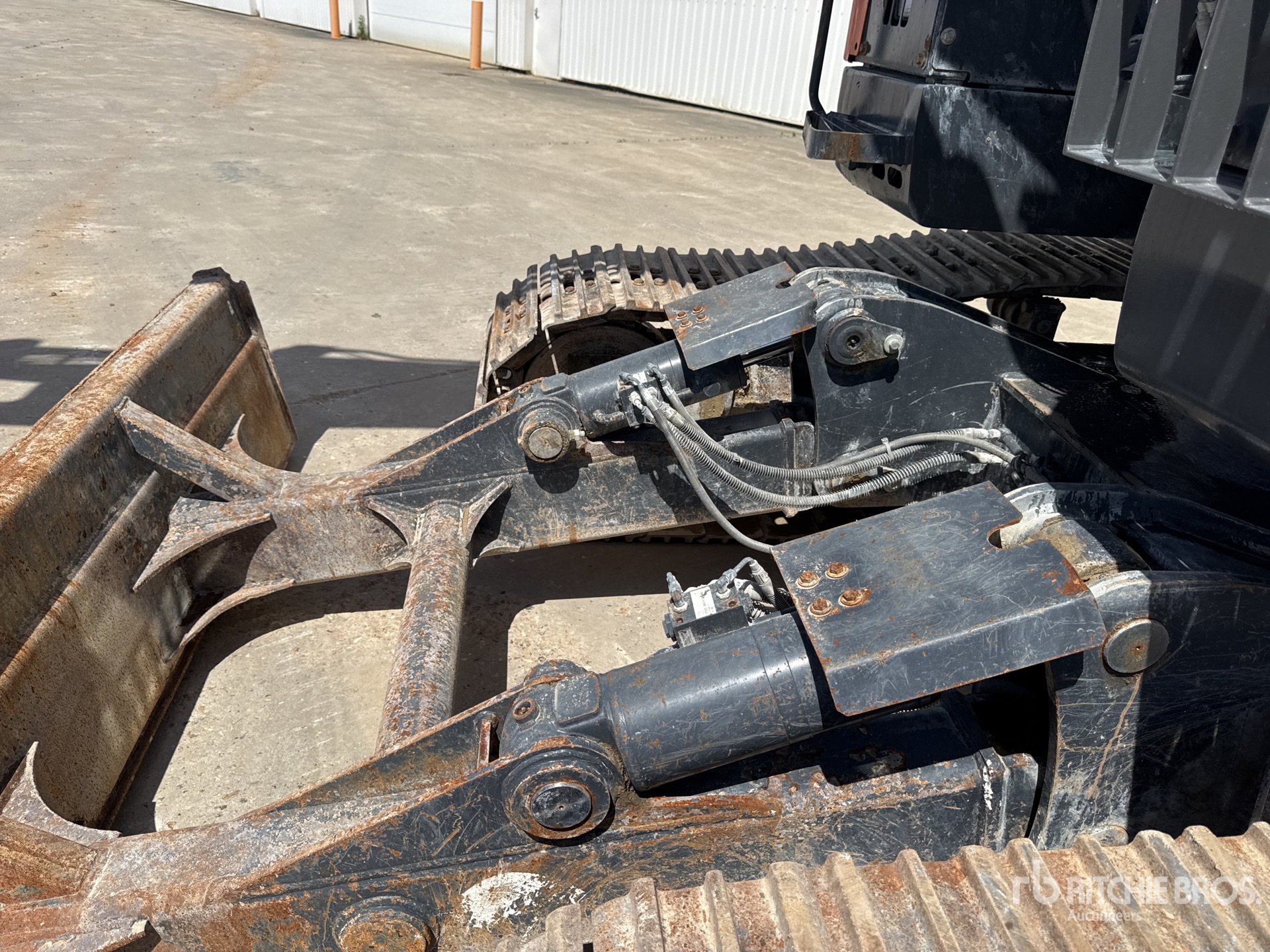

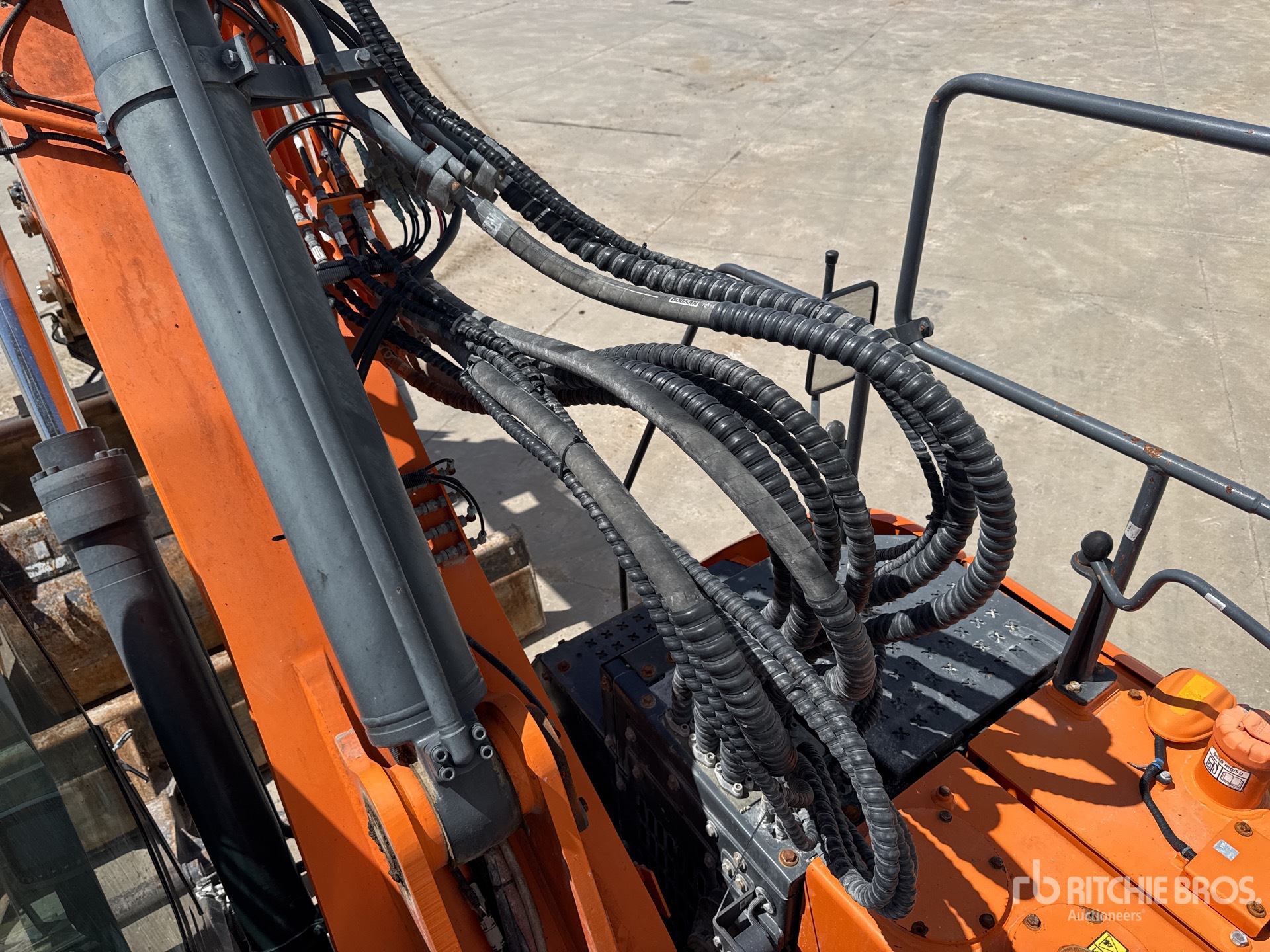

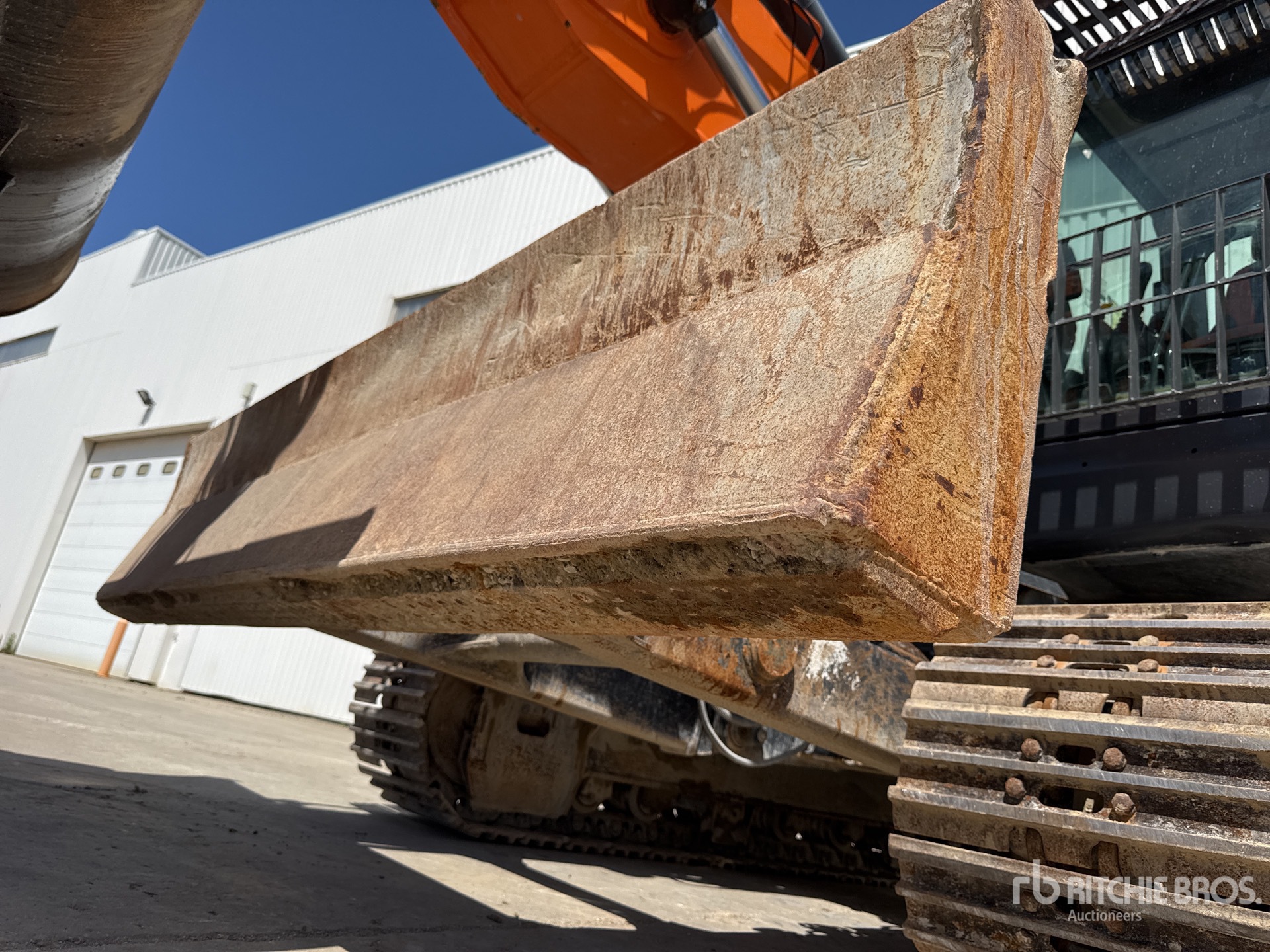

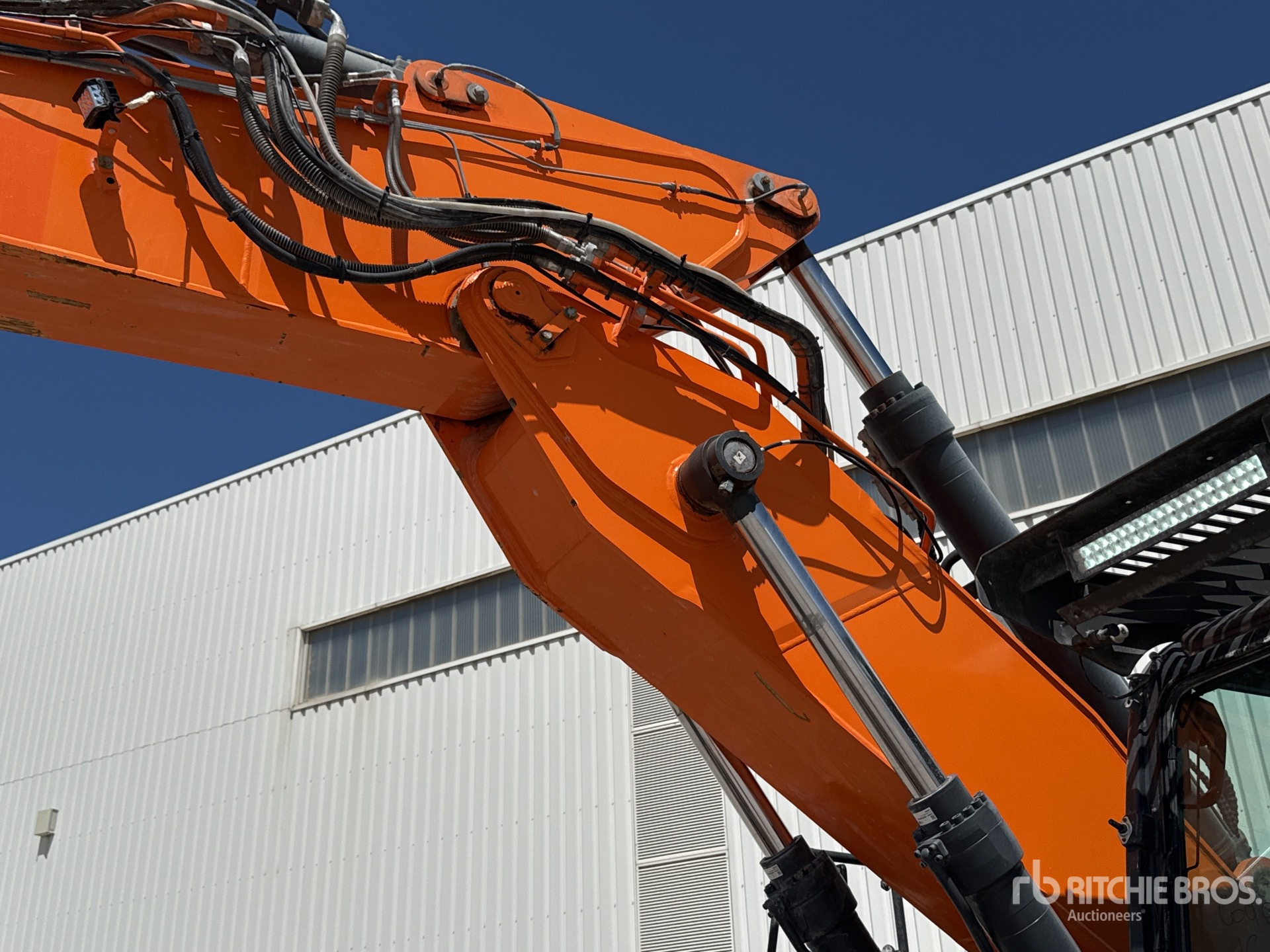

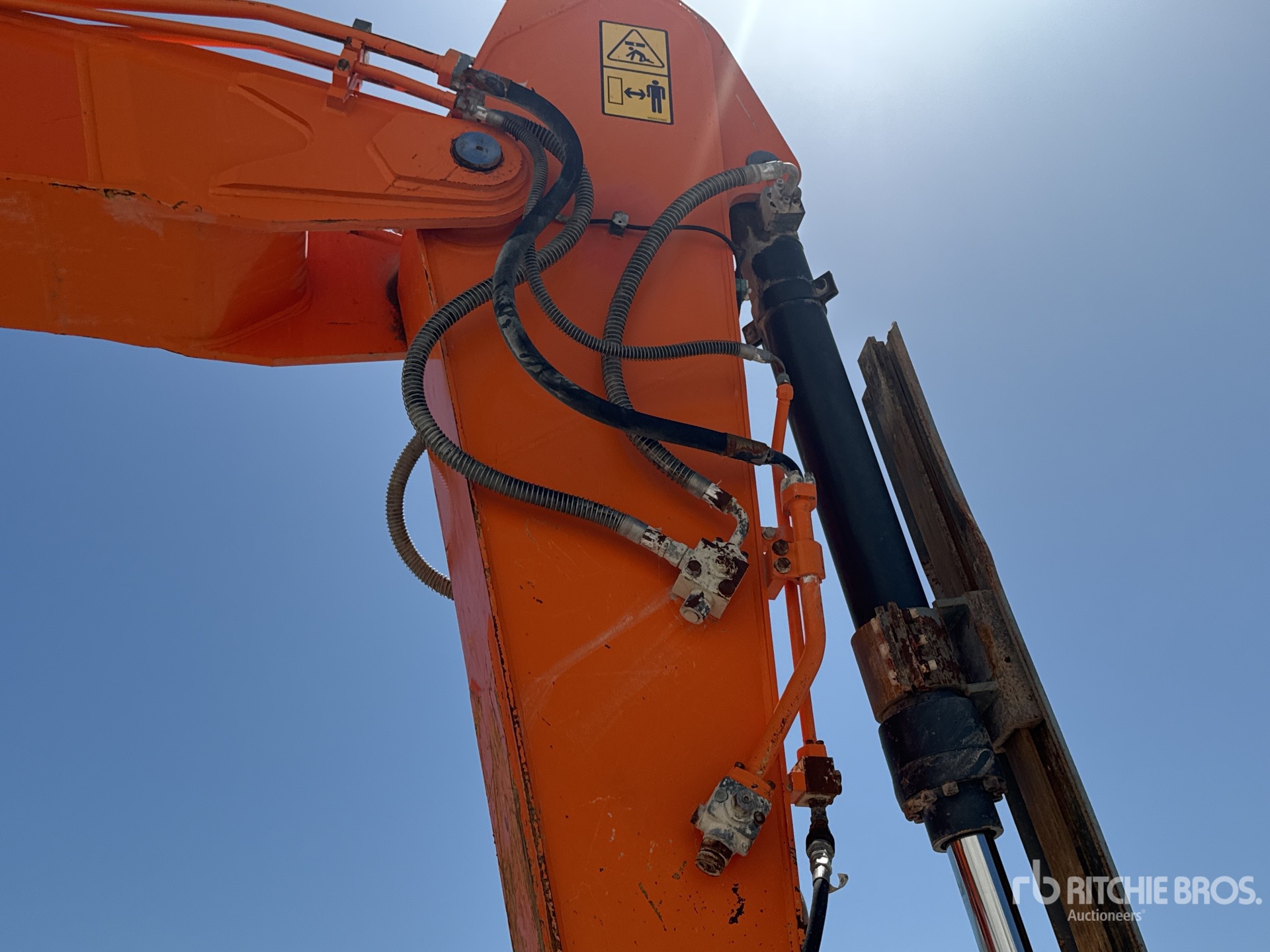

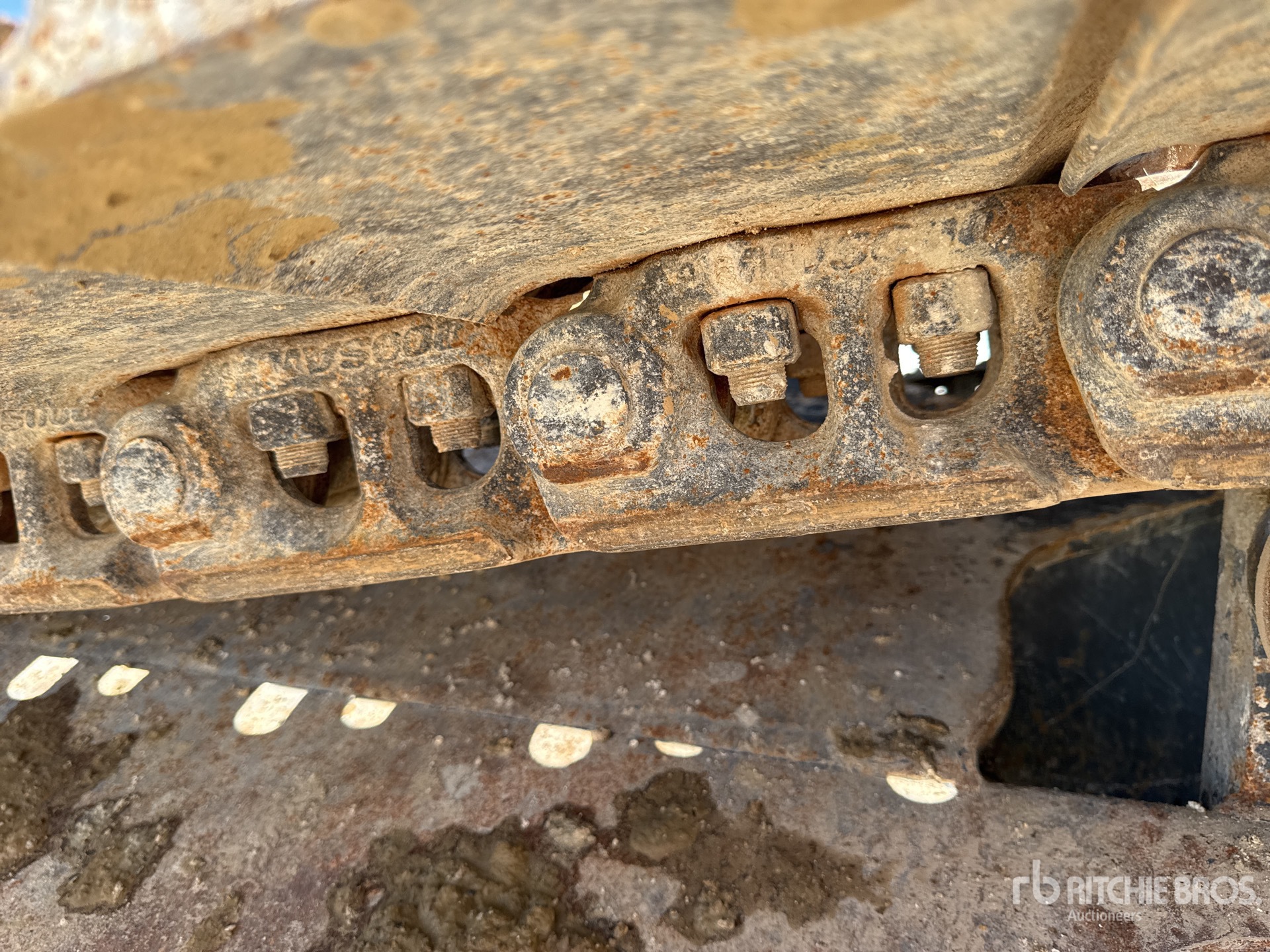

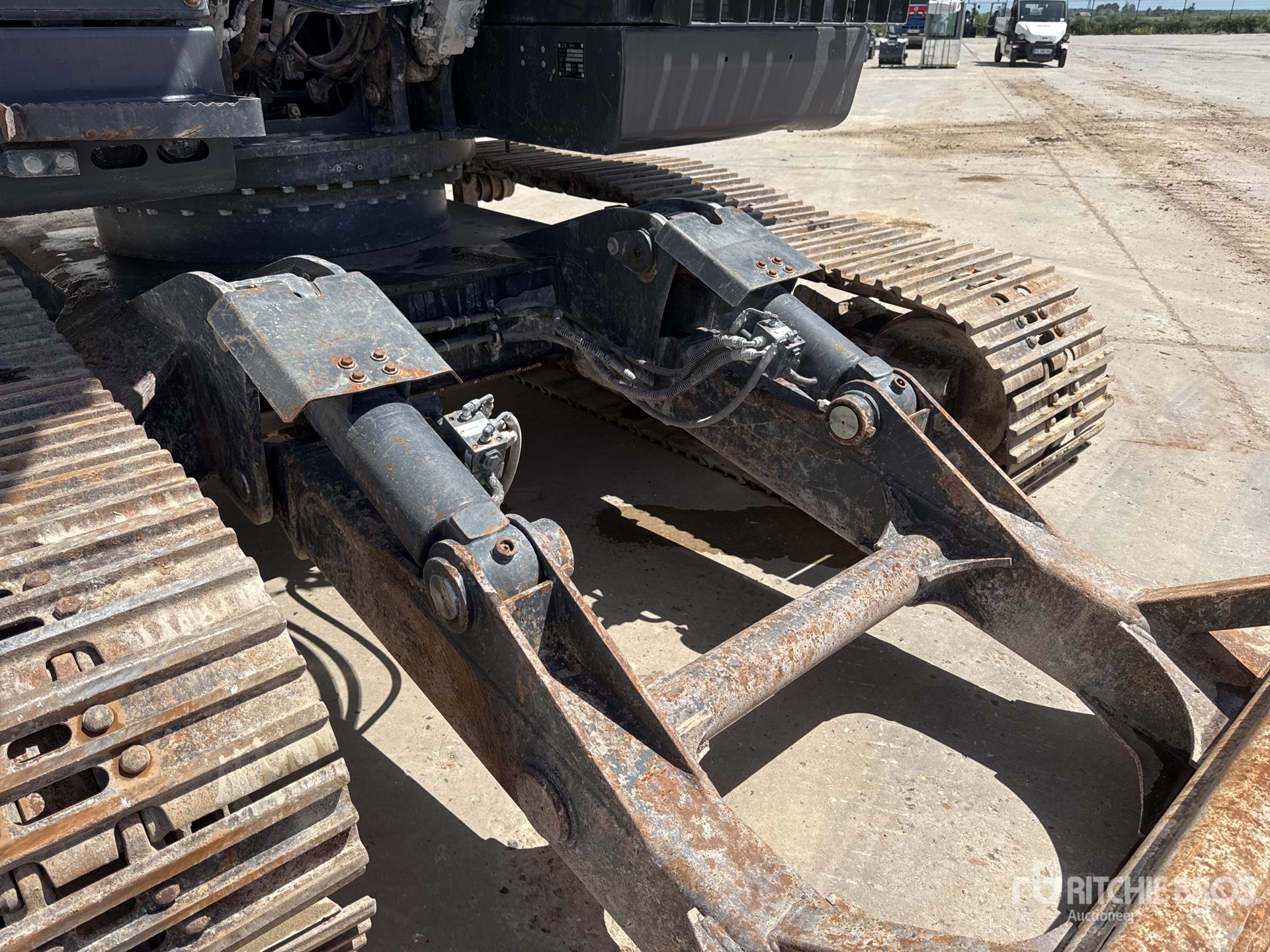

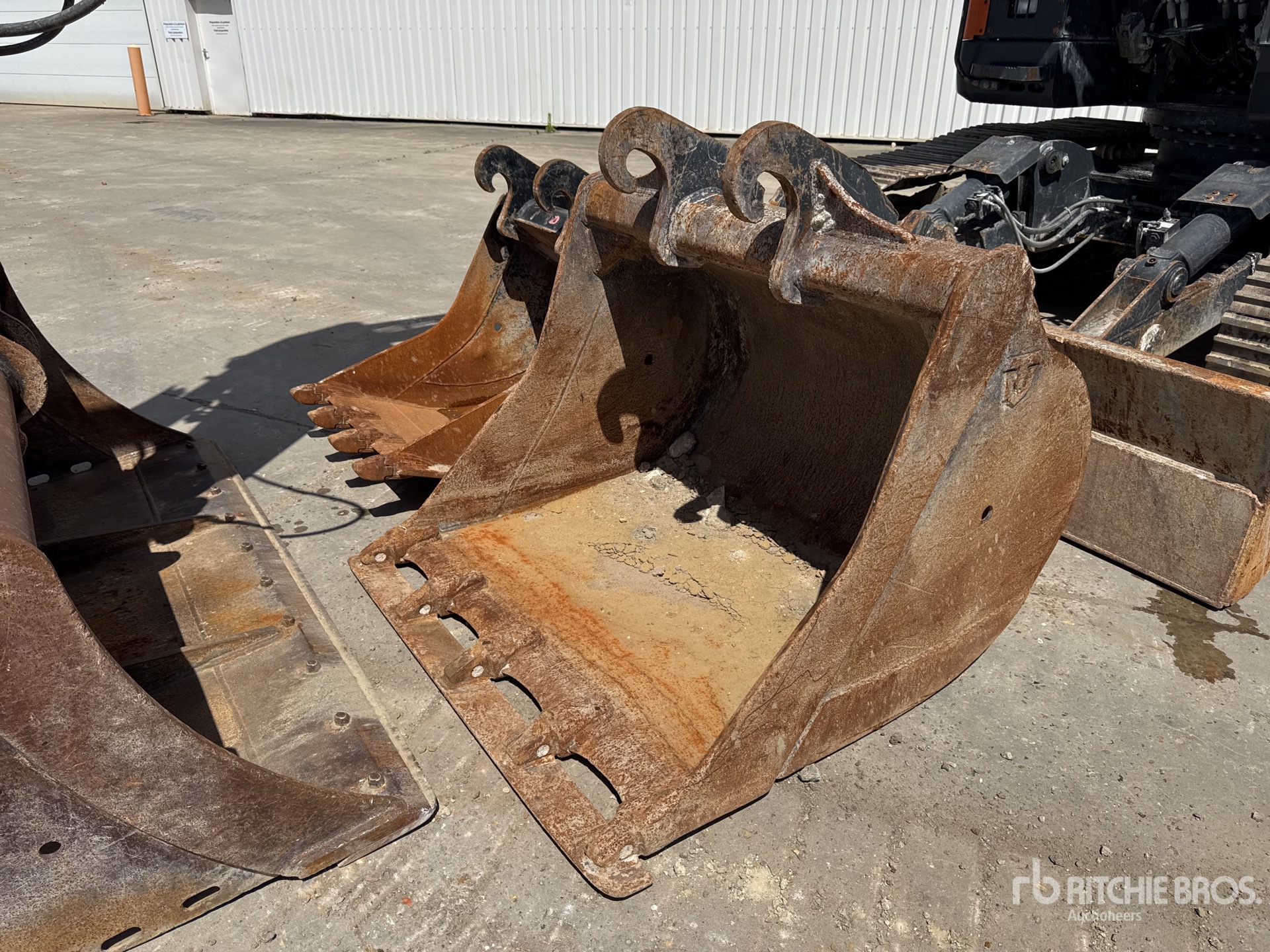

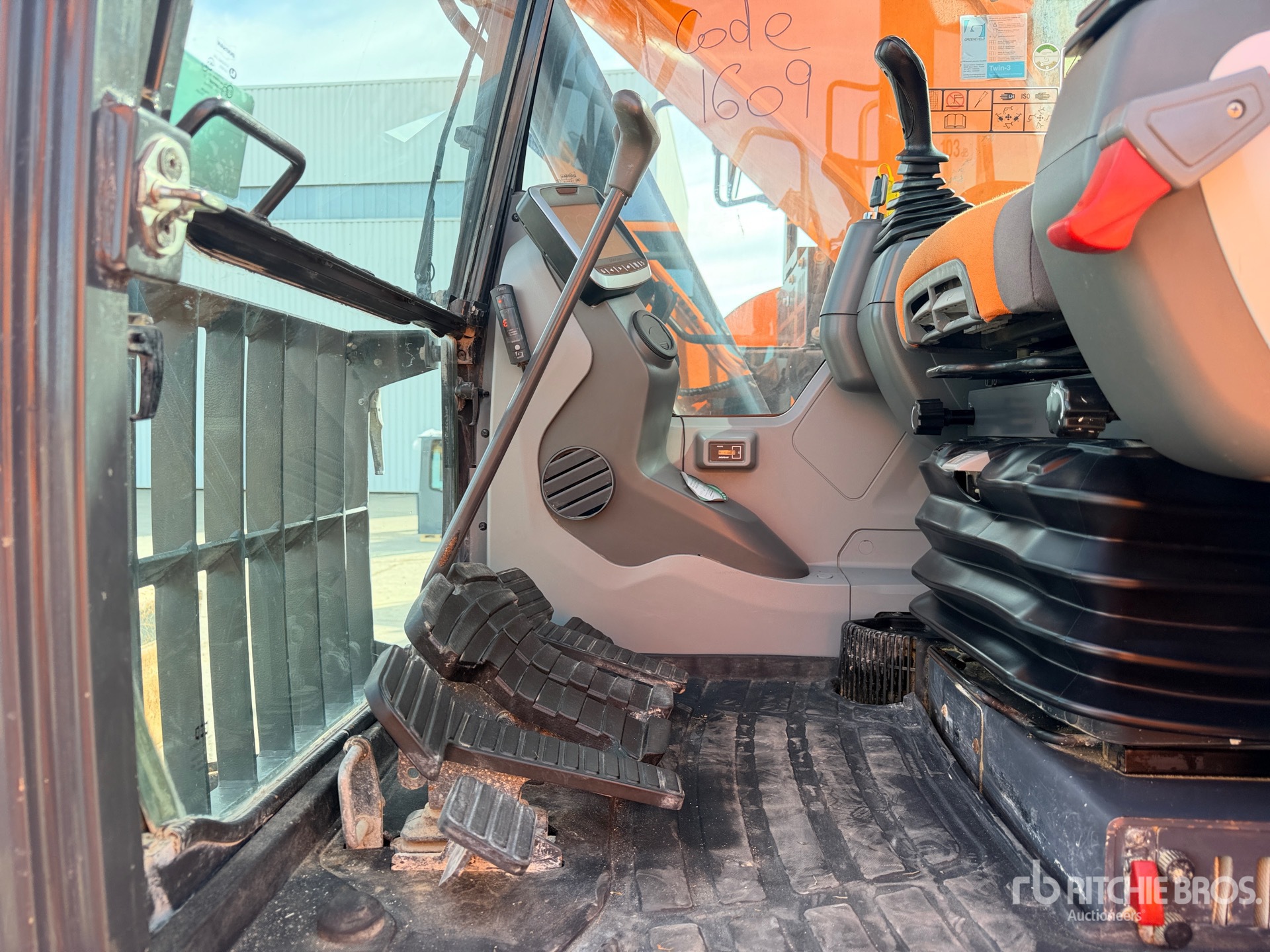

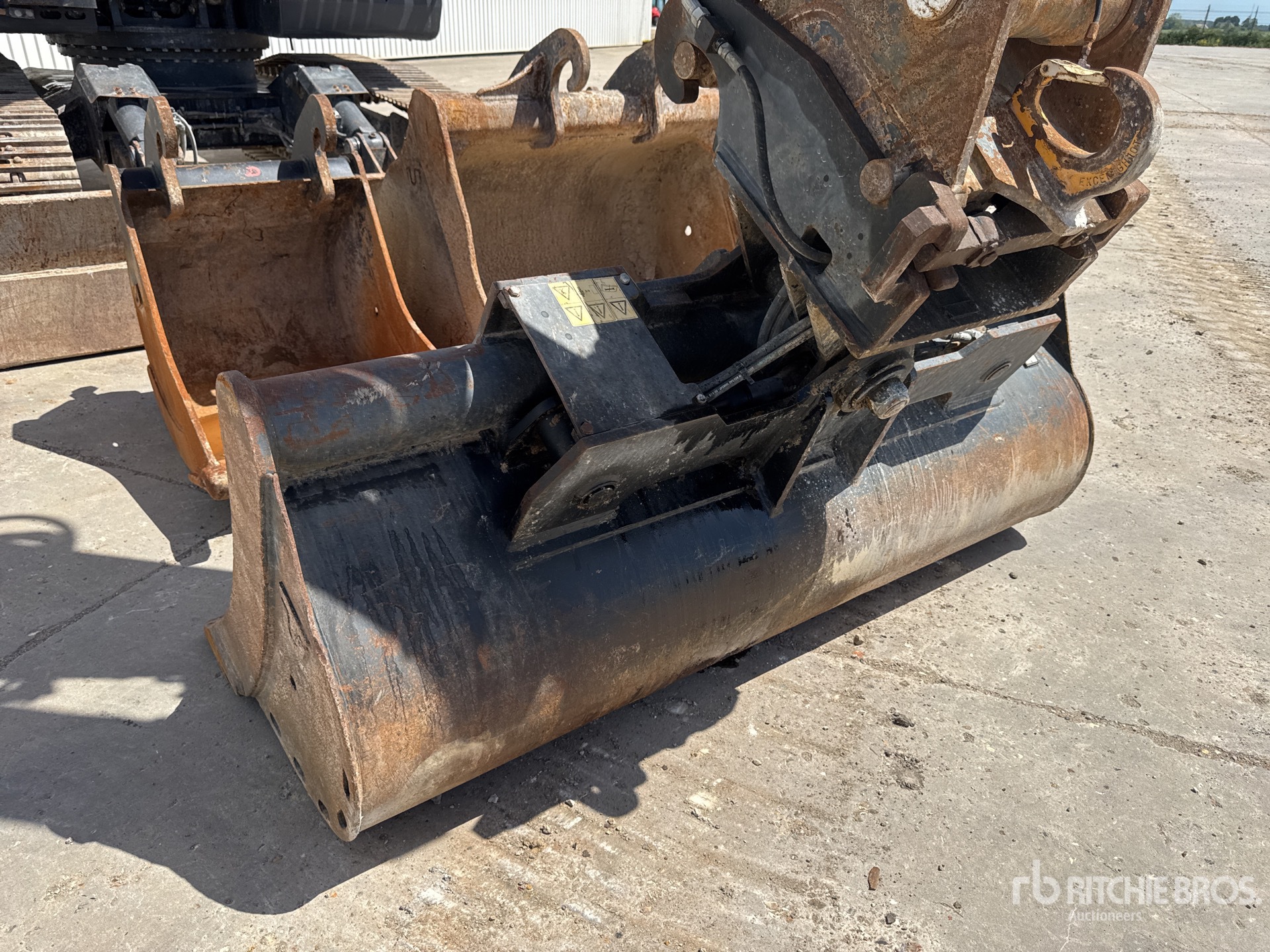

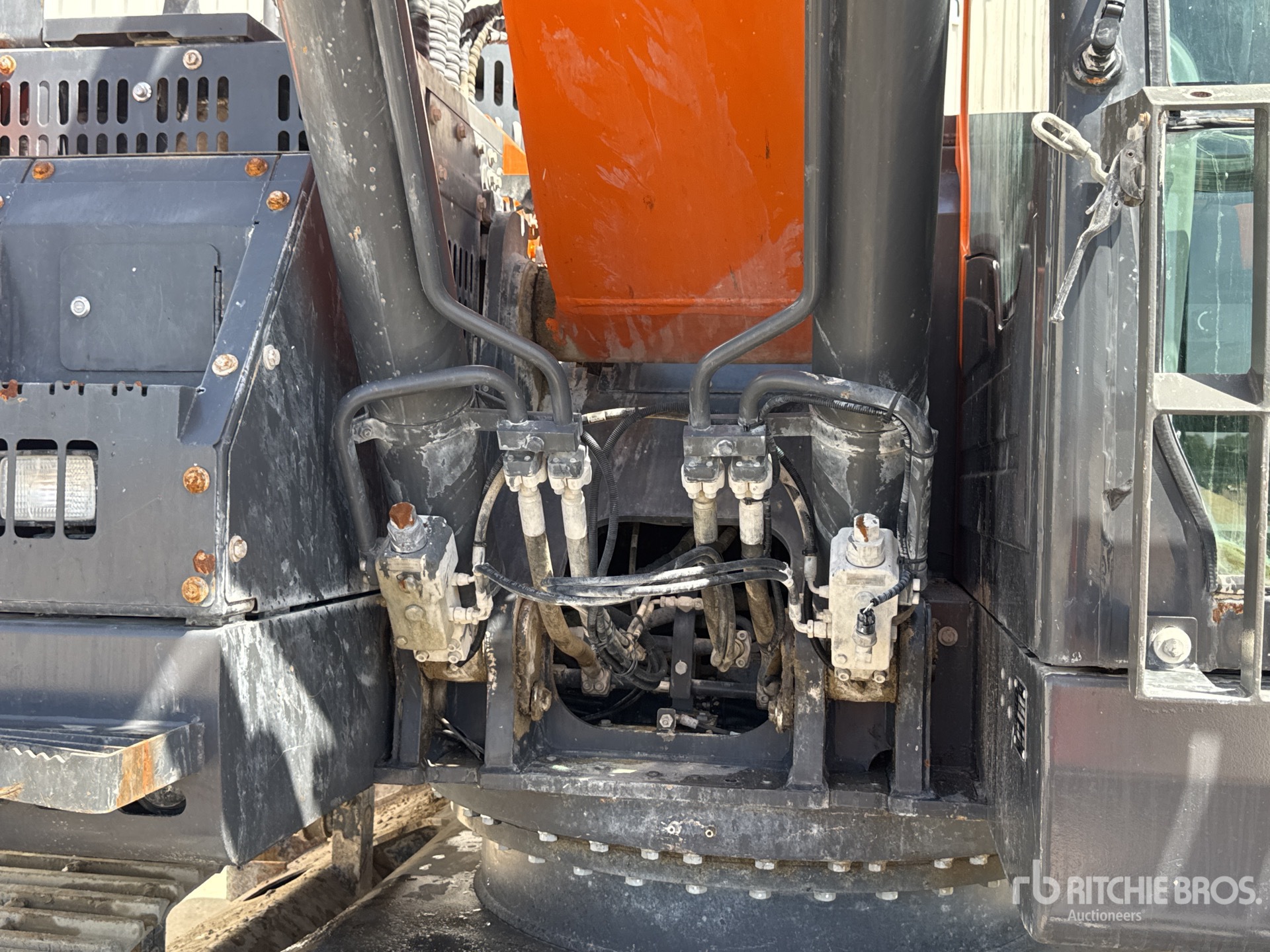

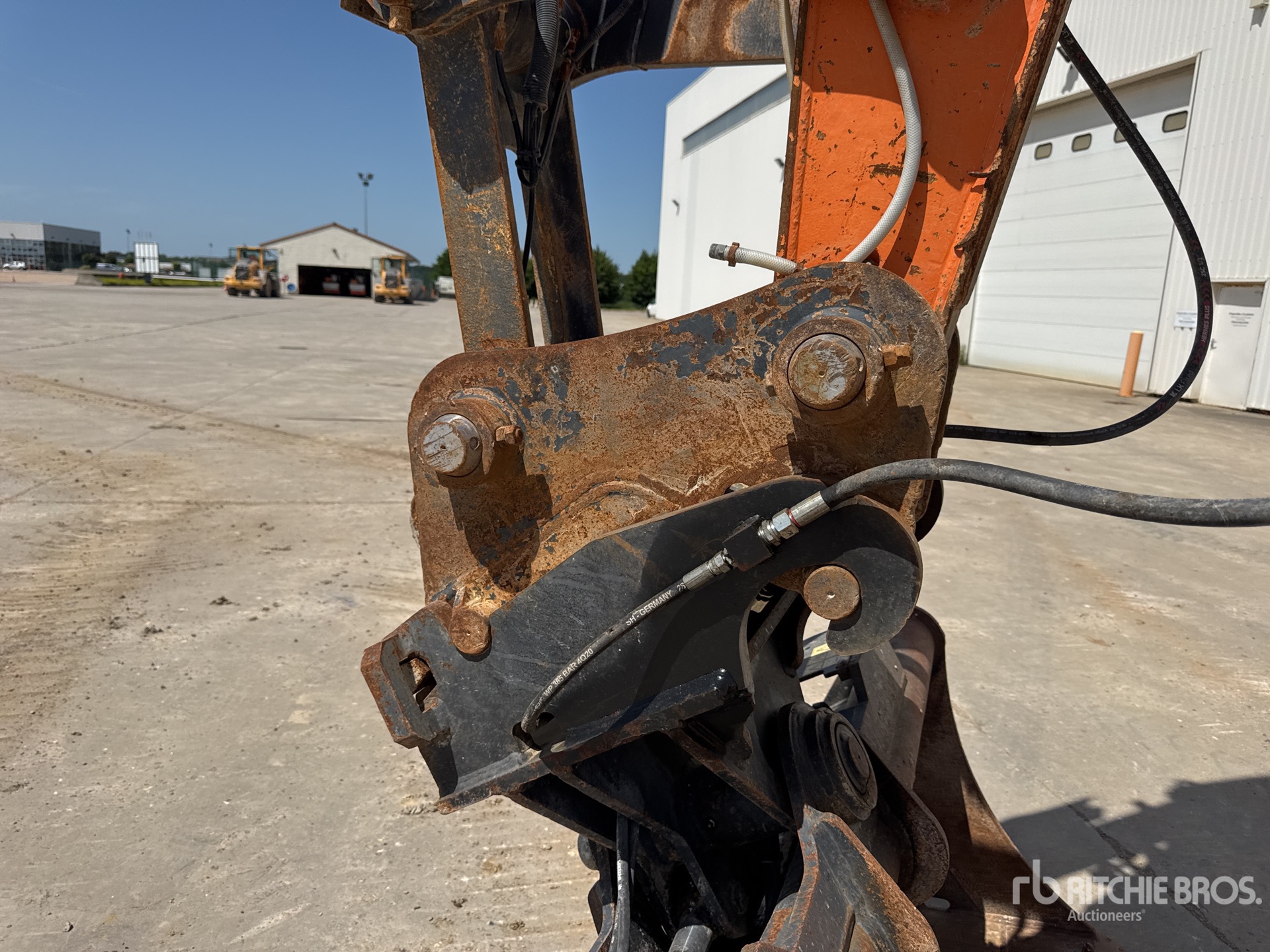

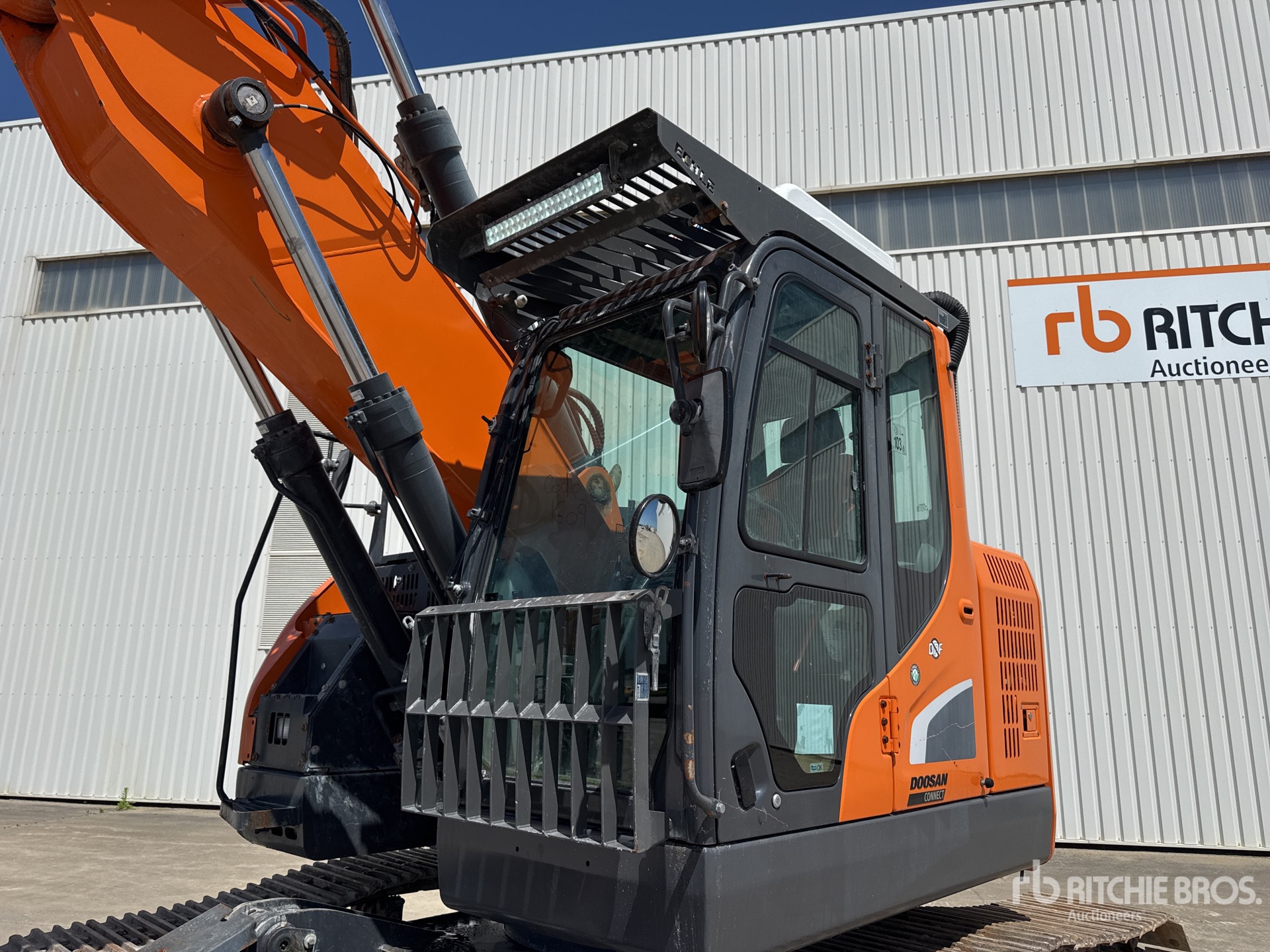

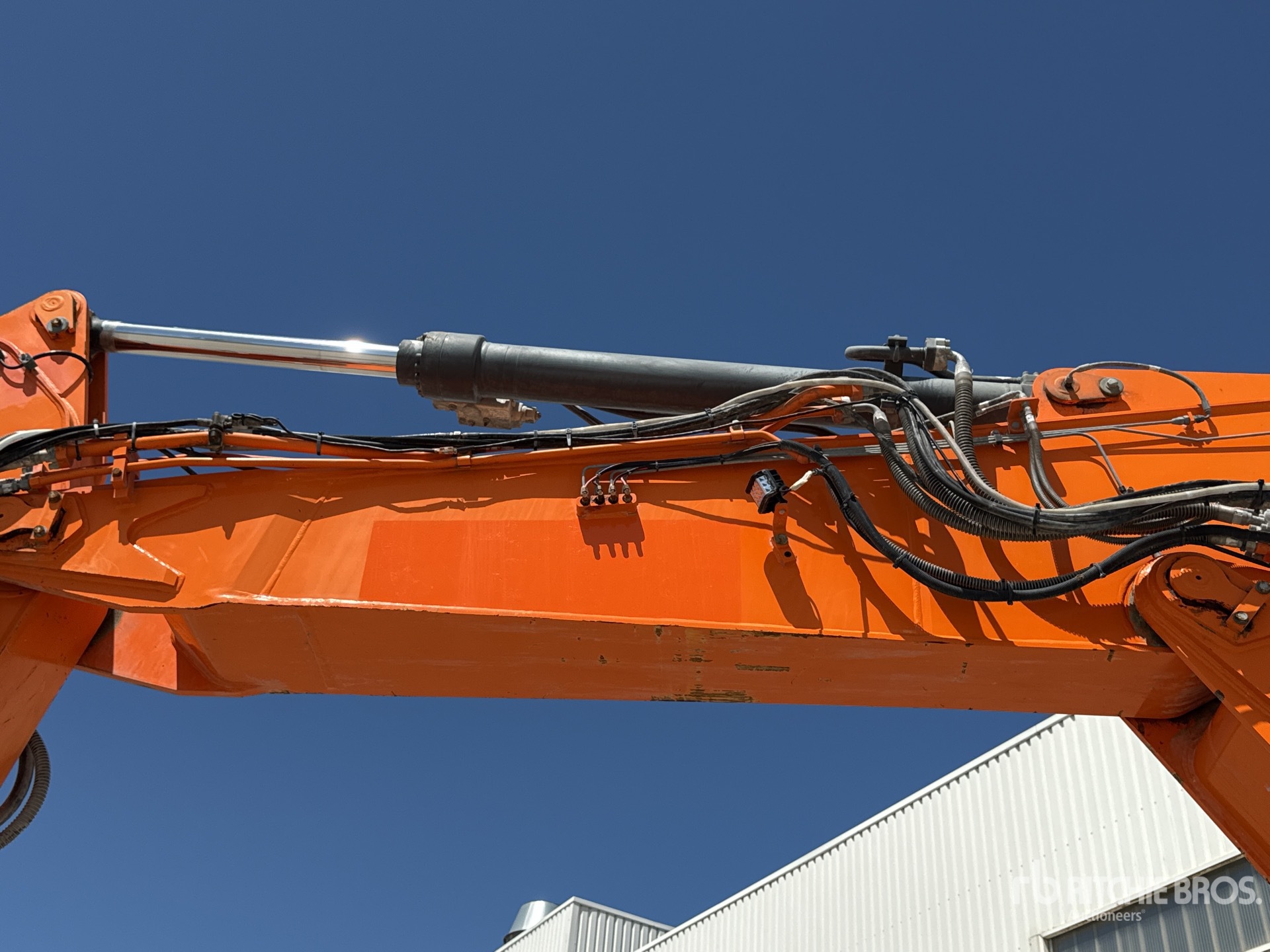

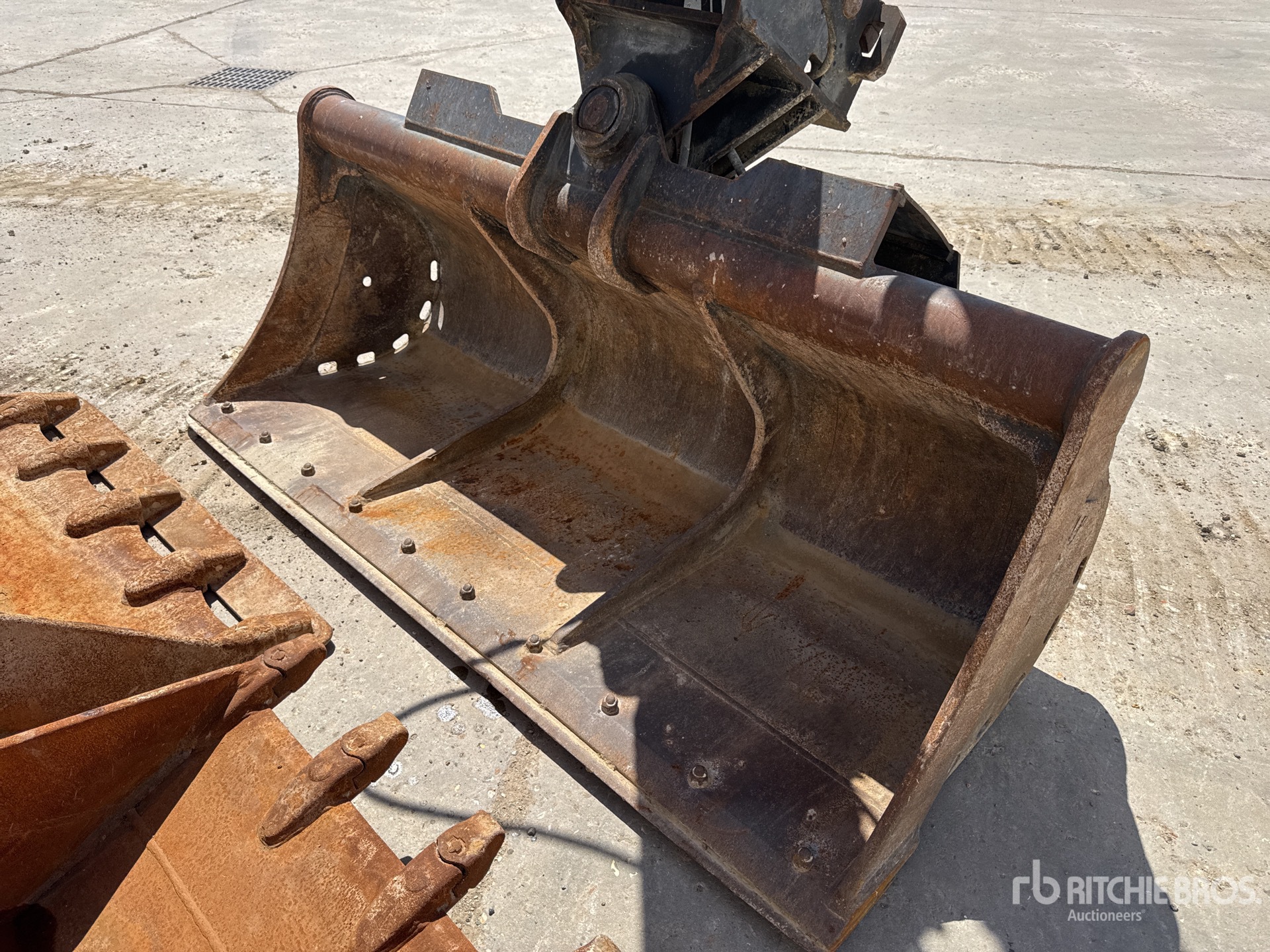

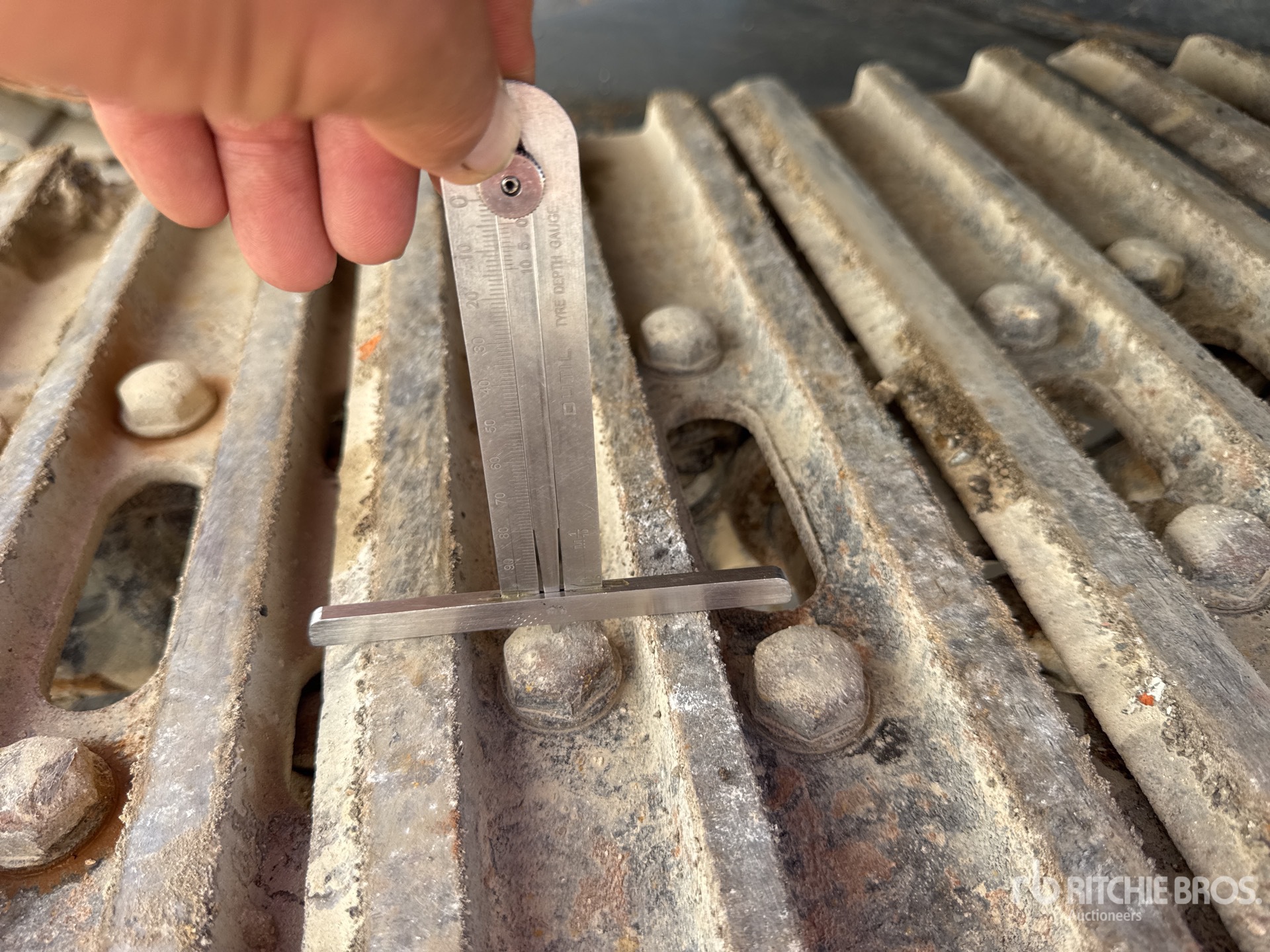

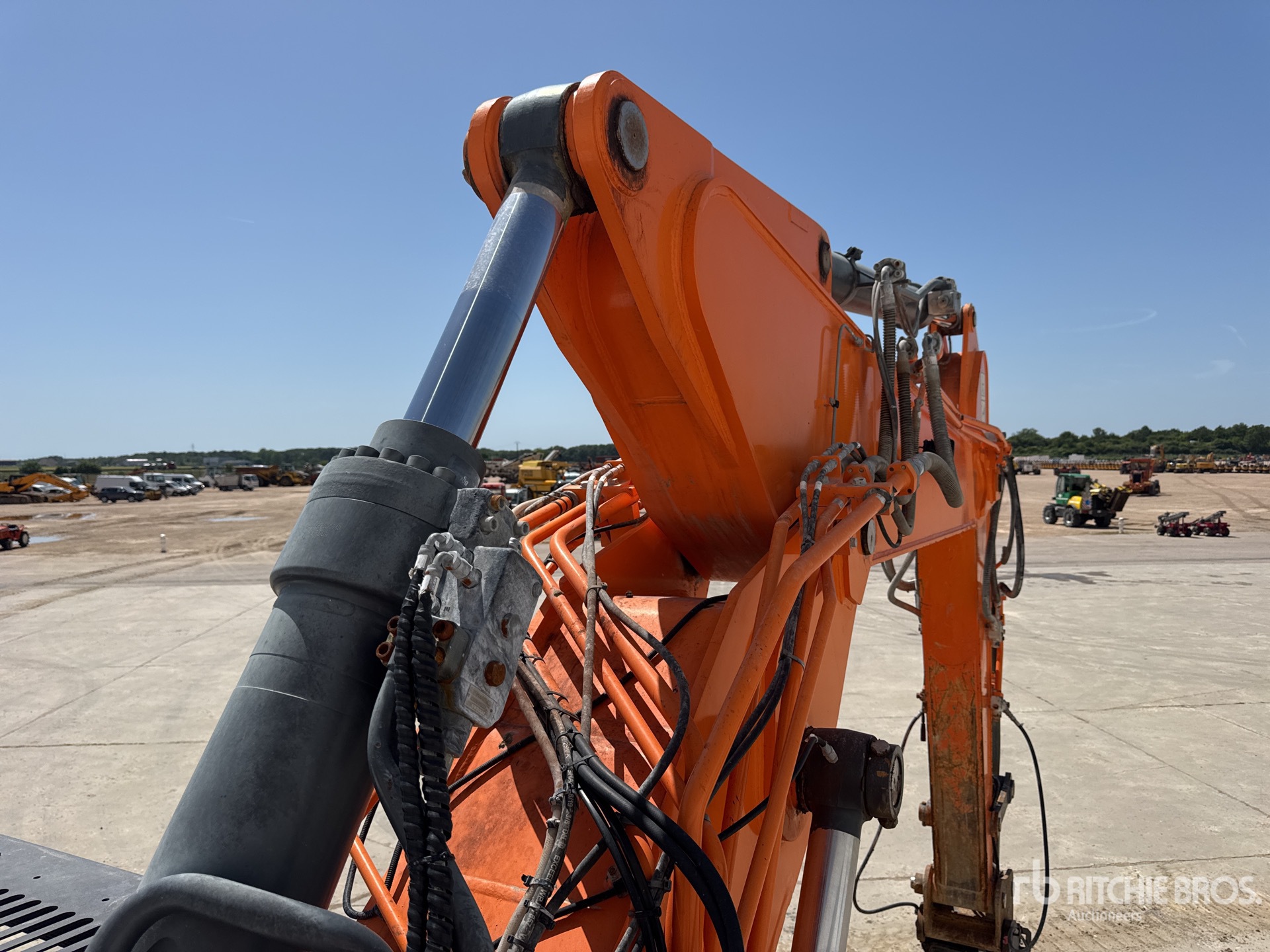

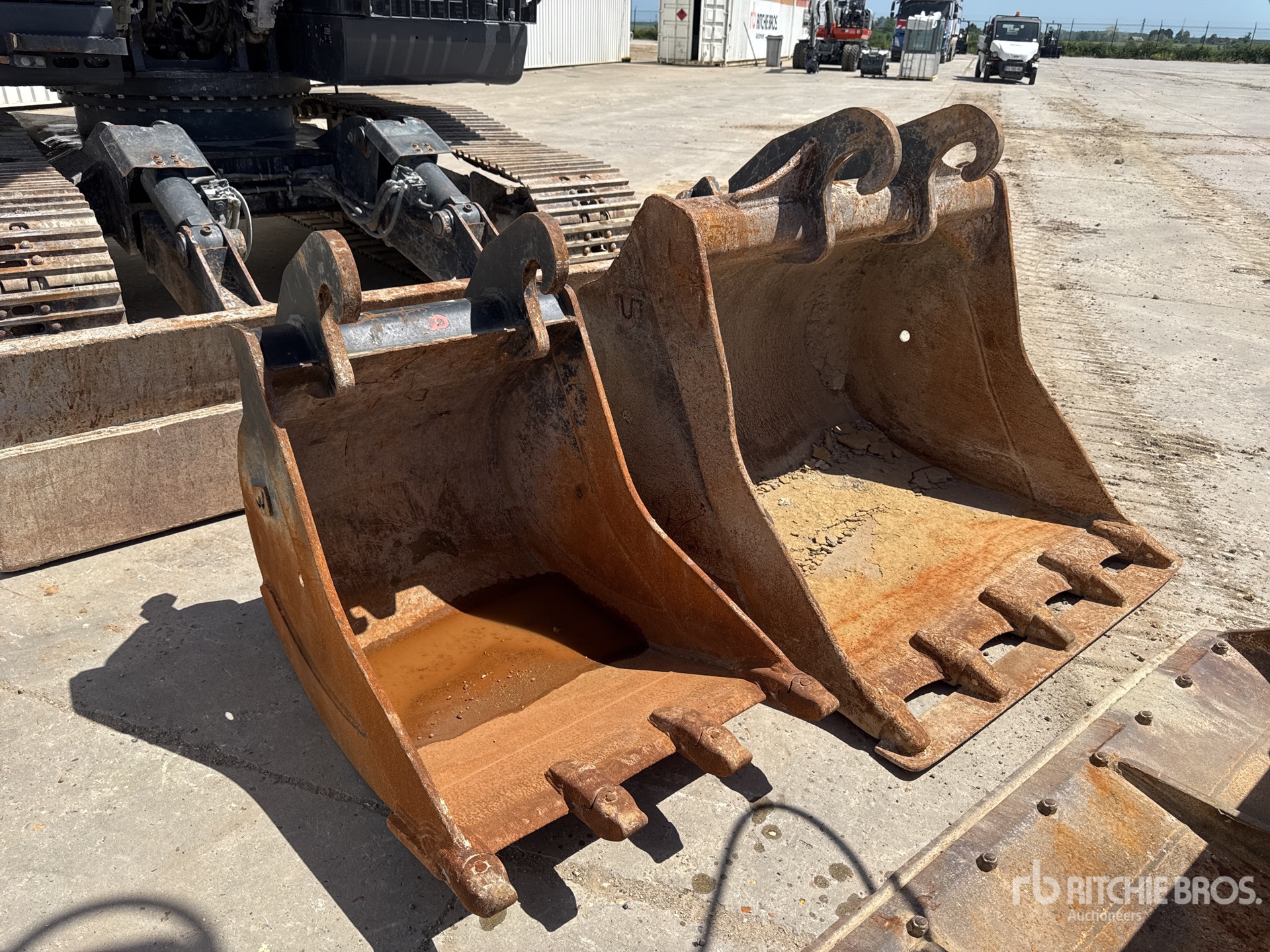

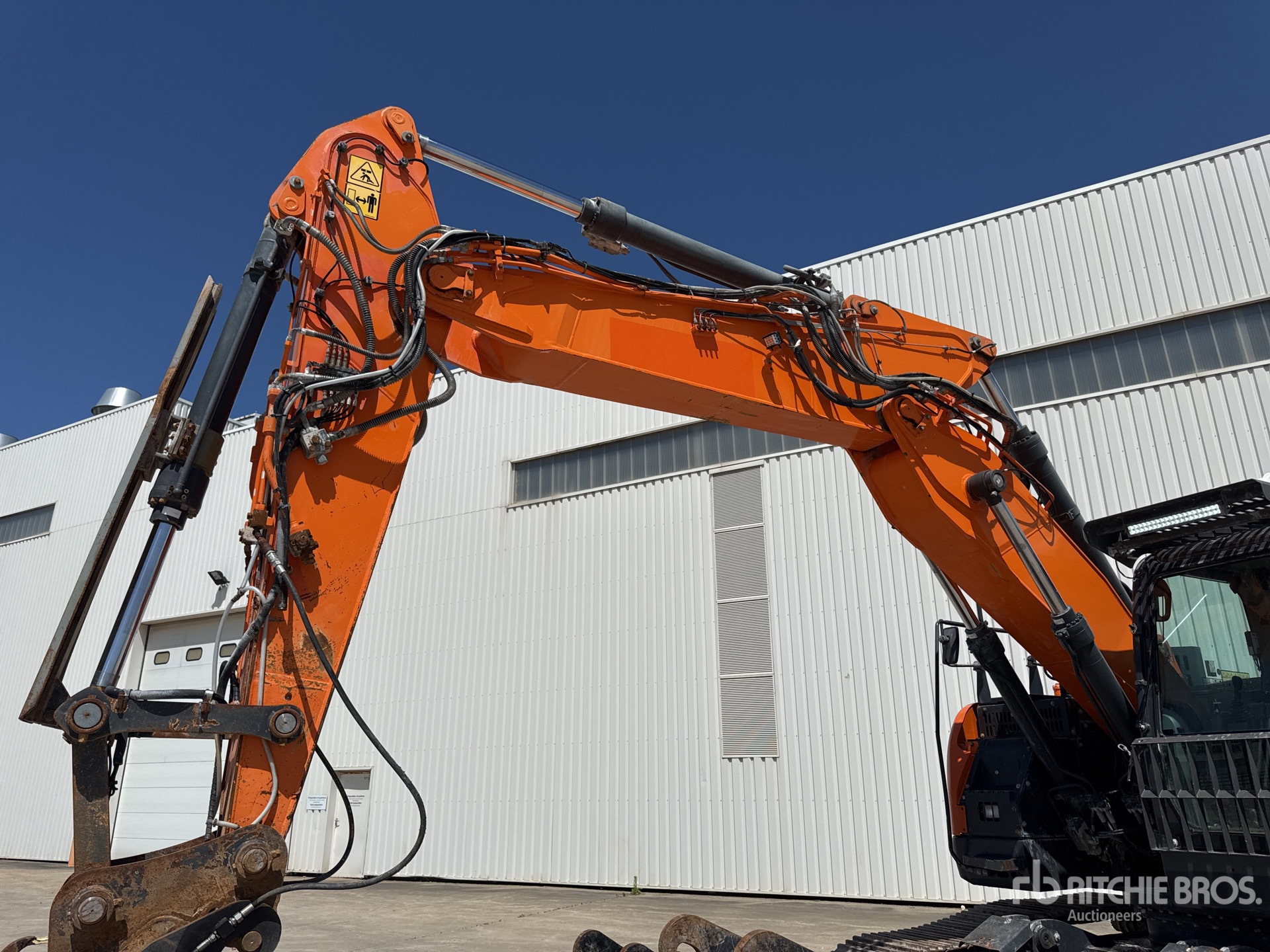

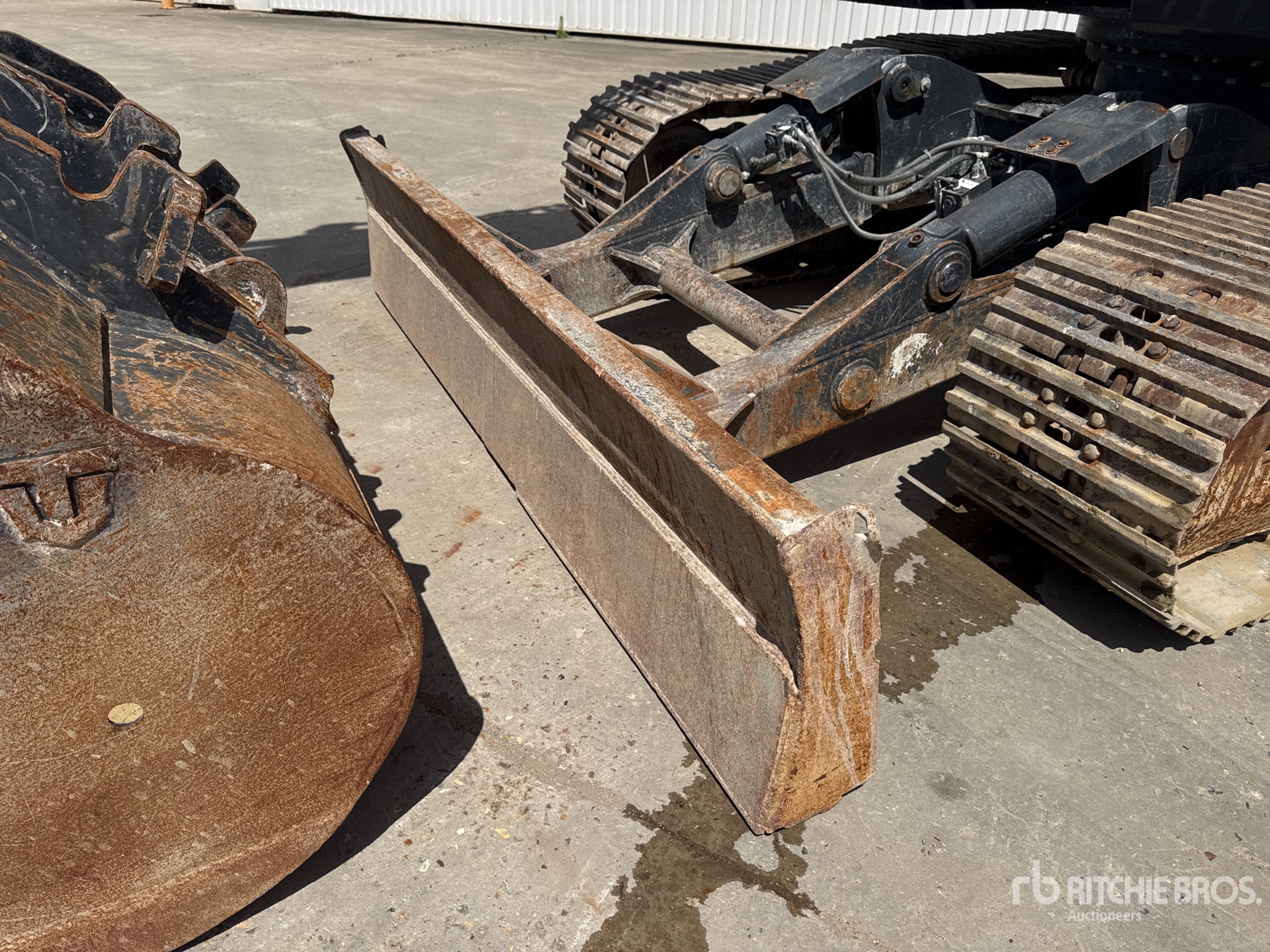

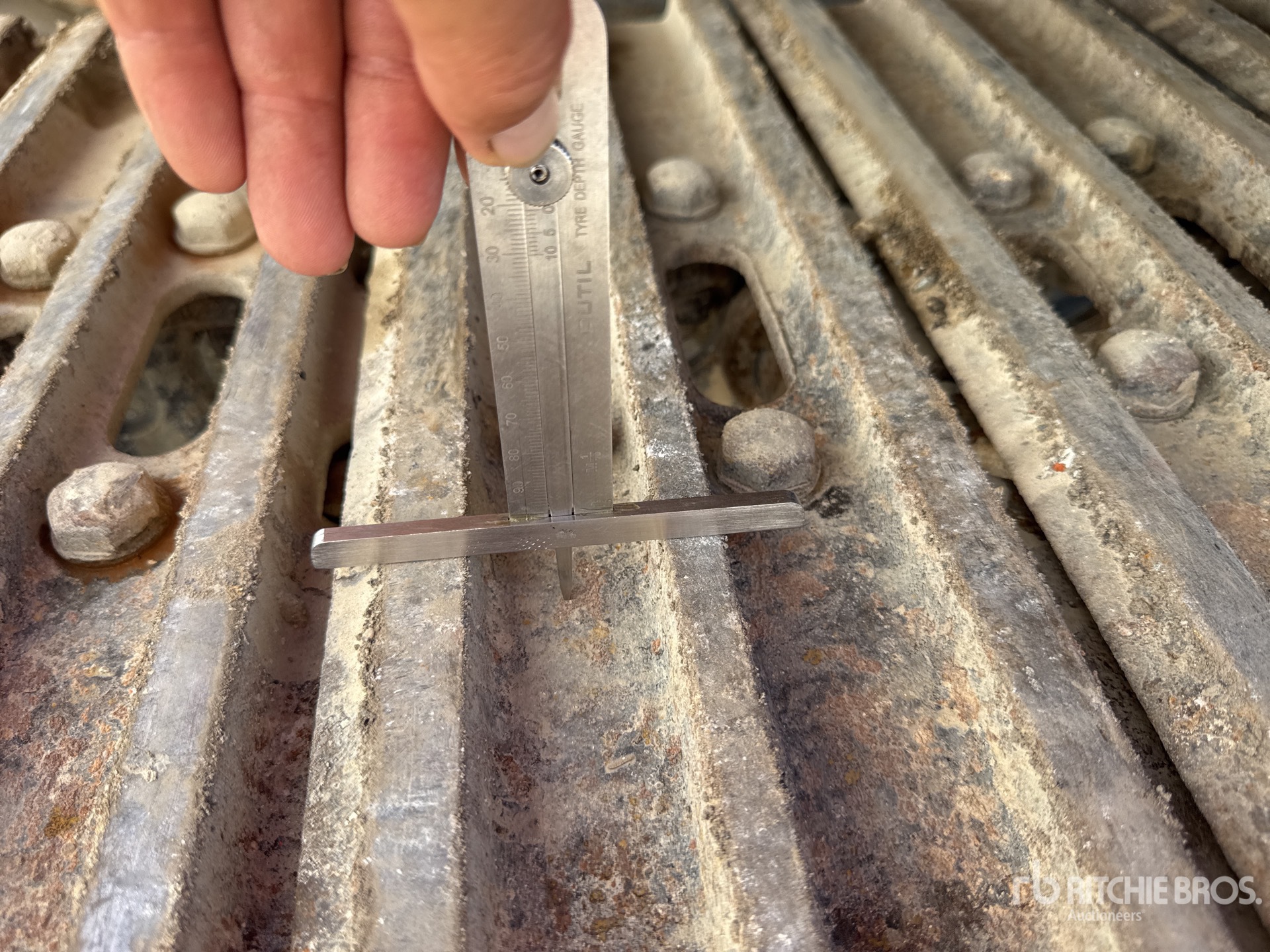

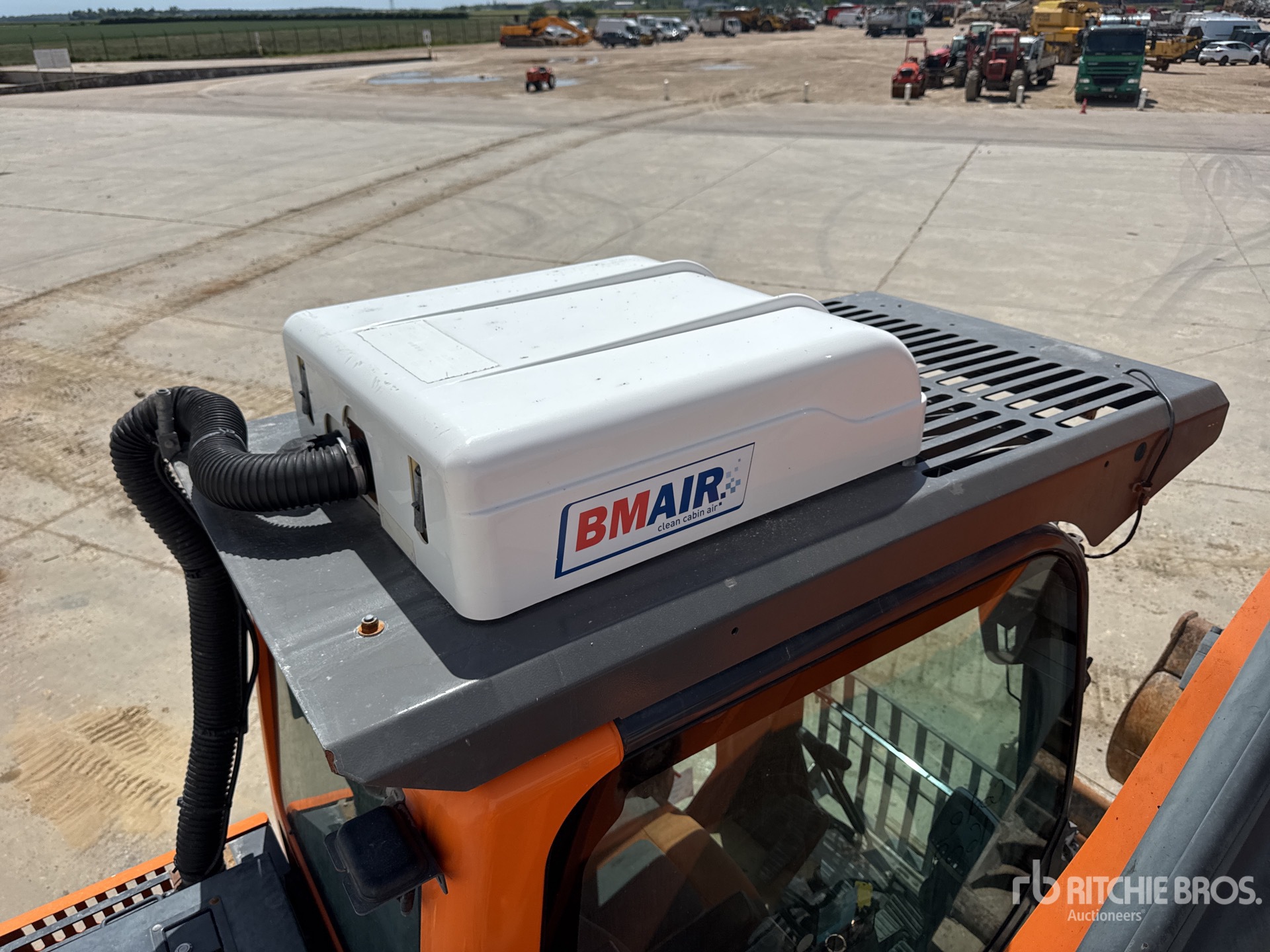

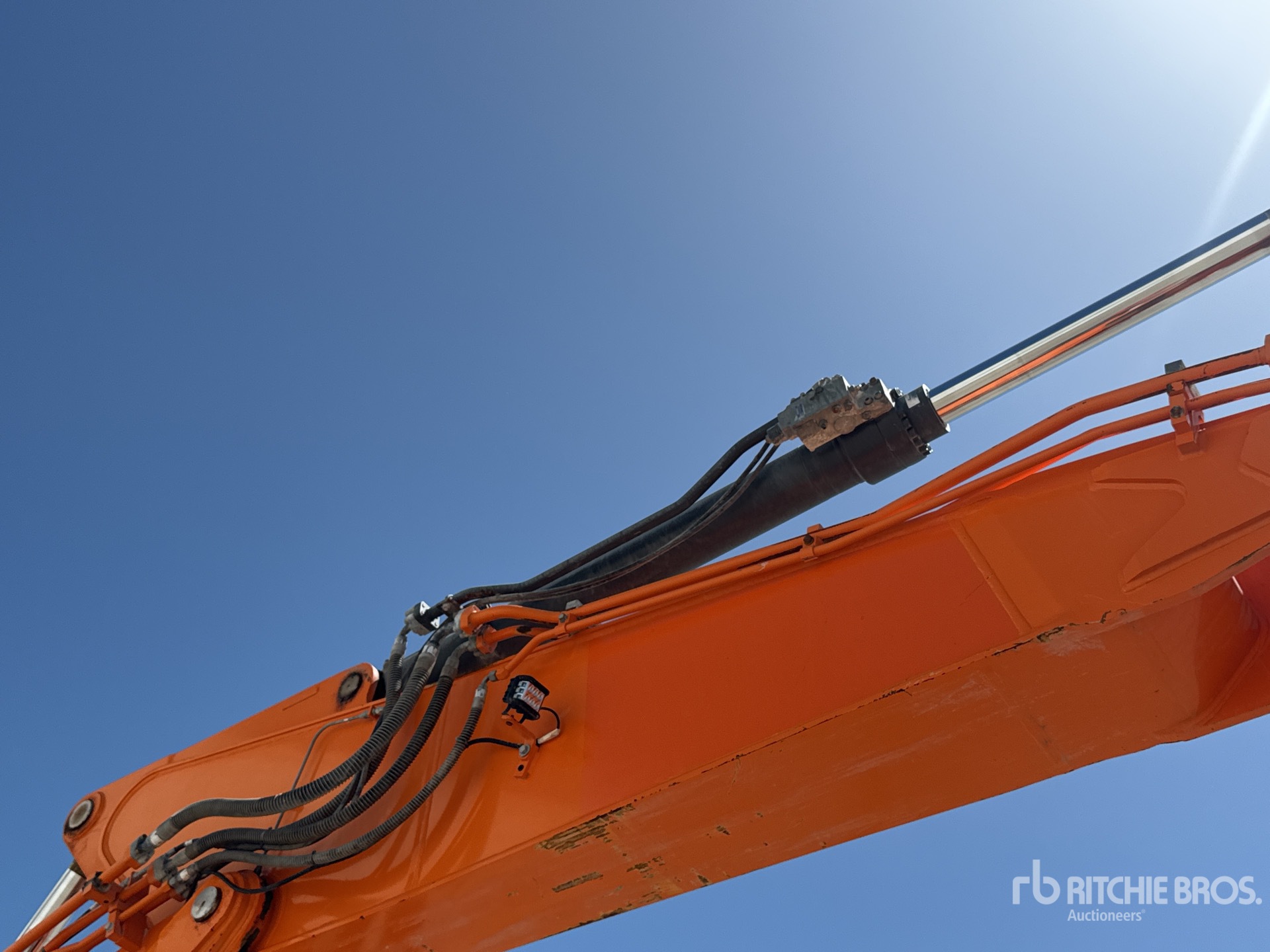

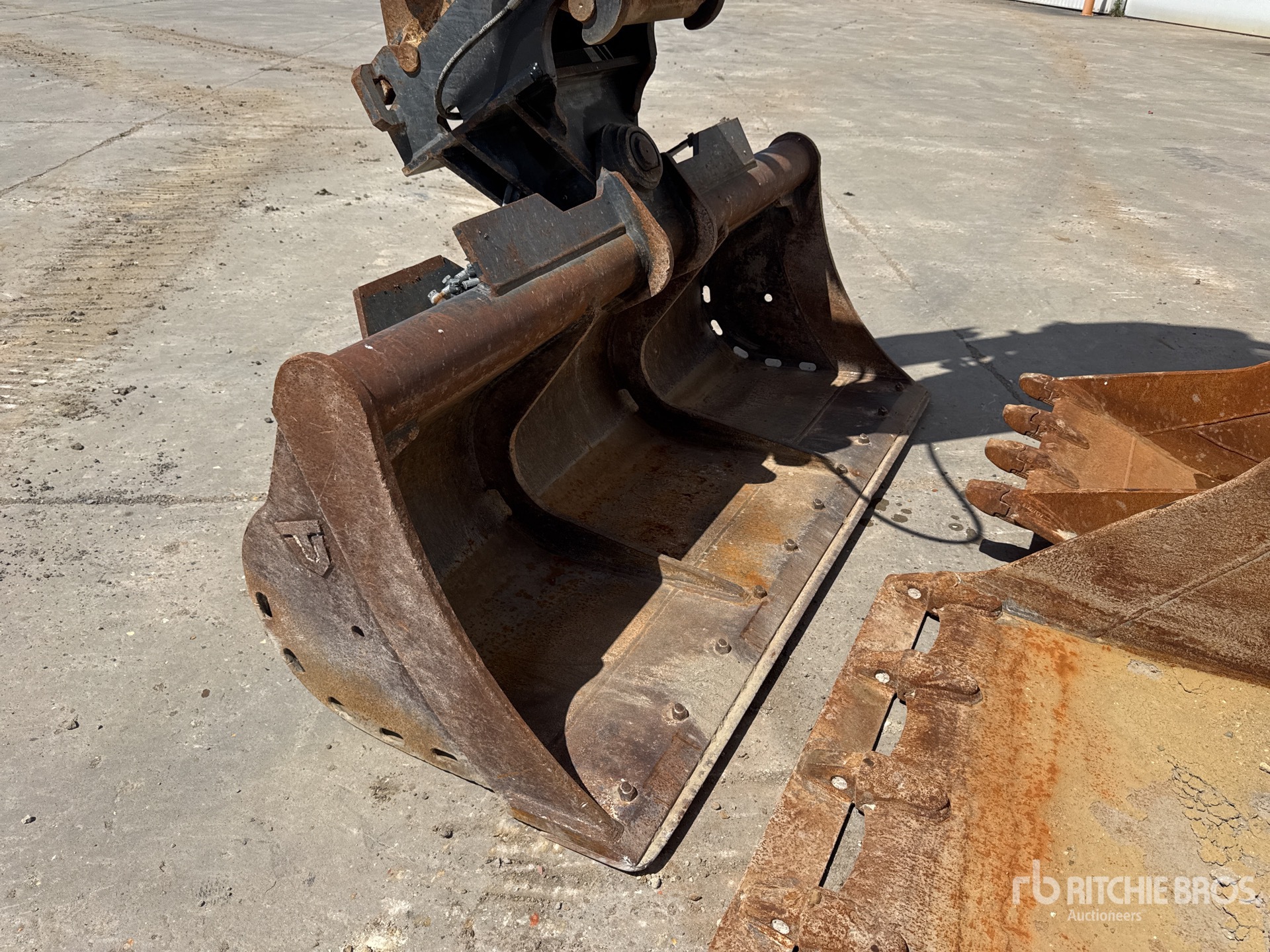

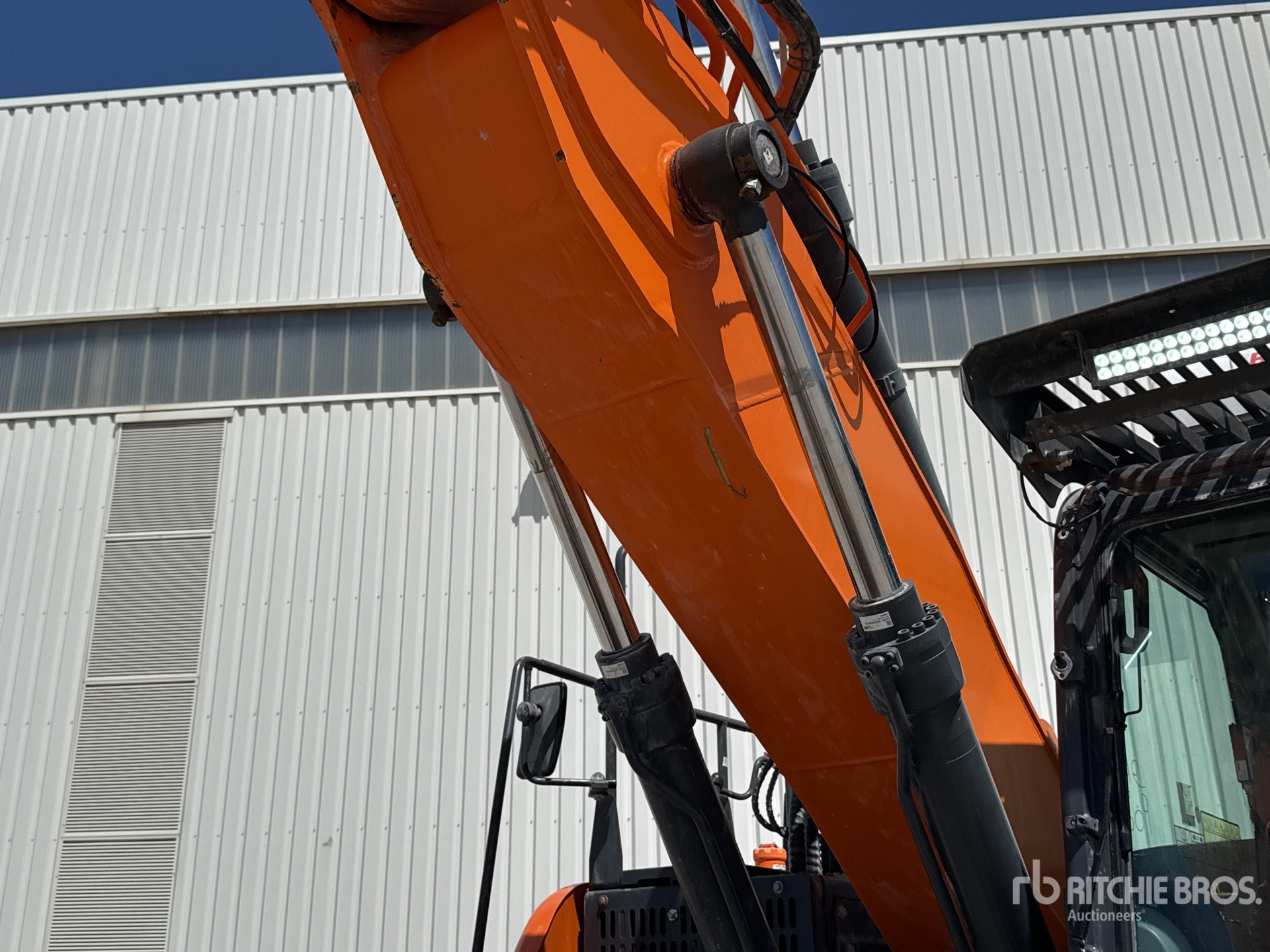

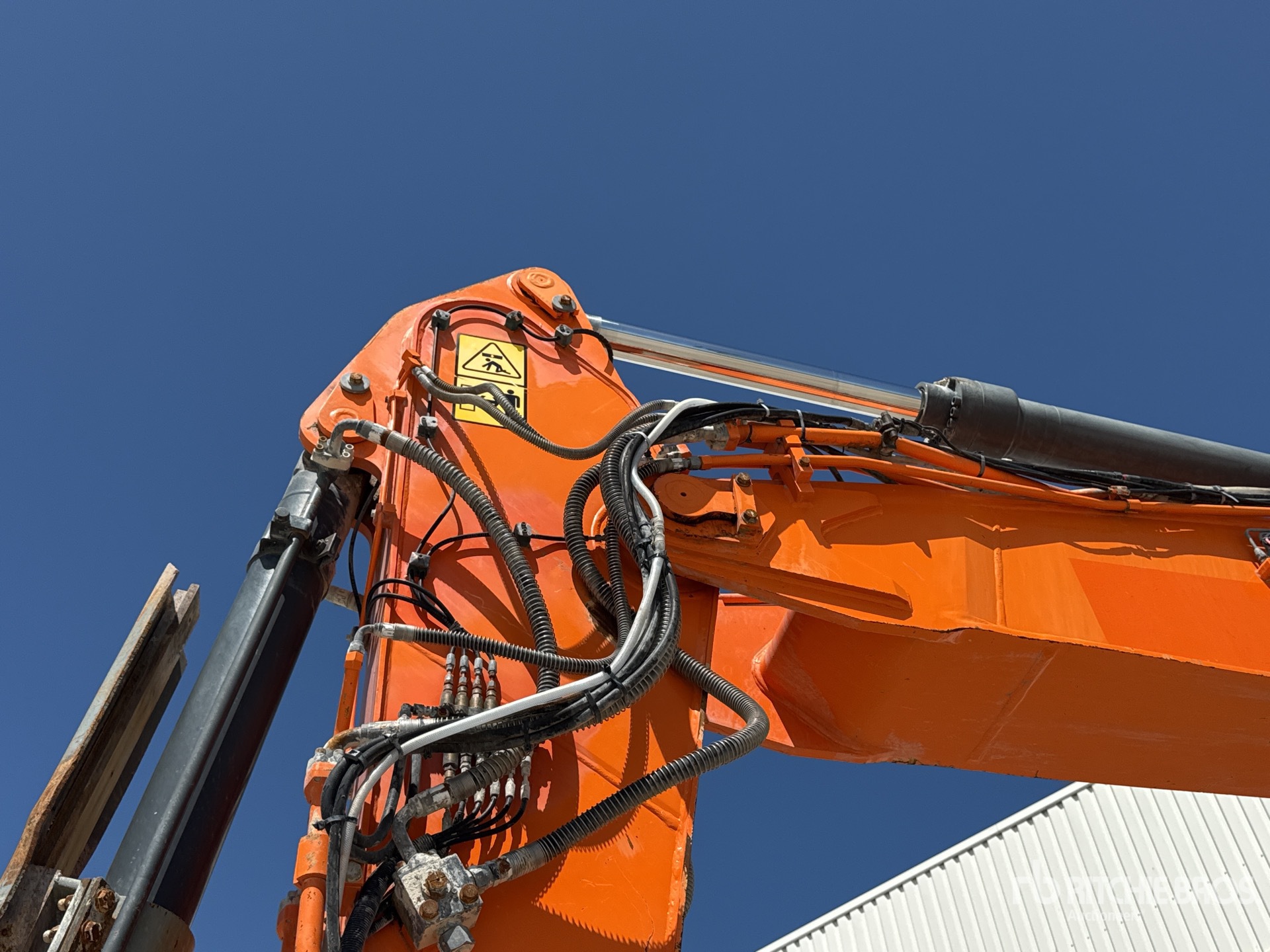

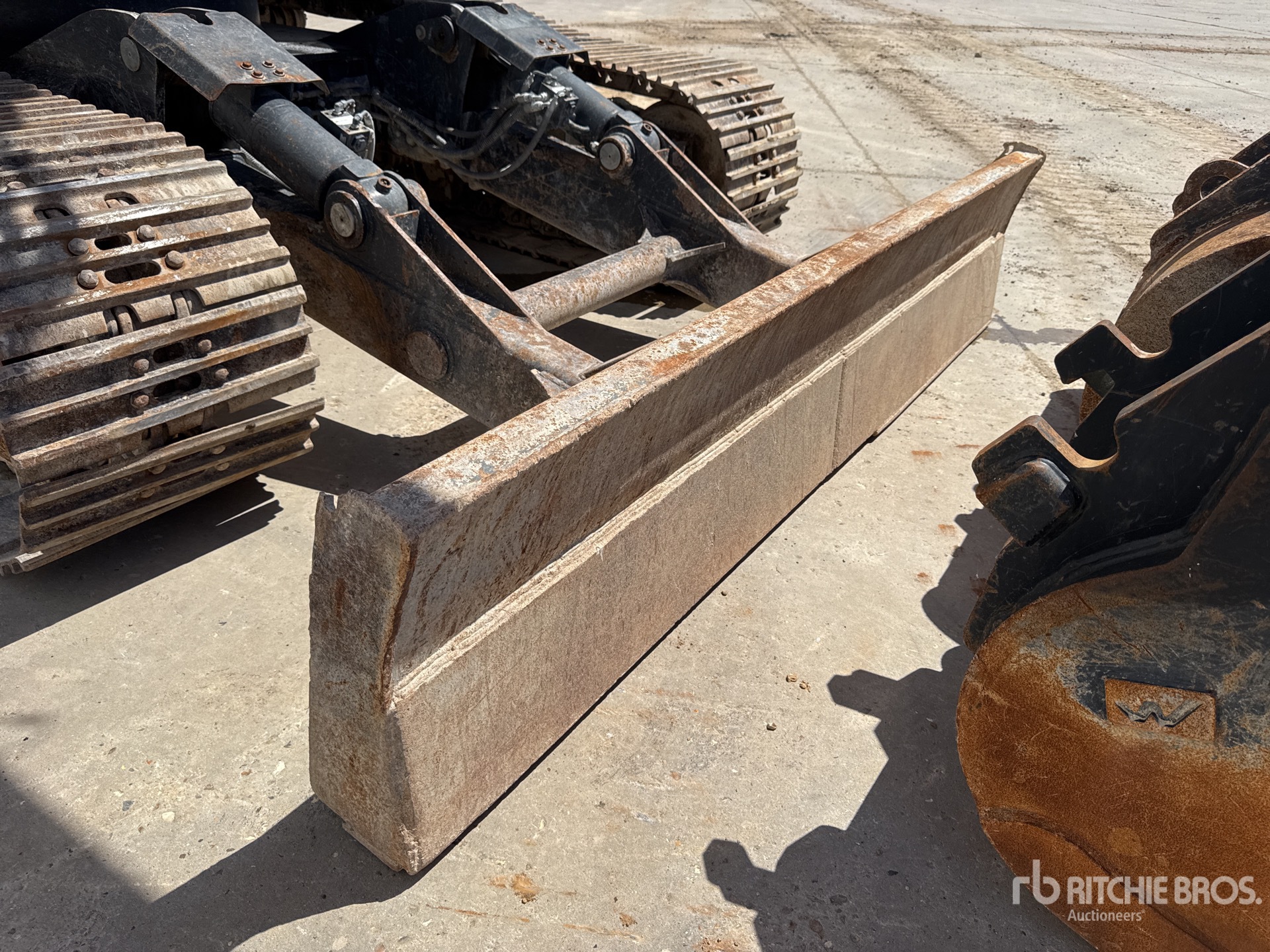

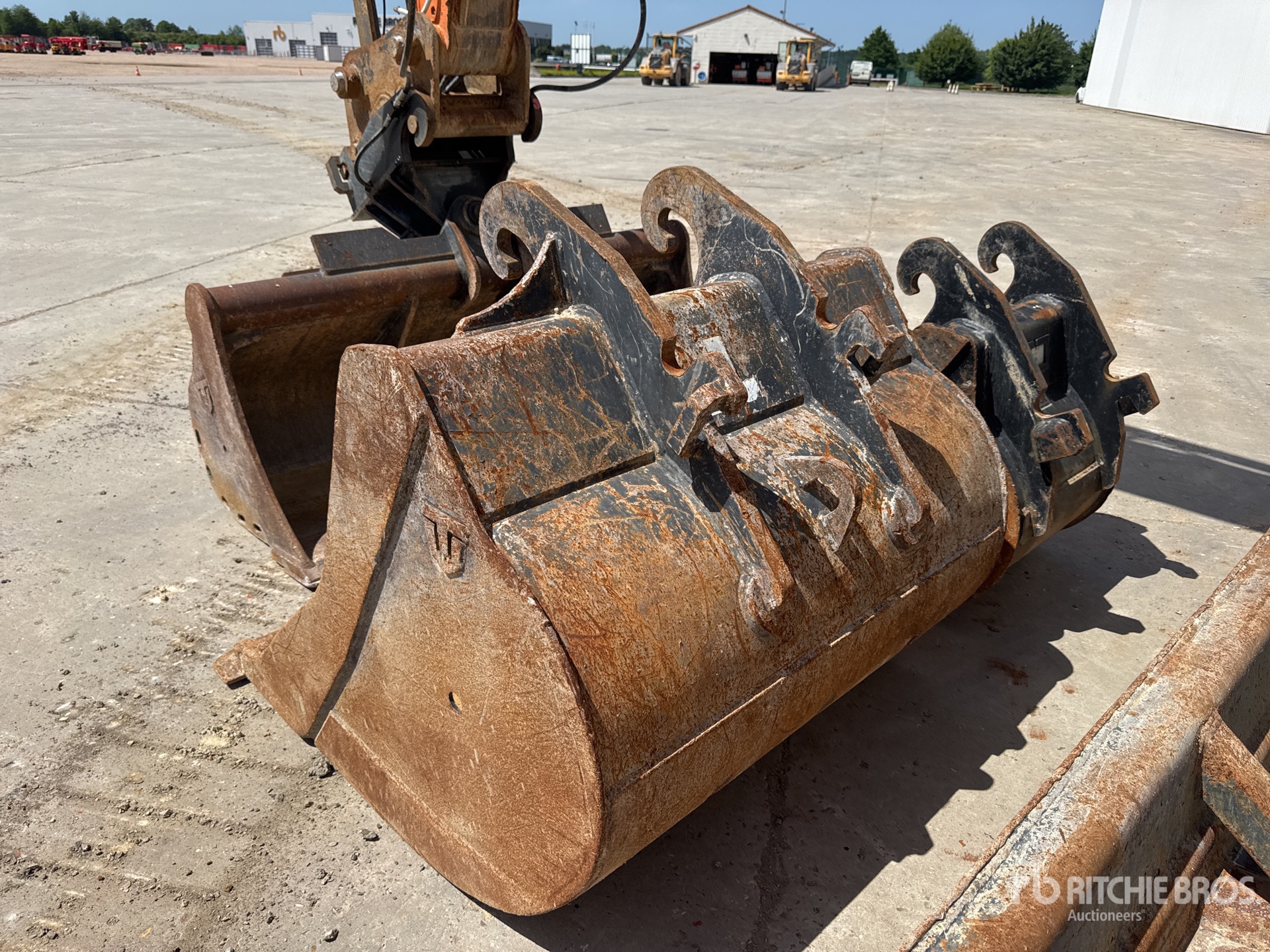

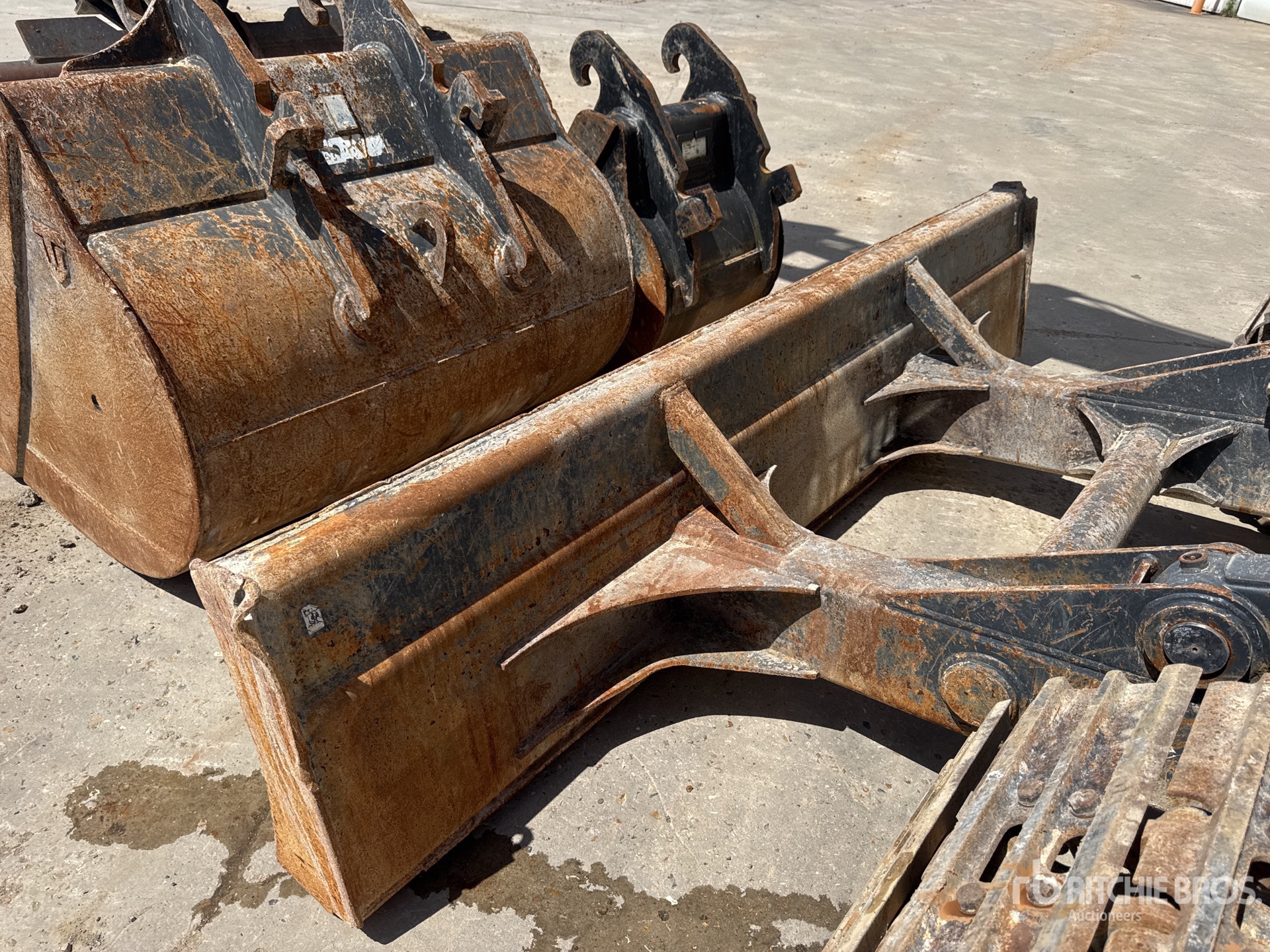

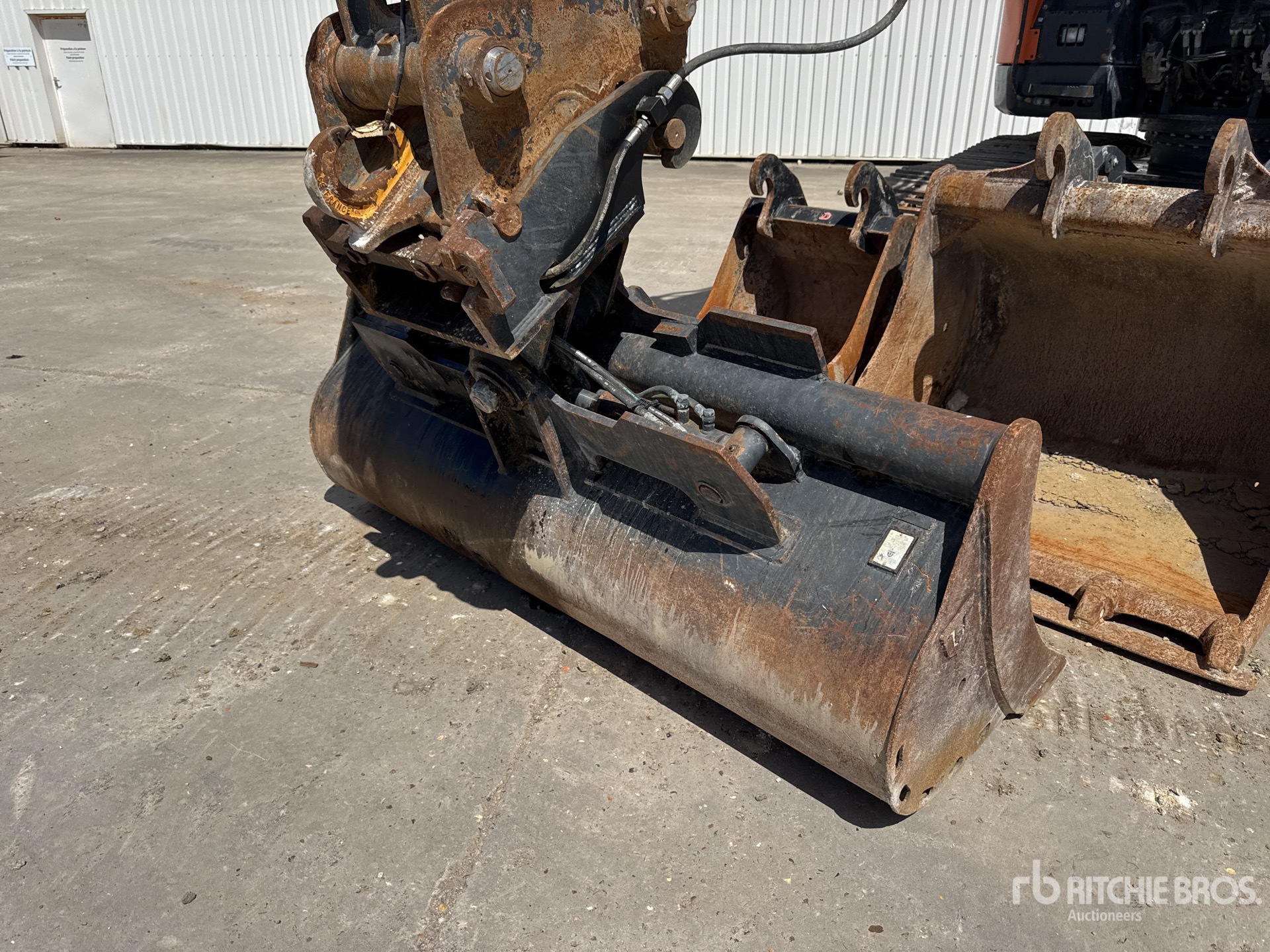

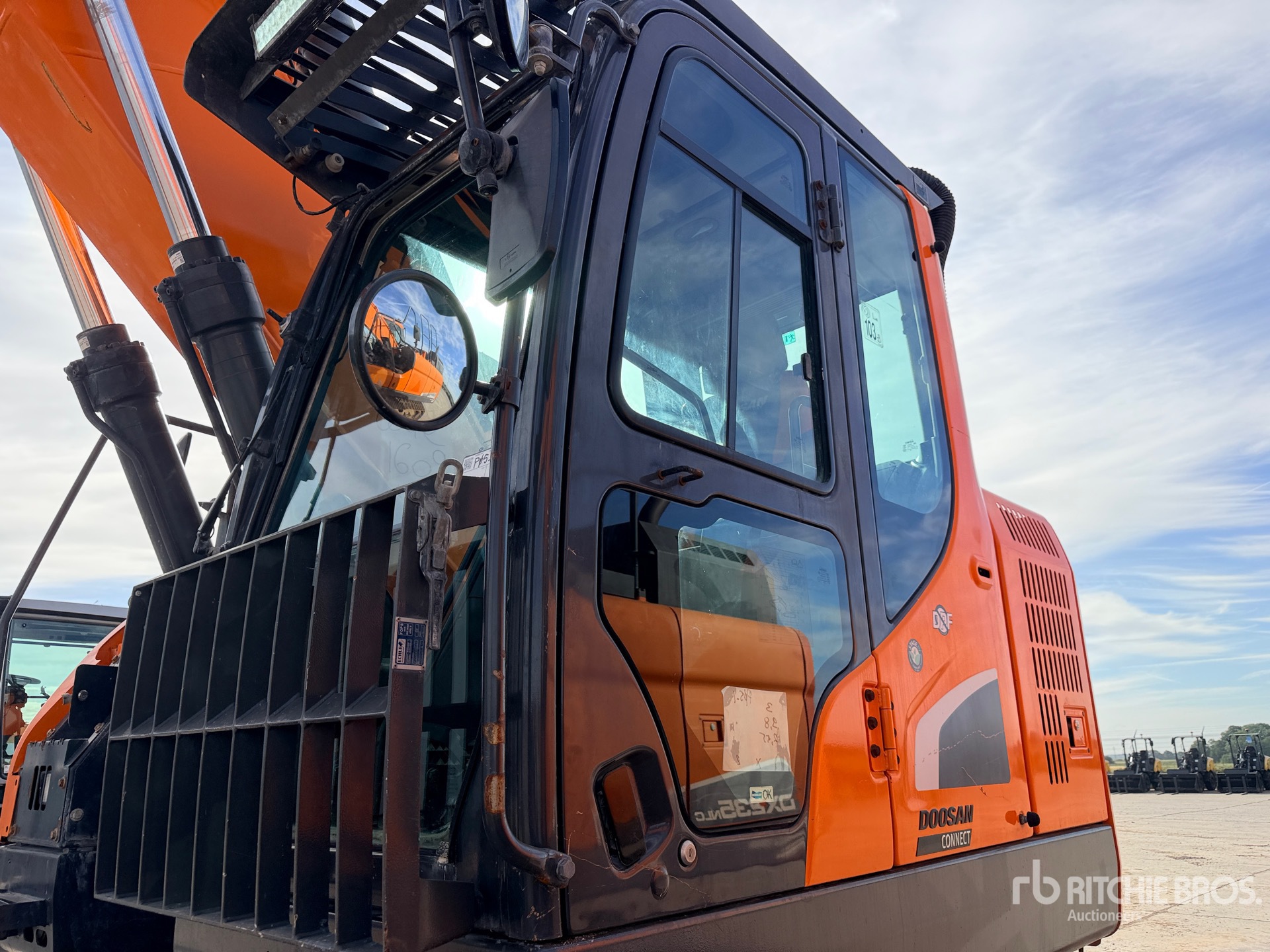

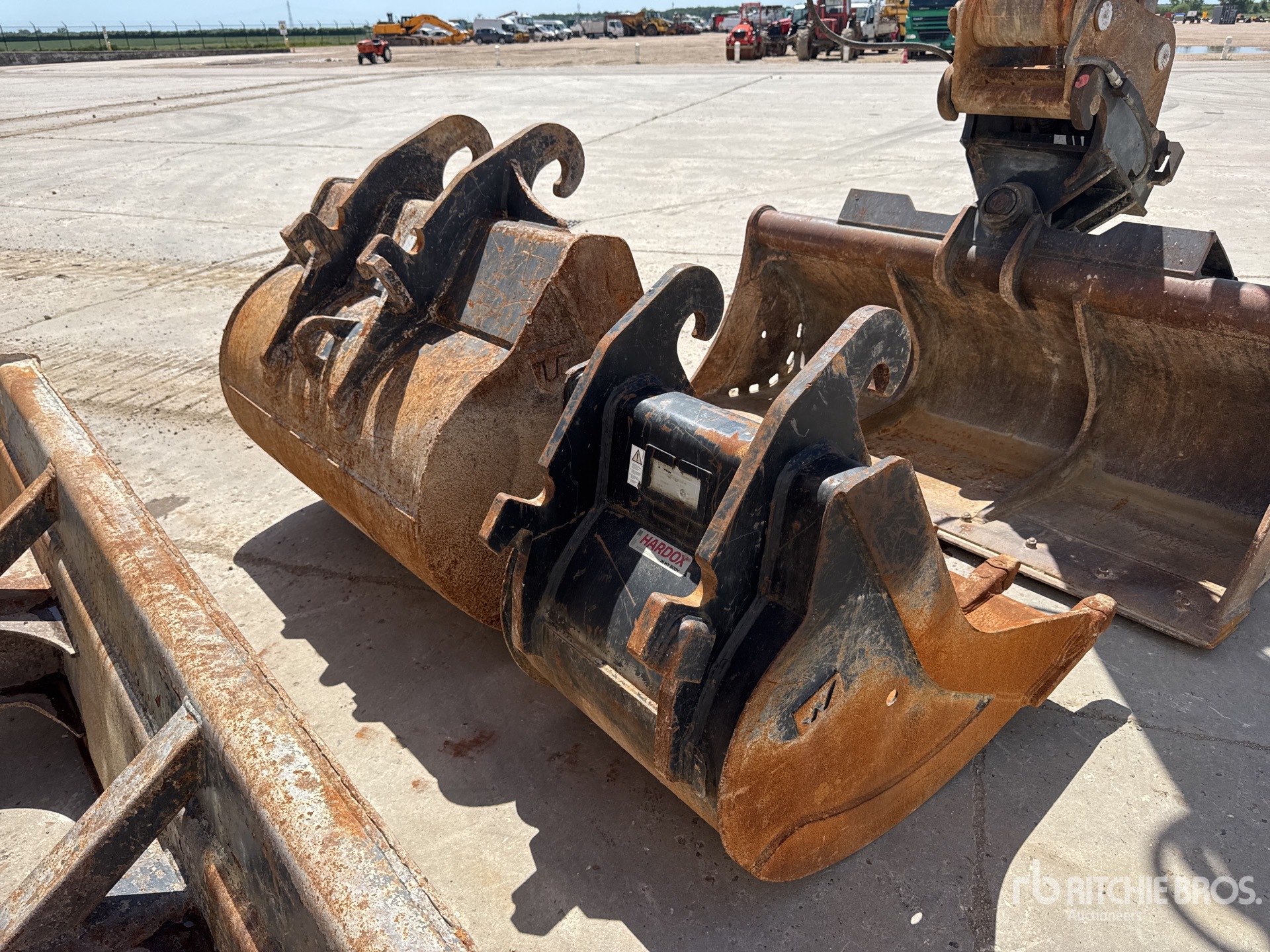

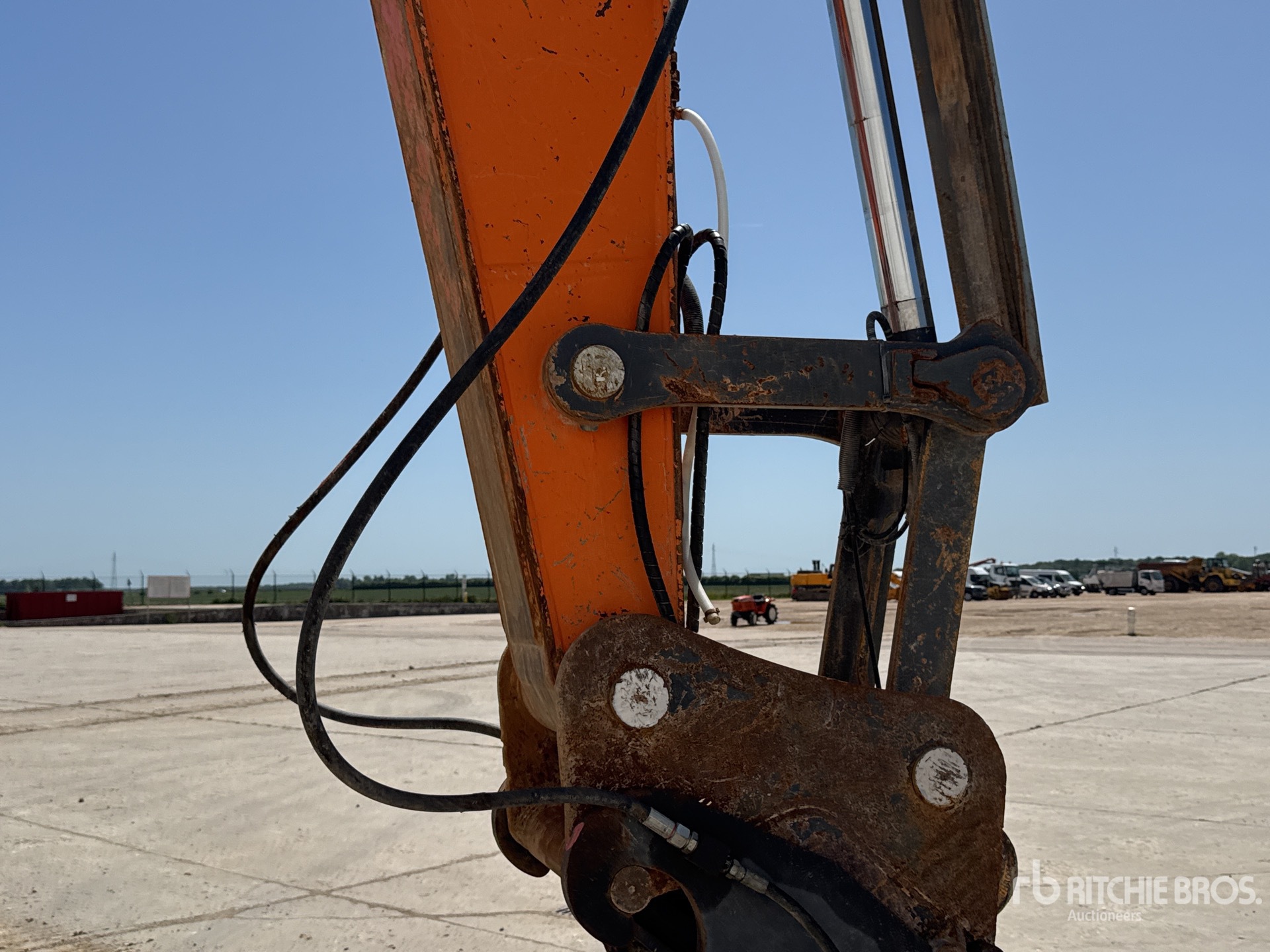

Air Conditioner, Cab Screens, Rear & Side View Cameras, Variable Angle Boom, 2400 mm Stick, Auxiliary Hydraulic Plumbing, Stick Check Valve, Boom Check Valves, Backfill Blade, 600 mm Track Shoes, Hydraulic Quick Coupler, 2120 mm Hydraulic Tilting Bucket, Additional 2 Digging Bucket, Auto Lube, BM Air Closing Time: 2026-06-23 11:55:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Doosan DX235LCR-5 is a compact radius crawler excavator designed for construction, utility, and urban jobsite applications. It features a reduced tail swing design for improved maneuverability in confined spaces while maintaining digging performance and stability. The DX235LCR-5 is part of Doosan's 23-ton class excavator range and is commonly used for earthmoving, trenching, site preparation, and material handling. Typical configurations include a diesel engine, hydraulic system optimized for smooth control, and a reinforced undercarriage for durability. The model is suited to contractors needing a balance of reach, lifting capability, and access in restricted work areas.

Boom/Stick Excavator Option 1
Max Digging Depth	22 ft (7 m)
Max Digging Height	36 ft (11 m)
Max Digging Reach	32 ft (10 m)
Max Loading Height	26 ft (8 m)
Max Reach Along Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Minimum swing radius	91 in (231 cm)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	30 ft (9 m)
Dimensions
Cab width	3,353 ft (1,022 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	6 ft (2 m)
Track length	175 in (445 cm)
Track shoe width	3 ft (1 m)
Track width	7,841 ft (2,390 m)
Undercarriage Width	11 ft (3 m)

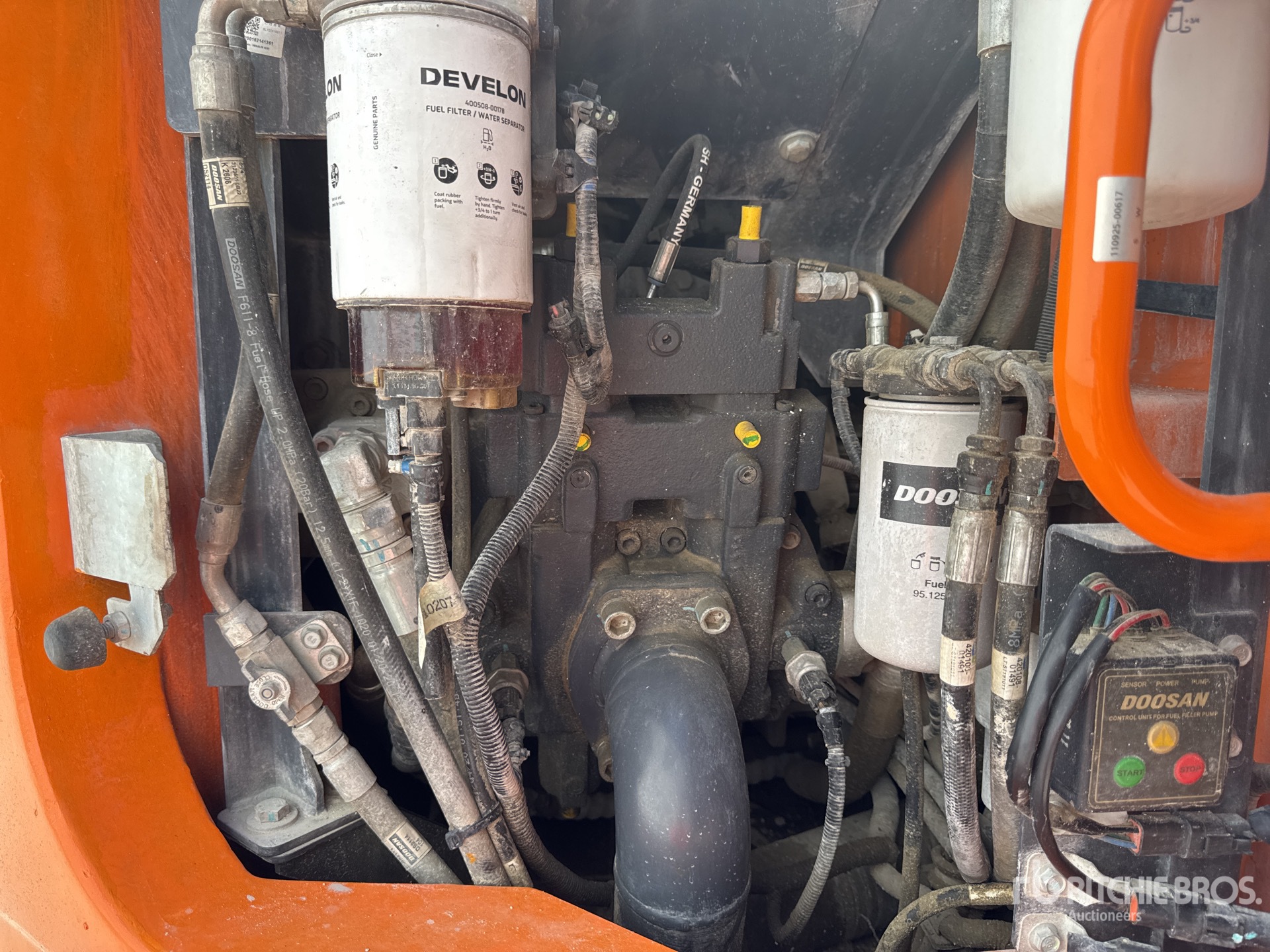

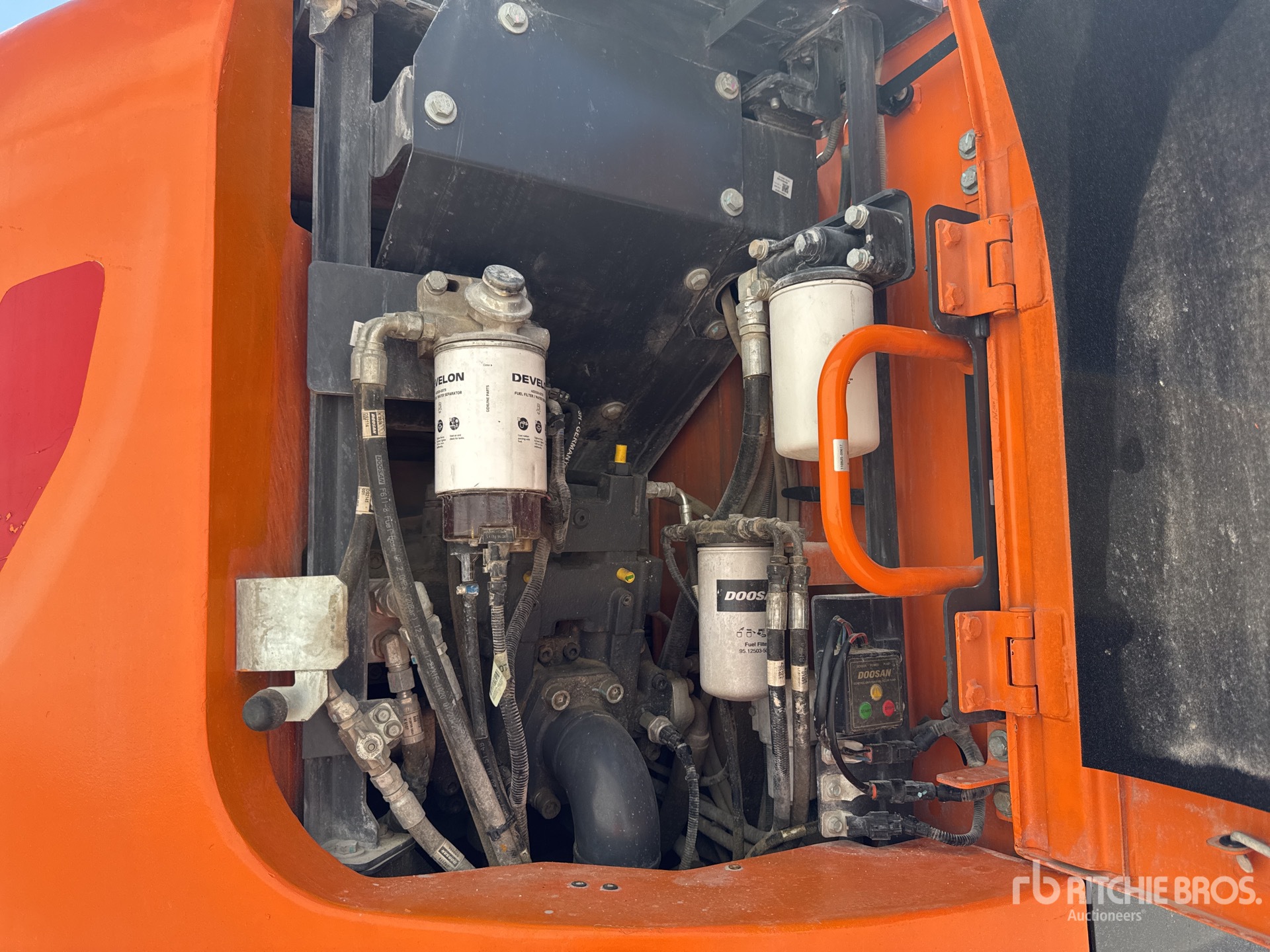

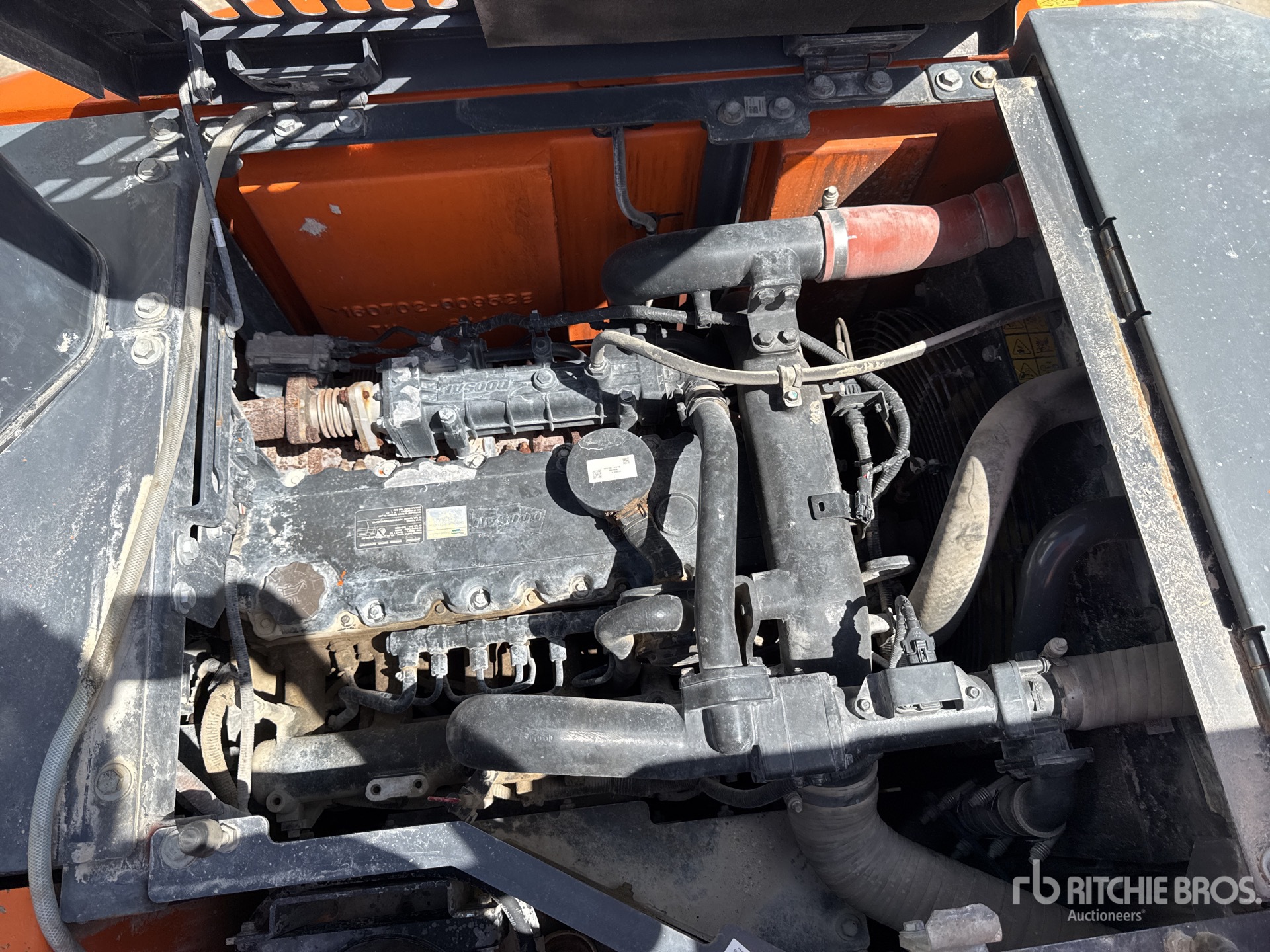

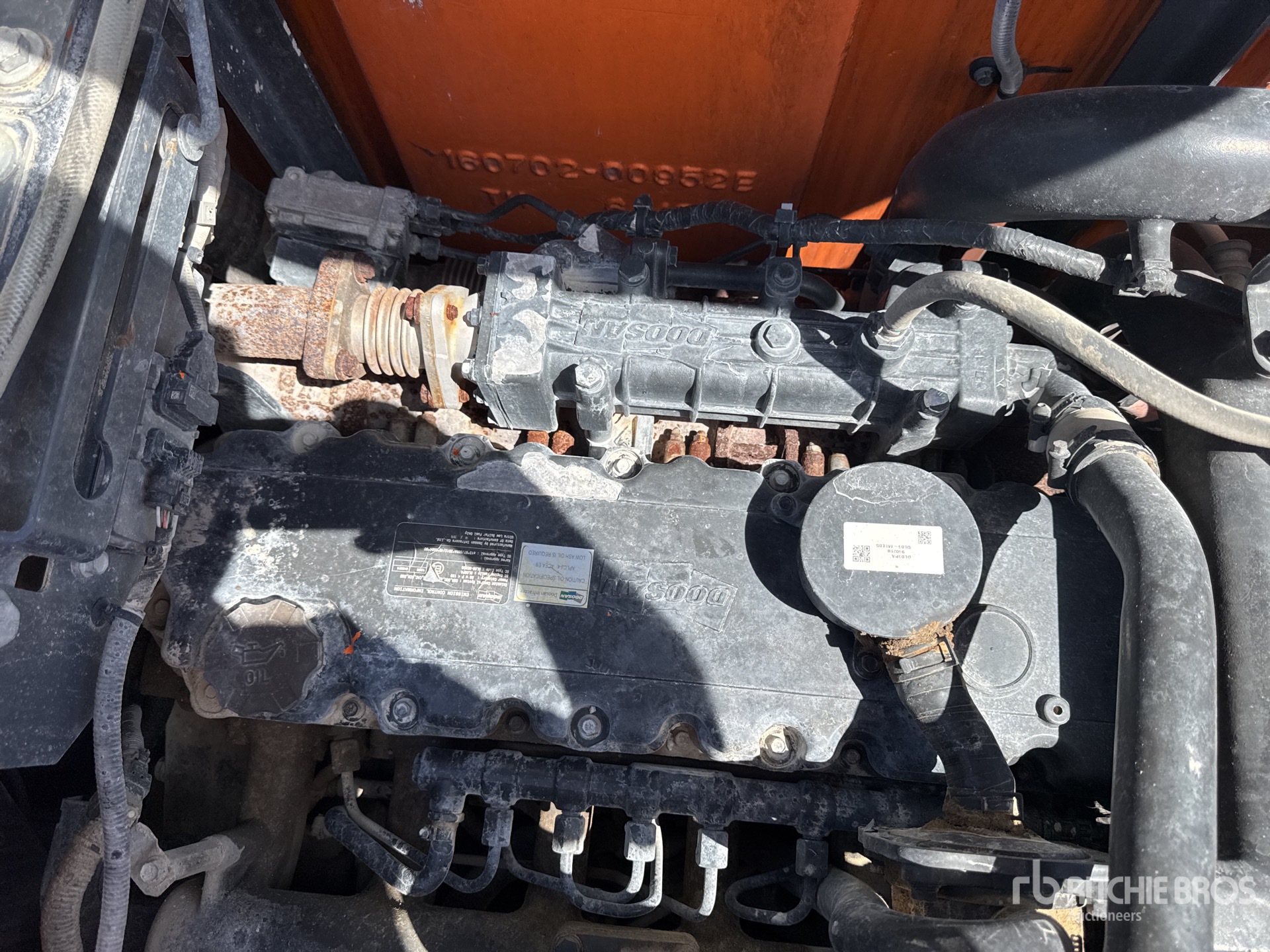

Engine
Alternator	85 amps
Displacement	6 cu in (97 cu cm)
Engine Make	Doosan
Engine Model	DL06P
Gross Power	189 hp (141 kw)
Max Torque	593 lbs ft (804 nm)
Net Power	181 hp (135 kw)
Power Measured @	1,900 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Main Pump	59 gpm (223 lpm)
Pilotpump-Gear Design	7 gpm (26 lpm)
Relief Pressure - Boost	5,263 psi
Relief Pressure -Normal	4,978 psi
Operating Specifications
Cooling System Fluid Capacity	8 gal (31 l)
DEF tank capacity	9 gal (35 l)
Engine Oil Capacity	7 gal (27 l)
Fuel Capacity	82 gal (310 l)
Hydraulic System Fluid Capacity	61 gal (230 l)
Hydraulic Tank	50 gal (190 l)
Operating Voltage	24 volts
Operating Weight	56,019 lbs (25,410 kg)
Swing Drive Fluid Capacity	1 gal (5 l)
Travel speed, high range	4 mph (6 kph)
Travel speed, low range	2 mph (3 kph)
Swing Mechanism
Swing Speed	11 rpm

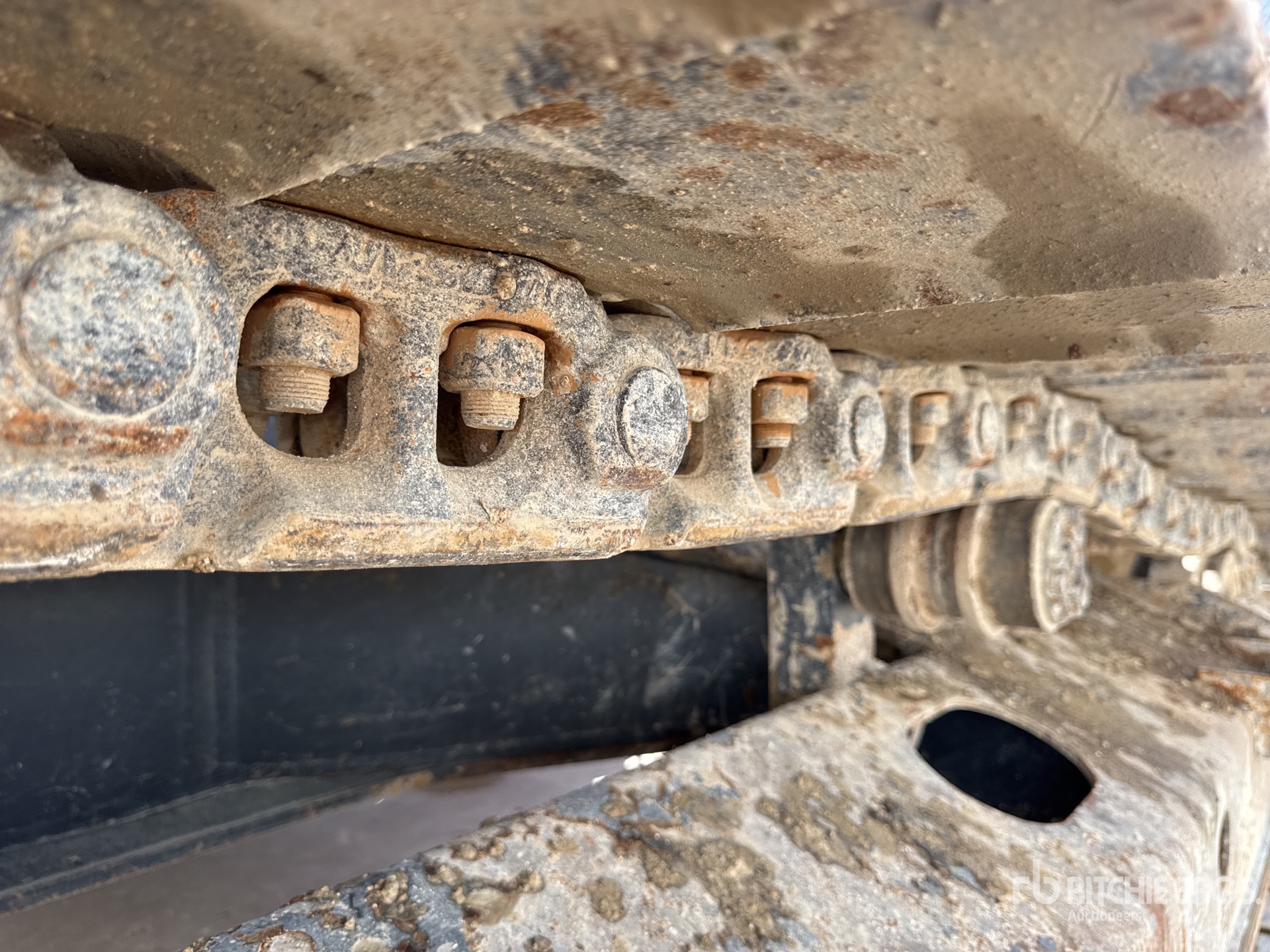

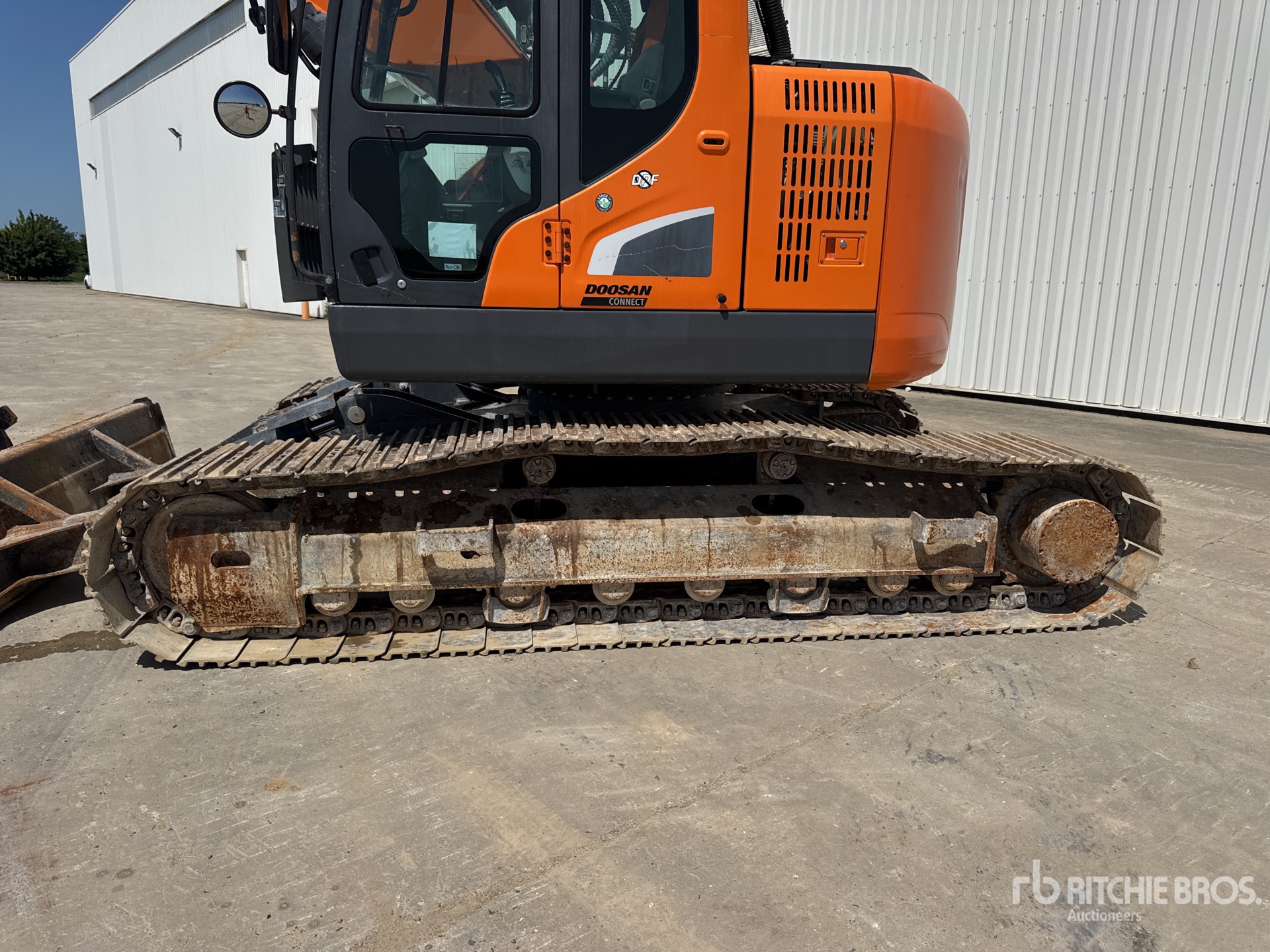

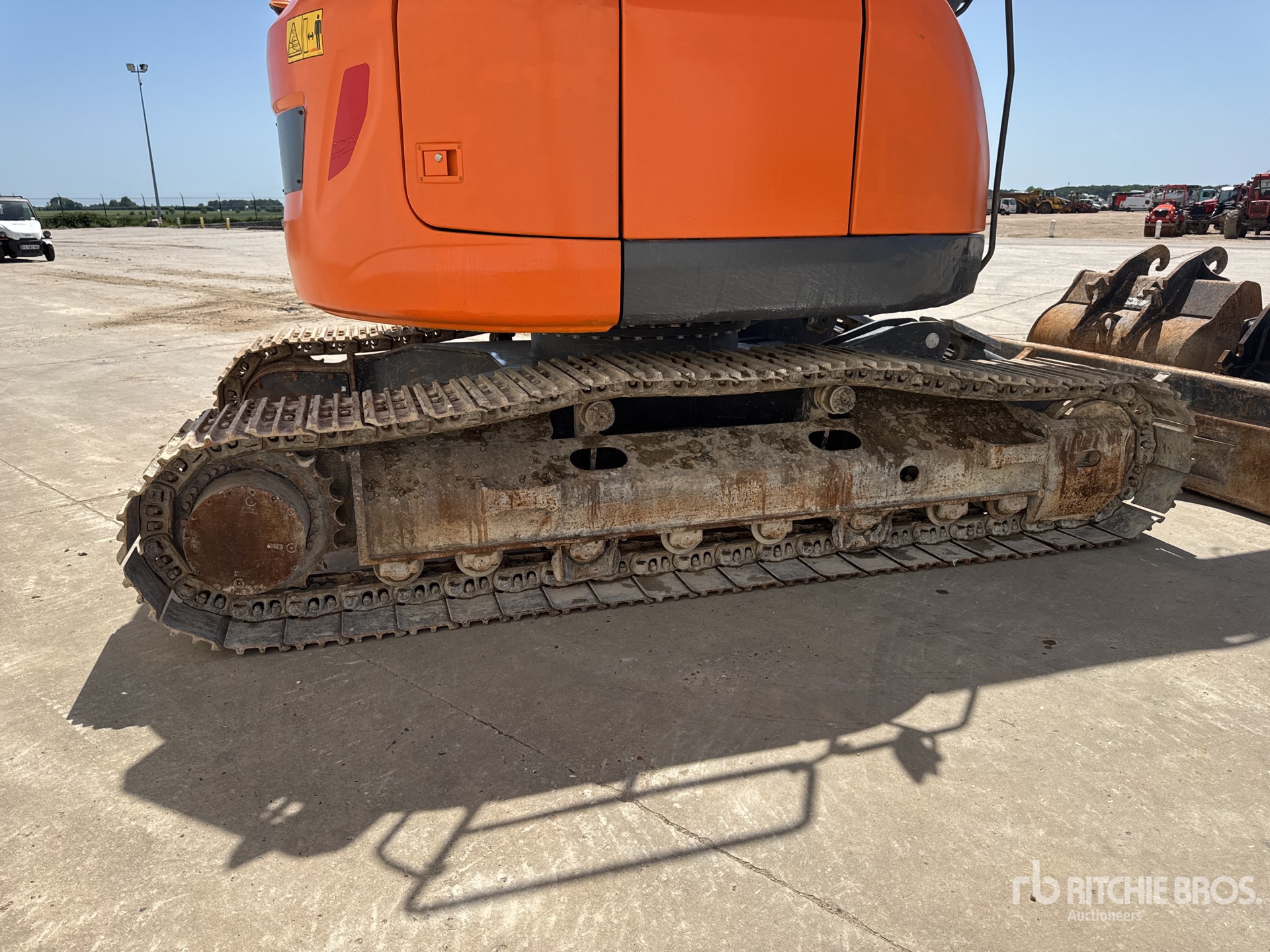

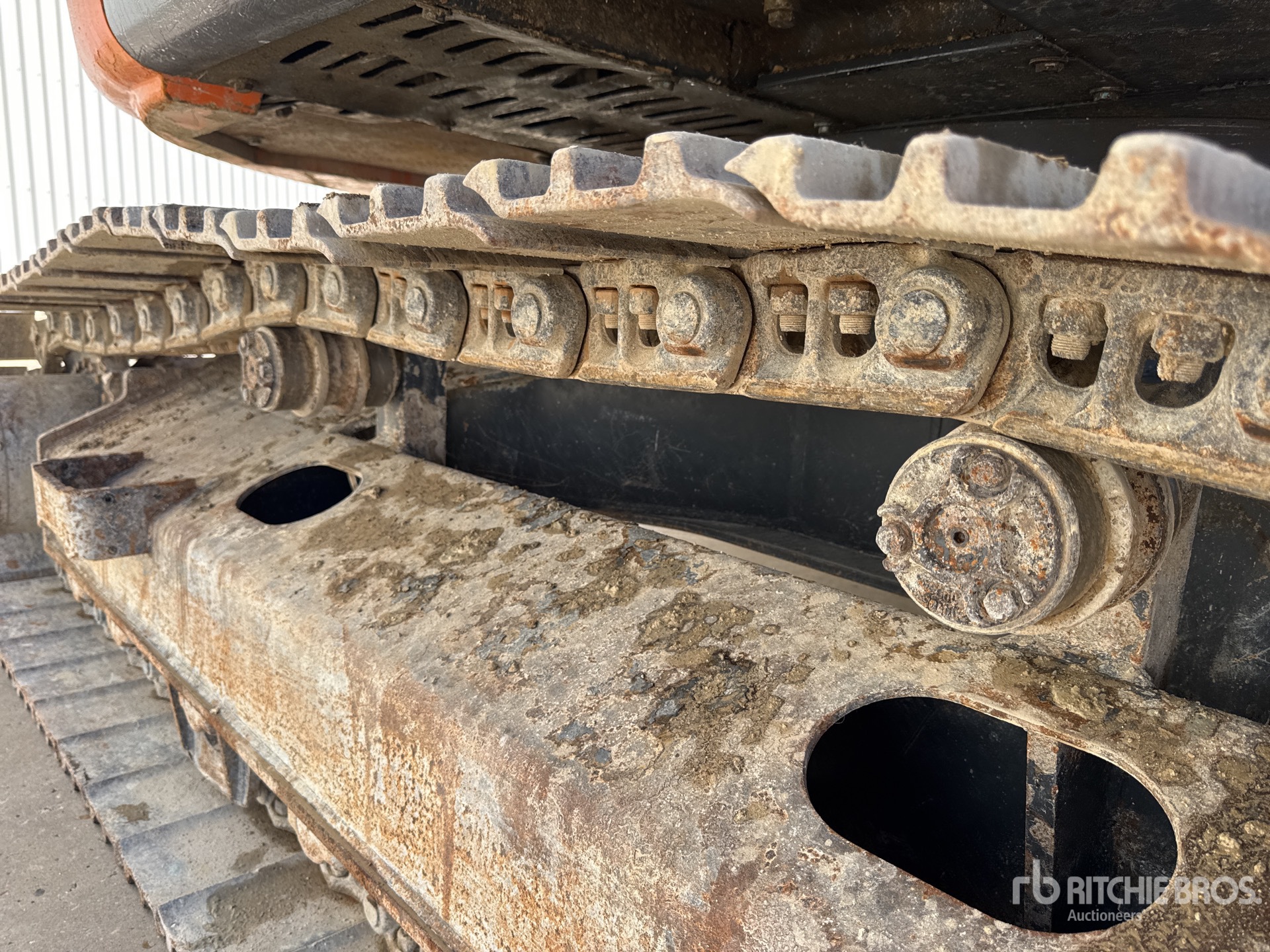

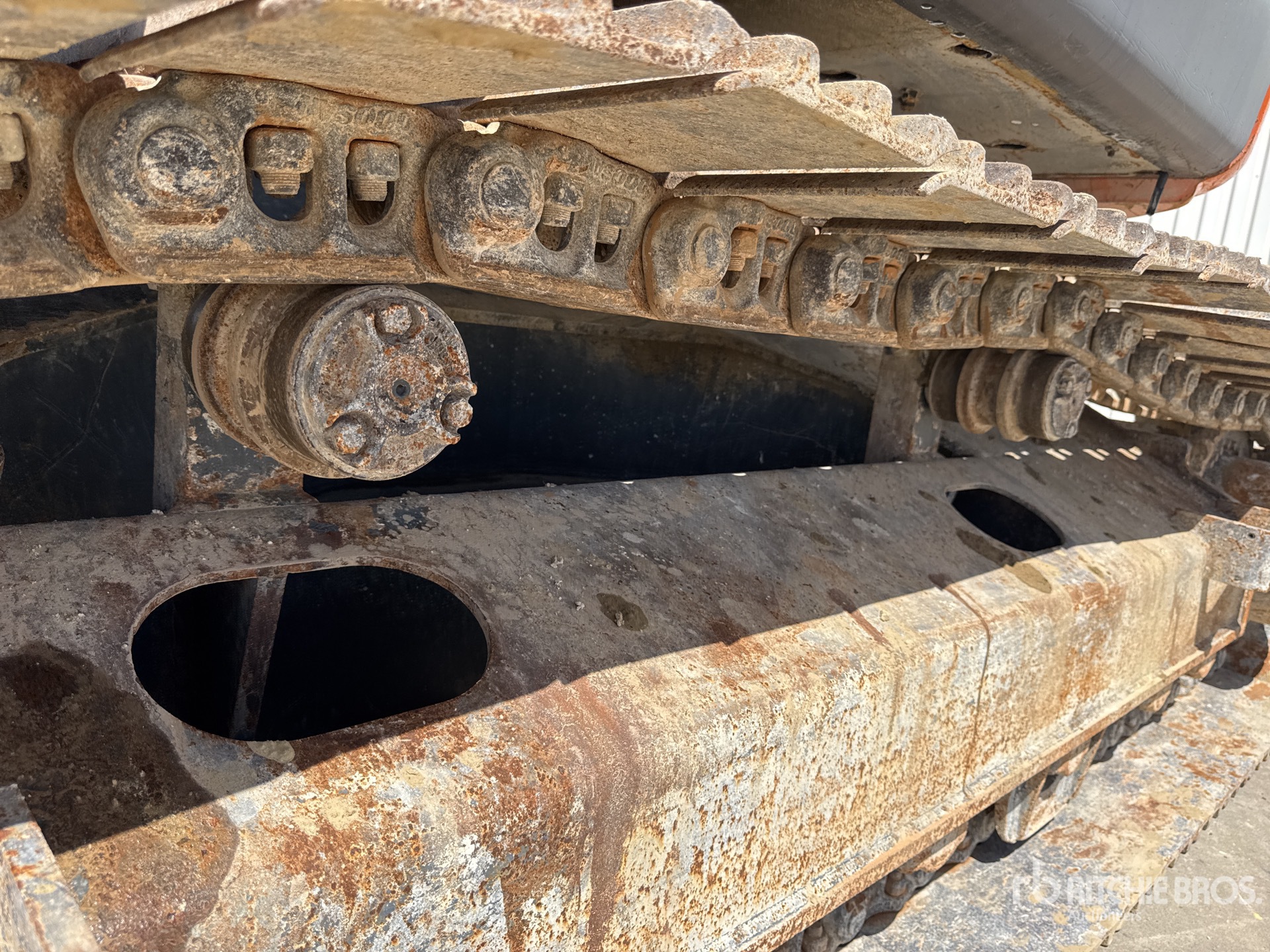

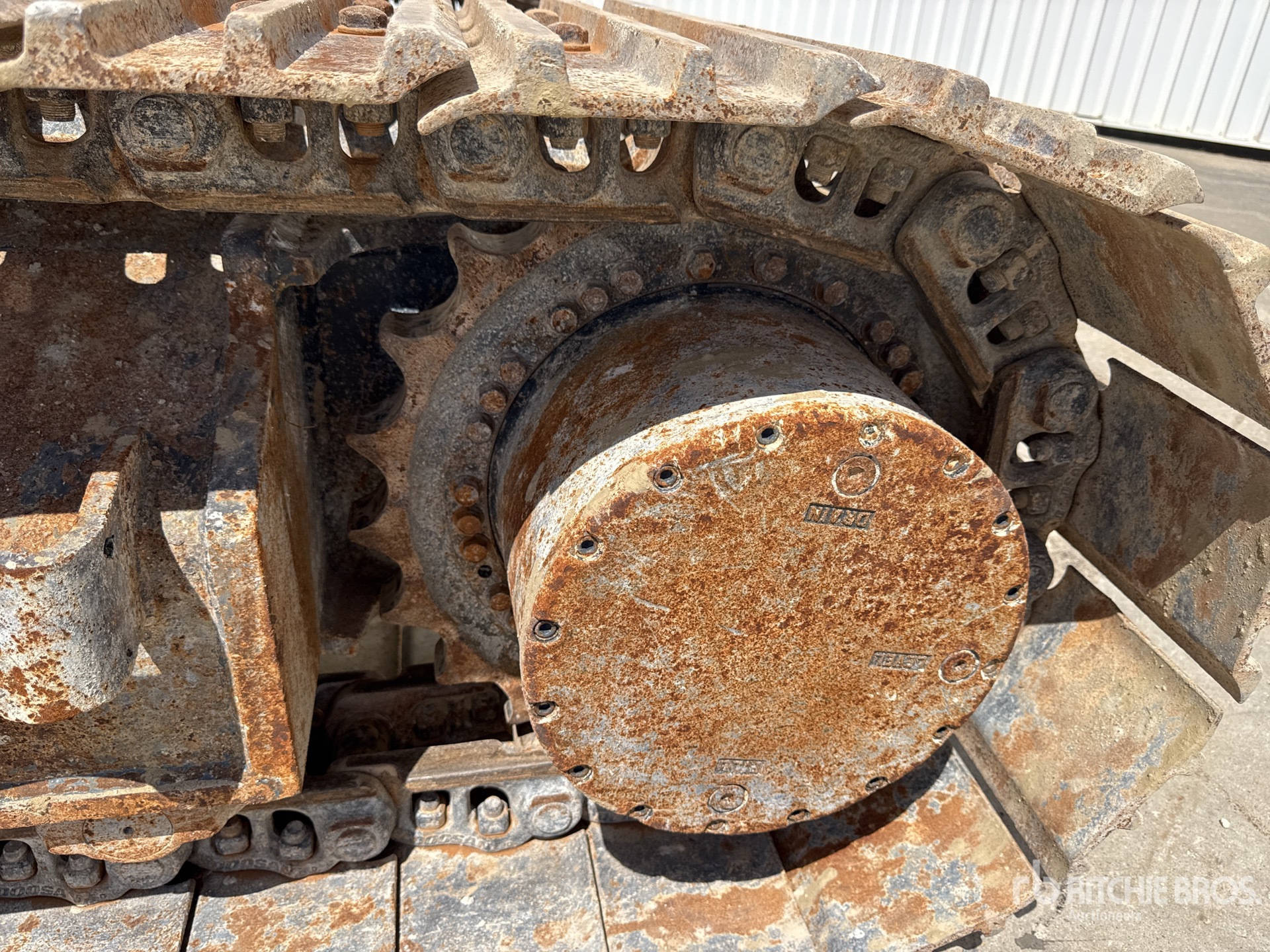

Undercarriage
Drawbar Pull	64,375 lbs (29,200 kg)
Number of Lower Rollers	2
Number of Shoes per Side	49
Number of Upper Rollers	2
