2020 Hitachi ZX135US-6 For Sale in North East, Md

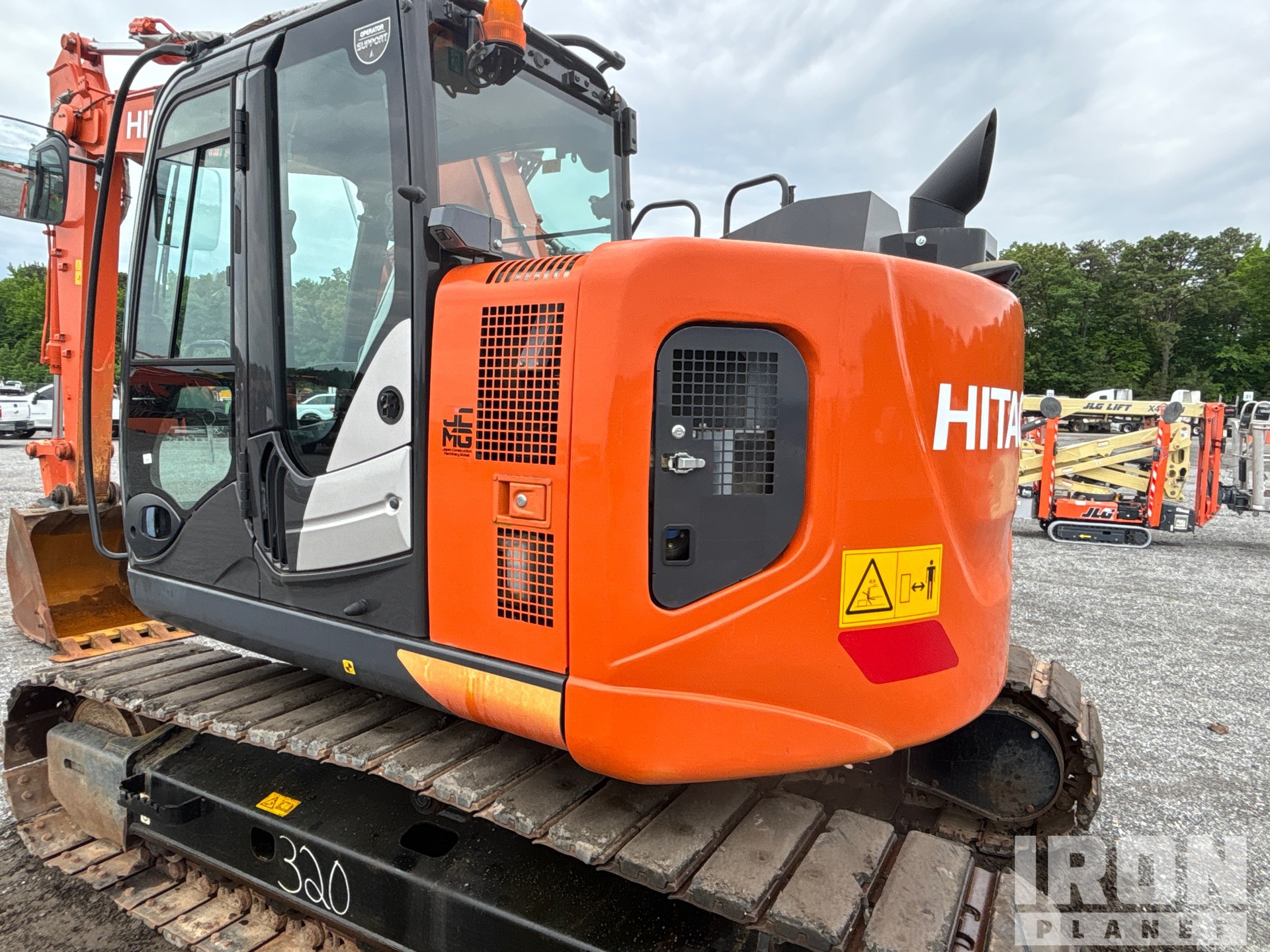

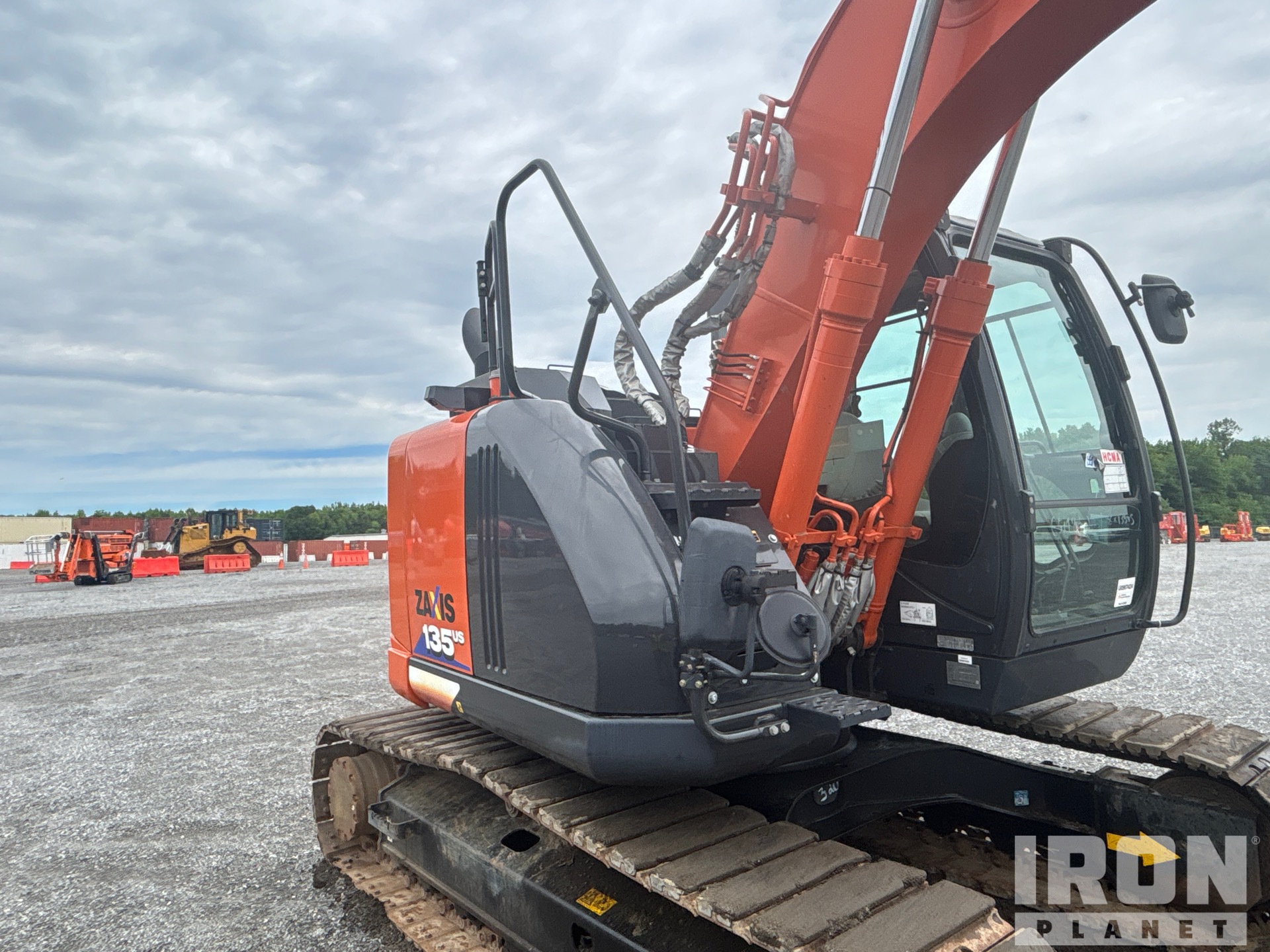

Name: 2020 Hitachi ZX135US-6
Brand: Hitachi
SKU: 88554721
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-23 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

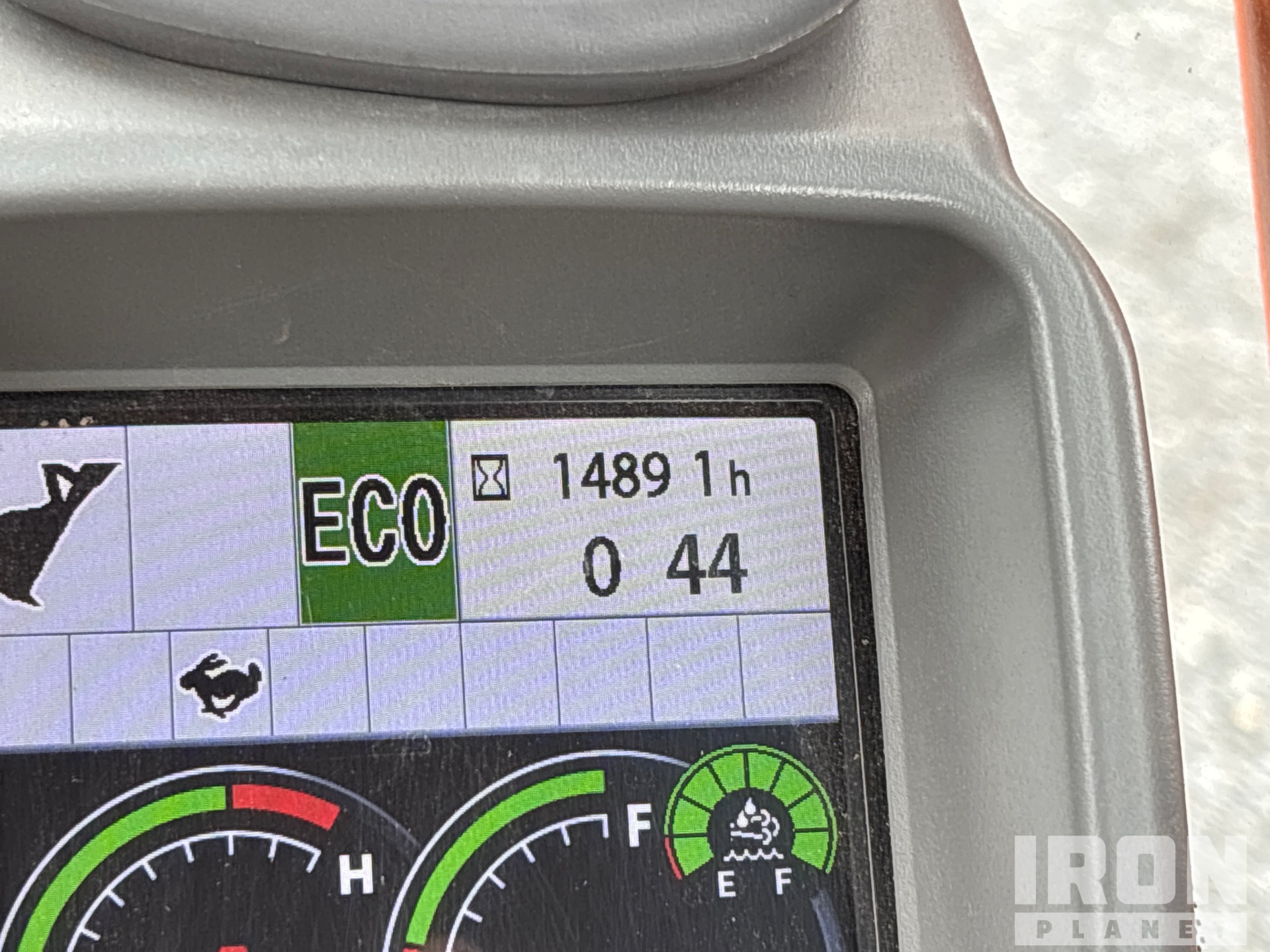

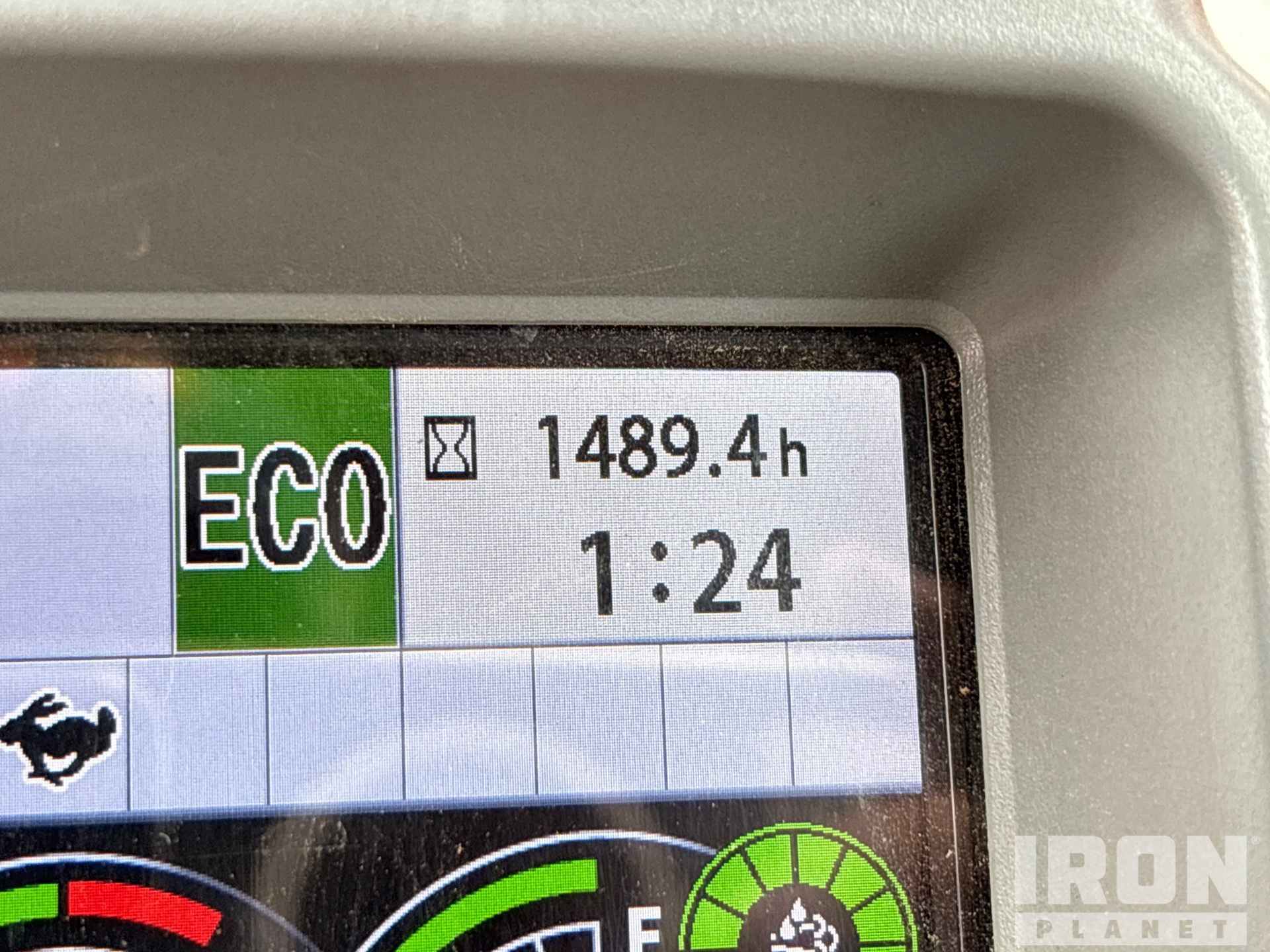

Hours:	1489

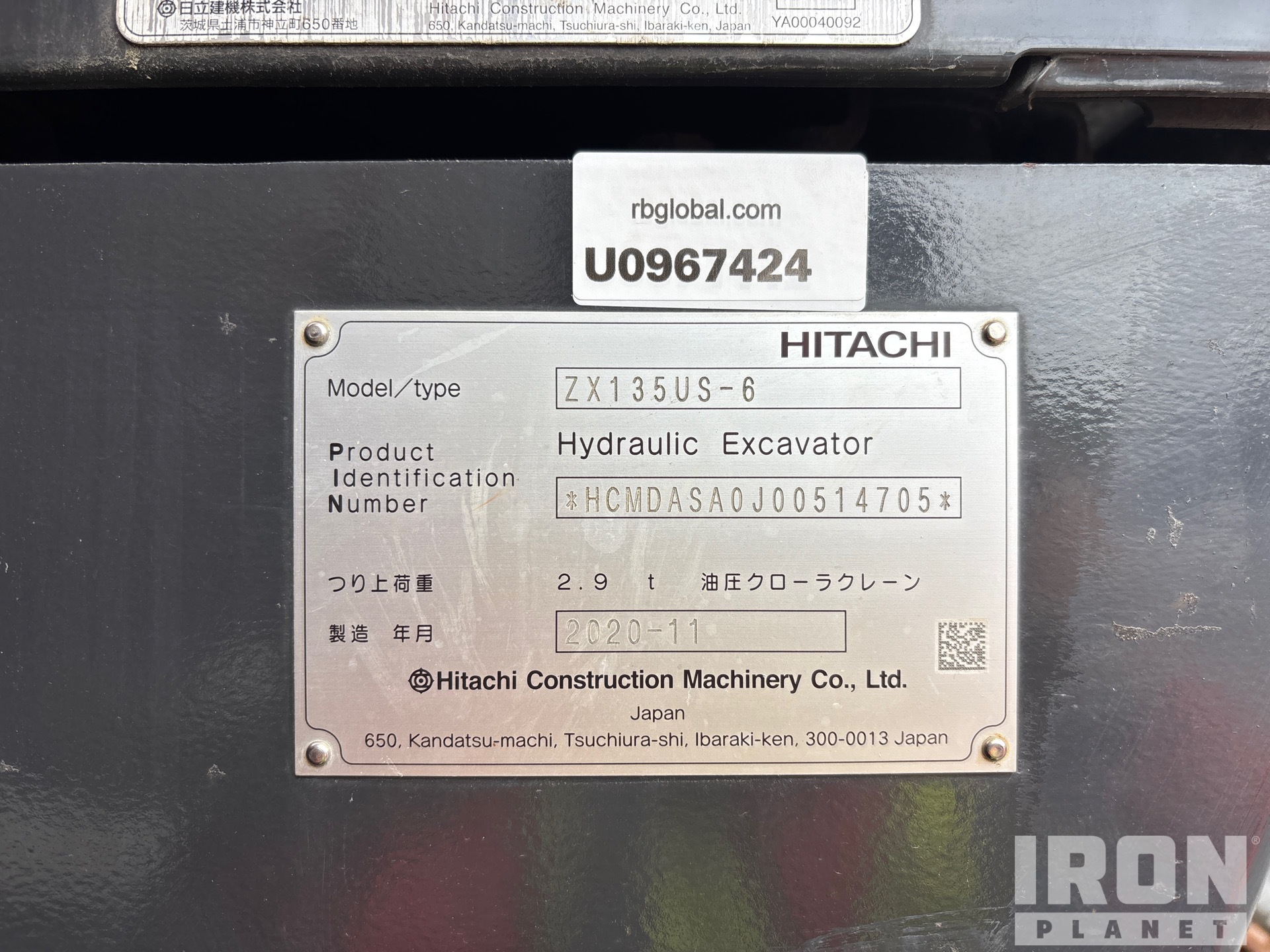

Serial Number:	HCMDASA0J00514705
Machine Location:	NORTH EAST, MD

Description:

Located in Lane 36 Spot 1, Air Conditioner, Control Pattern Changer, Surround View Cameras, 2019 US EPA Label, Requires Diesel Exhaust Fluid, 8 ft 3 in Stick, 19.75 in Triple Grouser Track Shoes w/Rubber Inserts, 40 in Digging Bucket Closing Time: 2026-06-23 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Hitachi ZX135US-6 is a compact-radius hydraulic excavator in Hitachi's Zaxis-6 series. Designed for urban construction, utility work, road building, and confined job sites, it combines a short tail swing with stable digging performance. The ZX135US-6 is typically equipped with a fuel-efficient diesel engine, advanced hydraulic controls, and a reinforced undercarriage for durability. Its operating weight, digging depth, and bucket capacity make it suitable for trenching, grading, lifting, and general earthmoving tasks. The cab is configured for operator visibility, comfort, and control precision. This model is commonly used in applications requiring maneuverability and productivity in restricted spaces.

Boom/Stick Excavator Option 1
Arm Digging Force - ISO	15,512 lbs (7,036 kg)
Arm Digging Force - SAE	15,062 lbs (6,832 kg)
Bucket Digging Force - ISO	23,380 lbs (10,605 kg)
Bucket Digging Force - SAE	20,458 lbs (9,279 kg)
Max Cutting Height	31 ft (9 m)
Max Digging Depth	18 ft (6 m)
Max Digging Reach	28 ft (8 m)
Max Reach Along Ground	27 ft (8 m)
Max Vertical Wall Digging Depth	16 ft (5 m)
Max.Dumping Height	23 ft (7 m)
Boom/Stick Excavator Option 2
Arm Digging Force - ISO	13,713 lbs (6,220 kg)
Arm Digging Force - SAE	13,489 lbs (6,118 kg)
Bucket Digging Force - ISO	23,380 lbs (10,605 kg)
Bucket Digging Force - SAE	20,458 lbs (9,279 kg)
Max Cutting Height	32 ft (10 m)
Max Digging Depth	20 ft (6 m)
Max Digging Reach	29 ft (9 m)
Max Reach Along Ground	29 ft (9 m)
Max Vertical Wall Digging Depth	17 ft (5 m)
Max.Dumping Height	24 ft (7 m)
Minimum swing radius	97 in (245 cm)
Capacities
Cooling system	6 gal (21 l)
Diesel exhaust fluid (DEF) tank	3 gal (12 l)
Engine oil with filter	5 gal (17 l)
Fuel Tank	58 gal (220 l)
Hydraulic system	41 gal (155 l)
Hydraulic Tank	16 gal (60 l)
Propel	1 gal (4 l)
Swing drive	1 gal (3 l)
Cylinders
Bore (Arm)	5 in (12 cm)
Bore (Boom)	4 in (11 cm)
Bore (Bucket)	4 in (10 cm)
Rod Diameter (Arm)	3 in (7 cm)
Rod Diameter (Boom)	3 in (7 cm)
Rod Diameter (Bucket)	35 in (88 cm)
Stroke (Arm)	3 in (8 cm)
Stroke (Boom)	37 in (94 cm)
Stroke (Bucket)	3 in (7 cm)
Dimensions
Cab Height	10 ft (3 m)
Counterweight Clearance	3 ft (1 m)
Ground Clearance	1 ft (0 m)
Length	2,902 in (7,370 cm)
Undercarriage Overall Length	12 ft (4 m)
Electrical System
Alternator rating	50 amp
Batteries	2 volts
Battery capacity	3000CCA
Work Lights	2 halogen
Engine
Aspiration	Turbocharged and charged air cooled
Cooling system	Direct-drive suction-type fan
Displacement	183 cu in (3,000 cu cm)
Emissions level	EPA Final Tier 4 / EU Stage IV
Engine Make	Isuzu
Engine Model	4JJ1
Net Power	101 hp (75 kw)
Off-Level Capacity	70%
Power Measured @	2,000 rpm
Hydraulic System
Controls	Pilot levers
Implement - Operating Pressure	4,975 psi
Main pump type	2 variable-displacement axial-piston pumps
Travel - Operating Pressure	5,047 psi
Operating Specifications
Operating Weight	30,644 lbs (13,900 kg)
Swing Mechanism
Swing Speed	13 rpm
Undercarriage
Drawbar Pull	11,216 lbs (5,088 kg)
Max Travel Speed	4 mph (6 kph)
Number of Carrier Rollers per Side	1
Number of Shoes per Side	44
Number of Track Rollers per Side	7
