2013 Hitachi ZX190W-3 For Sale in Orlando, Fl

Name: 2013 Hitachi ZX190W-3
Brand: Hitachi
SKU: 88628365
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-07-09 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

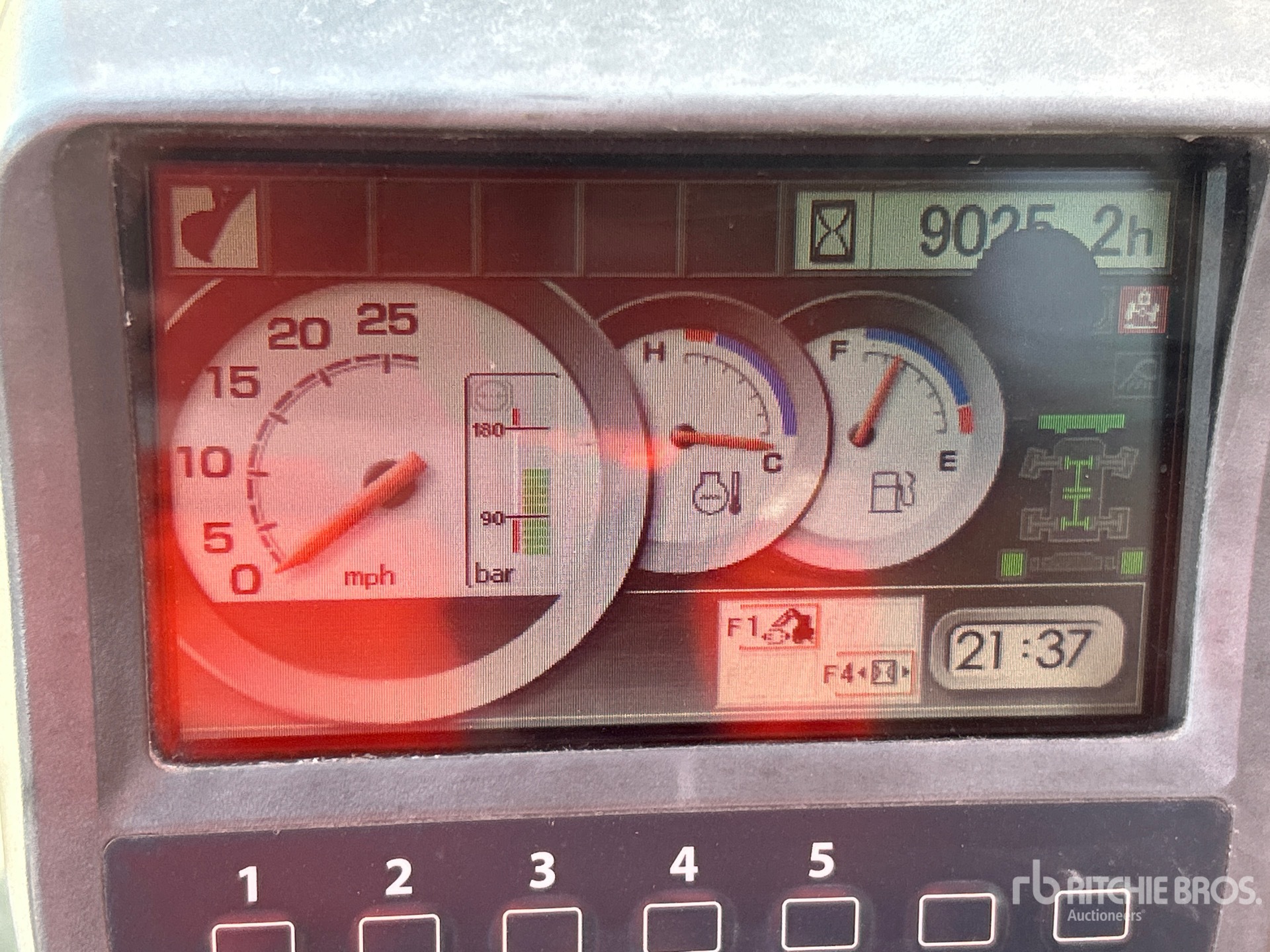

Hours:	9025

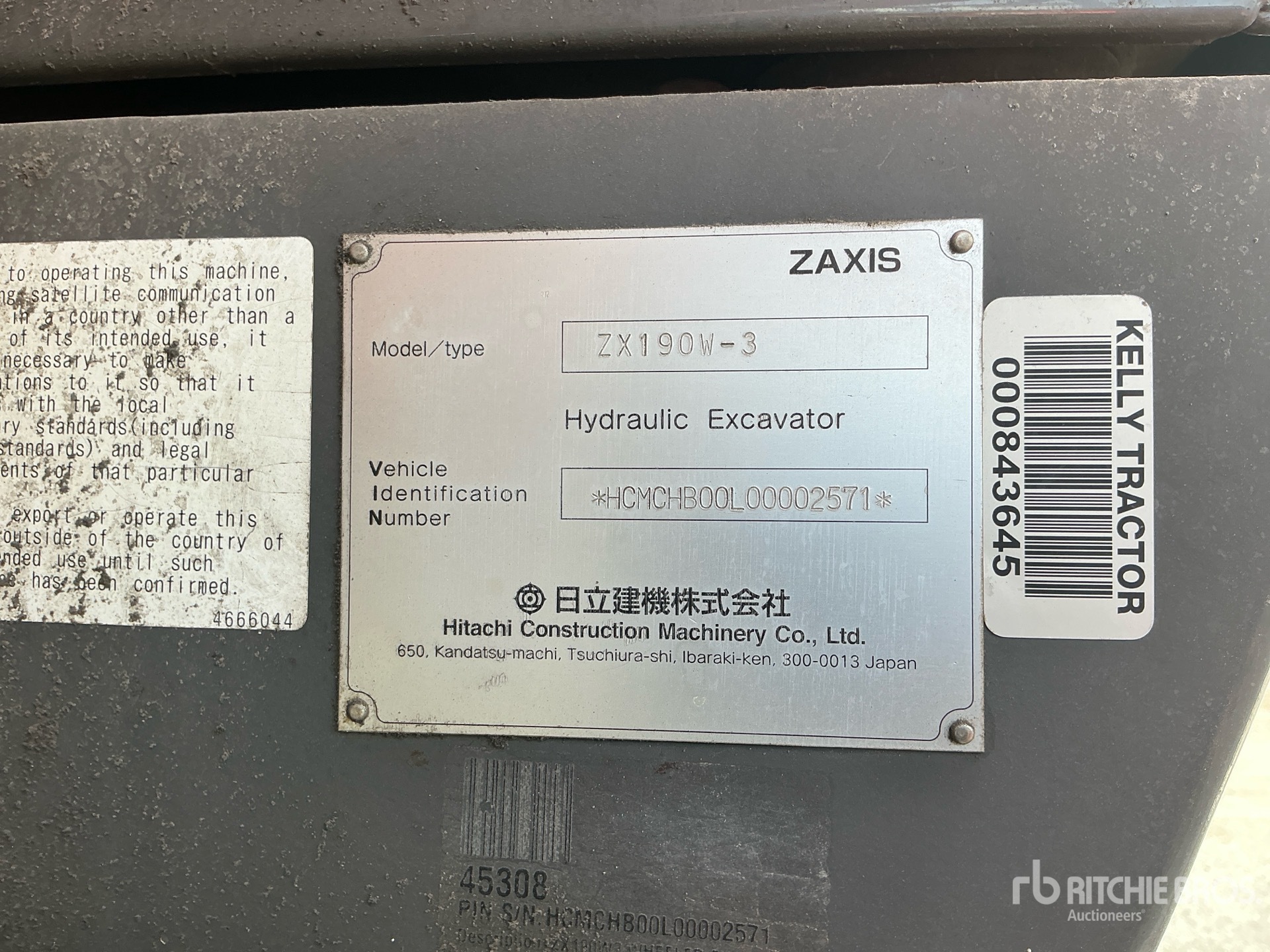

Serial Number:	HCMCHB00L00002571
Machine Location:	ORLANDO, FL

Description:

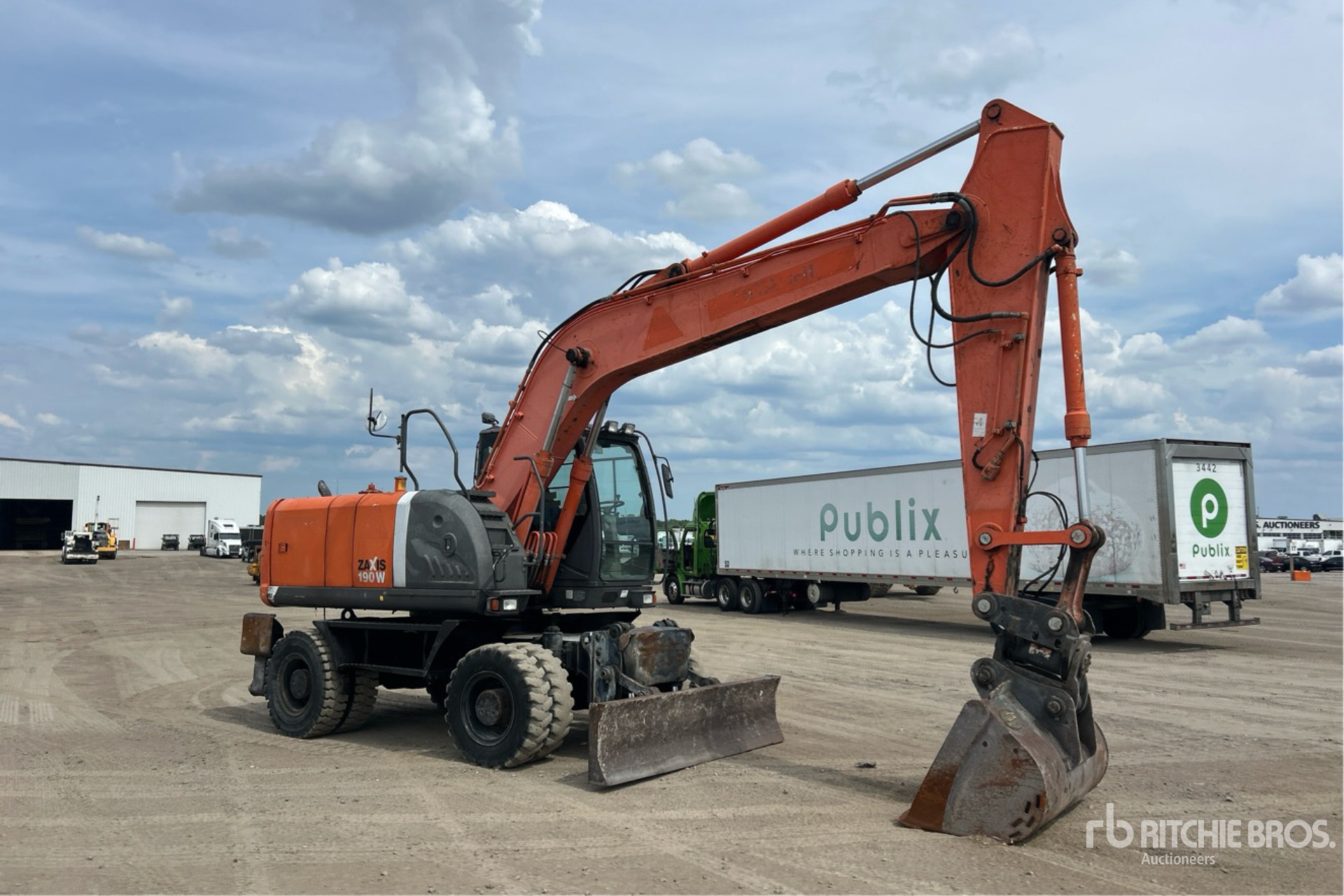

Located in Lane 11 Spot 109, Air Conditioner, Control Pattern Changer, 2011 US EPA Label, 9 ft Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, Stabilizers, 10.00x20 Tires, Tilting Hydraulic Quick Coupler, 58 in Cleanup Bucket Closing Time: 2026-07-09 09:27:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Hitachi ZX190W-3 is a wheeled excavator in the ZX-3 series, designed for road travel, urban construction, utility work, and general earthmoving applications. It is equipped with a wheeled undercarriage for improved mobility between job sites and reduced setup time compared with tracked excavators. The ZX190W-3 typically features a diesel engine, hydraulic boom and arm system, enclosed operator cab, and compatibility with a range of attachments. Common uses include trenching, lifting, loading, grading, and material handling. As an excavator model, it is part of Hitachi's mid-size wheeled machine lineup for contractors requiring mobility and versatility.

Boom/Stick Excavator Option 1
Max Digging Depth	19 ft (6 m)
Max Reach Along Ground	31 ft (10 m)
Boom/Stick Mobile Excavator Option 1
Max Cutting Height	30 ft (9 m)
Max Digging Depth	18 ft (5 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	30 ft (9 m)
Max Vertical Wall Dig Depth	16 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	30 ft (9 m)
Boom/Stick Mobile Excavator Option 2
Max Cutting Height	30 ft (9 m)
Max Digging Depth	19 ft (6 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	31 ft (9 m)
Max Vertical Wall Dig Depth	17 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	30 ft (9 m)
Boom/Stick Mobile Excavator Option 3
Max Cutting Height	32 ft (10 m)
Max Digging Depth	21 ft (6 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	33 ft (10 m)
Max Vertical Wall Dig Depth	19 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	30 ft (9 m)
Bucket
Maximum Bucket Capacity	2 cu yd (1 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Overall Width	8 in (21 cm)
Overall Width - Outriggers Down	11 ft (3 m)
Tail Swing Radius	8 ft (2 m)
Upper Structure Clearance	4 ft (1 m)
Wheelbase	9 ft (3 m)
Engine
Aspiration	Turbocharged intercooled
Displacement	317 cu in (5,193 cu cm)
Engine Model	AI-4HK1X
Make	Isuzu
Net Torque	483 lbs ft (655 nm)
Number of Cylinders	4
Power Measured @	2,000 rpm
Torque Measured @	1,500 rpm
Operating Specifications
Cooling System Fluid Capacity	6 gal (22 l)
Engine Oil Capacity	6 gal (23 l)
Front Diff Fluid Capacity	3 gal (10 l)
Fuel Capacity	77 gal (290 l)
Hydraulic Pump Flow Capacity	100 gpm (378 lpm)
Hydraulic Pump Type	2 variable displacement axial piston pumps
Hydraulic System Fluid Capacity	64 gal (240 l)
Hydraulic System Relief Valve Pressure	4,975 psi
Operating Voltage	24 V
Oscillating Axle Angle	14 degrees
Rear Diff Fluid Capacity	4 gal (14 l)
Swing Mechanism
Swing Speed	12 rpm
Transmission
Max Travel Speed	22 mph (35 kph)
Number of Forward Gears	2
Number of Reverse Gears	2
Transmission Type	2 speed power shift transmission and variable displacement axial piston type travel motor
