Equipment ↠ Hyster ↠ Forklifts ↠ 2016 Hyster H280HD2

2016 Hyster H280HD2 For Sale in Atlanta, Ga

Name: 2016 Hyster H280HD2
Brand: Hyster
SKU: 88824093
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-02 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

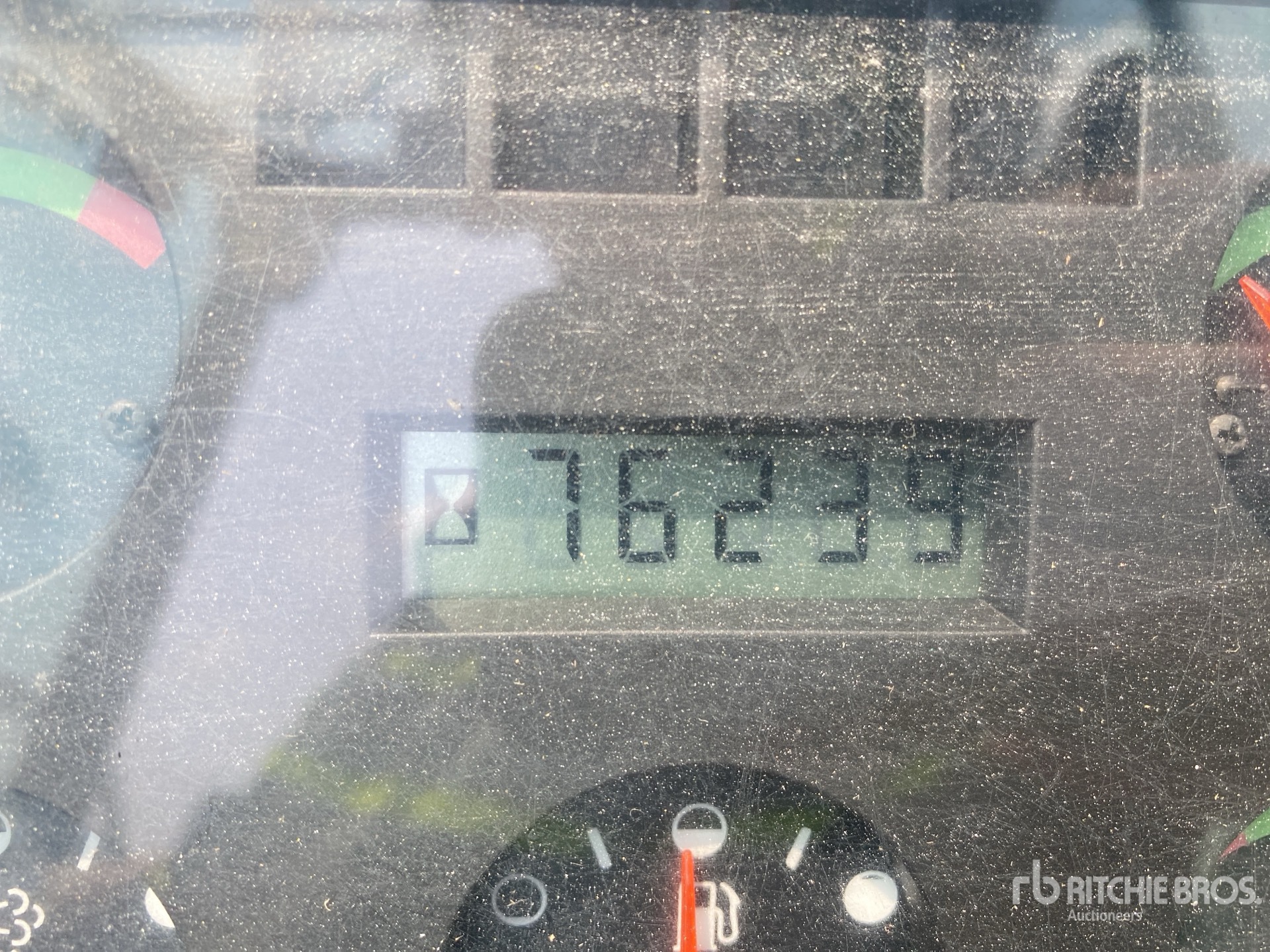

Hours:	76239
Serial Number:	L007E019E01778Z
Machine Location:	ATLANTA, GA

Description:

Enclosed Cab, Air Conditioner, 2 Stage Mast, 212.6 in Max Lift Height, 174 in Lowered Mast Height, 96 in Forks, Fork Positioner, 2016 US EPA Label, Cummins 4 Cylinder 160 hp 4.5 L Diesel Engine, Requires Diesel Exhaust Fluid Deficiencies noted - Please see inspection

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Brakes
Parking brake	Spring applied dry disc on drive axle
Service brake	Oil immersed (wet) disc
Dimensions
Front Tread Range	73 in (184 cm)
Gradeability	44%
Ground Clearance	10 in (25 cm)
Height to Top of Overhead Guard	10 ft (3 m)
Length to Fork Face	15 ft (5 m)
Overall Height - mast lowered	12 ft (4 m)
Overall Width	8 ft (2 m)
Rear Tread Range	76 in (193 cm)
Turning Radius	14 ft (4 m)
Wheelbase	10 ft (3 m)
Engine
Alternator	120 amps
Battery	102 Ah
Displacement	408 cu in (6,691 cu cm)
Emission Tier Level	TIER 4F
Engine Make	Cummins
Engine Model	QSB 6.7
Fuel Type	Diesel
Number of Cylinders	6
Power	155 hp (116 kw)
Power Measured @	2,300 rpm
Torque	400 lbs ft (542 nm)
Torque Measured @	1,500 rpm
MAST
Lift Speed	79 ft/min (24 m/min)
Load Capacity	28,000 lbs (12,701 kg)
Load Center	24 in (61 cm)
Lower Speed	98 ft/min (30 m/min)
Mast Tip Forward	15 degrees
Mast Tip Rear	12 degrees
Operating Specifications
Axle load - front	56,557 lbs (25,654 kg)
Axle load - rear	4,870 lbs (2,209 kg)
Drawbar Pull	21,100 lbs (9,571 kg)
Front Tire Size	10.00-20 16PR
Fuel Capacity	28 gal (104 l)
Hydraulic System Fluid Capacity	36 gal (135 l)
Max Speed	18 mph (29 kph)
Number of Front Wheels	4
Number of Rear Wheels	2
Oil System Fluid Capacity	26 gal (100 l)
Operating Voltage	24 volts
Operating Weight	33,426 lbs (15,162 kg)
Rear Tire Size	10.00-20 16PR
Tire Type	Pneumatic
Transmission
Drive system	Powershift Transmission
Number of Forward / Reverse Speeds	3-3
Transmission Type	ZF / WG161
