2013 Hyster H90FT For Sale in Birmingham, AL


/ Save to Watch List

Auction Pricing



   Auction Info: Starting on 2026-07-15



Machine Info:

Hours:7553

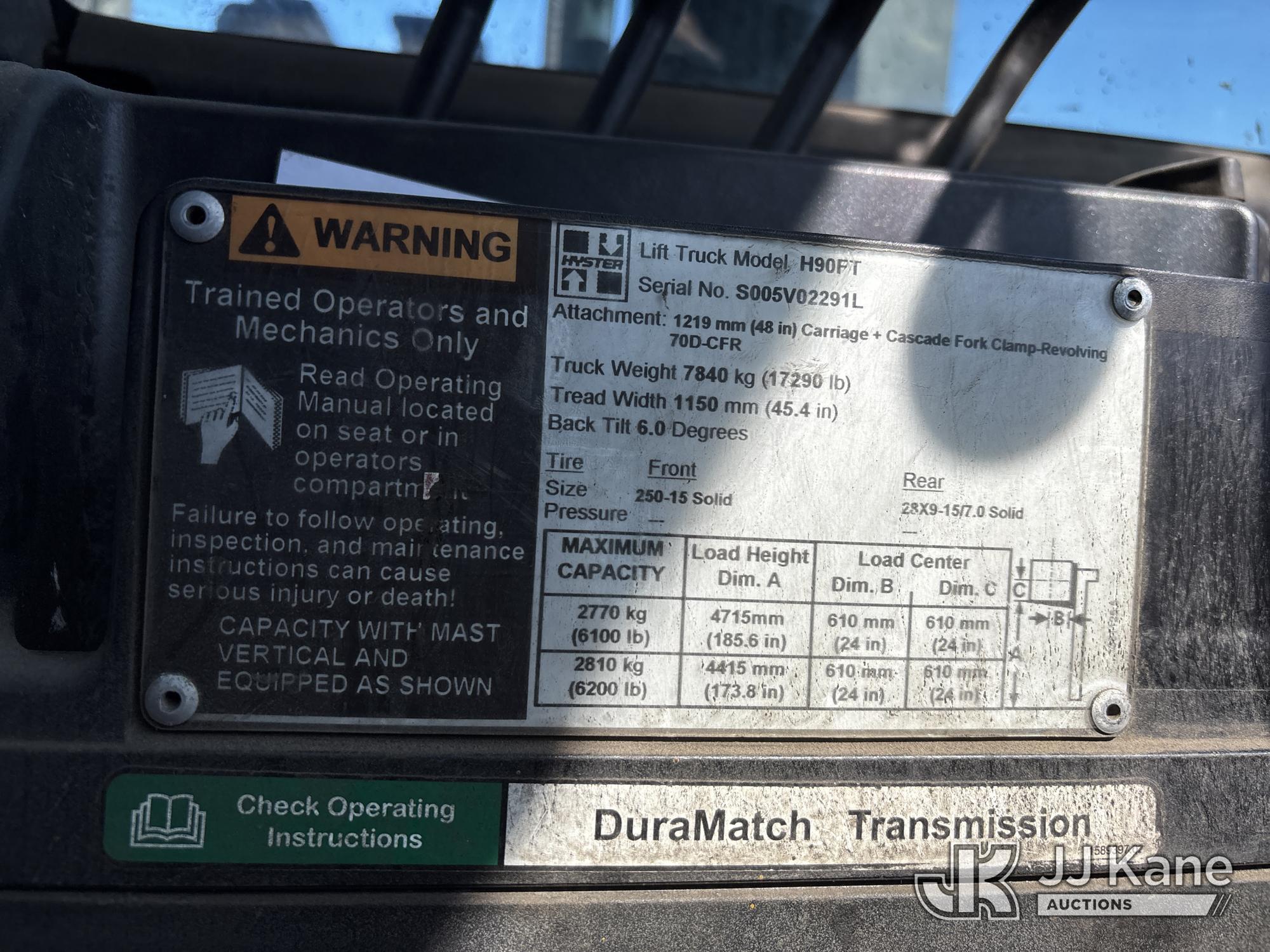

Serial Number:S005V02291L
Machine Location:BIRMINGHAM, AL

Description:

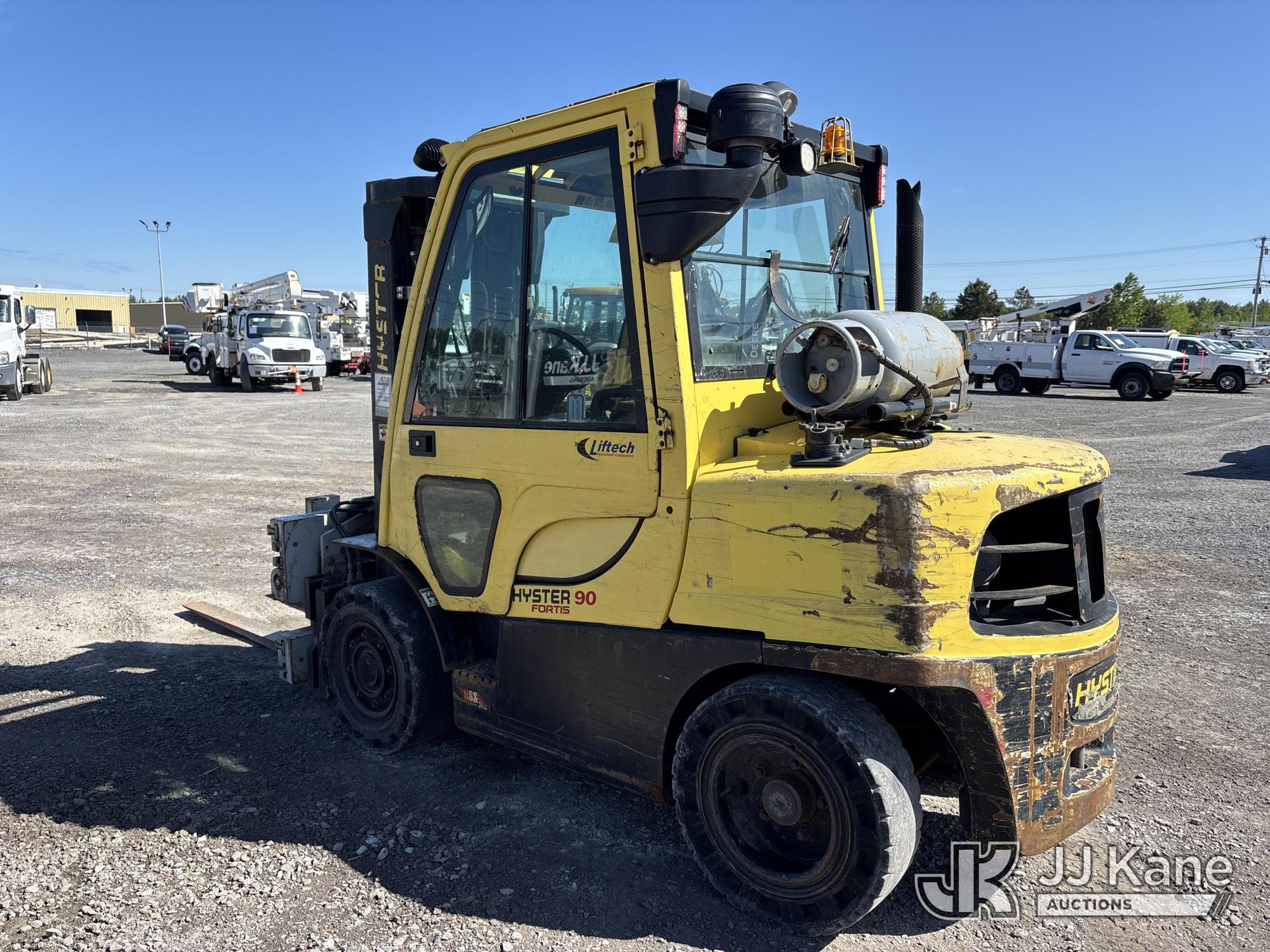

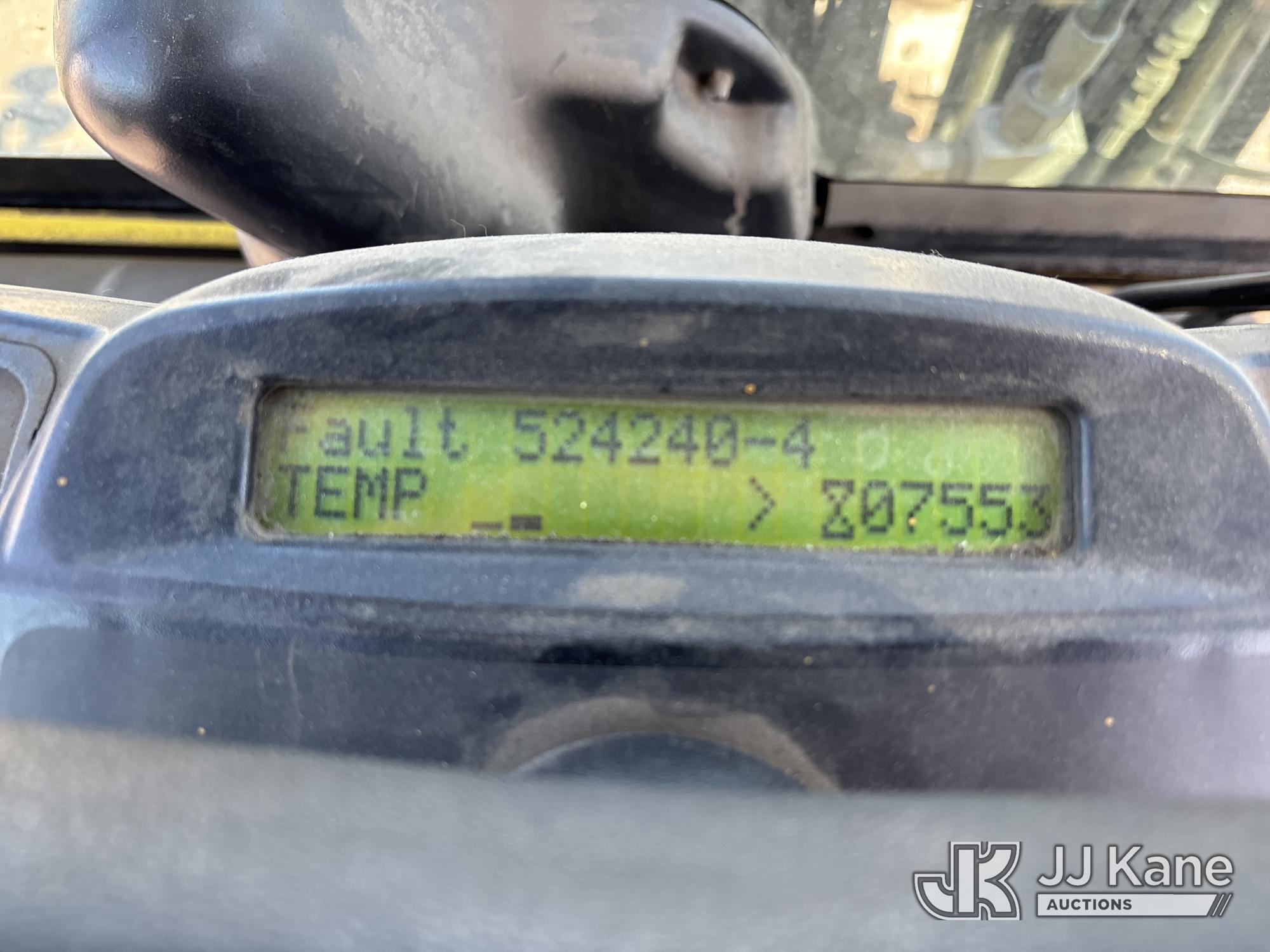

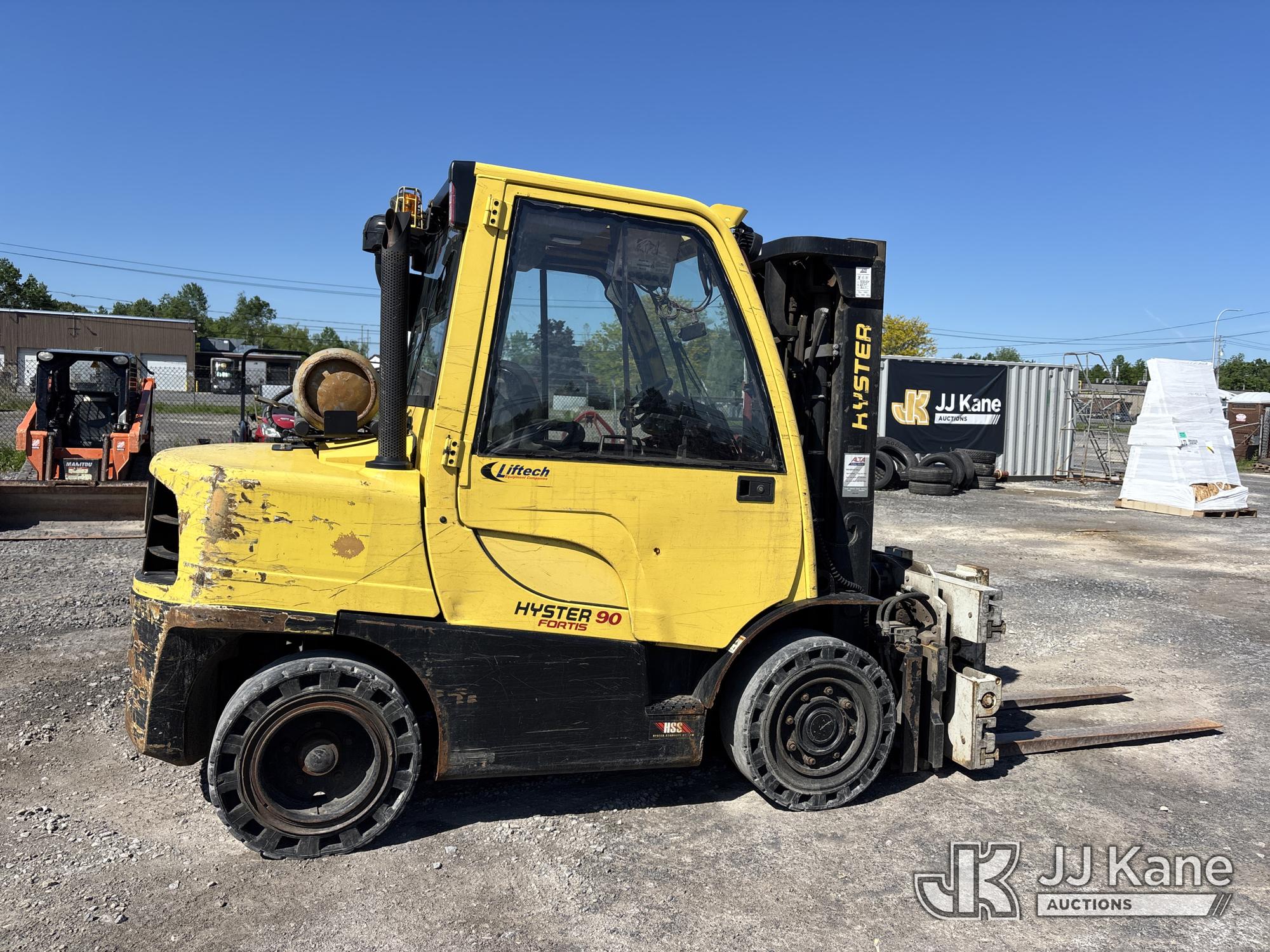

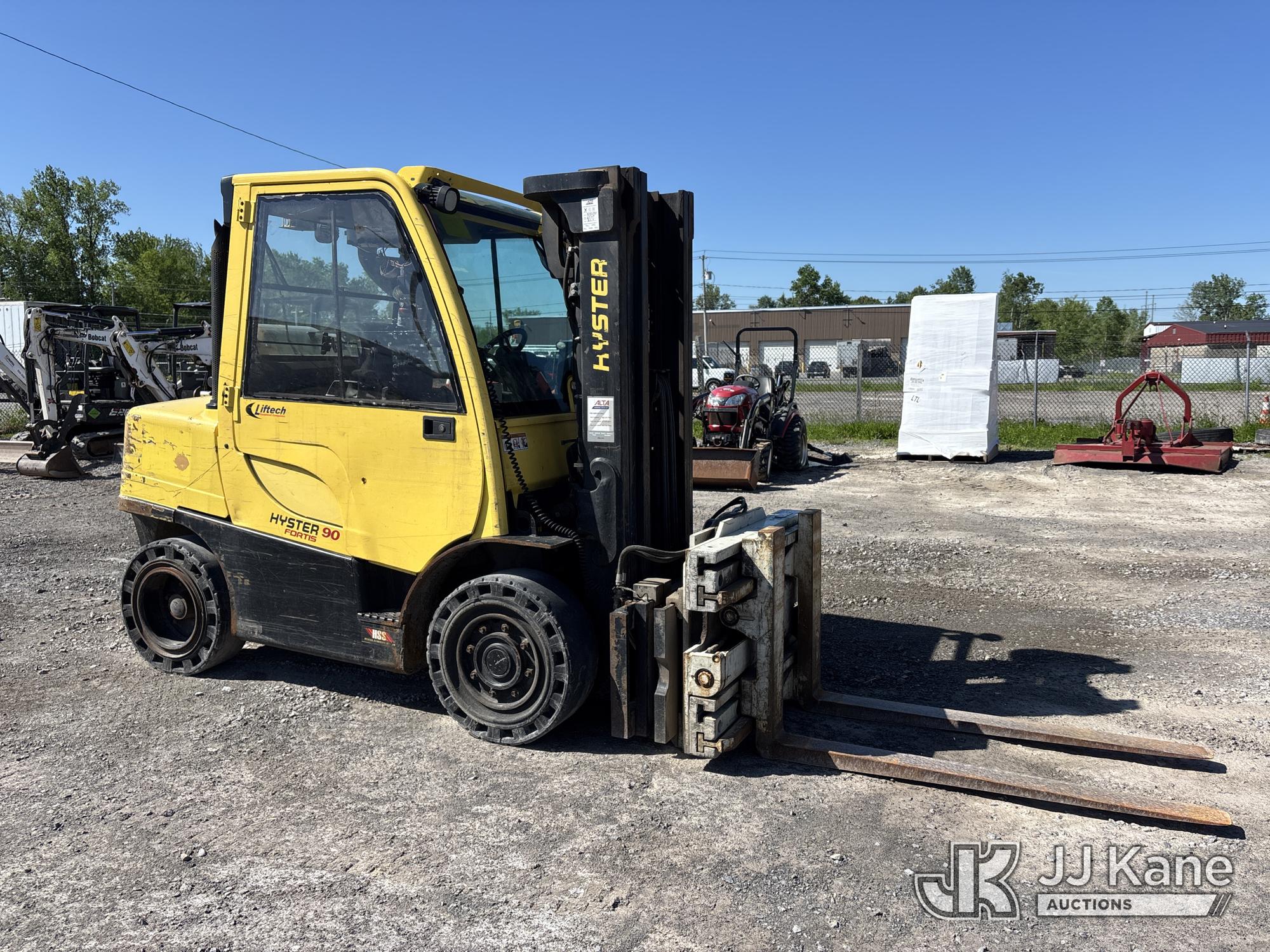

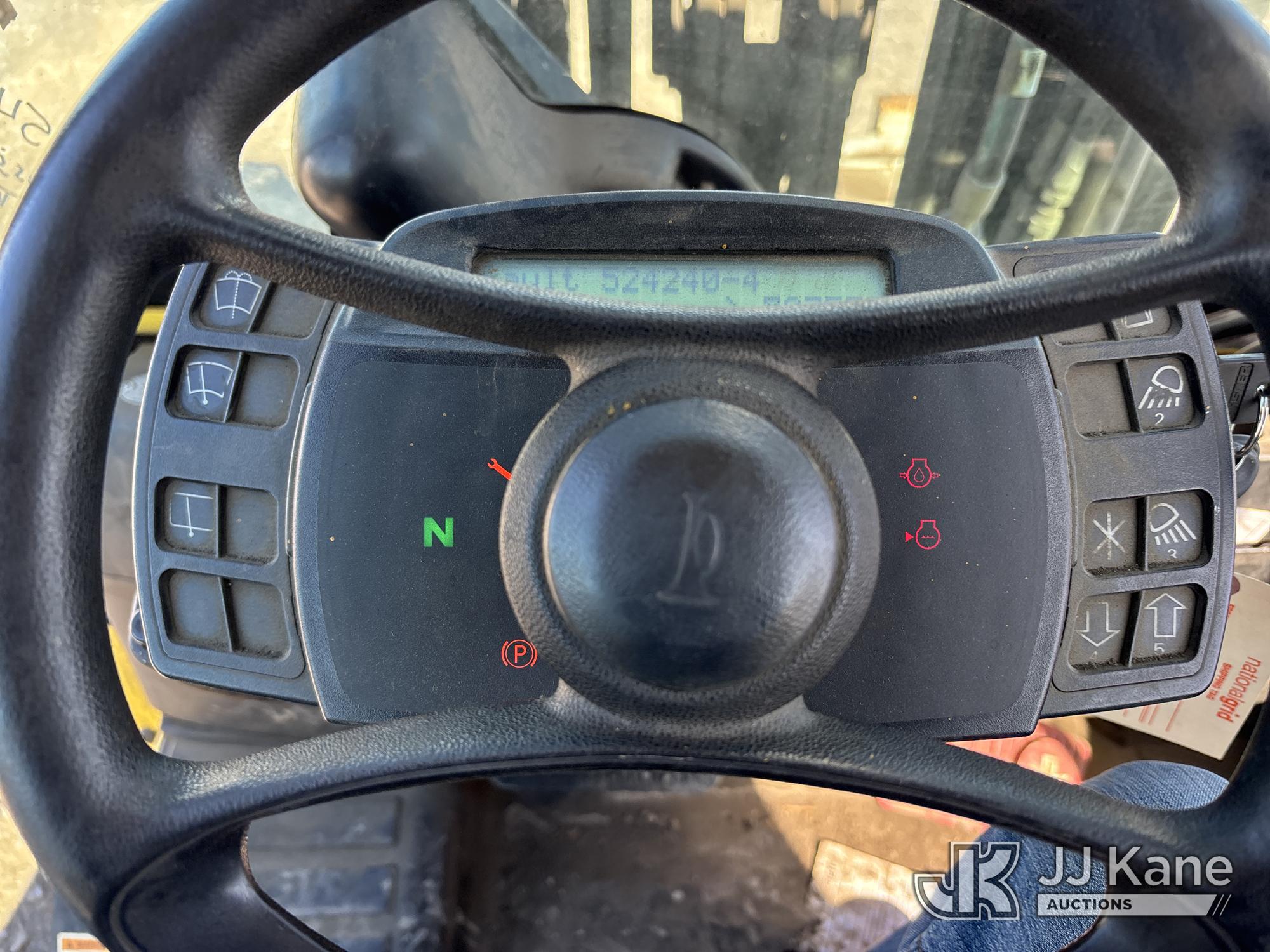

2013 Hyster H90FT Solid Tired Forklift, s/n S005V02291L, 4-cyl LPG, Shuttle, with 6,200lb cap, inch 3-Stage Mast, Hyd Open/Close/Tilt Forks, 60 inch Forks & EROPS, (Runs, Moves & Operates, No Tank, Warning Light Indicators On, Exterior Defect-Left Door Does Not Open) (Reads 7,553 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Rome, NY. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 5835 Success Dr Rome, NY 13440 and hours of operations are 8a-4p. For pre-sale questions, please contact Ryan Jackson @ (315) 749-3790 or [email protected]. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Hyster H90FT is a cushion-tire forklift truck in Hyster's Fortis series, designed for indoor material handling and warehouse applications. It is commonly configured with a 9,000 lb lift capacity and powered by either LPG or diesel, depending on market and specification. The H90FT features a sit-down operator compartment, hydrostatic or powershift transmission options, and a mast and carriage setup suited for palletized loads, dock work, and general industrial use. Built for maneuverability in tight spaces, the H90FT is used in manufacturing, distribution, and freight operations where reliable lift performance and controlled handling are required.
Brakes
Parking brake Hand/Mechanical
Service brake Foot/Hydraulic
Dimensions
Gradeability 32%
Ground Clearance 6 in (15 cm)
Height to Top of Overhead Guard 8 ft (2 m)
Length to Fork Face 10 ft (3 m)
Max Fork Height 10 ft (3 m)
Overall Height - mast lowered 7 ft (2 m)
Overall Width 5 ft (1 m)
Right Angle Stack 10 ft (3 m)
Turning Radius 9 ft (3 m)
Wheelbase 6 ft (2 m)
Engine
Displacement 263 cu in (4,310 cu cm)
Engine Model PSI 2.4L
Fuel Type LPG
Number of Cylinders 4
Power 74 hp (55 kw)
Power Measured @ 1,800 rpm
Torque 210 lbs ft (285 nm)
Torque Measured @ 1,800 rpm
MAST
Lift Speed 121 ft/min (37 m/min)
Load Capacity 9,000 lbs (4,082 kg)
Load Center 24 in (61 cm)
Lower Speed 108 ft/min (33 m/min)
Mast Tip Forward 6 degrees
Mast Tip Rear 10 degrees
Max Fork Spread 44 in (111 cm)
Operating Specifications
Axle load - front 8,341 lbs (3,783 kg)
Axle load - rear 5,579 lbs (2,531 kg)
Drawbar Pull 5,882 lbs (2,668 kg)
Front Tire Size 250 x 15 - 20 Ply
Fuel Capacity 14 gal (53 l)
Hydraulic System Relief Valve Pressure 2,250 psi
Hydraulic Tank 12 gal (46 l)
Max Speed 13 mph (21 kph)
Number of Front Wheels 2
Number of Rear Wheels 2
Operating Weight 13,920 lbs (6,314 kg)
Rear Tire Size 7.00 x 12 - 14 Ply
Tire Type Pneumatic
