2005 Hyundai R320NLC-7

Name: 2005 Hyundai R320NLC-7
Brand: Hyundai
SKU: 88553655
Price: 1 USD
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-06-10 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

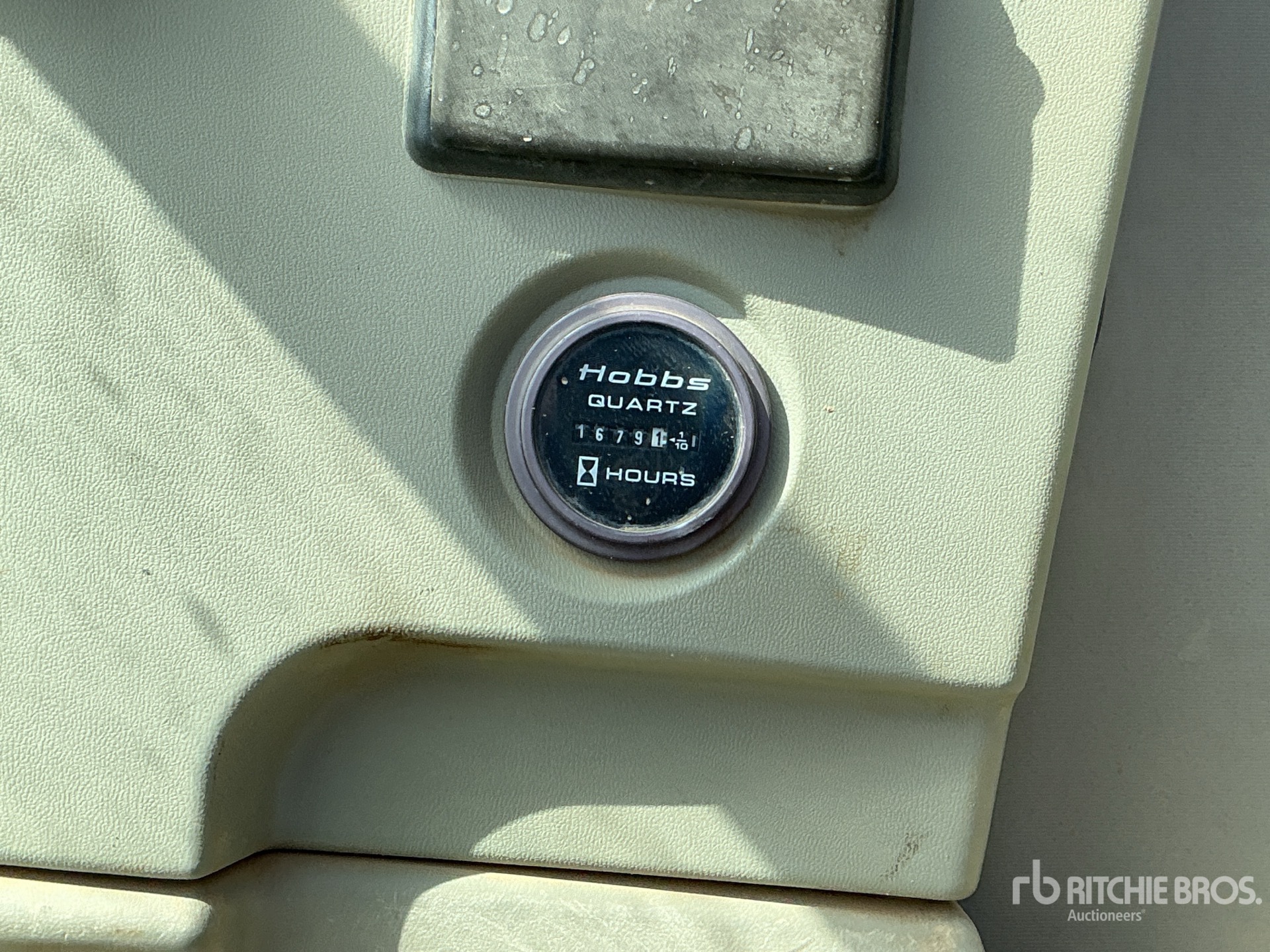

Hours:	11680

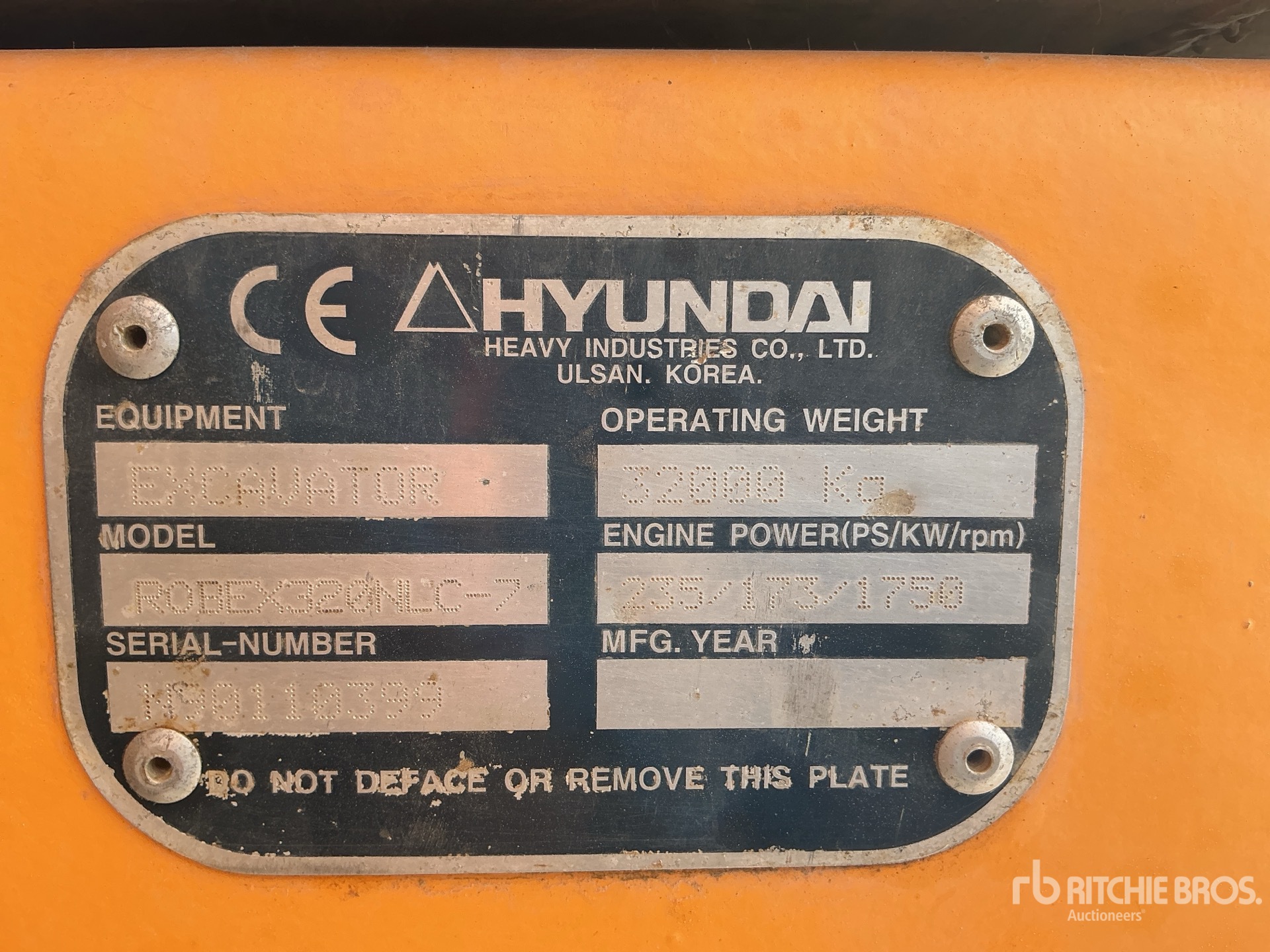

Serial Number:	N90110399
Machine Location:	OCANA, ESP

Description:

Auxiliary Hydraulic Plumbing, Boom Check Valves, Triple Grouser Track Shoes, Digging Bucket, LEFT SIDE TRACK DOES NOT OPERATIONAL PROPERLY** HYDRAULIC PUMP AND OTHER COMPONNENTS OIL LEAKS** **COPIA CERTIFICADO CE DISPONIBLE/ COPY CE CERTIFICATE AVAILABLE** Closing Time: 2026-06-10 01:26:40 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	34 ft (10 m)
Max Digging Depth	21 ft (6 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	33 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	37 ft (11 m)
Boom/Stick Excavator Option 2
Max Cutting Height	33 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	34 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	37 ft (11 m)
Boom/Stick Excavator Option 3
Max Cutting Height	34 ft (10 m)
Max Digging Depth	24 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Length of Unit	36 ft (11 m)
Boom/Stick Excavator Option 4
Max Cutting Height	35 ft (11 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	39 ft (12 m)
Max Vertical Wall Dig Depth	24 ft (7 m)
Shipping Length of Unit	36 ft (11 m)
Boom/Stick Excavator Option 5
Max Cutting Height	33 ft (10 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	32 ft (10 m)
Max Vertical Wall Dig Depth	19 ft (6 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	36 ft (11 m)
Bucket
Maximum Bucket Capacity	3 cu yd (2 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	2 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	11 ft (3 m)
Width to Outside of Tracks	10 ft (3 m)
Engine
Aspiration	turbocharged
Displacement	506 cu in (8,292 cu cm)
Engine Model	C8.3-C
Gross Power	259 hp (193 kw)
Max Torque	899 lbs ft (1,219 nm)
Net Power	232 hp (173 kw)
Power Measured @	1,750 rpm
Torque Measured @	1,300 rpm
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	12 gal (45 l)
Engine Oil Capacity	7 gal (26 l)
Fuel Capacity	127 gal (480 l)
Hydraulic Pump Flow Capacity	137 gpm (520 lpm)
Hydraulic System Fluid Capacity	85 gal (320 l)
Hydraulic System Relief Valve Pressure	4,690 psi
Operating Voltage	24 volts
Operating Weight	70,548 lbs (32,000 kg)
Swing Drive Fluid Capacity	3 gal (11 l)
Swing Mechanism
Swing Speed	9 rpm
Undercarriage
Drawbar Pull	62,830 lbs (28,499 kg)
Ground Pressure	9 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	48
Number of Track Rollers per Side	9
Shoe Size	24 in (60 cm)
Track Gauge	8 ft (2 m)
