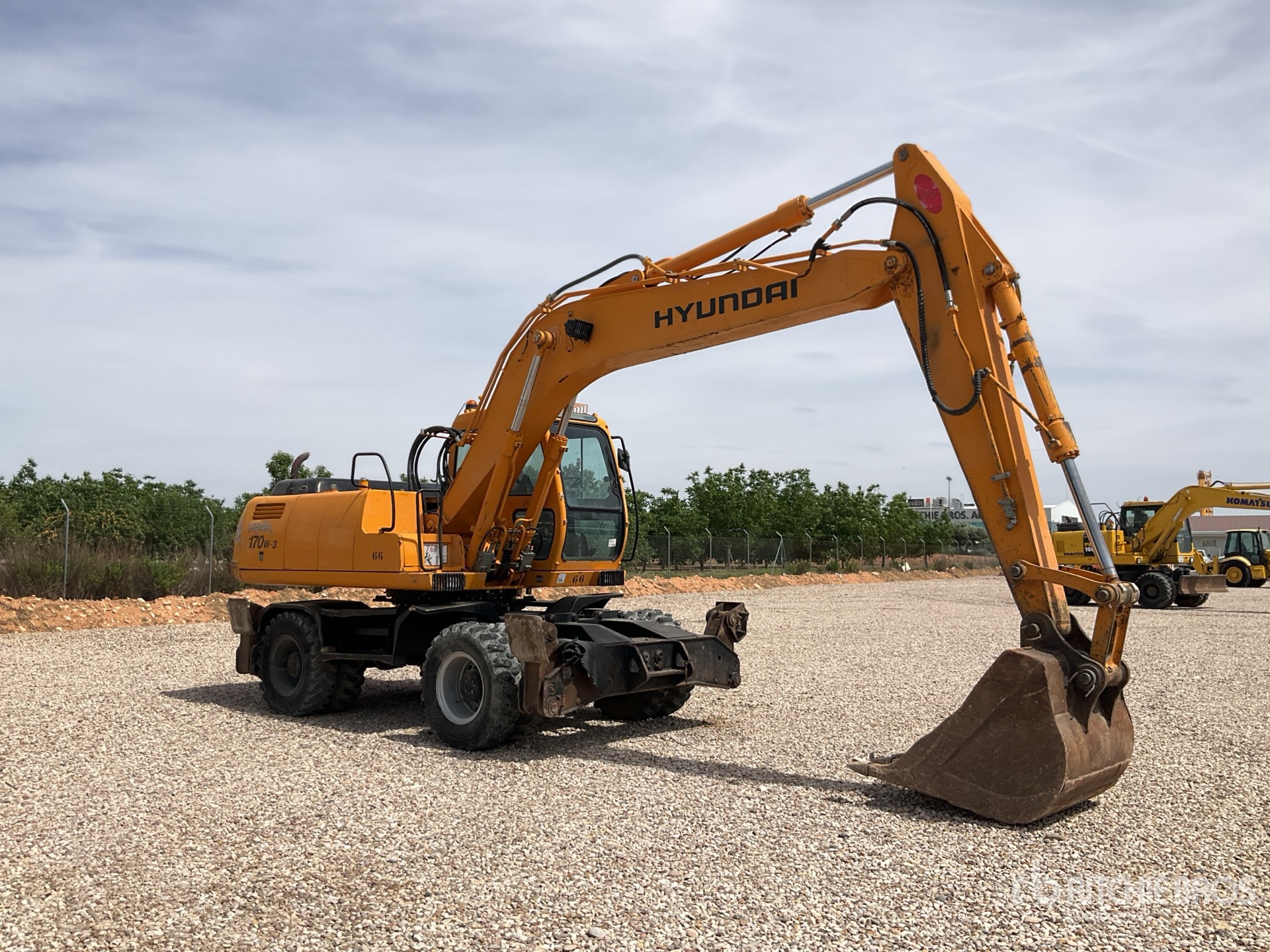

2003 Hyundai ROBEX 170W-3

Name: 2003 Hyundai ROBEX 170W-3
Brand: Hyundai
SKU: 88539093
Price: 1 USD
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-06-10 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

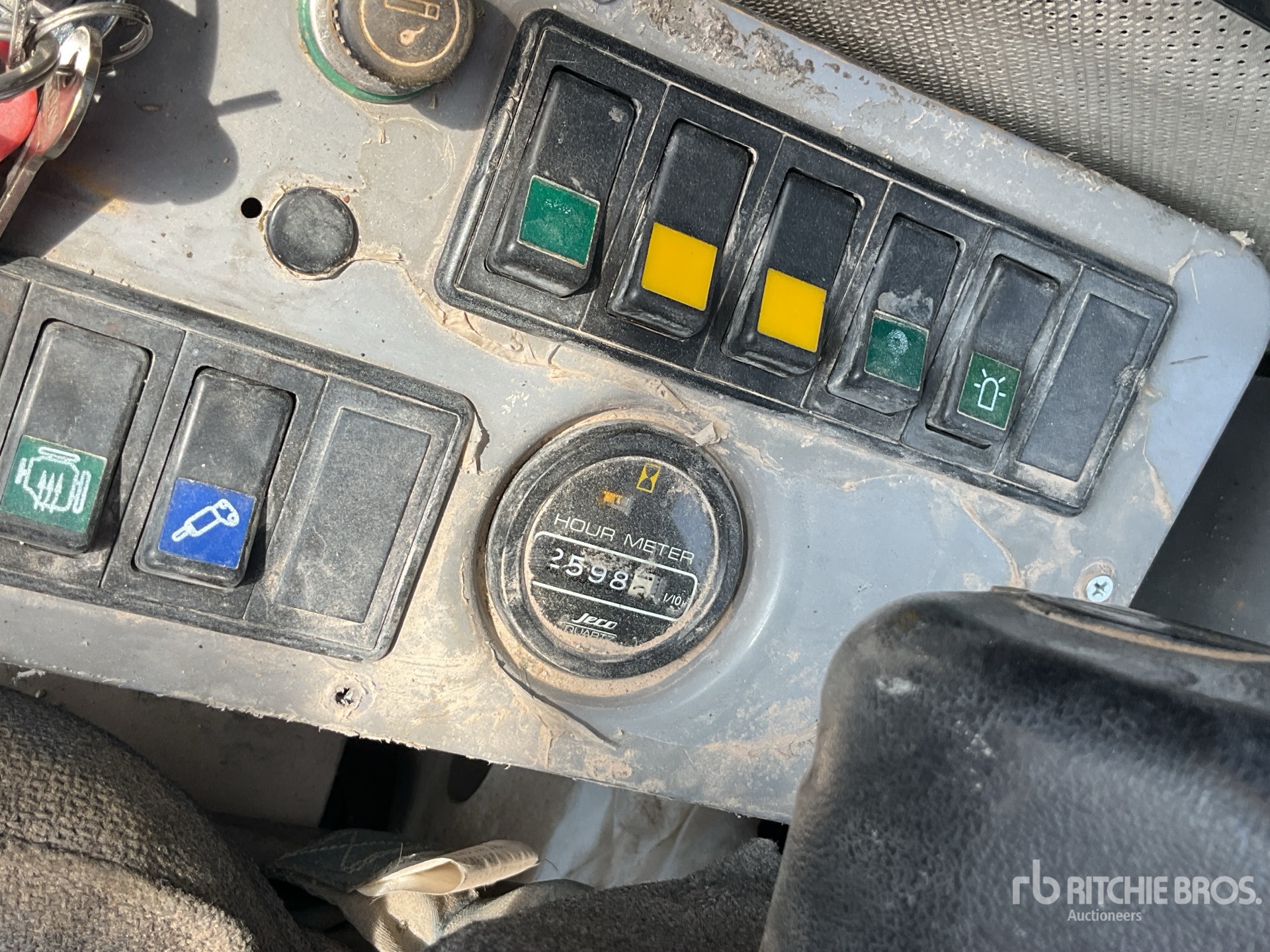

Hours:	12598

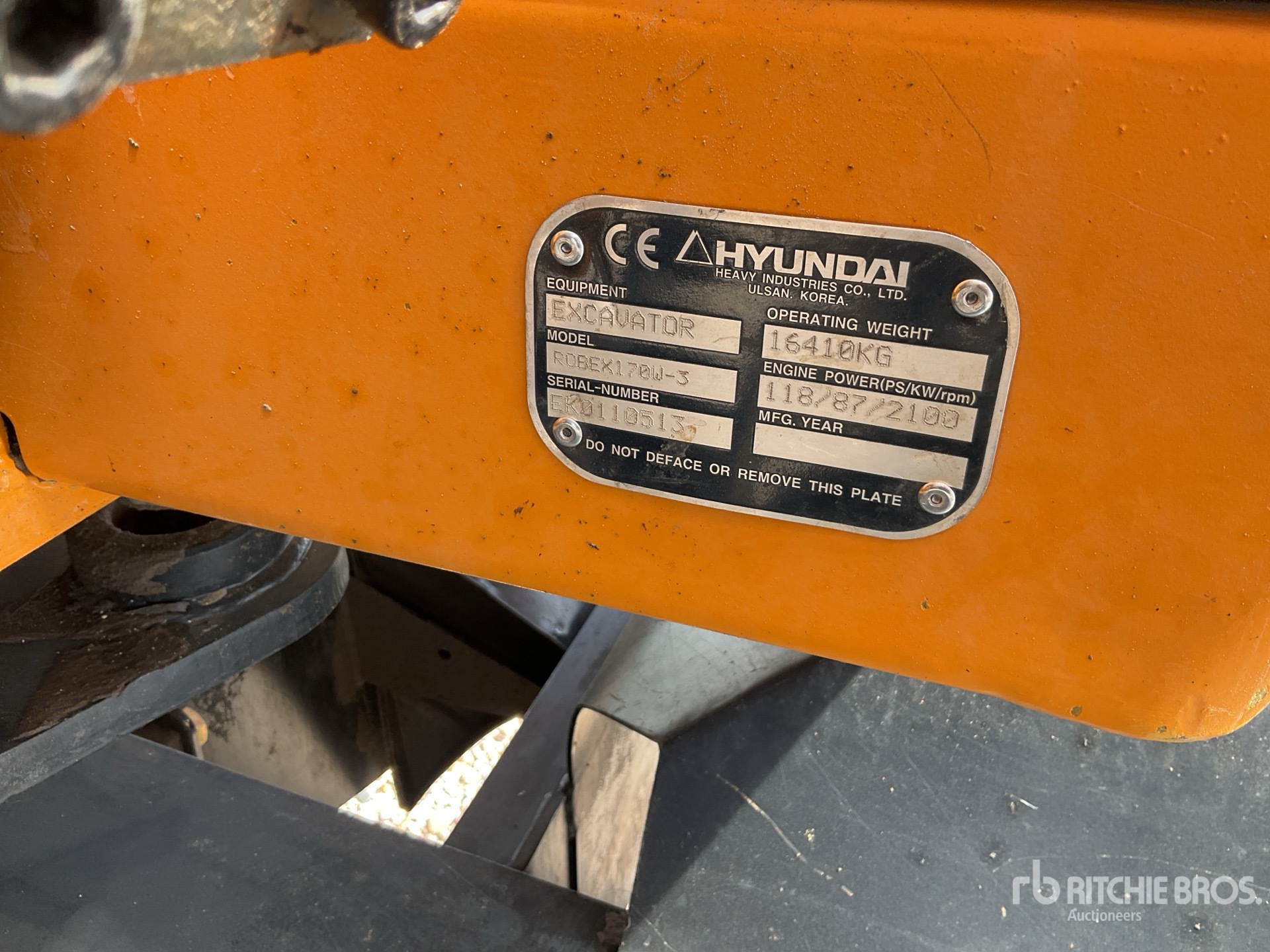

Serial Number:	EK0110513
Machine Location:	OCANA, ESP

Description:

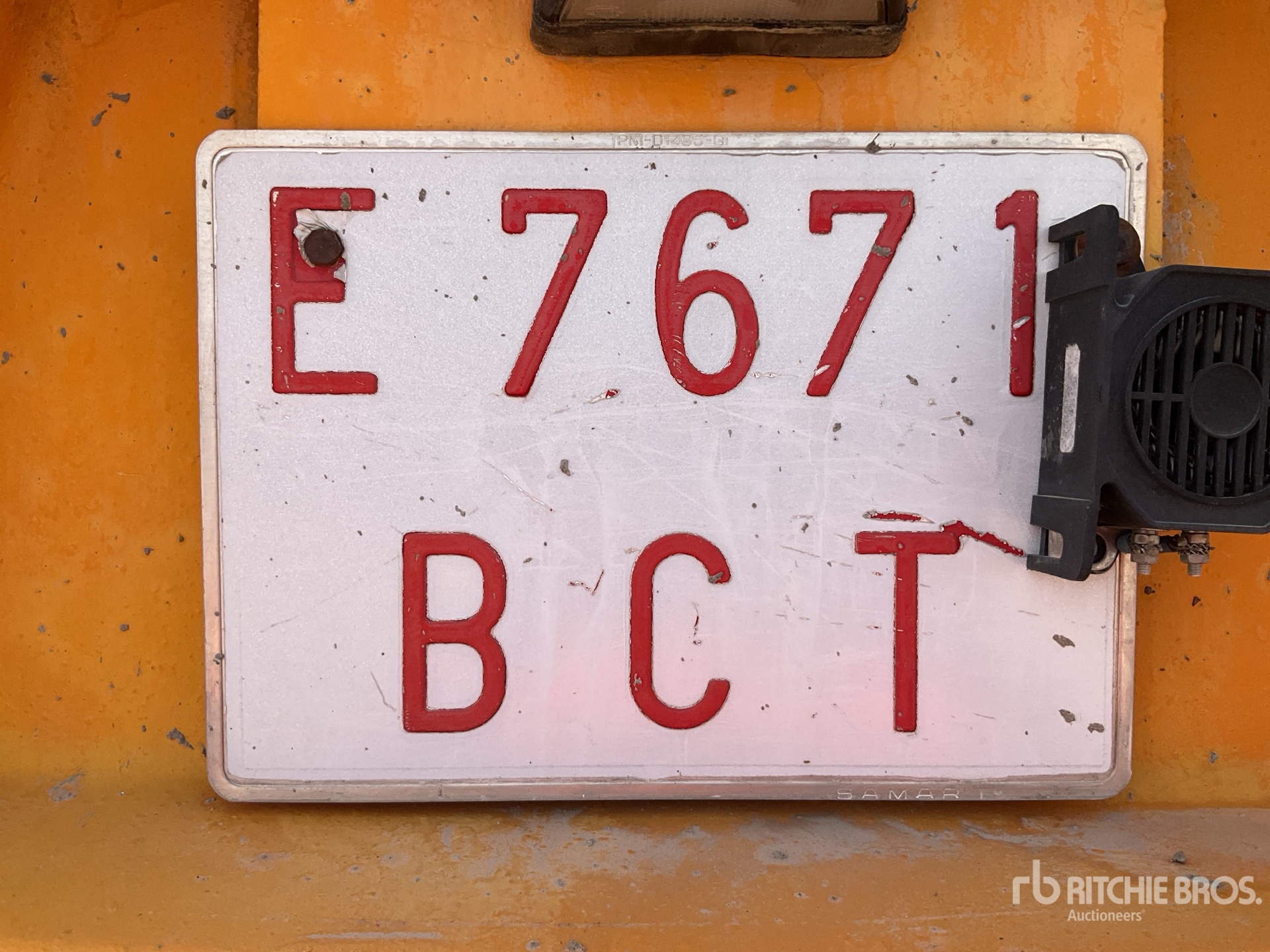

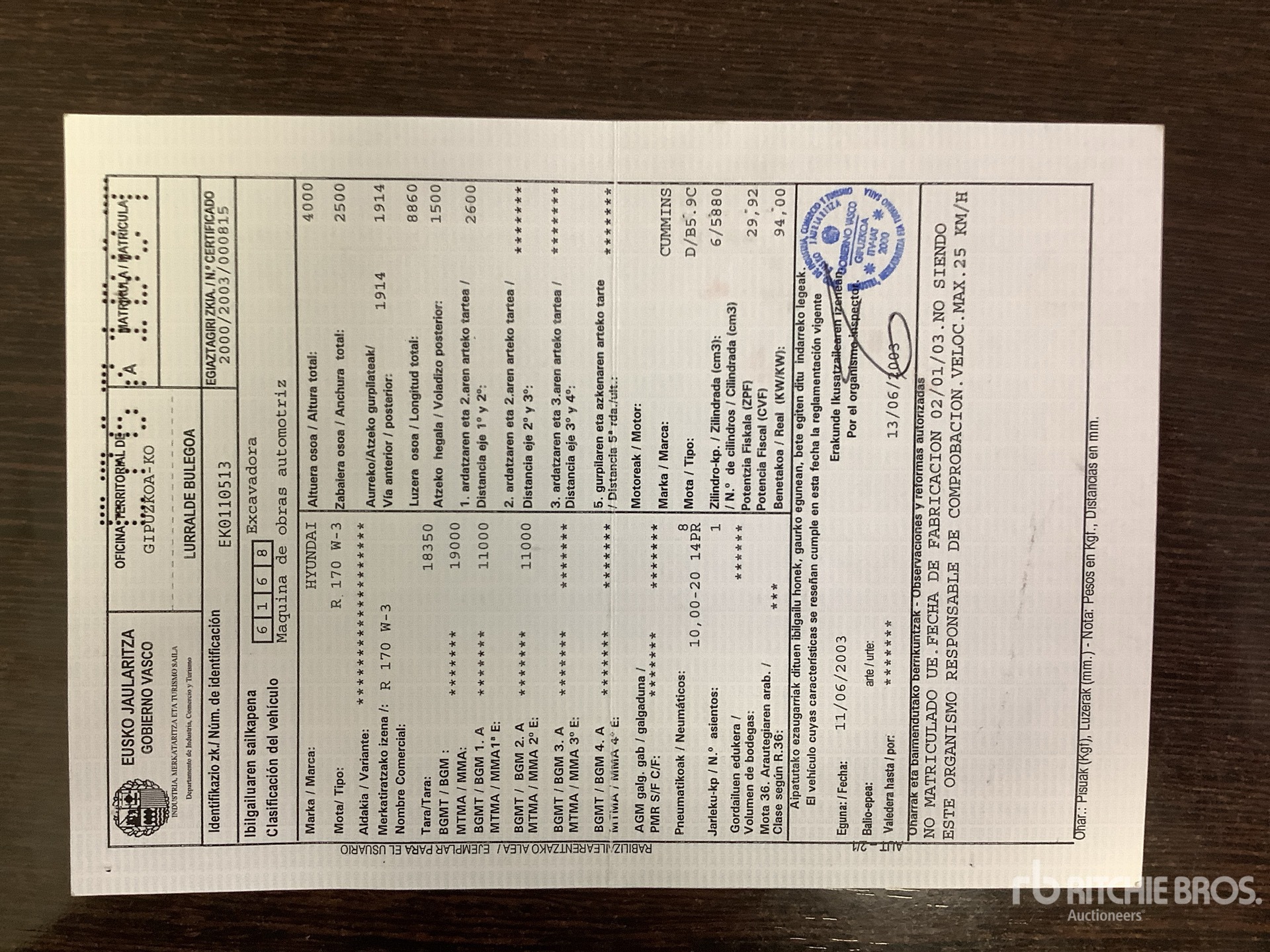

Air Conditioner, 2550 mm Stick, Auxiliary Hydraulic Plumbing, Stick Check Valve, Boom Check Valves, Front and Rear Stabilizers, 1200 mm Digging Bucket Matriculado en Espana / Spanish Registration****COPIA CERTIFICADO CE DISPONIBLE/ COPY CE CERTIFICATE AVAILABLE** Closing Time: 2026-06-10 01:43:45 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Mobile Excavator Option 1
Max Cutting Height	28 ft (9 m)
Max Digging Depth	17 ft (5 m)
Max Loading Height	20 ft (6 m)
Max Reach Along Ground	27 ft (8 m)
Max Vertical Wall Dig Depth	14 ft (4 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	29 ft (9 m)
Boom/Stick Mobile Excavator Option 2
Max Cutting Height	29 ft (9 m)
Max Digging Depth	18 ft (6 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	28 ft (9 m)
Max Vertical Wall Dig Depth	16 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	29 ft (9 m)
Boom/Stick Mobile Excavator Option 3
Max Cutting Height	30 ft (9 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	29 ft (9 m)
Max Vertical Wall Dig Depth	17 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	29 ft (9 m)
Boom/Stick Mobile Excavator Option 4
Max Cutting Height	31 ft (9 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	31 ft (10 m)
Max Vertical Wall Dig Depth	20 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	29 ft (9 m)
Bucket
Maximum Bucket Capacity	1 cu yd (1 cu m)
Minimum Bucket Capacity	1 cu yd (0 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Overall Width	8 in (21 cm)
Overall Width - Outriggers Down	12 ft (4 m)
Tail Swing Radius	8 ft (3 m)
Upper Structure Clearance	4 ft (1 m)
Wheelbase	9 ft (3 m)
Engine
Aspiration	turbocharged
Displacement	359 cu in (5,881 cu cm)
Engine Model	B5.9-C
Gross Power	126 hp (94 kw)
Net Power	116 hp (87 kw)
Net Torque	390 lbs ft (529 nm)
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	9 gal (35 l)
Engine Oil Capacity	6 gal (24 l)
Front Diff Fluid Capacity	4 gal (14 l)
Fuel Capacity	66 gal (250 l)
Hydraulic Pump Flow Capacity	87 gpm (330 lpm)
Hydraulic Pump Type	two variable displacement piston pumps
Hydraulic System Fluid Capacity	64 gal (240 l)
Hydraulic System Relief Valve Pressure	4,980 psi
Operating Voltage	24 V
Operating Weight	36,156 lbs (16,400 kg)
Rear Diff Fluid Capacity	4 gal (14 l)
Tire Size	10-20-14PR dual type
Swing Mechanism
Swing Speed	12 rpm
Transmission
Max Travel Speed	19 mph (30 kph)
Number of Forward Gears	2
Number of Reverse Gears	2
Transmission Type	4-wheel hydrostatic drive
