Equipment ↠ Hyundai ↠ Excavators ↠ Hyundai ROBEX 290LC-9

Hyundai ROBEX 290LC-9 For Sale in Fort Worth, Tx

Name: Hyundai ROBEX 290LC-9
Brand: Hyundai
SKU: 88606570
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

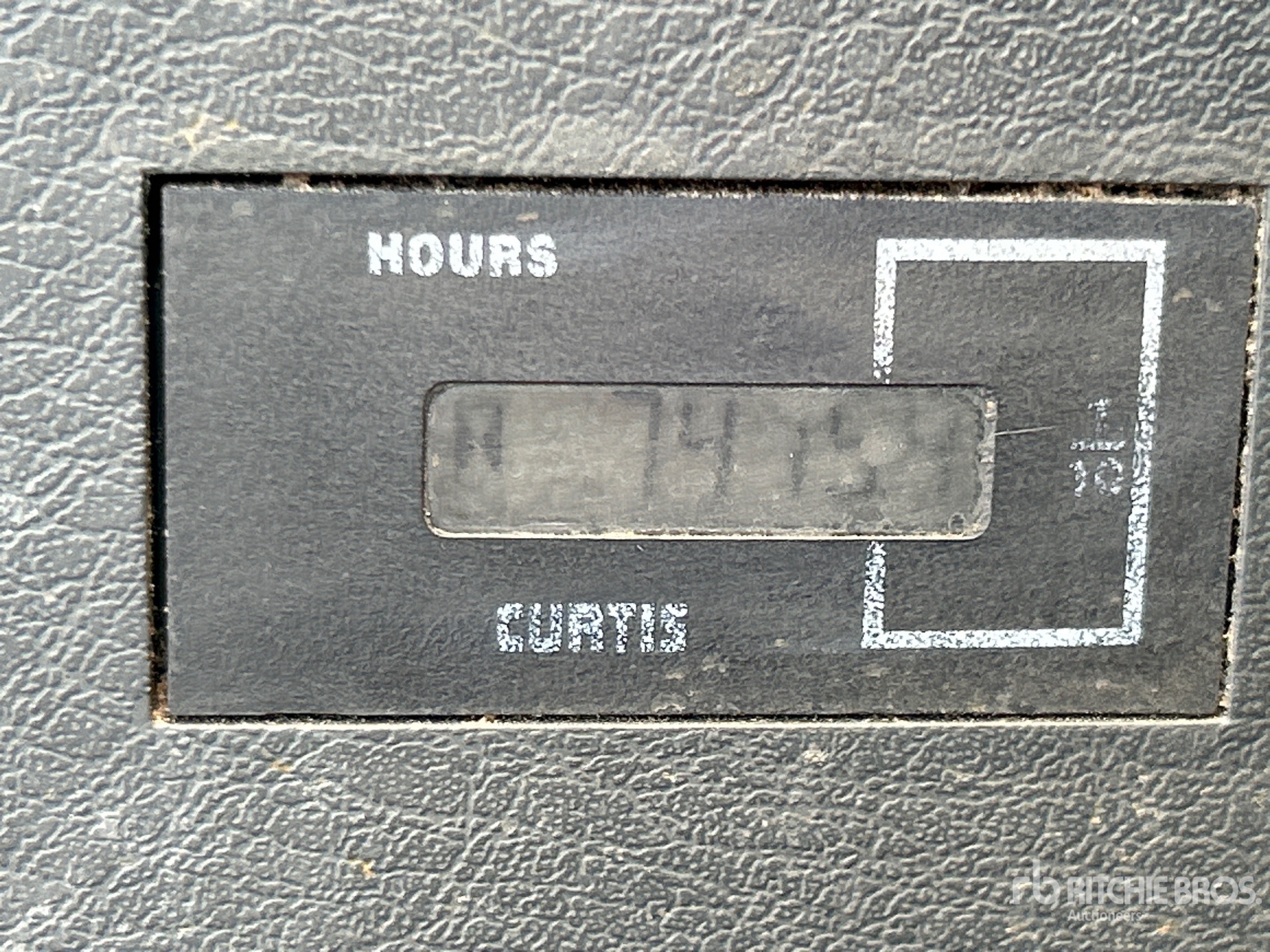

Hours:	7415

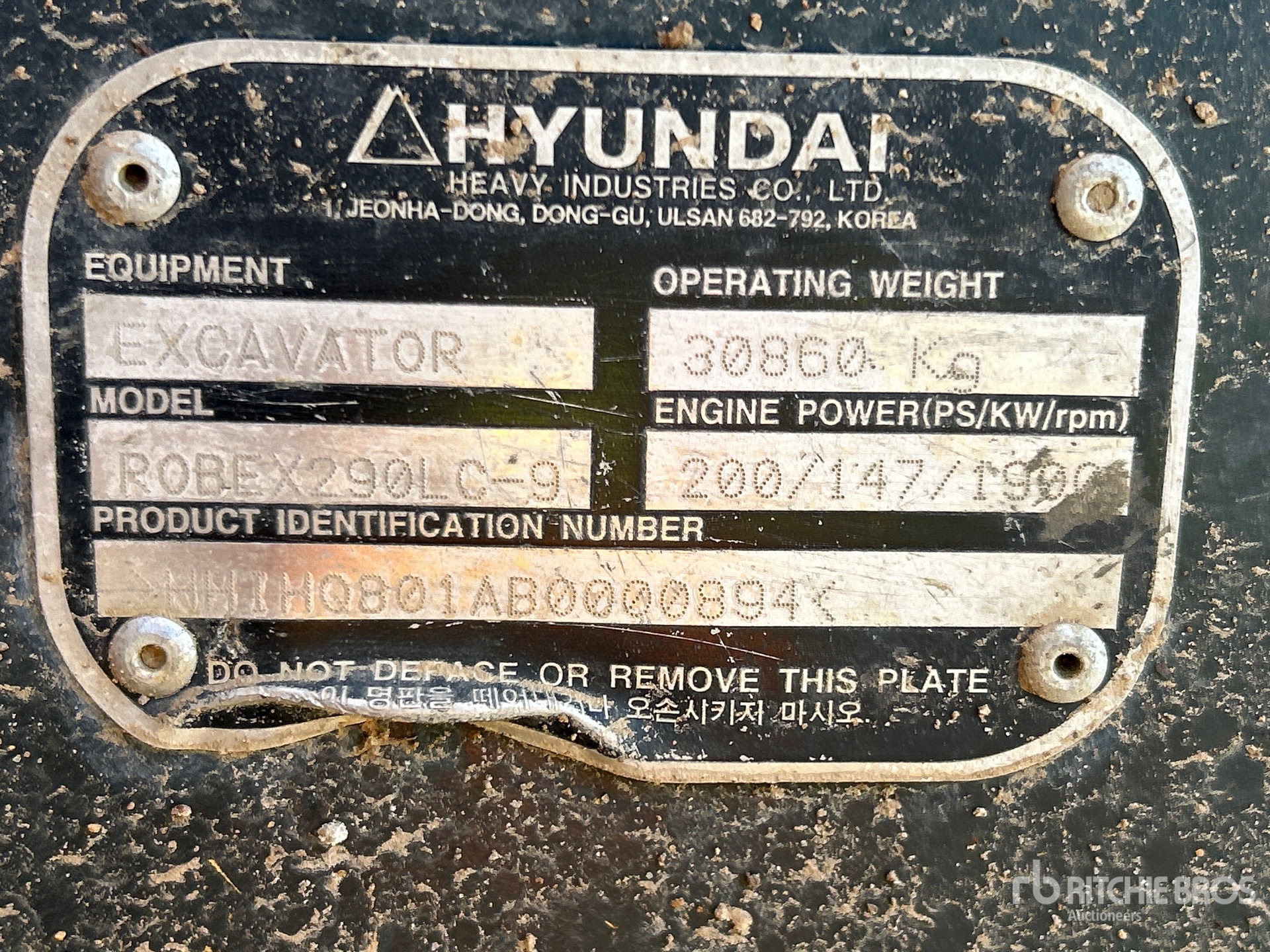

Serial Number:	HHIH0801AB0000894
Machine Location:	FORT WORTH, TX

Description:

Located in Lane 2 Spot 8, Air Conditioner, Control Pattern Changer, 11 ft 10 in Stick, Auxiliary Hydraulic Plumbing, 31.5 in Track Shoes, 60 in Bucket Closing Time: 2026-06-17 11:54:54 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	33 ft (10 m)
Max Digging Depth	21 ft (6 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	35 ft (11 m)
Boom/Stick Excavator Option 2
Max Cutting Height	33 ft (10 m)
Max Digging Depth	23 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	33 ft (10 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	35 ft (11 m)
Boom/Stick Excavator Option 3
Max Cutting Height	33 ft (10 m)
Max Digging Depth	25 ft (8 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Length of Unit	35 ft (11 m)
Boom/Stick Excavator Option 4
Max Cutting Height	34 ft (10 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	37 ft (11 m)
Max Vertical Wall Dig Depth	23 ft (7 m)
Shipping Length of Unit	35 ft (11 m)
Boom/Stick Excavator Option 5
Max Cutting Height	48 ft (15 m)
Max Digging Depth	49 ft (15 m)
Max Loading Height	40 ft (12 m)
Max Reach Along Ground	60 ft (18 m)
Max Vertical Wall Dig Depth	40 ft (12 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	48 ft (15 m)
Bucket
Maximum Bucket Capacity	3 cu yd (2 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	2 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	11 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	409 cu in (6,702 cu cm)
Engine Model	QSB 6.7
Gross Power	227 hp (169 kw)
Max Torque	700 lbs ft (949 nm)
Net Power	197 hp (147 kw)
Power Measured @	1,900 rpm
Torque Measured @	1,400 rpm
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	13 gal (50 l)
Engine Oil Capacity	6 gal (24 l)
Fuel Capacity	132 gal (500 l)
Hydraulic Pump Flow Capacity	133 gpm (504 lpm)
Hydraulic System Fluid Capacity	87 gal (330 l)
Hydraulic System Relief Valve Pressure	4,978 psi
Operating Voltage	24 volts
Operating Weight	64,596 lbs (29,300 kg)
Swing Drive Fluid Capacity	3 gal (11 l)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Ground Pressure	8 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	48
Number of Track Rollers per Side	9
Shoe Size	24 in (60 cm)
Track Gauge	9 ft (3 m)
