Equipment ↠ Hyundai ↠ Wheel Loaders ↠ 2005 Hyundai HL740TM-7

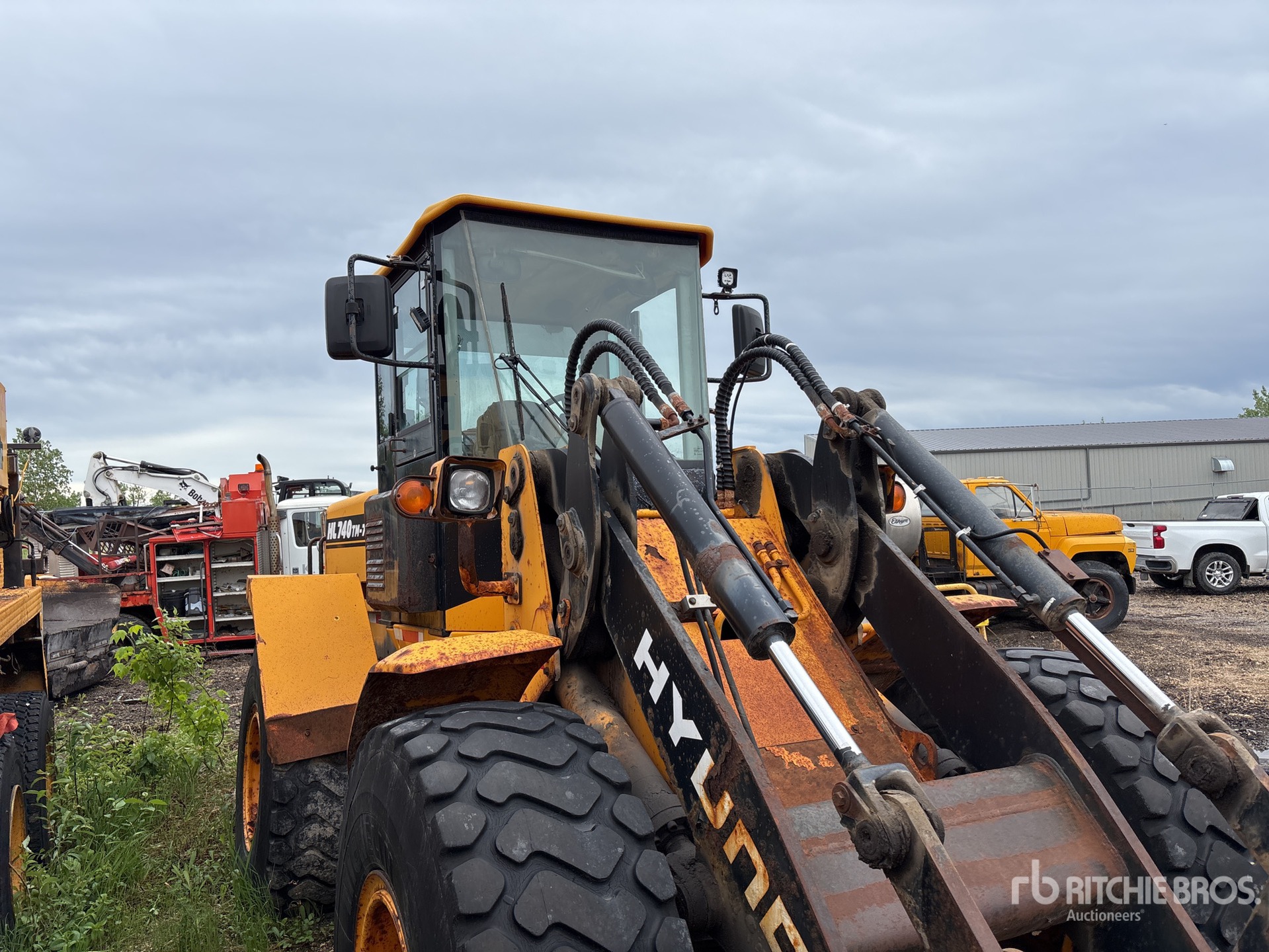

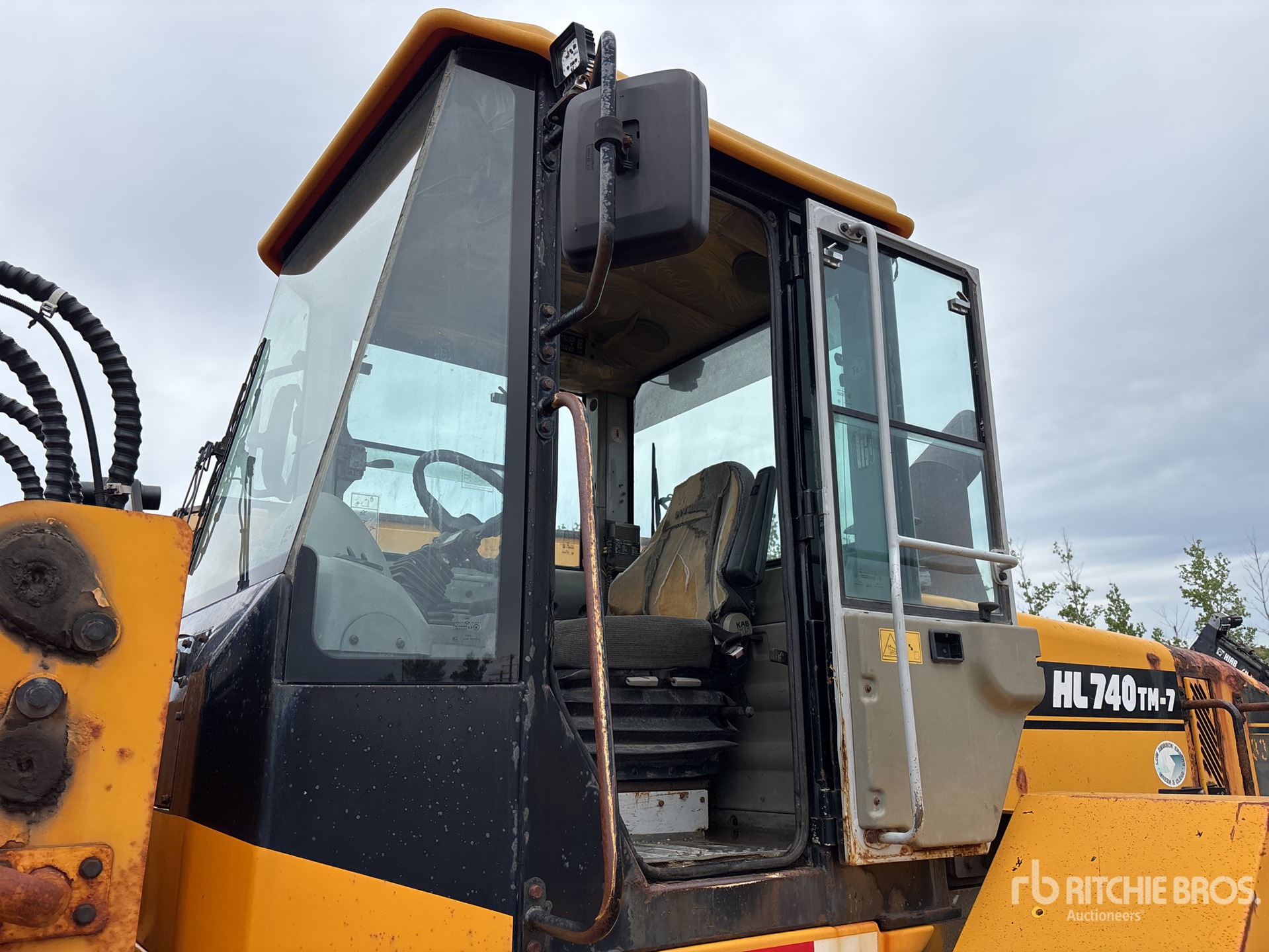

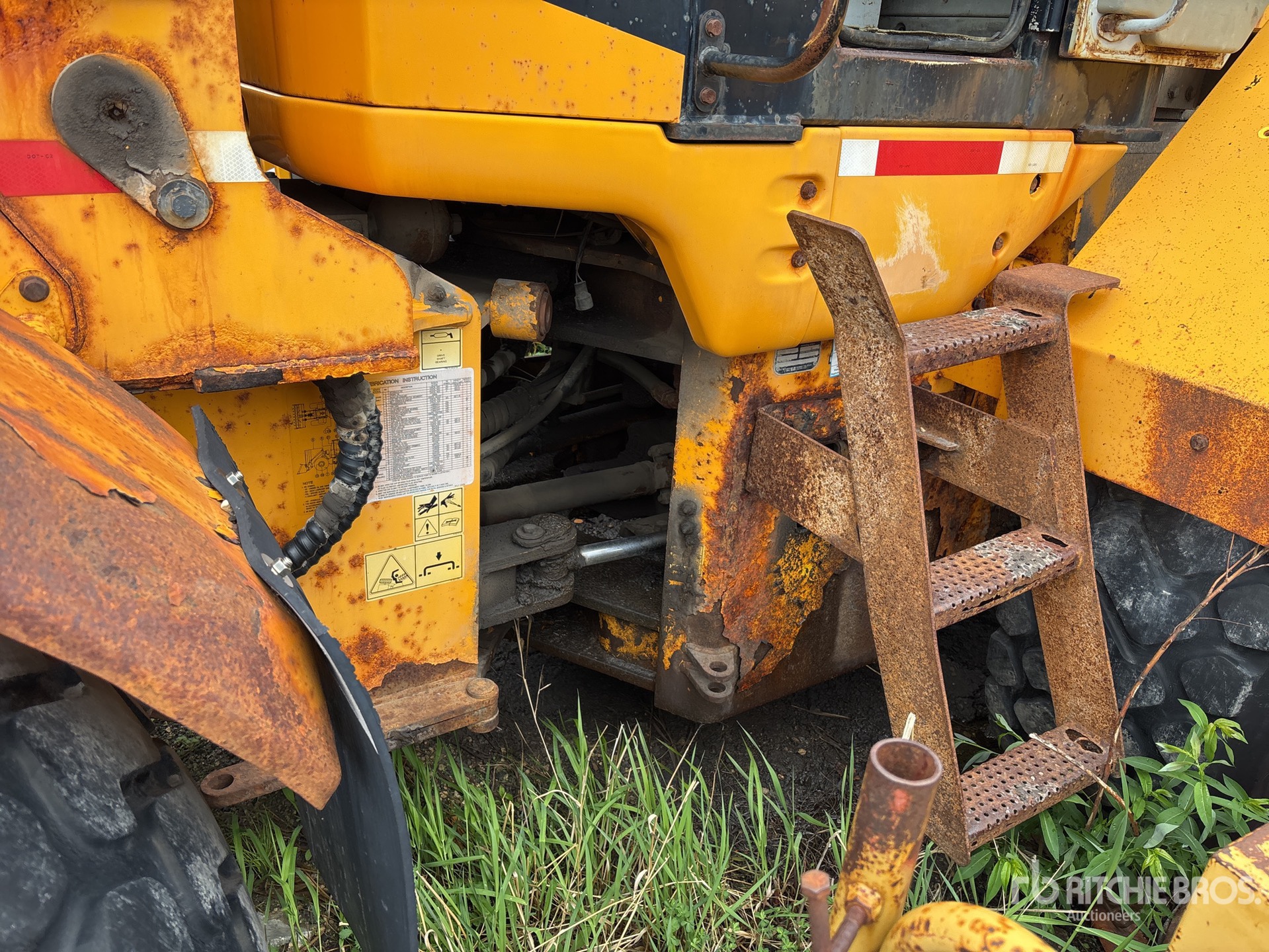

2005 Hyundai HL740TM-7 For Sale in Manitoba, Mb

Name: 2005 Hyundai HL740TM-7
Brand: Hyundai
SKU: 88556797
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

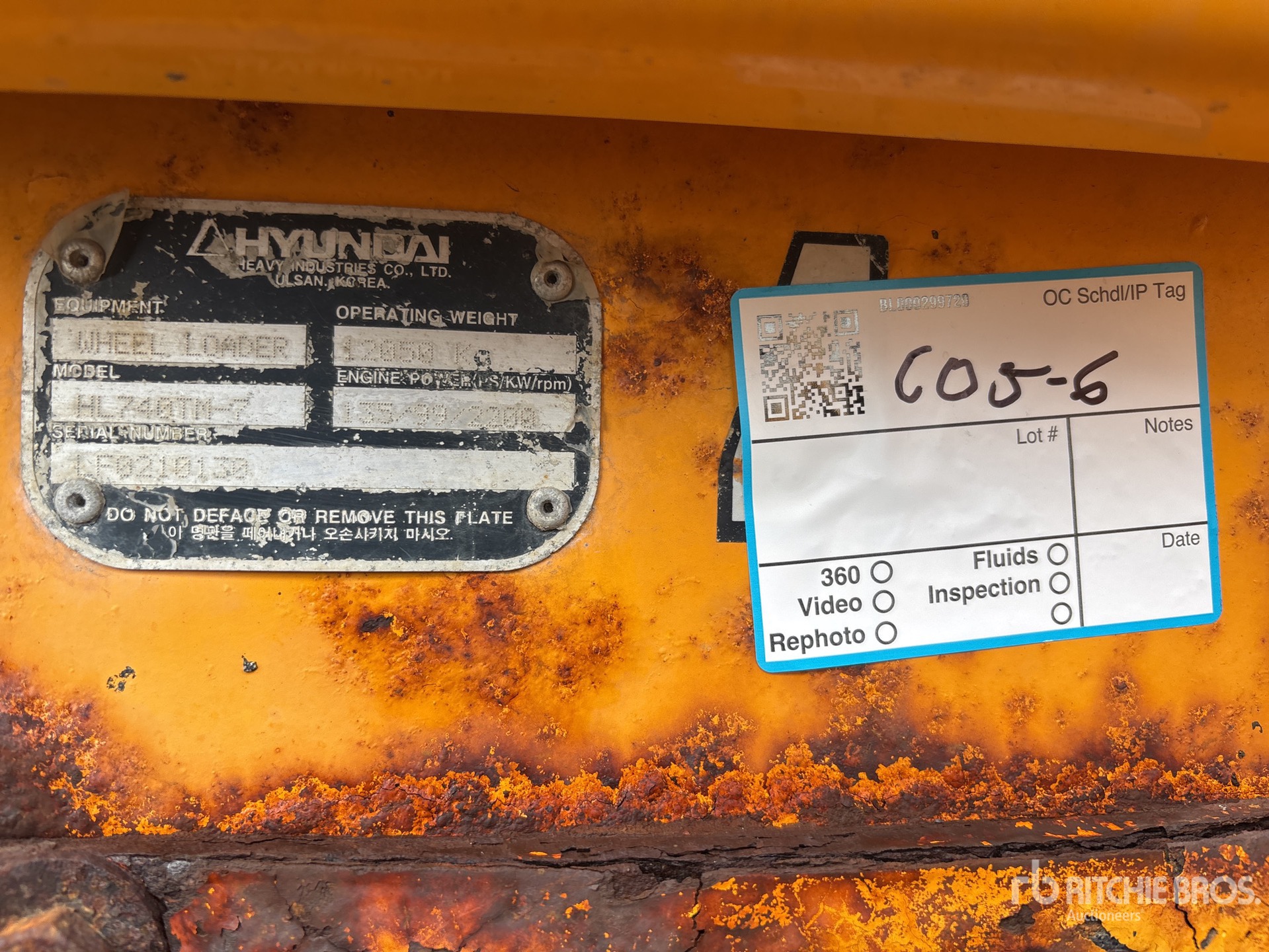

Serial Number:	LF0210130
Machine Location:	MANITOBA, MB

Description:

Enclosed Cab, Air Ride Seat, Autoshift, 104 in Bucket, 20.5R25 Tires For more information, please contact Stan- 204.955.8423 - Item removal deadline: June 25 - Buyer responsible for load out and all associated costs -

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force	23,480 lbs (10,650 kg)
Bucket Capacity - heaped	3 cu yd (2 cu m)
Bucket Capacity - struck	2 cu yd (2 cu m)
Bucket Width	8 ft (3 m)
Dump Clearance at Max Raise	10 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	25 ft (8 m)
Reach at Max Lift and Dump	4 ft (1 m)
Wheelbase	10 ft (3 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	turbocharged
Displacement	360 cu in (5,901 cu cm)
Engine Model	QSB5.9-C
Gross Power	133 hp (99 kw)
Net Power	140 hp (104 kw)
Power Measured @	2,200 rpm
Torque Measured @	1,500 rpm
Hydraulic System
Dump Time	1 seconds
Lower Time	3 seconds
Pump Flow Capacity	47 gpm (177 lpm)
Pump Type	open-centered tandem circuit system
Raise Time	6 seconds
Relief Valve Setting	3,130 psi
Operating Specifications
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	9 gal (35 l)
Engine Oil Fluid Capacity	4 gal (16 l)
Front Axle/Diff Fluid Capacity	6 gal (22 l)
Fuel Capacity	60 gal (228 l)
Hydraulic System Fluid Capacity	44 gal (165 l)
Operating Voltage	24 volts
Operating Weight	26,566 lbs (12,050 kg)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	6 gal (22 l)
Static Tipping Weight	17,530 lbs (7,951 kg)
Tire Size	20.5-25 16 PR L3
Transmission Fluid Capacity	6 gal (24 l)
Transmission
Max Speed - Forward	24 mph (38 kph)
Max Speed - Reverse	16 mph (25 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	3-elements single-stage single phase
